Factory parts data · Europe

Toyota Yaris/Echo Verso

1999-08 → 2005-09 · chassis NCP2#,NLP2# · catalogue 114210 · Europe

Discontinued model Data version 2006-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Fog Lamp

4 part groups · 3 illustrations

Illustrations

811280 1999-08 → 2002-11

811281 1999-08 → 2002-11

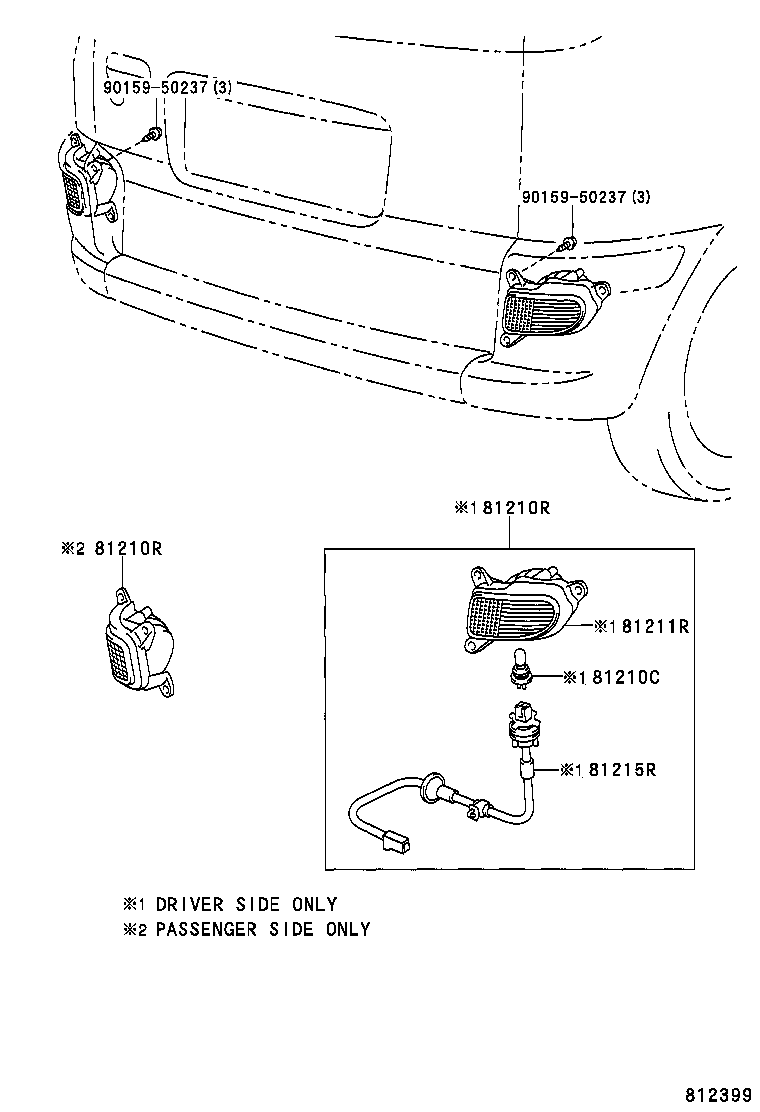

812399 2002-11 → 2005-09

Part groups

PNC	Description
81210C	Bulb, Rear Fog Lamp
81210R	Lamp Assy, Rear Fog
81211R	Lens, Rear Fog Lamp
81215R	Socket & Wire, Rear Fog Lamp

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
