Toyota Yaris/Echo Verso

1999-08 → 2005-09 · chassis NCP2#,NLP2# · catalogue 114210 · Europe

Discontinued model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

34 part groups · 13 illustrations

Illustrations

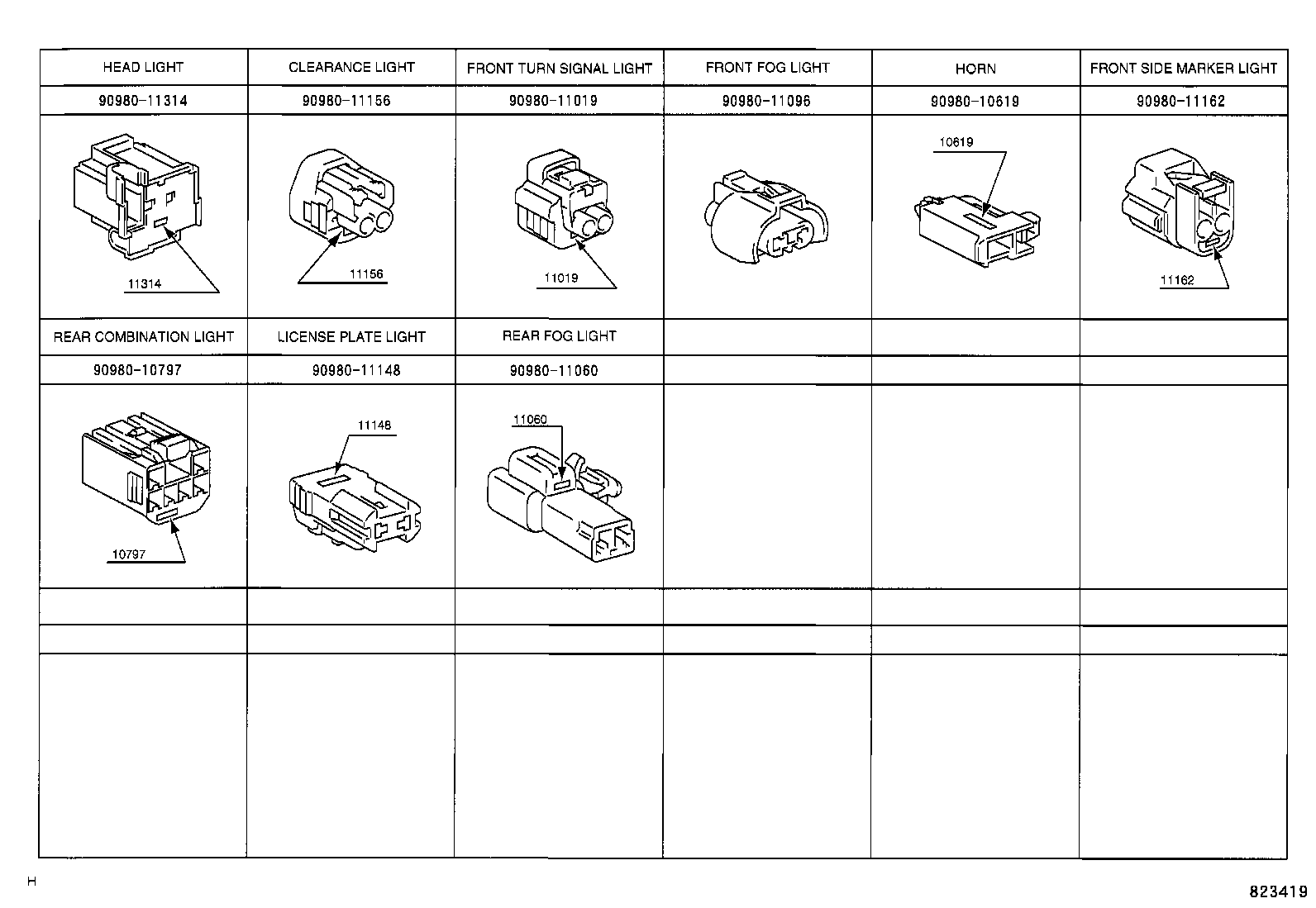

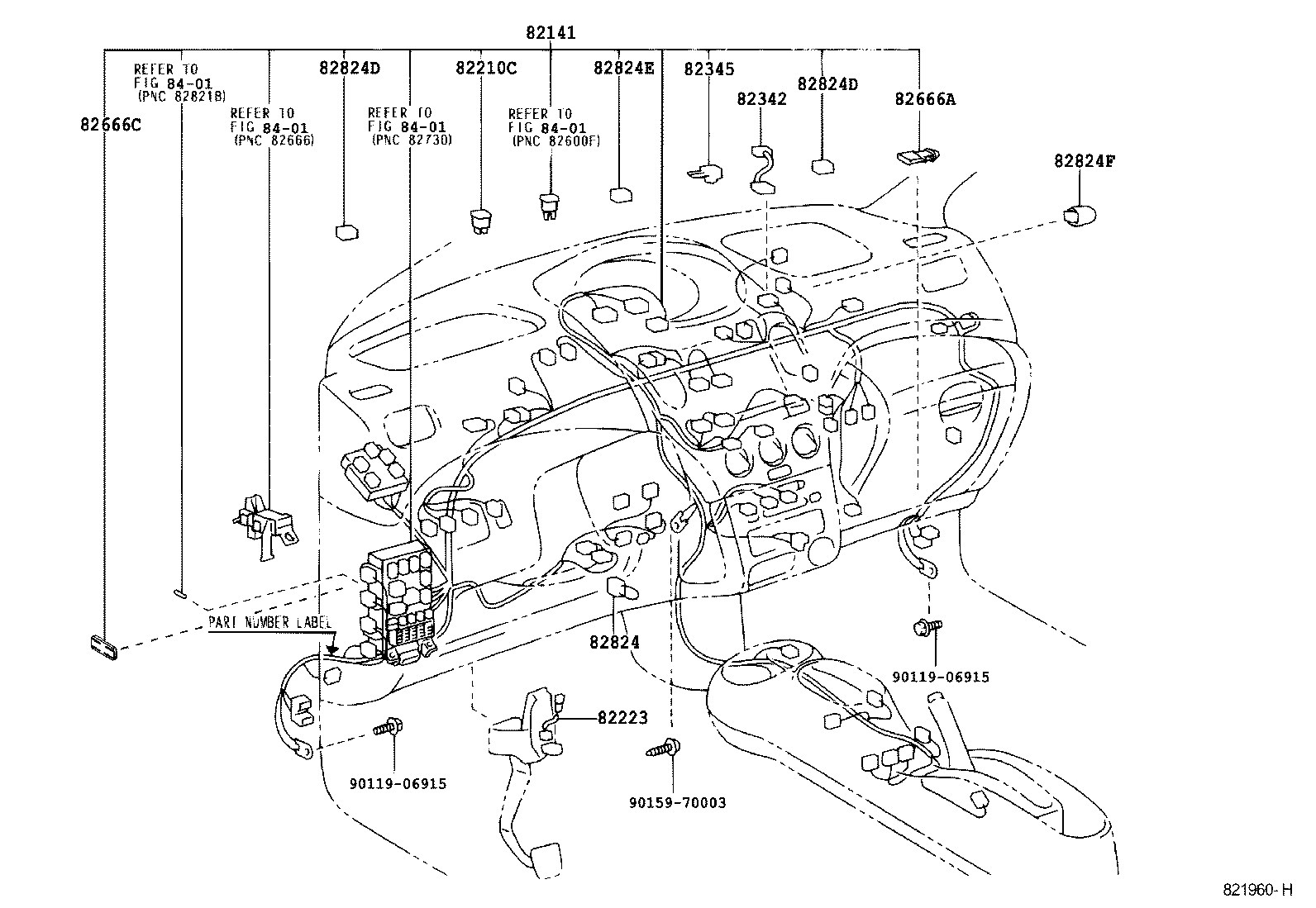

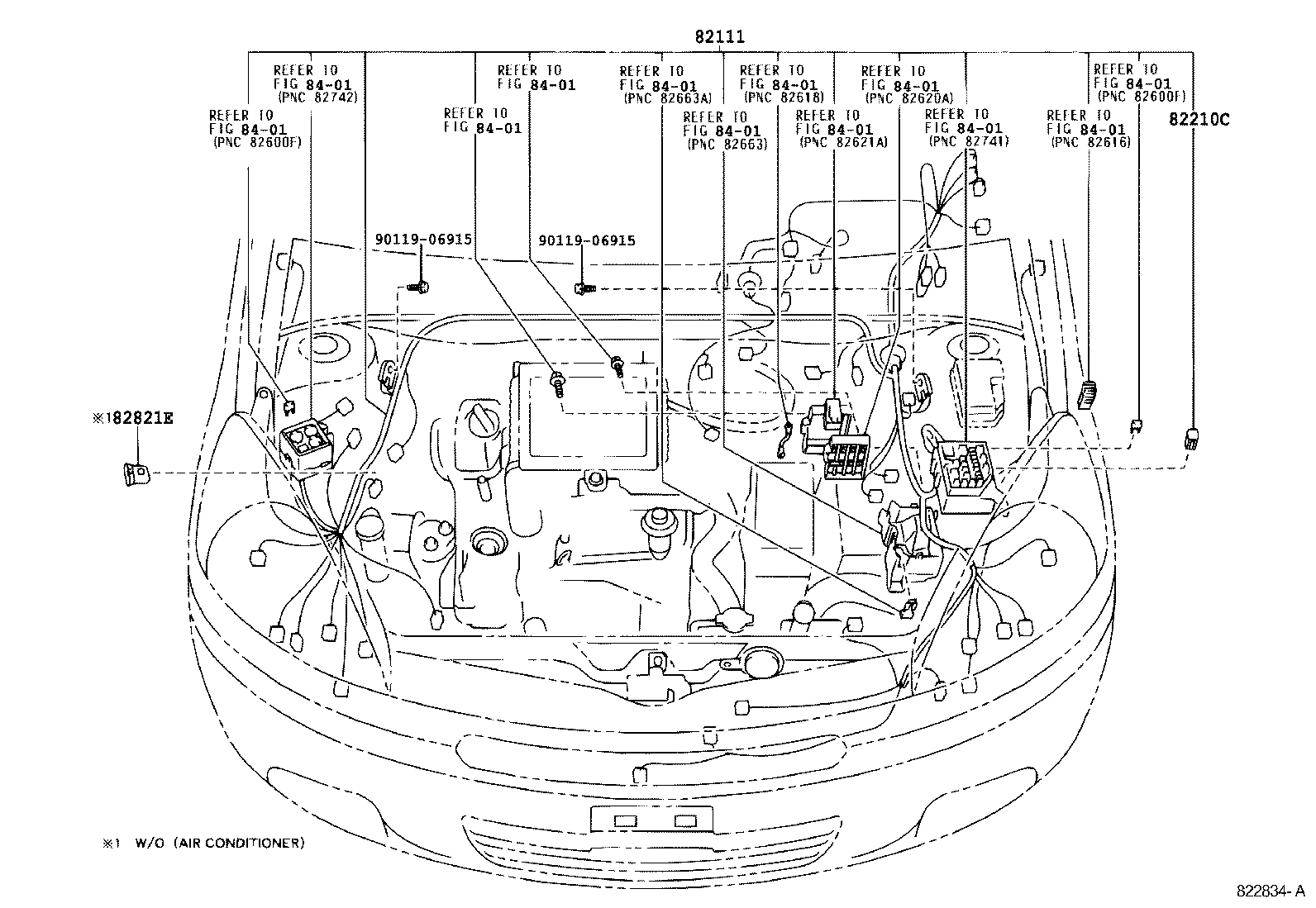

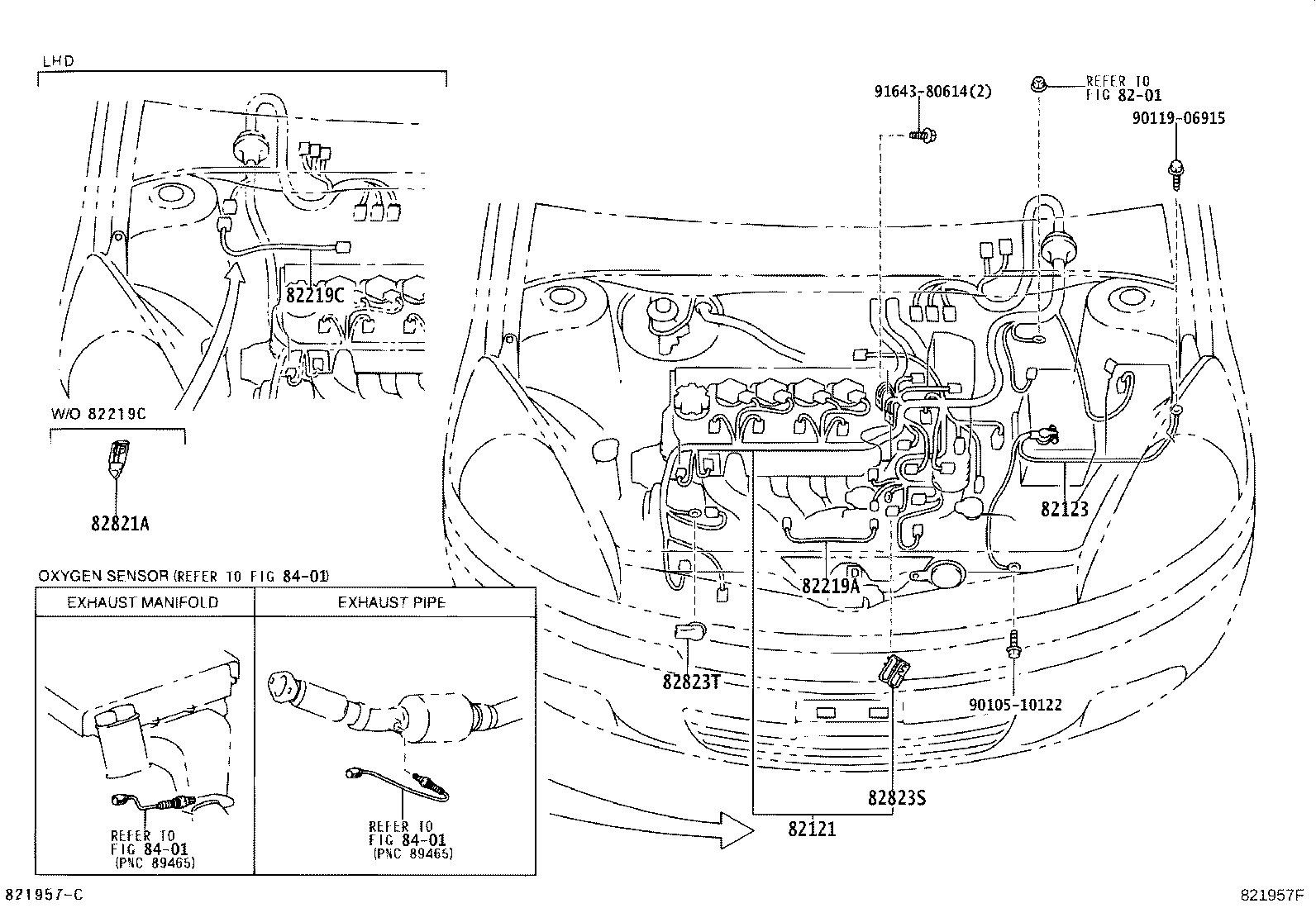

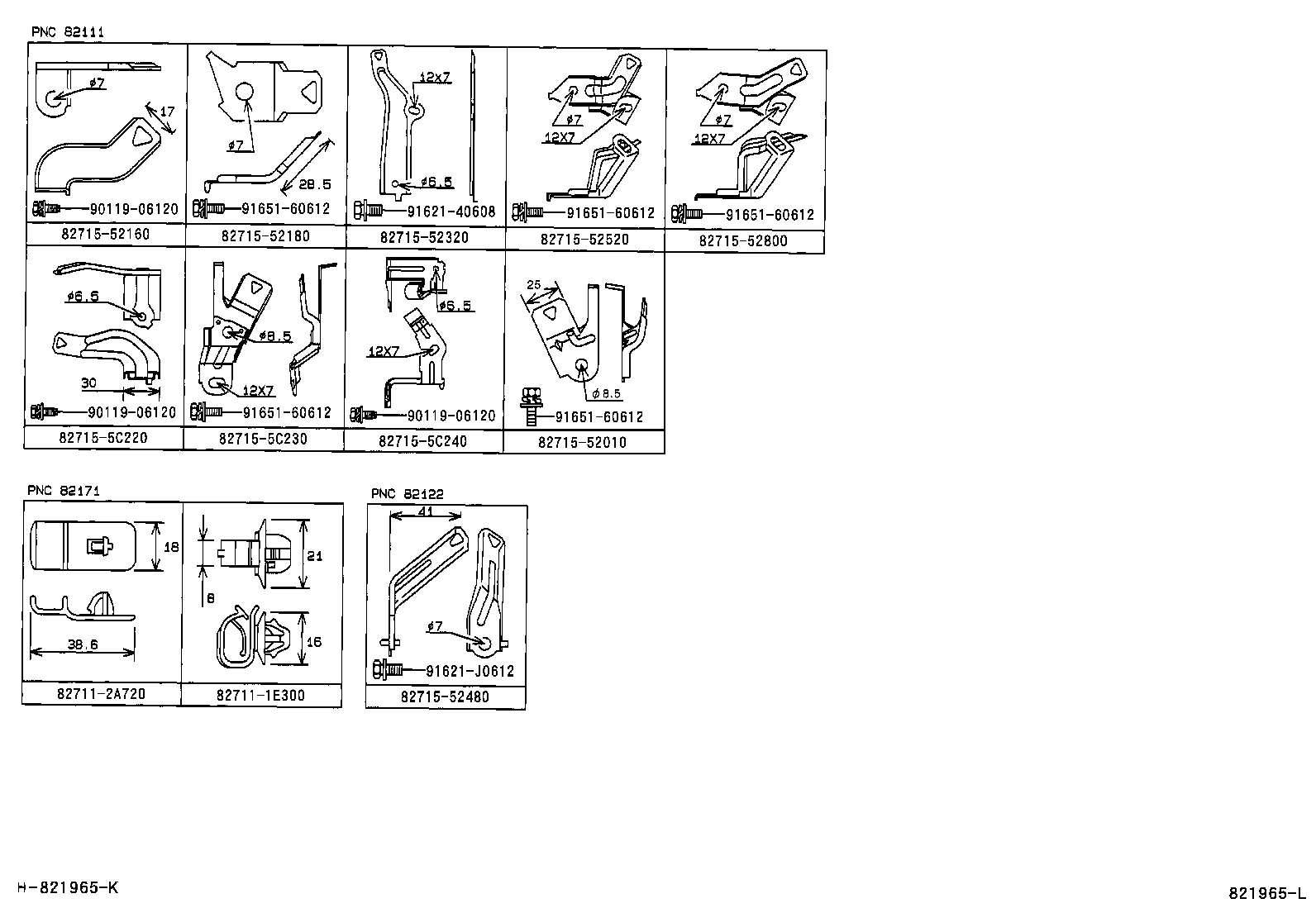

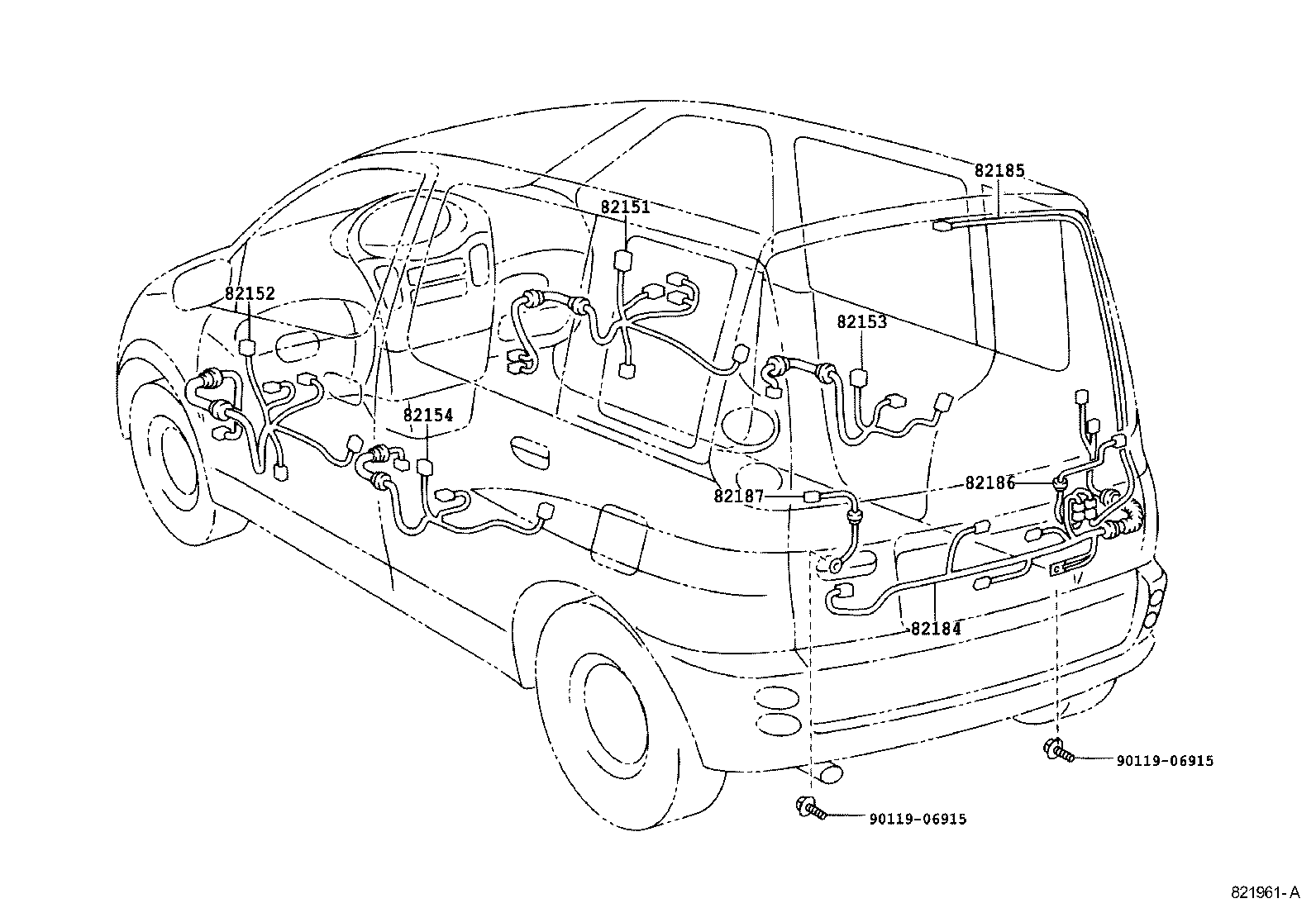

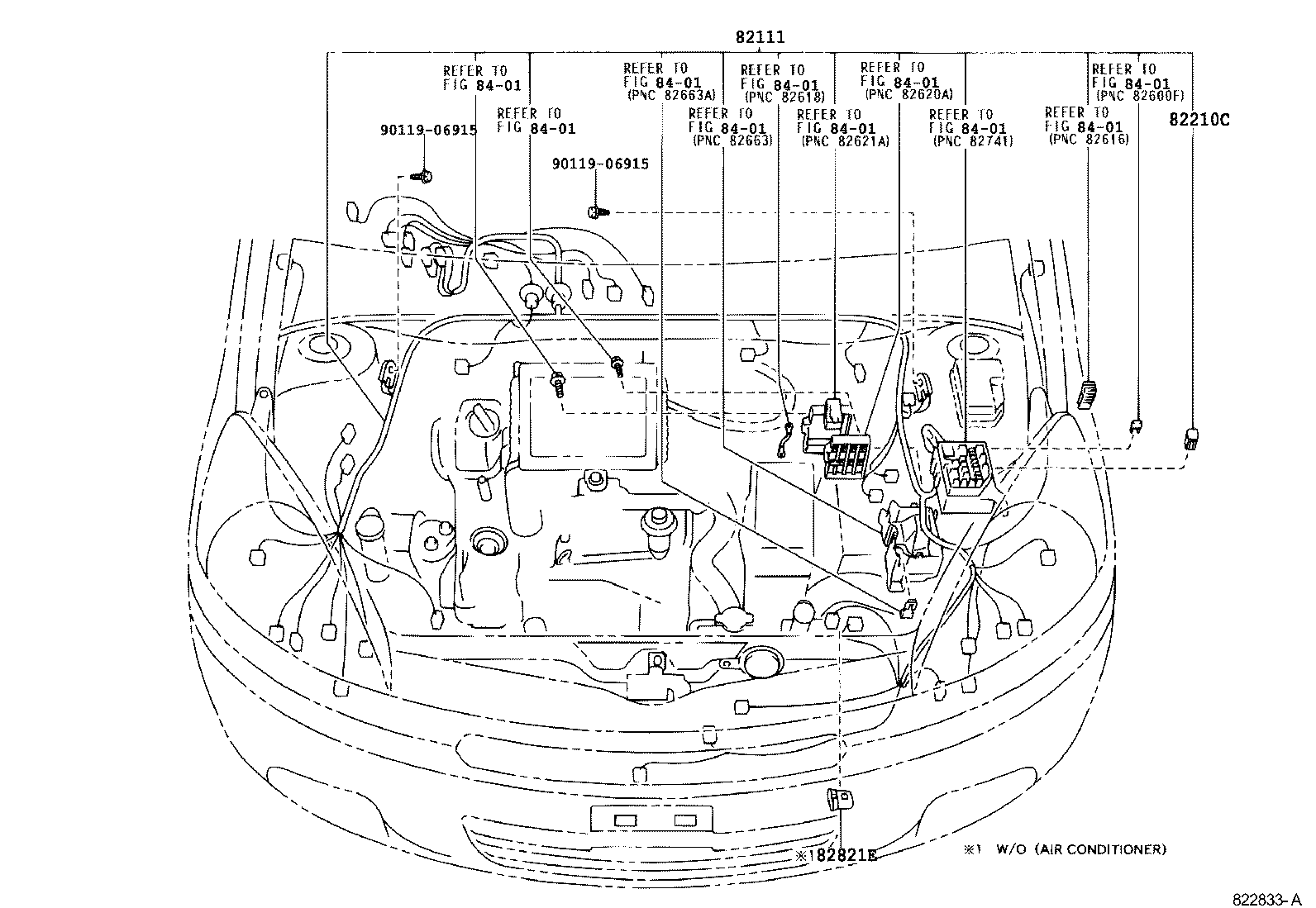

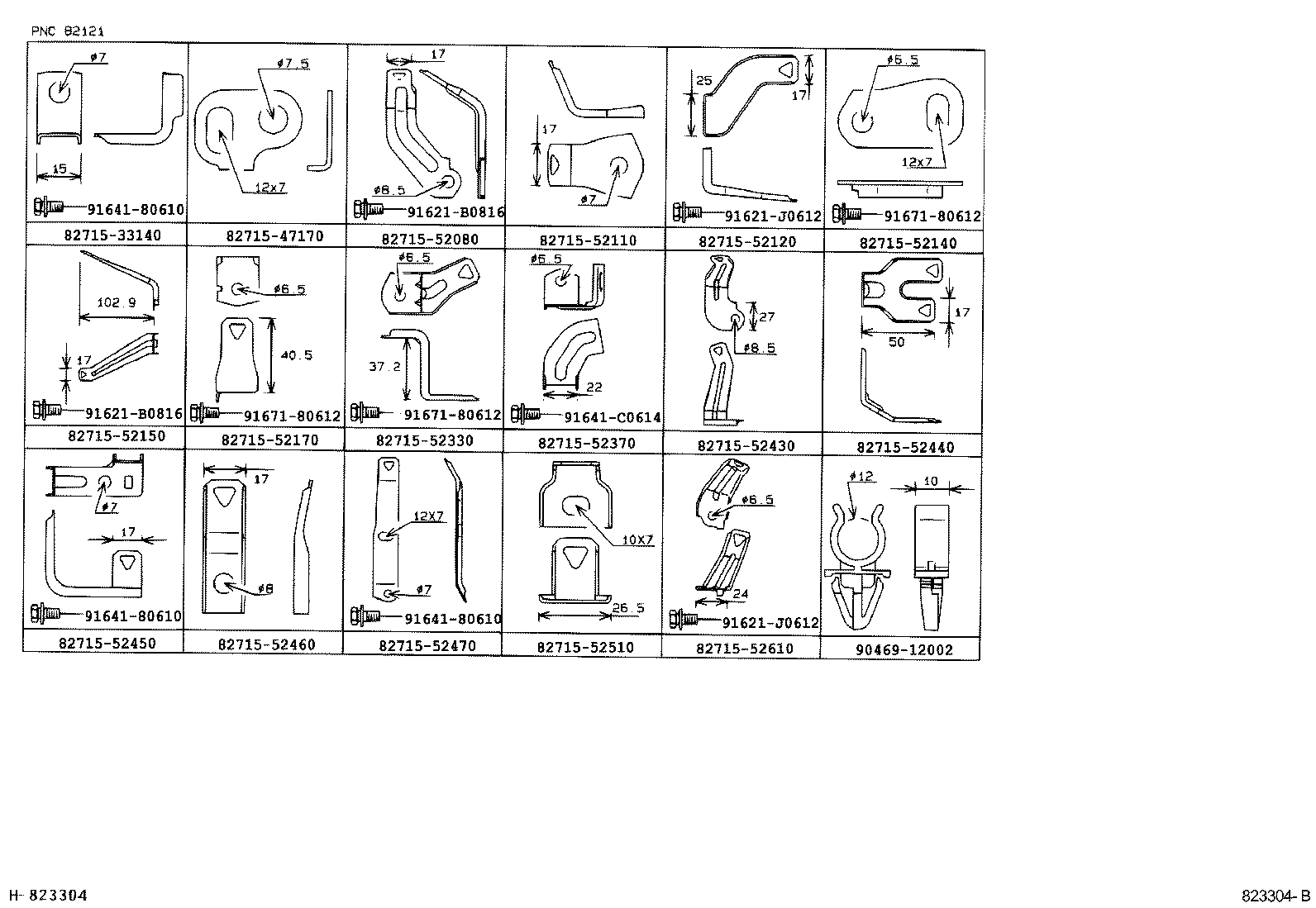

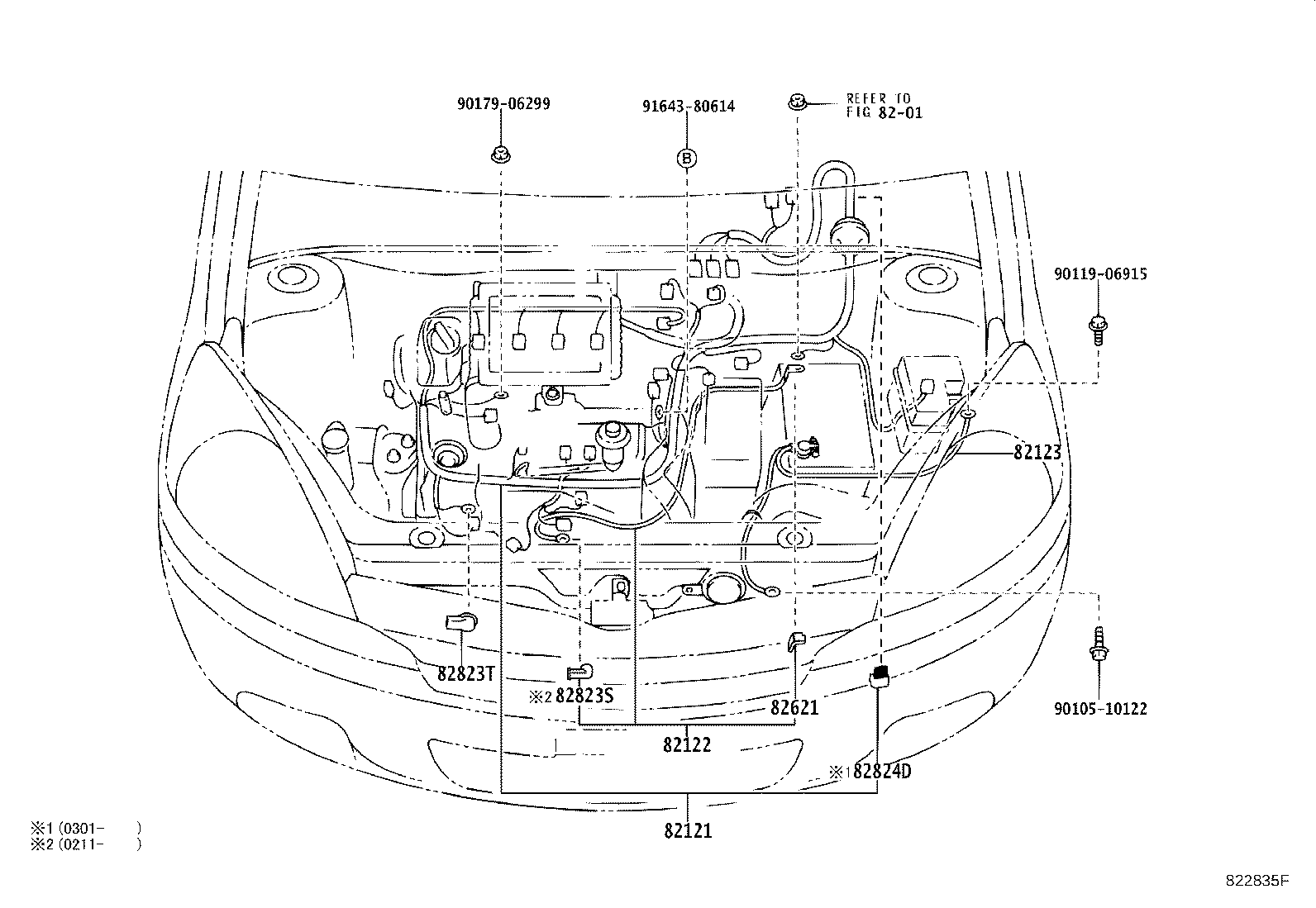

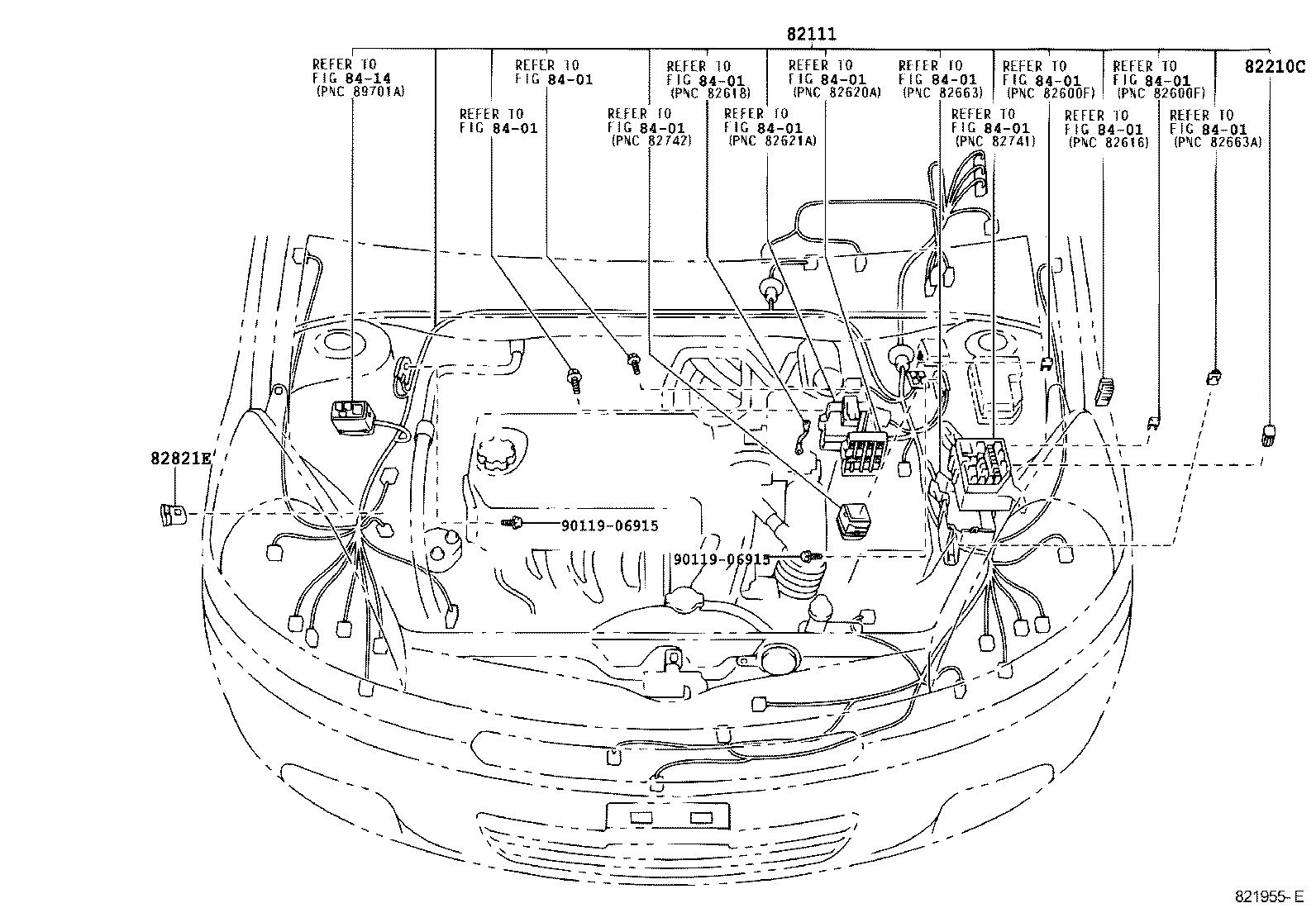

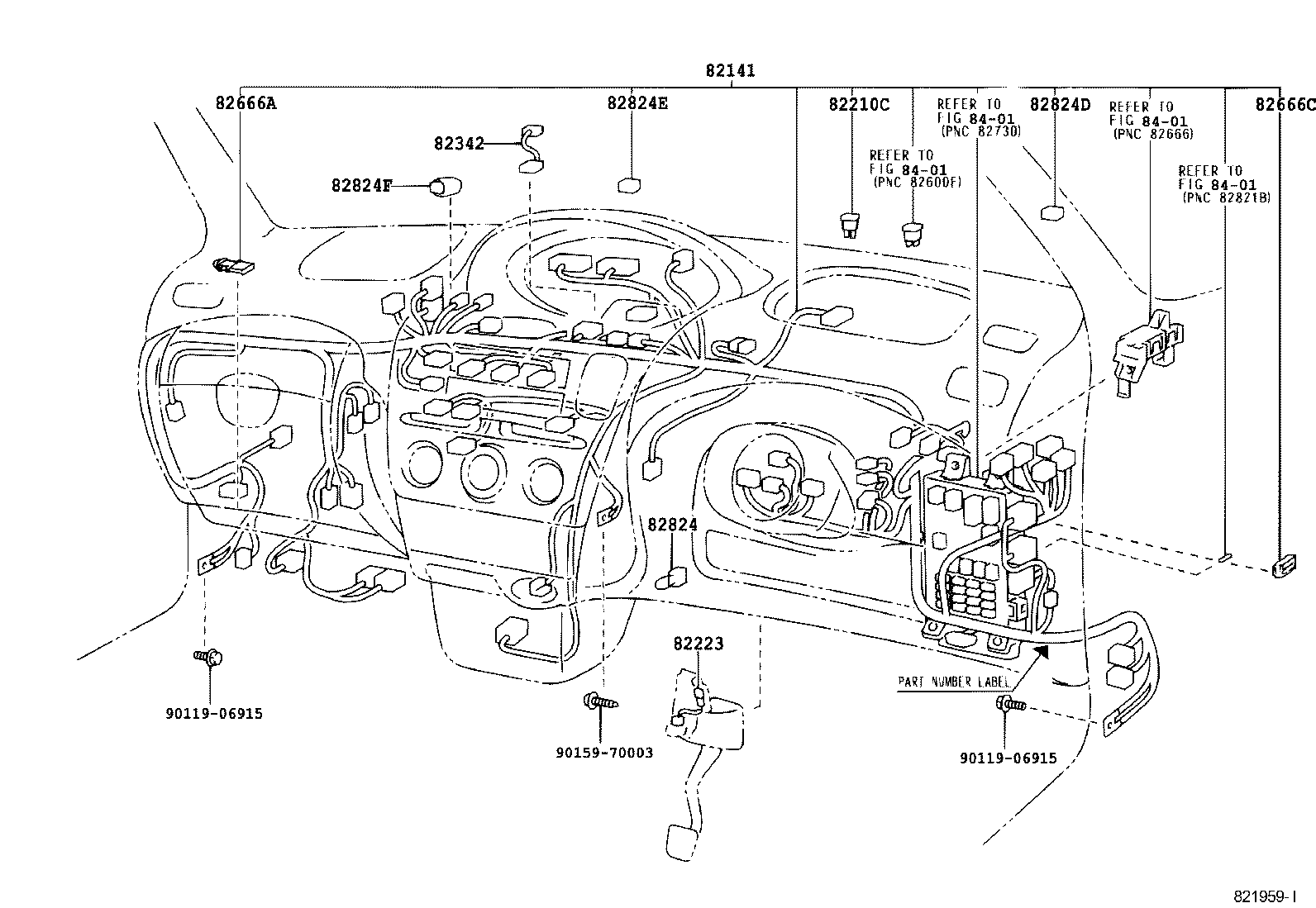

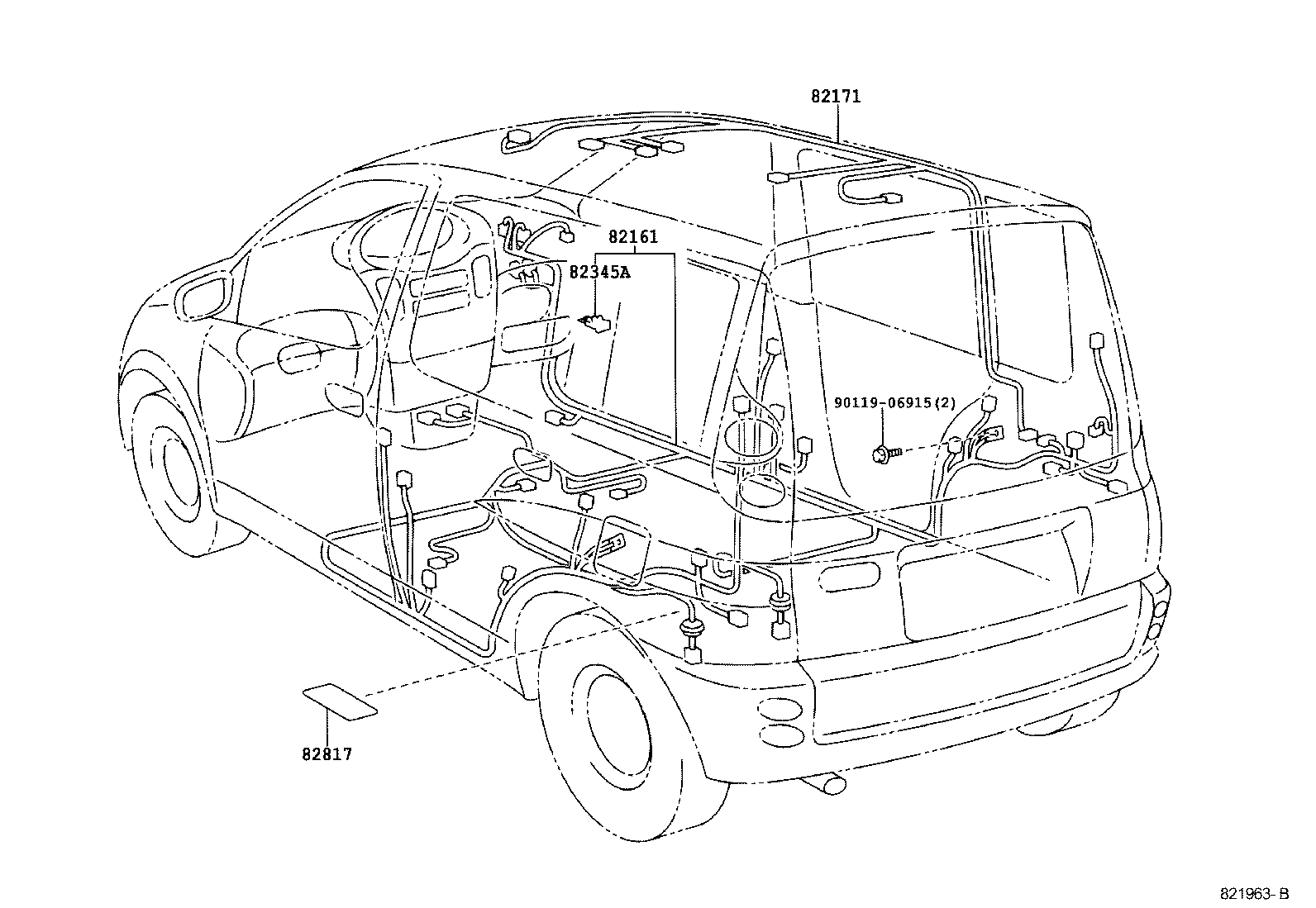

Figure 821953D 821953D 1999-08 → — Figure 821955E 821955E 1999-08 → — Figure 822833A 822833A 2001-10 → — Figure 822834A 822834A 2001-10 → — Figure 821957F 821957F 1999-08 → — Figure 822835F 822835F 2001-10 → — Figure 821959I 821959I 1999-08 → — Figure 821960H 821960H 1999-08 → — Figure 821961A 821961A 1999-08 → — Figure 821963B 821963B 1999-08 → — Figure 821965L 821965L 1999-08 → — Figure 823304B 823304B 1999-08 → — Figure 823419 823419 1999-08 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82219A Wire, Sensor
82219C Wire, Sensor
82223 Wire, Switch
82342 Wire, Clock
82345 Diode
82345A Diode
82621 Cover, Fusible Link
82666A Holder, Connector NO.2
82666C Holder, Connector NO.4
82817 Protector, Wiring Harness, NO.1
82821A Cover, Connector
82821E Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
