Toyota Yaris/Echo Verso

1999-08 → 2005-09 · chassis NCP2#,NLP2# · catalogue 114210 · Europe

Discontinued model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

17 part groups · 7 illustrations

Illustrations

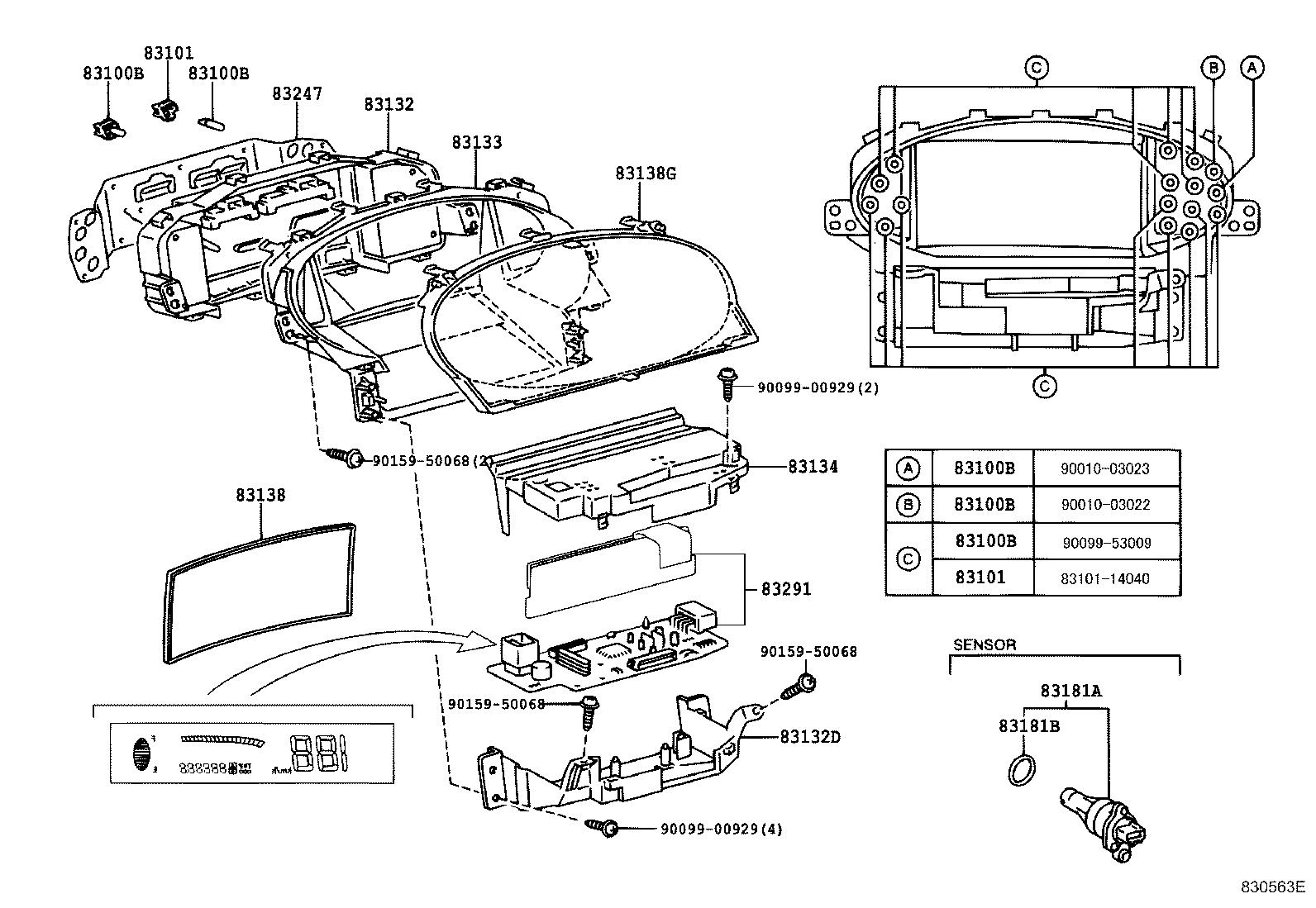

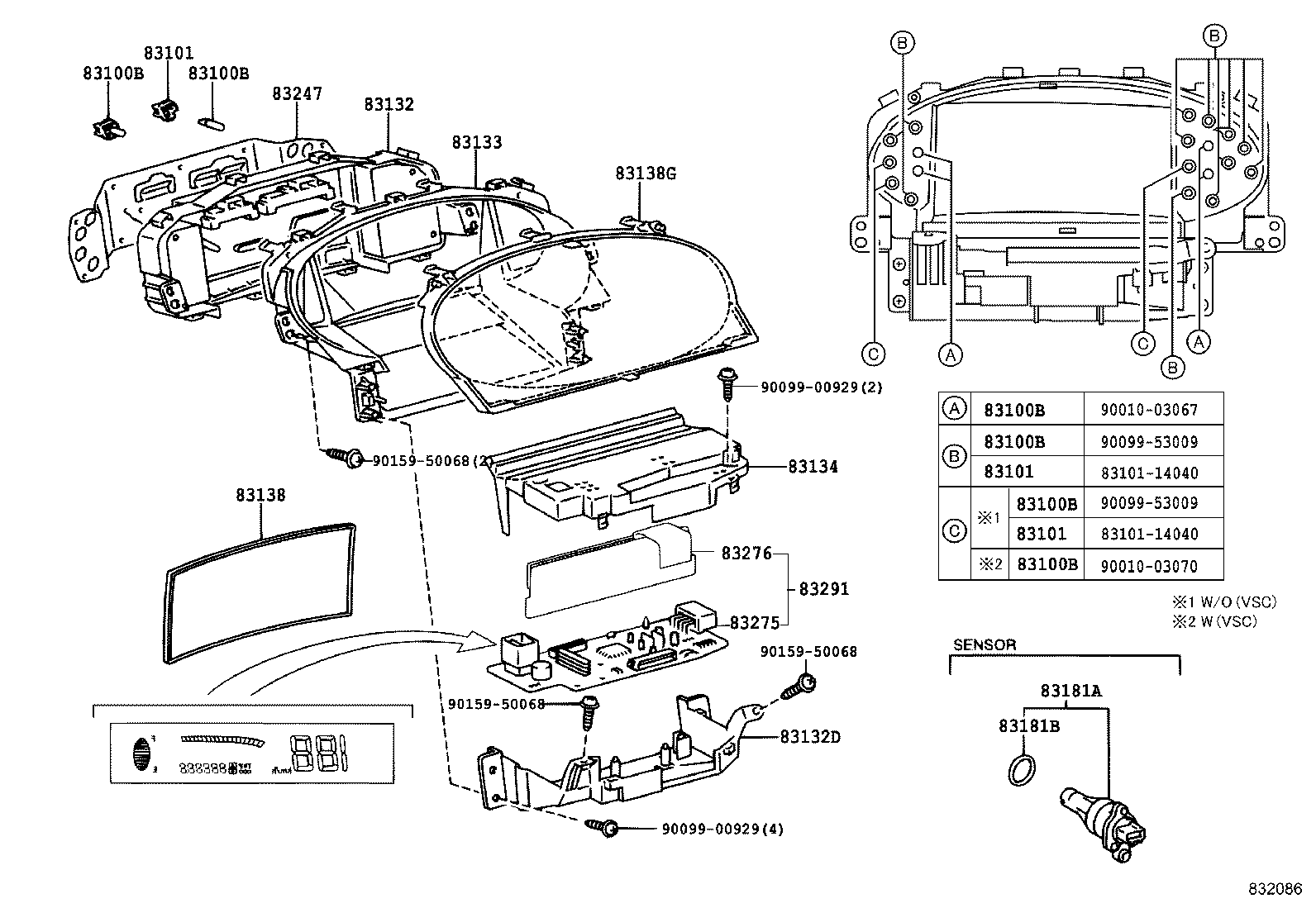

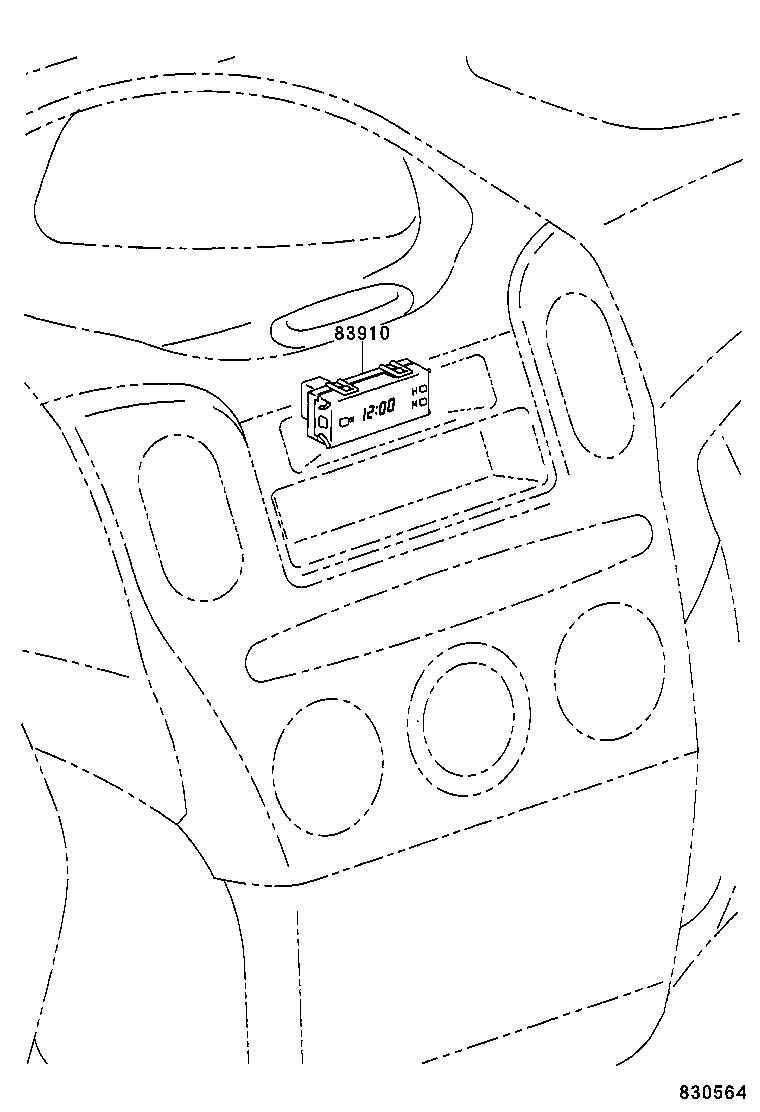

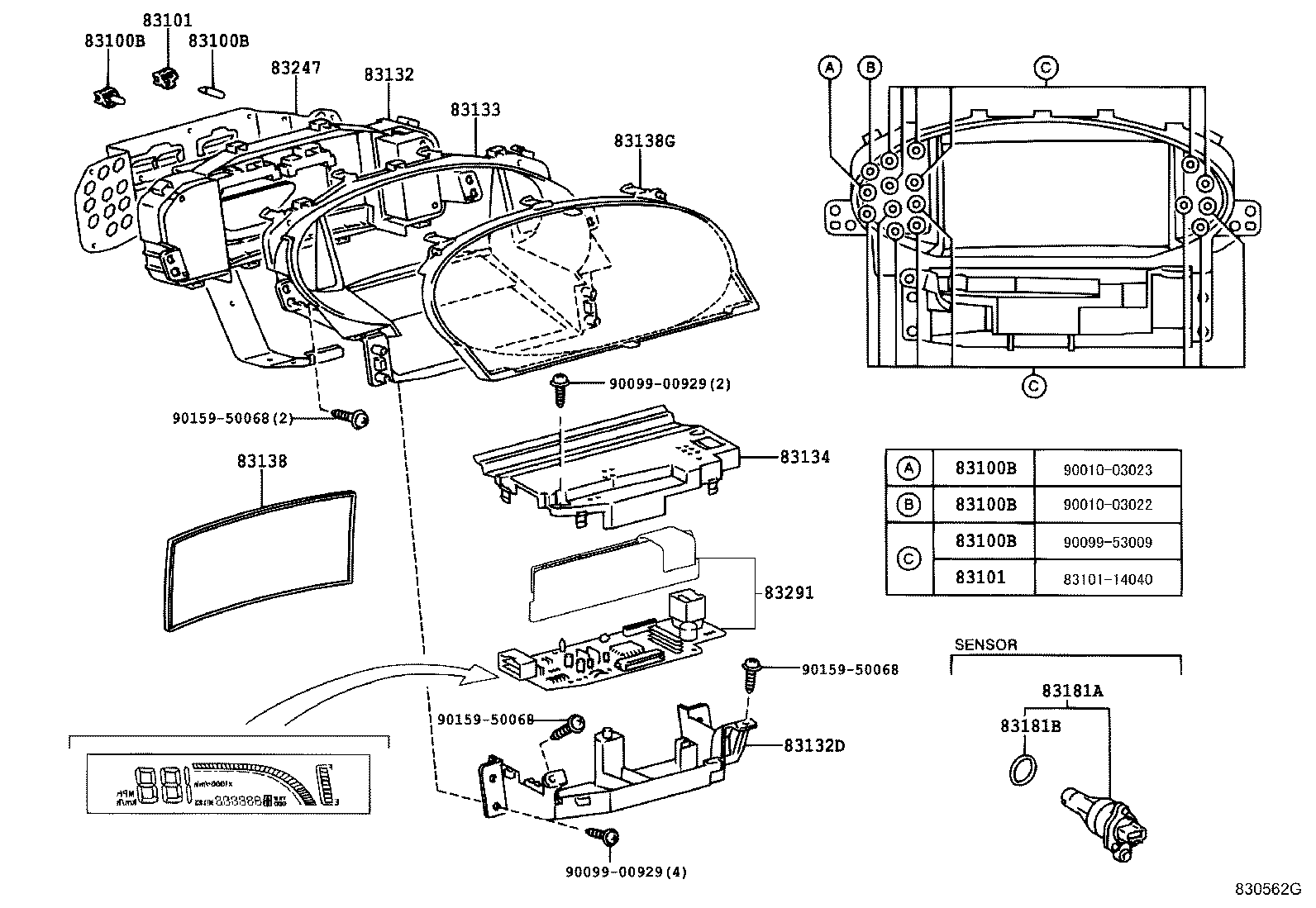

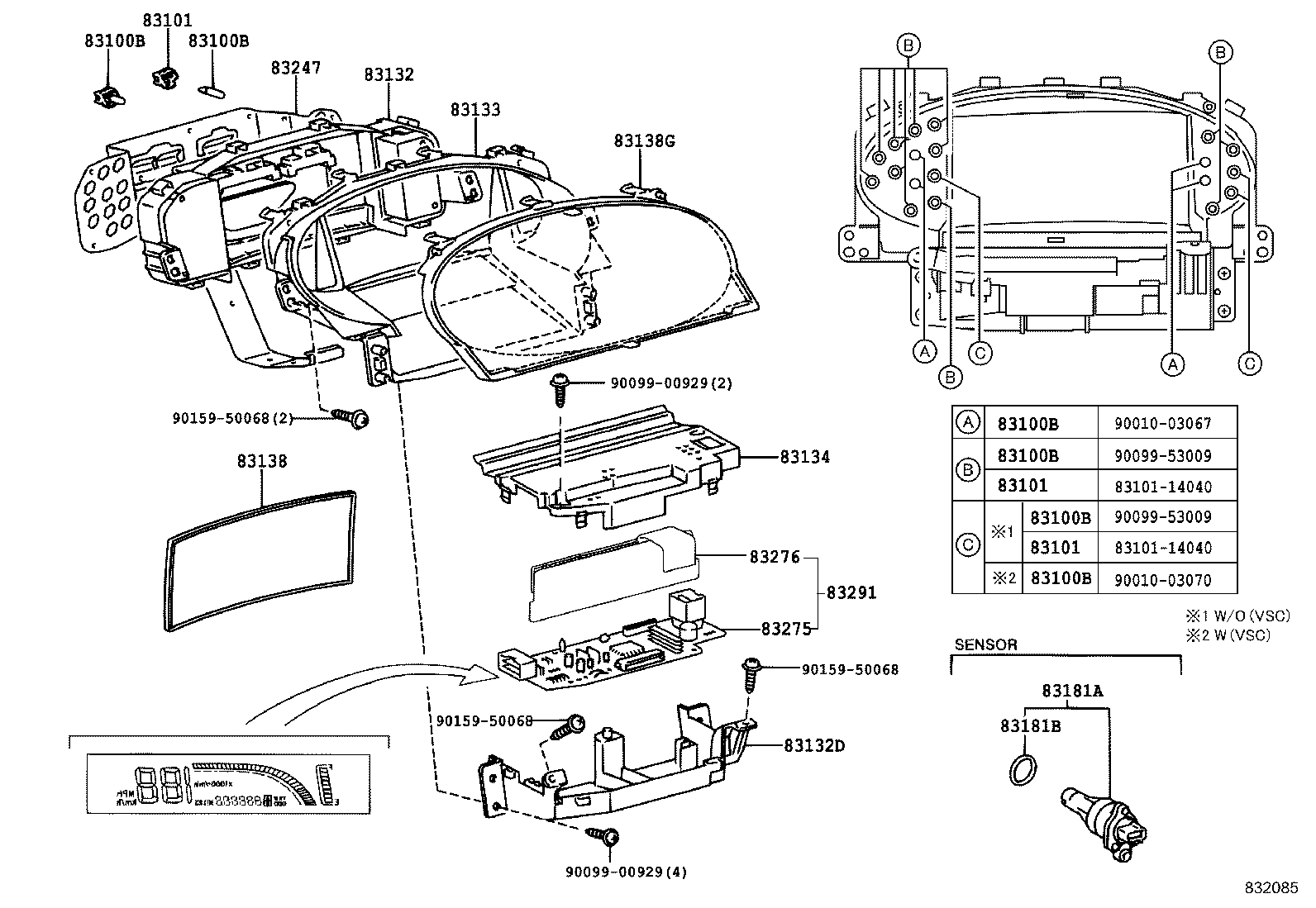

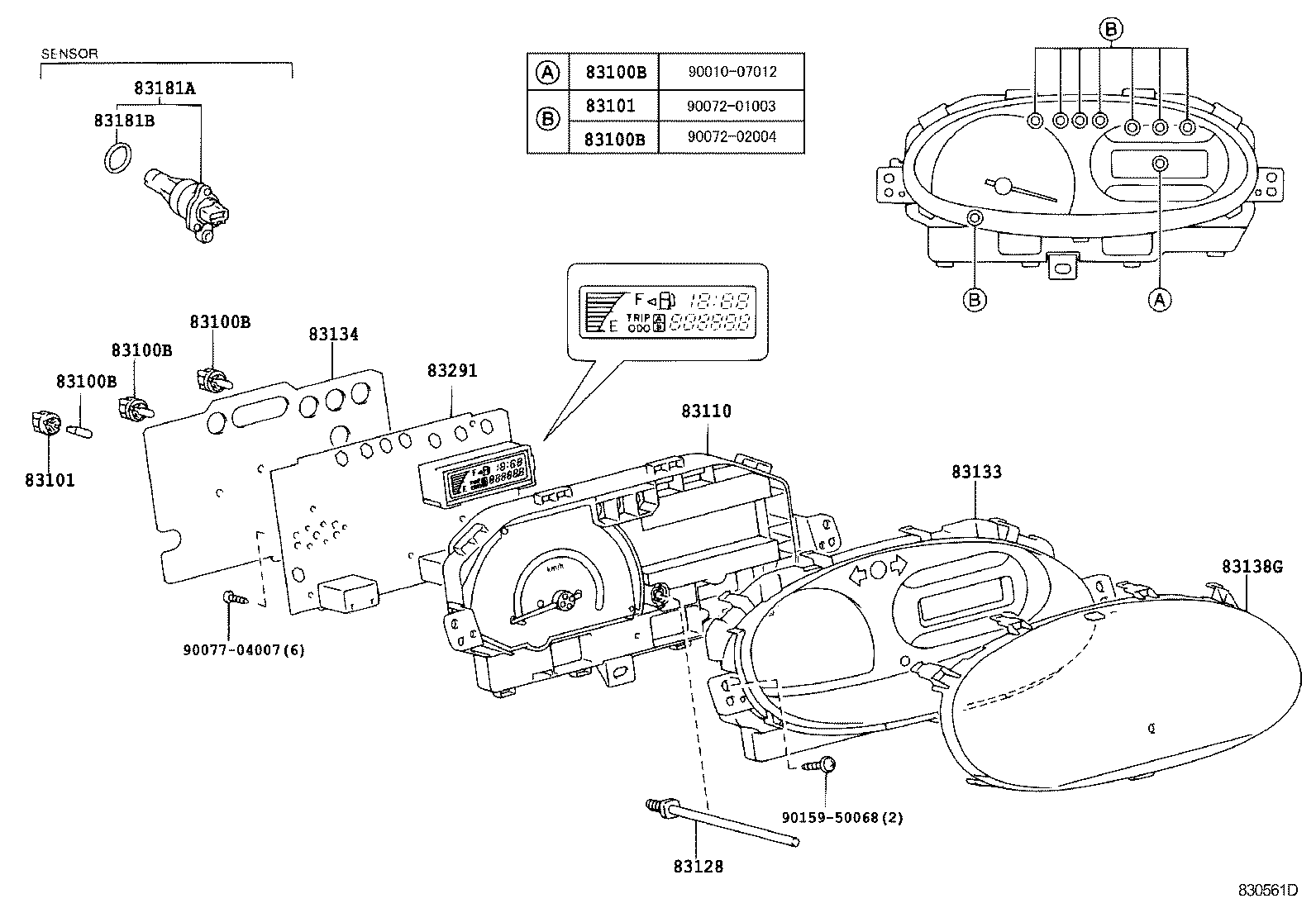

Figure 830559D 830559D 1999-08 → 2002-11 Figure 830561D 830561D 1999-08 → 2002-11 Figure 830562G 830562G 1999-08 → 2002-11 Figure 830563E 830563E 1999-08 → 2002-11 Figure 832085 832085 2002-11 → — Figure 832086 832086 2002-11 → — Figure 830564 830564 1999-08 → 2005-09

Part groups

PNCDescription
83100B Bulb, Combination Meter, NO.1
83101 Socket Sub-assy, Combination Meter Bulb
83110 Speedometer Assy
83128 Knob, Trip Counter
83132 Case, Combination Meter
83132D Case, Combination Meter, NO.2
83133 Plate, Combination Meter, NO.1
83134 Cover, Combination Meter, NO.1
83138 Glass, Speedometer
83138G Glass, Combination Meter
83181A Sensor, Speedometer
83181B Ring, O (FOR SPEEDOMETER SENSOR)
83247 Plate, Meter Circuit
83275 Plate,Computer Meter Circuit NO.1
83276 Plate,Computer Meter Circuit NO.2
83291 Computer, Combination Meter
83910 Clock Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
