Toyota Yaris/Echo Verso

1999-08 → 2005-09 · chassis NCP2#,NLP2# · catalogue 114210 · Europe

Discontinued model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Controled Diesel (ECD)

7 part groups · 2 illustrations

Illustrations

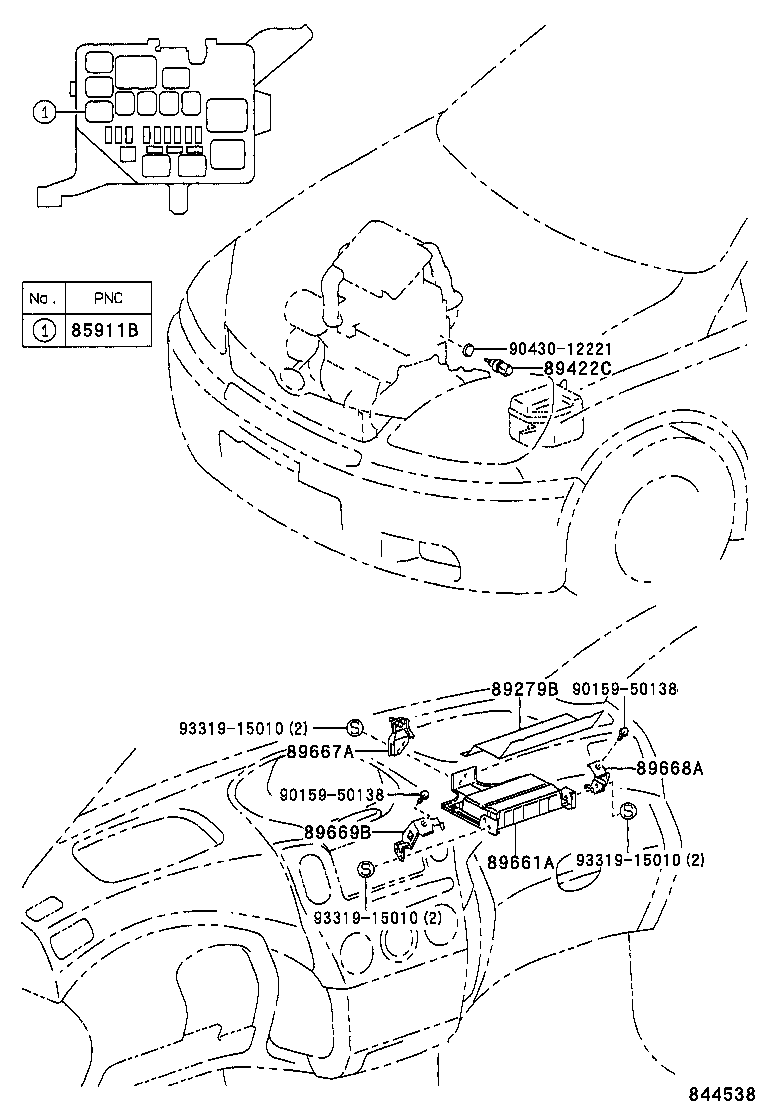

Figure 844537 844537 2001-10 → 2005-09 Figure 844538 844538 2001-10 → 2005-09

Part groups

PNCDescription
85911B Relay, Computer (FOR DIESEL TURBO)
89279B Cover, Diesel Engine Control Computor
89422C Sensor, Diesel Engine Water Temperature
89661A Computer, Engine Control
89667A Bracket, Engine Control Computer, NO.1
89668A Bracket, Engine Control Computer, NO.2
89669B Bracket, Engine Control Computer, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
