Toyota Yaris/Echo Verso

1999-08 → 2005-09 · chassis NCP2#,NLP2# · catalogue 114210 · Europe

Discontinued model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

10 part groups · 6 illustrations

Illustrations

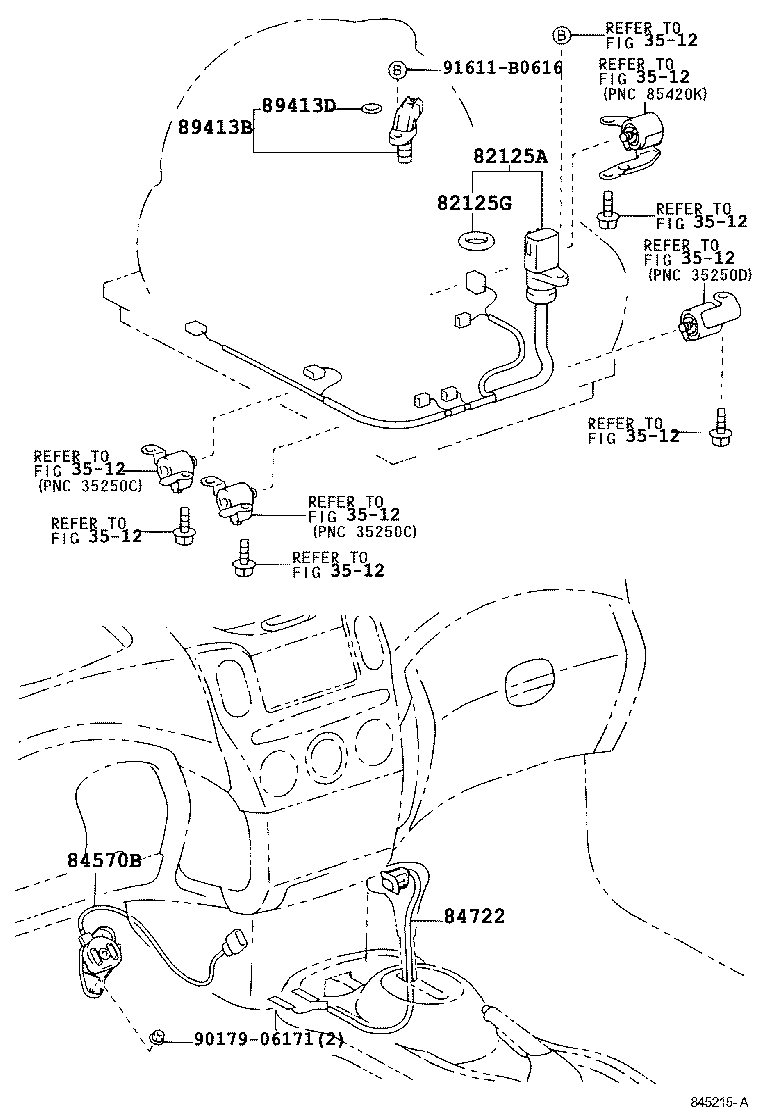

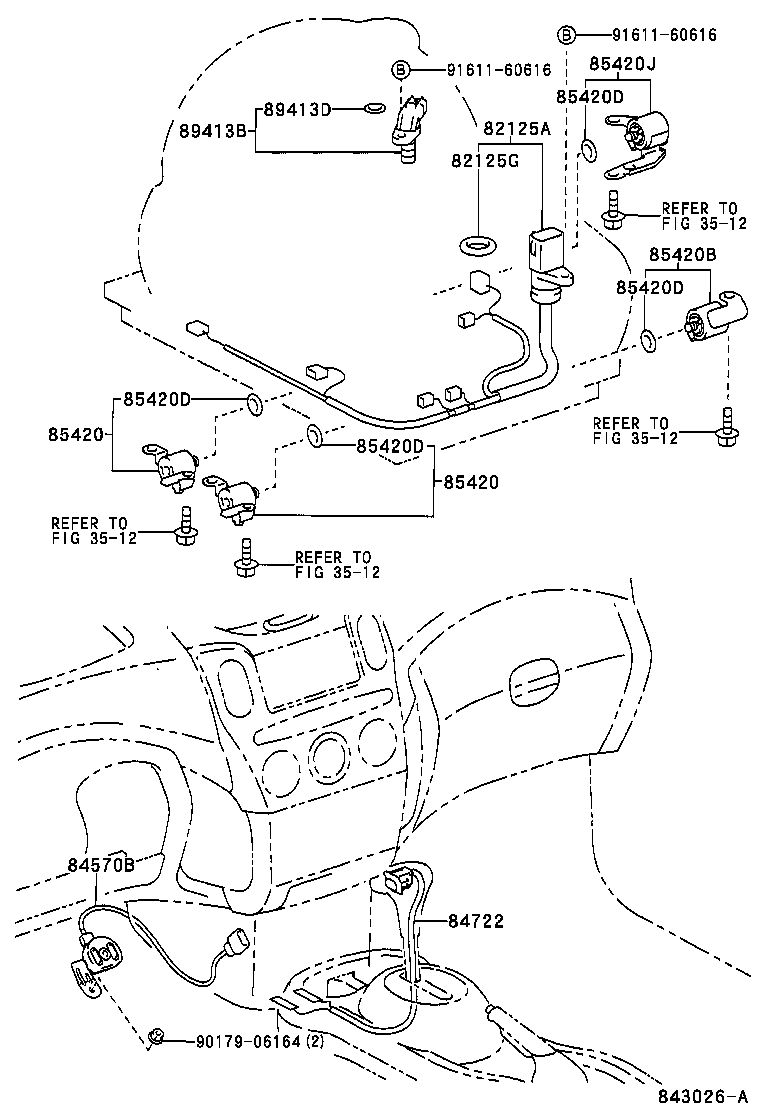

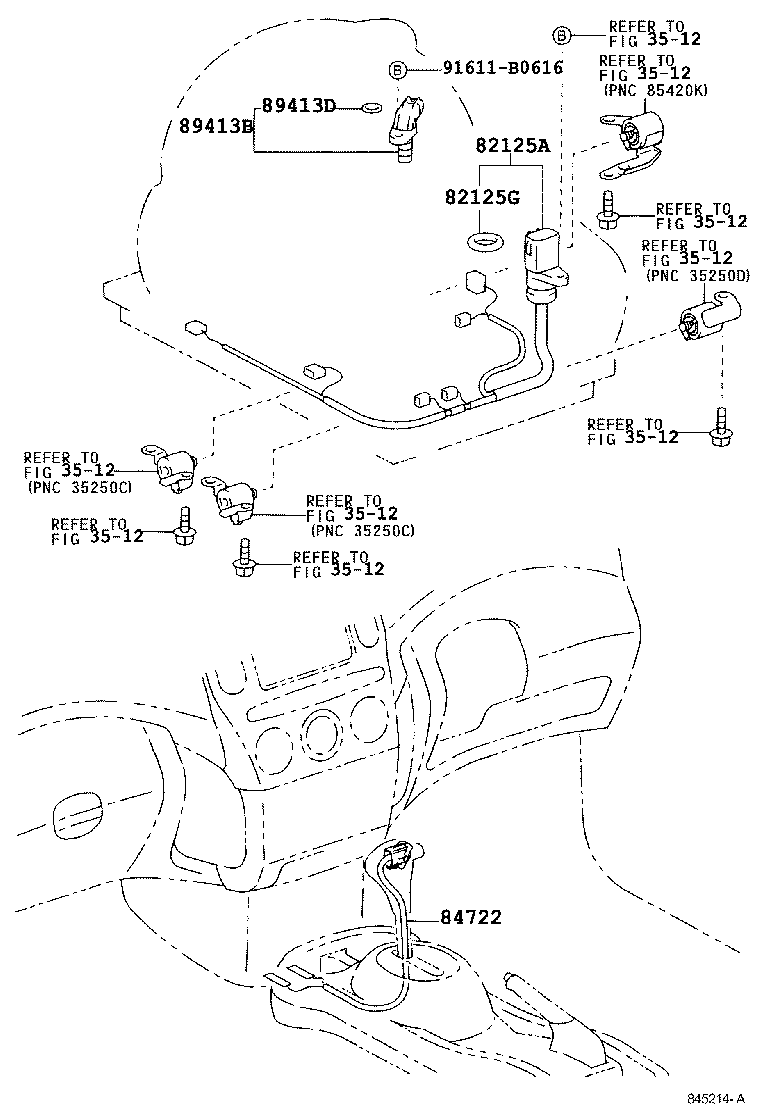

Figure 843025B 843025B 1999-08 → 2002-11 Figure 843026A 843026A 1999-08 → 2002-11 Figure 843762A 843762A 2000-08 → 2002-11 Figure 845214A 845214A 2002-11 → 2005-09 Figure 845215A 845215A 2002-11 → 2005-09 Figure 845216A 845216A 2002-11 → 2005-09

Part groups

PNCDescription
82125A Wire, Transmission
82125G Ring, O(FOR TRANSMISSION WIRE)
84570B Switch Assy, Kick Down
84722 Switch, Transmission Control
85420 Solenoid Assy, Transmission
85420B Solenoid Assy, Transmission
85420D Ring, O (FOR TRANSMISSION SOLENOID)
85420J Solenoid Assy, Transmission
89413B Sensor, Transmission Revolution
89413D Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
