Toyota Yaris/Echo Verso

1999-08 → 2005-09 · chassis NCP2#,NLP2# · catalogue 114210 · Europe

Discontinued model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

7 part groups · 3 illustrations

Illustrations

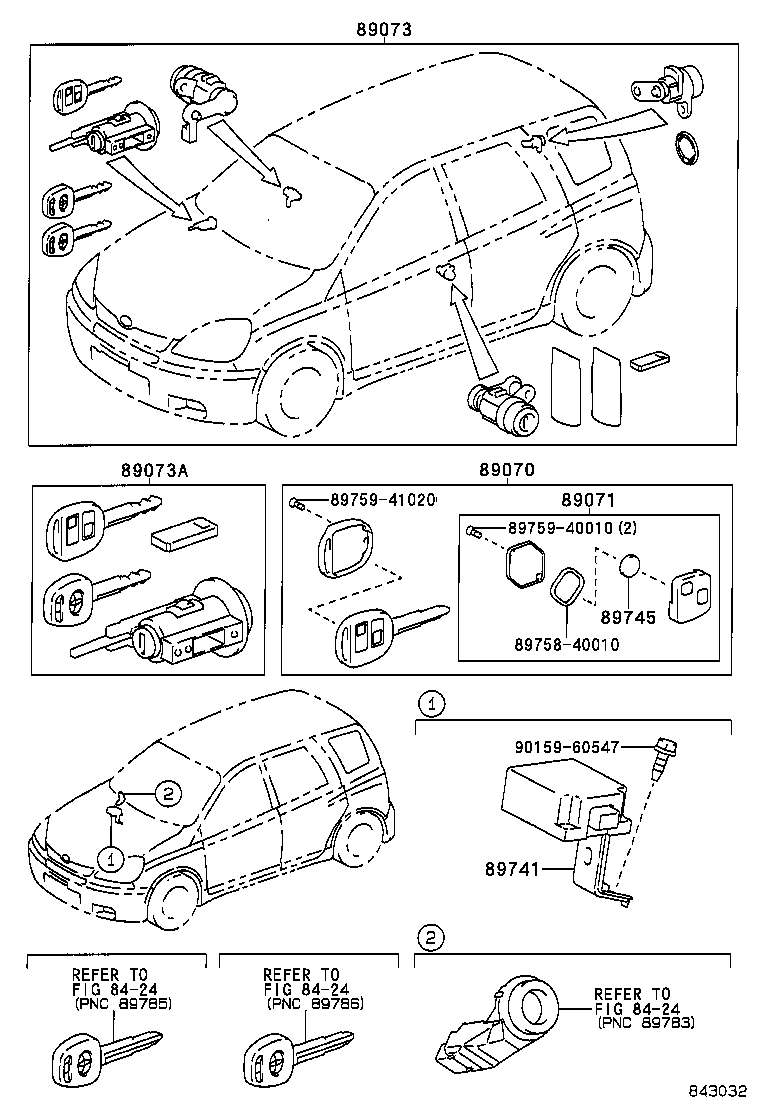

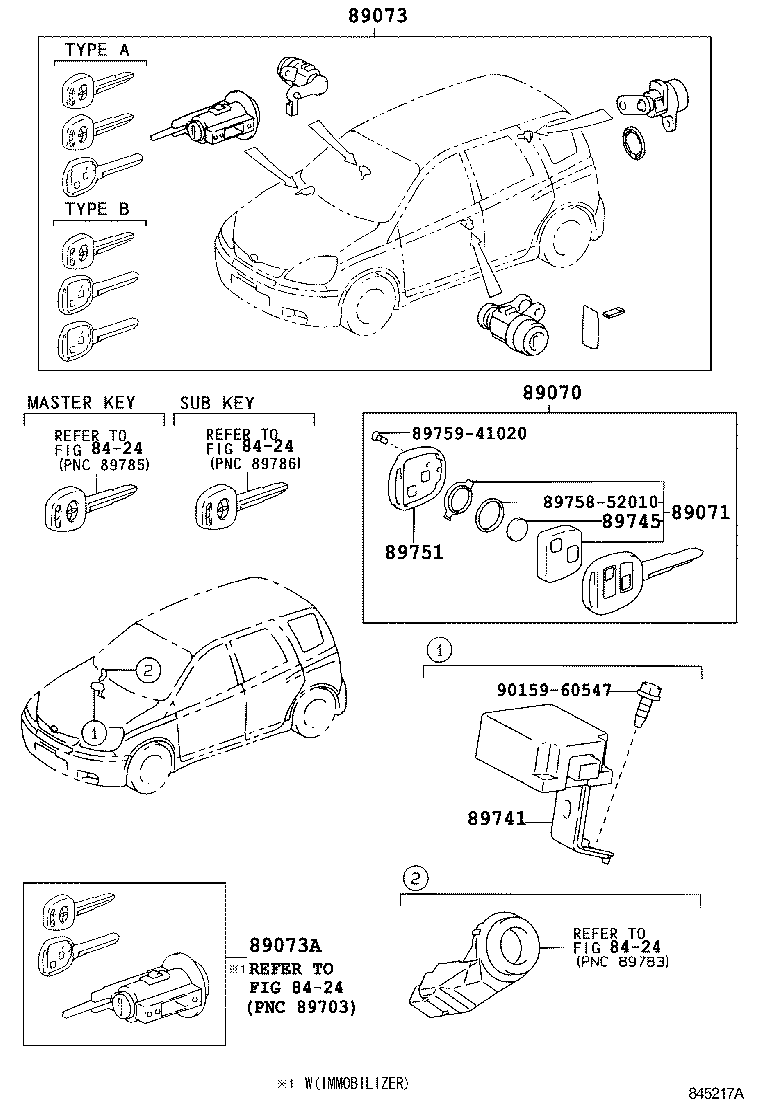

Figure 843031A 843031A 1999-08 → 2002-11 Figure 843032 843032 1999-08 → 2002-11 Figure 845217A 845217A 2002-11 → 2005-09

Part groups

PNCDescription
89070 Transmitter Assy, Door Control
89071 Module Set, Transmitter Sub-assy, Door Control
89073 Cylinder Set, Lock W/Transmitter Housing(LESS MODULE)
89073A Ign Cylinder Set Lock W/Transmitter Housing (CUT KEY)
89741 Receiver, Door Control
89745 Battery, Transmitter
89751 Cover, Transmitter Housing
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
