Toyota Yaris/Echo Verso

1999-08 → 2005-09 · chassis NCP2#,NLP2# · catalogue 114210 · Europe

Discontinued model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

5 part groups · 3 illustrations

Illustrations

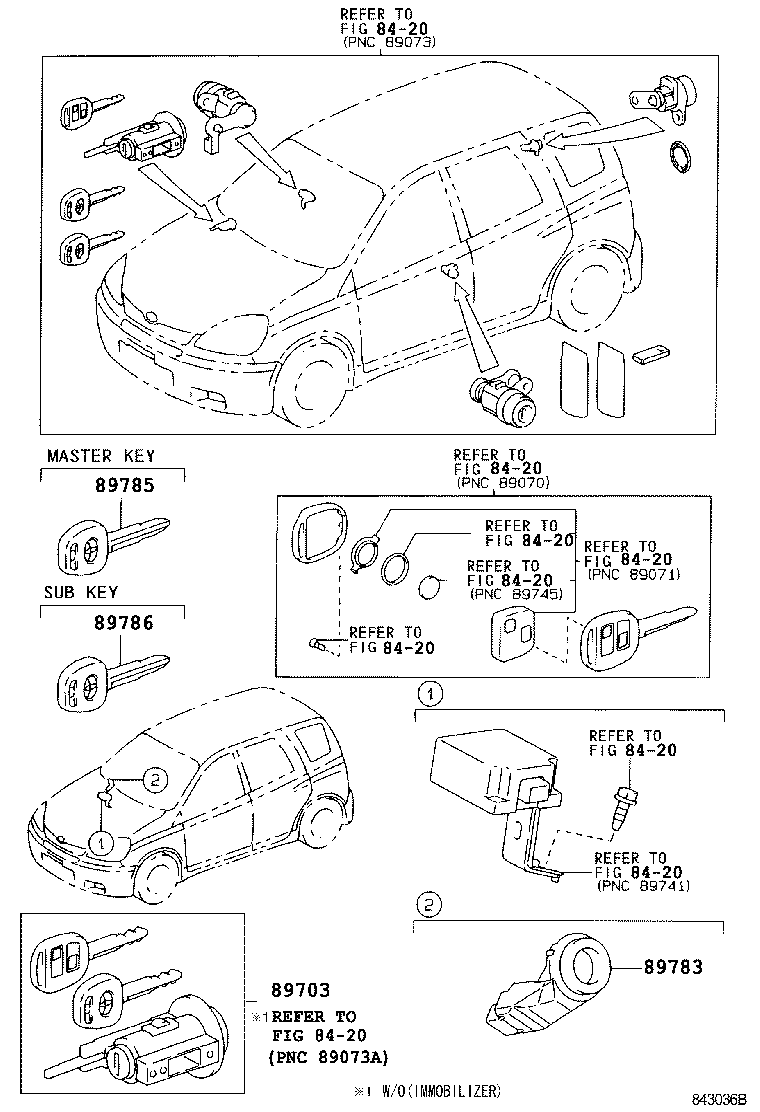

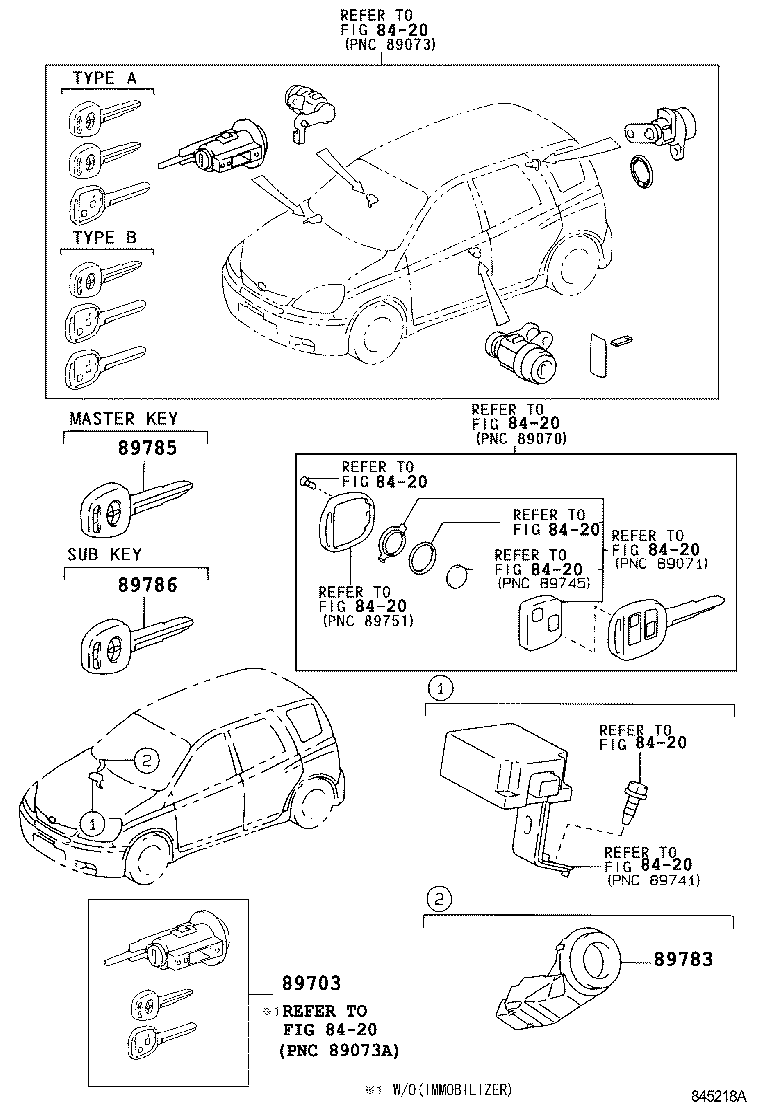

Figure 843035B 843035B 1999-08 → 2005-09 Figure 843036B 843036B 1999-08 → 2002-11 Figure 845218A 845218A 2002-11 → 2005-09

Part groups

PNCDescription
89703 Cylinder & Key Set, Ignition W/Transponder
89708C Cylinder Set, Lock W/Transponder Key Transmitter
89783 Amplifier, Transponder Key
89785 Transmitter, Transponder Key Master
89786 Transmitter, Transponder Key Sub
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
