Toyota Yaris/Echo Verso

1999-08 → 2005-09 · chassis NCP2#,NLP2# · catalogue 114210 · Europe

Discontinued model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Wiper

13 part groups · 4 illustrations

Illustrations

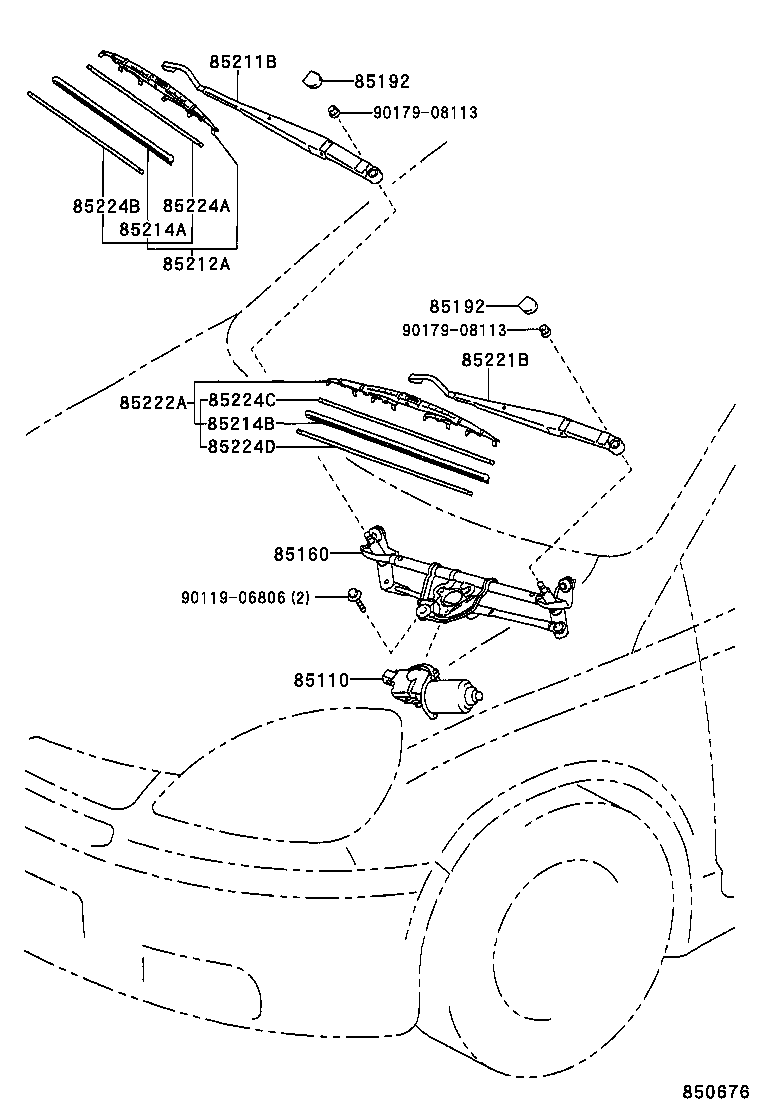

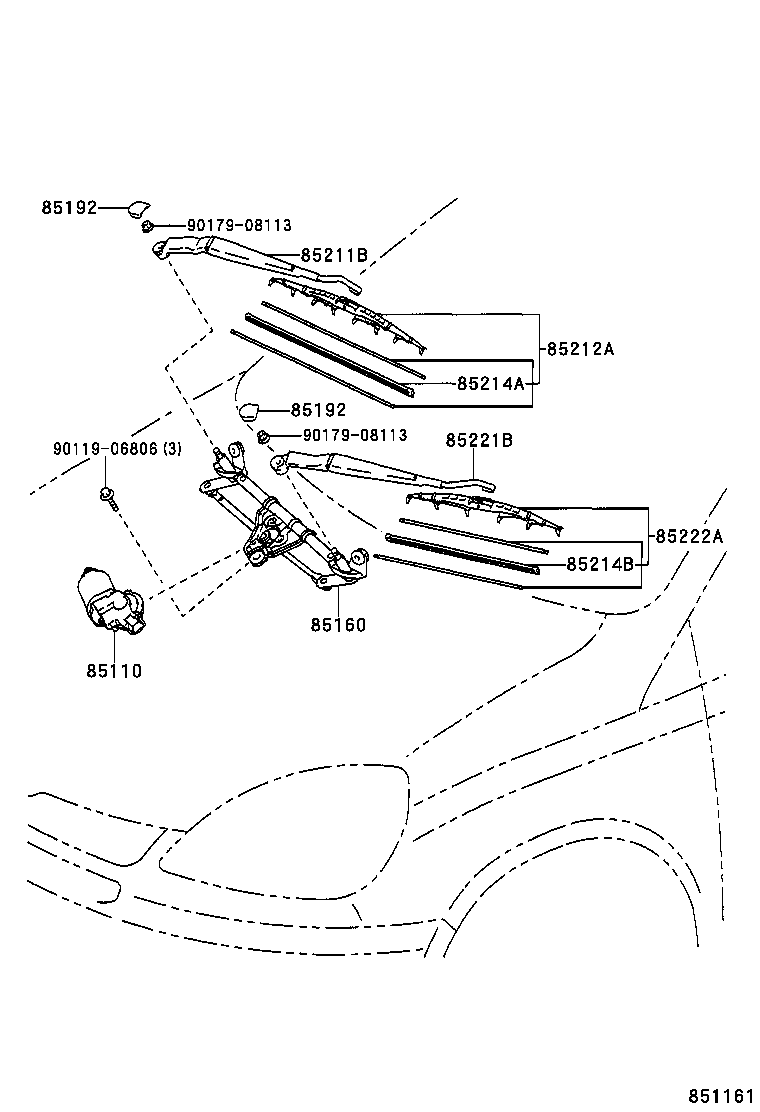

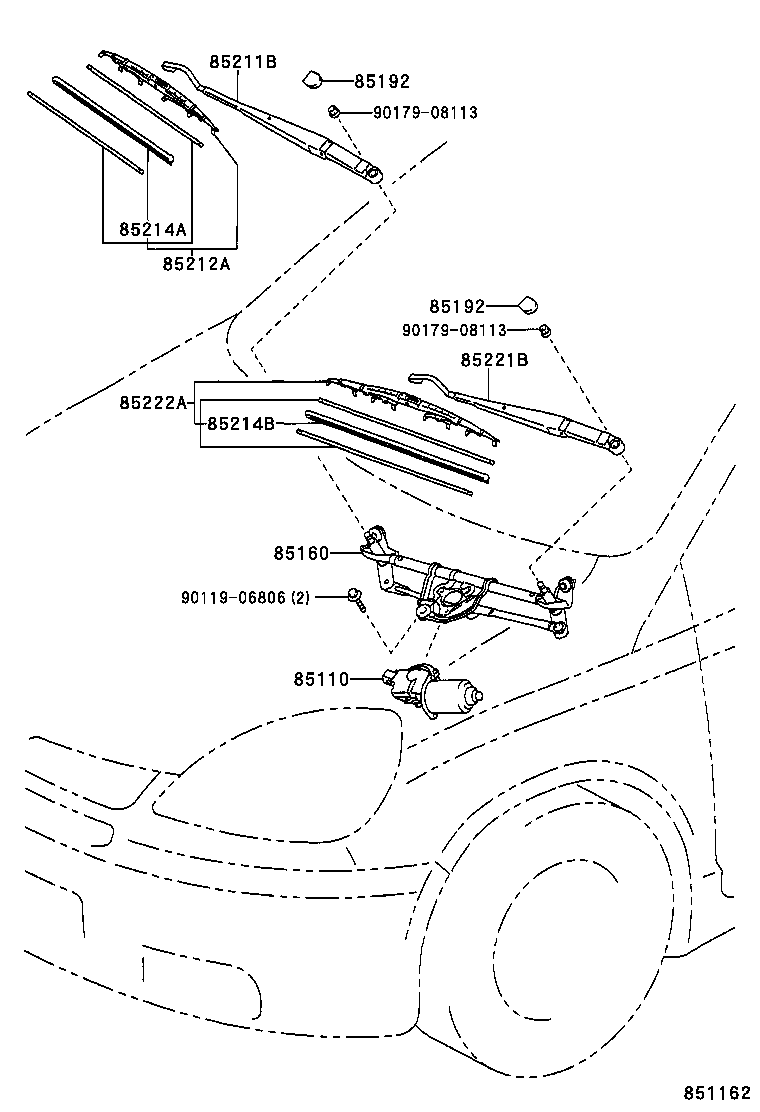

Figure 850697 850697 1999-08 → 2002-11 Figure 850676 850676 1999-08 → 2002-11 Figure 851161 851161 2002-11 → 2005-09 Figure 851162 851162 2002-11 → 2005-09

Part groups

PNCDescription
85110 Motor Assy, Windshield Wiper
85160 Link Assy, Windshield Wiper
85192 Cover, Windshield Wiper Arm
85211B Arm, Front Wiper, RH
85212A Blade, FR Wiper, RH
85214A Rubber, Wiper, RH
85214B Rubber, Wiper, LH
85221B Arm, Front Wiper, LH
85222A Blade, FR Wiper, LH
85224A Plate, Wiper Rubber Backing, NO.1
85224B Plate, Wiper Rubber Backing, NO.2
85224C Plate, Wiper Rubber Backing, NO.3
85224D Plate, Wiper Rubber Backing, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
