Toyota Yaris/Echo Verso
1999-08 → 2005-09 · chassis NCP2#,NLP2# · catalogue 114210 · Europe
Discontinued model
Data version 2006-01

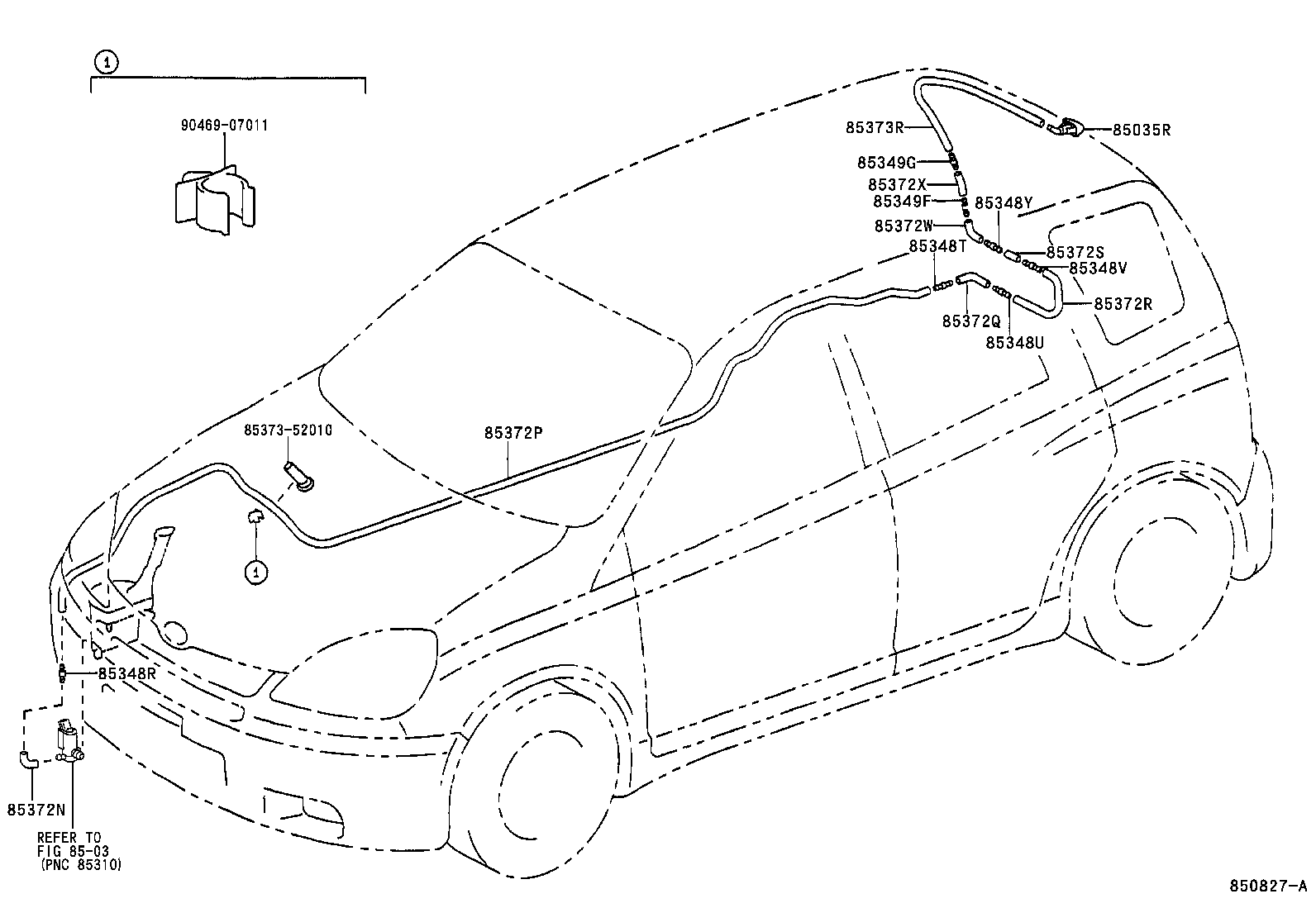

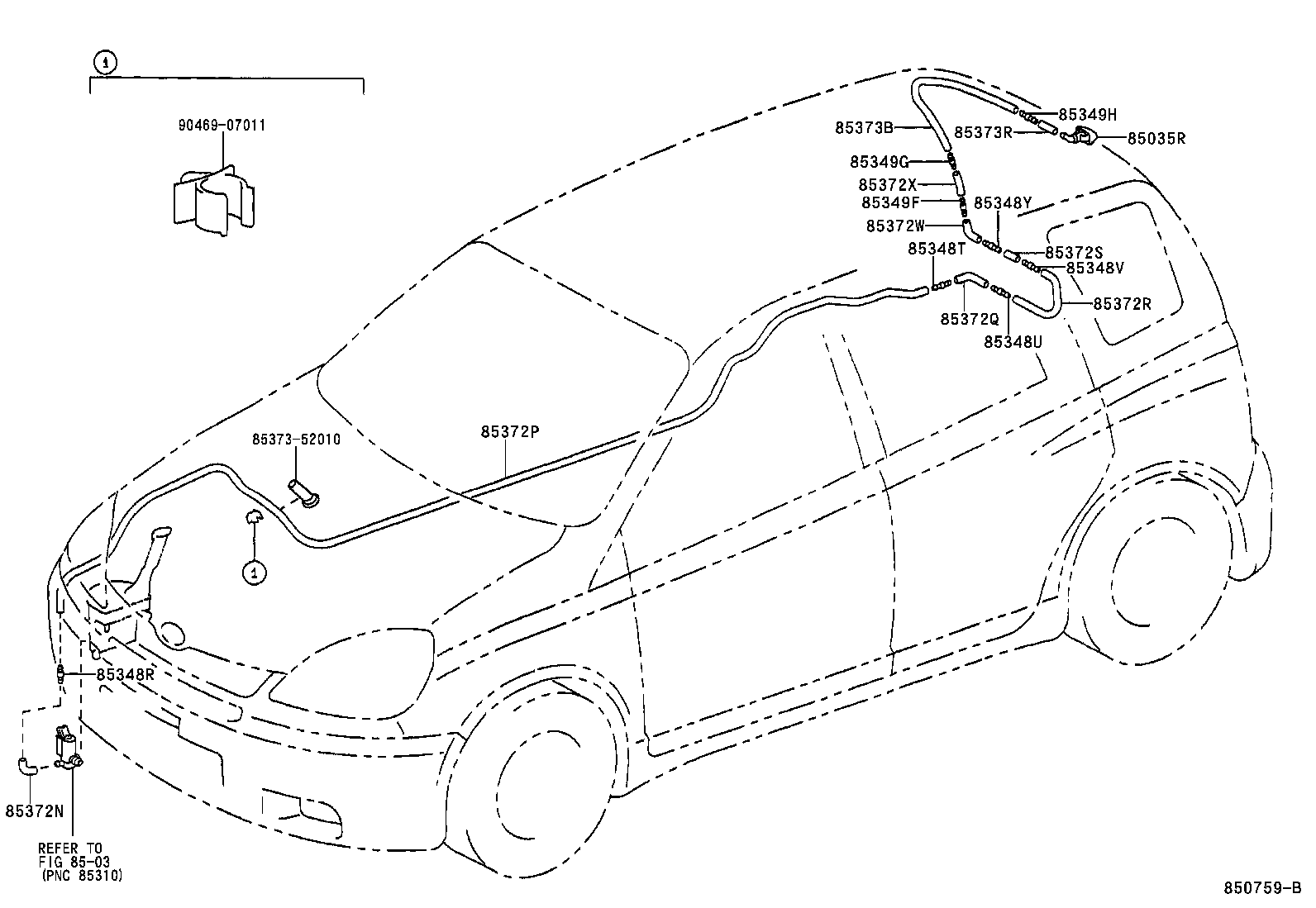

Rear Washer
18 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 85035R | Nozzle Sub-assy, Rear Washer |
| 85348R | Joint, Rear Washer Hose, NO.1 |
| 85348T | Joint, Rear Washer Hose, NO.2 |
| 85348U | Joint, Rear Washer Hose, NO.3 |
| 85348V | Joint, Rear Washer Hose, NO.4 |
| 85348Y | Joint, Rear Washer Hose, NO.5 |
| 85349F | Joint, Rear Washer Hose, NO.1 |
| 85349G | Joint, Rear Washer Hose, NO.2 |
| 85349H | Joint, Rear Washer Hose, NO.3 |
| 85372N | Hose, Rear Washer (FROM JOINT TO JOINT), NO.1 |
| 85372P | Hose, Rear Washer (FROM JOINT TO JOINT), NO.2 |
| 85372Q | Hose, Rear Washer (FROM JOINT TO JOINT), NO.3 |
| 85372R | Hose, Rear Washer (FROM JOINT TO JOINT OR NOZZLE) |
| 85372S | Hose, Rear Washer (FROM JOINT TO JOINT), NO.4 |
| 85372W | Hose, Rear Washer (FROM JOINT TO JOINT), NO.5 |
| 85372X | Hose, Rear Washer (FROM JOINT TO JOINT), NO.6 |
| 85373B | Hose, Rear Washer(FROM JOINT TO JOINT), NO.7 |
| 85373R | Hose, Rear Washer (FROM JOINT TO NOZZLE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
