Toyota Yaris/Echo Verso

1999-08 → 2005-09 · chassis NCP2#,NLP2# · catalogue 114210 · Europe

Discontinued model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

10 part groups · 3 illustrations

Illustrations

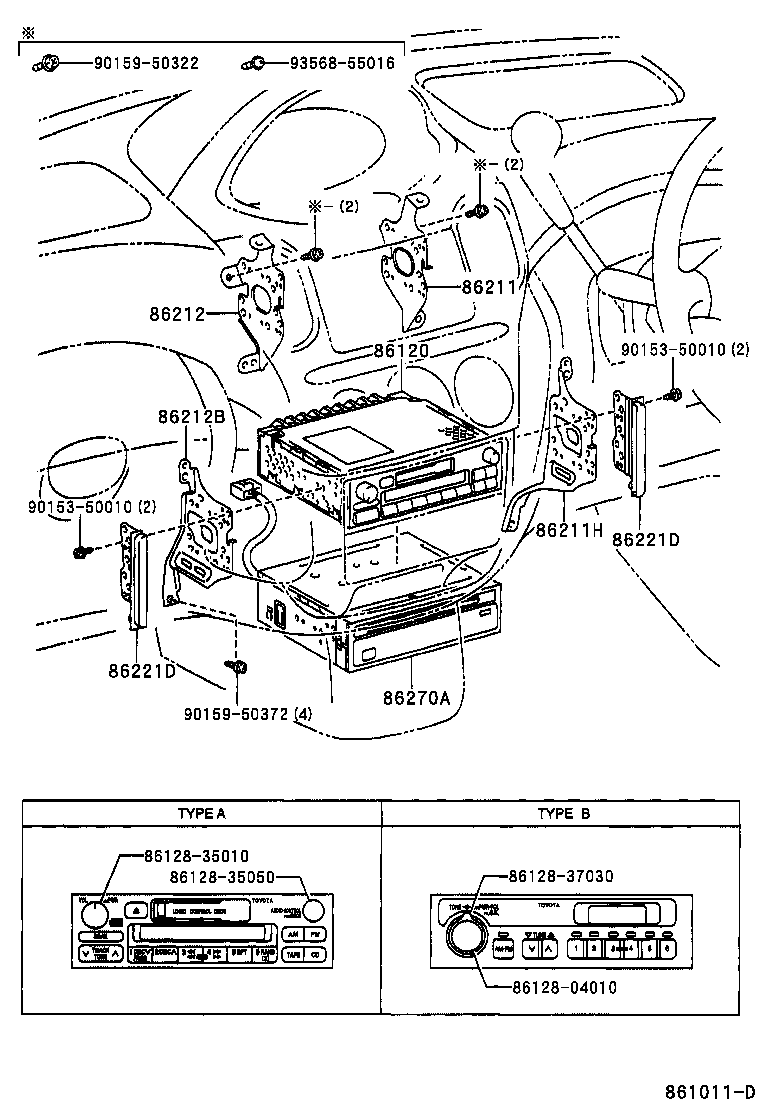

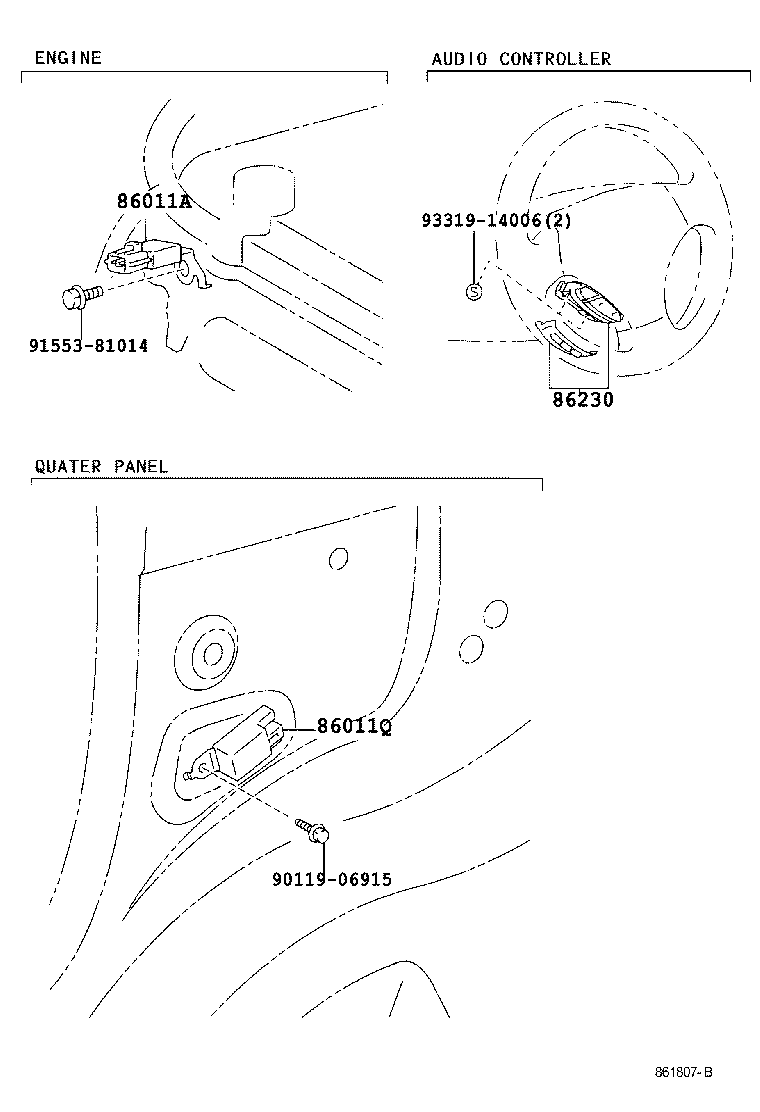

Figure 861010C 861010C 1999-08 → — Figure 861011D 861011D 1999-08 → — Figure 861807B 861807B 1999-08 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011Q Condenser, Radio Setting
86120 Receiver Assy, Radio
86211 Bracket, Radio, NO.1
86211H Bracket, Radio, NO.2
86212 Bracket, Radio, NO.2
86212B Bracket, Radio, NO.1
86221D Panel, Radio Receiver
86230 Controller Assy, Stereo Component
86270A Disc Player Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
