Factory parts data · Europe

Toyota Yaris/Echo Verso

1999-08 → 2005-09 · chassis NCP2#,NLP2# · catalogue 114210 · Europe

Discontinued model Data version 2006-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

3 part groups · 2 illustrations

Illustrations

Figure 861018B

861018B 1999-08 → 2002-11

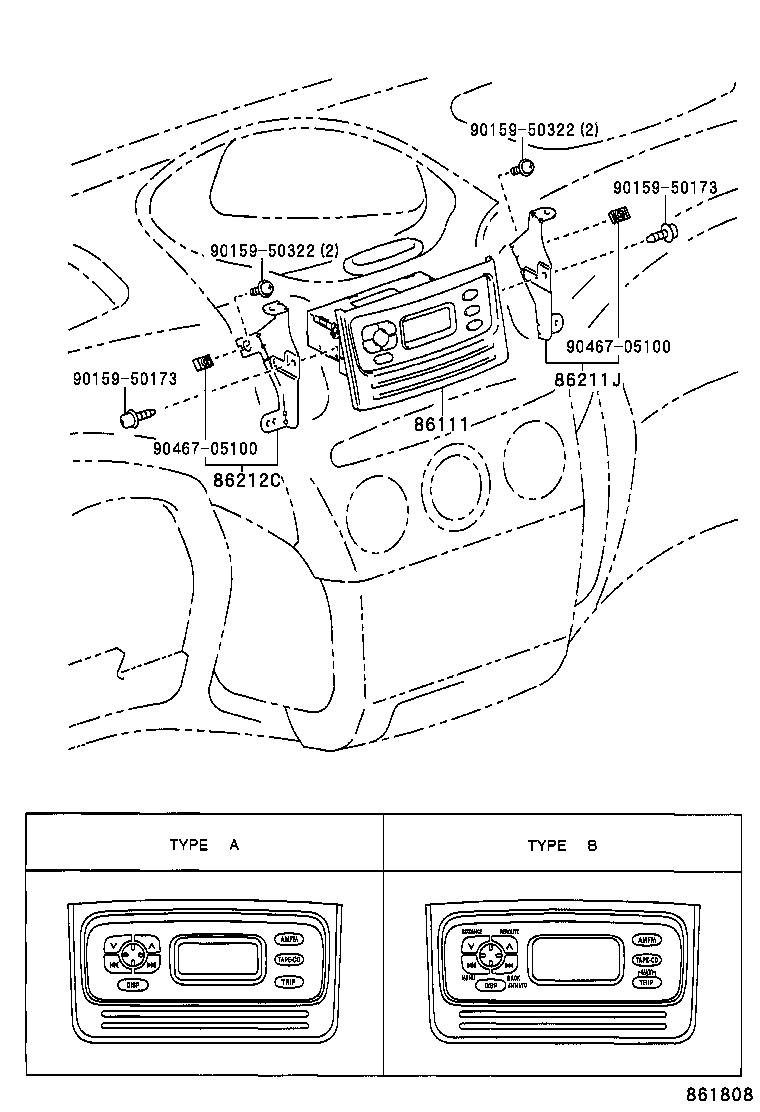

861808 2002-11 → 2005-09

Part groups

PNC	Description
86111	Multi-display
86211J	Bracket, Radio Receiver, NO.1
86212C	Bracket, Radio Receiver, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
