Toyota Yaris/Echo Verso

1999-08 → 2005-09 · chassis NCP2#,NLP2# · catalogue 114210 · Europe

Discontinued model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

7 part groups · 3 illustrations

Illustrations

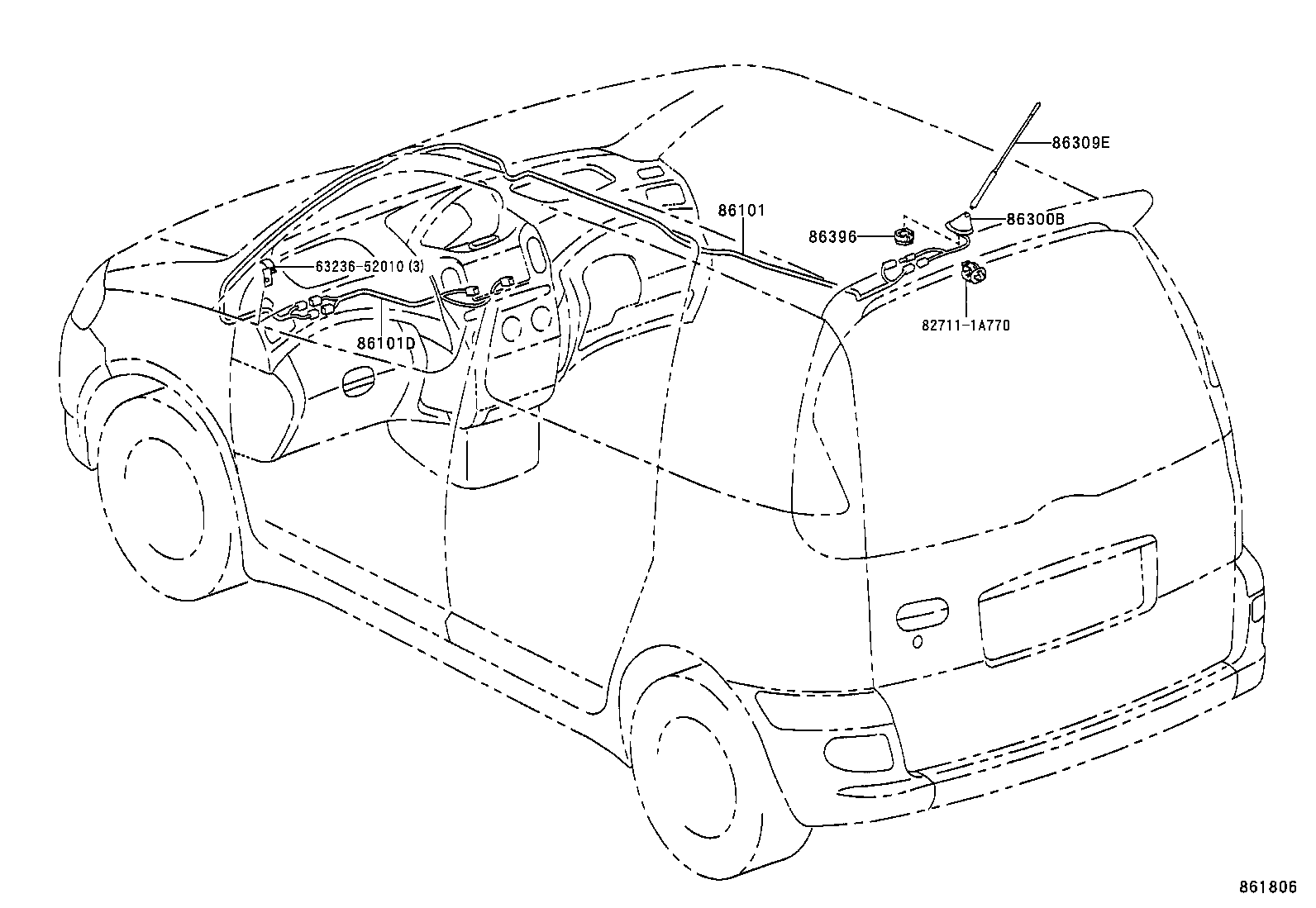

Figure 861020 861020 1999-08 → 2002-11 Figure 861021 861021 1999-08 → 2002-11 Figure 861806 861806 2002-11 → —

Part groups

PNCDescription
86101 Cord Sub-assy, Antenna
86101D Cord Sub-assy, Antenna, NO.3
86300B Antenna Assy, Amplifier, NO.1
86300F Holder Assy, Antenna (CORD/POLE SEPARATE TYPE)
86309 Pole Sub-assy, Pillar Antenna
86309E Pole Sub-assy, Roof Antenna
86396 Nut, Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
