Toyota Yaris/Echo Verso
1999-08 → 2005-09 · chassis NCP2#,NLP2# · catalogue 114210 · Europe
Discontinued model
Data version 2006-01
Heating & Air Conditioning - Control & Air Duct
34 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|

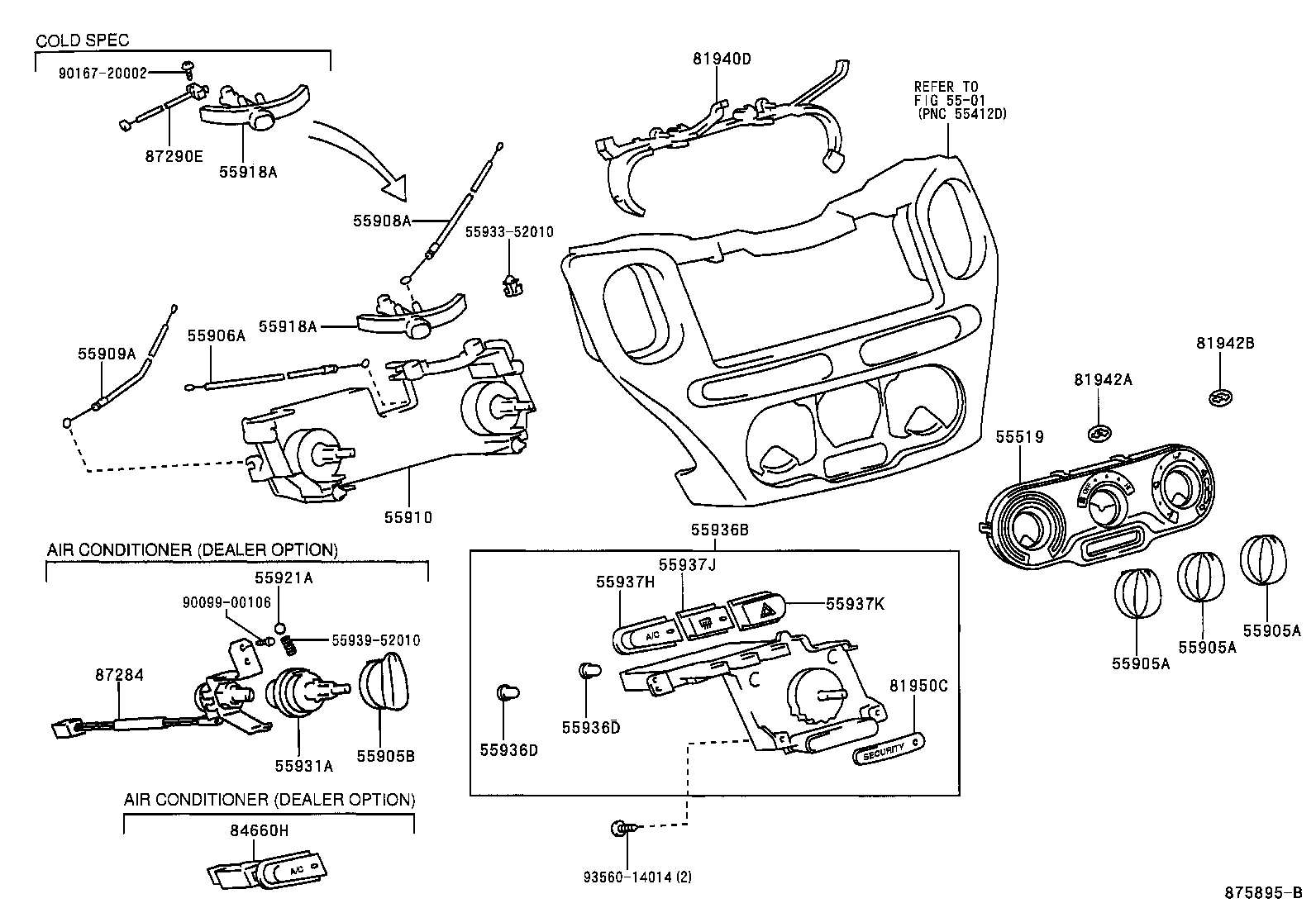

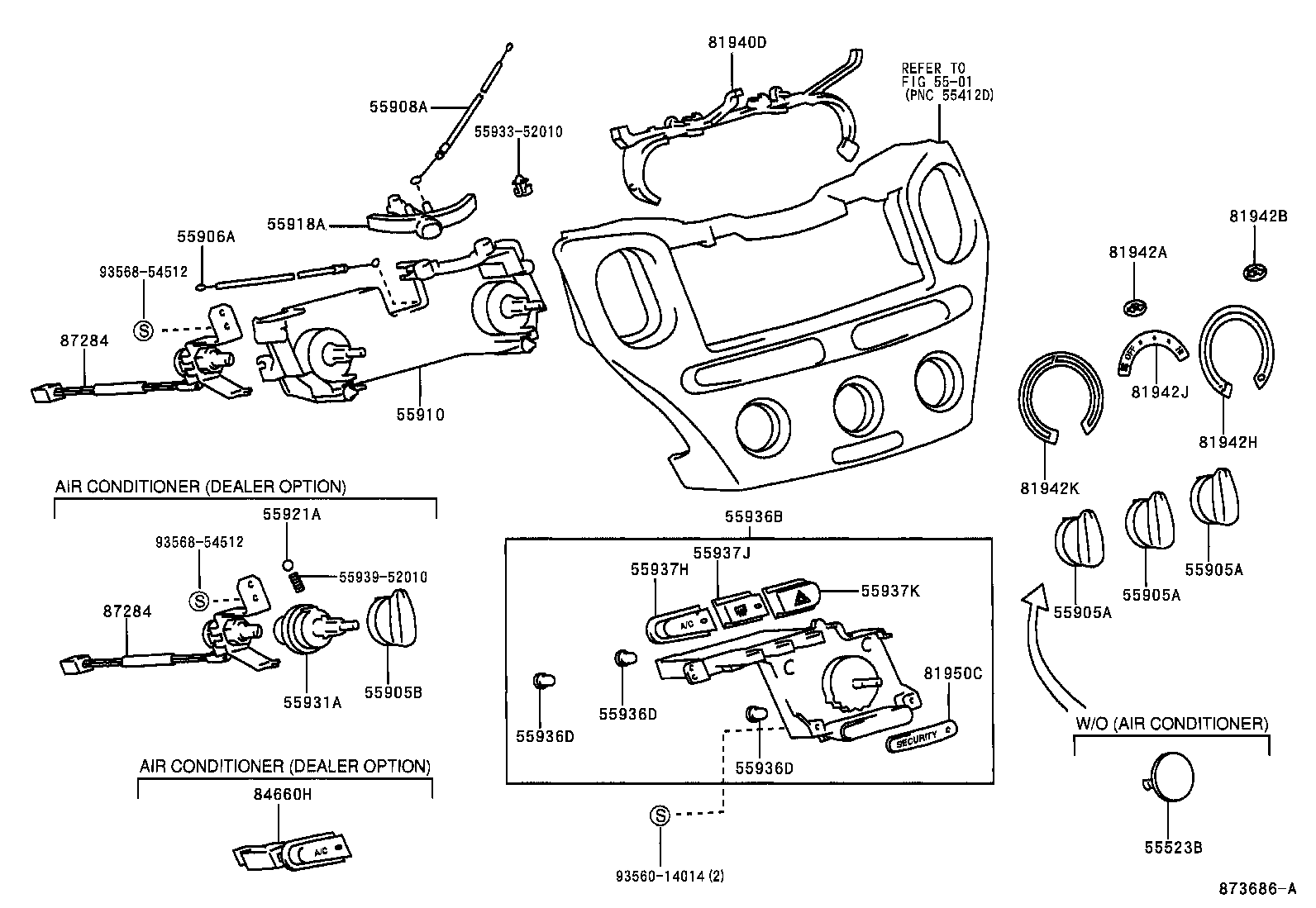

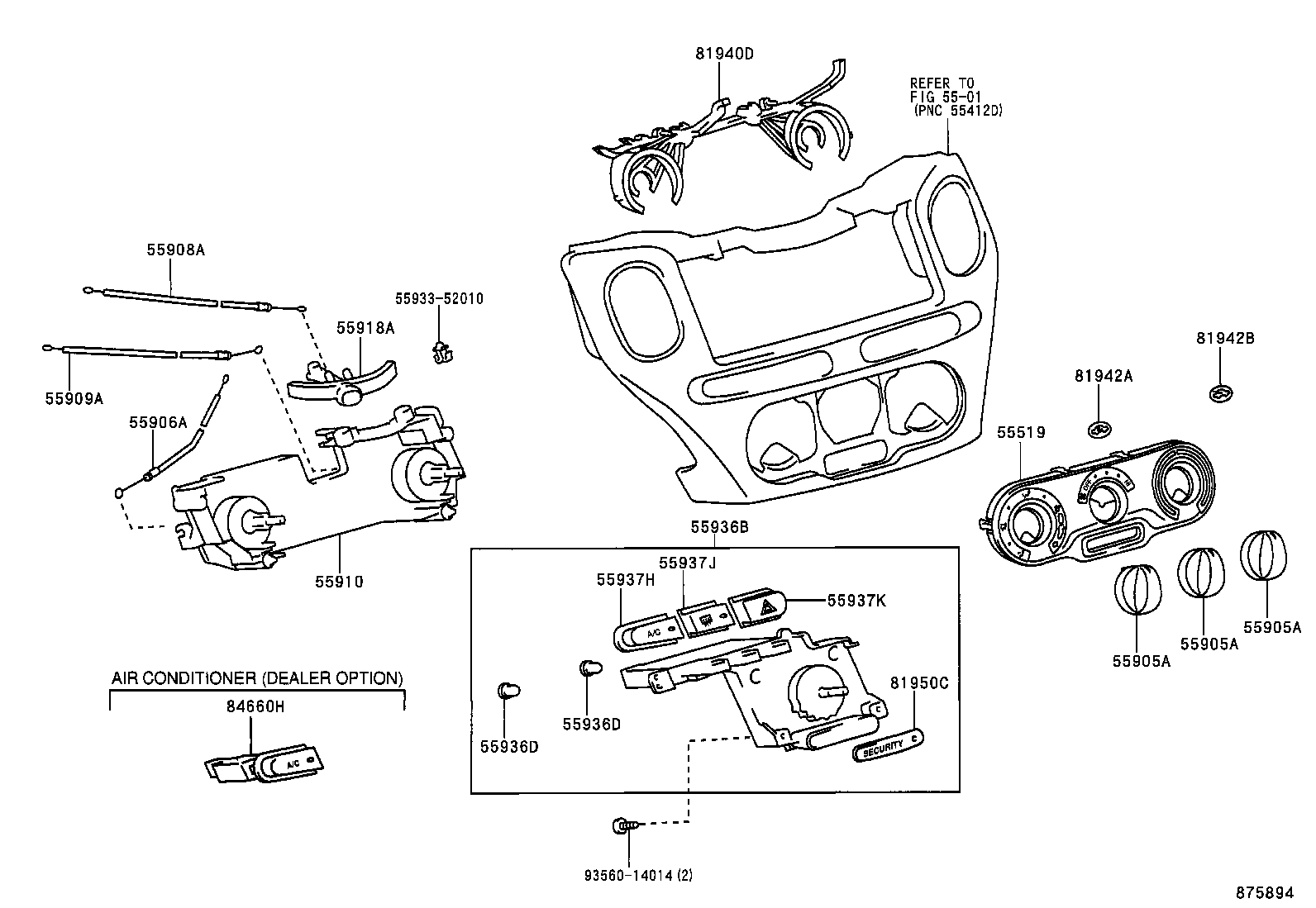

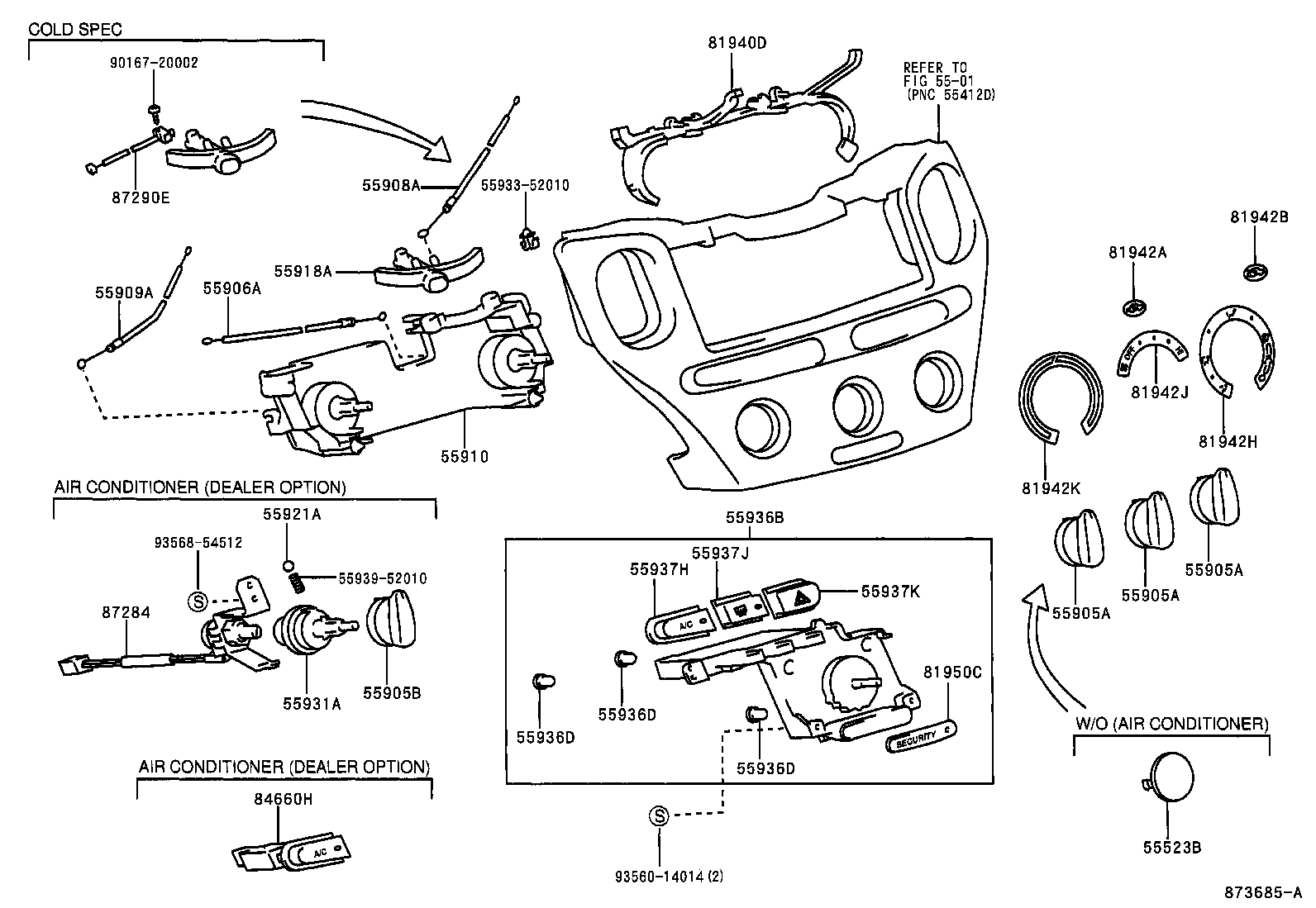

| 55519 | Plate, Heater Control Name |
| 55523B | Cover, Heater Control Opening |

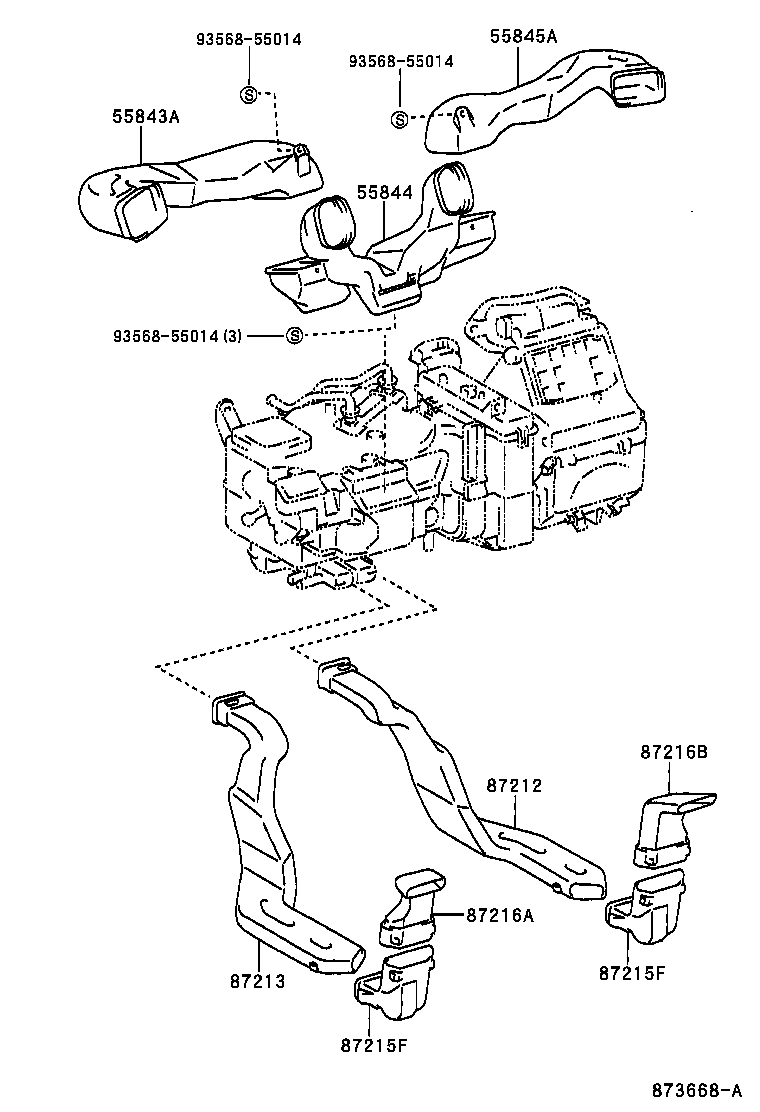

| 55843A | Duct, Heater TO Register, NO.1 |
| 55844 | Duct, Heater TO Register, NO.2 |
| 55845A | Duct, Heater TO Register, NO.3 |
| 55905A | Knob, Heater Control |
| 55905B | Knob, Heater Control, NO.2 |
| 55906A | Cable Sub-assy, Defroster Damper Control |
| 55908A | Cable Sub-assy, Air Inlet Damper Control |
| 55909A | Cable Sub-assy, Airmix Damper Control |
| 55910 | Control Assy, Heater OR Boost Ventilator |
| 55918A | Lever, Air Inlet Damper Control |
| 55921A | Retainer, Heater Control |
| 55931A | Shaft, Heater Control Lever |
| 55936B | Switch, Center Cluster Module |
| 55936D | Blub, Center Cluster Module Switch |
| 55937H | Knob, Center Cluster Module, NO.5 |
| 55937J | Knob, Center Cluster Module, NO.6 |
| 55937K | Knob, Center Cluster Module, NO.7 |
| 81940D | Lens Assy, Heater Control |
| 81942A | Sheet, Heater Control Name, NO.1 |
| 81942B | Sheet, Heater Control Name, NO.2 |
| 81942H | Sheet, Heater Control Name, NO.3 |
| 81942J | Sheet, Heater Control Name, NO.4 |
| 81942K | Sheet, Heater Control Name, NO.5 |
| 81950C | Lens Assy, Center Cluster Module Indicator |
| 84660H | Switch Assy, Cooler Control |
| 87212 | Duct, Air, Rear NO.1 |
| 87213 | Duct, Air, Rear NO.2 |
| 87215F | Duct, Air, Rear NO.3 |
| 87216A | Duct, Air, Rear NO.5 |
| 87216B | Duct, Air, Rear NO.4 |
| 87284 | Resistor Sub-assy, Variable |
| 87290E | Switch Assy, Heater |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
