Toyota Yaris/Echo Verso

1999-08 → 2005-09 · chassis NCP2#,NLP2# · catalogue 114210 · Europe

Discontinued model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

8 part groups · 2 illustrations

Illustrations

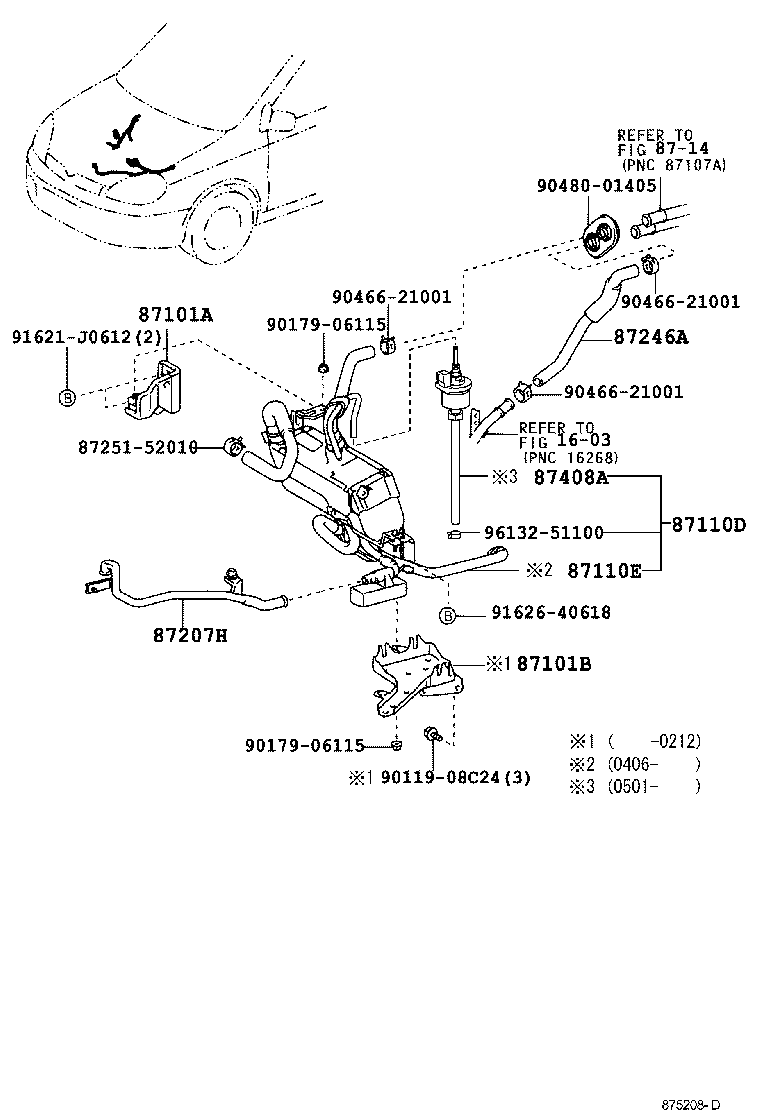

Figure 875207 875207 1999-08 → 2005-09 Figure 875208D 875208D 2001-10 → 2005-09

Part groups

PNCDescription
87101A Bracket Sub-assy, Heater NO.1
87101B Bracket Sub-assy, Heater NO.2
87110D Heater Assy
87110E Heater Assy
87207H Pipe Sub-assy, Vacuum
87245A Hose, Heater Water, Inlet A
87246A Hose, Heater Water, Outlet A
87408A Pump Sub-assy, Fuel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
