Toyota Yaris (FRP)

2005-11 → 2011-07 · chassis KSP90,NLP90,NSP90,SCP90 · catalogue 116520 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

68 part groups · 15 illustrations

Illustrations

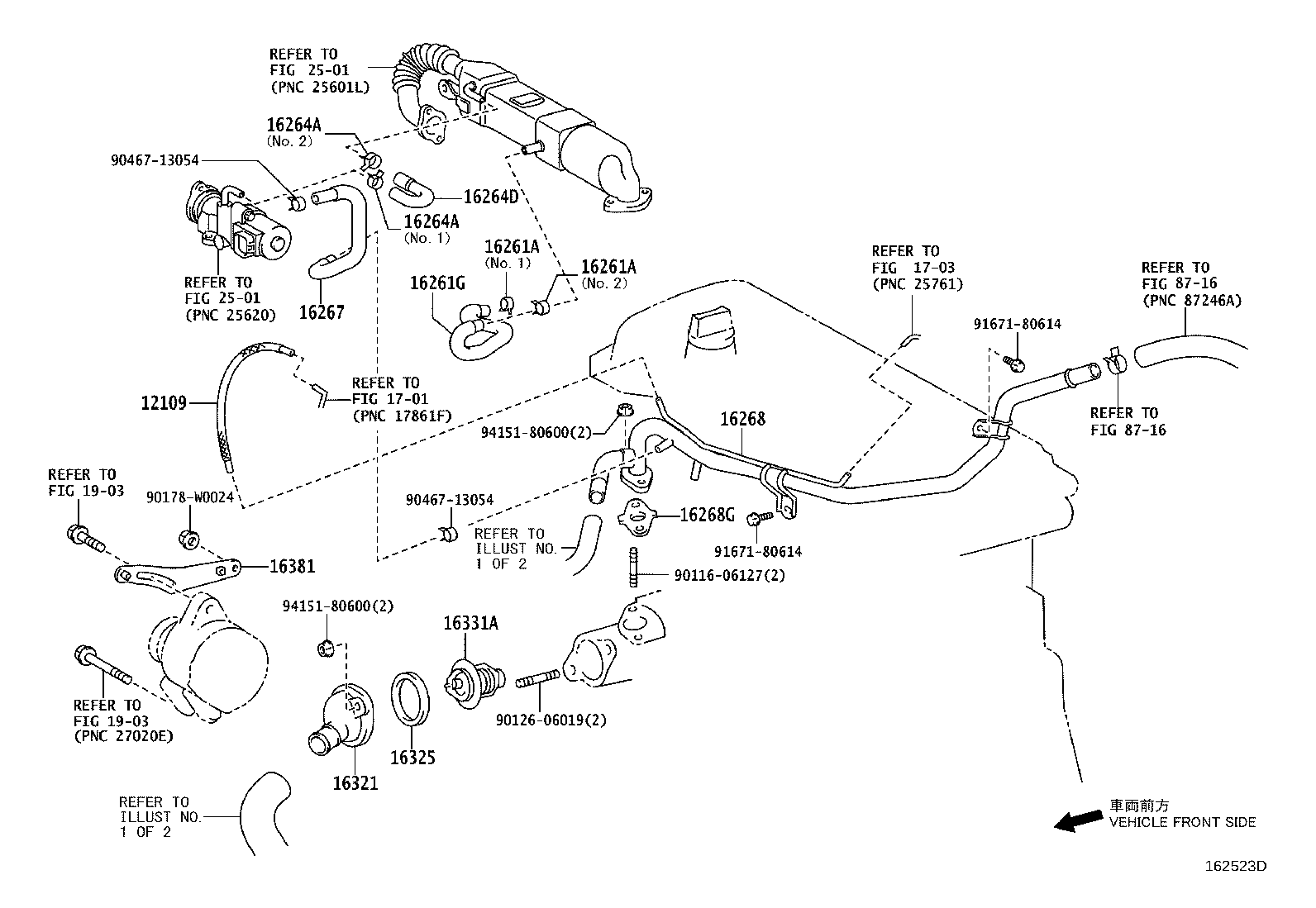

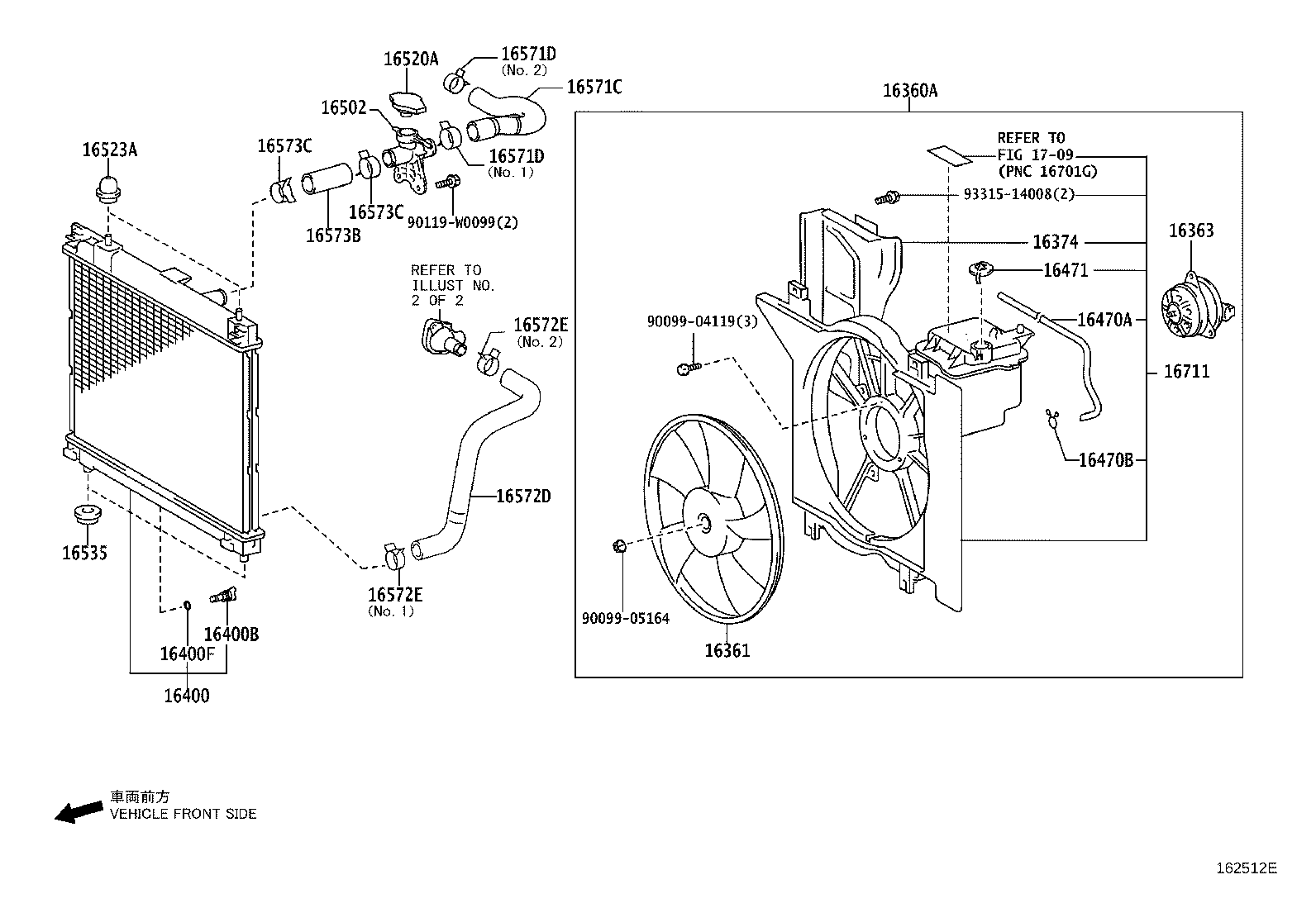

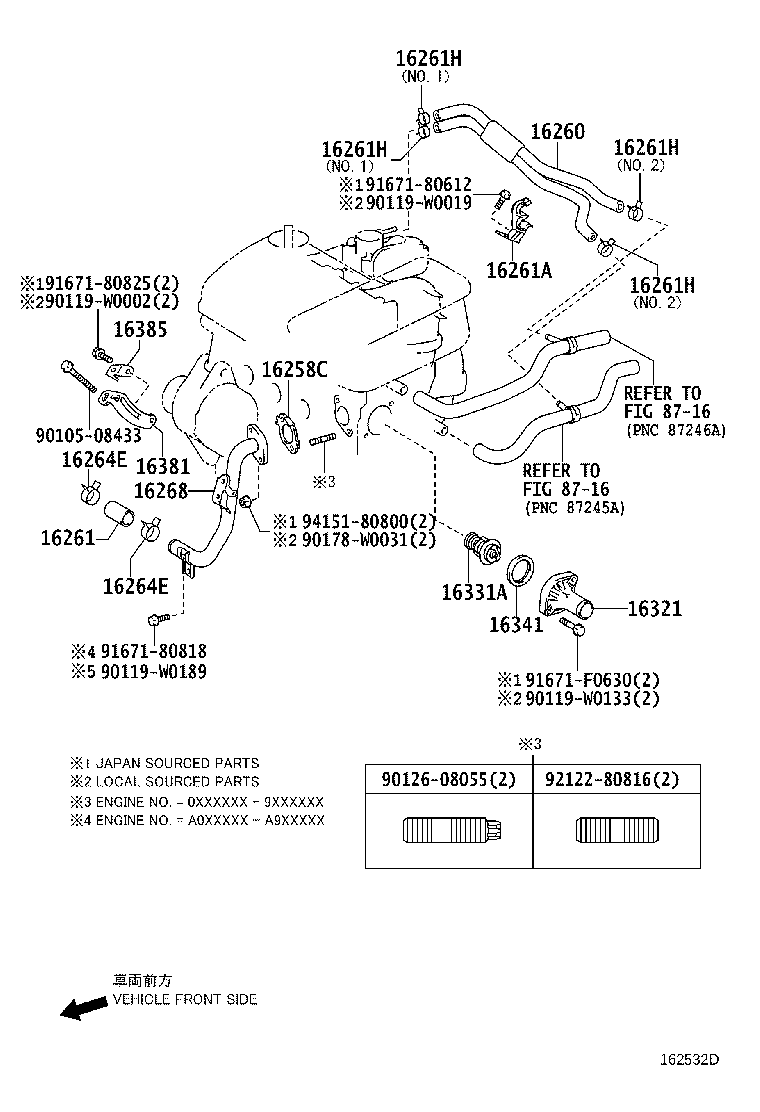

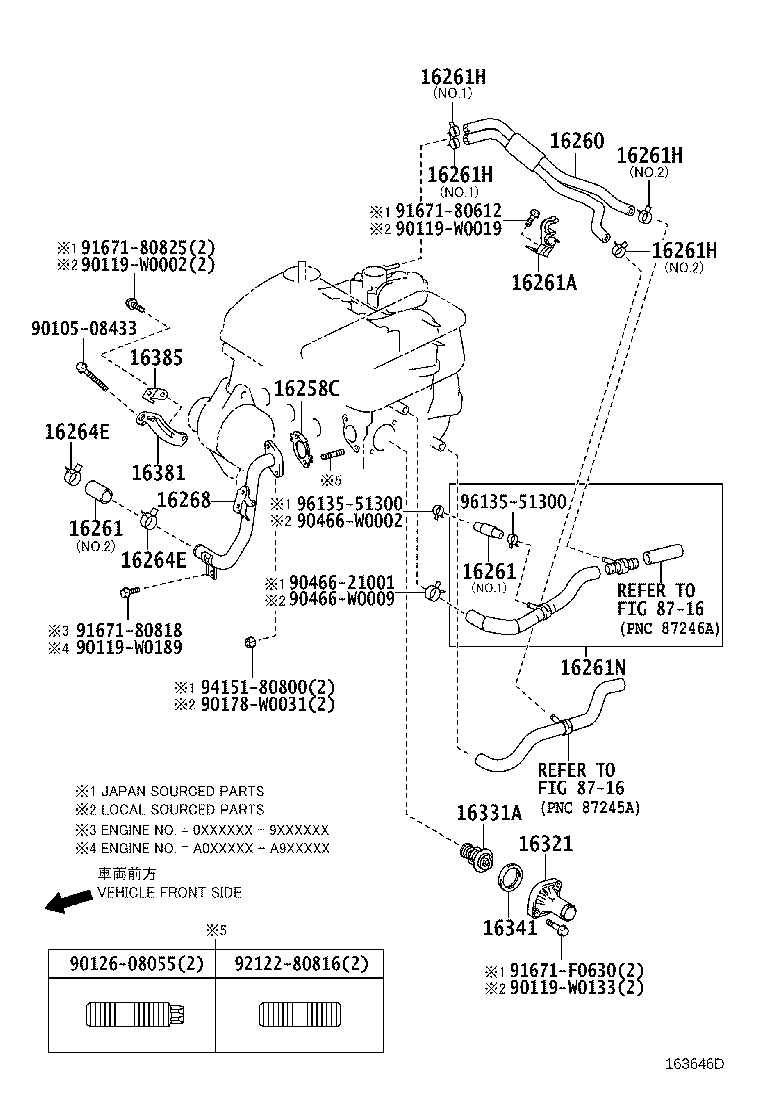

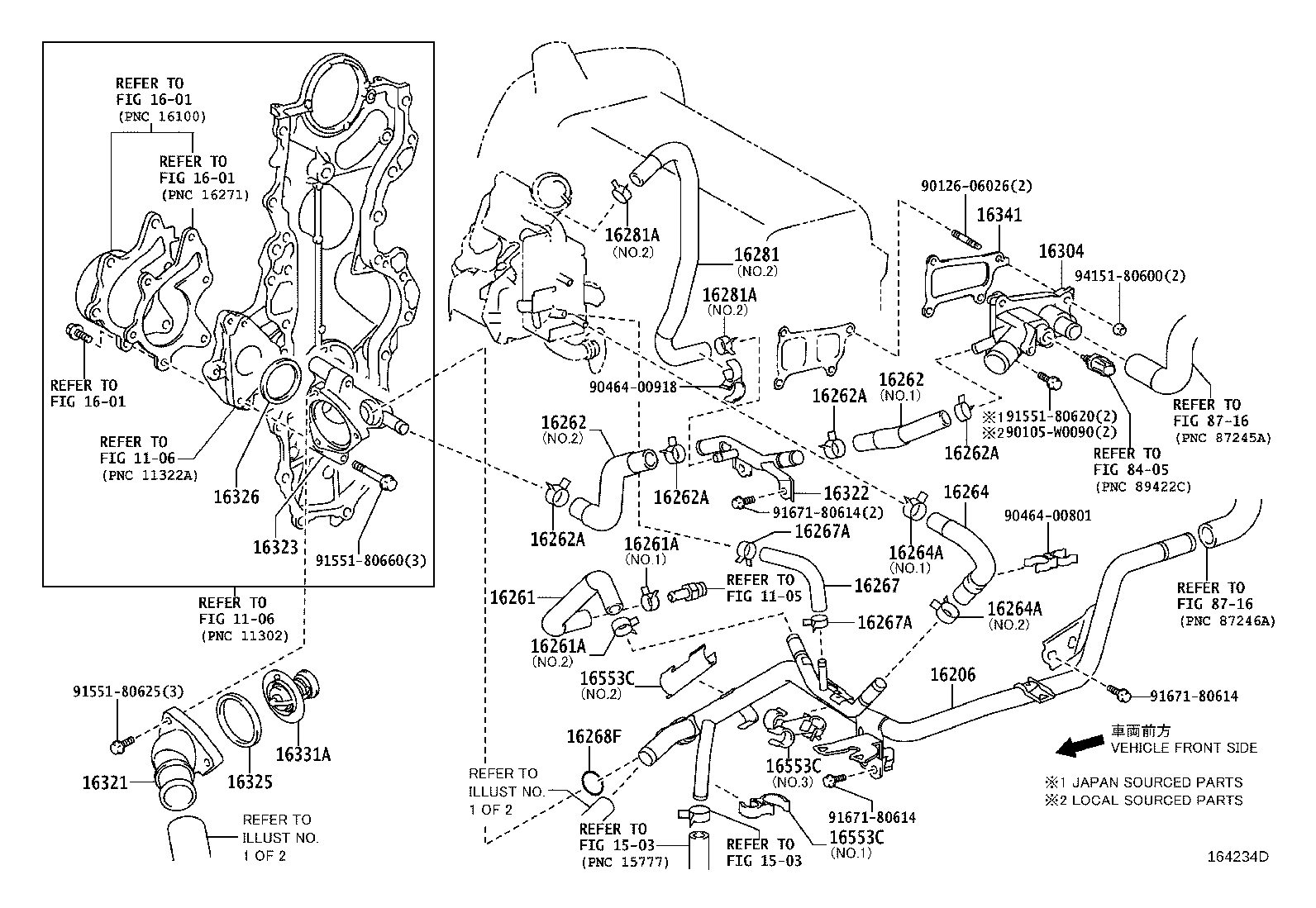

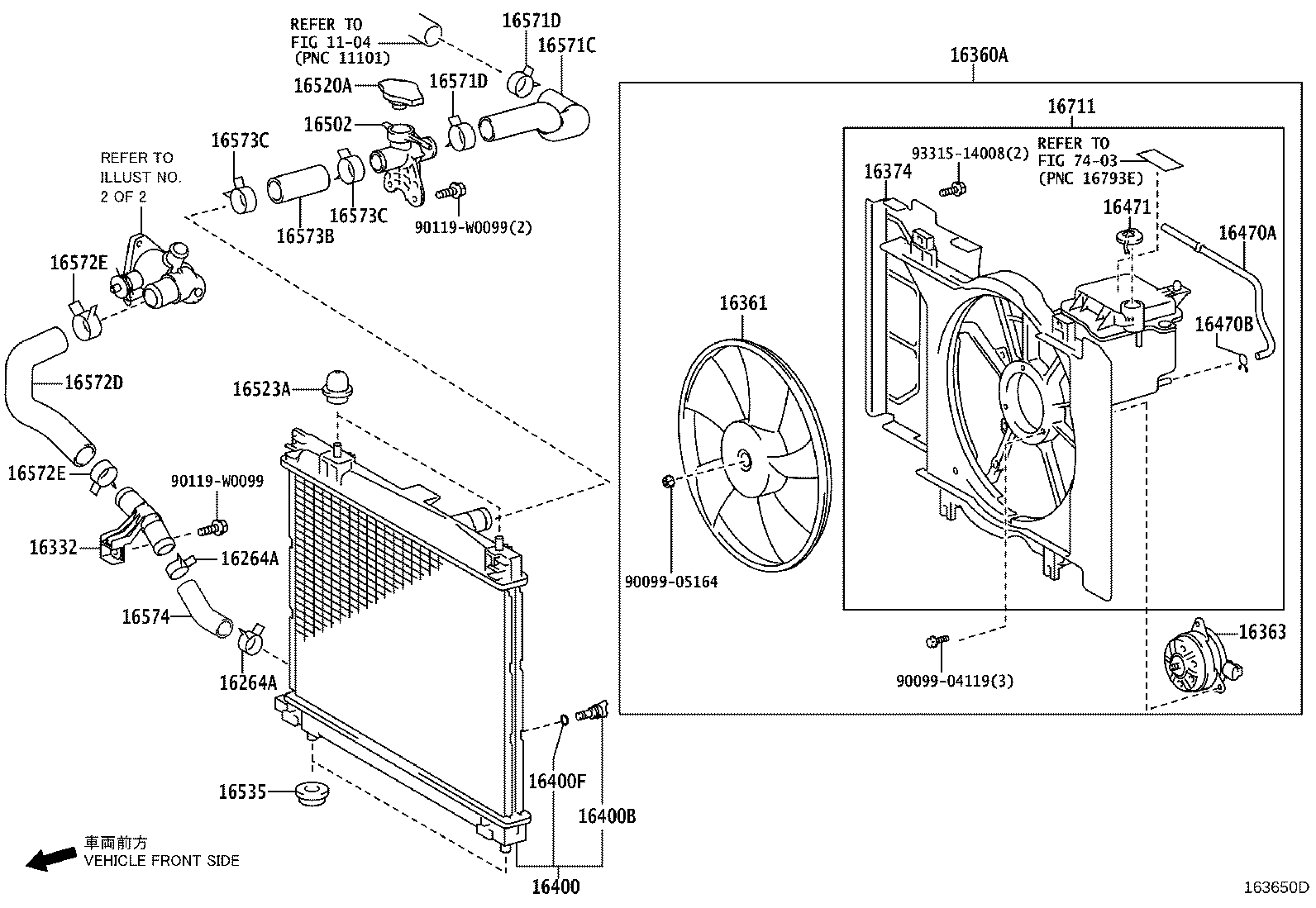

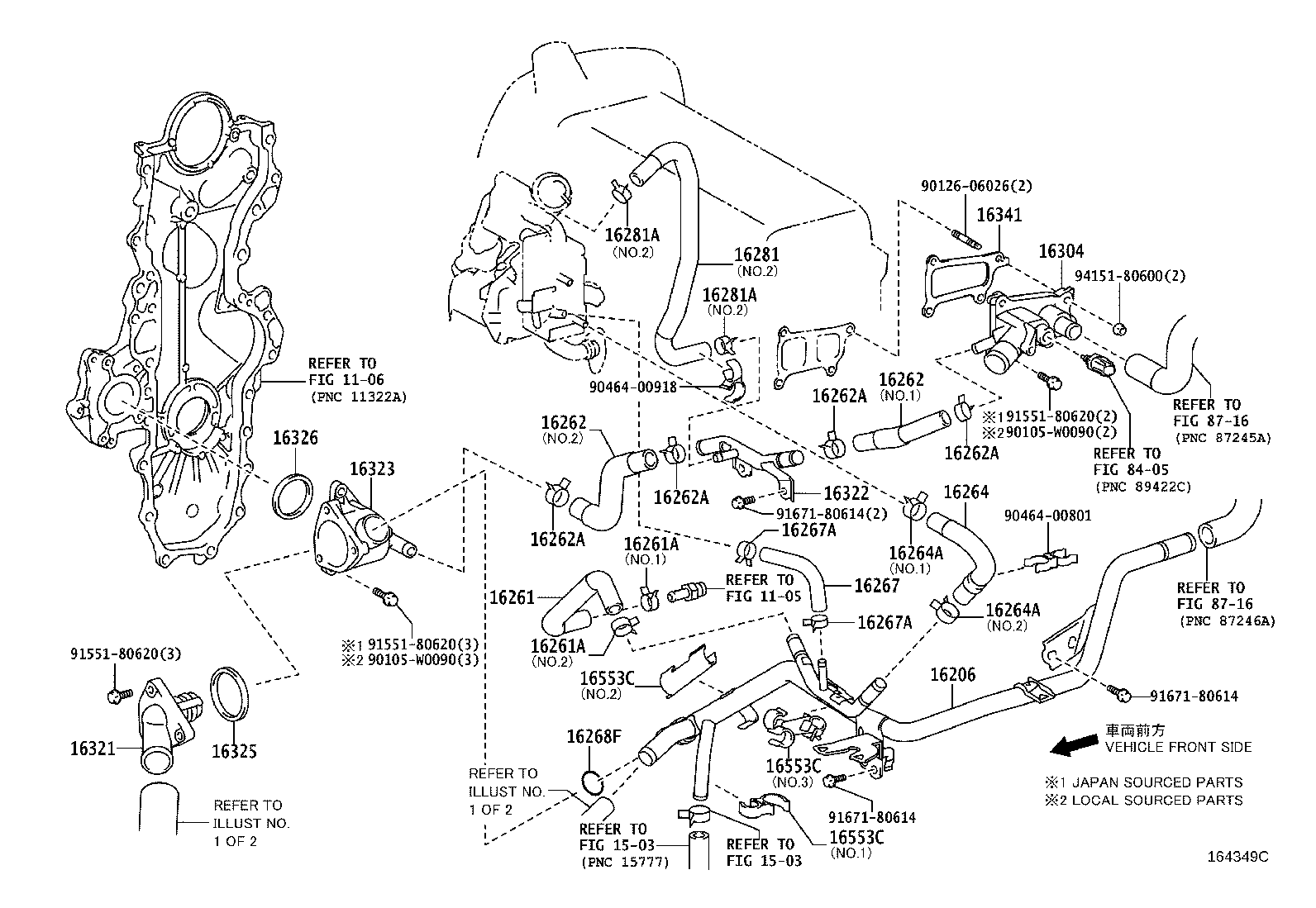

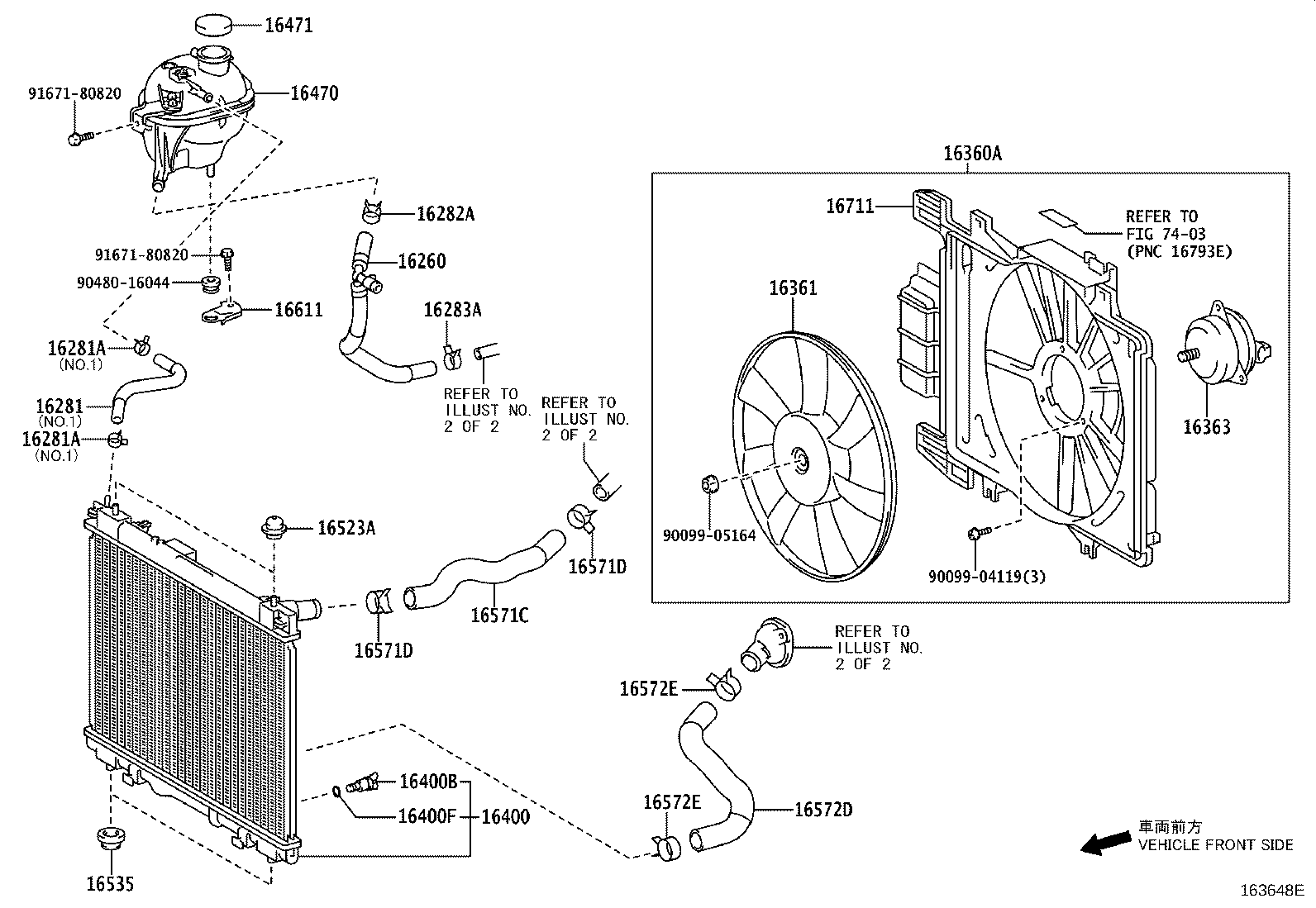

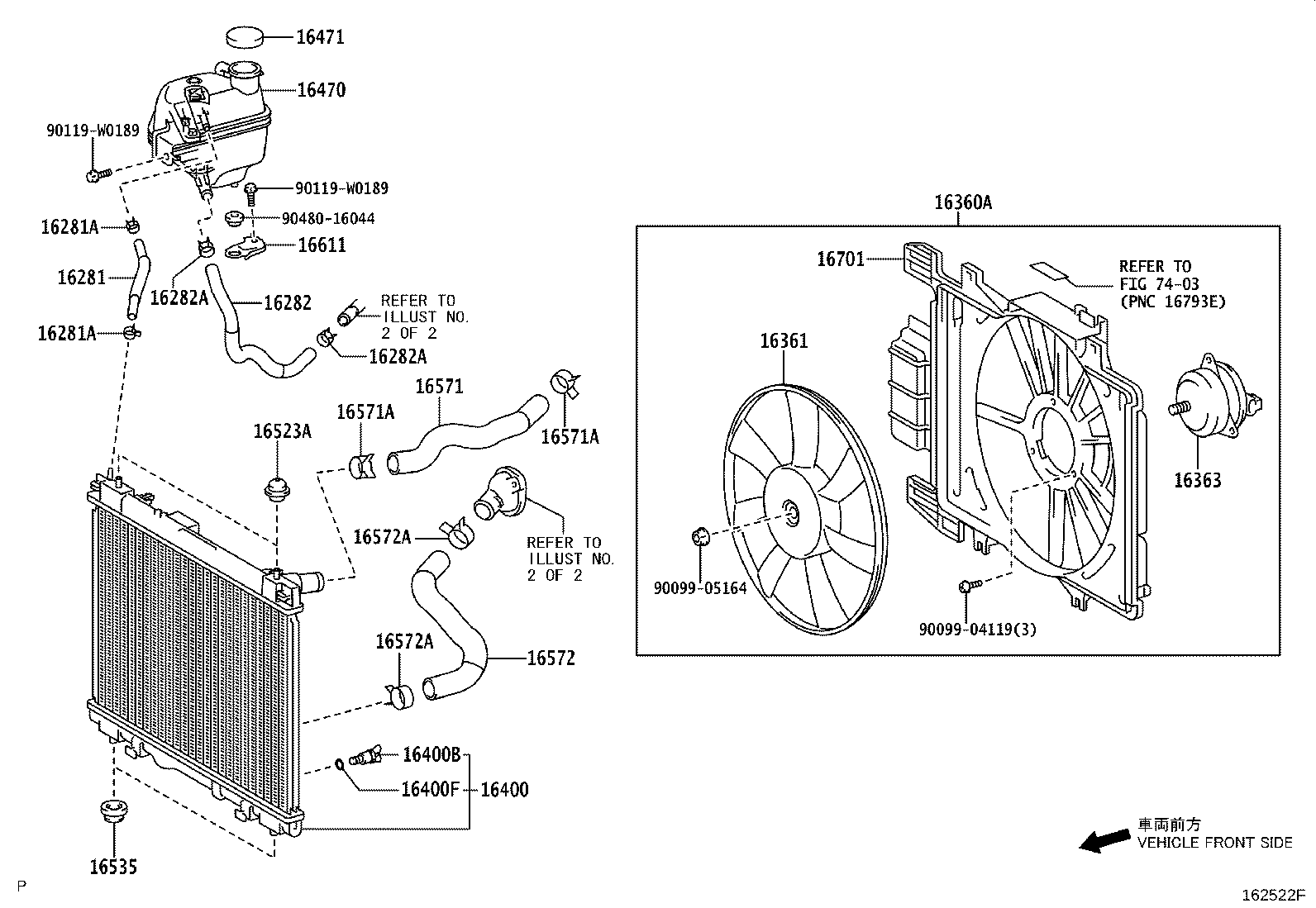

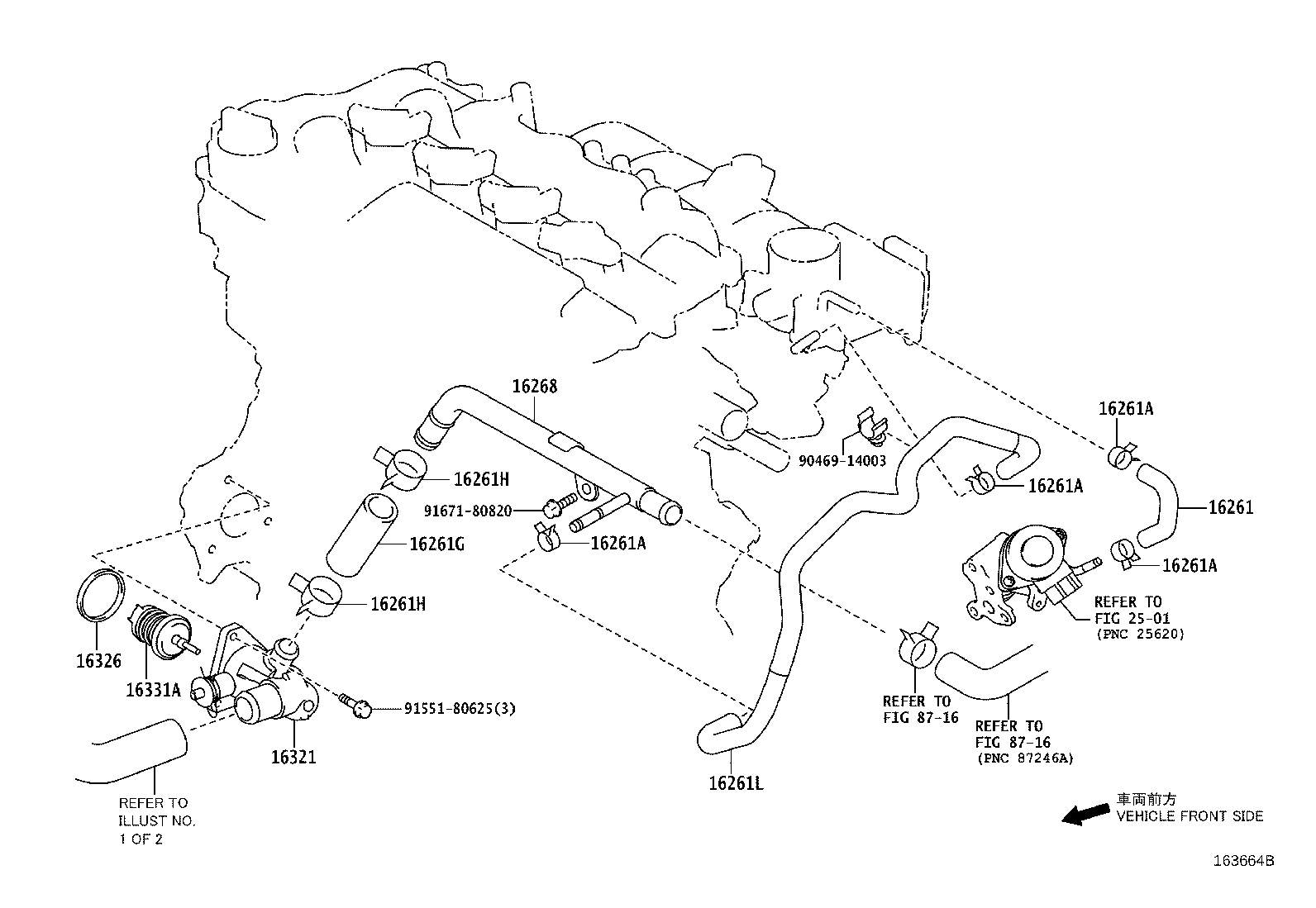

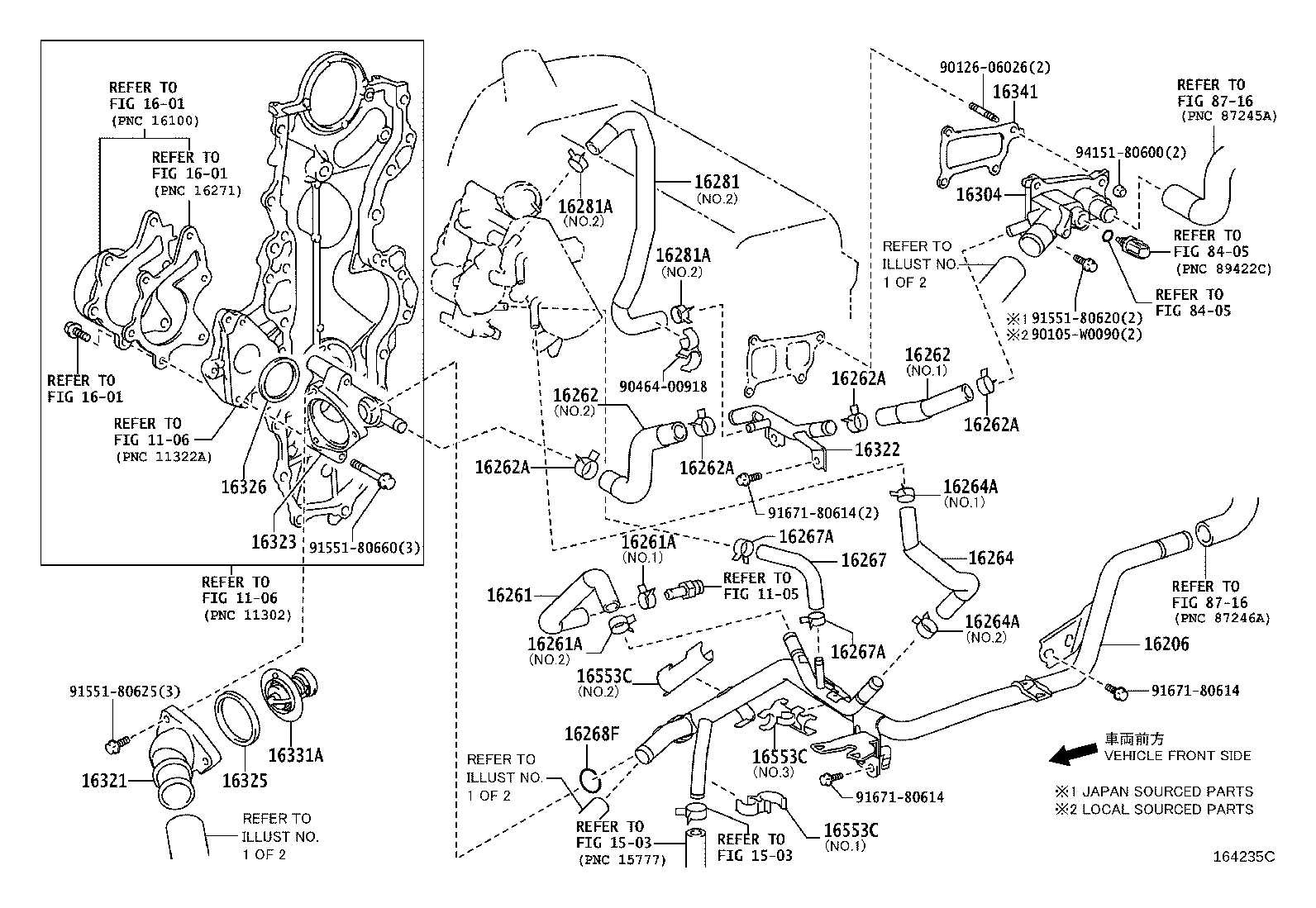

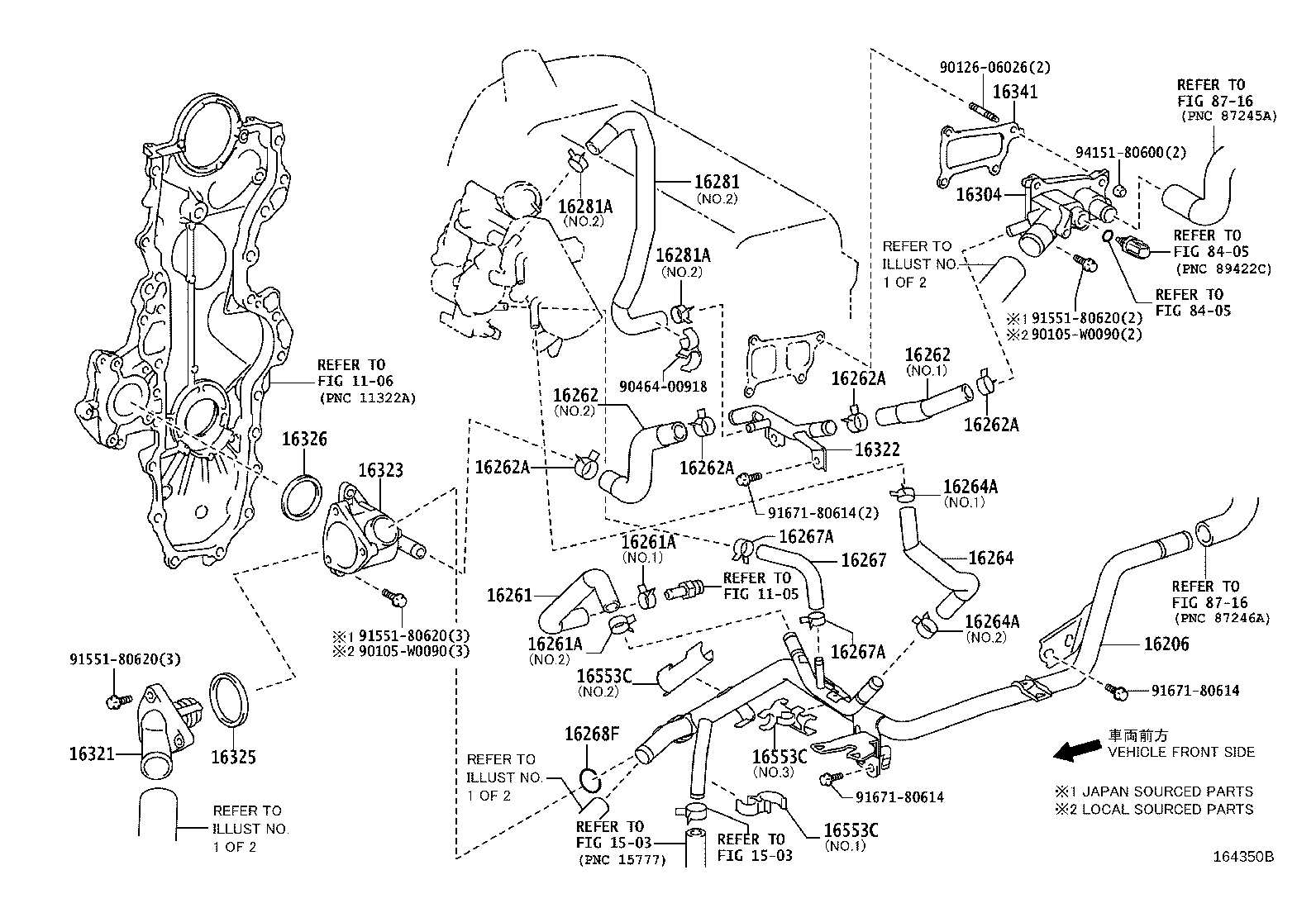

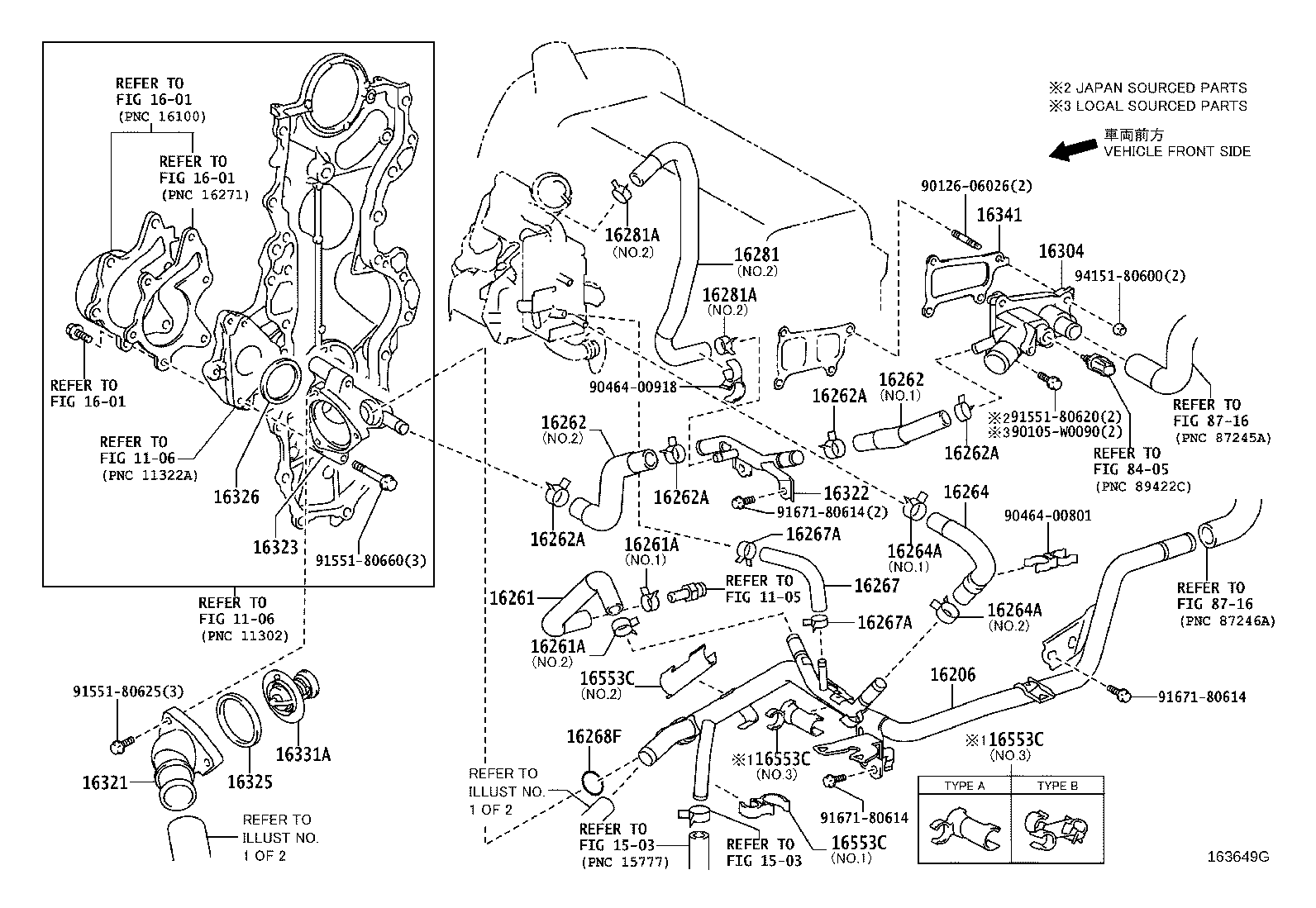

Figure 162530J 162530J 2005-11 → — Figure 162532D 162532D 2005-11 → 2008-11 Figure 163646D 163646D 2008-11 → — Figure 162522F 162522F 2005-11 → 2008-11 Figure 163648E 163648E 2008-11 → — Figure 163650D 163650D 2008-11 → — Figure 162523D 162523D 2005-11 → 2008-11 Figure 163649G 163649G 2008-11 → 2010-07 Figure 164234D 164234D 2010-07 → 2010-11 Figure 164235C 164235C 2010-07 → 2010-11 Figure 164349C 164349C 2010-11 → — Figure 164350B 164350B 2010-11 → — Figure 163664B 163664B 2008-11 → — Figure 162512E 162512E 2005-11 → — Figure 162511A 162511A 2005-11 → —

Part groups

PNCDescription
12109 Hose, Water Drain
16206 Pipe Sub-assy, Water By-pass
16258C Gasket(FOR WATER BY-PASS PIPE)
16260 Hose Assy, Water By-pass
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261G Hose, Water By-pass, NO.1
16261H Clip(FOR WATER BY-PASS HOSE NO.1)
16261L Hose, Water By-pass
16261N Hose, Water By-pass, NO.2
16262 Hose, Water Inlet
16262A Clip(FOR WATER INLET HOSE)
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16264D Hose, Water By-pass, NO.2
16264E Clip(FOR WATER BY-PASS HOSE NO.2)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16268 Pipe, Water By-pass, NO.1
16268F Ring, O(FOR WATER BY-PASS PIPE)
16268G Gasket(FOR WATER BY-PASS PIPE)
16281 Hose, Water By-pass, NO.4
16281A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16282 Hose, Water By-pass, NO.5
16282A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
16283A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
16304 Outlet Sub-assy, Water
16321 Inlet, Water
16322 Pipe, Water Inlet
16323 Housing, Water Inlet
16325 Gasket, Water Inlet Housing, NO.1
16326 Gasket, Water Inlet Housing, NO.2
16331A Thermostat
16332 Pipe, Water Outlet, NO.1
16341 Gasket, Water Outlet
16341B Gasket, Water Inlet
16360A Fan Assy, W/Motor
16361 Fan
16363 Motor, Cooling Fan
16374 Insulator, Cooling Fan Motor
16381 Bar, Fan Belt Adjusting
16385 Slider, Fan Belt Adjusting
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16470 Tank Assy, Radiator Reserve
16470A Hose OR Pipe(FOR RADIATOR RESERVE TANK)
16470B Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
16471 Cap Sub-assy, Reserve Tank
16502 Filler Sub-assy, Water
16520A Cap Sub-assy, Water Filler
16523A Cushion, Radiator Support
16535 Support, Radiator, Lower
16553C Clamp, Hose
16571 Hose, Radiator, Inlet
16571A Clamp OR Clip, Hose(FOR RADIATOR INLET)
16571C Hose, Radiator, NO.1
16571D Clip, Radiator Hose, NO.1
16572 Hose, Radiator, Outlet
16572A Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
16572D Hose, Radiator, NO.2
16572E Clip, Radiator Hose, NO.2
16573B Hose, Radiator, NO.3
16573C Clamp OR Clip, Radiator Hose, NO.3
16574 Hose, Radiator, NO.4
16611 Bracket, Radiator Reserve Tank
16701 Shroud Sub-assy, Fan
16711 Shroud, Fan
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
