Toyota Yaris/Hybrid (FRP)
2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe
Supported model
Data version 2015-01

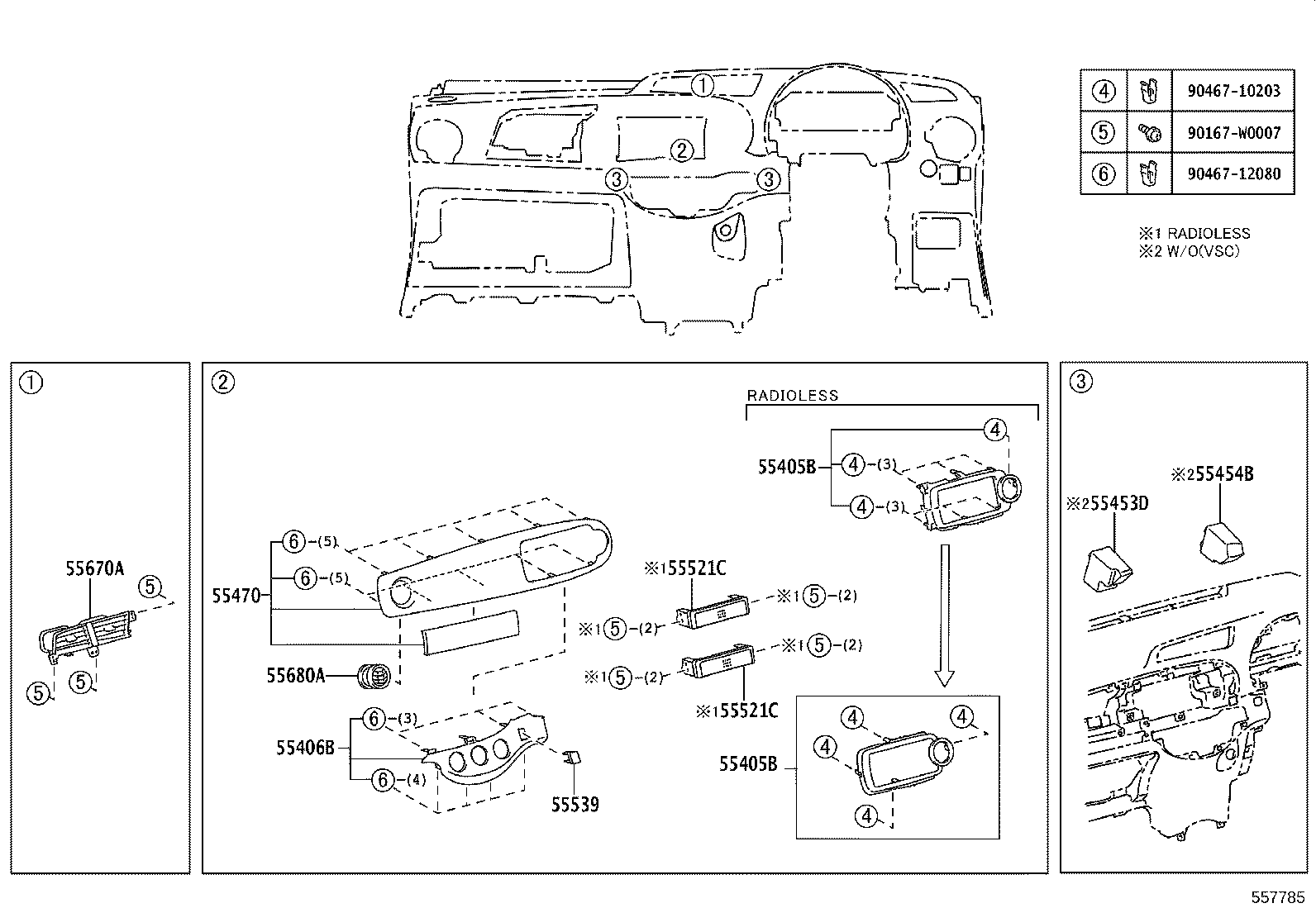

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55405B — Panel Sub-assy, Instrument Cluster Finish, Center | ||||
| 55405-0D420 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2012-04 → 2013-01
ended
|
NHP130 ACTIV | — | |
| 55405-0D420 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2011-07 → —
|
KSP130,NLP130,NSP130 ACTIV,STD | — | |
| 55405-0D420 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2013-01 → —
|
NHP130 ACTIV | — | |
| 55405-0D420 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2013-01 → —
|
NHP130 ACTIV | — | |
| 55405-0D420 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2013-11 → —
|
KSP130,NHP130,NLP130,NSP130 LHD (LOUNG,STYLE) | — | |
| 55405-0D420 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2011-07 → 2013-01
ended
|
NHP130 ACTIV | — | |
| 86451-0D010 |
Panel Sub-assy, Instrument Cluster Finish, Center
2011-07 → —
|
KSP130,NHP130,NLP130,NSP130 | — | |
| 86451-0D010 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2011-07 → —
|
KSP130,NLP130,NSP130 5D (5F,6F,CVFC) ACTIV | — | |
| 86451-0D020 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2013-01 → 2013-03
ended
|
KSP130,NLP130,NSP130 RHD 5D ACTIV | — | |
| 86451-0D020 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2013-01 → —
|
KSP130,NLP130,NSP130 LHD 5D (5F,6F,CVFC) +1 | — | |
| 86451-0D020 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2013-01 → —
|
KSP130,NLP130,NSP130 5D (5F,6F,CVFC) ACTIV | — | |
| 86451-0D020 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2013-01 → —
|
KSP130,NLP130,NSP130 5D (5F,6F,CVFC) ACTIV | — | |
| 55406B — Panel Sub-assy, Instrument Cluster Finish, Lower Center | ||||
| 55406-0D490-C0 note |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 LHD (ACTIV,STD,STYLE) | — | |
| 55406-0D490-C0 note |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 LHD LOUNG | — | |
| 55406-0D490-C0 note |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 LHD (ACTIV,STYLE) | — | |
| 55406-0D510-C0 note |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 RHD (ACTIV,STYLE) | — | |
| 55406-0D510-C0 note |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 RHD LOUNG | — | |
| 55406-0D510-C0 note |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 RHD (ACTIV,STD,STYLE) | — | |
| 55453D — Pad, Instrument Panel Safety, NO.1 | ||||
| 55453-52120 note |
Pad, Instrument Panel Safety, NO.1
2011-07 → —
|
KSP130,NSP130 RHD | — | |
| 55453-52120 note |
Pad, Instrument Panel Safety, NO.1
2012-04 → —
|
NHP130 RHD | — | |
| 55453-52130 note |
Pad, Instrument Panel Safety, NO.1
2011-07 → —
|
KSP130,NLP130,NSP130 LHD (5F,6F,CVFC) | — | |
| 55453-52130 note |
Pad, Instrument Panel Safety, NO.1
2012-04 → —
|
NHP130 LHD | — | |
| 55454B — Pad, Instrument Panel Safety, NO.2 | ||||
| 55454-52110 note |
Pad, Instrument Panel Safety, NO.2
2011-07 → —
|
KSP130,NSP130 RHD | — | |
| 55454-52110 note |
Pad, Instrument Panel Safety, NO.2
2012-04 → —
|
NHP130 RHD | — | |
| 55454-52120 note |
Pad, Instrument Panel Safety, NO.2
2011-07 → —
|
KSP130,NLP130,NSP130 LHD (5F,6F,CVFC) | — | |
| 55454-52120 note |
Pad, Instrument Panel Safety, NO.2
2012-04 → —
|
NHP130 LHD | — | |
| 55470 — Garnish Assy, Instrument Cluster Finish Panel | ||||
| 55470-0D030-A0 note |
Garnish Assy, Instrument Cluster Finish Panel
2013-01 → 2014-07
ended
|
KSP130,NLP130,NSP130 5D (5F,6F,CVFC) ACTIV | — | |
| 55470-0D030-B0 note |
Garnish Assy, Instrument Cluster Finish Panel
2011-07 → 2014-07
ended
|
NLP130 SP130 5D 3D +6 | — | |
| 55470-0D030-B0 note |
Garnish Assy, Instrument Cluster Finish Panel
2011-07 → 2014-07
ended
|
KSP130,NHP130,NLP130,NSP130 5D (5F,6F,CVFC) ACTIV | — | |
| 55470-0D030-B1 note |
Garnish Assy, Instrument Cluster Finish Panel
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 LOUNG | — | |
| 55470-0D030-B1 note |
Garnish Assy, Instrument Cluster Finish Panel
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 5D (5F,6F,CVFC) ACTIV | — | |
| 55470-0D030-B1 note |
Garnish Assy, Instrument Cluster Finish Panel
2012-04 → 2014-07
ended
|
NHP130 LOUNG | — | |
| 55470-0D030-J0 note |
Garnish Assy, Instrument Cluster Finish Panel
2012-04 → 2014-07
ended
|
NHP130 | — | |
| 55470-0D040-B0 note |
Garnish Assy, Instrument Cluster Finish Panel
2012-04 → 2014-07
ended
|
NHP130 ACTIV | — | |
| 55470-0D040-B0 note |
Garnish Assy, Instrument Cluster Finish Panel
2011-07 → 2014-07
ended
|
NSP130 CVFC ACTIV | — | |
| 55470-0D040-B0 note |
Garnish Assy, Instrument Cluster Finish Panel
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 STD | — | |
| 55470-0D040-B0 note |
Garnish Assy, Instrument Cluster Finish Panel
2012-04 → 2014-07
ended
|
NHP130 ACTIV | — | |
| 55470-0D050 note |
Garnish Assy, Instrument Cluster Finish Panel
2013-01 → 2014-07
ended
|
KSP130,NLP130,NSP130 LHD 5D (5F,6F,CVFC) +1 | — | |
| 55470-0D060 note |
Garnish Assy, Instrument Cluster Finish Panel
2013-01 → 2013-03
ended
|
KSP130,NLP130,NSP130 RHD 5D ACTIV | — | |
| 55521C — Cover, Stereo Opening | ||||
| 55521-05030 note |
Cover, Stereo Opening
2011-07 → 2014-07
ended
|
KSP130,NHP130,NLP130,NSP130 ACTIV,STD | — | |
| 55521-05030 note |
Cover, Stereo Opening
2012-04 → 2014-07
ended
|
NHP130 ACTIV | — | |
| 55521-05030 note |
Cover, Stereo Opening
2013-11 → 2014-07
ended
|
KSP130,NHP130,NLP130,NSP130 LHD (LOUNG,STYLE) | — | |
| 55539 — Cover, Spare Switch Hole | ||||
| 55539-52070-C0 note |
Cover, Spare Switch Hole
2011-07 → 2014-07
ended
|
NHP130;KSP130,NLP130,NSP130 LOUNG;KSP130,NLP130,NSP130 LHD (ACTIV,STD,STYLE) | — | |
| 55539-52070-C0 note |
Cover, Spare Switch Hole
2011-07 → 2014-07
ended
|
NLP130 LHD | — | |
| 55539-52070-C0 note |
Cover, Spare Switch Hole
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 RHD LOUNG | — | |
| 55539-52070-C0 note |
Cover, Spare Switch Hole
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 RHD LOUNG | — | |
| 55539-52070-C0 note |
Cover, Spare Switch Hole
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 RHD (ACTIV,STYLE) | — | |
| 55539-52070-C0 note |
Cover, Spare Switch Hole
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 RHD (ACTIV,STD) | — | |
| 55670A — Register Assy, Instrument Panel, Center | ||||
| 55670-0D070-C0 note |
Register Assy, Instrument Panel, Center
2011-07 → 2014-07
ended
|
KSP130,NHP130,NLP130,NSP130 LHD | — | |
| 55670-0D080-C0 note |
Register Assy, Instrument Panel, Center
2011-07 → 2014-07
ended
|
KSP130,NHP130,NLP130,NSP130 RHD | — | |
| 55670-0D200 note |
Register Assy, Instrument Panel, Center
2013-01 → 2014-07
ended
|
KSP130,NLP130,NSP130 LHD 5D (5F,6F,CVFC) +1 | — | |
| 55670-0D200 note |
Register Assy, Instrument Panel, Center
2013-01 → 2014-07
ended
|
KSP130,NLP130,NSP130 LHD 5D (5F,6F,CVFC) +1 | — | |
| 55670-0D200 note |
Register Assy, Instrument Panel, Center
2013-01 → 2014-07
ended
|
KSP130,NLP130,NSP130 LHD 5D (5F,6F,CVFC) +1 | — | |
| 55670-0D210 note |
Register Assy, Instrument Panel, Center
2013-01 → 2013-03
ended
|
KSP130,NLP130,NSP130 RHD 5D ACTIV | — | |
| 55670-0D210 note |
Register Assy, Instrument Panel, Center
2013-01 → 2014-07
ended
|
KSP130,NLP130,NSP130 RHD 5D ACTIV | — | |
| 55670-0D210 note |
Register Assy, Instrument Panel, Center
2013-01 → 2014-07
ended
|
KSP130,NLP130,NSP130 RHD 5D ACTIV | — | |
| 55680A — Register Assy, Instrument Panel, NO.4 | ||||
| 55680-0D010-C0 note |
Register Assy, Instrument Panel, NO.4
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 STD | — | |
| 55680-0D010-C0 note |
Register Assy, Instrument Panel, NO.4
2011-07 → 2014-07
ended
|
NSP130 CVFC ACTIV | — | |
| 55680-0D010-C0 note |
Register Assy, Instrument Panel, NO.4
2012-04 → 2014-07
ended
|
NHP130 ACTIV | — | |
| 55680-0D010-C0 note |
Register Assy, Instrument Panel, NO.4
2012-04 → 2014-07
ended
|
NHP130 ACTIV | — | |
| 55680-0D020-C0 note |
Register Assy, Instrument Panel, NO.4
2011-07 → 2014-07
ended
|
KSP130,NHP130,NLP130,NSP130 ACTIV,LOUNG,STYLE | — | |
| 55680-0D110 note |
Register Assy, Instrument Panel, NO.4
2013-01 → 2013-03
ended
|
KSP130,NLP130,NSP130 RHD 5D ACTIV | — | |
| 55680-0D110 note |
Register Assy, Instrument Panel, NO.4
2013-01 → 2014-07
ended
|
KSP130,NLP130,NSP130 LHD 5D (5F,6F,CVFC) +1 | — | |
| 55680-0D110 note |
Register Assy, Instrument Panel, NO.4
2013-01 → 2014-07
ended
|
KSP130,NLP130,NSP130 5D (5F,6F,CVFC) ACTIV | — | |
| 55680-0D110 note |
Register Assy, Instrument Panel, NO.4
2013-01 → 2014-07
ended
|
KSP130,NLP130,NSP130 5D (5F,6F,CVFC) ACTIV | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
