Toyota Yaris/Hybrid(FRP)

2014-07 → 2020-06 · chassis KSP130,NHP130,NLP130,NSP13# · catalogue 116540 · Europe

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

24 part groups · 8 illustrations

Illustrations

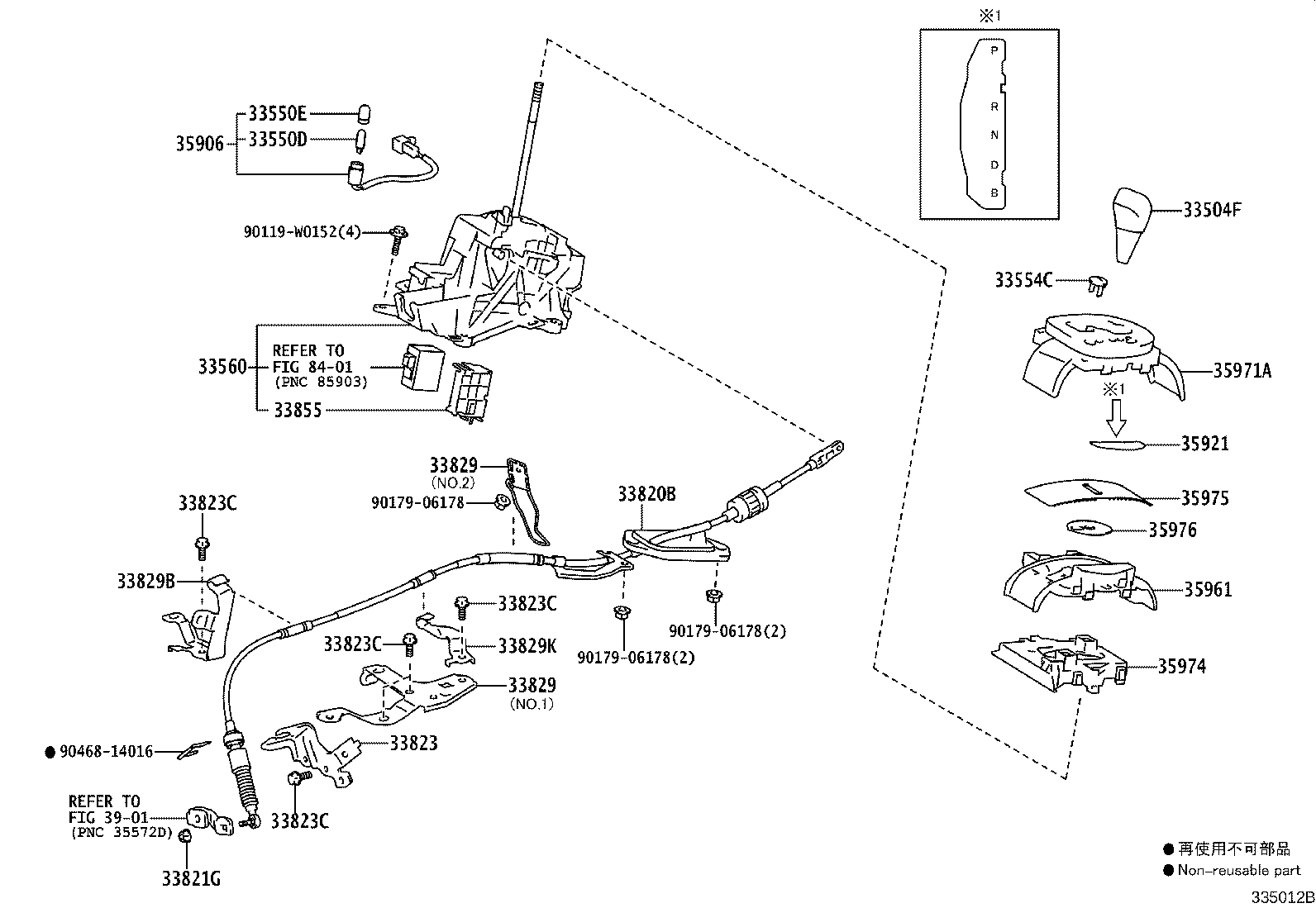

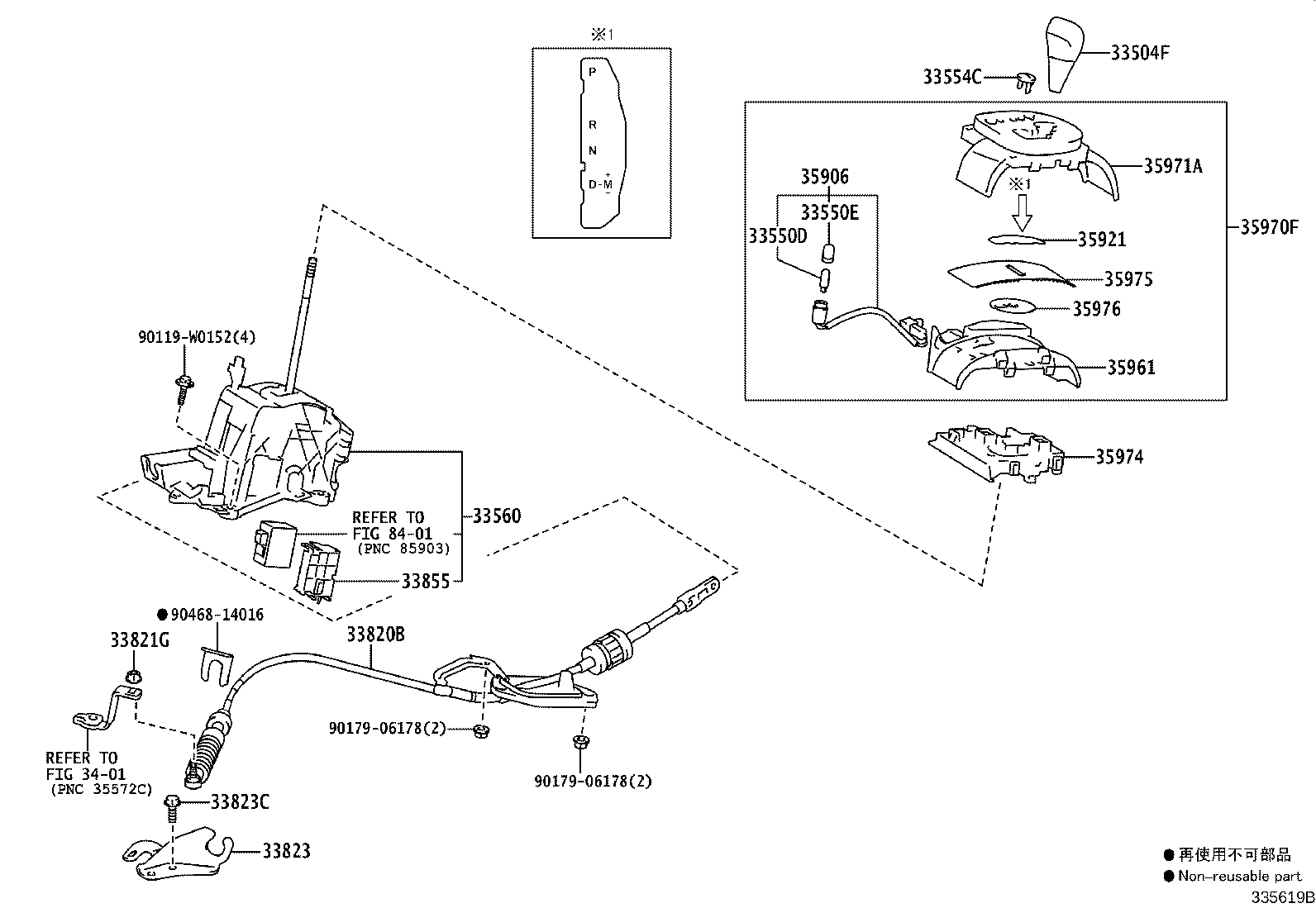

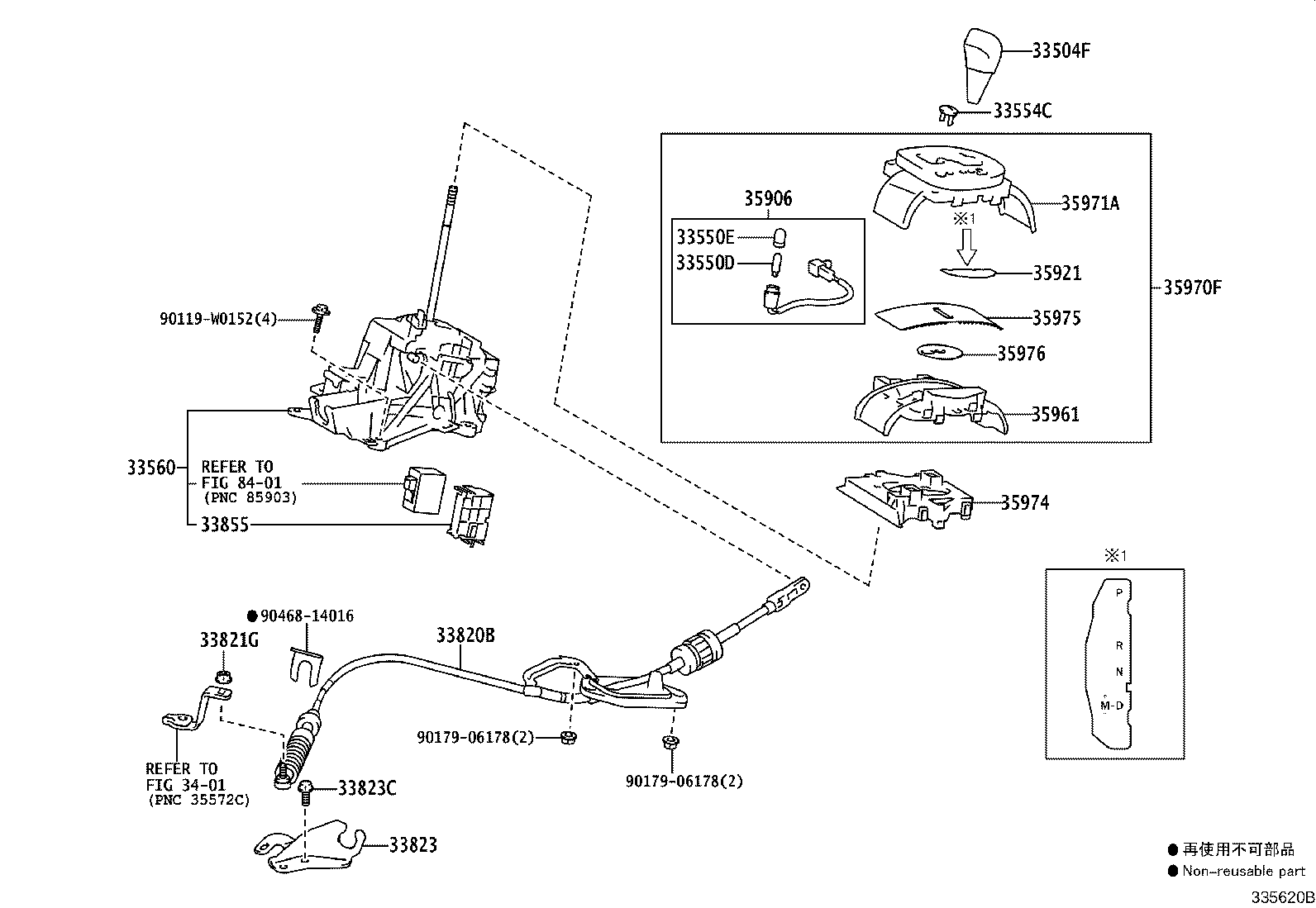

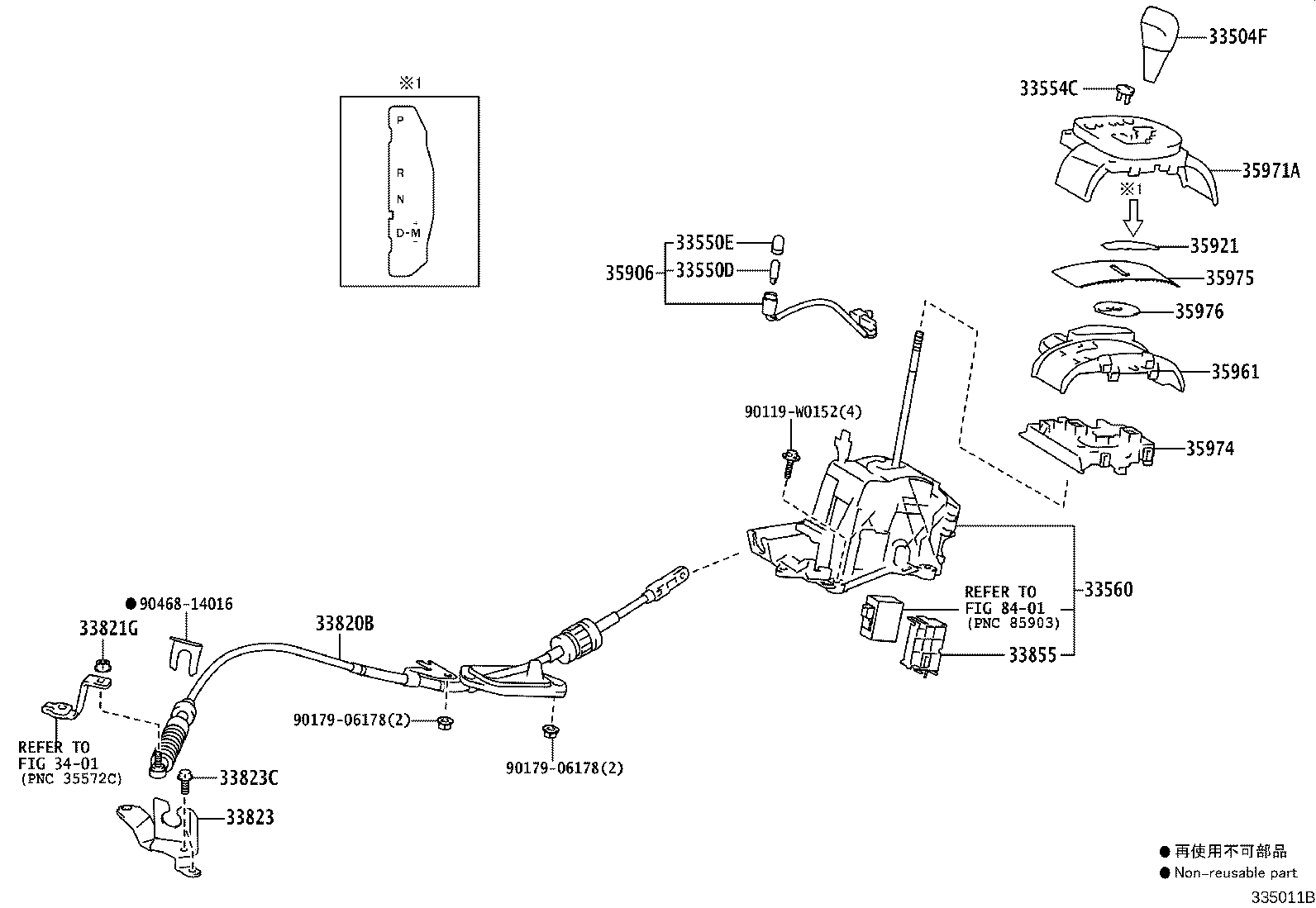

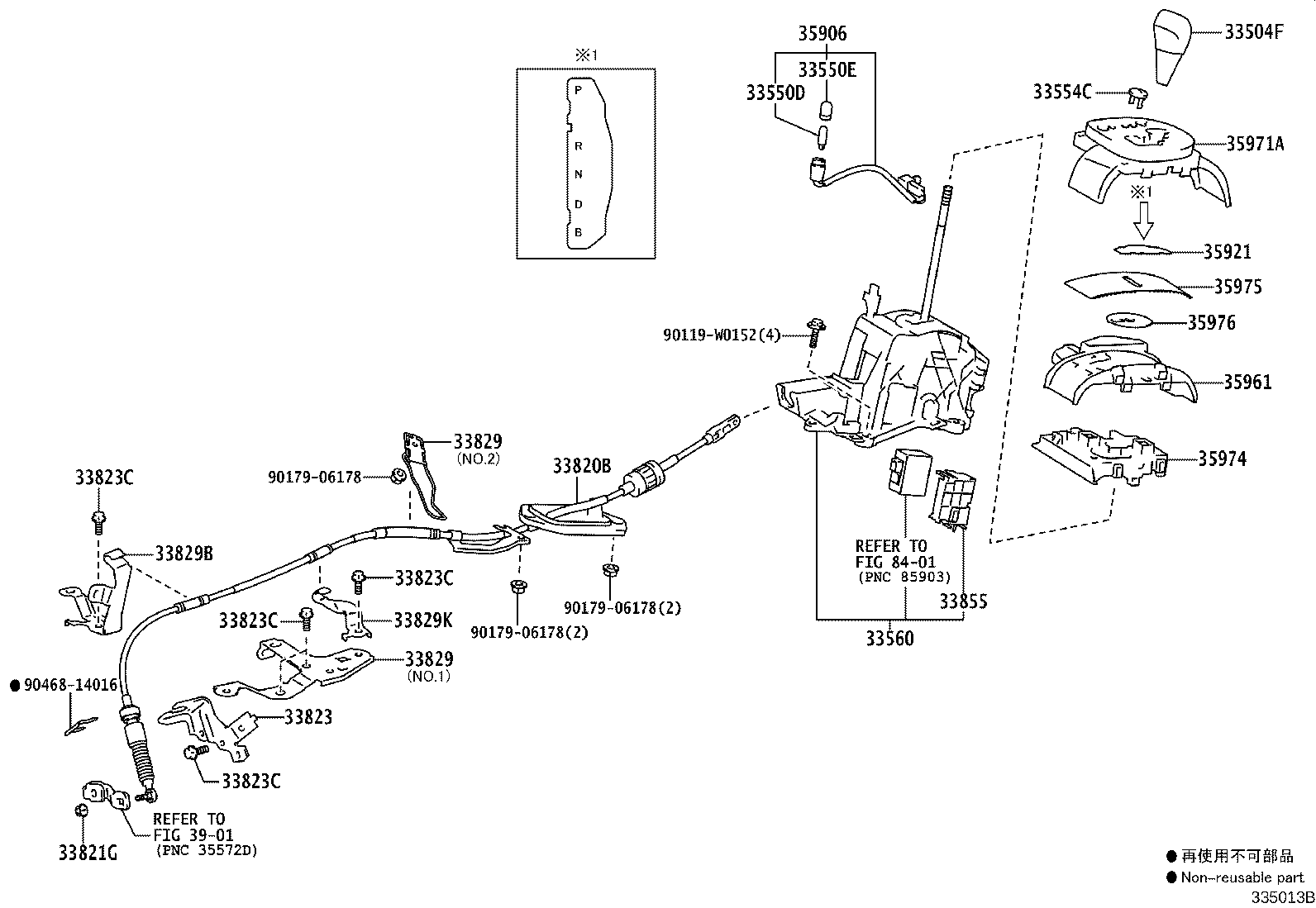

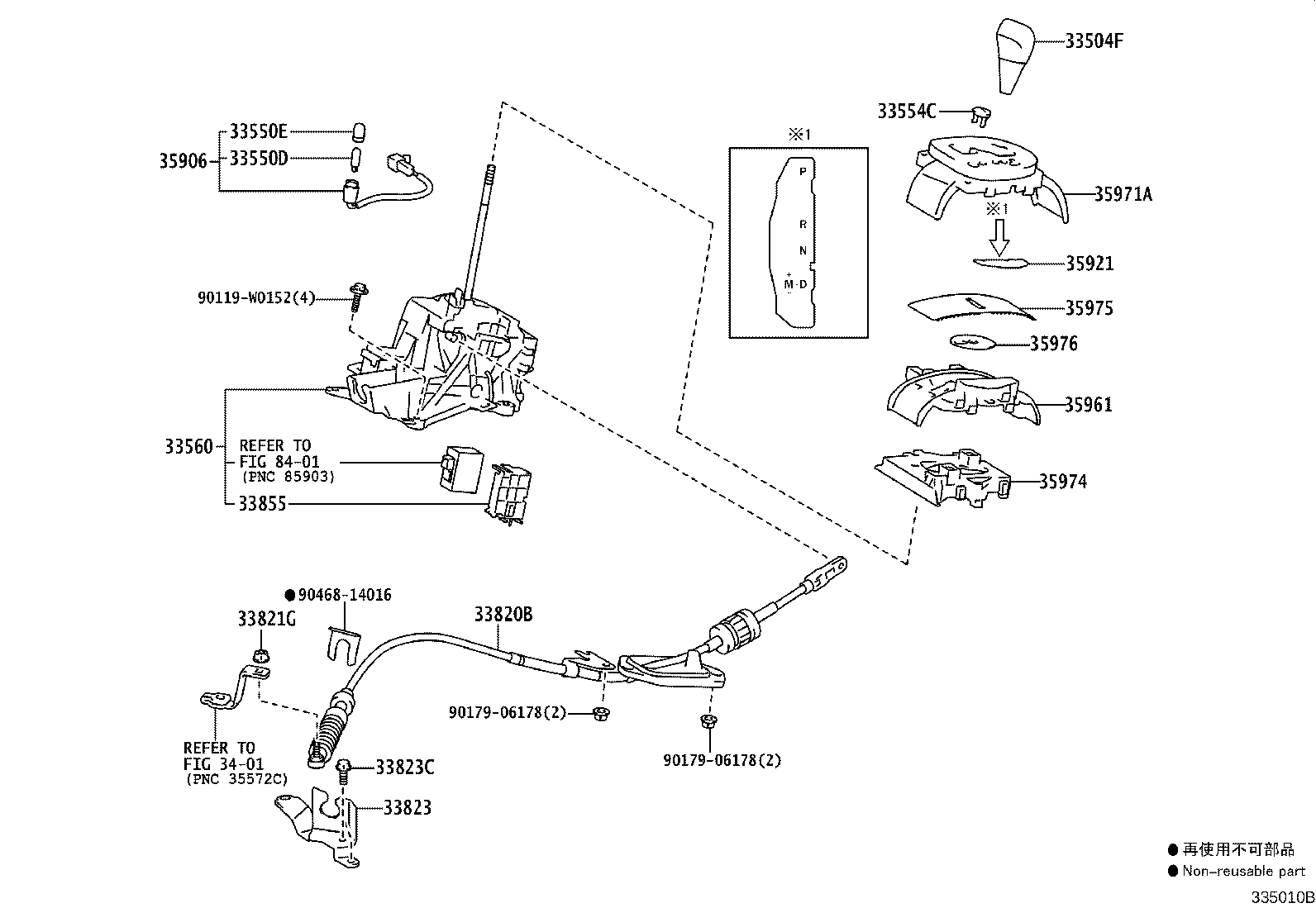

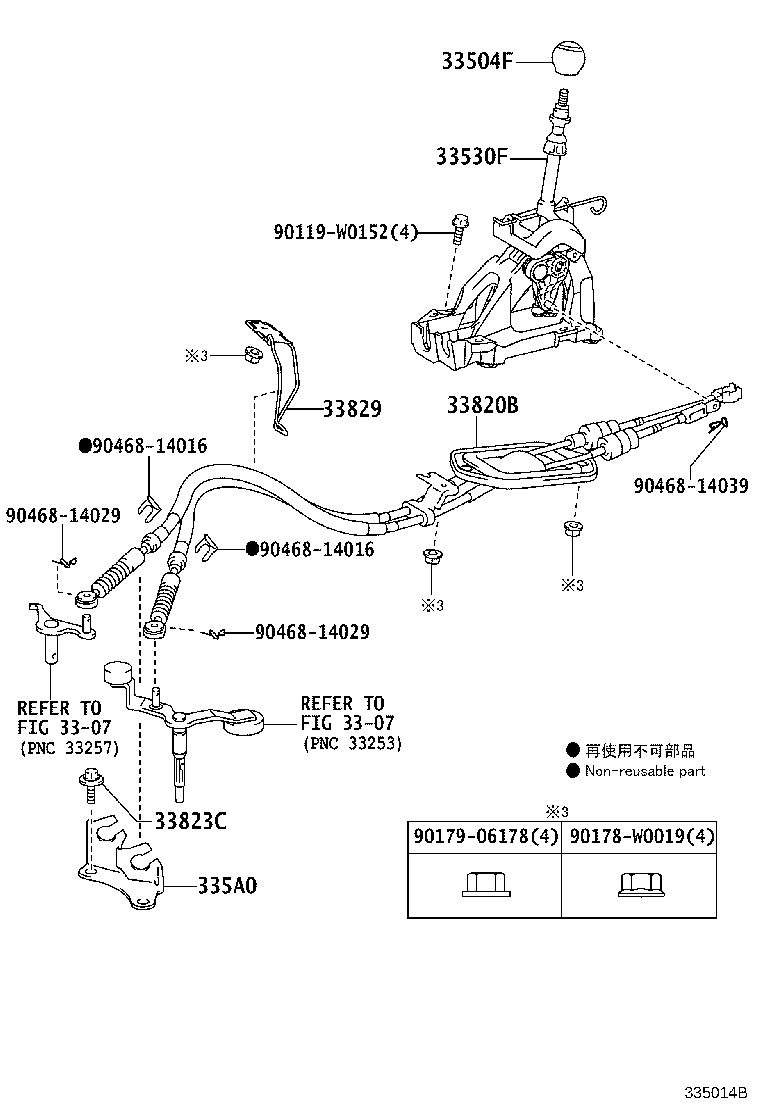

Figure 335030G 335030G 2014-07 → — Figure 335014B 335014B 2014-07 → — Figure 335010B 335010B 2014-07 → — Figure 335011B 335011B 2014-07 → — Figure 335012B 335012B 2014-07 → — Figure 335013B 335013B 2014-07 → — Figure 335620B 335620B 2017-03 → — Figure 335619B 335619B 2017-03 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33524F Bracket, Control Lever Housing Support (FOR FLOOR SHIFT)
33530F Lever Assy, Shift (FOR FLOOR SHIFT)
33550D Bulb, Position Indicator Lamp
33550E Cap, Position Indicator Lamp
33554C Cover, Shift Lock Release Button
33560 Unit Assy, Shift Lock Control
335A0 Bracket Assy, Control Cable
33820B Cable Assy, Transmission Control
33821G Nut (FOR TRANSMISSION CONTROL CABLE)
33823 Bracket, Transmission Control Cable, NO.1
33823C Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
33829 Support, Transmission Control Cable
33829B Clamp, Transmission Control Cable
33829K Clamp, Transmission Control Cable, NO.2
33855 Cover, Shift Lock Unit
35906 Wire Sub-assy, Indicator Lamp
35921 Plate, Control Position Indicator
35961 Housing, Position Indicator Lamp
35970F Housing Assy, Position Indicator
35971A Housing, Position Indicator, Upper
35974 Housing, Position Indicator, Lower
35975 Cover, Slide (FOR POSITION INDICATOR)
35976 Cover, Slide, NO.2 (FOR POSITION INDICATOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
