Toyota Yaris(FRP)
2020-07 → present · chassis KSP211,MXPA11,MXPH1# · catalogue 116550 · Europe
Supported model
Data version 2023-12

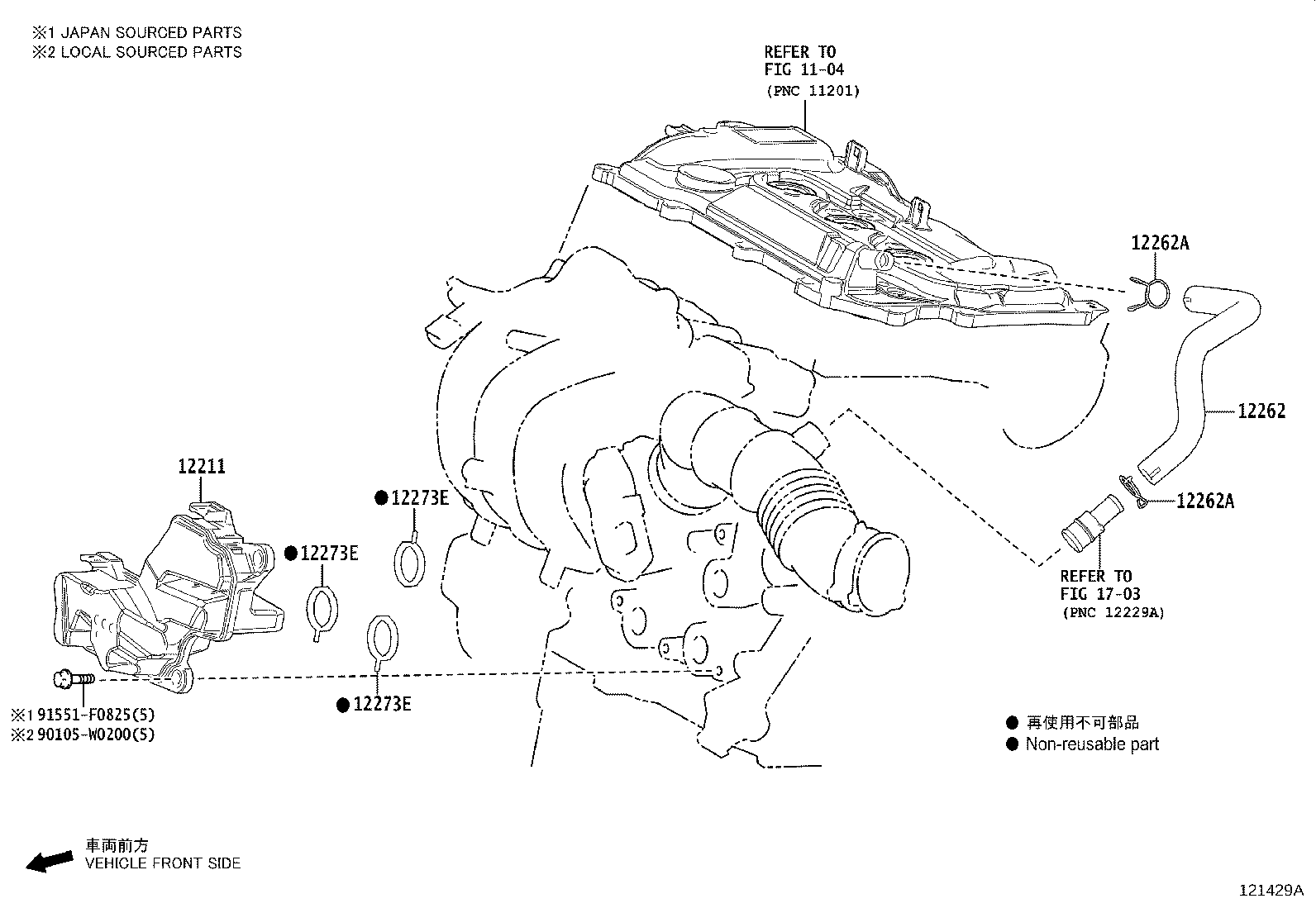

Ventilation Hose
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 12204 | Valve Sub-assy, Ventilation |
| 12204A | Grommet(FOR VENTILATION SYSTEM) |
| 12211 | Case, Ventilation, NO.1 |
| 12261 | Hose, Ventilation |
| 12261A | Clip OR Clamp(FOR VENTILATION HOSE) |
| 12262 | Hose, Ventilation, NO.2 |
| 12262A | Clip(FOR VENTILATION HOSE NO.2) |
| 12273E | Gasket(FOR VENTILATION CASE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
