Toyota Yaris(FRP)

2020-07 → present · chassis KSP211,MXPA11,MXPH1# · catalogue 116550 · Europe

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

13 part groups · 2 illustrations

Illustrations

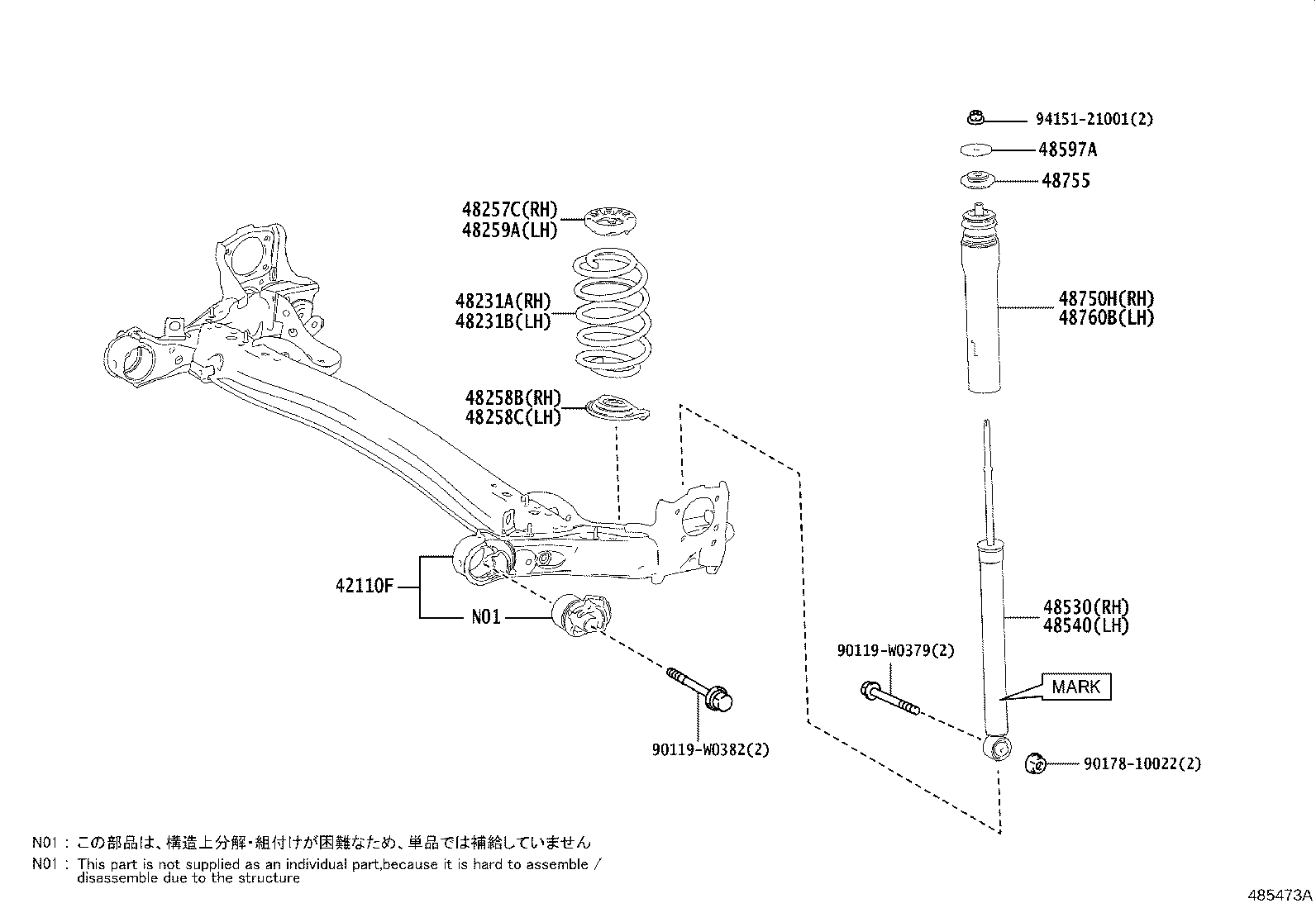

Figure 485123D 485123D 2020-07 → — Figure 485473A 485473A 2022-01 → —

Part groups

PNCDescription
42110F Beam Assy, Rear Axle
48231A Spring, Coil, Rear RH
48231B Spring, Coil, Rear LH
48257C Insulator, Rear Coil Spring, Upper RH
48258B Insulator, Rear Coil Spring, Lower RH
48258C Insulator, Rear Coil Spring, Lower LH
48259A Insulator, Rear Coil Spring, Upper LH
48530 Absorber Assy, Shock, Rear RH
48540 Absorber Assy, Shock, Rear LH
48597A Retainer, Rear Shock Absorber Cushion
48750H Support Assy, Rear Suspension, RH
48755 Support, Rear Suspension
48760B Support Assy Rear Suspension, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
