Toyota Starlet

1996-01 → 1999-07 · chassis EP91 · catalogue 121550 · Europe

Discontinued model Data version 2000-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

17 part groups · 7 illustrations

Illustrations

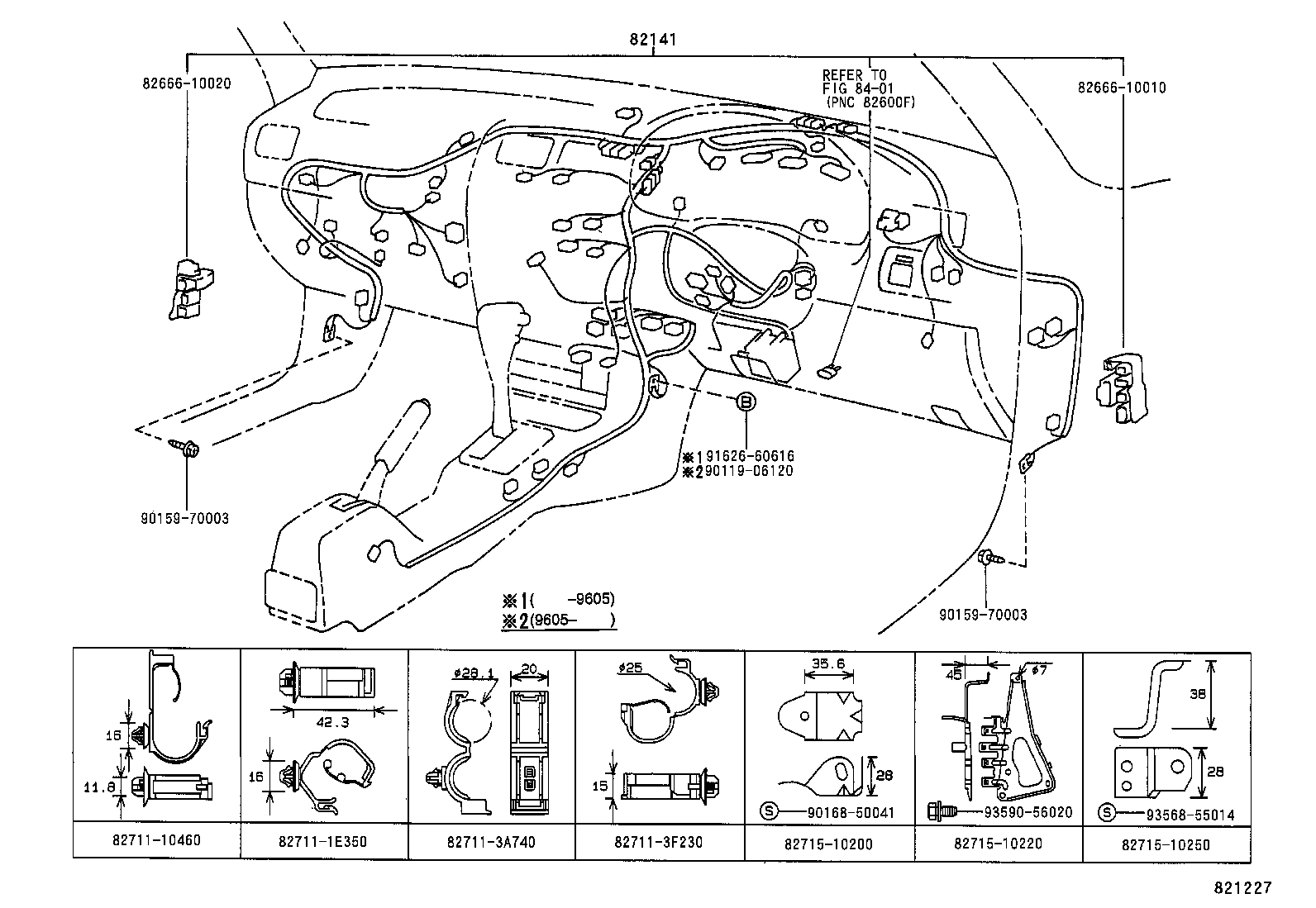

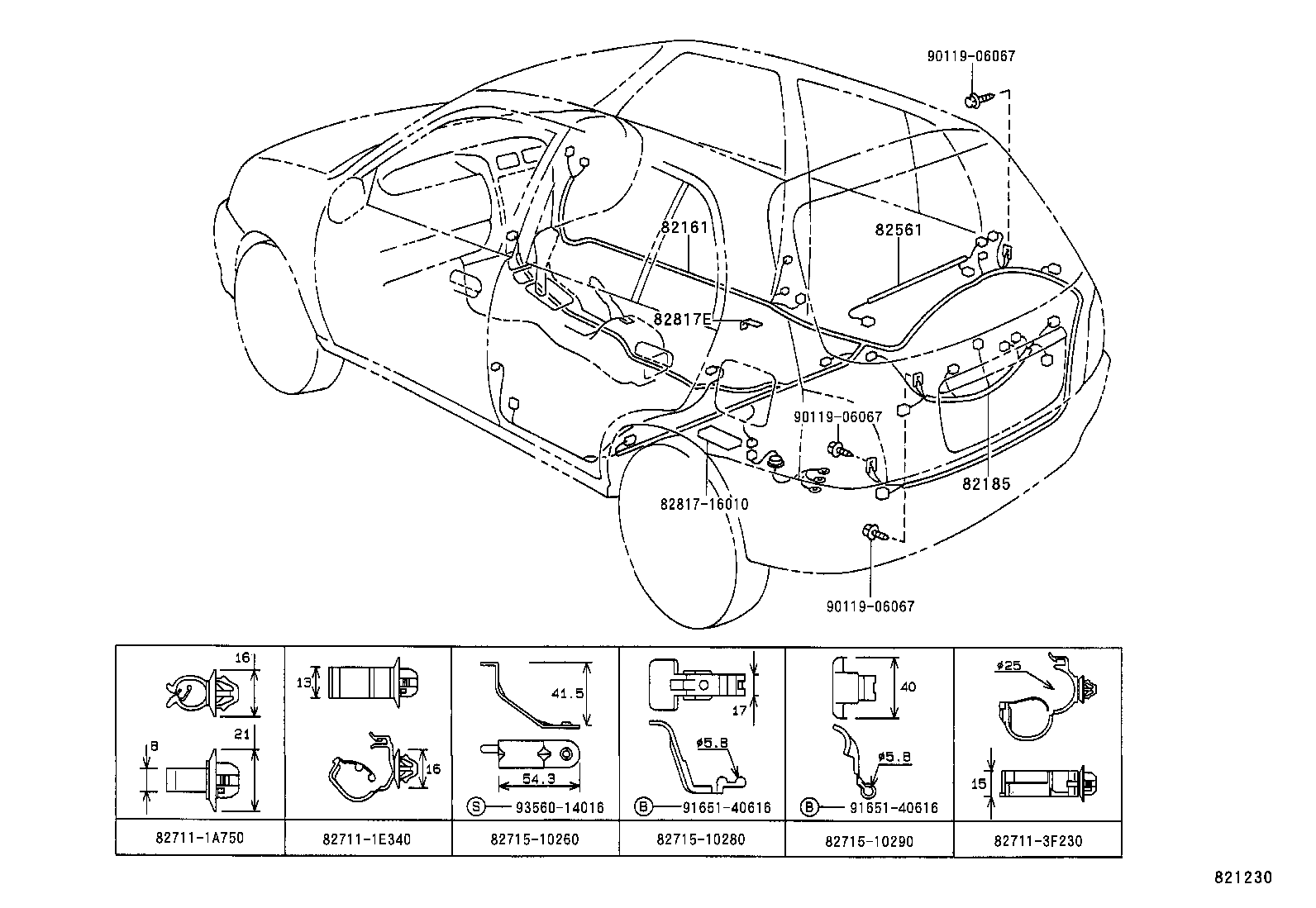

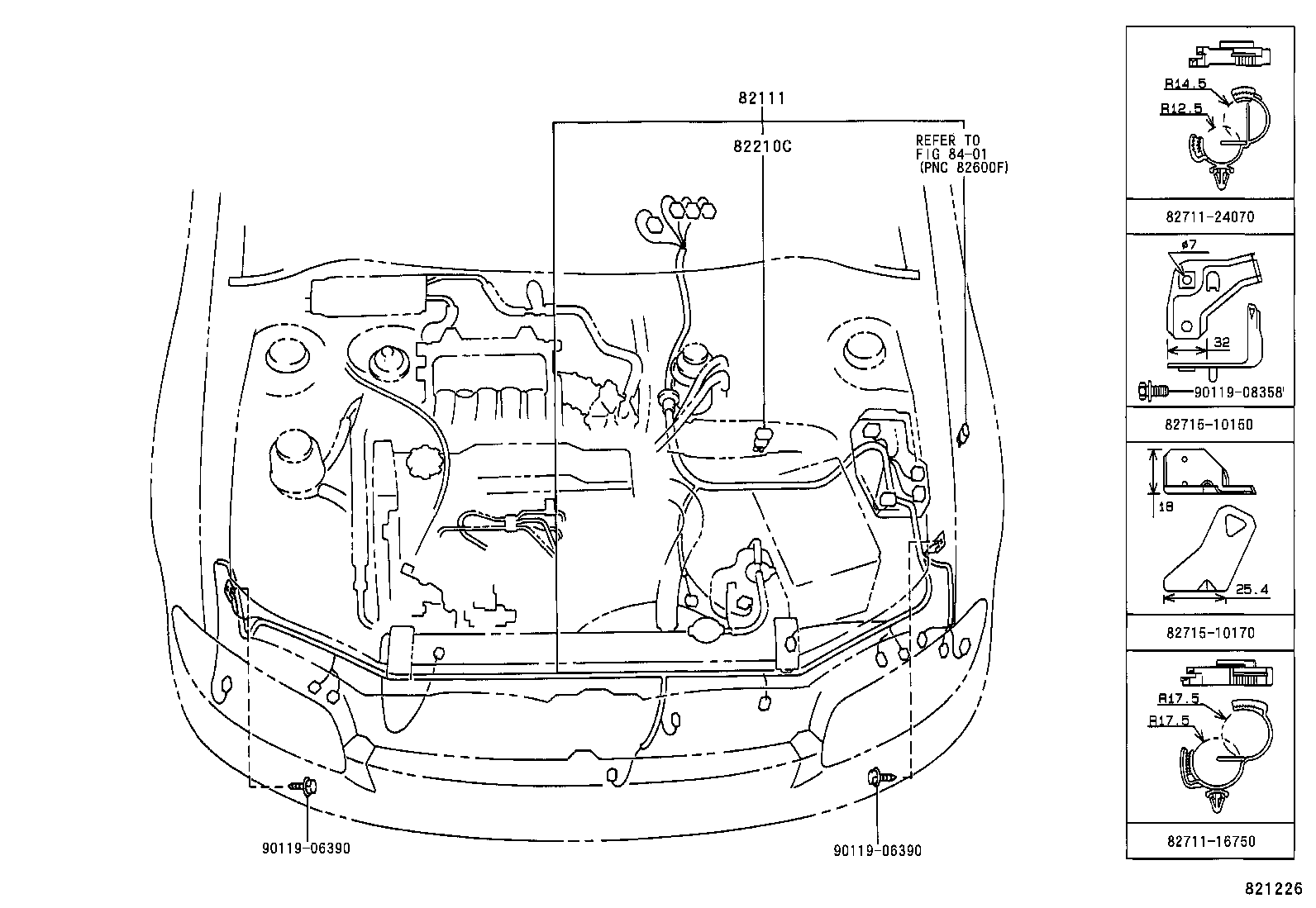

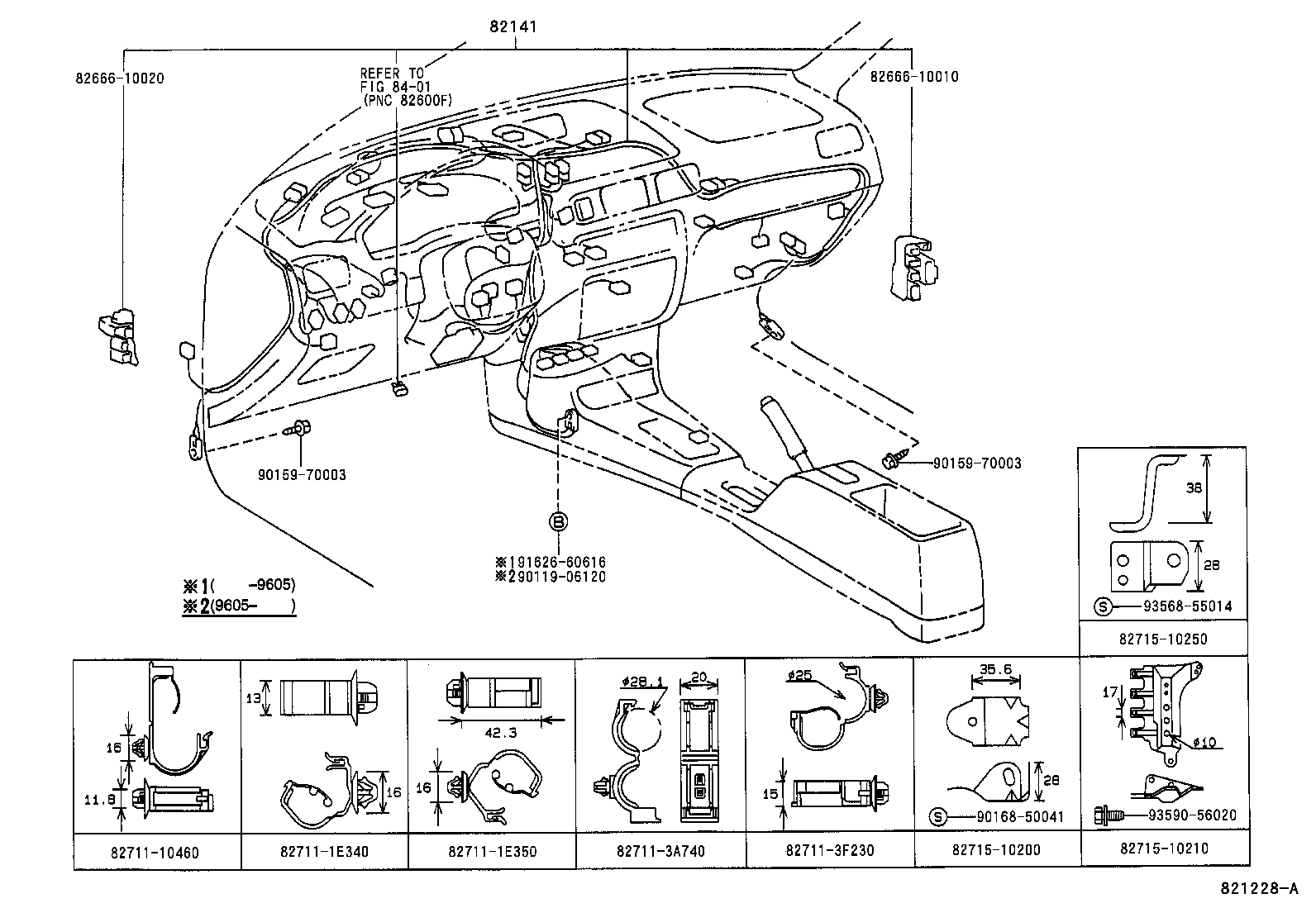

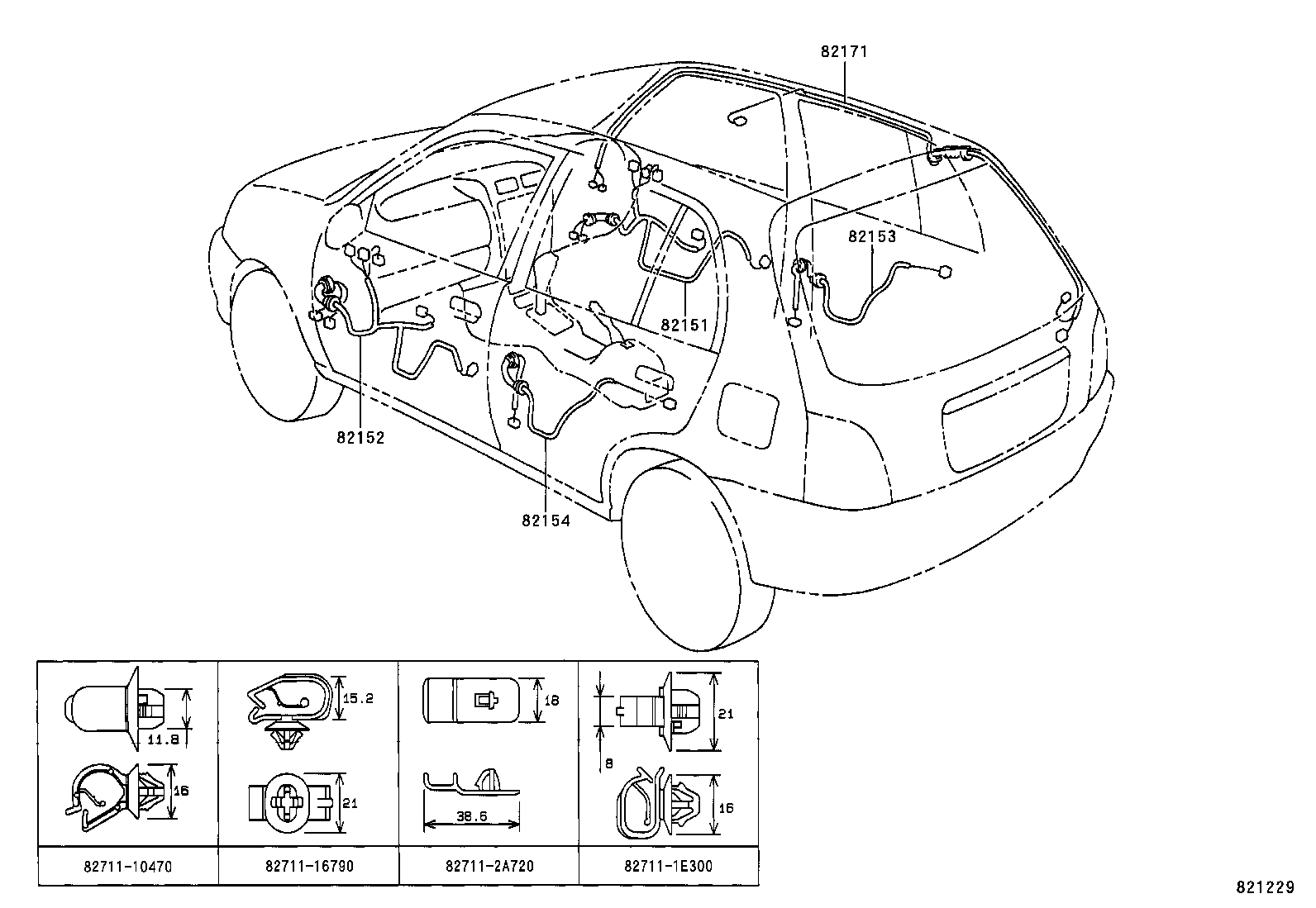

Figure 821225 821225 1996-01 → — Figure 821226 821226 1996-01 → — Figure 821227 821227 1996-01 → — Figure 821228A 821228A 1996-01 → — Figure 821229 821229 1996-01 → — Figure 821230 821230 1996-01 → — Figure NE1990A NE1990A 1996-01 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82171 Wire, Roof, NO.1
82185 Wire, Back Door, NO.2
82210C Fusible Link
82561 Wire, Rear Speaker
82817E Protector, Wiring Harness, NO.6
82823 Cap, Terminal, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
