Toyota Tercel

1988-08 → 1990-09 · chassis EL31 · catalogue 141430 · Europe

Discontinued model Data version 1991-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

24 part groups · 12 illustrations

Illustrations

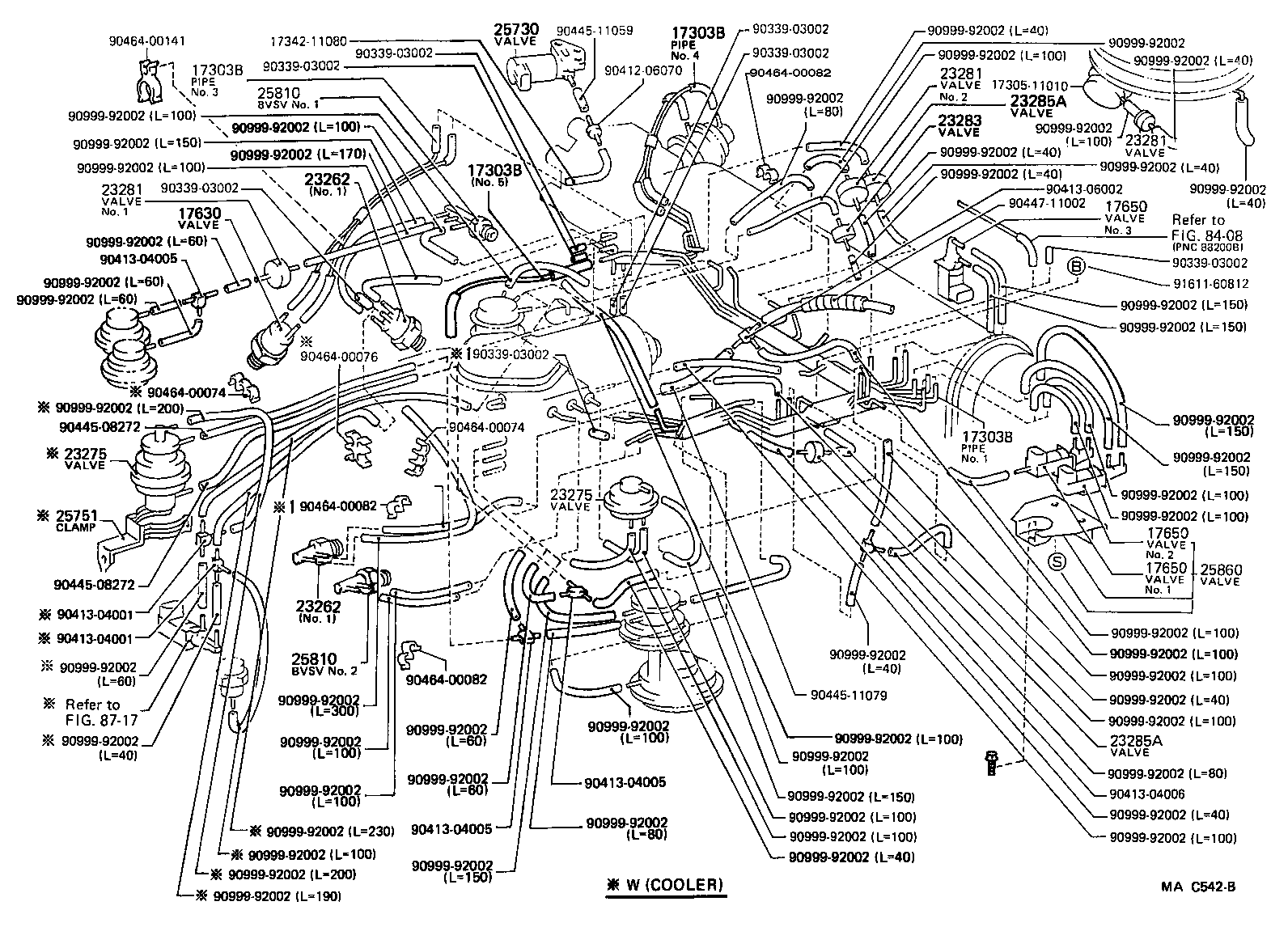

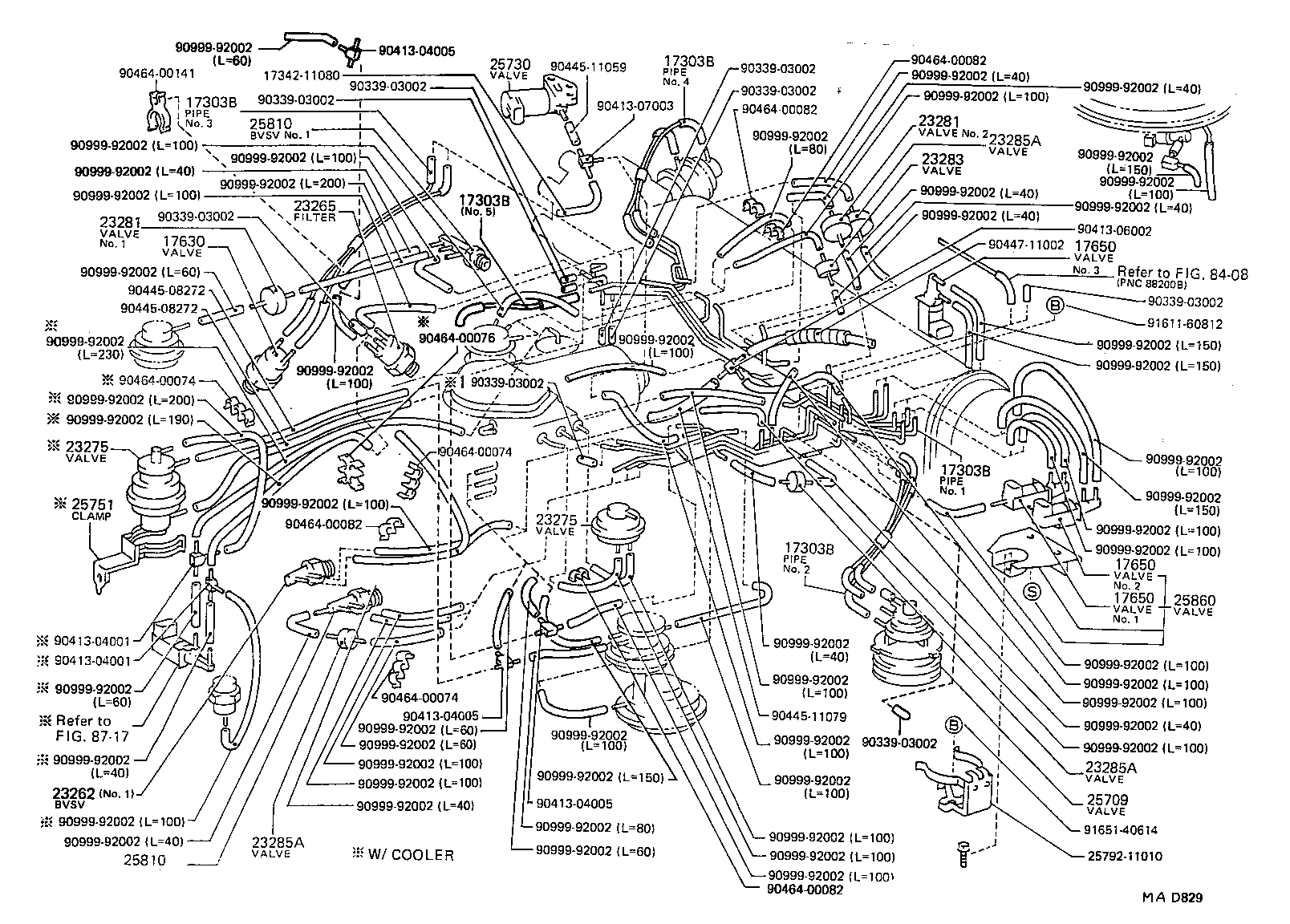

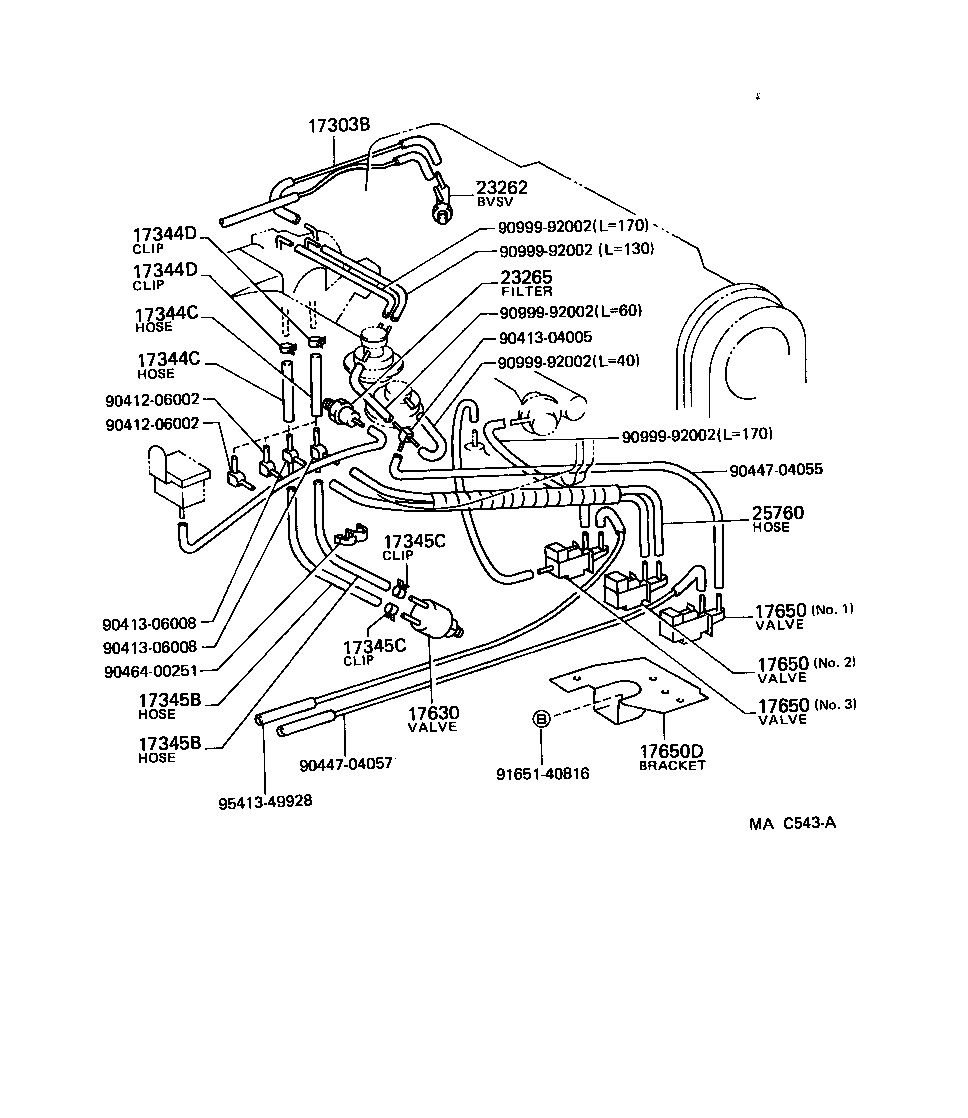

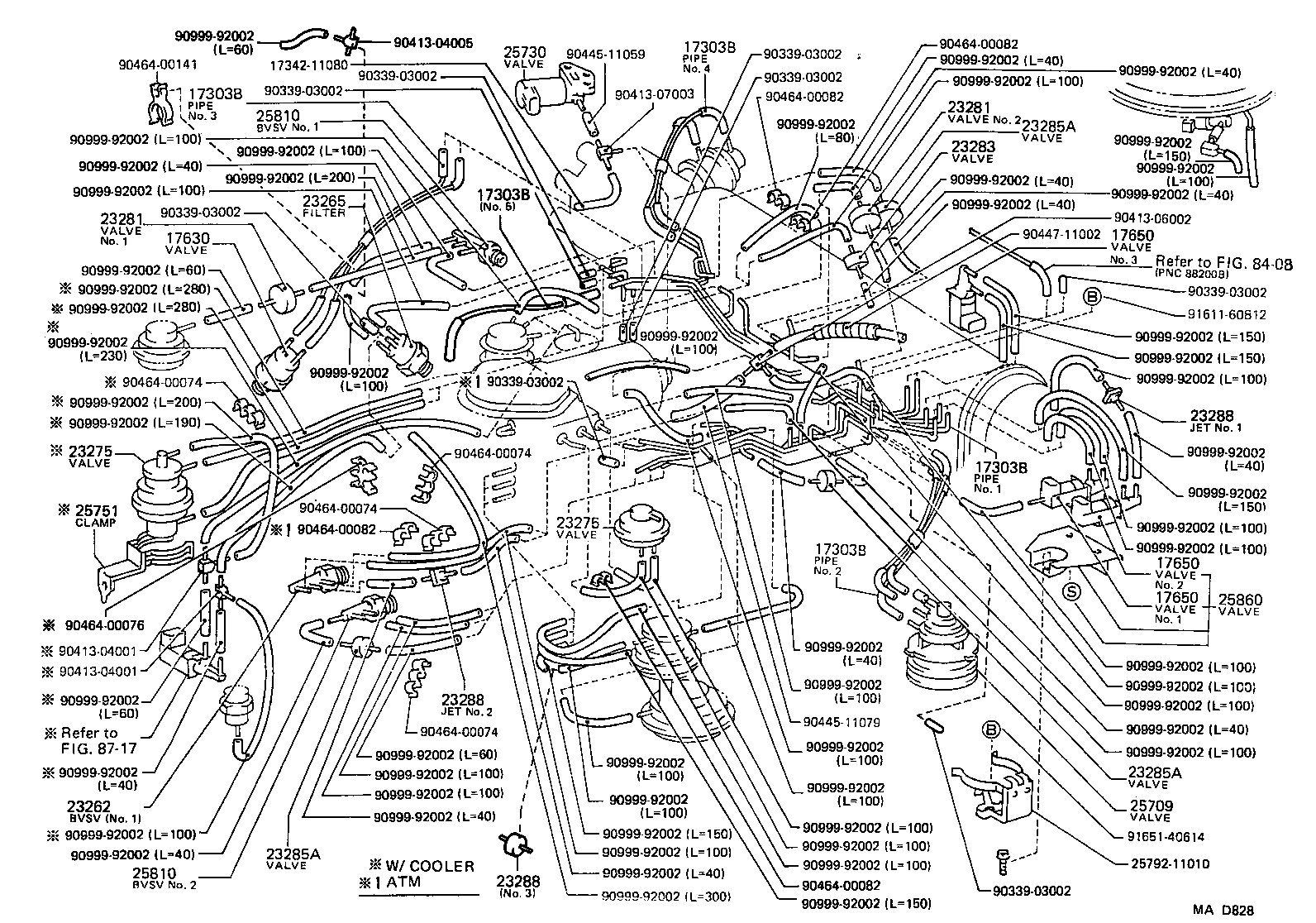

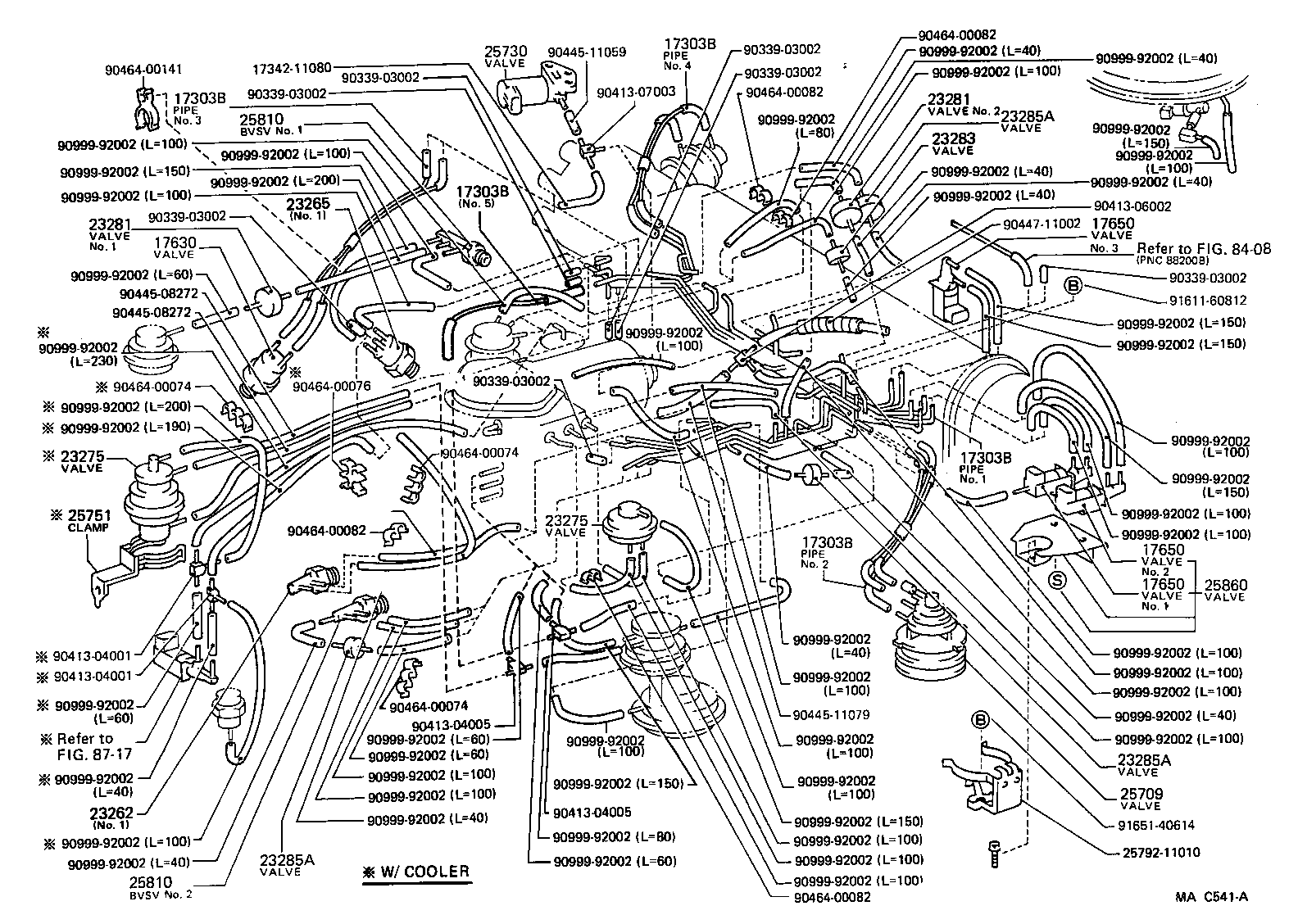

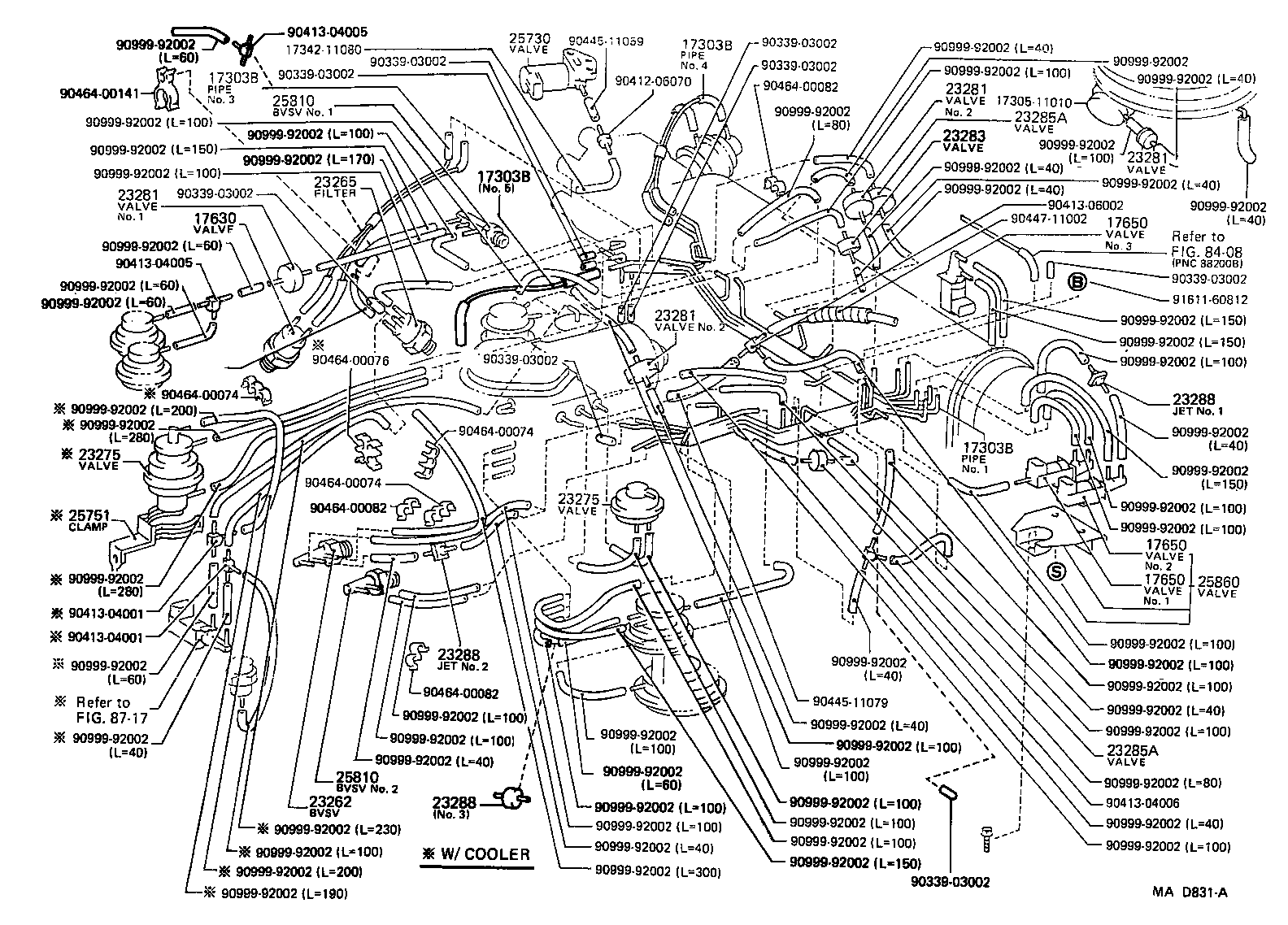

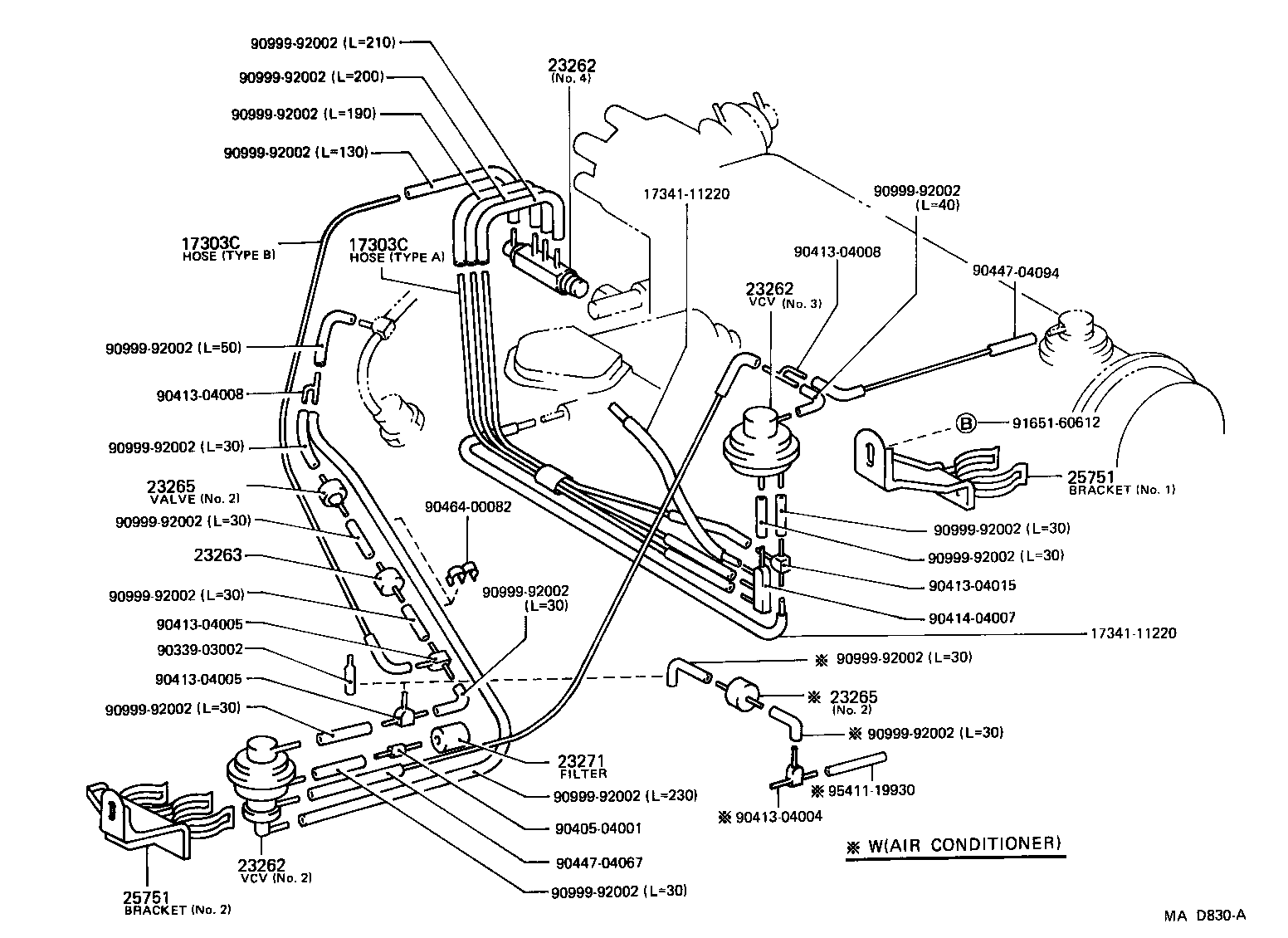

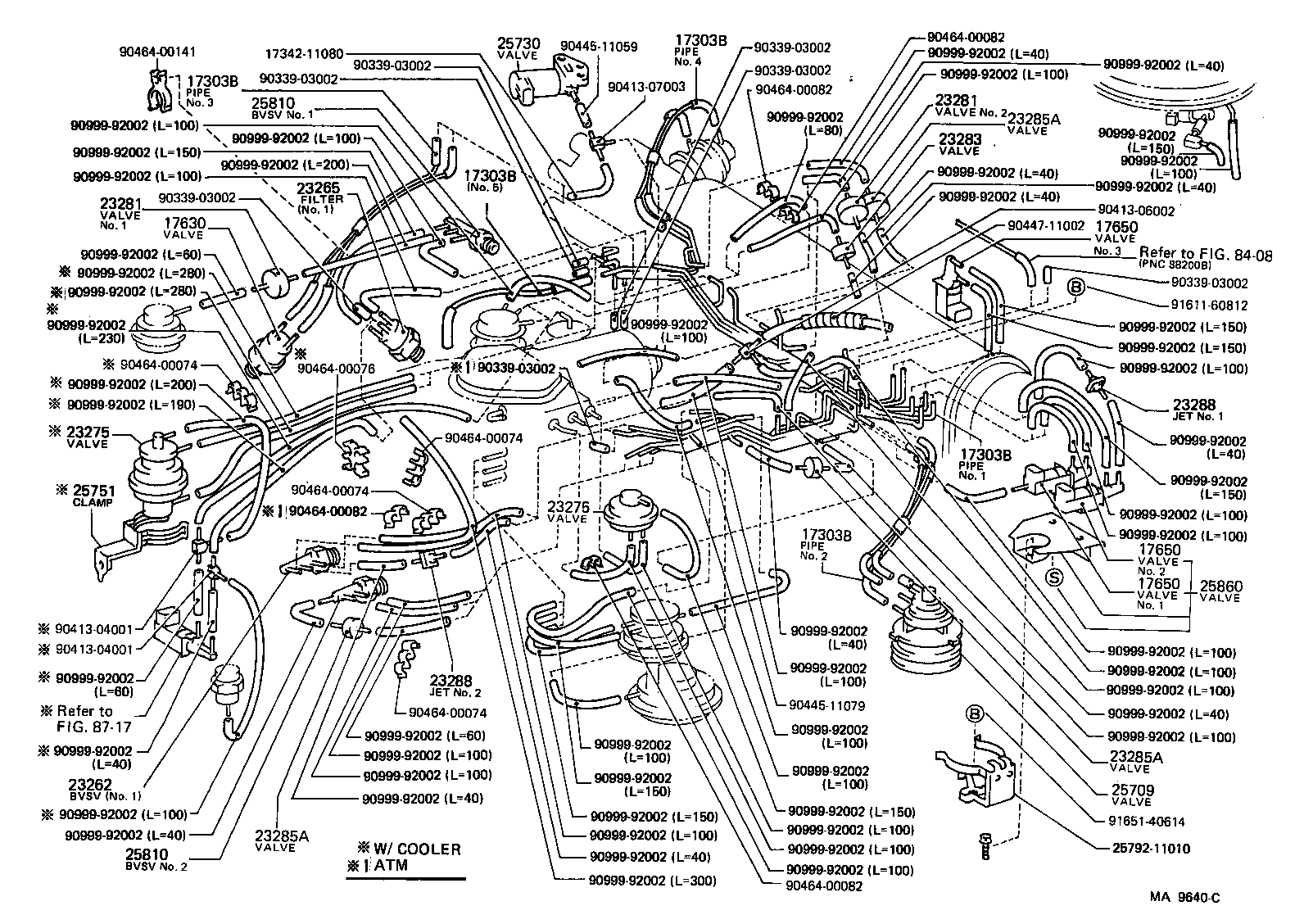

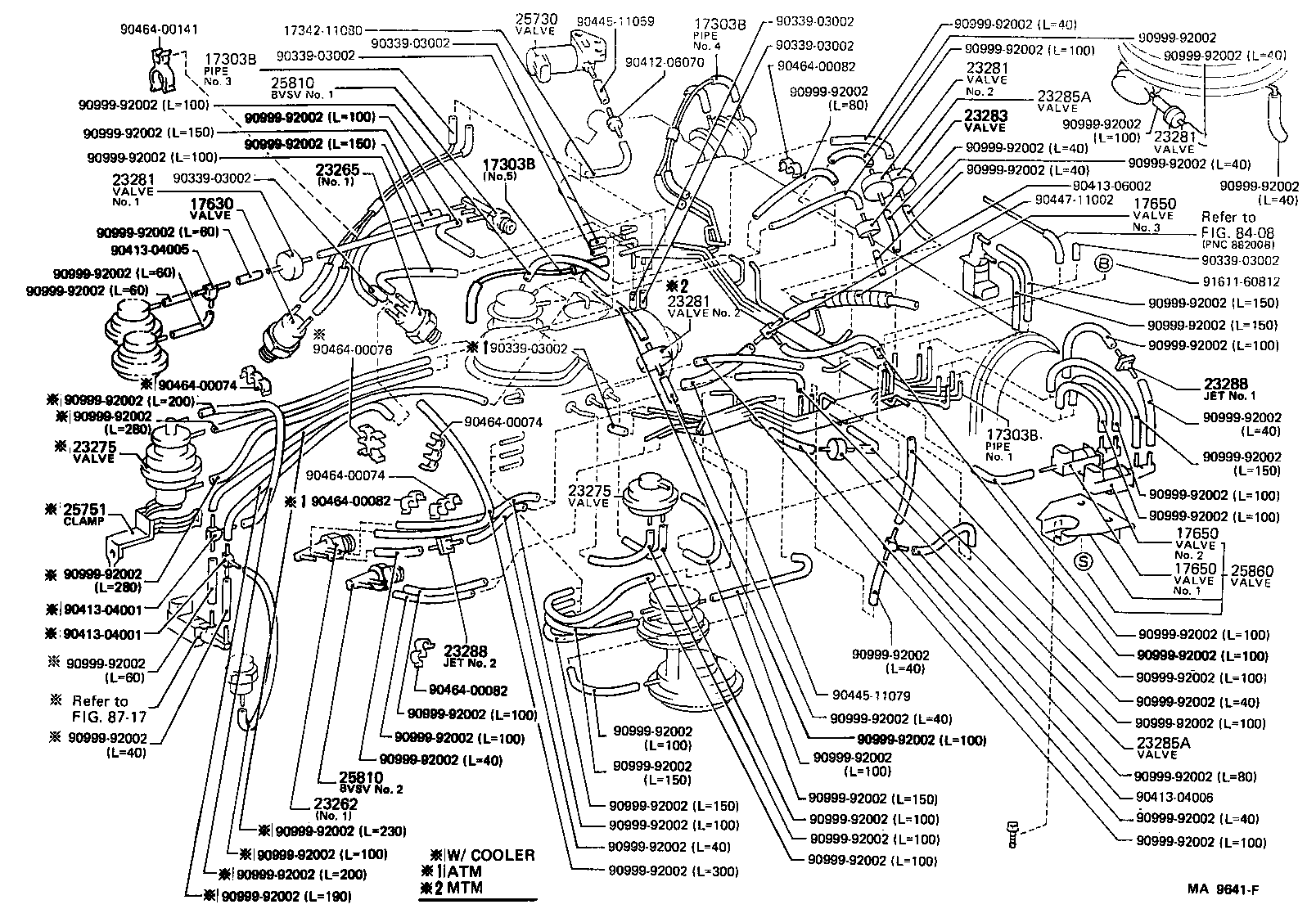

Figure MA9504B MA9504B 1988-08 → — Figure MA9640C MA9640C 1988-08 → 1989-04 Figure MA9640C MA9640C 1988-08 → 1989-12 Figure MAC541A MAC541A 1989-04 → 1989-12 Figure MAD828 MAD828 1989-12 → — Figure MAD829 MAD829 1989-12 → — Figure MAD830A MAD830A 1989-12 → — Figure MA9641F MA9641F 1988-08 → 1989-04 Figure MA9641F MA9641F 1988-08 → 1989-12 Figure MAC542B MAC542B 1989-04 → — Figure MAD831A MAD831A 1989-12 → — Figure MAC543A MAC543A 1989-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17303C Pipe Sub-assy, Air, NO.2
17344C Hose, NO.4(FOR IDLE-UP)
17344D Clip, NO.4(FOR IDLE-UP HOSE)
17345B Hose, NO.5(FOR IDLE-UP)
17345C Clip, NO.5(FOR IDLE-UP HOSE)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650D Bracket, Vacuum Switching Valve
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23271 Valve, Thermostatic Vacuum Switching, NO.1
23275 Valve, Vacuum Control, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23283 Valve, Vacuum Transmitting, NO.3
23285A Valve, Check, NO.1
23288 Jet, NO.1
25709 Valve Sub-assy, High Altitude Compensator
25730 Valve Assy, Electric Bleed Air Control
25751 Clamp, Vacuum Control Valve, NO.1
25760 Hose Assy, Vacuum Transmitting
25810 Valve Assy, Bimetal
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
