Toyota Corolla HB/LB
1992-05 → 1997-04 · chassis AE10#,CE100,EE10# · catalogue 153530 · Europe
Discontinued model
Data version 1998-02

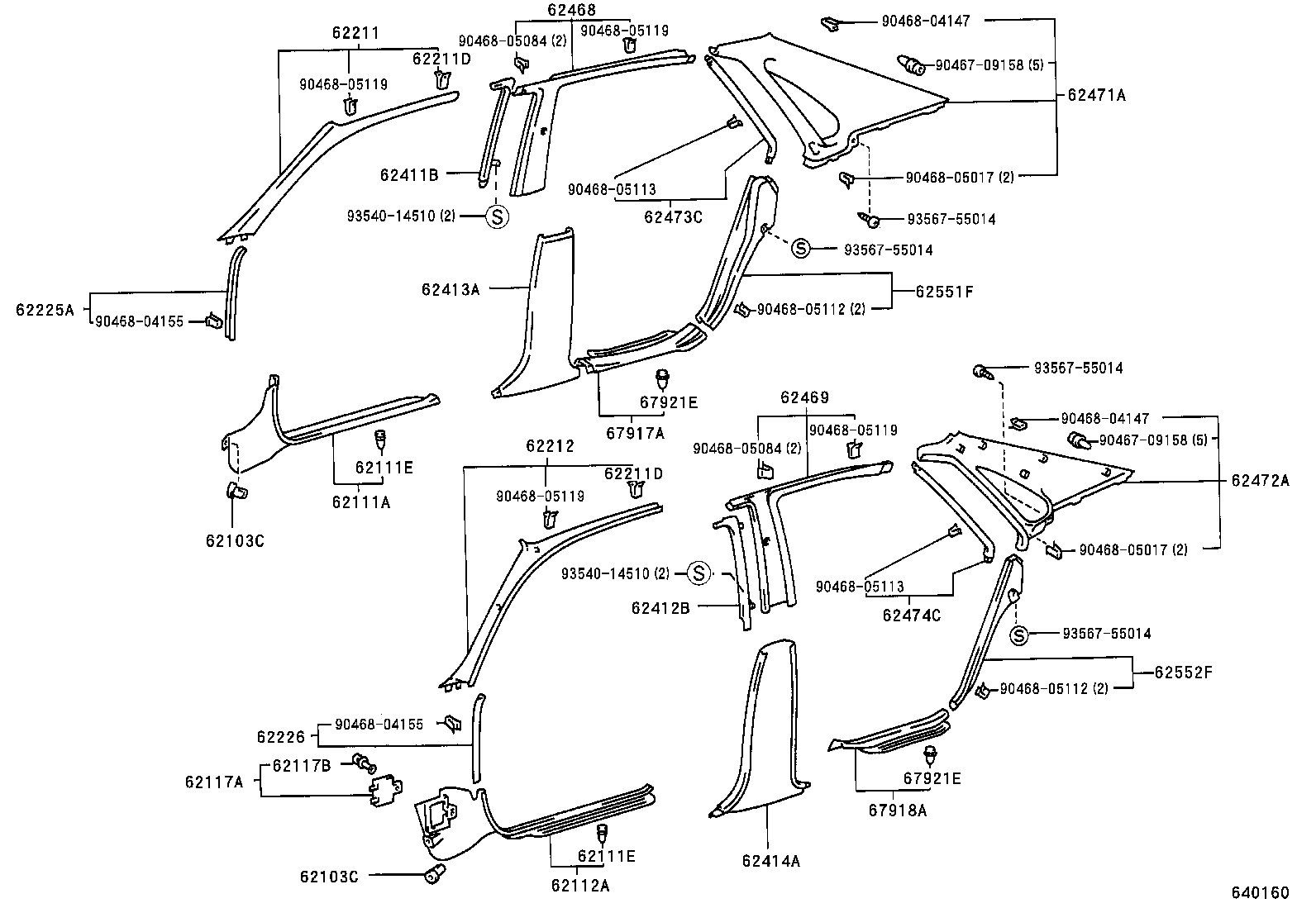

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 62103C — Clip, Cowl Side Trim Board Set | ||||
| 90467-05050-01 note |
Clip, Cowl Side Trim Board Set
1992-06 → 1992-07
ended
|
AE101,CE100,EE10# HB (GLI,STD,XL,XLI) | — | |
| 90467-05050-01 note |
Clip, Cowl Side Trim Board Set
1992-06 → 1992-11
ended
|
AE101 SI | — | |
| 90467-05050-01 note |
Clip, Cowl Side Trim Board Set
1992-07 → 1992-11
ended
|
AE101,CE100,EE10# GLI,STD,XL,XLI | — | |
| 90467-05050-22 note |
Clip, Cowl Side Trim Board Set
1992-11 → 1997-04
ended
|
AE101,CE100,EE10# GLI,STD,XL,XLI | — | |
| 90467-05050-22 note |
Clip, Cowl Side Trim Board Set
1992-11 → 1997-04
ended
|
AE10# GTI,SI | — | |
| 90467-08160 |
Clip, Cowl Side Trim Board Set
1992-05 → 1992-06
ended
|
AE101,CE100,EE10# | — | |
| 90467-08160 |
Clip, Cowl Side Trim Board Set
1992-06 → 1992-07
ended
|
AE101,CE100,EE10# LB | — | |
| 62111A — Trim Sub-assy, Cowl Side, RH | ||||
| 62101-12160-P0 note |
Trim Sub-assy, Cowl Side, RH
1992-06 → 1997-04
ended
|
AE101,CE100,EE101 HB 5D RHD | — | |
| 62101-12160-W3 note |
Trim Sub-assy, Cowl Side, RH
1992-06 → 1997-04
ended
|
AE101,CE100,EE101 HB 5D RHD | — | |
| 62101-12170-P0 note |
Trim Sub-assy, Cowl Side, RH
1992-05 → 1995-05
ended
|
AE10#,CE100,EE101 LB RHD | — | |
| 62101-12170-W3 note |
Trim Sub-assy, Cowl Side, RH
1992-05 → 1995-05
ended
|
AE101,CE100,EE101 LB RHD | — | |
| 62101-12190-B0 note |
Trim Sub-assy, Cowl Side, RH
1992-06 → 1997-04
ended
|
AE101,CE100,EE10# HB 5D LHD | — | |
| 62101-12190-J0 note |
Trim Sub-assy, Cowl Side, RH
1992-06 → 1997-04
ended
|
AE101,CE100,EE10# HB 5D LHD | — | |
| 62101-12200-B0 note |
Trim Sub-assy, Cowl Side, RH
1992-05 → 1997-04
ended
|
AE10#,CE100,EE101 3D RHD | — | |
| 62101-12200-J0 note |
Trim Sub-assy, Cowl Side, RH
1992-05 → 1997-04
ended
|
CE100,EE101 3D RHD | — | |
| 62101-12210-B0 note |
Trim Sub-assy, Cowl Side, RH
1992-05 → 1997-04
ended
|
AE10#,CE100,EE10# 3D LHD | — | |
| 62101-12210-J0 note |
Trim Sub-assy, Cowl Side, RH
1992-05 → 1997-04
ended
|
AE101,CE100,EE10# 3D LHD (STD,XL,XLI) | — | |
| 62101-12220-B0 note |
Trim Sub-assy, Cowl Side, RH
1992-05 → 1995-05
ended
|
AE10#,CE100,EE10# LB LHD | — | |
| 62101-12220-J0 note |
Trim Sub-assy, Cowl Side, RH
1992-05 → 1995-05
ended
|
AE101,CE100,EE10# LB LHD | — | |
| 62111E — Retainer, Cowl Side Trim | ||||
| 67921-32010 |
Retainer, Cowl Side Trim
1992-05 → —
|
AE10#,CE100,EE10# 3D | — | |
| 67921-32010 |
Retainer, Cowl Side Trim
1992-06 → —
|
AE101,CE100,EE10# HB 5D | — | |
| 62112A — Trim Sub-assy, Cowl Side, LH | ||||
| 62102-12160-P0 note |
Trim Sub-assy, Cowl Side, LH
1992-06 → 1997-04
ended
|
AE101,CE100,EE101 HB 5D RHD | — | |
| 62102-12160-W3 note |
Trim Sub-assy, Cowl Side, LH
1992-06 → 1997-04
ended
|
AE101,CE100,EE101 HB 5D RHD | — | |
| 62102-12170-P0 note |
Trim Sub-assy, Cowl Side, LH
1992-05 → 1995-05
ended
|
AE10#,CE100,EE101 LB RHD | — | |
| 62102-12170-W3 note |
Trim Sub-assy, Cowl Side, LH
1992-05 → 1995-05
ended
|
AE101,CE100,EE101 LB RHD | — | |
| 62102-12190-B0 note |
Trim Sub-assy, Cowl Side, LH
1992-06 → 1997-04
ended
|
AE101,CE100,EE10# HB 5D LHD | — | |
| 62102-12190-J0 note |
Trim Sub-assy, Cowl Side, LH
1992-06 → 1997-04
ended
|
AE101,CE100,EE10# HB 5D LHD | — | |
| 62102-12200-B0 note |
Trim Sub-assy, Cowl Side, LH
1992-05 → 1997-04
ended
|
AE10#,CE100,EE101 3D RHD | — | |
| 62102-12200-J0 note |
Trim Sub-assy, Cowl Side, LH
1992-05 → 1997-04
ended
|
CE100,EE101 3D RHD | — | |
| 62102-12210-B0 note |
Trim Sub-assy, Cowl Side, LH
1992-05 → 1997-04
ended
|
AE10#,CE100,EE10# 3D LHD | — | |
| 62102-12210-J0 note |
Trim Sub-assy, Cowl Side, LH
1992-05 → 1997-04
ended
|
AE101,CE100,EE10# 3D LHD (STD,XL,XLI) | — | |
| 62102-12220-B0 note |
Trim Sub-assy, Cowl Side, LH
1992-05 → 1995-05
ended
|
AE10#,CE100,EE10# LB LHD | — | |
| 62102-12220-J0 note |
Trim Sub-assy, Cowl Side, LH
1992-05 → 1995-05
ended
|
AE101,CE100,EE10# LB LHD | — | |
| 62117A — Cover, Cowl Side Trim Service Hole | ||||
| 62117-12140-P0 note |
Cover, Cowl Side Trim Service Hole
1992-05 → 1996-05
ended
|
AE10#,CE100,EE101 RHD | — | |
| 62117-12140-W3 note |
Cover, Cowl Side Trim Service Hole
1992-05 → 1996-05
ended
|
AE101,CE100,EE101 RHD (GLI,XL,XLI) | — | |
| 62117-12141-P0 note |
Cover, Cowl Side Trim Service Hole
1996-05 → 1997-04
ended
|
AE101,CE100,EE101 RHD | — | |
| 62117-12141-W3 note |
Cover, Cowl Side Trim Service Hole
1996-05 → 1997-04
ended
|
AE101,CE100,EE101 RHD (GLI,XL,XLI) | — | |
| 62117-12150-B0 note |
Cover, Cowl Side Trim Service Hole
1992-05 → 1995-05
ended
|
AE101 LB LHD;CE100,EE101 LHD;AE101 +3 | — | |
| 62117-12150-J0 note |
Cover, Cowl Side Trim Service Hole
1992-05 → 1995-05
ended
|
AE101 LB LHD;CE100,EE101 LHD;AE101 +3 | — | |
| 62117-12170-B0 note |
Cover, Cowl Side Trim Service Hole
1992-05 → 1995-05
ended
|
AE10#,CE100,EE10# LHD | — | |
| 62117-12170-J0 note |
Cover, Cowl Side Trim Service Hole
1992-05 → 1995-05
ended
|
AE101,CE100,EE10# LHD (GLI,STD,XL,XLI) | — | |
| 62117-12171-B0 note |
Cover, Cowl Side Trim Service Hole
1995-05 → 1997-04
ended
|
AE101,CE100,EE101 LHD | — | |
| 62117-12171-J0 note |
Cover, Cowl Side Trim Service Hole
1995-05 → 1997-04
ended
|
AE101,CE100,EE101 LHD (GLI,STD,XL,XLI) | — | |
| 62117B — Clip, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-08149 |
Clip, NO.1(FOR COWL SIDE TRIM)
1992-05 → —
|
AE10#,CE100,EE10# | — | |
| 62211 — Garnish, Front Pillar, RH | ||||
| 62211-12200-P0 note |
Garnish, Front Pillar, RH
1992-06 → 1997-04
ended
|
AE101,CE100,EE10# HB 5D | — | |
| 62211-12200-W3 note |
Garnish, Front Pillar, RH
1992-06 → 1997-04
ended
|
AE101,CE100,EE10# HB 5D | — | |
| 62211-12240-P0 note |
Garnish, Front Pillar, RH
1992-05 → 1995-05
ended
|
AE10#,CE100,EE10# LB | — | |
| 62211-12240-W3 note |
Garnish, Front Pillar, RH
1992-05 → 1995-05
ended
|
AE101,CE100,EE10# LB | — | |
| 62211-12260-B0 note |
Garnish, Front Pillar, RH
1992-05 → 1997-04
ended
|
AE10#,CE100,EE10# 3D | — | |
| 62211-12260-J0 note |
Garnish, Front Pillar, RH
1992-05 → 1997-04
ended
|
AE101,CE100,EE10# 3D (GLI,STD,XL,XLI) | — | |
| 62211D — Clip(FOR FRONT BODY PILLAR GARNISH) | ||||
| 90468-05084 |
Clip(FOR FRONT BODY PILLAR GARNISH)
1992-06 → —
|
AE101,CE100,EE10# HB 5D | — | |
| 62212 — Garnish, Front Pillar, LH | ||||
| 62212-12200-P0 note |
Garnish, Front Pillar, LH
1992-06 → 1997-04
ended
|
AE101,CE100,EE10# HB 5D | — | |
| 62212-12200-W3 note |
Garnish, Front Pillar, LH
1992-06 → 1997-04
ended
|
AE101,CE100,EE10# HB 5D | — | |
| 62212-12240-P0 note |
Garnish, Front Pillar, LH
1992-05 → 1995-05
ended
|
AE10#,CE100,EE10# LB | — | |
| 62212-12240-W3 note |
Garnish, Front Pillar, LH
1992-05 → 1995-05
ended
|
AE101,CE100,EE10# LB | — | |
| 62212-12260-B0 note |
Garnish, Front Pillar, LH
1992-05 → 1997-04
ended
|
AE10#,CE100,EE10# 3D | — | |
| 62212-12260-J0 note |
Garnish, Front Pillar, LH
1992-05 → 1997-04
ended
|
AE101,CE100,EE10# 3D (GLI,STD,XL,XLI) | — | |
| 62225A — Garnish, Front Pillar, Lower RH | ||||
| 62225-12010-P0 note |
Garnish, Front Pillar, Lower RH
1992-06 → 1997-04
ended
|
AE101,CE100,EE10# HB 5D | — | |
| 62225-12010-W3 note |
Garnish, Front Pillar, Lower RH
1992-06 → 1997-04
ended
|
AE101,CE100,EE10# HB 5D | — | |
| 62225-12020-P0 note |
Garnish, Front Pillar, Lower RH
1992-05 → 1995-05
ended
|
AE10#,CE100,EE10# LB | — | |
| 62225-12020-W3 note |
Garnish, Front Pillar, Lower RH
1992-05 → 1995-05
ended
|
AE101,CE100,EE10# LB | — | |
| 62225-12040-B0 note |
Garnish, Front Pillar, Lower RH
1992-05 → 1997-04
ended
|
AE10#,CE100,EE10# 3D | — | |
| 62225-12040-J0 note |
Garnish, Front Pillar, Lower RH
1992-05 → 1997-04
ended
|
AE101,CE100,EE10# 3D (GLI,STD,XL,XLI) | — | |
| 62226 — Garnish, Front Pillar, Lower LH | ||||
| 62226-12010-P0 note |
Garnish, Front Pillar, Lower LH
1992-06 → 1997-04
ended
|
AE101,CE100,EE10# HB 5D | — | |
| 62226-12010-W3 note |
Garnish, Front Pillar, Lower LH
1992-06 → 1997-04
ended
|
AE101,CE100,EE10# HB 5D | — | |
| 62226-12020-P0 note |
Garnish, Front Pillar, Lower LH
1992-05 → 1995-05
ended
|
AE10#,CE100,EE10# LB | — | |
| 62226-12020-W3 note |
Garnish, Front Pillar, Lower LH
1992-05 → 1995-05
ended
|
AE101,CE100,EE10# LB | — | |
| 62226-12040-B0 note |
Garnish, Front Pillar, Lower LH
1992-05 → 1997-04
ended
|
AE10#,CE100,EE10# 3D | — | |
| 62226-12040-J0 note |
Garnish, Front Pillar, Lower LH
1992-05 → 1997-04
ended
|
AE101,CE100,EE10# 3D (GLI,STD,XL,XLI) | — | |
| 62411B — Garnish, Center Pillar, Upper RH | ||||
| 62411-12440-P0 note |
Garnish, Center Pillar, Upper RH
1992-06 → 1997-04
ended
|
AE101,CE100,EE10# HB 5D | — | |
| 62411-12440-W3 note |
Garnish, Center Pillar, Upper RH
1992-06 → 1997-04
ended
|
AE101,CE100,EE10# HB 5D | — | |
| 62411-12460-B0 note |
Garnish, Center Pillar, Upper RH
1992-05 → 1997-04
ended
|
AE10#,CE100,EE10# 3D | — | |
| 62411-12460-J0 note |
Garnish, Center Pillar, Upper RH
1992-05 → 1997-04
ended
|
AE101,CE100,EE10# 3D (GLI,STD,XL,XLI) | — | |
| 62411-12480-B0 note |
Garnish, Center Pillar, Upper RH
1992-05 → 1995-05
ended
|
AE10#,CE100,EE10# LB | — | |
| 62411-12480-J0 note |
Garnish, Center Pillar, Upper RH
1992-05 → 1995-05
ended
|
AE101,CE100,EE10# LB | — | |
| 62412B — Garnish, Center Pillar, Upper LH | ||||
| 62412-12440-P0 note |
Garnish, Center Pillar, Upper LH
1992-06 → 1997-04
ended
|
AE101,CE100,EE10# HB 5D | — | |
| 62412-12440-W3 note |
Garnish, Center Pillar, Upper LH
1992-06 → 1997-04
ended
|
AE101,CE100,EE10# HB 5D | — | |
| 62412-12460-B0 note |
Garnish, Center Pillar, Upper LH
1992-05 → 1997-04
ended
|
AE10#,CE100,EE10# 3D | — | |
| 62412-12460-J0 note |
Garnish, Center Pillar, Upper LH
1992-05 → 1997-04
ended
|
AE101,CE100,EE10# 3D (GLI,STD,XL,XLI) | — | |
| 62412-12480-B0 note |
Garnish, Center Pillar, Upper LH
1992-05 → 1995-05
ended
|
AE10#,CE100,EE10# LB | — | |
| 62412-12480-J0 note |
Garnish, Center Pillar, Upper LH
1992-05 → 1995-05
ended
|
AE101,CE100,EE10# LB | — | |
| 62413A — Garnish, Center Pillar, Lower RH | ||||
| 62413-12180-P0 note |
Garnish, Center Pillar, Lower RH
1992-06 → 1997-04
ended
|
AE101,CE100,EE10# HB 5D | — | |
| 62413-12180-W3 note |
Garnish, Center Pillar, Lower RH
1992-06 → 1997-04
ended
|
AE101,CE100,EE10# HB 5D | — | |
| 62413-12190-P0 note |
Garnish, Center Pillar, Lower RH
1992-05 → 1995-05
ended
|
AE10#,CE100,EE10# LB | — | |
| 62413-12190-W3 note |
Garnish, Center Pillar, Lower RH
1992-05 → 1995-05
ended
|
AE101,CE100,EE10# LB | — | |
| 62414A — Garnish, Center Pillar, Lower LH | ||||
| 62414-12180-P0 note |
Garnish, Center Pillar, Lower LH
1992-06 → 1997-04
ended
|
AE101,CE100,EE10# HB 5D | — | |
| 62414-12180-W3 note |
Garnish, Center Pillar, Lower LH
1992-06 → 1997-04
ended
|
AE101,CE100,EE10# HB 5D | — | |
| 62414-12190-P0 note |
Garnish, Center Pillar, Lower LH
1992-05 → 1995-05
ended
|
AE10#,CE100,EE10# LB | — | |
| 62414-12190-W3 note |
Garnish, Center Pillar, Lower LH
1992-05 → 1995-05
ended
|
AE101,CE100,EE10# LB | — | |
| 62468 — Garnish, Center Pillar, Rear RH | ||||
| 62468-12040-P0 note |
Garnish, Center Pillar, Rear RH
1992-06 → 1997-04
ended
|
AE101,CE100,EE10# HB 5D | — | |
| 62468-12040-W3 note |
Garnish, Center Pillar, Rear RH
1992-06 → 1997-04
ended
|
AE101,CE100,EE10# HB 5D | — | |
| 62469 — Garnish, Center Pillar, Rear LH | ||||
| 62469-12040-P0 note |
Garnish, Center Pillar, Rear LH
1992-06 → 1997-04
ended
|
AE101,CE100,EE10# HB 5D | — | |
| 62469-12040-W3 note |
Garnish, Center Pillar, Rear LH
1992-06 → 1997-04
ended
|
AE101,CE100,EE10# HB 5D | — | |
| 62471A — Garnish, Roof Side, Inner RH | ||||
| 62470-12020-B0 note |
Garnish, Roof Side, Inner RH
1992-05 → —
|
AE10#,CE100,EE10# 3D | — | |
| 62470-12020-J0 note |
Garnish, Roof Side, Inner RH
1992-05 → —
|
AE101,CE100,EE10# 3D (GLI,STD,XL,XLI) | — | |
| 62470-12040-B0 note |
Garnish, Roof Side, Inner RH
1992-06 → —
|
AE101,CE100,EE10# HB 5D | — | |
| 62470-12040-J0 note |
Garnish, Roof Side, Inner RH
1992-06 → —
|
AE101,CE100,EE10# HB 5D | — | |
| 62470-12050-B0 note |
Garnish, Roof Side, Inner RH
1992-05 → 1995-05
ended
|
AE10#,CE100,EE10# LB | — | |
| 62470-12050-J0 note |
Garnish, Roof Side, Inner RH
1992-05 → 1995-05
ended
|
AE101,CE100,EE10# LB | — | |
| 62472A — Garnish, Roof Side, Inner LH | ||||
| 62480-12020-B0 note |
Garnish, Roof Side, Inner LH
1992-05 → —
|
AE10#,CE100,EE10# 3D | — | |
| 62480-12020-J0 note |
Garnish, Roof Side, Inner LH
1992-05 → —
|
AE101,CE100,EE10# 3D (GLI,STD,XL,XLI) | — | |
| 62480-12040-B0 note |
Garnish, Roof Side, Inner LH
1992-06 → —
|
AE101,CE100,EE10# HB 5D | — | |
| 62480-12040-J0 note |
Garnish, Roof Side, Inner LH
1992-06 → —
|
AE101,CE100,EE10# HB 5D | — | |
| 62480-12050-B0 note |
Garnish, Roof Side, Inner LH
1992-05 → 1995-05
ended
|
AE10#,CE100,EE10# LB | — | |
| 62480-12050-J0 note |
Garnish, Roof Side, Inner LH
1992-06 → 1995-05
ended
|
AE101,CE100,EE10# LB | — | |
| 62473C — Board, Roof Side Inner Garnish, RH | ||||
| 62473-12010-B1 note |
Board, Roof Side Inner Garnish, RH
1992-06 → —
|
AE101,CE100,EE10# HB 5D | — | |
| 62473-12010-J1 note |
Board, Roof Side Inner Garnish, RH
1992-06 → —
|
AE101,CE100,EE10# HB 5D | — | |
| 62474C — Board, Roof Side Inner Garnish, LH | ||||
| 62474-12010-B1 note |
Board, Roof Side Inner Garnish, LH
1992-06 → —
|
AE101,CE100,EE10# HB 5D | — | |
| 62474-12010-J1 note |
Board, Roof Side Inner Garnish, LH
1992-06 → —
|
AE101,CE100,EE10# HB 5D | — | |
| 62551F — Garnish, Rear Seat Side, RH | ||||
| 62551-12120-B0 note |
Garnish, Rear Seat Side, RH
1992-06 → —
|
AE101,CE100,EE10# HB 5D | — | |
| 62551-12120-J0 note |
Garnish, Rear Seat Side, RH
1992-06 → —
|
AE101,CE100,EE10# HB 5D | — | |
| 62552F — Garnish, Rear Seat Side, LH | ||||
| 62552-12120-B0 note |
Garnish, Rear Seat Side, LH
1992-06 → —
|
AE101,CE100,EE10# HB 5D | — | |
| 62552-12120-J0 note |
Garnish, Rear Seat Side, LH
1992-06 → —
|
AE101,CE100,EE10# HB 5D | — | |
| 67917A — Plate, Rear Door Scuff, RH | ||||
| 67917-12100-B0 note |
Plate, Rear Door Scuff, RH
1992-05 → 1995-05
ended
|
AE10#,CE100,EE10# LB | — | |
| 67917-12100-J0 note |
Plate, Rear Door Scuff, RH
1992-05 → 1995-05
ended
|
AE101,CE100,EE10# LB | — | |
| 67917-13030-B0 note |
Plate, Rear Door Scuff, RH
1992-06 → —
|
AE101,CE100,EE10# HB 5D | — | |
| 67917-13030-J0 note |
Plate, Rear Door Scuff, RH
1992-06 → —
|
AE101,CE100,EE10# HB 5D | — | |
| 67918A — Plate, Rear Door Scuff, LH | ||||
| 67918-12090-B0 note |
Plate, Rear Door Scuff, LH
1992-05 → 1995-05
ended
|
AE10#,CE100,EE10# LB | — | |
| 67918-12090-J0 note |
Plate, Rear Door Scuff, LH
1992-05 → 1995-05
ended
|
AE101,CE100,EE10# LB | — | |
| 67918-13030-B0 note |
Plate, Rear Door Scuff, LH
1992-06 → —
|
AE101,CE100,EE10# HB 5D | — | |
| 67918-13030-J0 note |
Plate, Rear Door Scuff, LH
1992-06 → —
|
AE101,CE100,EE10# HB 5D | — | |
| 67921E — Retainer, Rear Door Scuff Plate | ||||
| 67921-32010 |
Retainer, Rear Door Scuff Plate
1992-05 → —
|
AE10#,CE100,EE10# 5D | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
