Toyota Corolla Sed/WG (UKP)

2002-01 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 156550 · Europe

Discontinued model Data version 2007-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

28 part groups · 5 illustrations

Illustrations

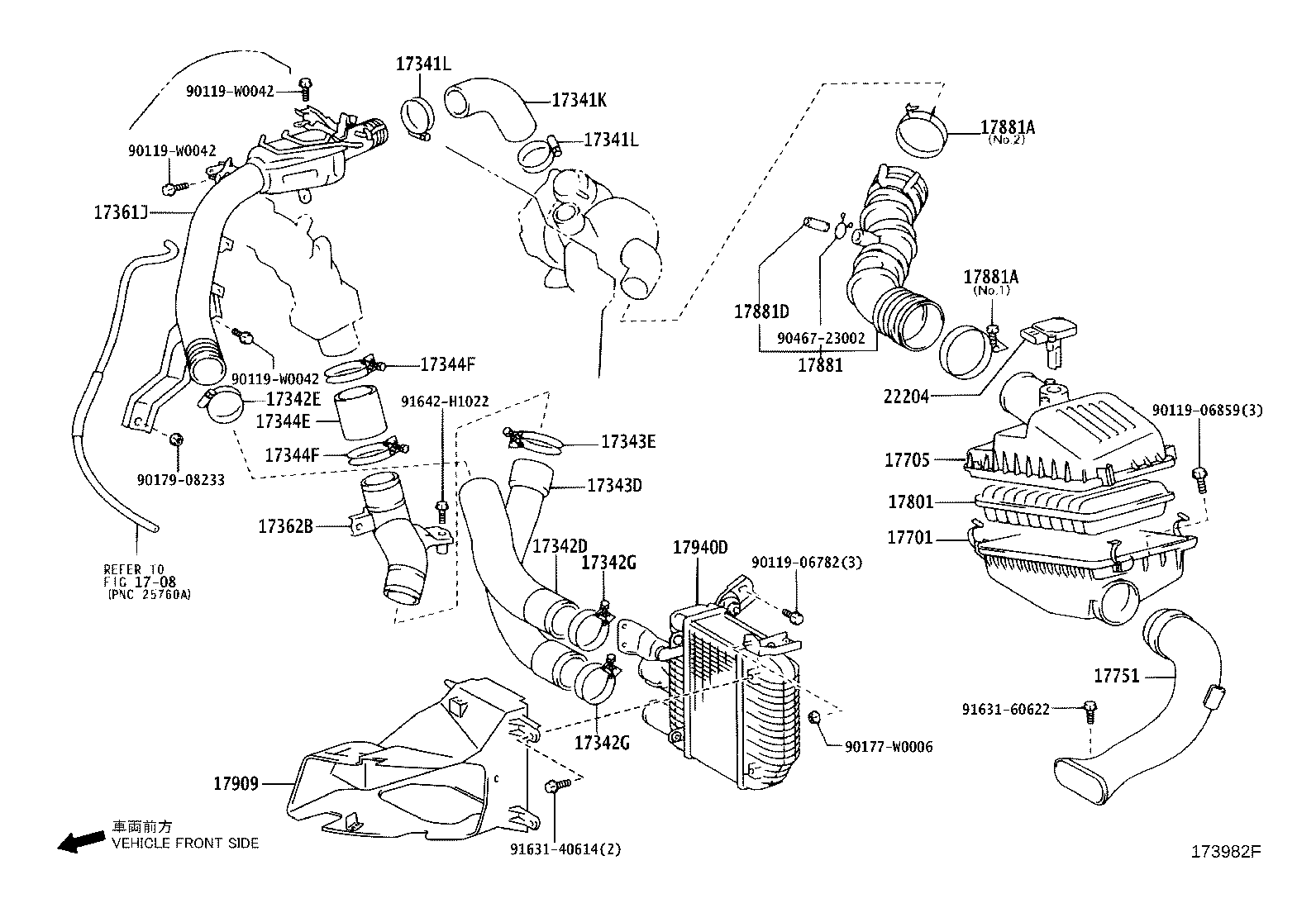

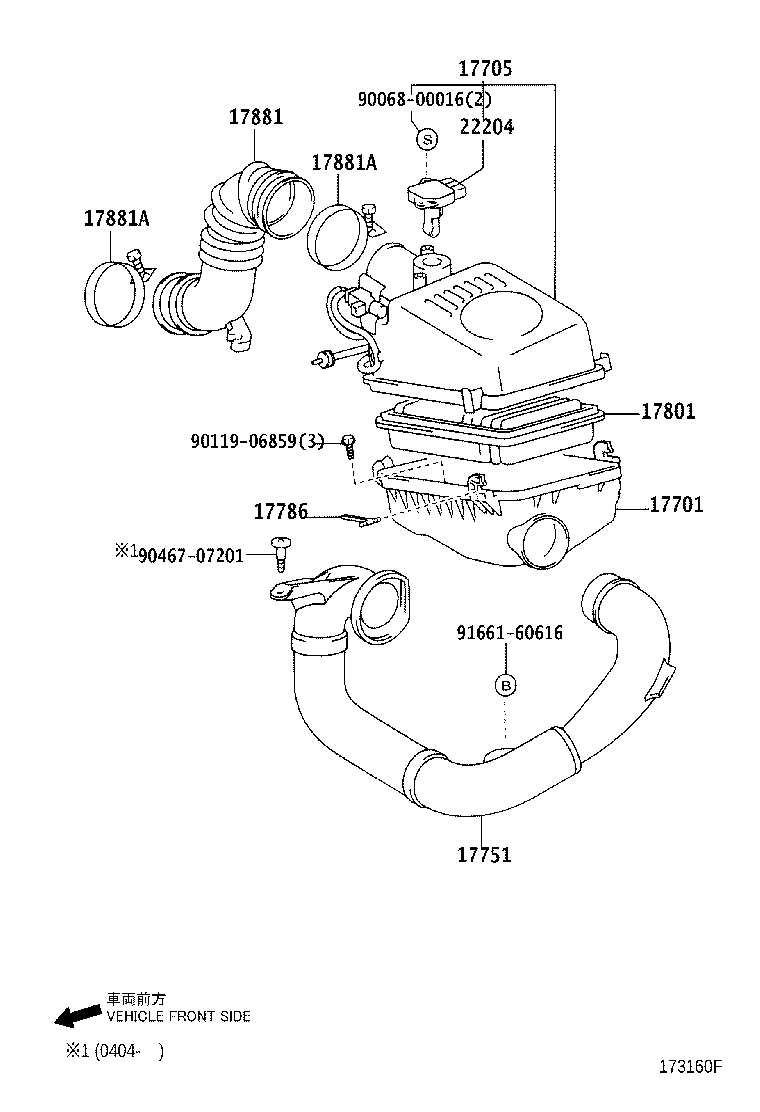

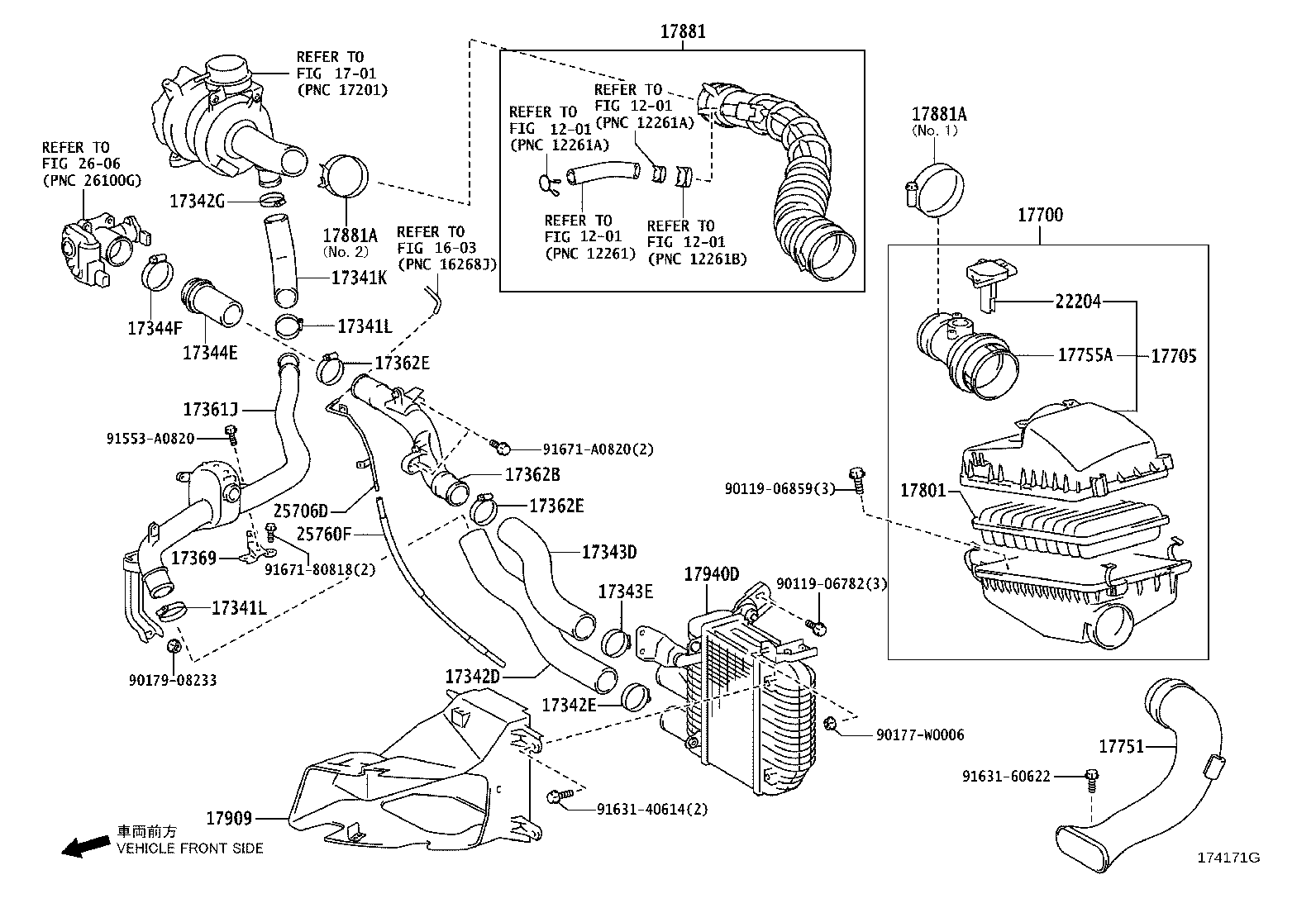

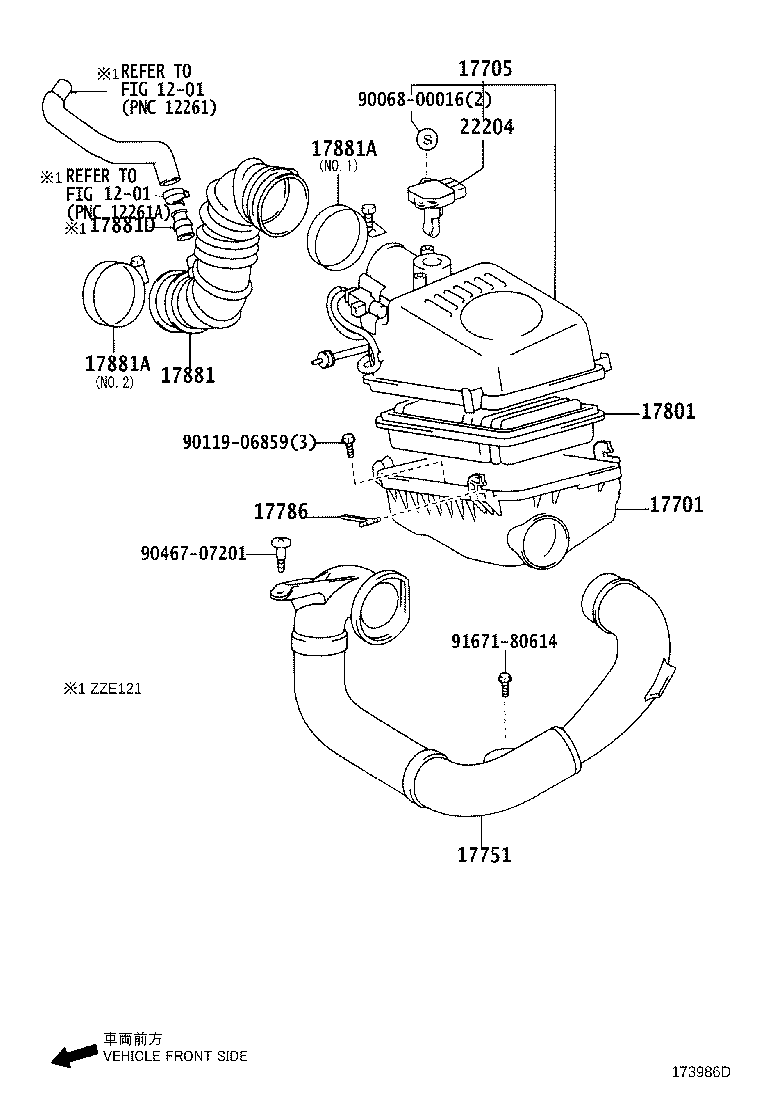

Figure 173217H 173217H 2002-01 → 2004-06 Figure 173982F 173982F 2004-06 → — Figure 174171G 174171G 2004-08 → — Figure 173160F 173160F 2002-01 → 2004-06 Figure 173986D 173986D 2004-06 → —

Part groups

PNCDescription
17341K Hose, Air, NO.1(FOR INTERCOOLER)
17341L Clamp, Hose
17342D Hose, Air, NO.2
17342E Clamp OR Clip(FOR AIR HOSE, NO.2)
17342G Clamp, Hose, NO.2(FOR INTERCOOLER)
17343D Hose, Air, NO.3
17343E Clamp, Hose(FOR AIR HOSE, NO.3)
17344E Hose, Air, NO.4
17344F Clamp, Hose(FOR AIR HOSE, NO.4)
17361J Tube, Air, NO.1
17362B Tube, Air, NO.2
17362E Clamp, NO.2(FOR AIR TUBE, NO.2)
17369 Bracket, Air Tube Support
17700 Cleaner Assy, Air
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17755A Outlet, Air Cleaner
17786 Clamp, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17881D Tube, Union(FOG AIR CLEANER HOSE)
17909 Duct Sub-assy, Intercooler Cooling Air
17940D Intercooler Assy
22204 Meter Sub-assy, Intake Air Flow
25706D Pipe Sub-assy, Vacuum Transmitting
25760F Hose Assy, Vacuum Transmitting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
