Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe

Discontinued model Data version 1981-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

15 part groups · 10 illustrations

Illustrations

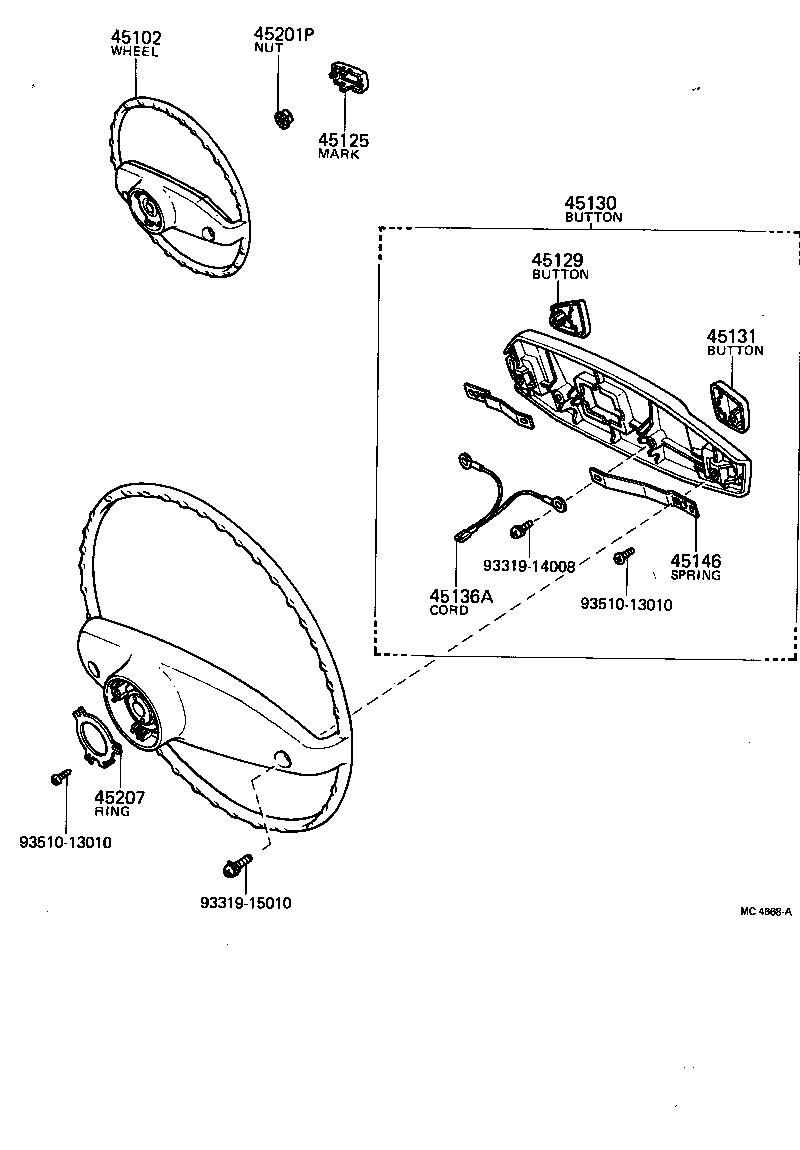

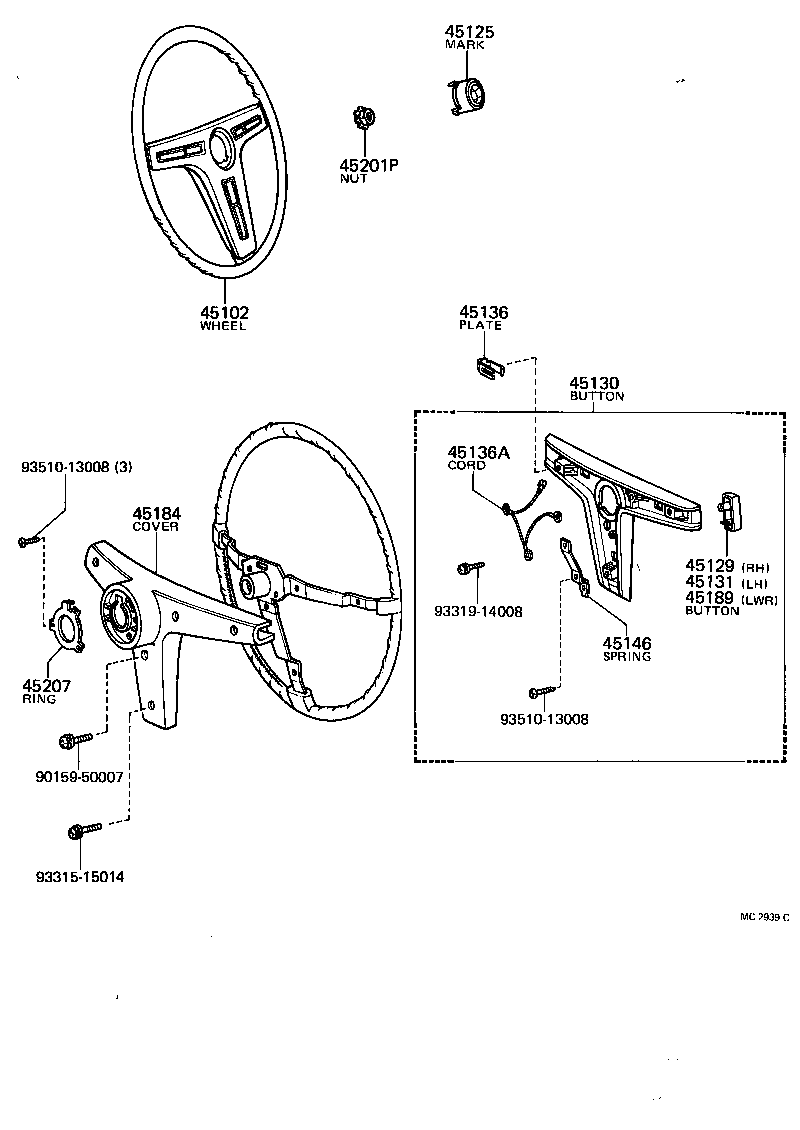

Figure MC2937C MC2937C 1974-08 → 1977-01 Figure MC4668A MC4668A 1977-01 → 1979-08 Figure MC4668A MC4668A 1979-08 → — Figure MC2938D MC2938D 1975-03 → 1980-04 Figure MC2938D MC2938D 1980-02 → — Figure MC2939C MC2939C 1974-08 → 1979-08 Figure MC2939C MC2939C 1978-11 → 1979-08 Figure MC2939C MC2939C 1979-08 → — Figure MC2940B MC2940B 1974-08 → 1979-04 Figure MC2940B MC2940B 1979-04 → 1980-04

Part groups

PNCDescription
45102 Wheel Sub-assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45125 Mark, Steering Wheel Pad
45129 Button, Horn, NO.2
45130 Button Assy, Horn
45131 Button, Horn, NO.1
45136 Plate, Horn Button Contact
45136A Cord(FOR HORN CONTACT RING)
45146 Spring, Horn Button Contact
45184 Cover, Steering Wheel Boss, Lower
45189 Button, Horn, NO.3
45192 Cover, Horn Button, Upper
45194 Cover, Horn Button, Lower
45201P Nut, Steering Wheel Set
45207 Ring, Horn Contact
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
