Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe

Discontinued model Data version 1981-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

29 part groups · 16 illustrations

Illustrations

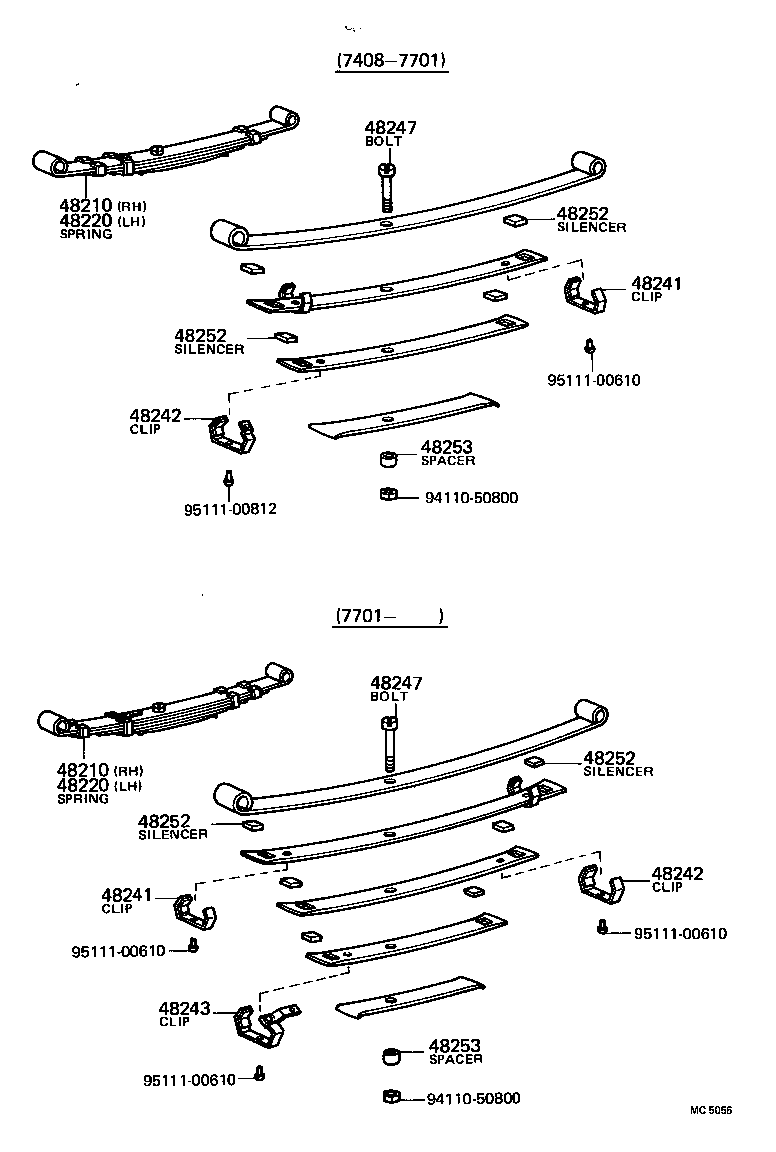

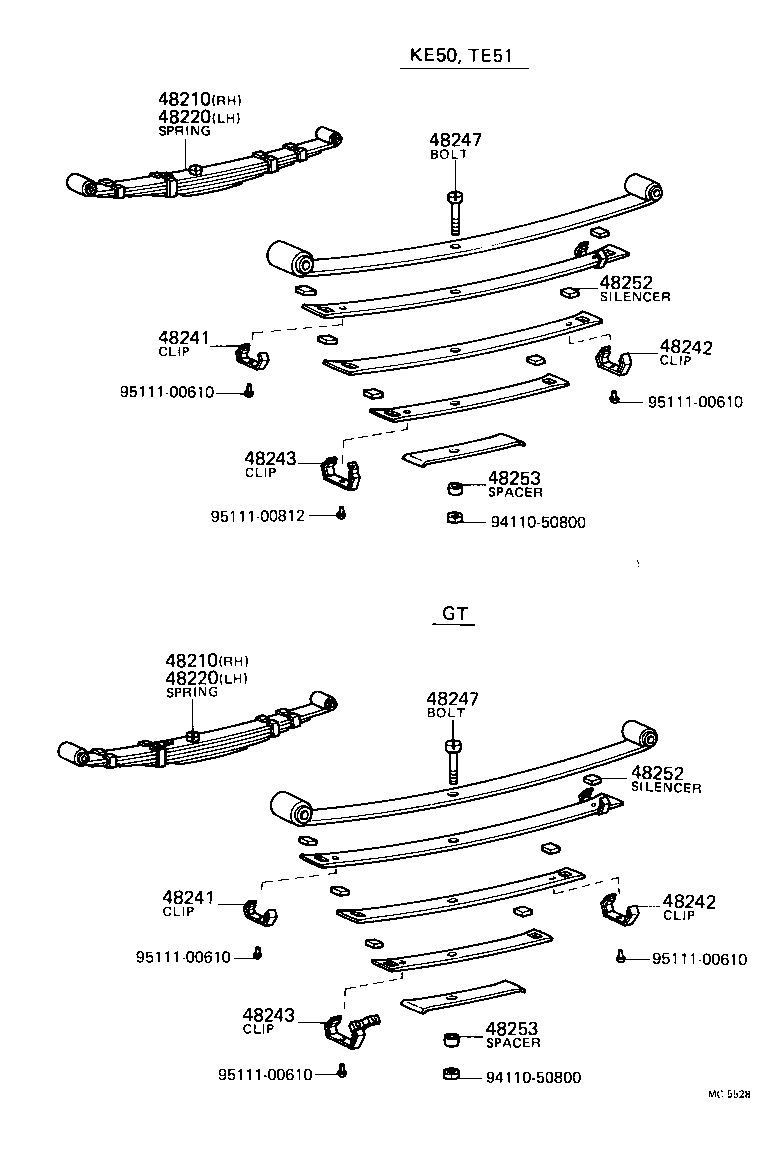

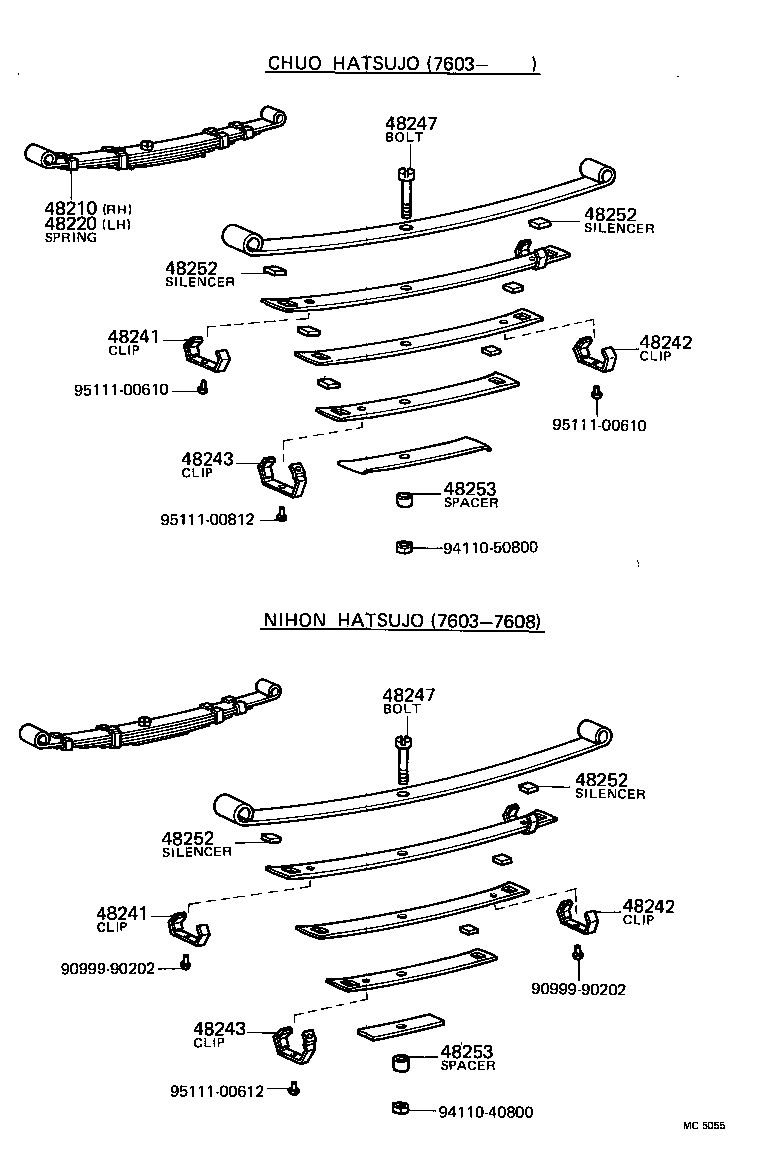

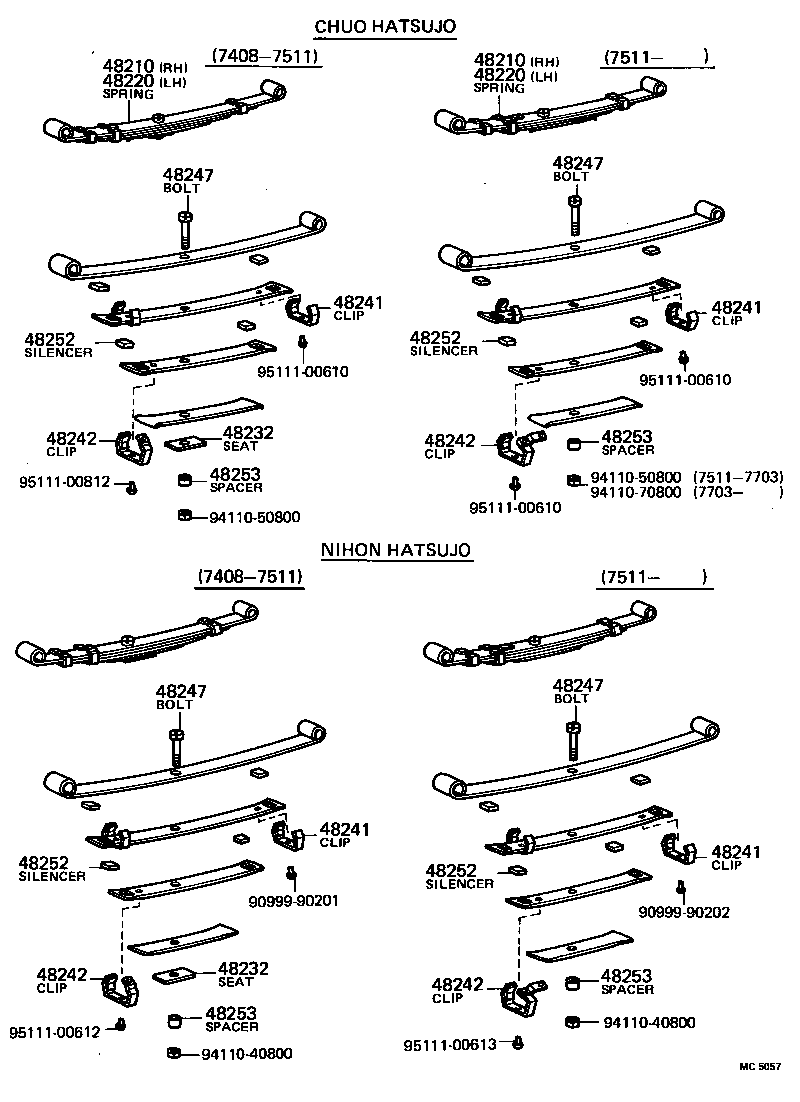

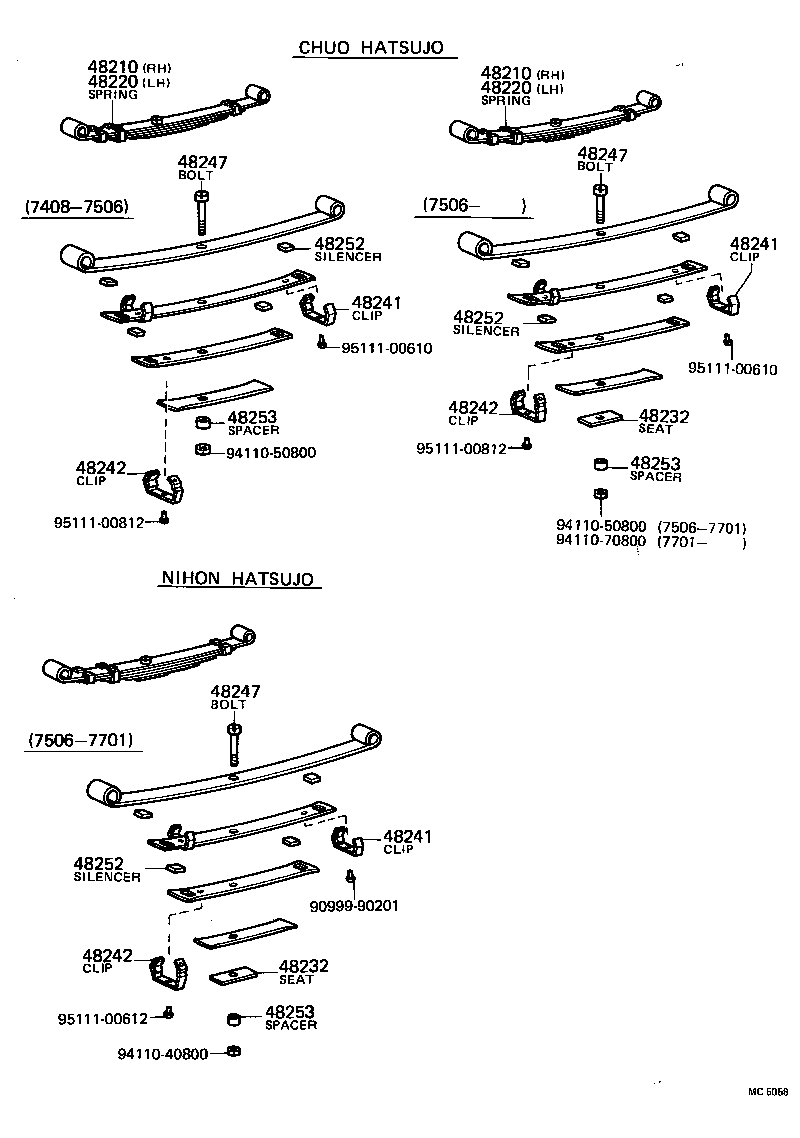

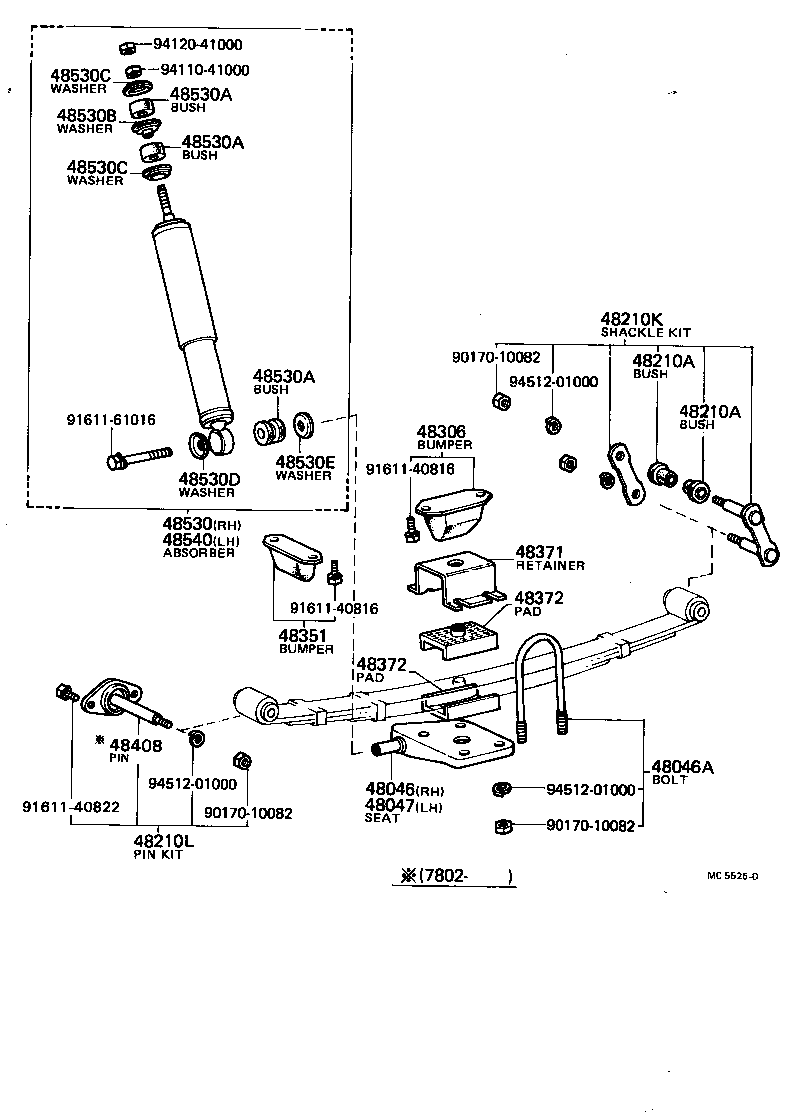

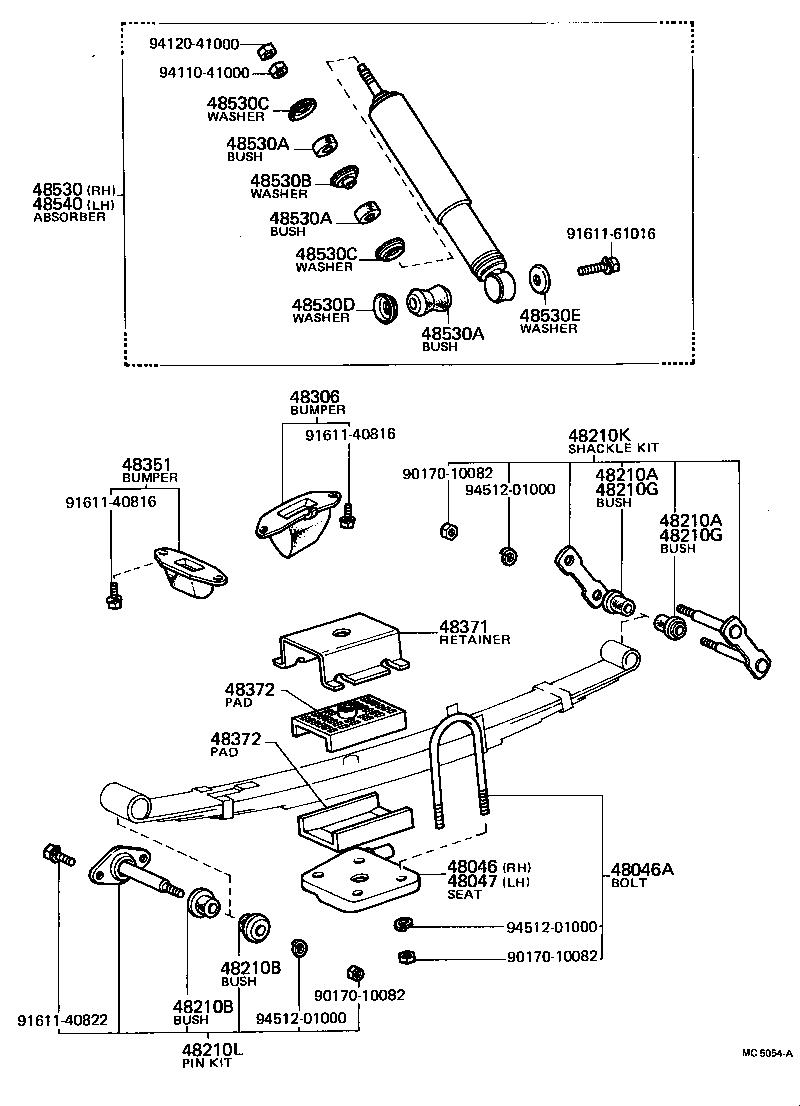

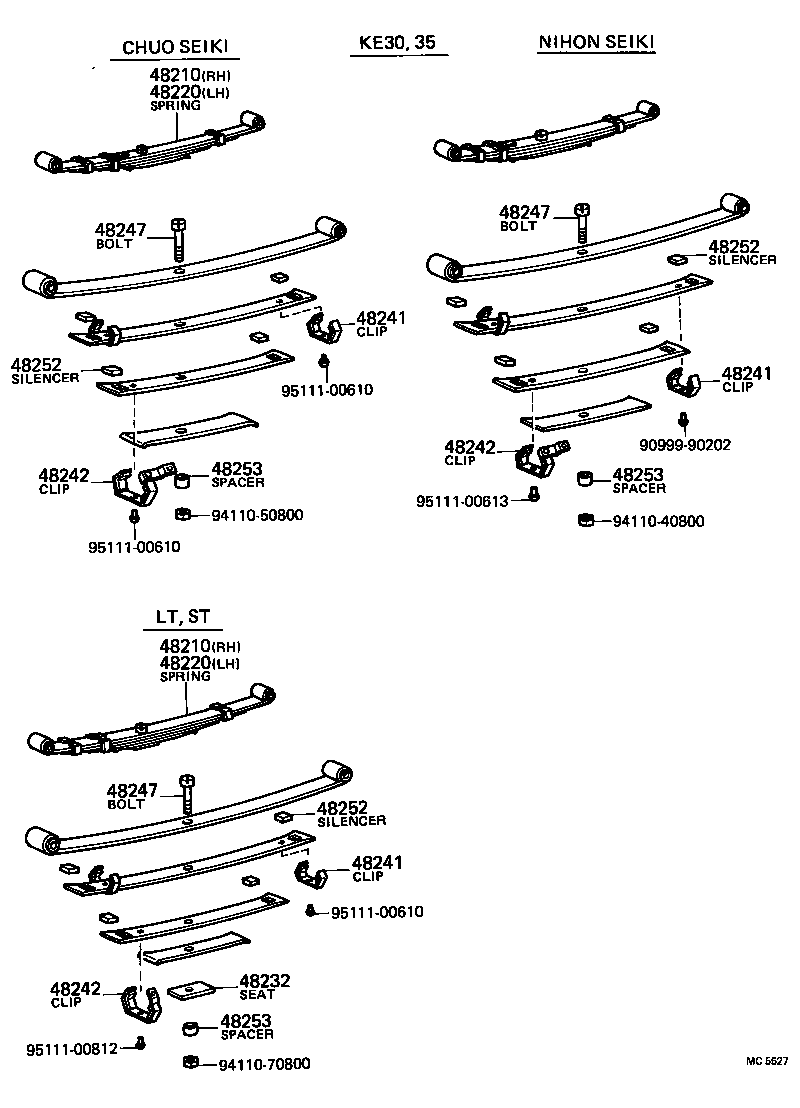

Figure MC3626B MC3626B 1974-08 → 1978-01 Figure MC3626B MC3626B 1978-01 → — Figure MC5525D MC5525D 1978-01 → 1979-08 Figure MC5057 MC5057 1974-08 → 1978-01 Figure MC5057 MC5057 1977-11 → 1980-04 Figure MC5057 MC5057 1978-01 → — Figure MC5058 MC5058 1974-08 → 1977-11 Figure MC5058 MC5058 1977-11 → 1978-01 Figure MC5056 MC5056 1974-08 → 1978-01 Figure MC5056 MC5056 1978-01 → 1979-08 Figure MC5055 MC5055 1976-03 → 1978-01 Figure MC5055 MC5055 1978-01 → 1979-08 Figure MC5527 MC5527 1978-01 → 1979-08 Figure MC5528 MC5528 1978-01 → 1979-08 Figure MC5054A MC5054A 1974-08 → — Figure MC4787B MC4787B 1974-08 → —

Part groups

PNCDescription
48046 Seat Sub-assy, Spring U Bolt, RH
48046A Bolt, U(FOR REAR SPRING)
48047 Seat Sub-assy, Spring U Bolt, LH
48210 Spring Assy, Rear RH
48210A Bush(FOR REAR SPRING SHACKLE UPPER)
48210B Bush(FOR REAR SPRING PIN)
48210G Bush(FOR REAR SPRING SHACKLE LOWER)
48210K Shackle Kit, Rear Spring
48210L Pin Kit, Rear Spring
48220 Spring Assy, Rear LH
48232 Seat, Coil Spring, Rear
48241 Clip, Rear Spring, NO.1
48242 Clip, Rear Spring, NO.2
48243 Clip, Rear Spring, NO.3
48247 Bolt, Rear Spring, Center
48252 Silencer, Rear Spring
48253 Spacer, Rear Spring, NO.1
48306 Bumper Sub-assy, Rear Spring
48351 Bumper, Differential Carrier
48371 Retainer, Rear Spring Pad
48372 Pad, Rear Spring
48408 Pin Sub-assy, Spring Bracket
48530 Absorber Assy, Shock, Rear RH
48530A Bush(FOR REAR SHOCK ABSORBER)
48530B Washer, Rear Shock Absorber Cushion, NO.1
48530C Washer, Rear Shock Absorber Cushion, NO.2
48530D Washer, Rear Shock Absorber Cushion, NO.3
48530E Washer, Rear Shock Absorber Cushion, NO.4
48540 Absorber Assy, Shock, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
