Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe

Discontinued model Data version 1981-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

44 part groups · 6 illustrations

Illustrations

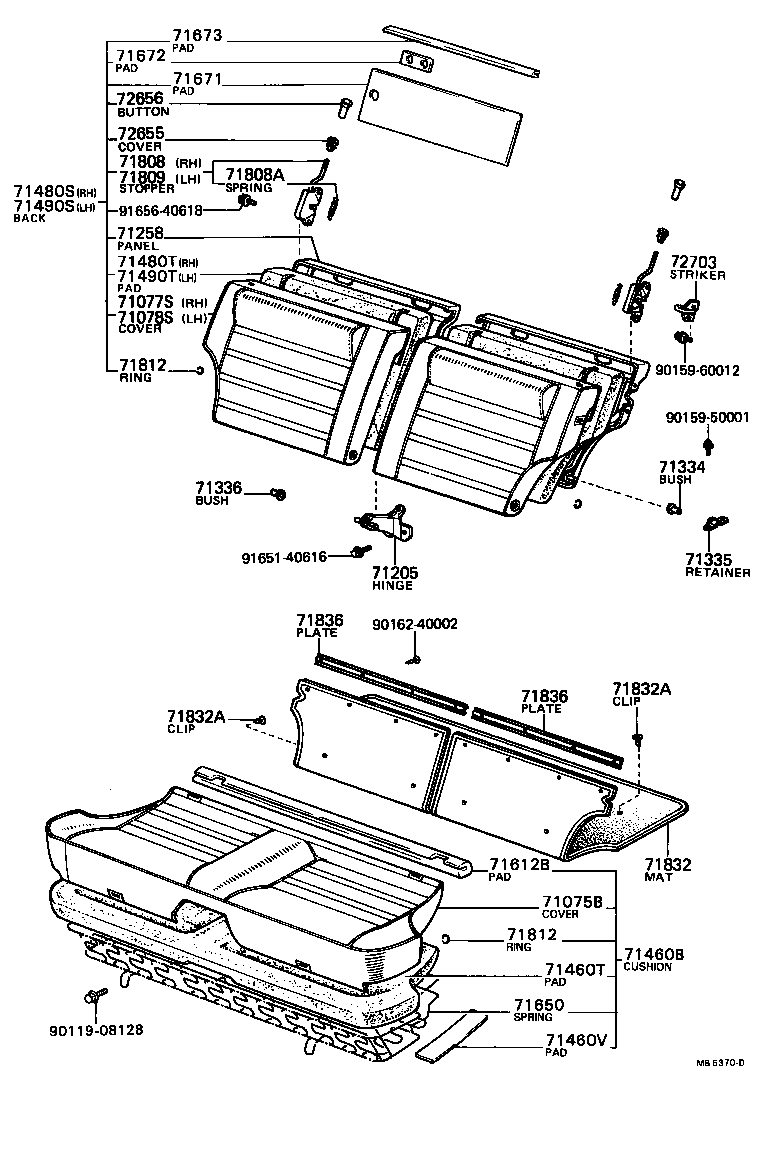

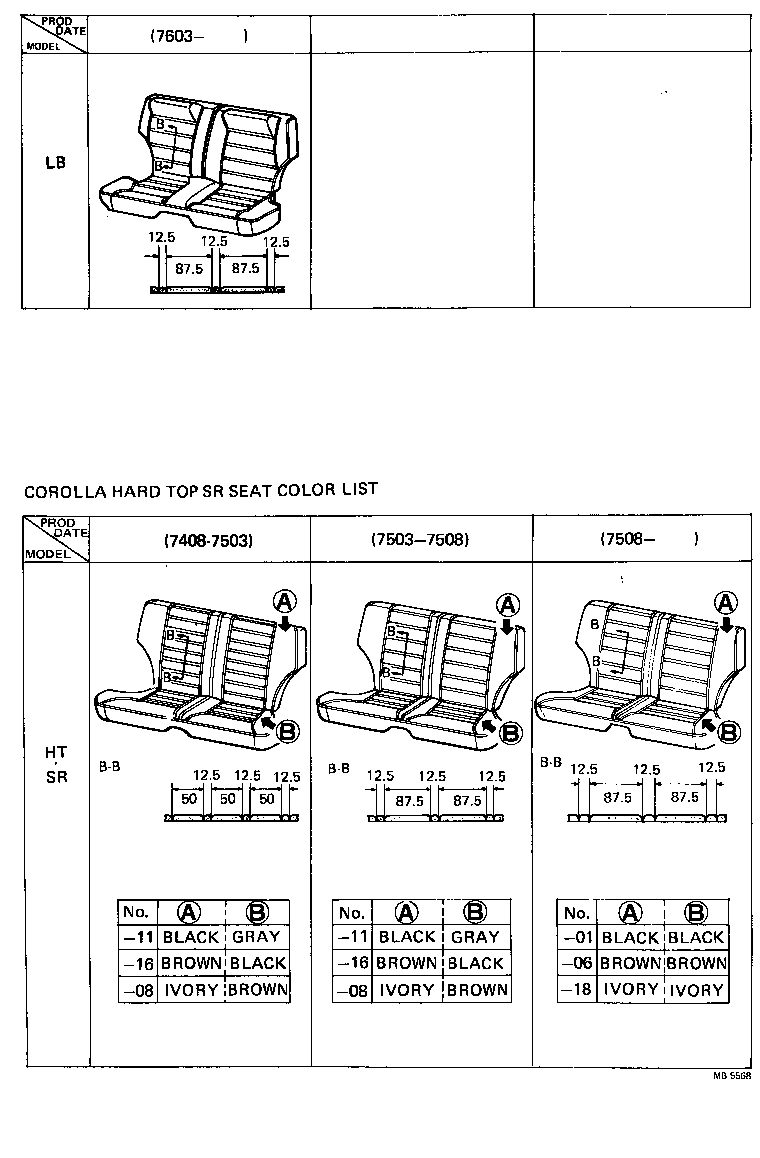

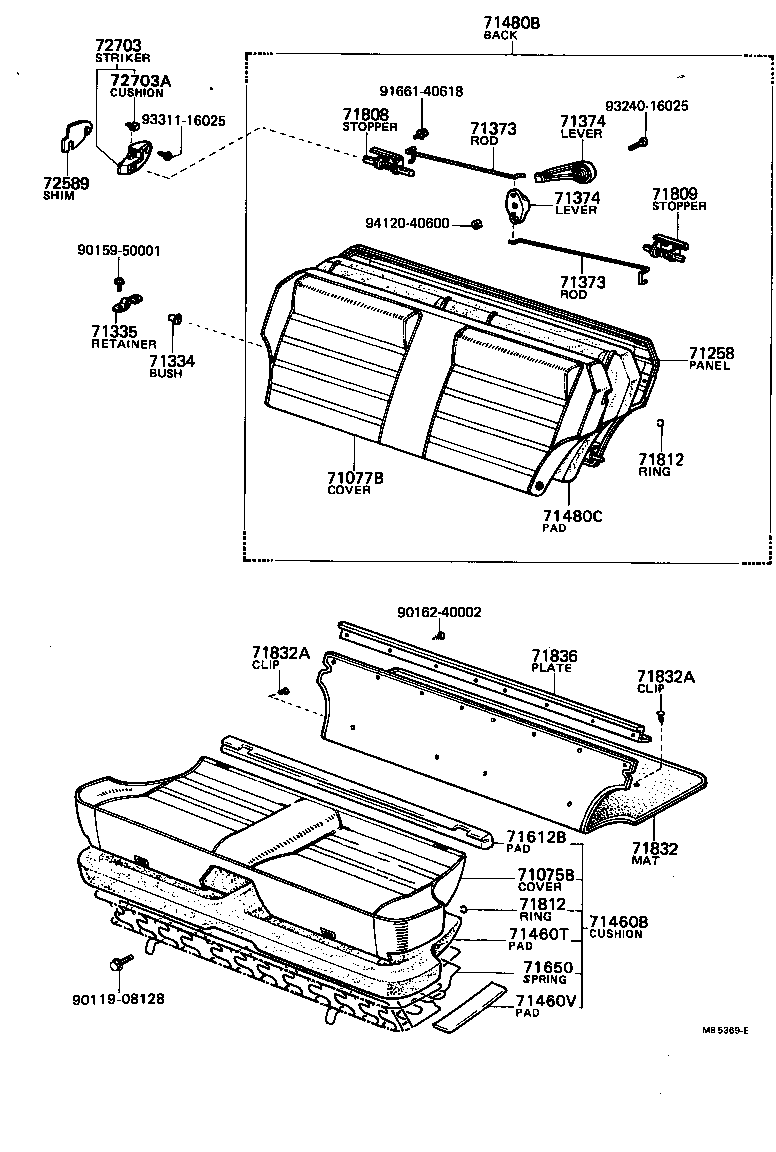

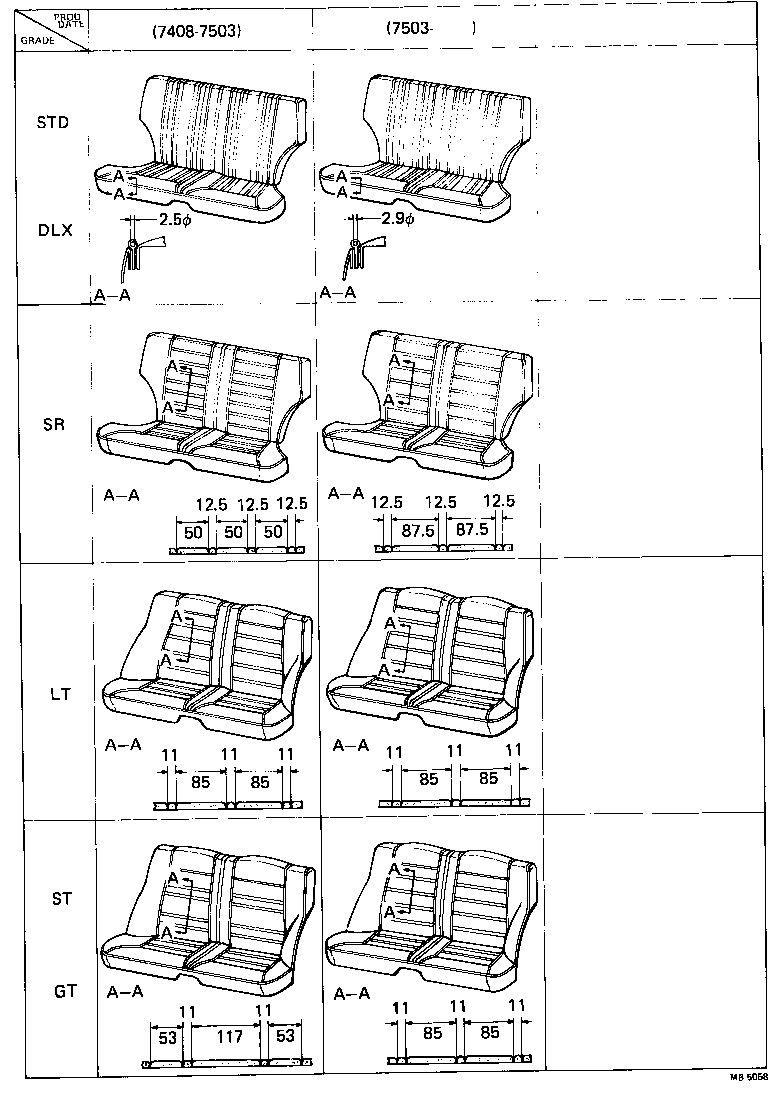

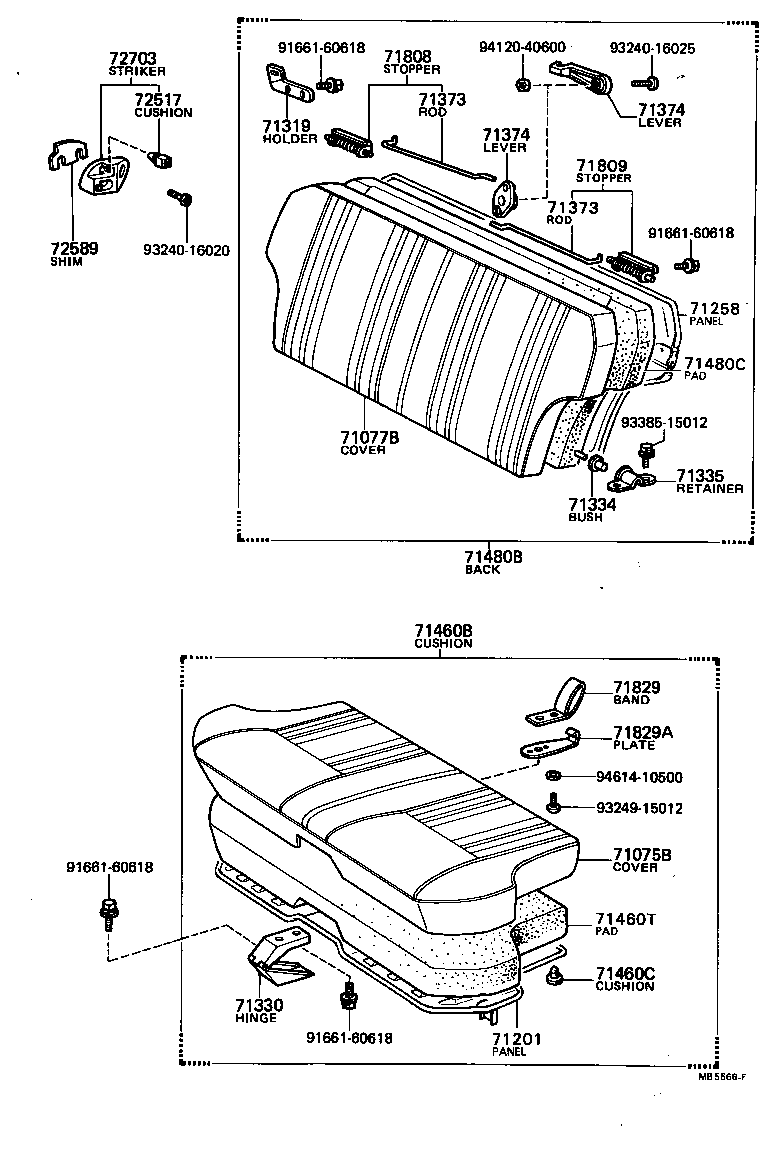

Figure MB5560D MB5560D 1974-08 → — Figure MB5369E MB5369E 1976-03 → 1979-08 Figure MB5370D MB5370D 1976-03 → 1979-08 Figure MB5566F MB5566F 1974-08 → — Figure MB5058 MB5058 1974-08 → 1977-01 Figure MB5568 MB5568 1974-08 → 1977-01

Part groups

PNCDescription
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71201 Panel Sub-assy, Rear Seat Cushion
71205 Hinge Sub-assy, Rear Seatback, Outside
71258 Panel Sub-assy, Rear Seatback
71319 Holder, Rear Seatback
71330 Hinge Assy, Rear Seat Cushion
71334 Bush, Rear Seatback Pivot
71335 Retainer, Rear Seatback Pivot, Upper
71336 Bush OR Spacer, Rear Seatback Hinge
71373 Rod, Rear Seatback Locking
71374 Lever, Rear Seatback Rod Control
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71460C Cushion (FOR REAR SEAT CUSHION)
71460T Pad Sub-assy, Rear Seat Cushion, NO.1
71460V Pad, Rear Seat Cushion Silencer, NO.3
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71480C Pad Sub-assy, Rear Seatback, NO.1 (FOR BENCH TYPE)
71480S Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71480T Pad, Rear Seatback, RH (FOR SEPARATE SEAT)
71490S Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71490T Pad, Rear Seatback, LH (FOR SEPARATE SEAT)
71612B Pad, Rear Seat Cushion, B
71650 Spring Assy, Rear Seat Cushion
71670 Spring Assy, Rear Seatback(FOR BENCH SEAT)
71671 Pad, Rear Seatback Silencer, A
71672 Pad, Rear Seatback Silencer, B
71673 Pad, Rear Seatback Silencer, C
71808 Stopper Sub-assy, Rear Seatback, RH
71808A Spring, Rear Seatback Stopper
71809 Stopper Sub-assy, Rear Seatback, LH
71829 Band, Rear Seat Cushion
71829A Plate, Rear Seat Cushion Band Support
71832 Carpet OR Mat, Rear Seatback
71832A Clip, Rear Seatback Carpet OR Mat
71836 Plate, Rear Seatback Carpet OR Mat Support, Upper
72517 Cushion, Rear Seatback Stop
72589 Shim, Rear Seatback Stop
72655 Cover, Rear Seatback Stop Handle
72656 Button, Rear Seatback Stop Release
72703 Striker Sub-assy, Rear Seatback Stopper
72703A Cushion, Rear Seatback Stopper Striker
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
