Toyota Corolla (TUP)
2019-01 → present · chassis MZEA11,ZRE21#, ZWE21# · catalogue 164230 · Europe
Supported model
Data version 2022-12

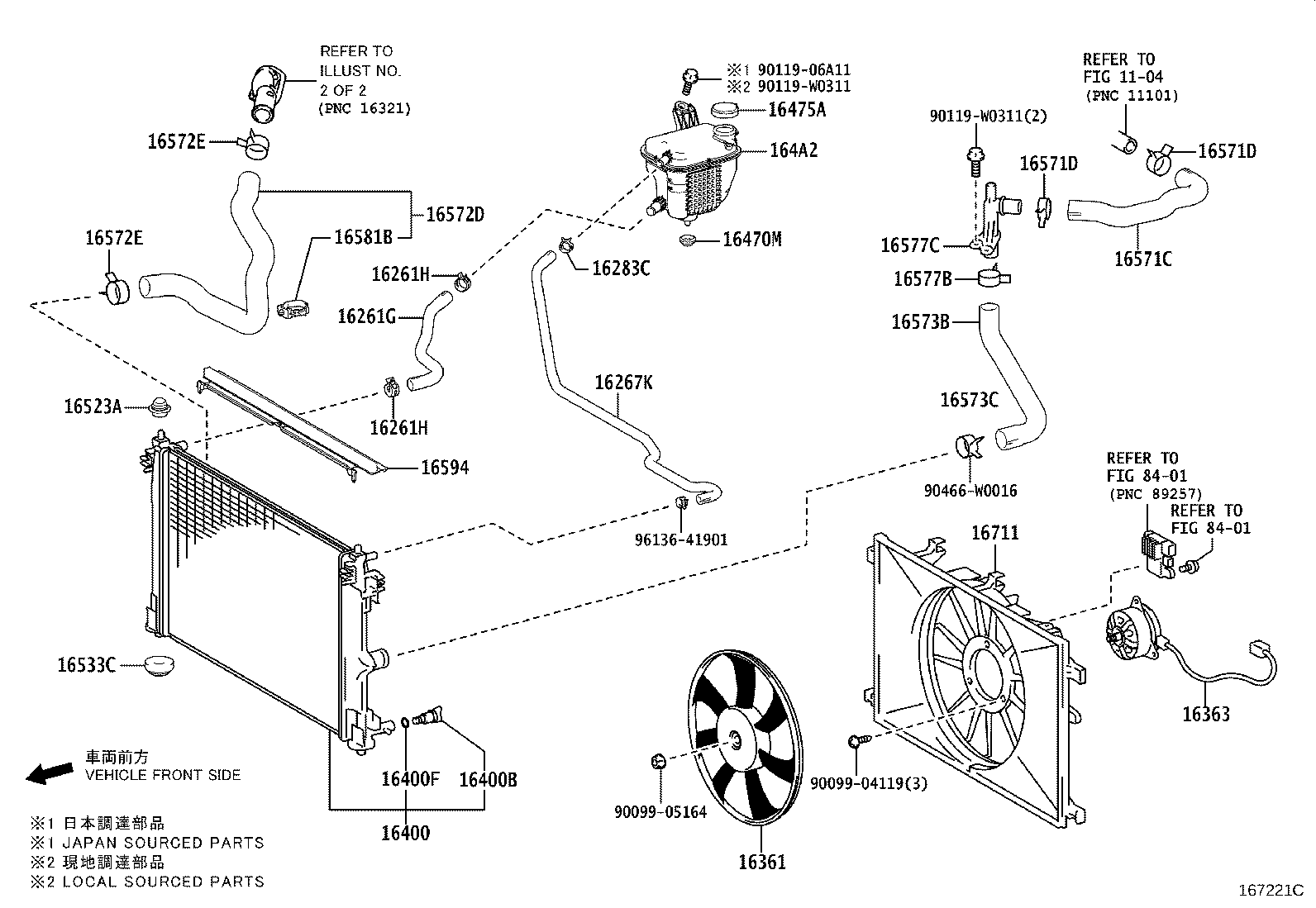

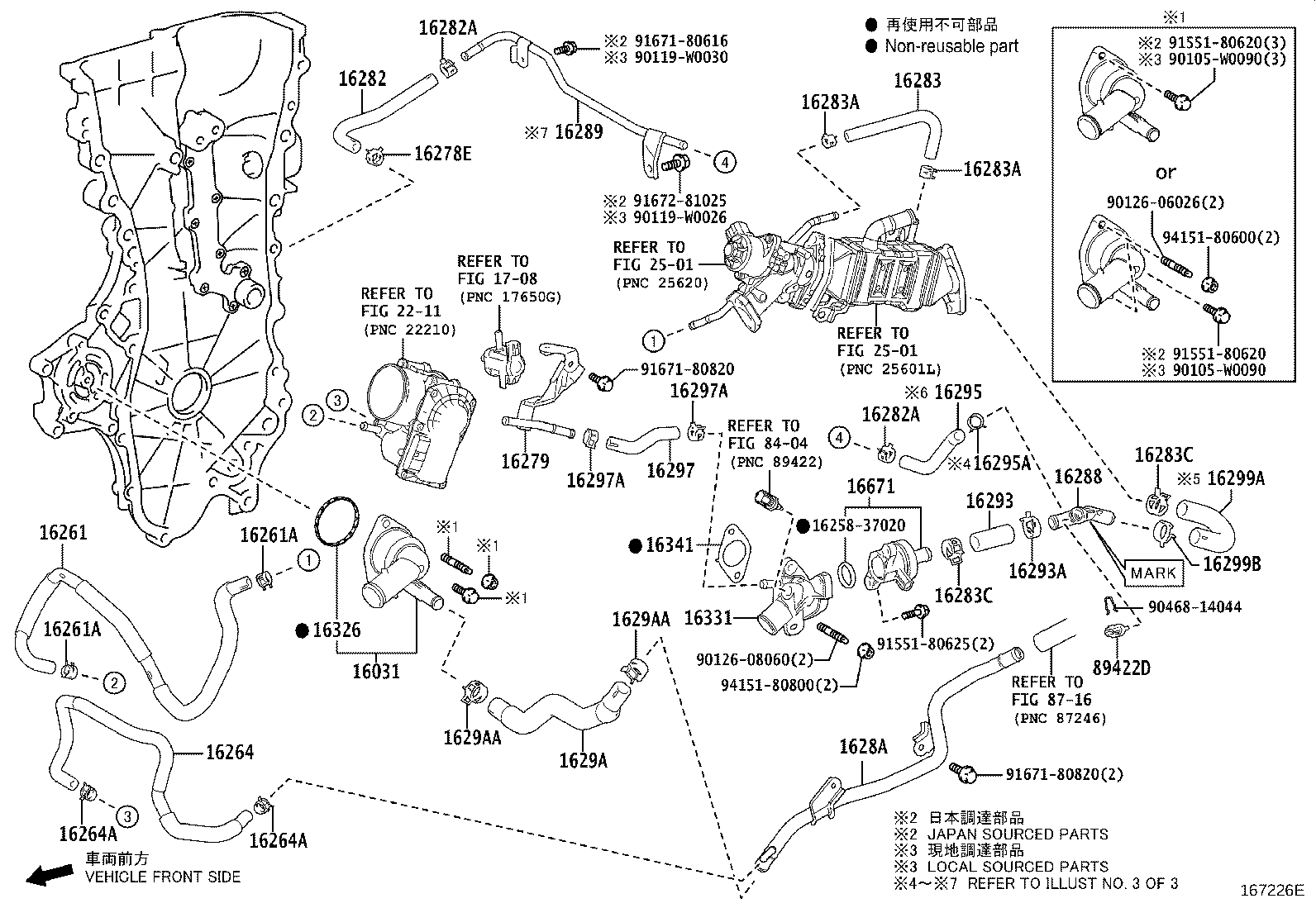

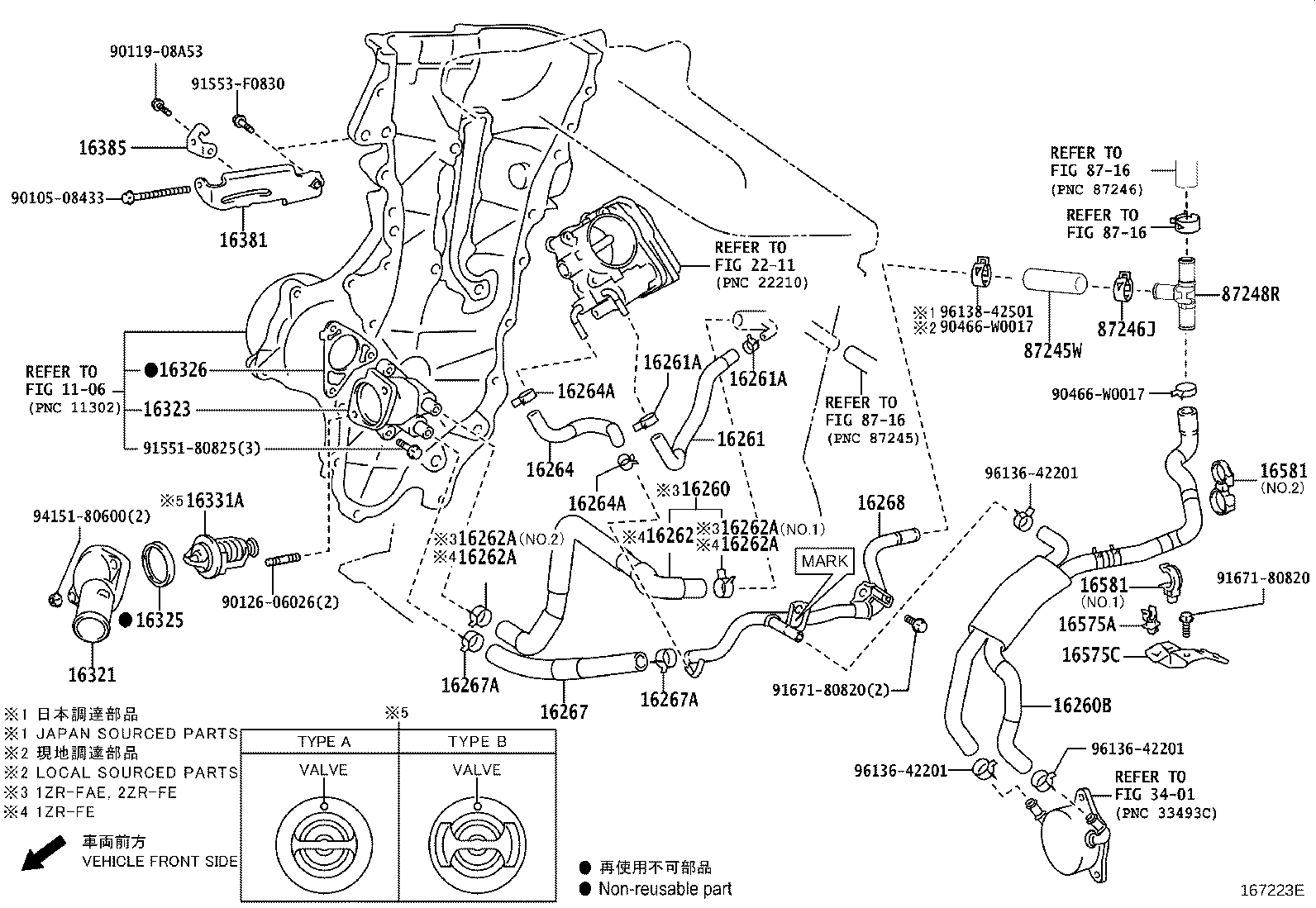

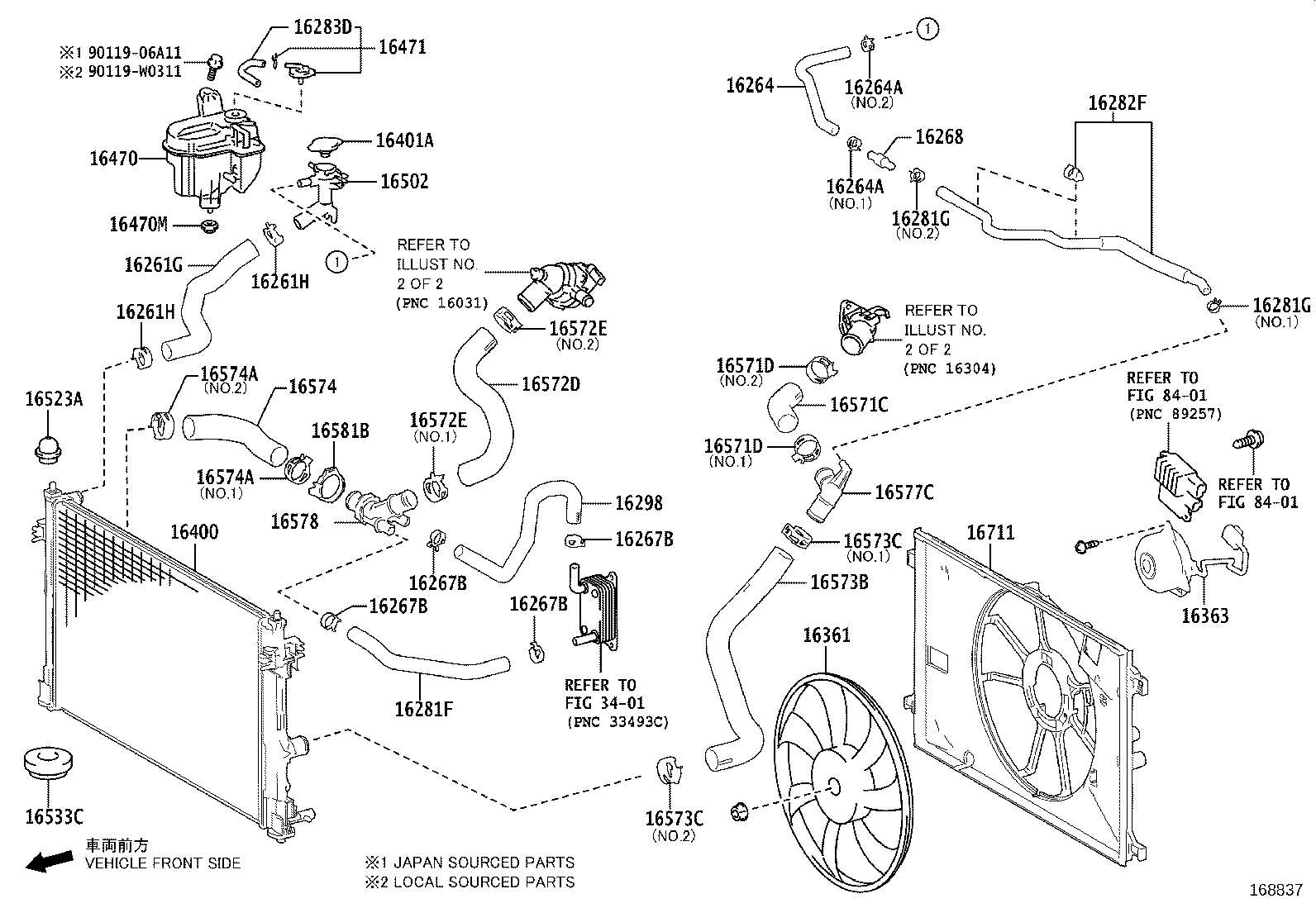

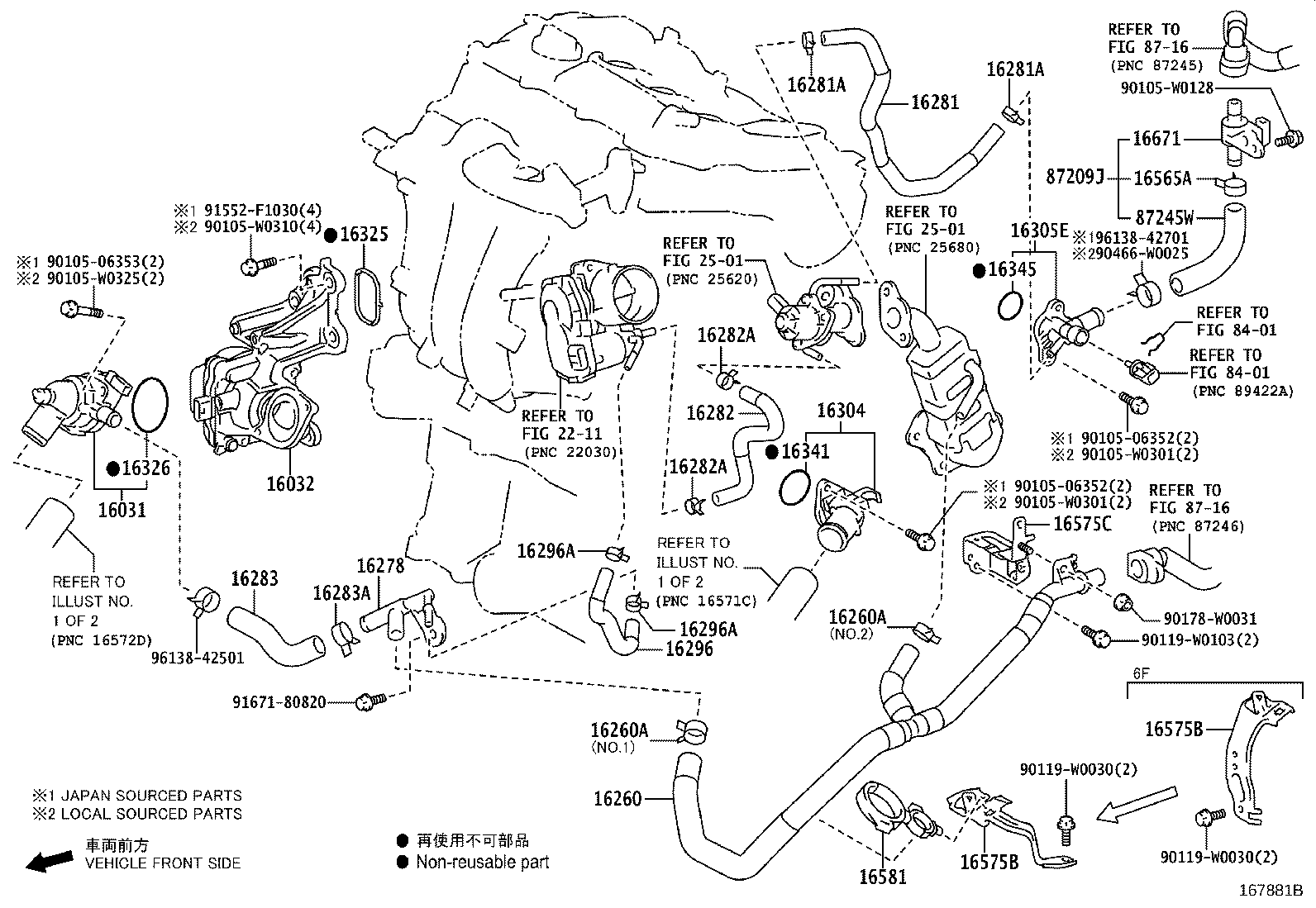

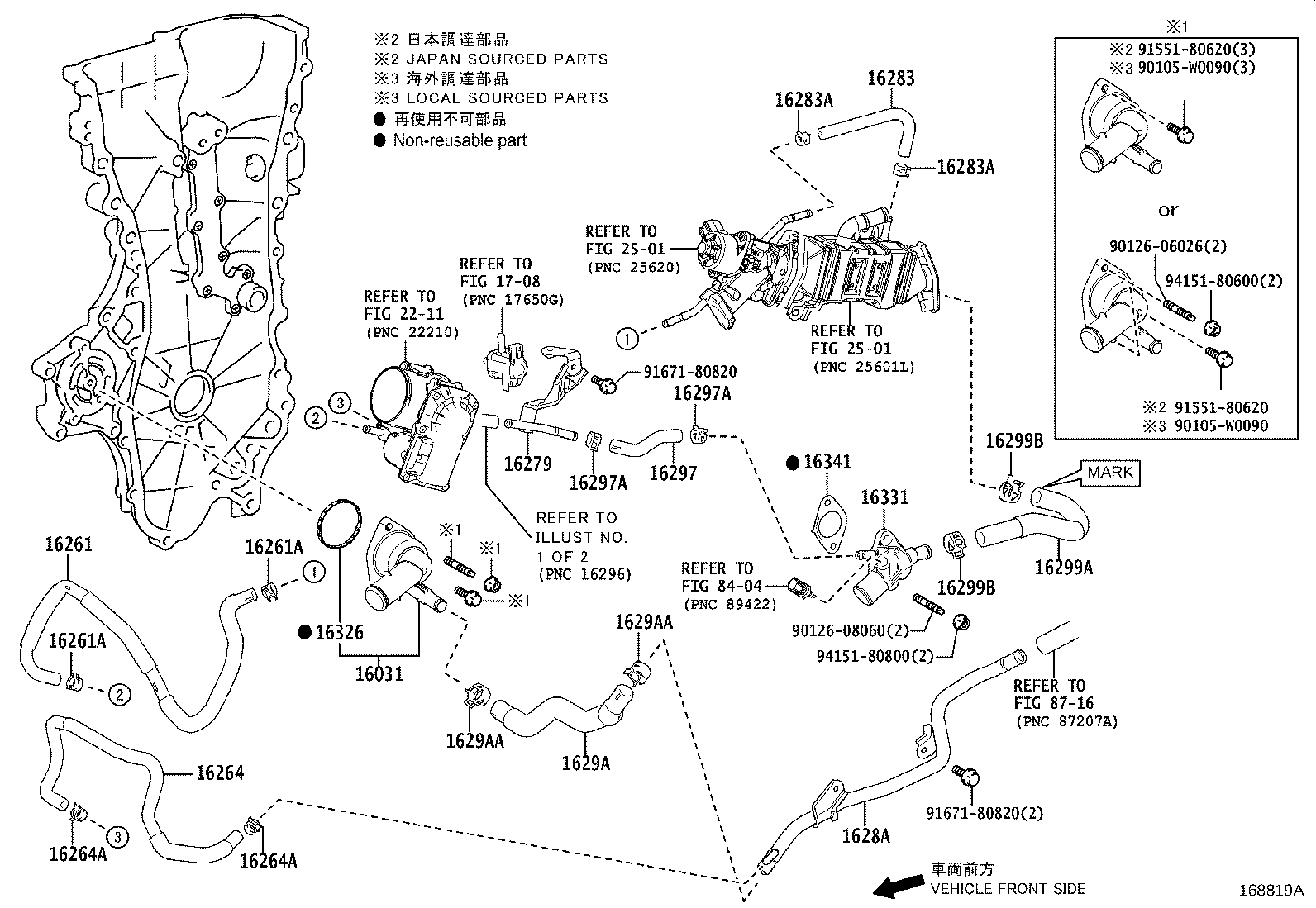

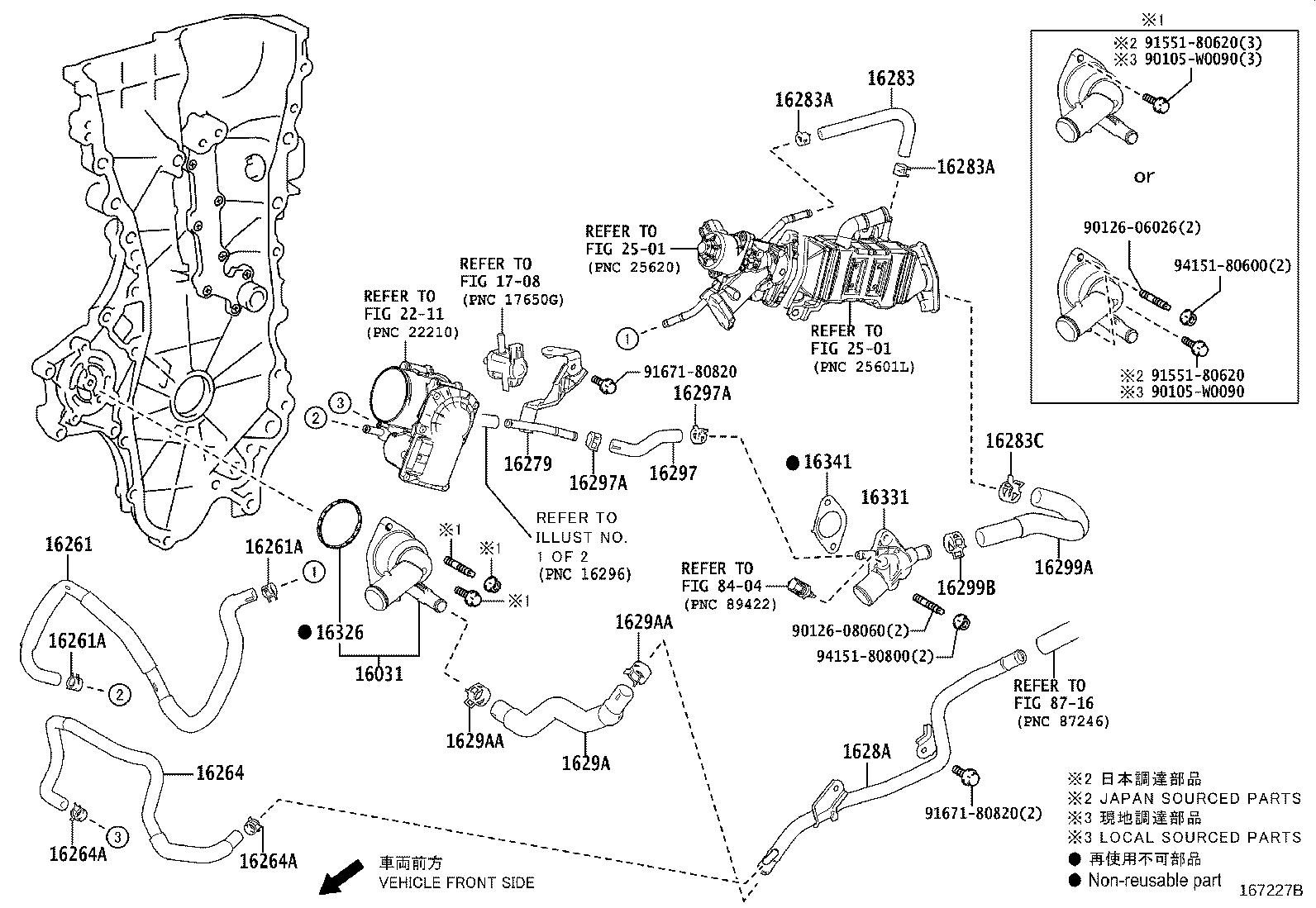

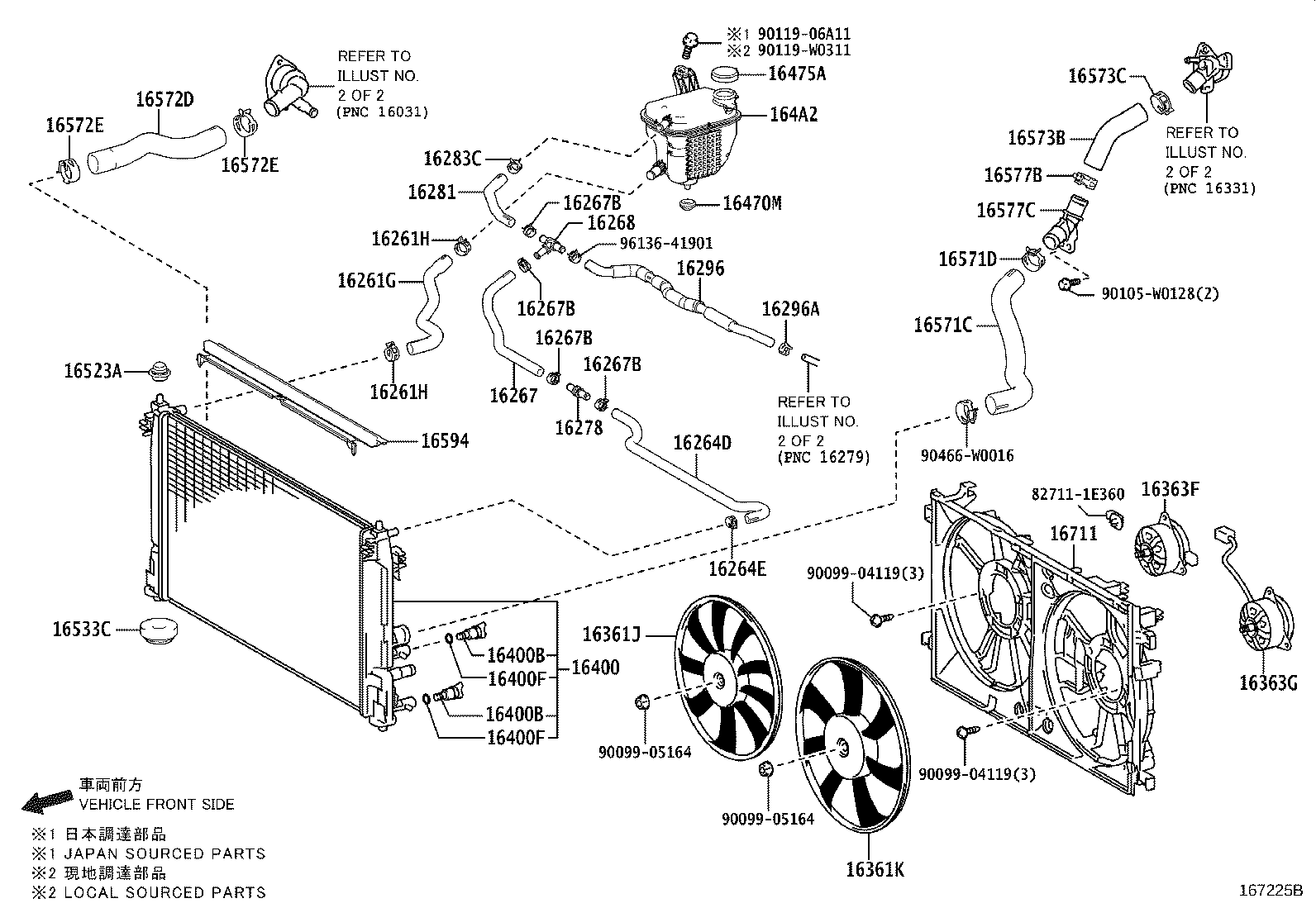

Radiator & Water Outlet
106 part groups · 14 illustrations

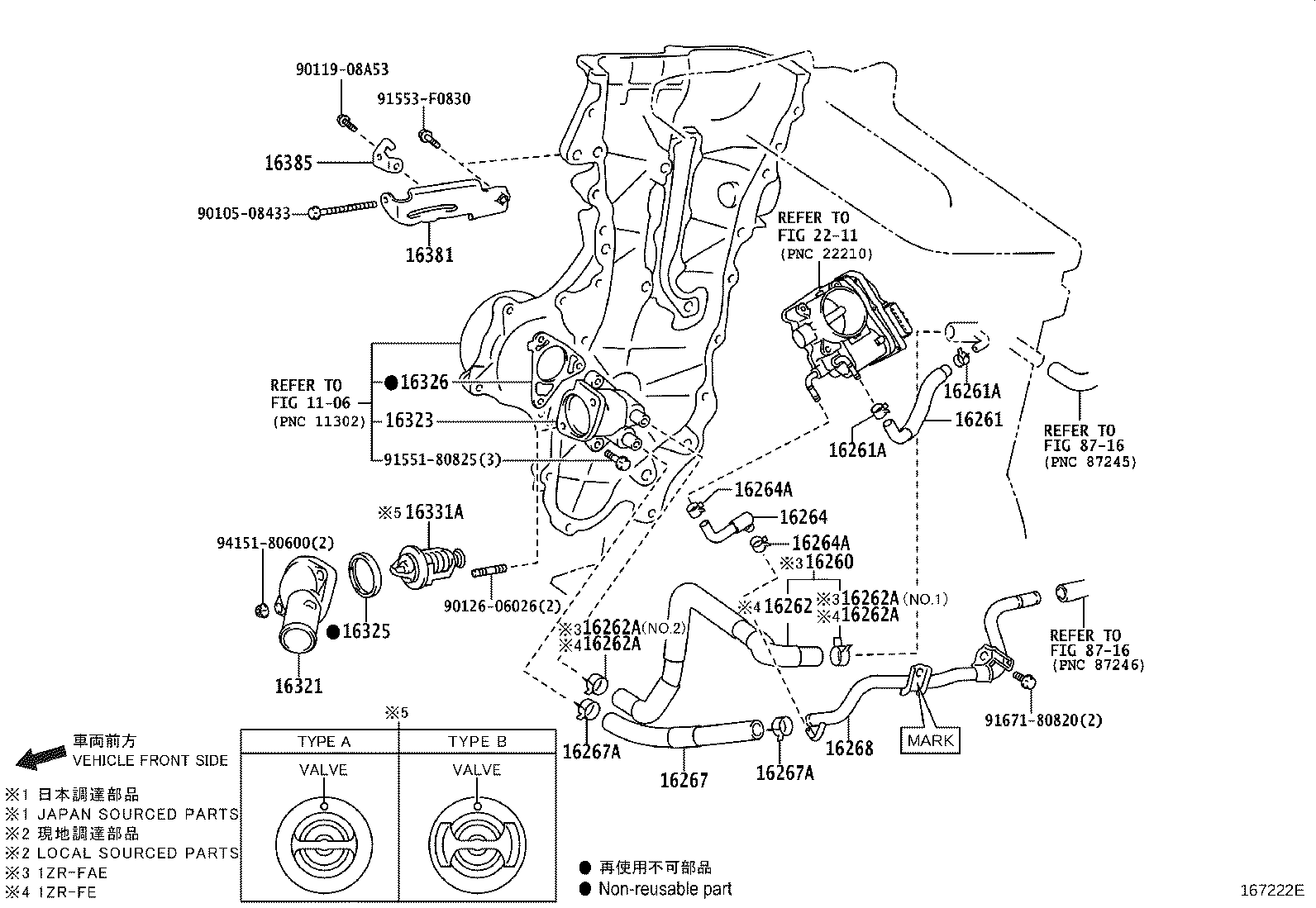

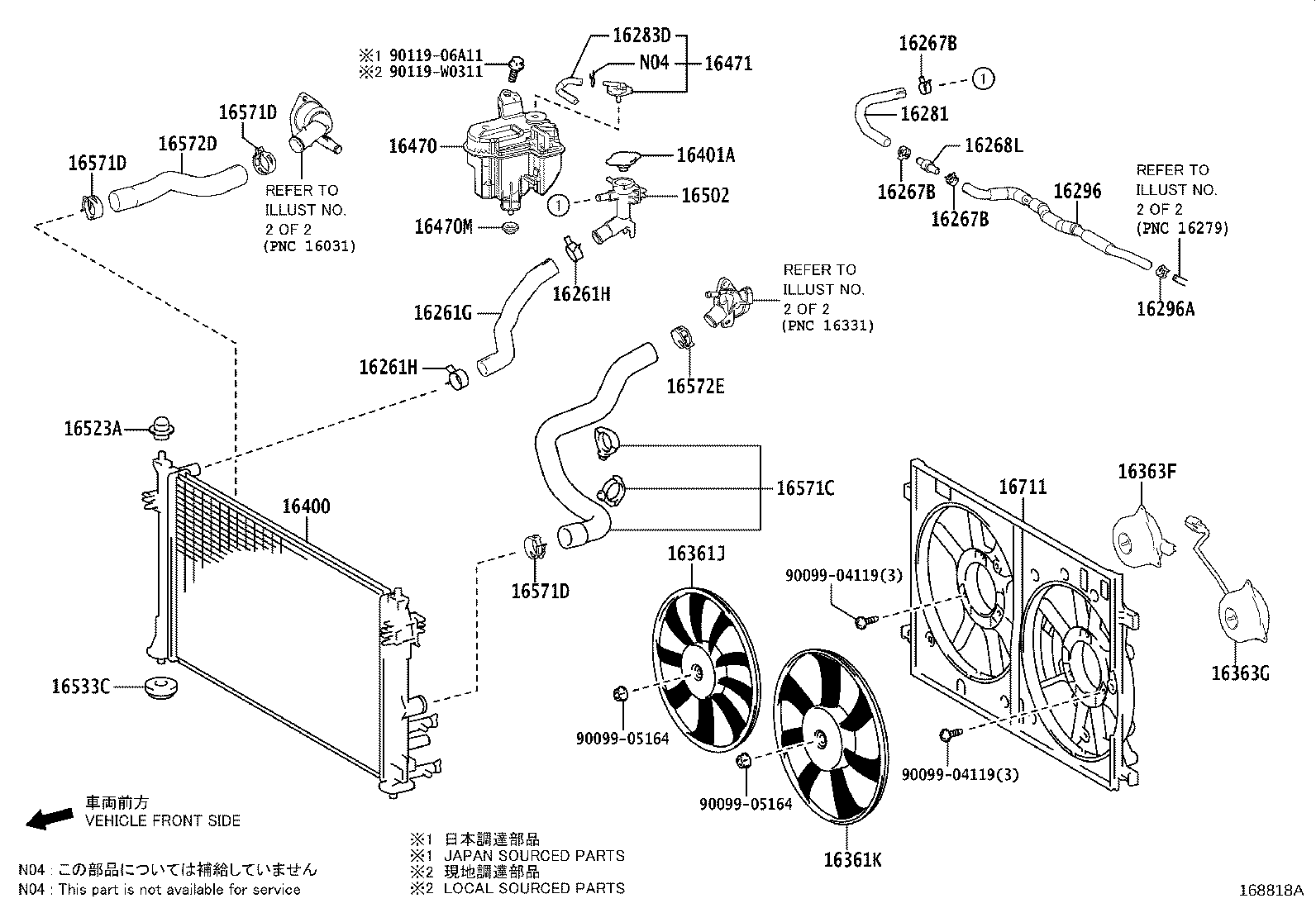

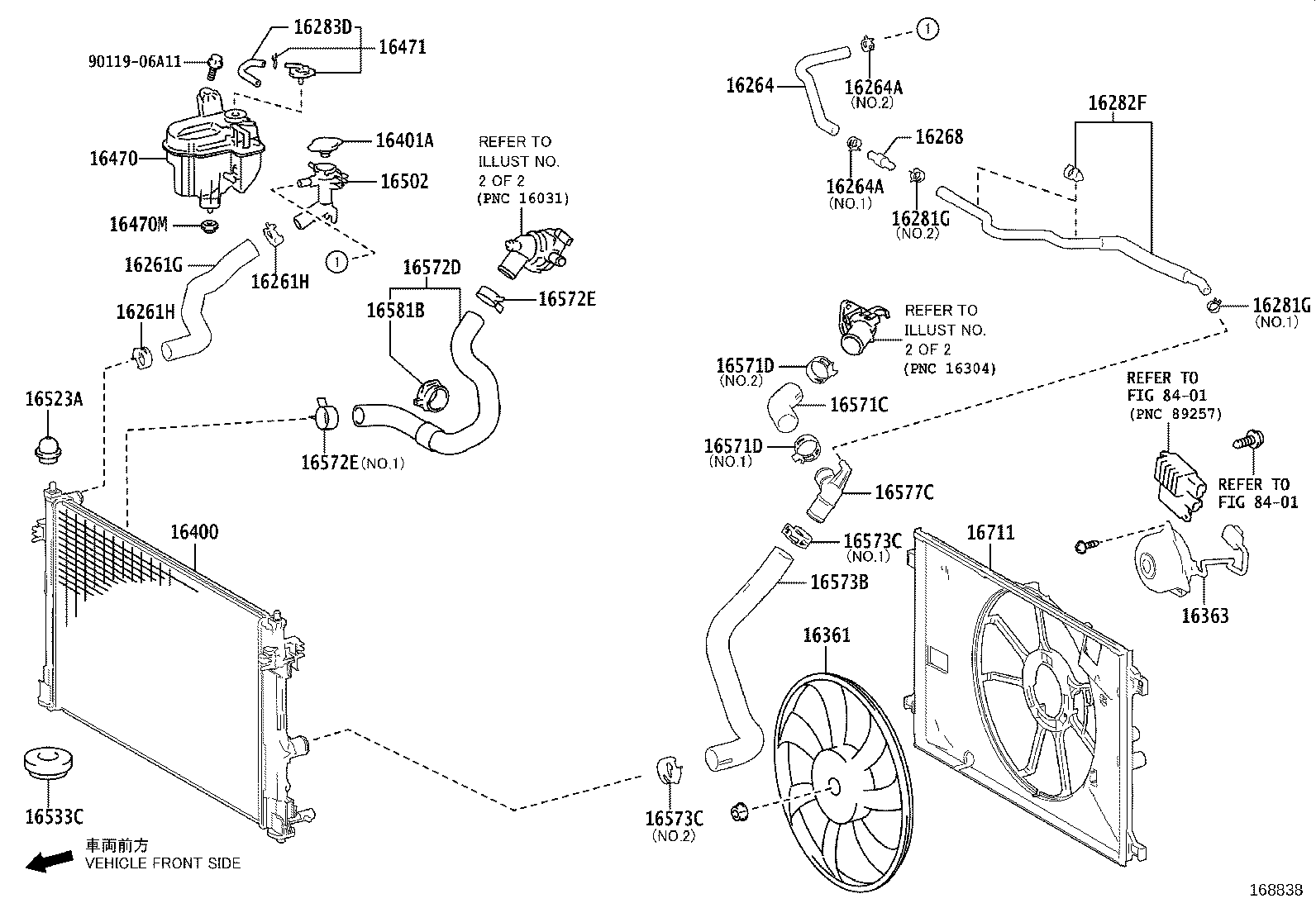

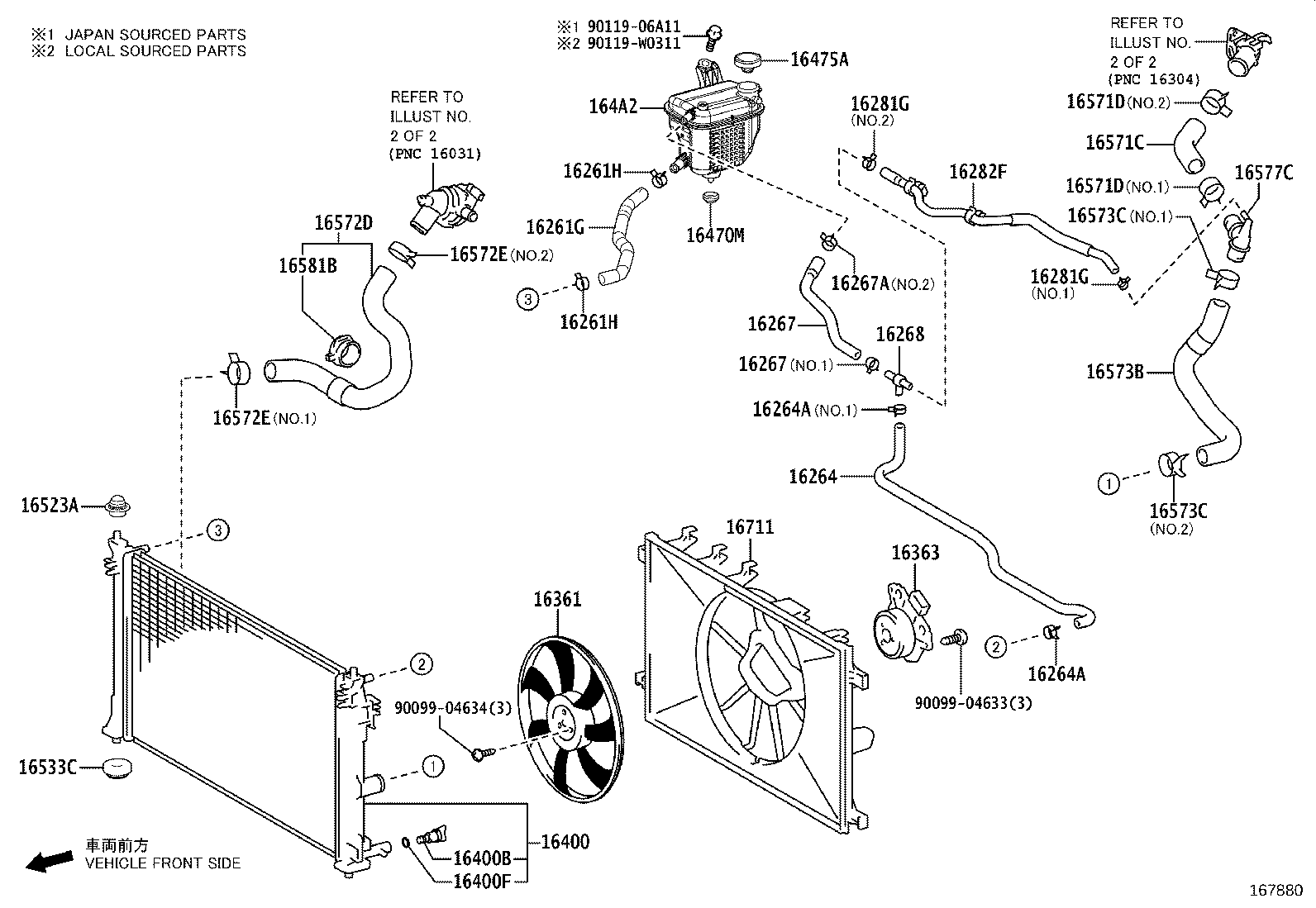

Illustrations
Part groups
| PNC | Description |
|---|---|
| 16031 | Water Inlet Sub-assy, W/Thermostat |
| 16032 | Housing Sub-assy, Water Inlet W/Water Pump |
| 16260 | Hose Assy, Water By-pass |
| 16260A | Clip(FOR WATER BY-PASS HOSE ASSY) |
| 16260B | Pipe Assy, Water By-pass |
| 16261 | Hose, Water By-pass |
| 16261A | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16261G | Hose, Water By-pass, NO.1 |
| 16261H | Clip(FOR WATER BY-PASS HOSE NO.1) |
| 16262 | Hose, Water Inlet |
| 16262A | Clip(FOR WATER INLET HOSE) |
| 16264 | Hose, Water By-pass, NO.2 |
| 16264A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16264D | Hose, Water By-pass, NO.2 |
| 16264E | Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16267 | Hose, Water By-pass, NO.3 |
| 16267A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3) |
| 16267B | Clip(FOR WATER BY-PASS HOSE) |
| 16267K | Hose, Water By-pass, NO.3 |
| 16268 | Pipe, Water By-pass, NO.1 |
| 16268L | Pipe, Water By-pass |
| 16278 | Pipe, Water By-pass, NO.2 |
| 16278E | Clip(FOR WATER BY-PASS HOSE) |
| 16279 | Pipe, Water By-pass, NO.3 |
| 16281 | Hose, Water By-pass, NO.4 |
| 16281A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4) |
| 16281F | Hose, Water By-pass, NO.5 |
| 16281G | Clip(FOR WATER BY-PASS HOSE NO.5) |
| 16282 | Hose, Water By-pass, NO.5 |
| 16282A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5) |
| 16282F | Hose, Water By-pass, NO.5 |
| 16283 | Hose, Water By-pass, NO.6 |
| 16283A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6) |
| 16283C | Clamp OR Clip(FOR WATER BY-PASS HOSE) |
| 16283D | Hose, Water By-pass, NO.6 |
| 16288 | Pipe, Water By-pass, NO.4 |
| 16289 | Pipe, Water By-pass, NO.5 |
| 1628A | Pipe, Water By-pass, NO.6 |
| 16293 | Hose, Water By-pass, NO.10 |
| 16293A | Clip(FOR WATER BY-PASS HOSE NO.10) |
| 16295 | Hose, Water By-pass, NO.7 |
| 16295A | Clip(FOR WATER BY-PASS HOSE NO.7) |
| 16296 | Hose, Water By-pass, NO.8 |
| 16296A | Clip(FOR WATER BY-PASS HOSE NO.8) |
| 16297 | Hose, Water By-pass, NO.9 |
| 16297A | Clip(FOR WATER BY-PASS HOSE NO.9) |
| 16298 | Hose, Water By-pass, NO.12 |
| 16299A | Hose, Water By-pass, NO.13 |
| 16299B | Clip(FOR WATER BY-PASS HOSE NO.13) |
| 1629A | Hose, Water By-pass, NO.14 |
| 1629AA | Clip(FOR WATER BY-PASS HOSE NO.14) |
| 16304 | Outlet Sub-assy, Water |
| 16305E | Outlet Sub-assy, Water By-pass |
| 16321 | Inlet, Water |
| 16323 | Housing, Water Inlet |
| 16325 | Gasket, Water Inlet Housing, NO.1 |
| 16326 | Gasket, Water Inlet Housing, NO.2 |
| 16331 | Outlet, Water |
| 16331A | Thermostat |
| 16341 | Gasket, Water Outlet |
| 16345 | Gasket, Water Outlet Pipe |
| 16361 | Fan |
| 16361J | Fan, RH |
| 16361K | Fan, LH |
| 16363 | Motor, Cooling Fan |
| 16363F | Motor, Cooling Fan, RH |
| 16363G | Motor, Cooling Fan, LH |
| 16381 | Bar, Fan Belt Adjusting |
| 16385 | Slider, Fan Belt Adjusting |
| 16400 | Radiator Assy |
| 16400B | Plug, Radiator Drain Cock |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16401A | Cap Sub-assy, Radiator Reserve Tank |
| 16470 | Tank Assy, Radiator Reserve |
| 16470M | Grommet |
| 16471 | Cap Sub-assy, Reserve Tank |
| 16475A | Cap, Reserve Tank |
| 164A2 | Tank, Reserve Sealed W/O Cap |
| 16502 | Filler Sub-assy, Water |
| 16523A | Cushion, Radiator Support |
| 16533C | Grommet(FOR RADIATOR SUPPORT) |
| 16565A | Clip |
| 16571C | Hose, Radiator, NO.1 |
| 16571D | Clip, Radiator Hose, NO.1 |
| 16572D | Hose, Radiator, NO.2 |
| 16572E | Clip, Radiator Hose, NO.2 |
| 16573B | Hose, Radiator, NO.3 |
| 16573C | Clamp OR Clip, Radiator Hose, NO.3 |
| 16574 | Hose, Radiator, NO.4 |
| 16574A | Clip, Radiator Hose, NO.4 |
| 16575A | Clip, Radiator Hose, NO.5 |
| 16575B | Bracket, Water Hose Clamp, NO.2 |
| 16575C | Bracket, Water Hose Clamp, NO.1 |
| 16577B | Clamp OR Clip, Hose(FOR RADIATOR PIPE) |
| 16577C | Pipe, Radiator |
| 16578 | Pipe, Radiator, NO.2 |
| 16581 | Clamp, Hose(FOR WATER HOSE) |
| 16581B | Clamp, Hose(FOR RADIATOR HOSE) |
| 16594 | Guide, Radiator Air, NO.2 |
| 16671 | Valve, Water |
| 16711 | Shroud, Fan |
| 87209J | Hose Sub-assy, Water |
| 87245W | Hose, Water |
| 87246J | Clamp(FOR WATER HOSE) |
| 87248R | Pipe, Water |
| 89422D | Sensor, Water Temperature |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
