Toyota Corolla (TUP)

2019-01 → present · chassis MZEA11,ZRE21#, ZWE21# · catalogue 164230 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

21 part groups · 7 illustrations

Illustrations

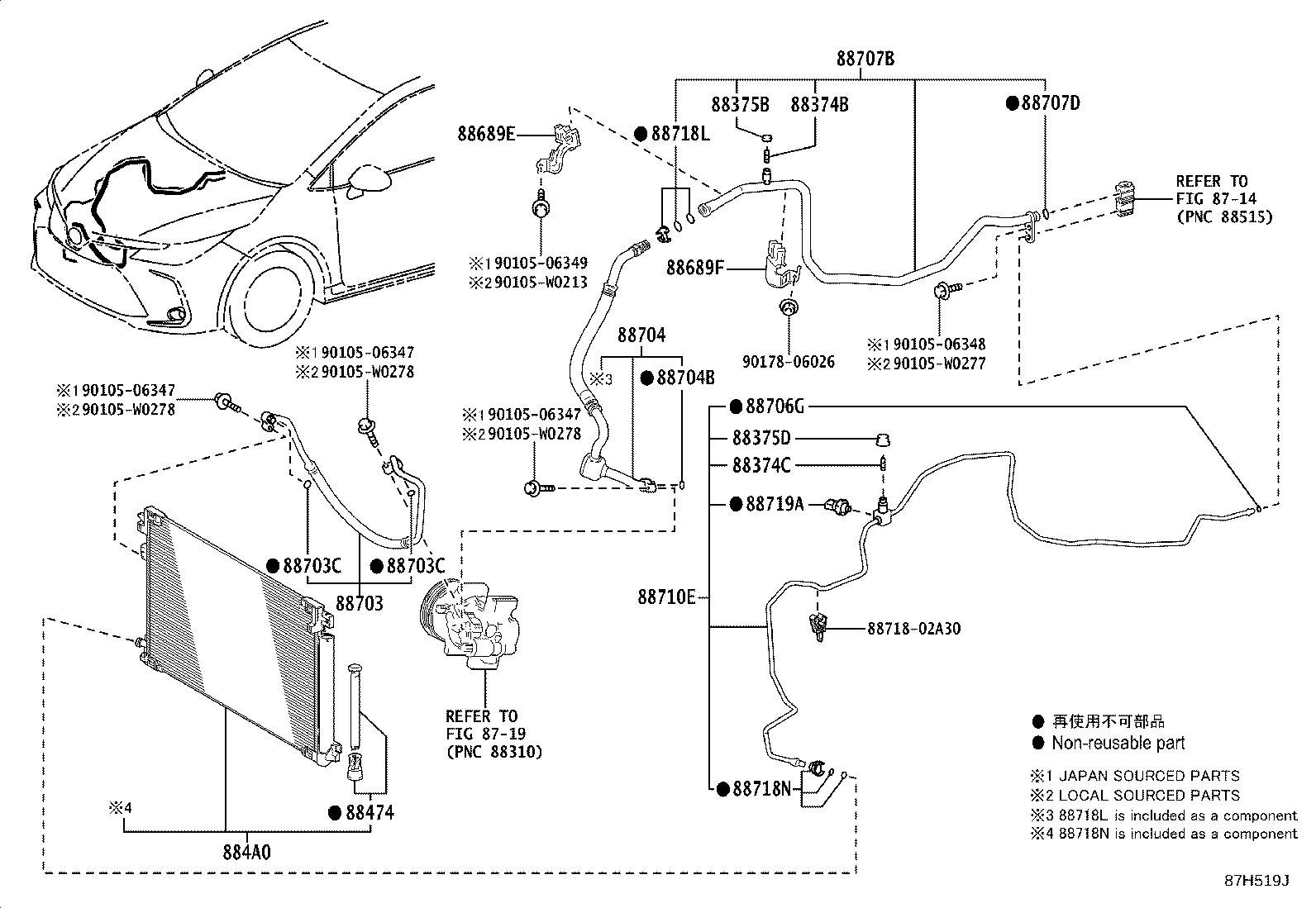

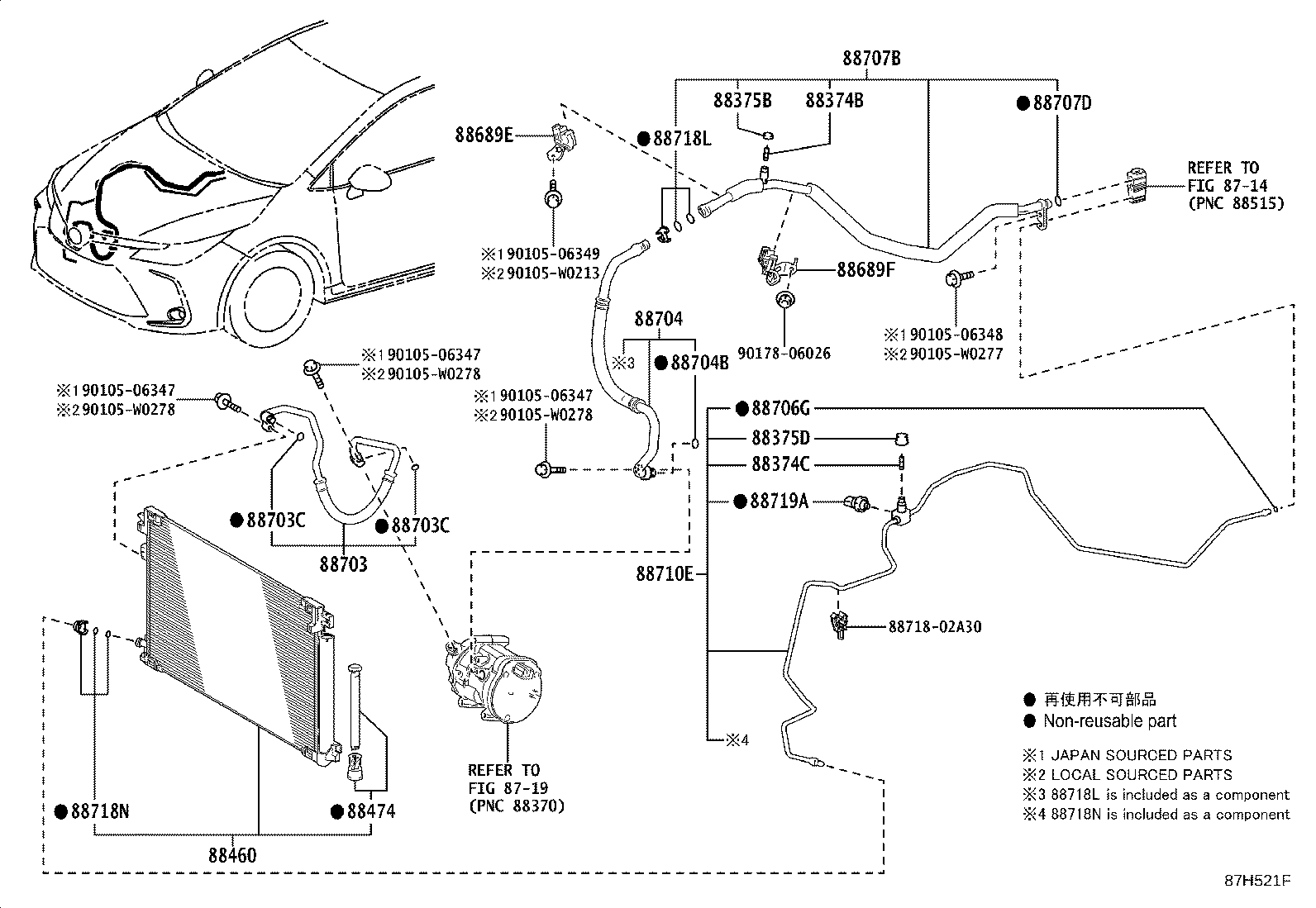

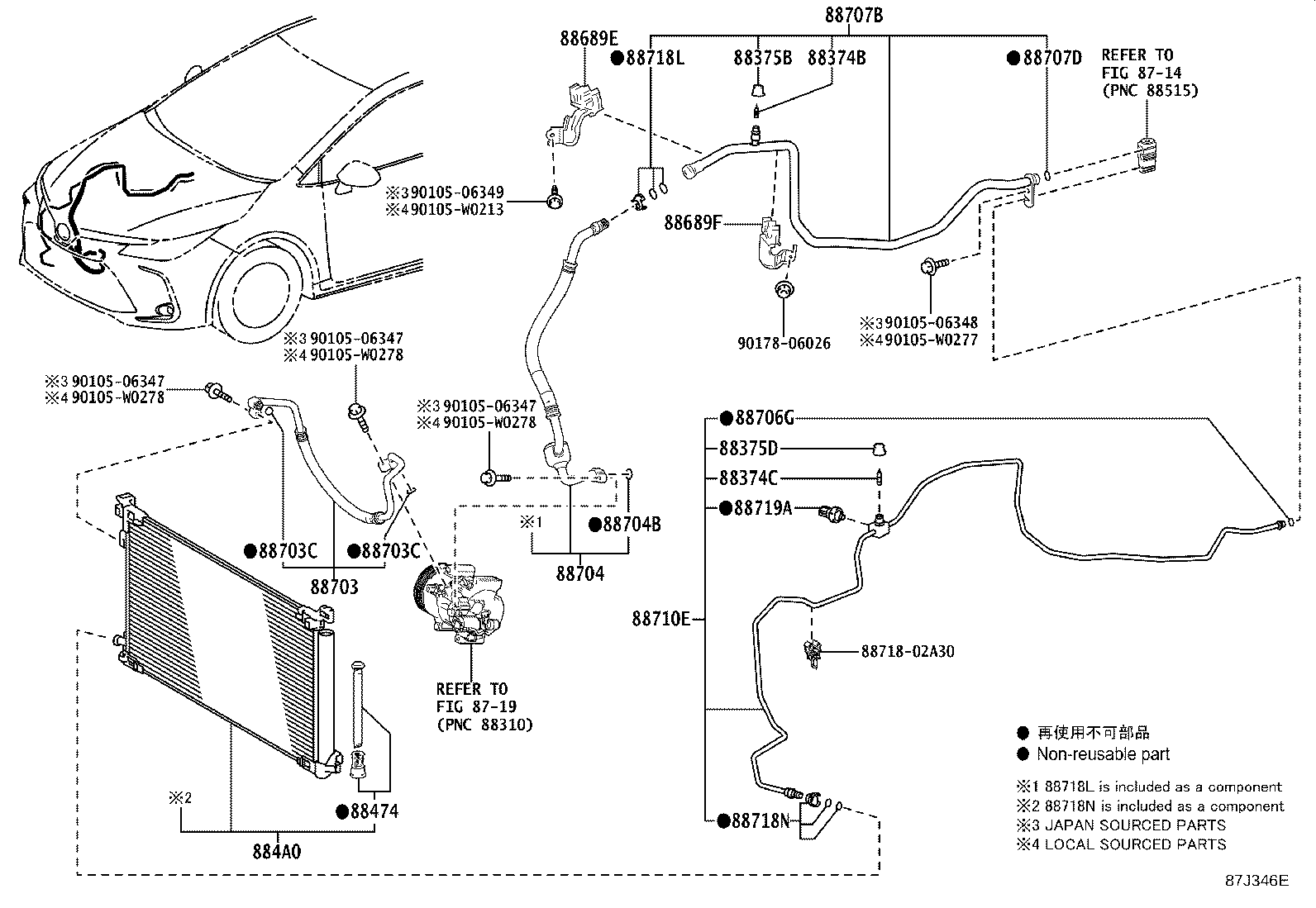

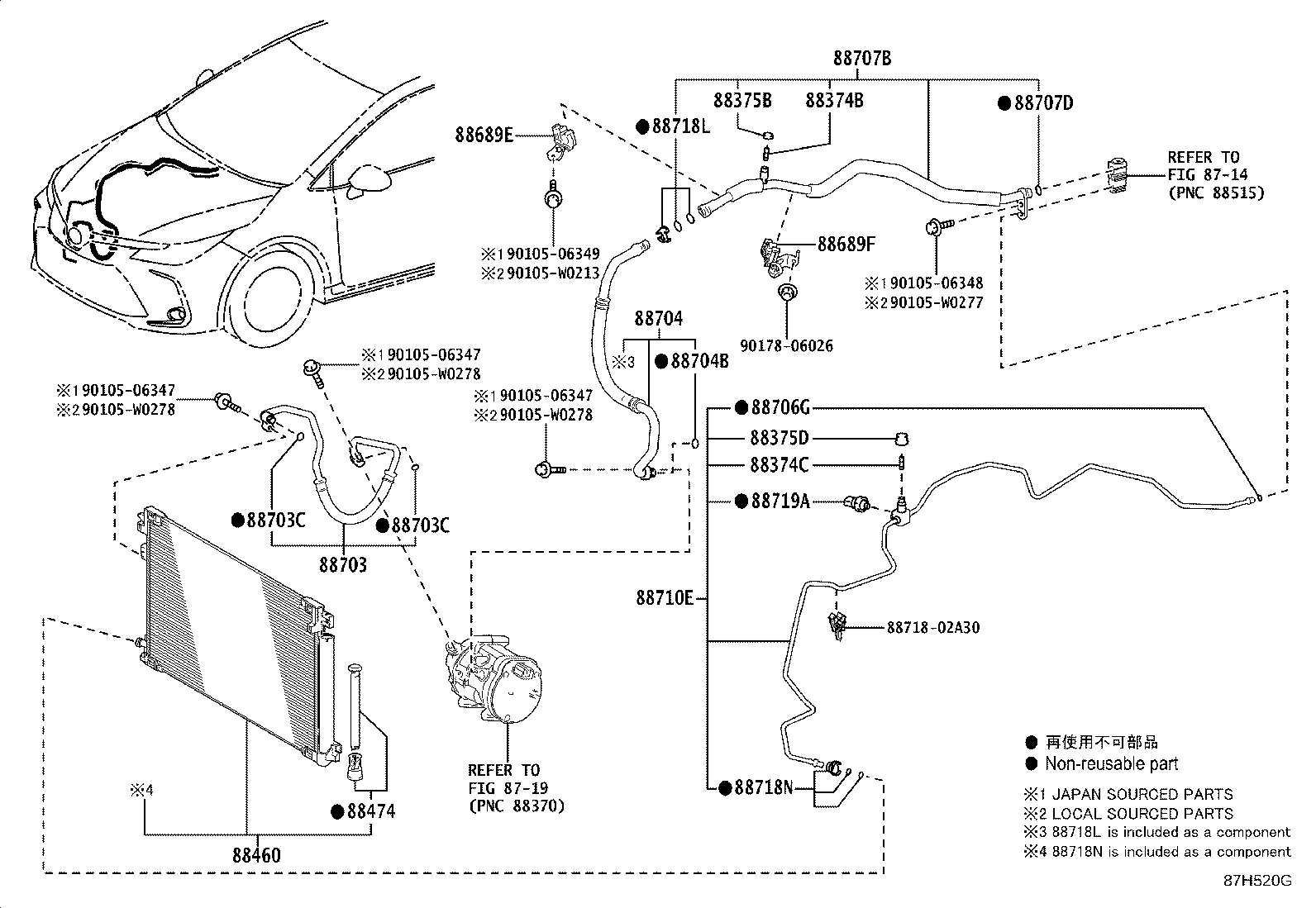

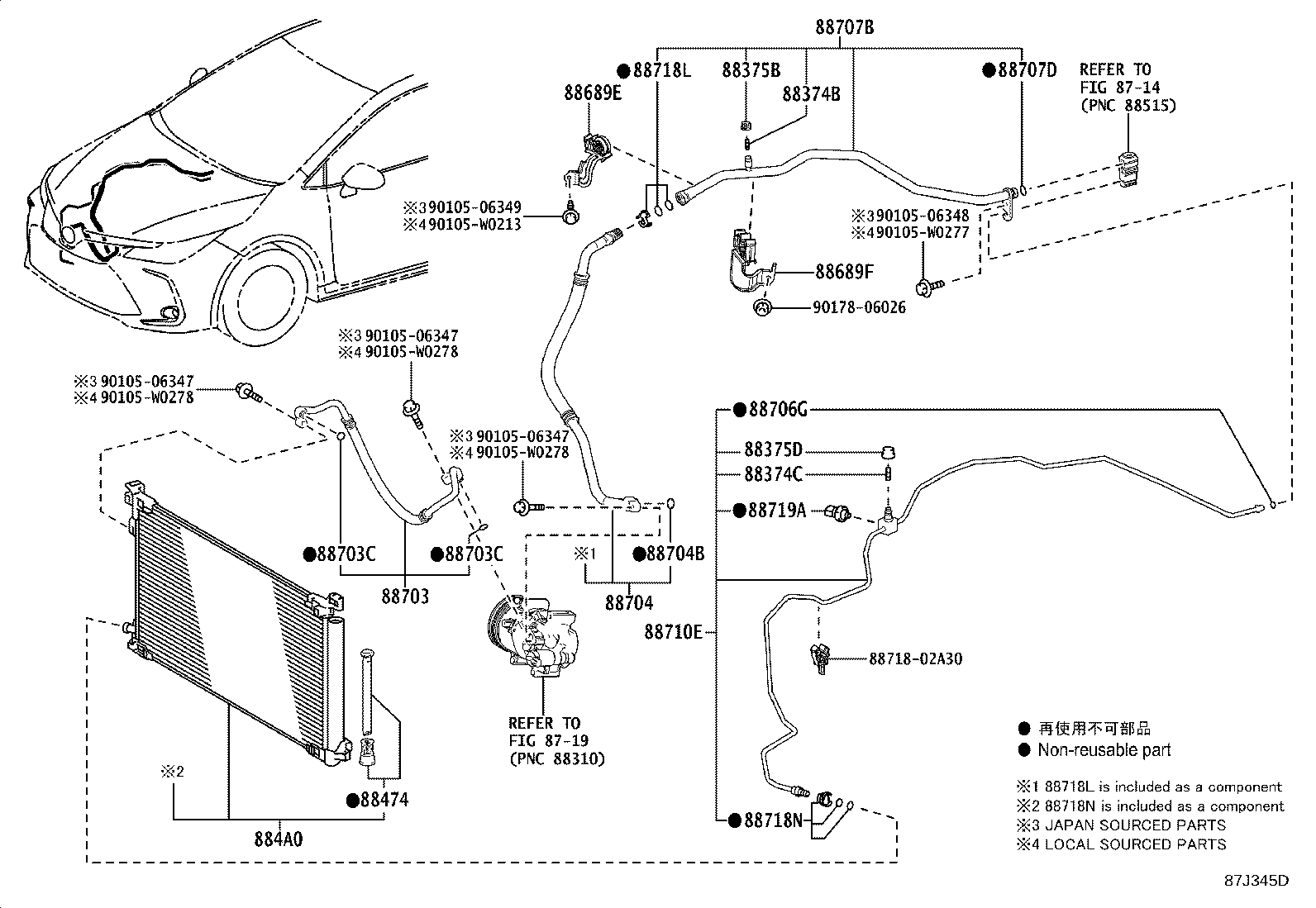

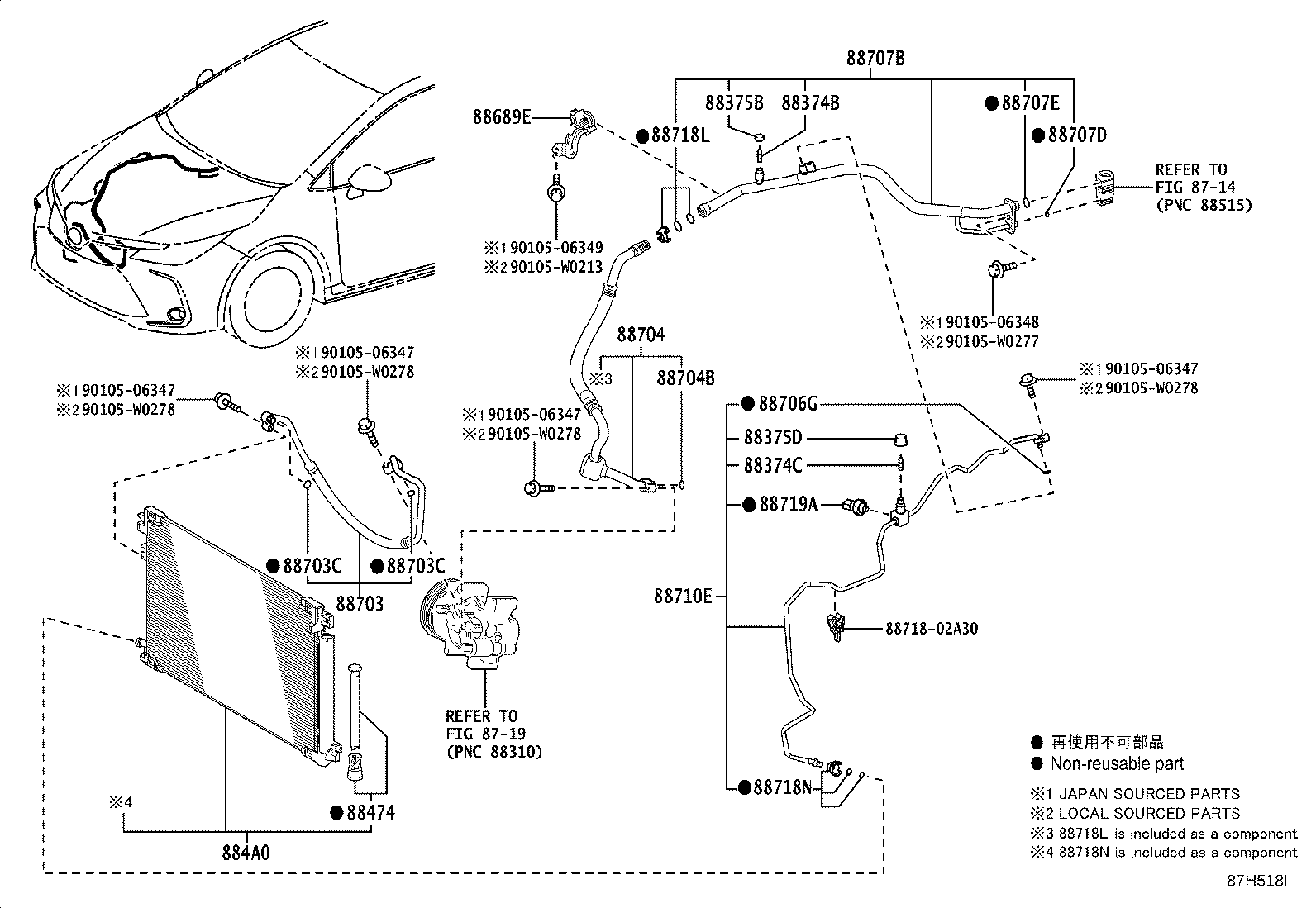

Figure 87H517J 87H517J 2019-01 → — Figure 87H518I 87H518I 2019-01 → — Figure 87H519J 87H519J 2019-01 → — Figure 87H520G 87H520G 2019-01 → — Figure 87H521F 87H521F 2019-01 → — Figure 87J345E 87J345E 2020-10 → — Figure 87J346E 87J346E 2020-10 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
884A0 Condenser Assy, Cooler
88689E Bracket, Cooler, NO.1
88689F Bracket, Cooler, NO.2
88703 Hose Sub-assy, Discharge
88703C Ring, O(FOR DISCHARGE HOSE)
88704 Hose Sub-assy, Suction
88704B Ring, O(FOR SUCTION HOSE)
88706G Ring, O(FOR LIQUID TUBE)
88707B Tube Sub-assy, Suction, B
88707D Ring, O(FOR SUCTION TUBE)
88707E Ring, O, NO.2(FOR SUCTION TUBE)
88710E Tube & Accessory Assy, Air Conditioner
88718L Clamp, Piping
88718N Clamp, Piping
88719A Sensor, Air Conditioner Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
