Toyota Corolla (S.AFRICA)

2008-02 → 2013-06 · chassis ADE150,NDE150,NRE150,ZRE151,ZZE150 · catalogue 164510 · Europe

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

114 part groups · 25 illustrations

Illustrations

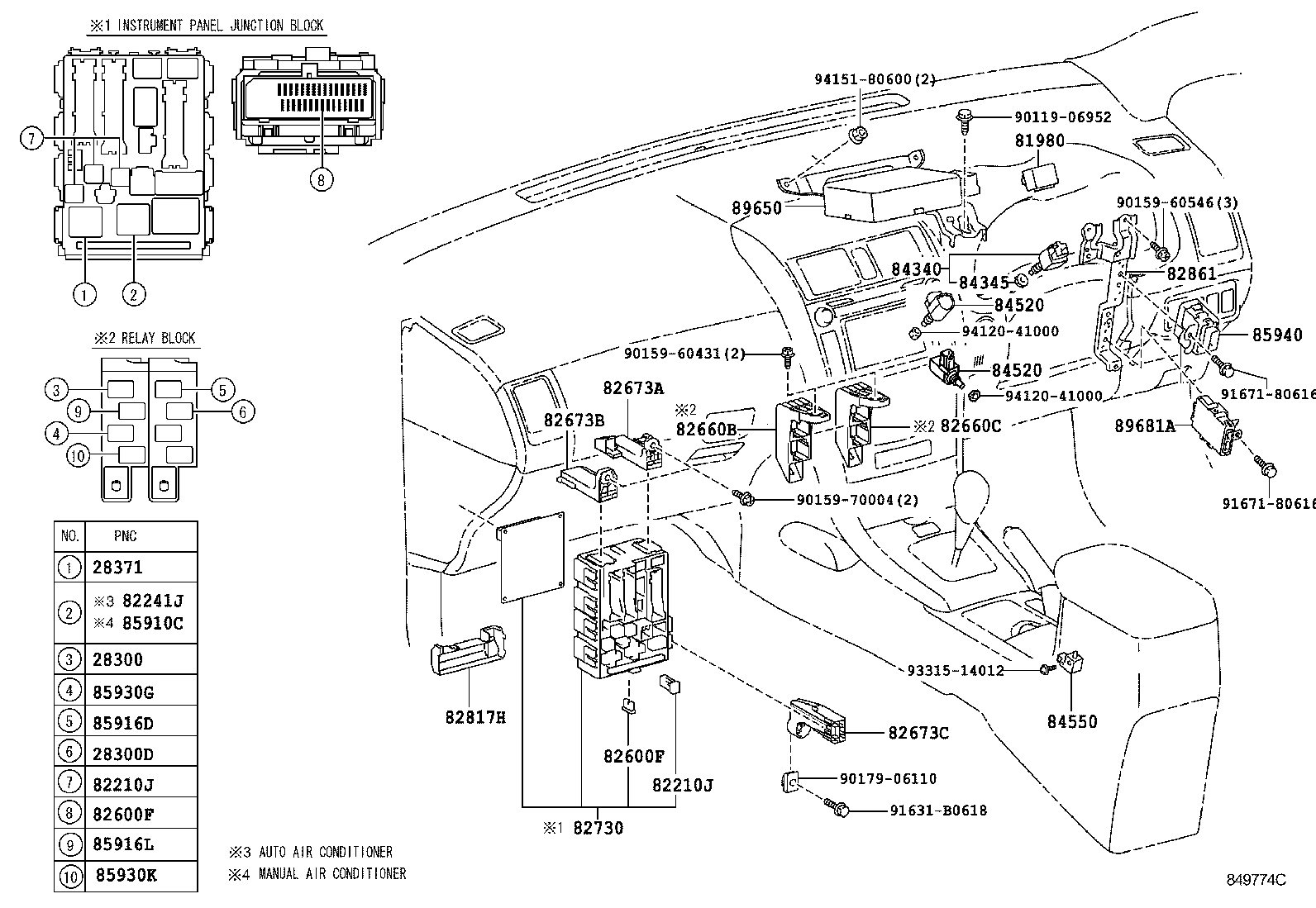

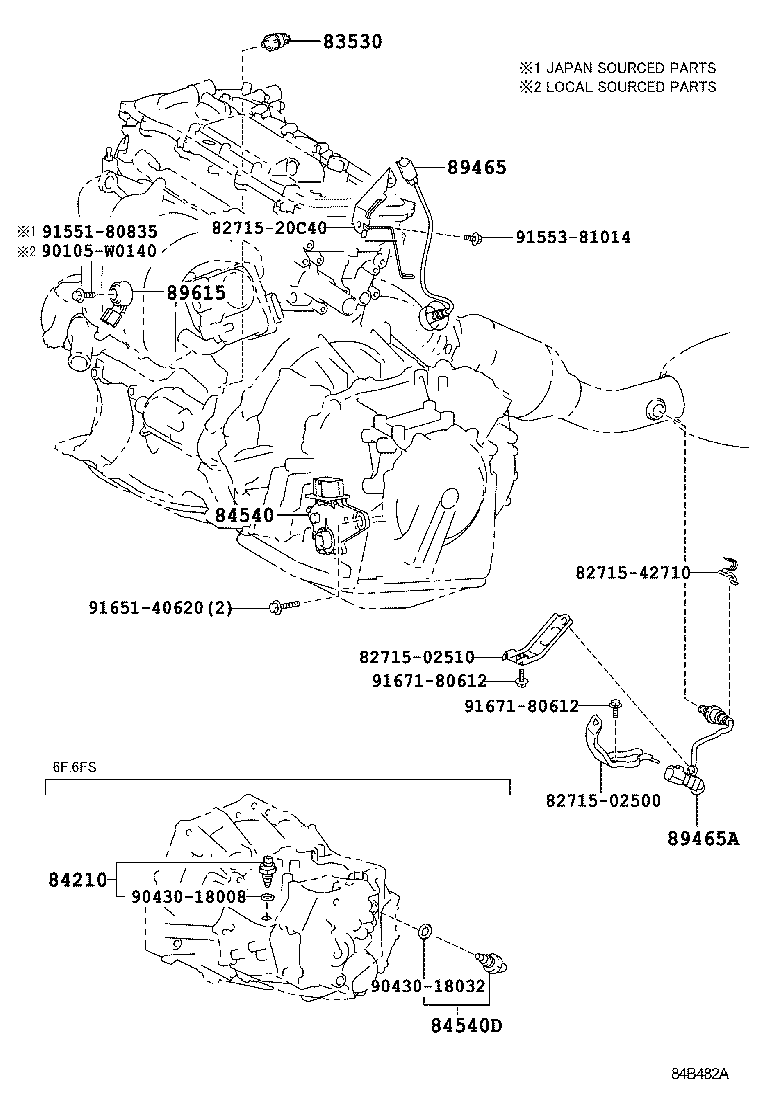

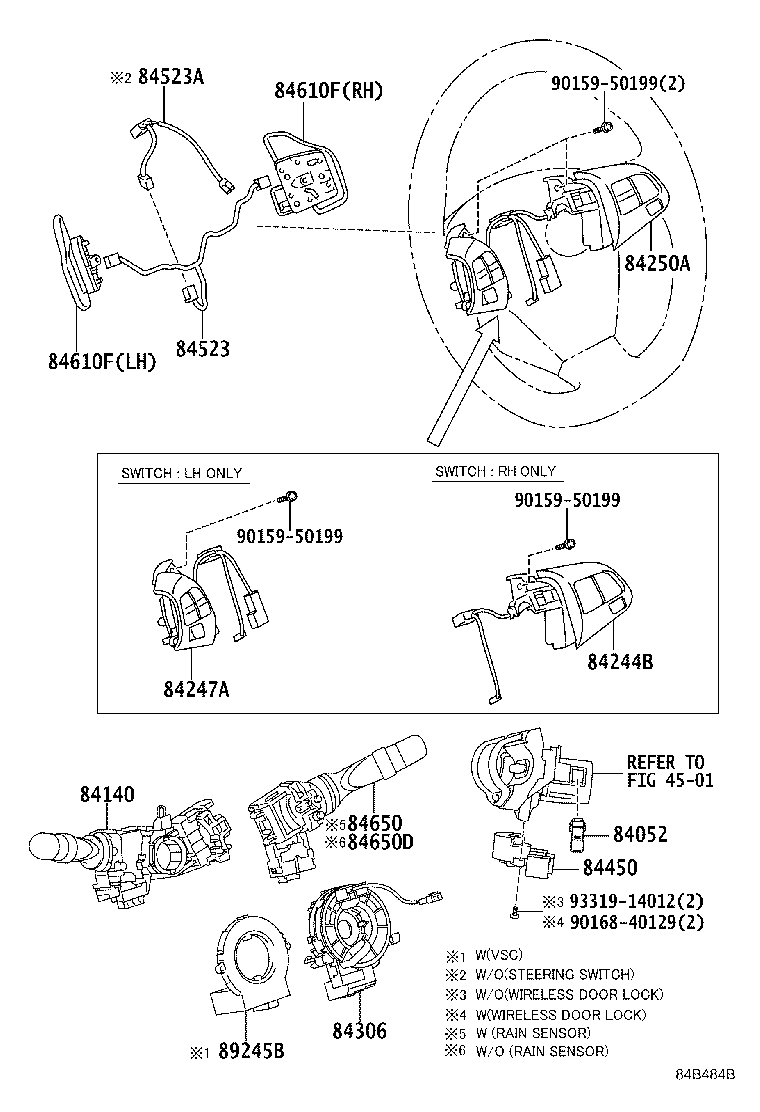

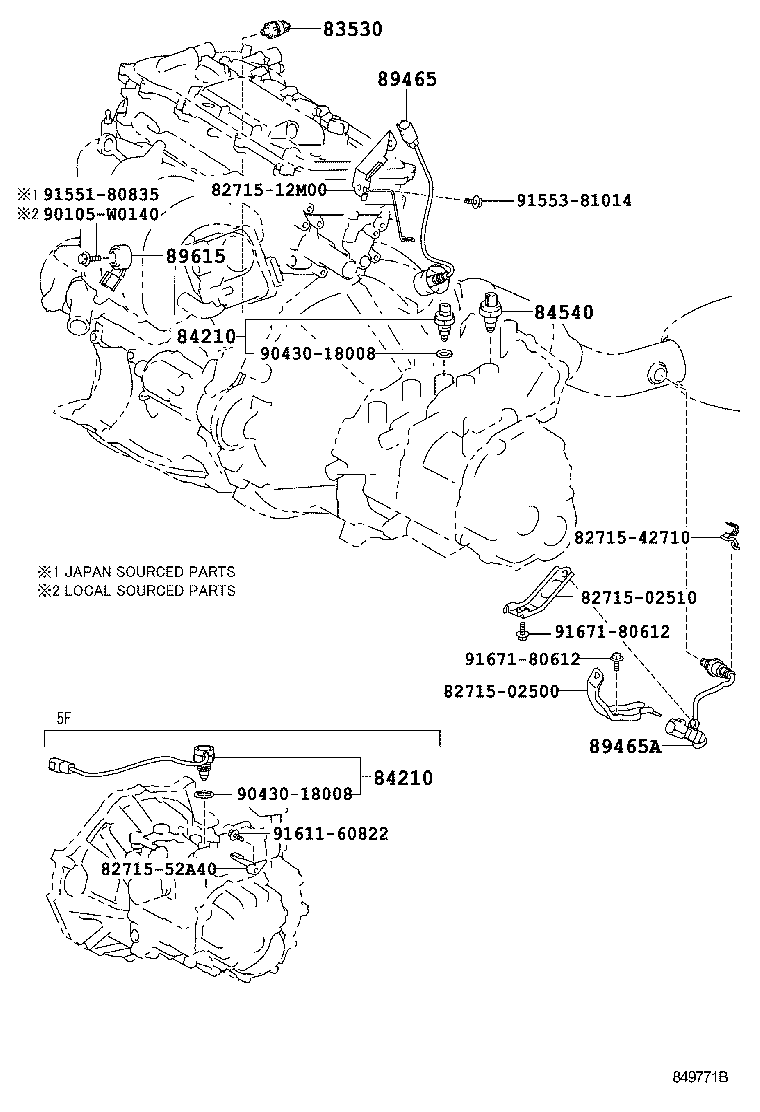

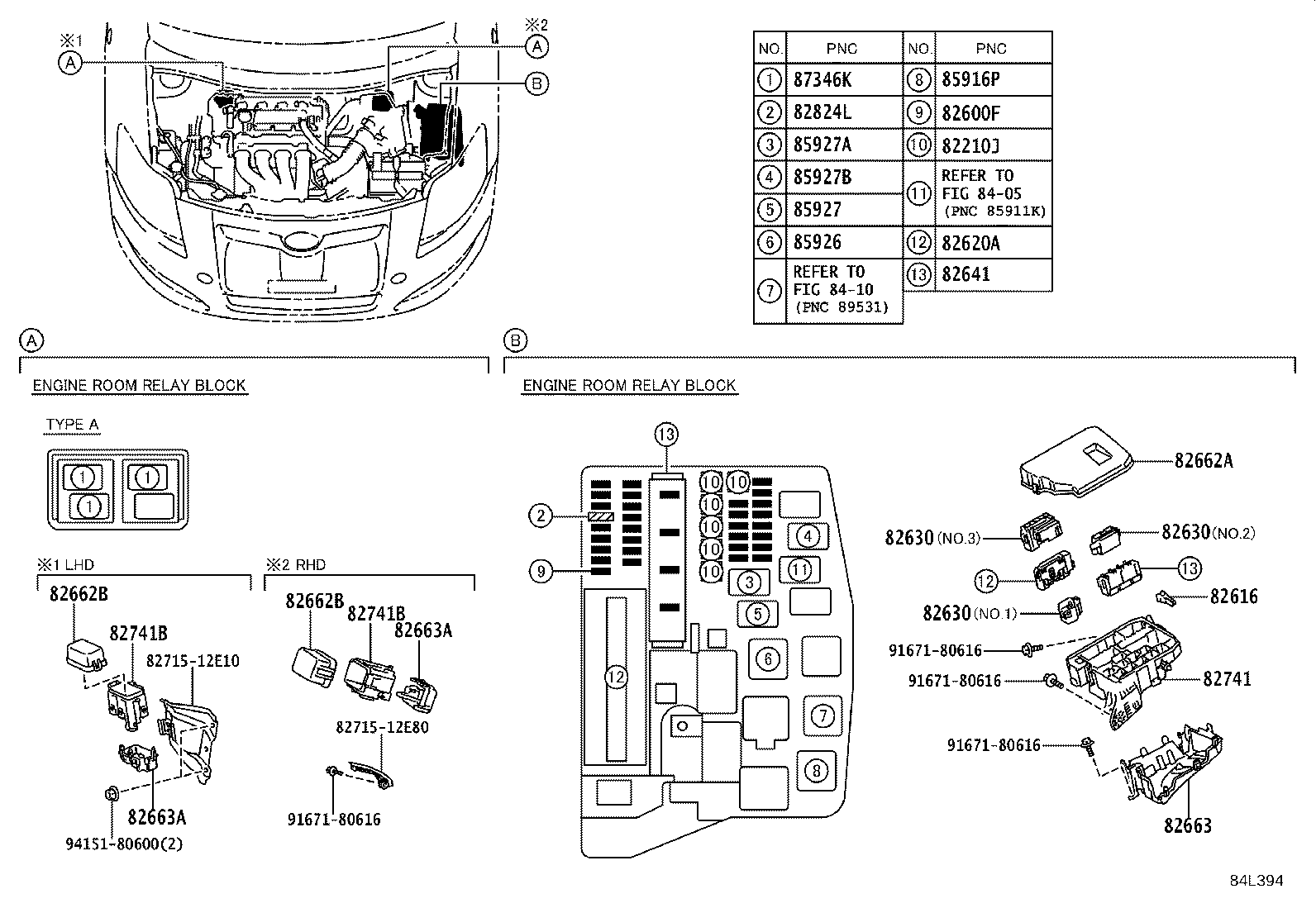

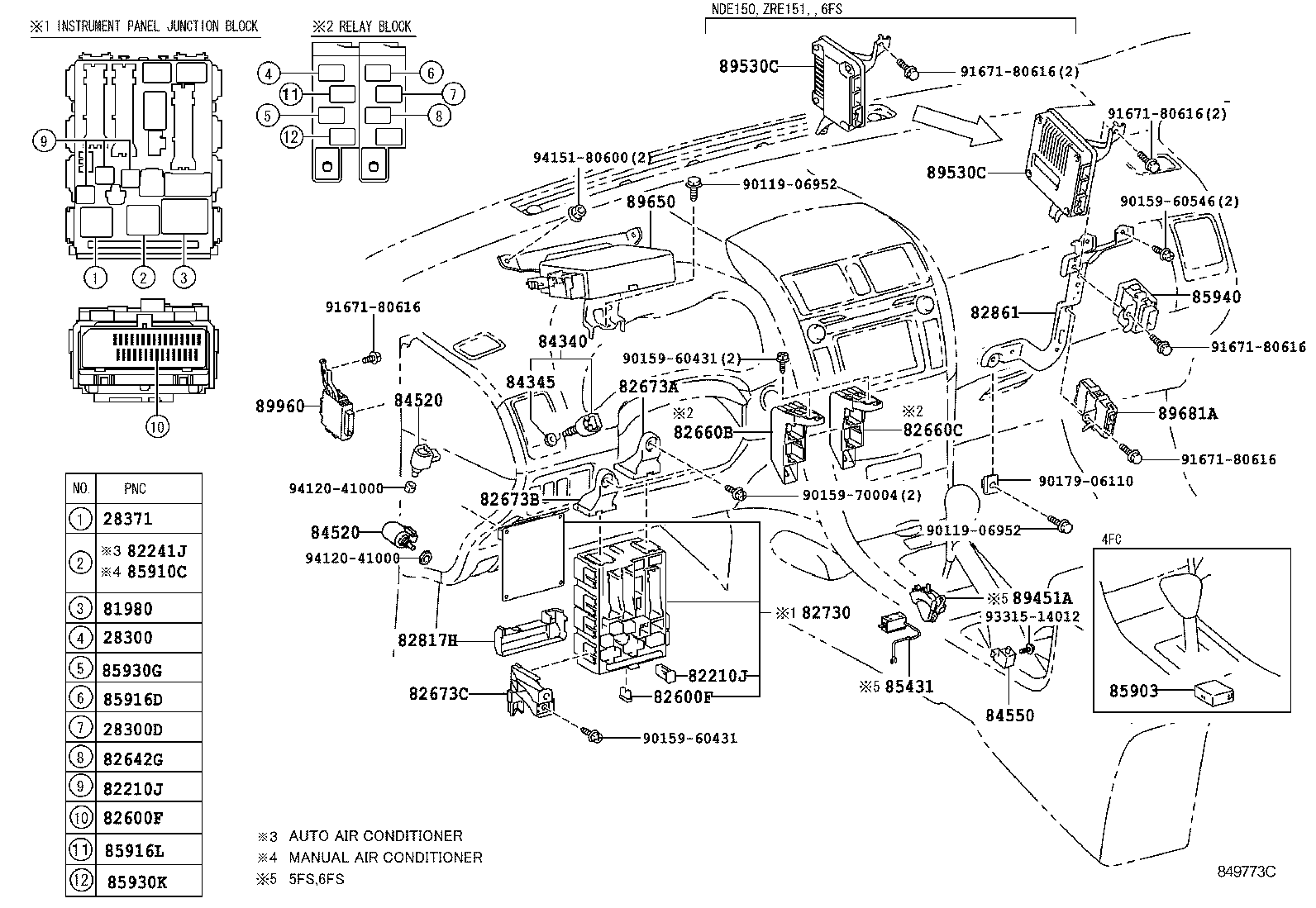

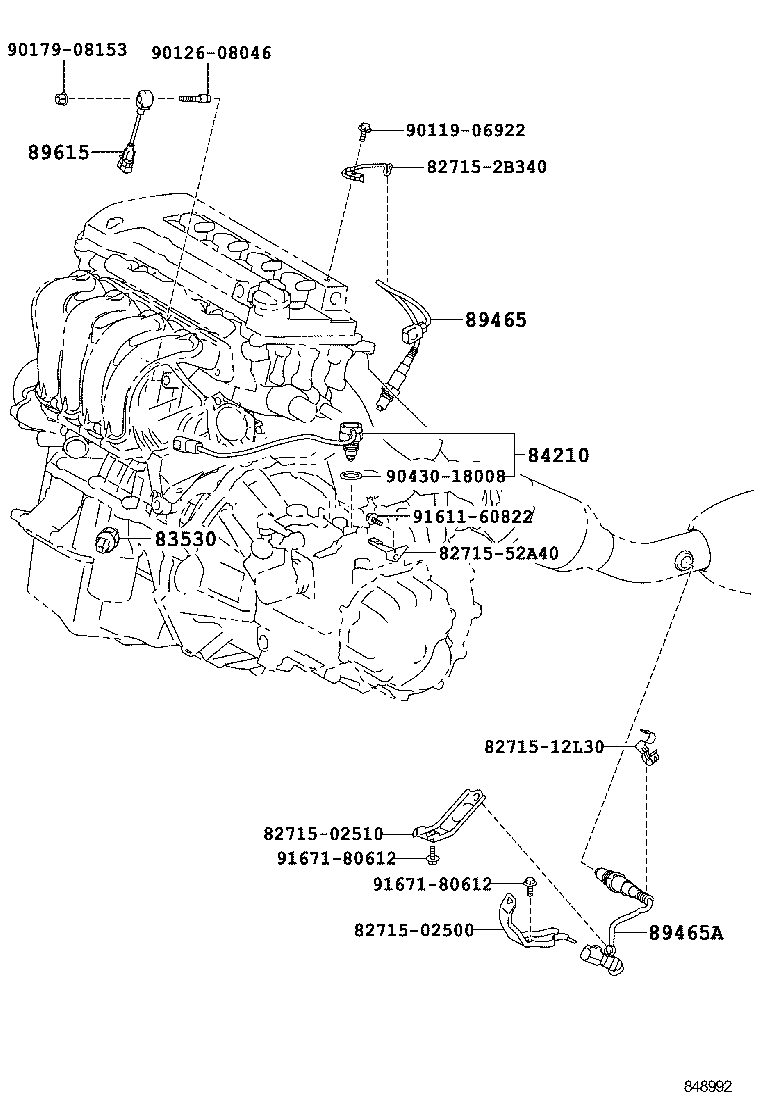

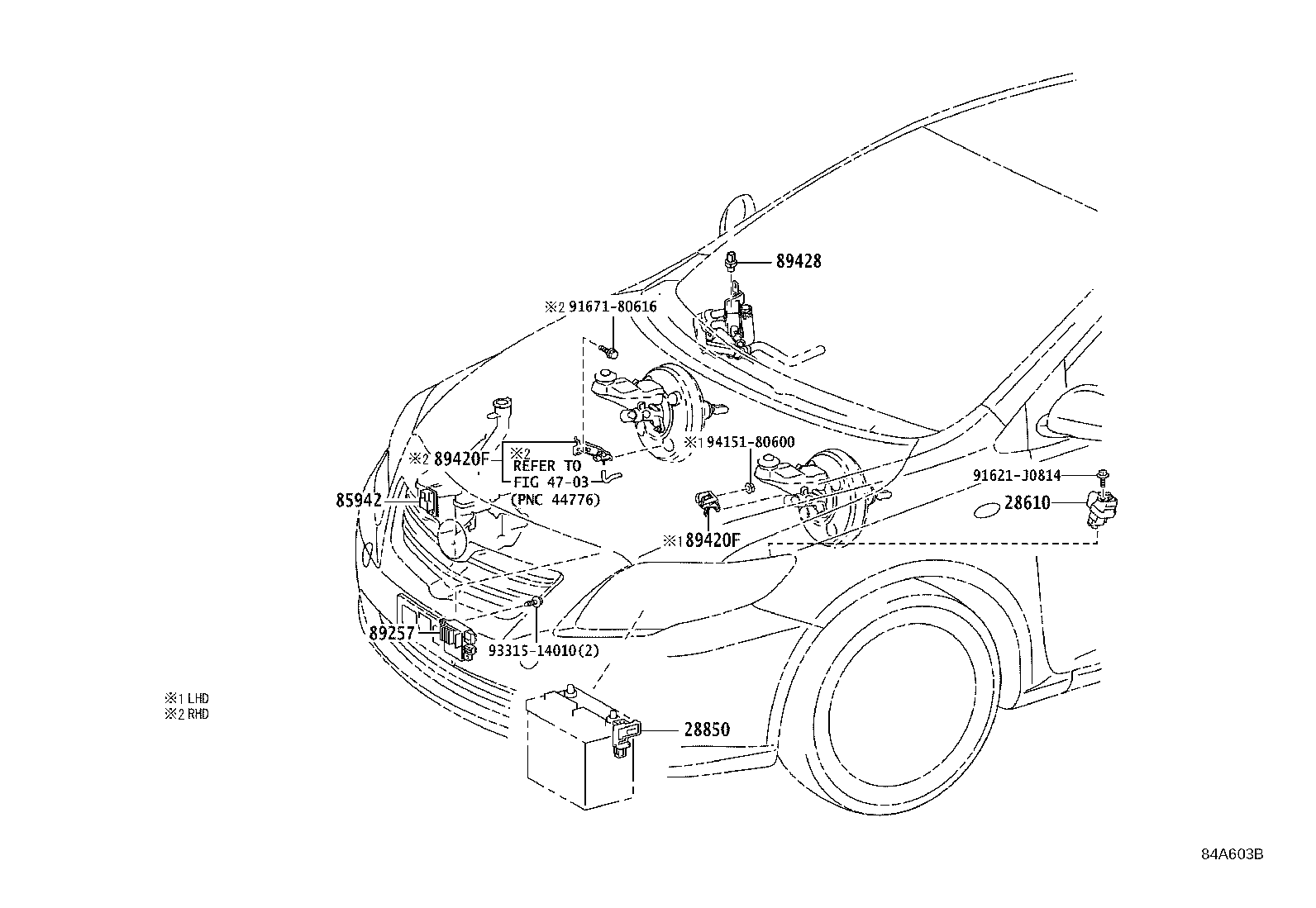

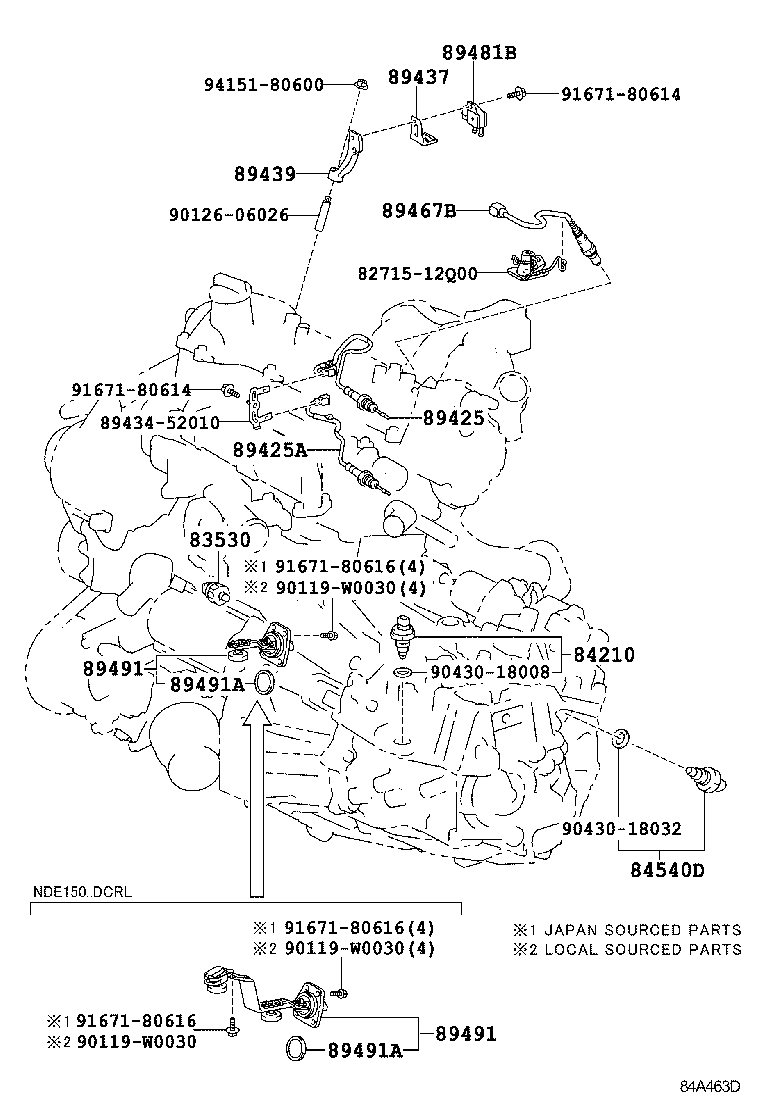

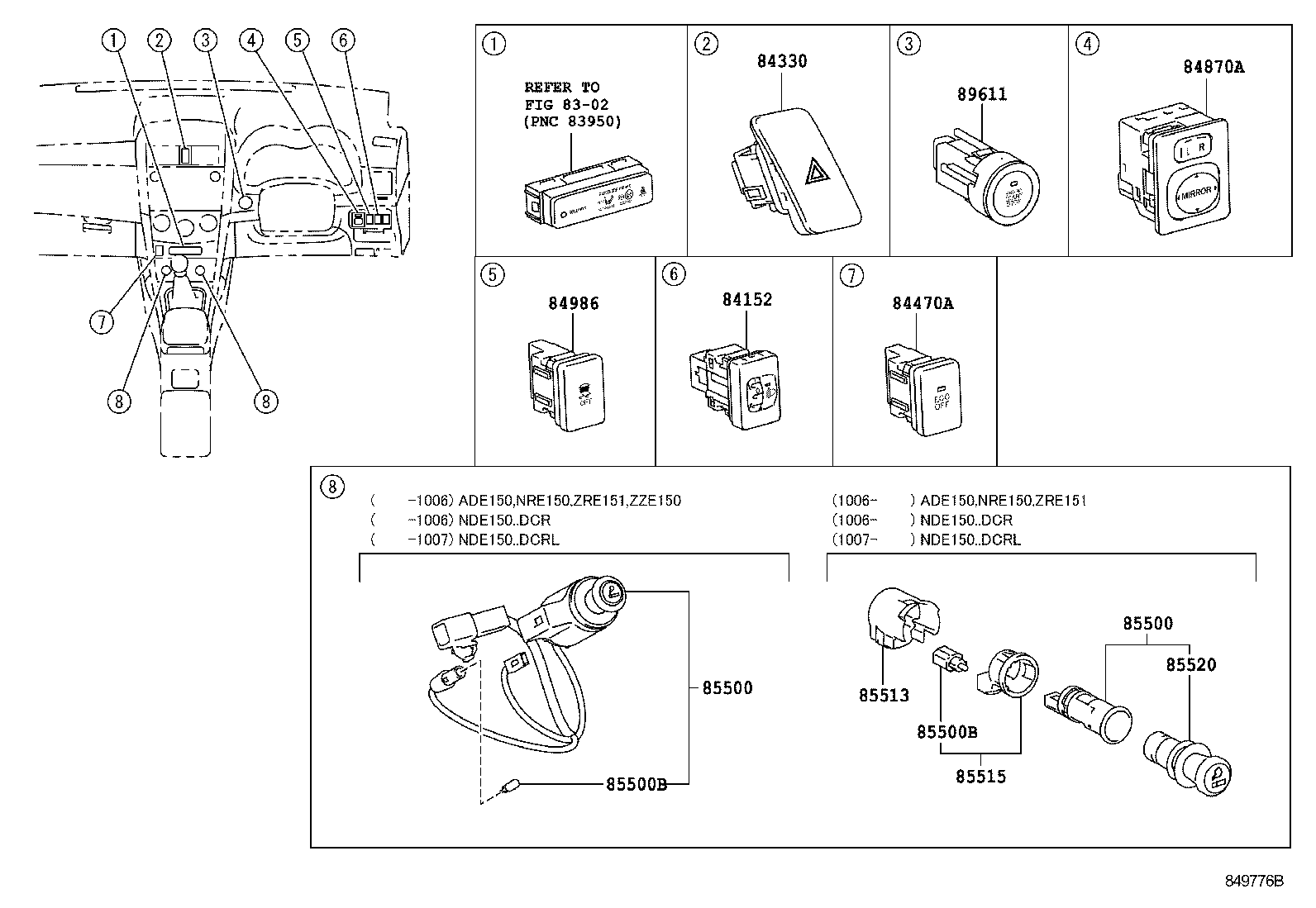

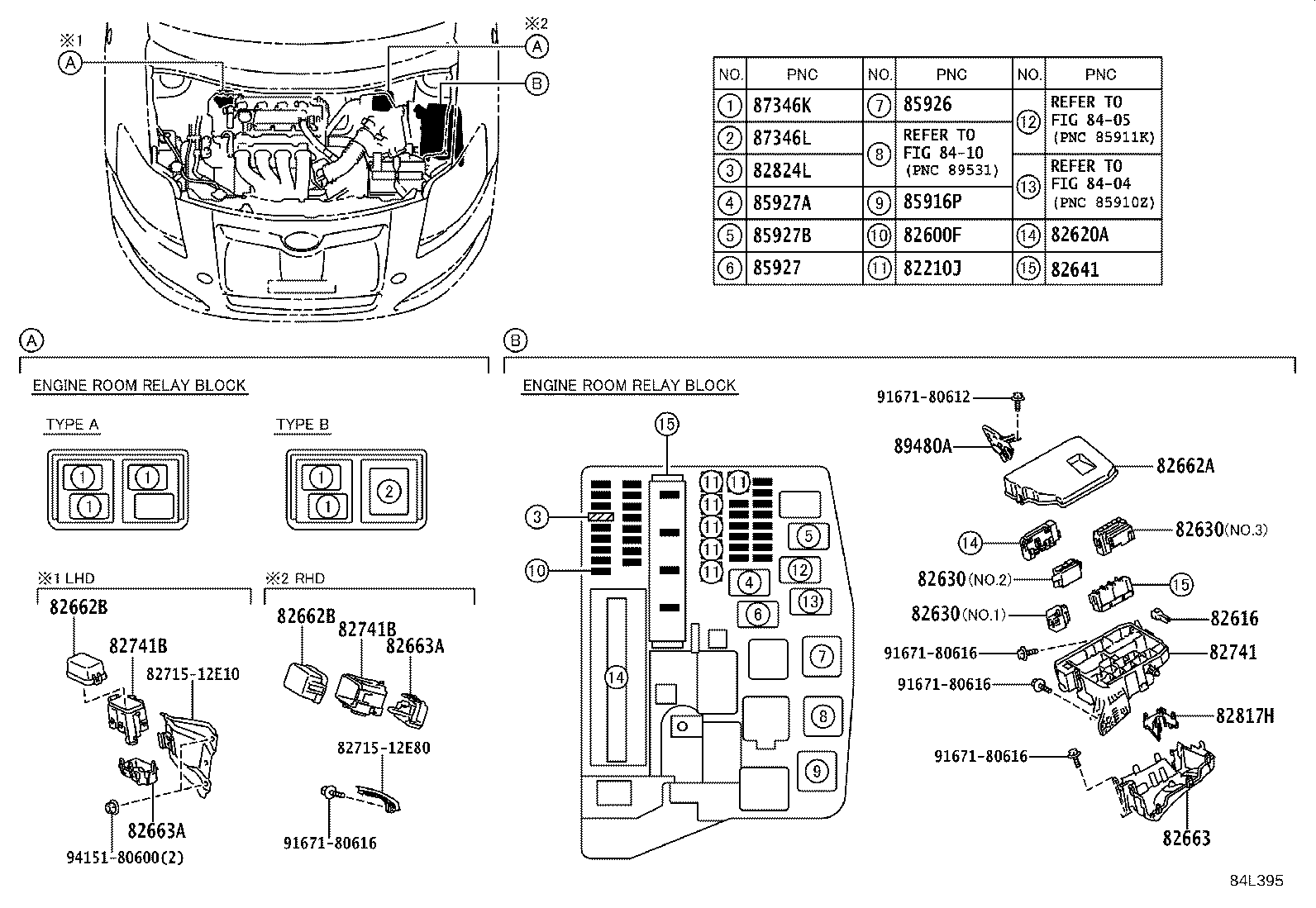

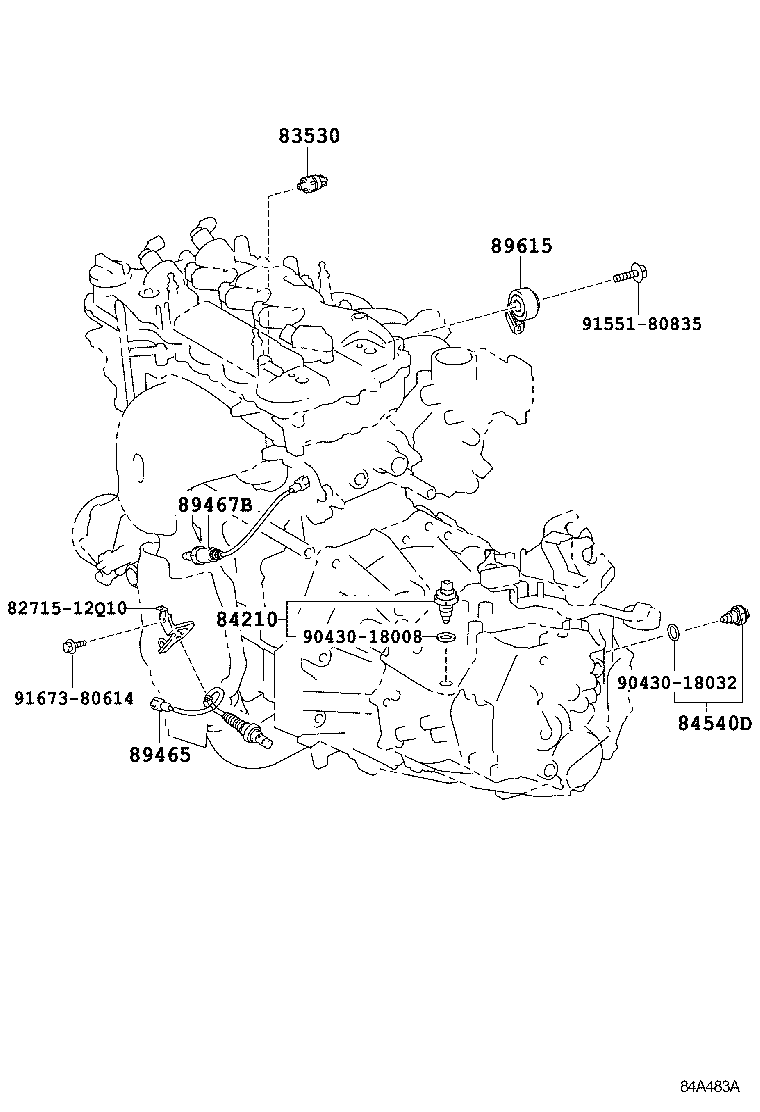

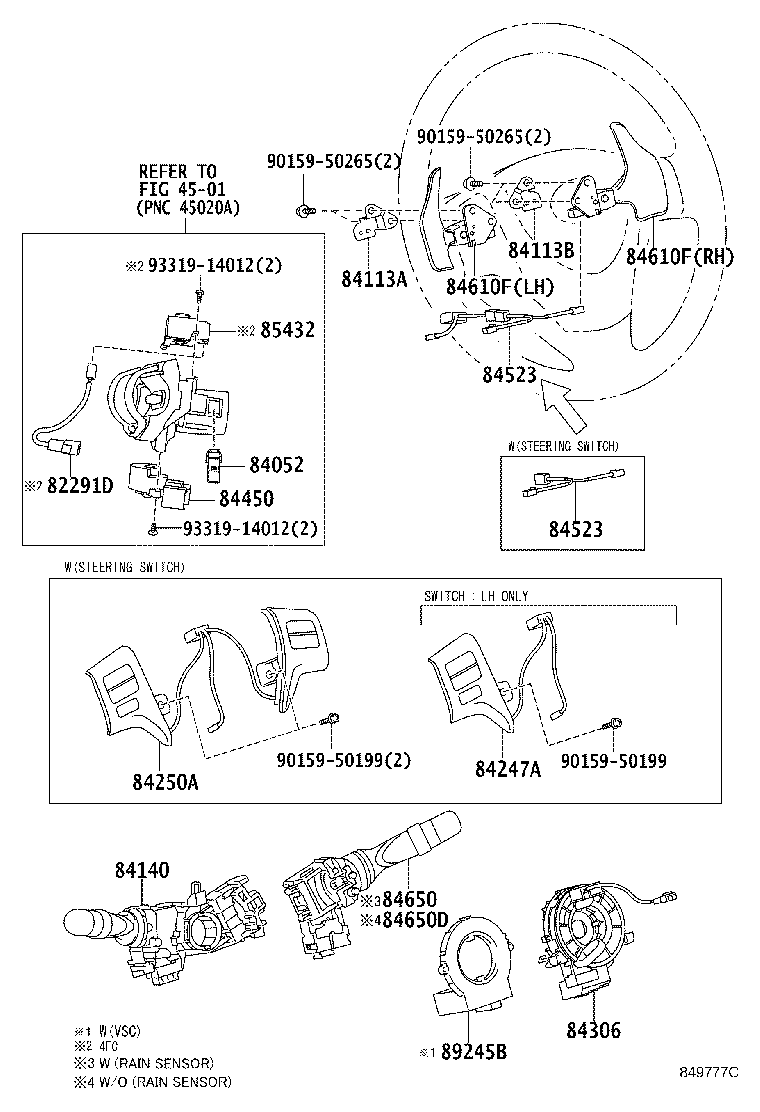

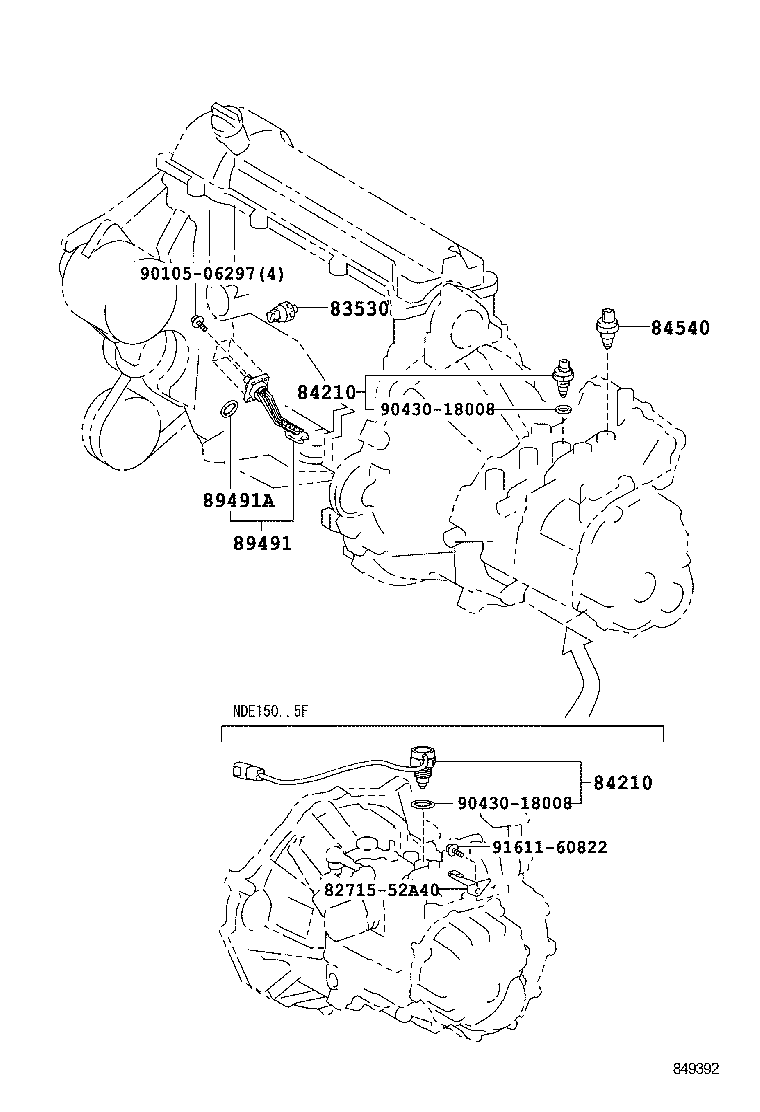

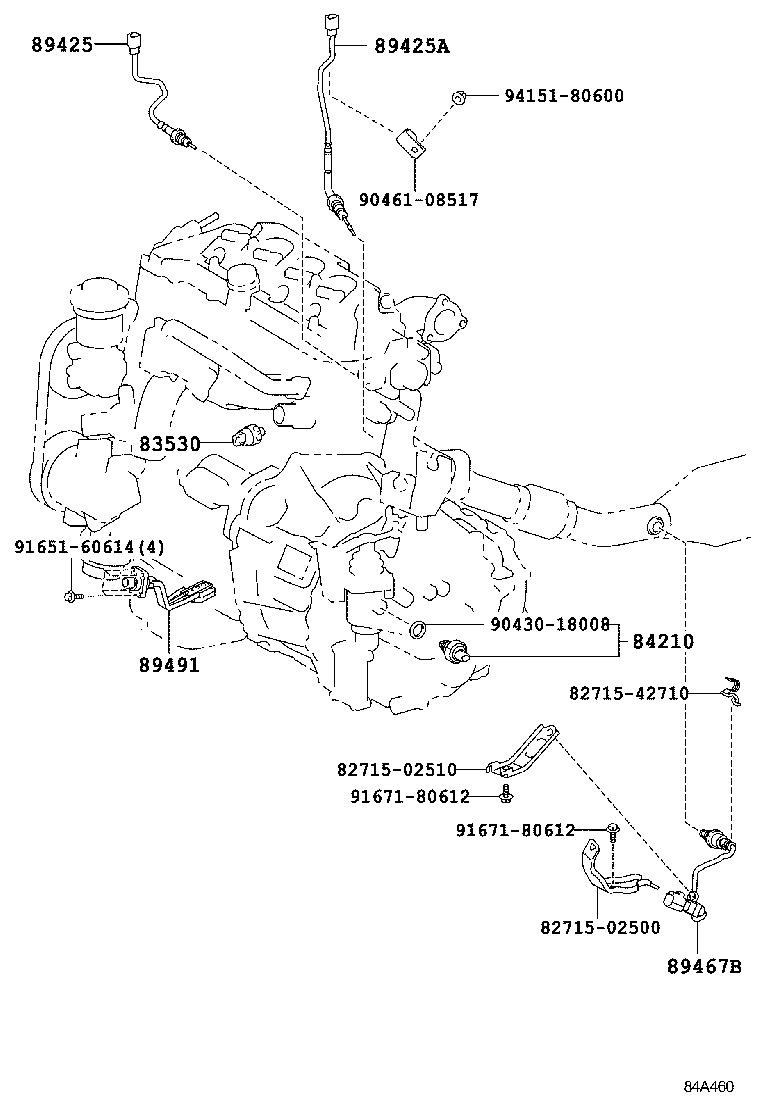

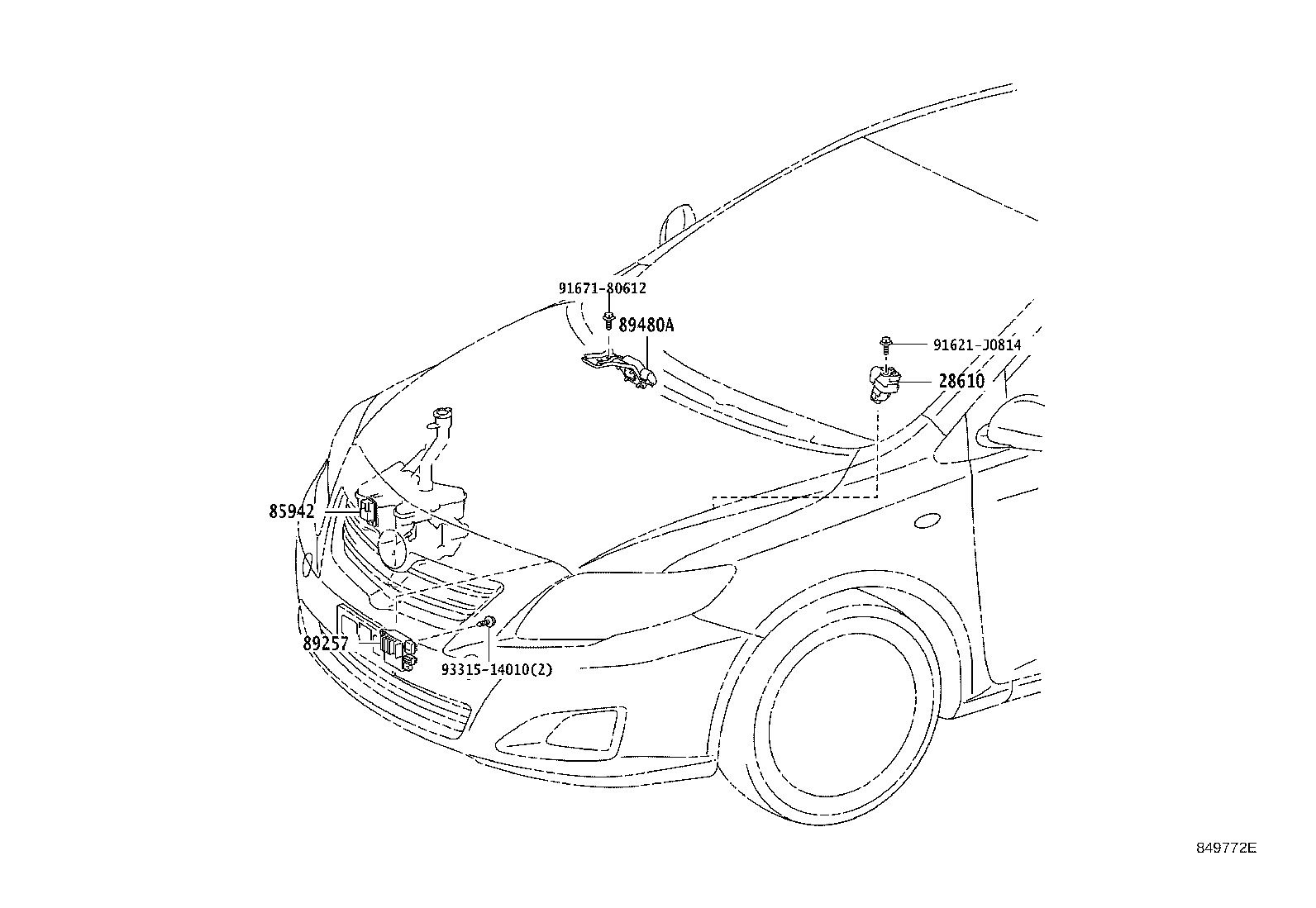

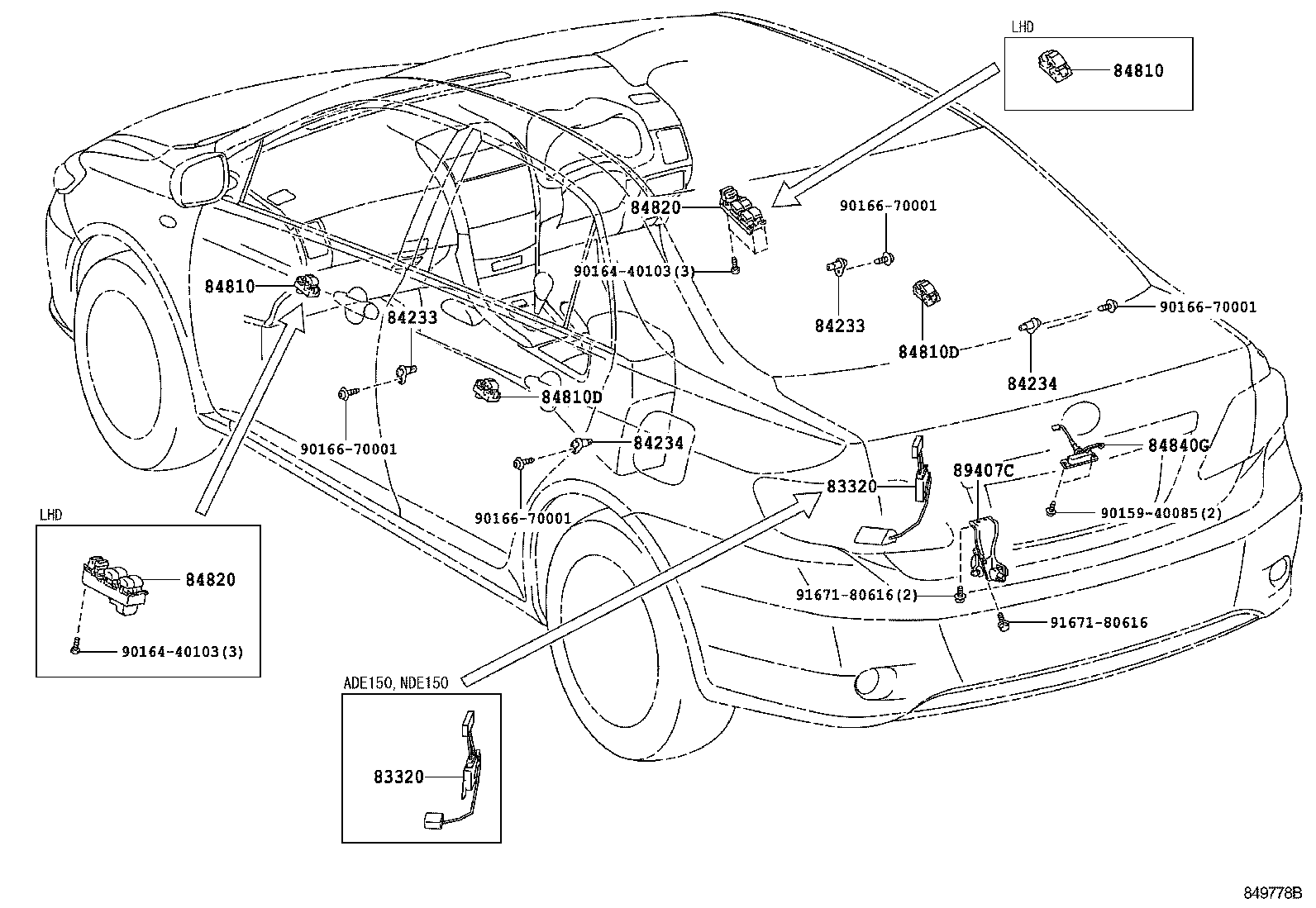

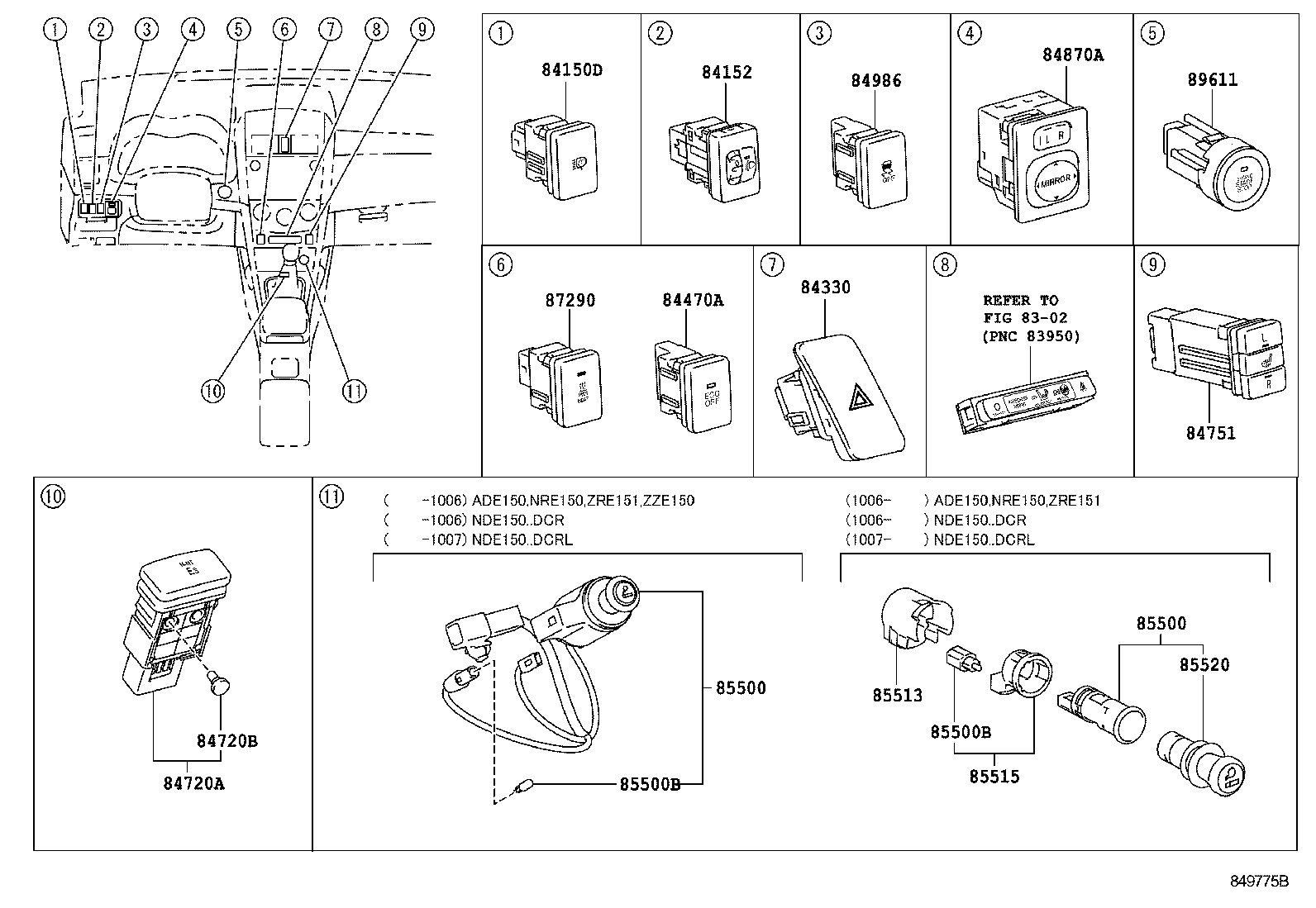

Figure 849770A 849770A 2008-02 → 2009-03 Figure 84A460 84A460 2009-03 → — Figure 849392 849392 2008-02 → 2009-02 Figure 84A463D 84A463D 2009-02 → — Figure 849771B 849771B 2008-02 → 2009-02 Figure 84B482A 84B482A 2009-02 → — Figure 848992 848992 2008-02 → 2009-02 Figure 84A483A 84A483A 2009-02 → — Figure 849772E 849772E 2008-02 → 2009-02 Figure 849772E 849772E 2008-02 → 2009-03 Figure 84A603B 84A603B 2009-02 → — Figure 84A603B 84A603B 2009-03 → — Figure 84L394 84L394 2008-02 → 2009-02 Figure 84L394 84L394 2008-02 → 2009-03 Figure 84L395 84L395 2009-02 → — Figure 84L395 84L395 2009-03 → — Figure 849773C 849773C 2008-02 → — Figure 849774C 849774C 2008-02 → — Figure 849775B 849775B 2008-02 → — Figure 849776B 849776B 2008-02 → — Figure 849777C 849777C 2008-02 → 2010-06 Figure 849777C 849777C 2009-02 → 2010-07 Figure 84B484B 84B484B 2010-06 → — Figure 84B484B 84B484B 2010-07 → — Figure 849778B 849778B 2008-02 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28300D Relay, Starter Cut
28371 Relay, Ignition, NO.1
28610 Relay Assy, Intake Heater OR Glow Plug
28850 Sensor Assy, Battery Current
81980 Flasher Assy, Turn Signal
82210J Fusible Link
82241J Pin, Short
82291D Wire, TO Solenoid
82600F Fuse, Fuse Block
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82630 Holder Assy, Fuse
82641 Relay, Integration NO.1
82642G Relay, Panel
82660B Block Assy, Relay
82660C Block Assy, Relay
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82673A Bracket, Junction Block, NO.1
82673B Bracket, Junction Block, NO.2
82673C Bracket, Junction Block
82730 Block Assy, Instrument Panel Junction
82741 Block, Engine Room Relay
82741B Block, Engine Room Relay
82817H Protector, Wiring Harness
82824L Pin, Short
82861 Bracket, Computer Integration, NO.1
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84052 Switch Assy, Un-lock Warning
84113A Bracket, Switch, NO.1
84113B Bracket, Switch, NO.2
84140 Switch Assy, Headlamp Dimmer
84150D Switch Assy, Headlamp Cleaner
84152 Switch, Headlamp Leveling
84210 Switch Assy, Back-up Lamp
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84244B Switch, Steering Pad, RH
84247A Switch, Steering Pad, LH
84250A Switch Assy, Steering Pad
84306 Cable Sub-assy, Spiral
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84450 Switch Assy, Ignition OR Starter
84470A Switch Assy, Ecorun Cancel
84520 Switch Assy, Clutch Start
84523 Wire, Switch NO.1
84523A Wire, Switch NO.2
84540 Switch Assy, Neutral Start
84540D Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84610F Switch Assy, Transmission Shift
84650 Switch Assy, Windshield Wiper
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84720A Switch Assy, Pattern Select, NO.1
84720B Bulb (FOR PATTERN SELECT SWITCH)
84751 Switch, Seat Heater
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84840G Switch Assy, Back Door Opener
84870A Switch Assy, Outer Mirror
84986 Switch, Vehicle Stability Control
85431 Solenoid, Shift Lock
85432 Solenoid, Key Interlock
85500 Lighter Assy, Cigarette
85500B Bulb, Cigarette Lighter
85513 Cover, Cigarette Lighter
85515 Stay, Cigarette Lighter Bezel
85520 Knob And Element Assy, Cigarette Lighter
85903 Computer Sub-assy, Shift Lock Control
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85916D Relay, Fog Lamp
85916L Relay, Rear Fog Lamp
85916P Relay, Headlamp
85926 Relay, Headlamp Dimmer
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85927B Relay, Cooling Fan, NO.3
85930G Relay, Acc
85930K Relay, Acc, NO.2
85940 Relay Assy, Windshield Wiper
85942 Relay, Headlamp Cleaner Control
87290 Switch Assy, Heater
87346K Relay, Ptc Heater
87346L Relay, Ptc Heater
89245B Sensor, Steering
89257 Computer, Cooling Fan
89407C Sensor Sub-assy, Height Control, Rear
89420F Sensor Assy, Vacuum
89425 Sensor, Exhaust Gas Temperature
89425A Sensor, Exhaust Gas Temperature, NO.2
89428 Switch, Temperature Detect, NO.2
89437 Cover, Sensor
89439 Bracket, Sensor
89451A Sensor, Shift Lever Position
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89467B Sensor, Air Fuel Ratio
89480A Sensor Assy, Differential Pressure
89481B Sensor, Differential Pressure
89491 Sensor, Engine Oil Level
89491A Gasket, Engine Oil Level Sensor
89530C Computer Assy, Transmission Control
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89681A Computer, Power Management Control
89960 Computer Assy, Headlamp Leveling
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
