Toyota Corolla
2013-06 → 2019-01 · chassis NDE180,NRE180,ZRE18# · catalogue 164520 · Europe
Supported model
Data version 2019-04

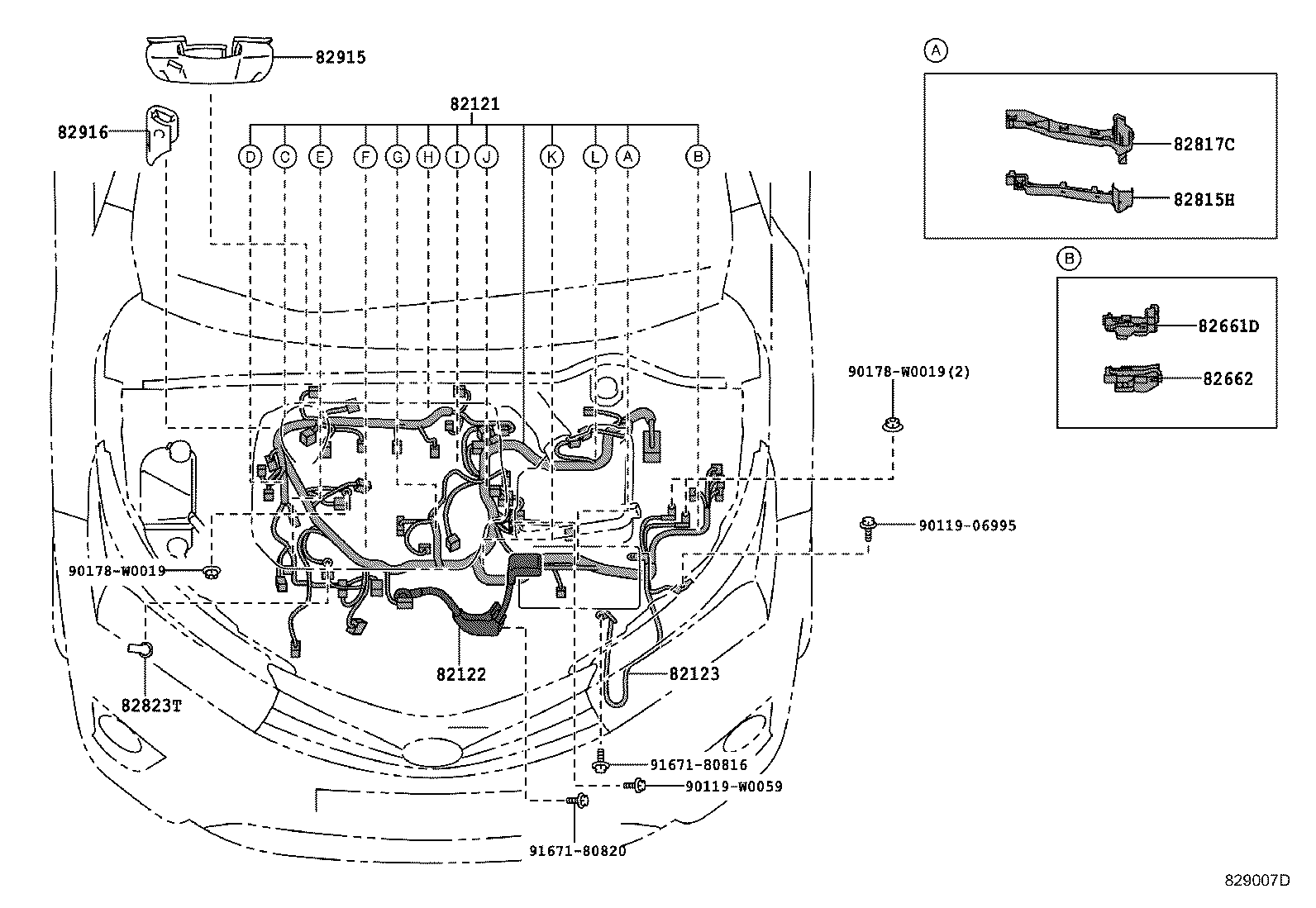

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82121 — Wire, Engine | ||||
| 82121-0Z460 note |
Wire, Engine
2013-06 → 2015-05
ended
|
NRE180 LHD | — | |
| 82121-0Z460 note |
Wire, Engine
2013-06 → 2015-05
ended
|
NRE180 LHD D | — | |
| 82121-0Z460 note |
Wire, Engine
2013-06 → 2015-05
ended
|
NRE180 N | — | |
| 82121-0Z460 note |
Wire, Engine
2013-06 → 2015-05
ended
|
NRE180 LHD | — | |
| 82121-0Z460 note |
Wire, Engine
2013-06 → 2015-05
ended
|
NRE180 LHD D | — | |
| 82121-0Z460 note |
Wire, Engine
2013-06 → 2015-05
ended
|
NRE180 N | — | |
| 82121-0Z461 note |
Wire, Engine
2015-05 → 2016-05
ended
|
NRE180 N | — | |
| 82121-0Z461 note |
Wire, Engine
2015-05 → 2016-05
ended
|
NRE180 LHD D | — | |
| 82121-0Z461 note |
Wire, Engine
2015-05 → 2016-05
ended
|
NRE180 LHD | — | |
| 82121-0Z480 |
Wire, Engine
2013-06 → 2015-05
ended
|
NRE180 | — | |
| 82121-0Z481 |
Wire, Engine
2015-05 → 2016-05
ended
|
NRE180 | — | |
| 82121-0Z520 |
Wire, Engine
2014-06 → 2015-05
ended
|
NDE180 RHD | — | |
| 82121-0Z520 note |
Wire, Engine
2015-05 → 2016-05
ended
|
NDE180 LHD 6F | — | |
| 82121-0Z520 |
Wire, Engine
2013-06 → 2015-05
ended
|
NDE180 LHD 6F | — | |
| 82121-0Z530 |
Wire, Engine
2013-06 → 2014-06
ended
|
NDE180 RHD | — | |
| 82121-0Z530 note |
Wire, Engine
2013-06 → 2015-05
ended
|
NDE180 LHD 6F | — | |
| 82121-0Z530 note |
Wire, Engine
2014-06 → 2015-05
ended
|
NDE180 RHD | — | |
| 82121-0Z540 |
Wire, Engine
2013-06 → 2016-05
ended
|
NDE180 6FS | — | |
| 82121-0Z550 |
Wire, Engine
2013-06 → 2015-05
ended
|
ZRE181 6F HTWVM | — | |
| 82121-0Z551 |
Wire, Engine
2015-05 → 2016-05
ended
|
ZRE181 6F HTWVM | — | |
| 82121-0Z560 |
Wire, Engine
2013-06 → 2015-05
ended
|
ZRE181 CVT HTWVM | — | |
| 82121-0Z561 |
Wire, Engine
2015-05 → 2016-05
ended
|
ZRE181 CVT HTWVM | — | |
| 82121-0Z570 |
Wire, Engine
2013-06 → 2016-05
ended
|
ZRE181 6F HTWC | — | |
| 82121-0Z590 |
Wire, Engine
2013-06 → 2016-05
ended
|
ZRE181 CVT HTWC | — | |
| 82121-0Z620 |
Wire, Engine
2013-06 → 2016-05
ended
|
ZRE182 | — | |
| 82121-0ZE00 |
Wire, Engine
2015-05 → 2016-05
ended
|
NDE180 6F | — | |
| 82121-0ZE10 note |
Wire, Engine
2015-05 → 2016-05
ended
|
NDE180 6F | — | |
| 82121-0Z482 |
Wire, Engine
2016-06 → 2018-08
ended
|
NRE180 | — | |
| 82121-0Z521 note |
Wire, Engine
2016-06 → 2017-11
ended
|
NDE180 LHD 6F | — | |
| 82121-0Z541 |
Wire, Engine
2016-06 → 2017-11
ended
|
NDE180 6FS | — | |
| 82121-0Z552 |
Wire, Engine
2016-06 → 2019-01
ended
|
ZRE181 6F EUR | — | |
| 82121-0Z562 |
Wire, Engine
2016-06 → 2019-01
ended
|
ZRE181 CVT EUR | — | |
| 82121-0Z571 |
Wire, Engine
2016-06 → 2019-01
ended
|
ZRE181 6F RUS | — | |
| 82121-0Z591 |
Wire, Engine
2016-06 → 2019-01
ended
|
ZRE181 CVT RUS | — | |
| 82121-0Z621 |
Wire, Engine
2016-06 → 2019-01
ended
|
ZRE182 | — | |
| 82121-0ZE01 |
Wire, Engine
2016-06 → 2019-01
ended
|
NDE180 6F | — | |
| 82121-0ZE11 note |
Wire, Engine
2016-06 → 2019-01
ended
|
NDE180 RHD;NDE180 6F N | — | |
| 82121-0ZE11 note |
Wire, Engine
2016-06 → 2019-01
ended
|
NDE180 LHD D | — | |
| 82121-0ZT40 |
Wire, Engine
2017-11 → 2019-01
ended
|
NDE180 6FS | — | |
| 82122 — Wire, Engine, NO.2 | ||||
| 82122-02170 |
Wire, Engine, NO.2
2013-06 → 2016-05
ended
|
NDE180 | — | |
| 82122-02170 |
Wire, Engine, NO.2
2016-06 → 2019-01
ended
|
NDE180 | — | |
| 82123 — Wire, Engine, NO.3 | ||||
| 82123-02530 |
Wire, Engine, NO.3
2013-06 → 2016-05
ended
|
NRE180 | — | |
| 82123-02530 |
Wire, Engine, NO.3
2013-06 → 2015-05
ended
|
ZRE181 6F HTWVM | — | |
| 82123-02540 |
Wire, Engine, NO.3
2013-06 → 2015-05
ended
|
ZRE181 CVT HTWVM | — | |
| 82123-02550 note |
Wire, Engine, NO.3
2013-06 → 2015-05
ended
|
NRE180 LHD | — | |
| 82123-02550 note |
Wire, Engine, NO.3
2013-06 → 2016-05
ended
|
NRE180 LHD | — | |
| 82123-02550 |
Wire, Engine, NO.3
2013-06 → 2016-05
ended
|
ZRE181 6F HTWC | — | |
| 82123-02560 |
Wire, Engine, NO.3
2013-06 → 2016-05
ended
|
ZRE18# CVT HTWC | — | |
| 82123-02570 |
Wire, Engine, NO.3
2013-06 → 2016-05
ended
|
NDE180 | — | |
| 82123-02C60 |
Wire, Engine, NO.3
2015-05 → 2016-05
ended
|
ZRE181 6F HTWVM | — | |
| 82123-02C70 |
Wire, Engine, NO.3
2015-05 → 2016-05
ended
|
ZRE181 CVT HTWVM | — | |
| 82123-02530 |
Wire, Engine, NO.3
2016-06 → 2018-08
ended
|
NRE180 | — | |
| 82123-02550 |
Wire, Engine, NO.3
2016-06 → 2019-01
ended
|
ZRE181 6F RUS | — | |
| 82123-02560 |
Wire, Engine, NO.3
2016-06 → 2019-01
ended
|
ZRE18# CVT RUS | — | |
| 82123-02570 |
Wire, Engine, NO.3
2016-06 → 2019-01
ended
|
NDE180 | — | |
| 82123-02C60 |
Wire, Engine, NO.3
2016-06 → 2019-01
ended
|
ZRE181 6F EUR | — | |
| 82123-02C70 |
Wire, Engine, NO.3
2016-06 → 2019-01
ended
|
ZRE181 CVT EUR | — | |
| 82661D — Cover, Relay Block, Side NO.1 | ||||
| 82661-12300 |
Cover, Relay Block, Side NO.1
2013-06 → 2016-05
ended
|
NRE180,ZRE18# | — | |
| 82661-12320 |
Cover, Relay Block, Side NO.1
2013-06 → 2016-05
ended
|
NDE180 | — | |
| 82661-12300 |
Cover, Relay Block, Side NO.1
2016-06 → 2018-08
ended
|
NRE180 | — | |
| 82661-12300 |
Cover, Relay Block, Side NO.1
2016-06 → 2019-01
ended
|
ZRE18# | — | |
| 82661-12320 |
Cover, Relay Block, Side NO.1
2016-06 → 2019-01
ended
|
NDE180 | — | |
| 82662 — Cover, Relay Block, Upper | ||||
| 82662-12260 |
Cover, Relay Block, Upper
2013-06 → 2016-05
ended
|
NRE180,ZRE18# | — | |
| 82662-12C00 |
Cover, Relay Block, Upper
2013-06 → 2016-05
ended
|
NDE180 | — | |
| 82662-12260 |
Cover, Relay Block, Upper
2016-06 → 2019-01
ended
|
ZRE18# | — | |
| 82662-12260 |
Cover, Relay Block, Upper
2016-06 → 2018-08
ended
|
NRE180 | — | |
| 82662-12C00 |
Cover, Relay Block, Upper
2016-06 → 2019-01
ended
|
NDE180 | — | |
| 82815H — Cover, Wiring Harness Protector NO.6 | ||||
| 82815-02370 |
Cover, Wiring Harness Protector NO.6
2013-06 → 2016-05
ended
|
NDE180 | — | |
| 82815-02390 |
Cover, Wiring Harness Protector NO.6
2013-06 → 2016-05
ended
|
NRE180,ZRE18# | — | |
| 82815-02370 |
Cover, Wiring Harness Protector NO.6
2016-06 → 2019-01
ended
|
NDE180 | — | |
| 82815-02390 |
Cover, Wiring Harness Protector NO.6
2016-06 → 2018-08
ended
|
NRE180 | — | |
| 82815-02390 |
Cover, Wiring Harness Protector NO.6
2016-06 → 2019-01
ended
|
ZRE18# | — | |
| 82817C — Protector, Wiring Harness, NO.4 | ||||
| 82817-02B00 |
Protector, Wiring Harness, NO.4
2013-06 → 2016-05
ended
|
NDE180 | — | |
| 82817-02B30 |
Protector, Wiring Harness, NO.4
2013-06 → 2016-05
ended
|
NRE180,ZRE18# | — | |
| 82817-02B00 |
Protector, Wiring Harness, NO.4
2016-06 → 2019-01
ended
|
NDE180 | — | |
| 82817-02B30 |
Protector, Wiring Harness, NO.4
2016-06 → 2018-08
ended
|
NRE180 | — | |
| 82817-02B30 |
Protector, Wiring Harness, NO.4
2016-06 → 2019-01
ended
|
ZRE18# | — | |
| 82823T — Cap, Alternator Terminal | ||||
| 82823-22050 |
Cap, Alternator Terminal
2013-06 → 2016-05
ended
|
NDE180,NRE180,ZRE18# | — | |
| 82823-22050 |
Cap, Alternator Terminal
2016-06 → 2018-08
ended
|
NRE180 | — | |
| 82823-22050 |
Cap, Alternator Terminal
2016-06 → 2019-01
ended
|
NDE180,ZRE18# | — | |
| 82915 — Insulator, Wiring Harness Heat, NO.1 | ||||
| 82915-12020 |
Insulator, Wiring Harness Heat, NO.1
2015-05 → 2016-05
ended
|
NDE180 6F | — | |
| 82915-12020 note |
Insulator, Wiring Harness Heat, NO.1
2015-05 → 2016-05
ended
|
NDE180 LHD 6F | — | |
| 82915-12020 |
Insulator, Wiring Harness Heat, NO.1
2016-06 → 2019-01
ended
|
NDE180 6F | — | |
| 82915-12020 |
Insulator, Wiring Harness Heat, NO.1
2017-11 → 2019-01
ended
|
NDE180 6FS | — | |
| 82916 — Insulator, Wiring Harness Heat, NO.2 | ||||
| 82916-12010 |
Insulator, Wiring Harness Heat, NO.2
2015-05 → 2016-05
ended
|
NDE180 6F | — | |
| 82916-12010 note |
Insulator, Wiring Harness Heat, NO.2
2015-05 → 2016-05
ended
|
NDE180 LHD 6F | — | |
| 82916-12010 |
Insulator, Wiring Harness Heat, NO.2
2016-06 → 2019-01
ended
|
NDE180 6F | — | |
| 82916-12010 note |
Insulator, Wiring Harness Heat, NO.2
2016-06 → 2019-01
ended
|
NDE180 LHD 6F | — | |
| 82916-12010 |
Insulator, Wiring Harness Heat, NO.2
2017-11 → 2019-01
ended
|
NDE180 6FS | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
