Toyota Auris/Corolla (JPP)

2006-10 → 2012-08 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 165510 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

18 part groups · 14 illustrations

Illustrations

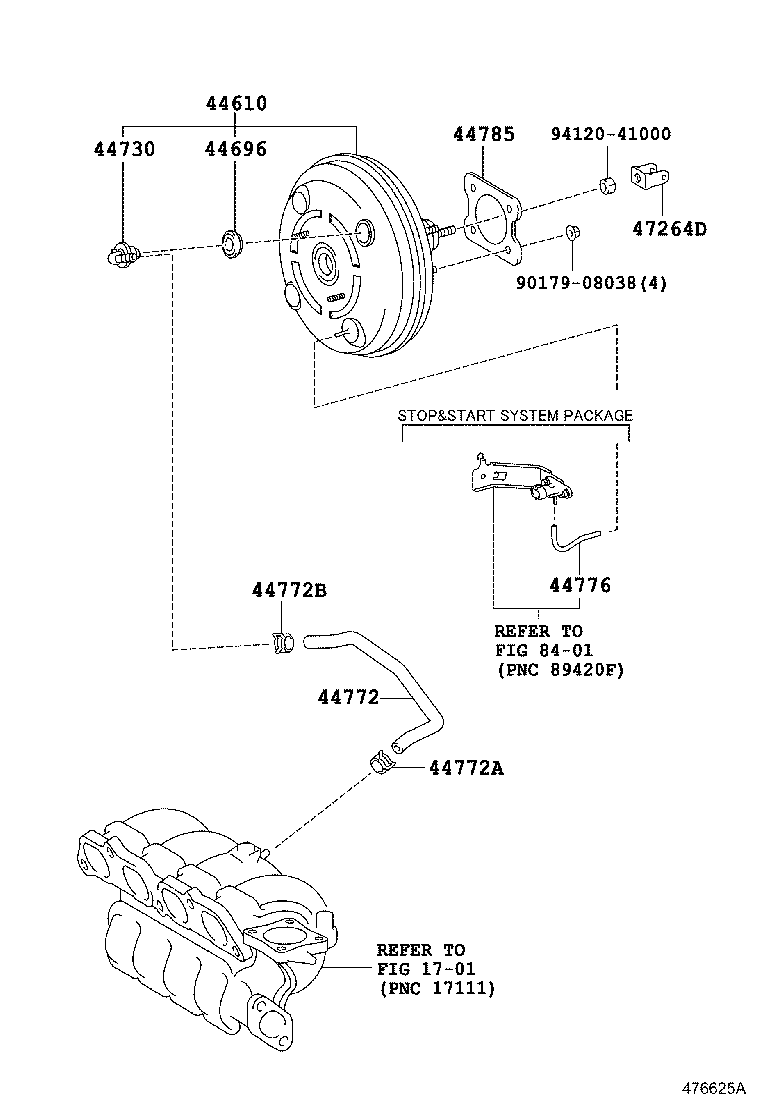

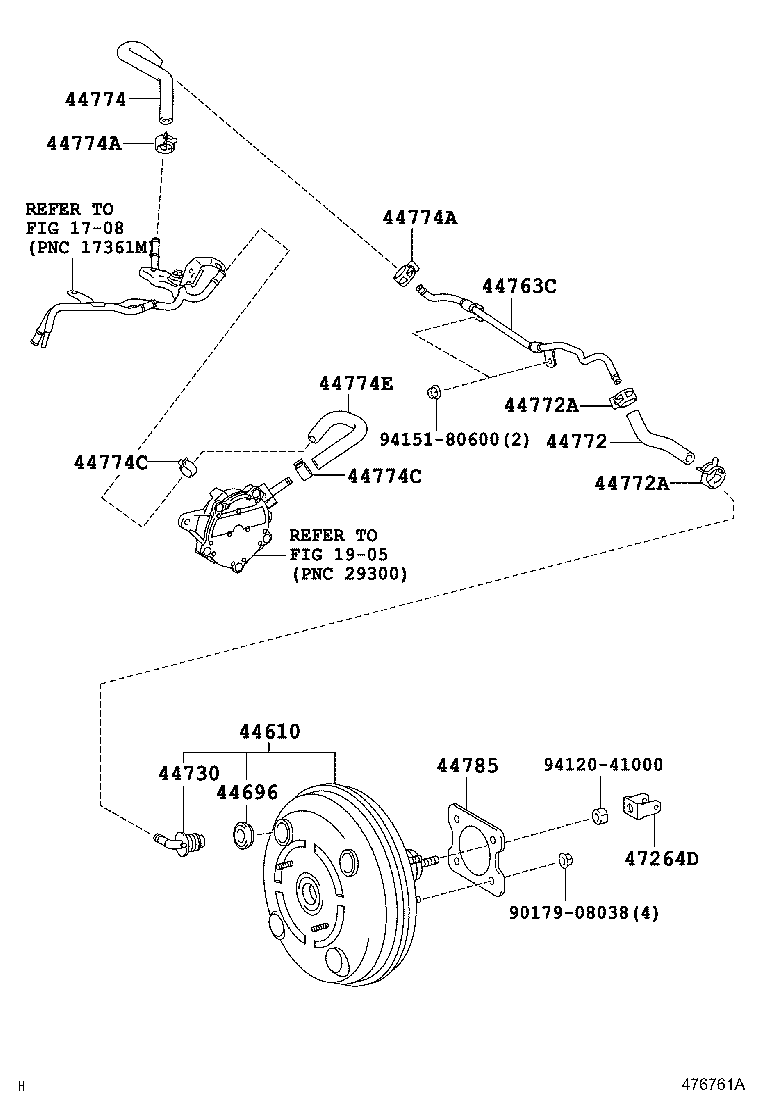

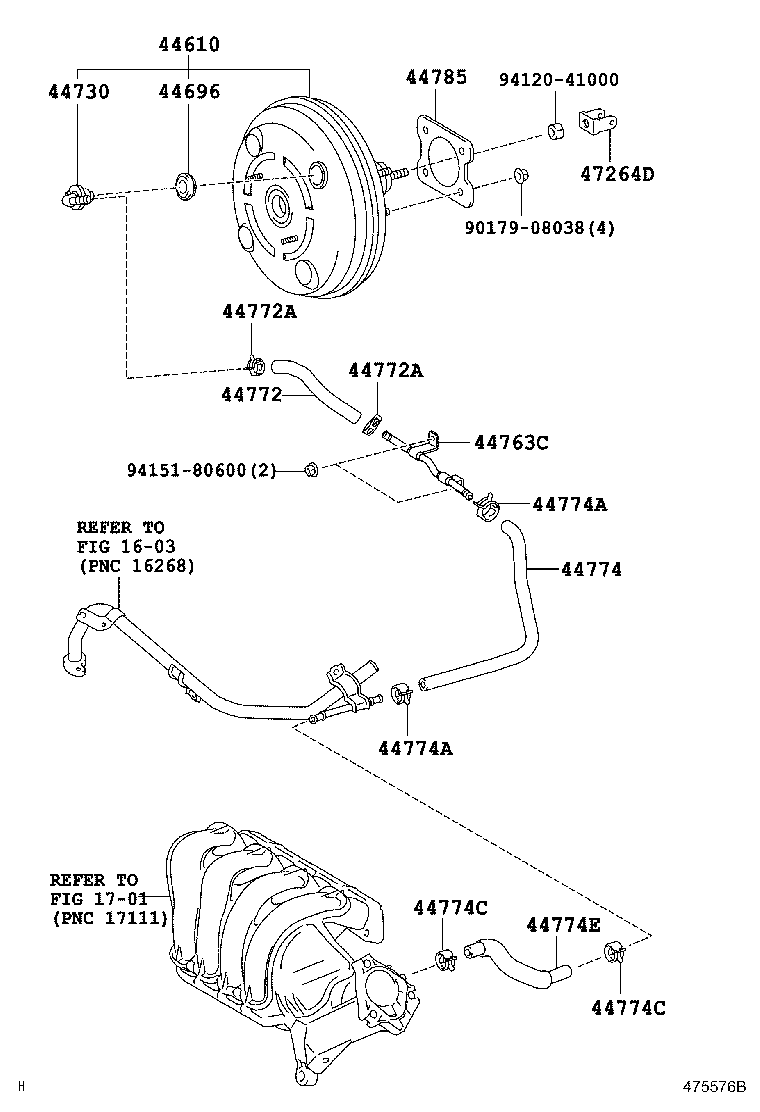

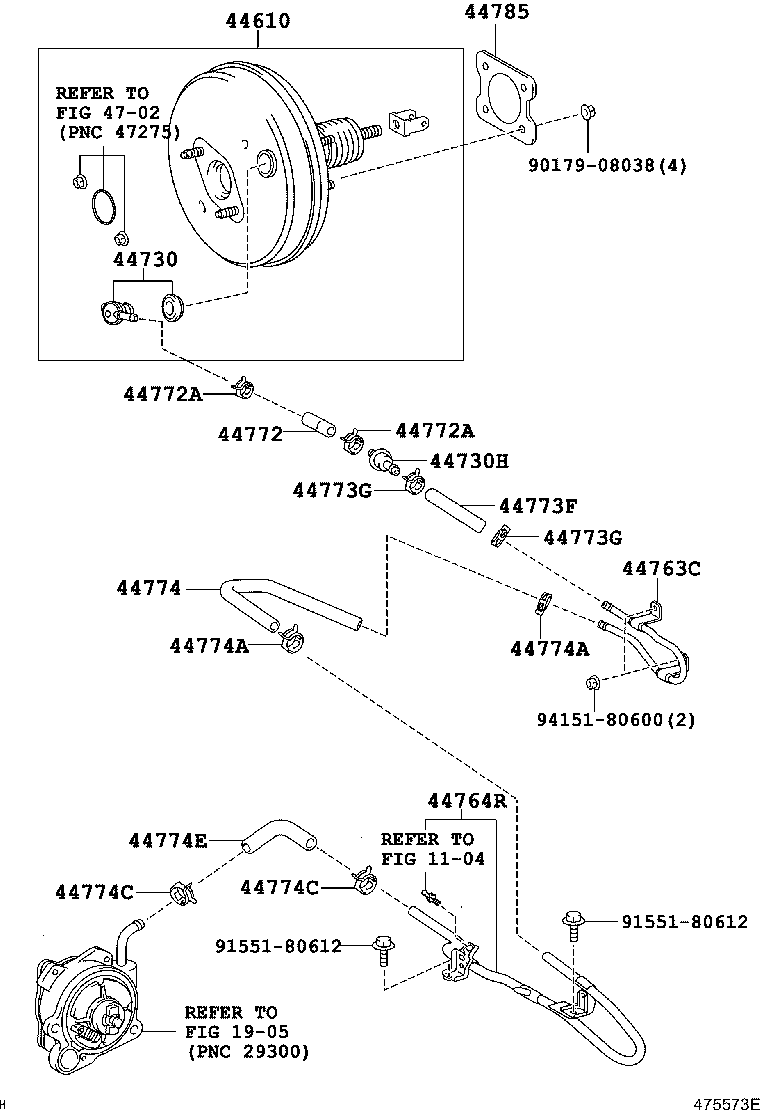

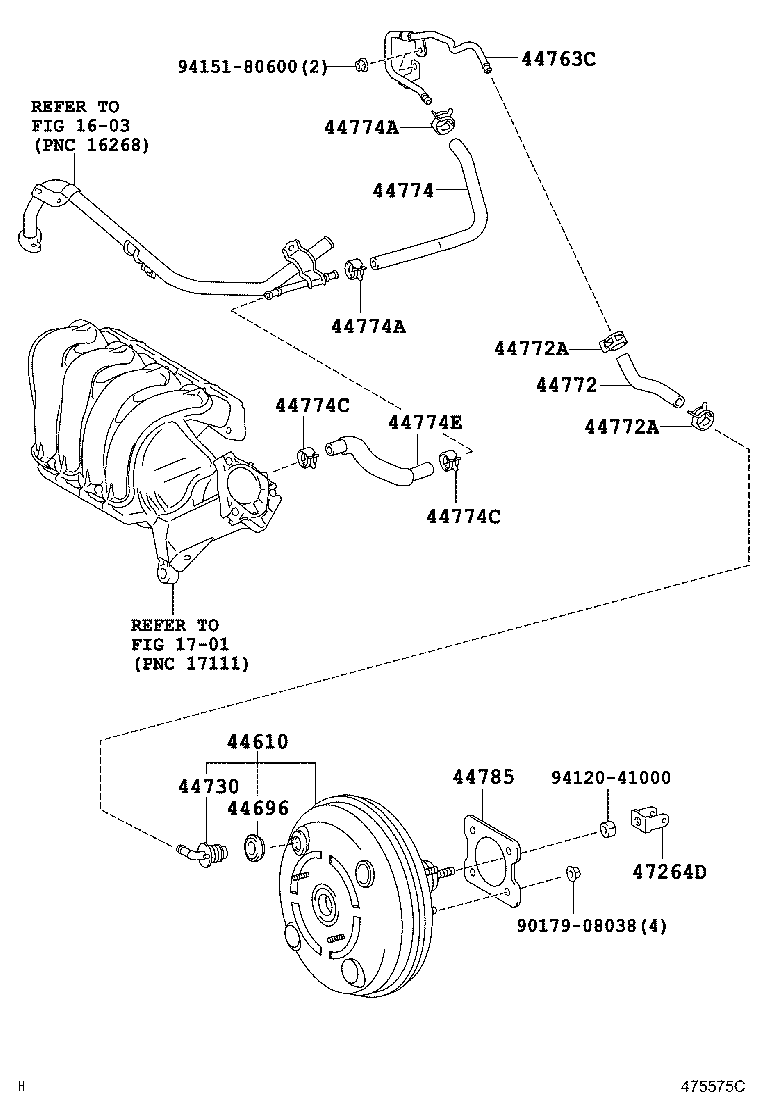

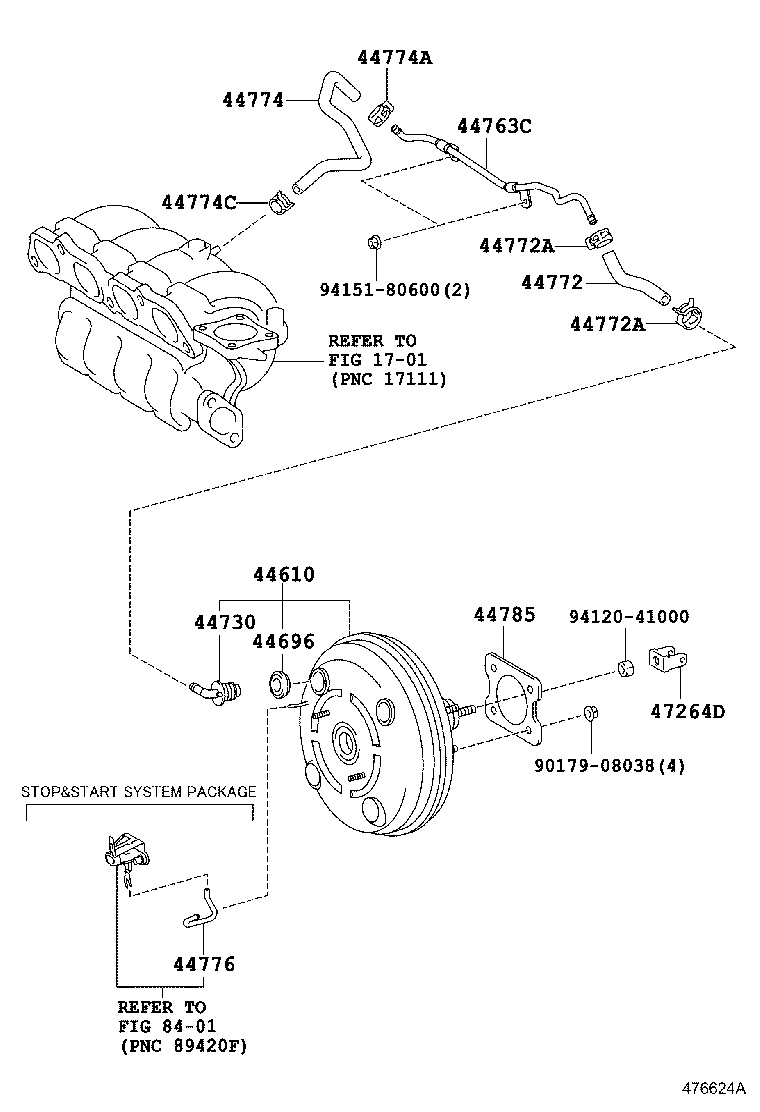

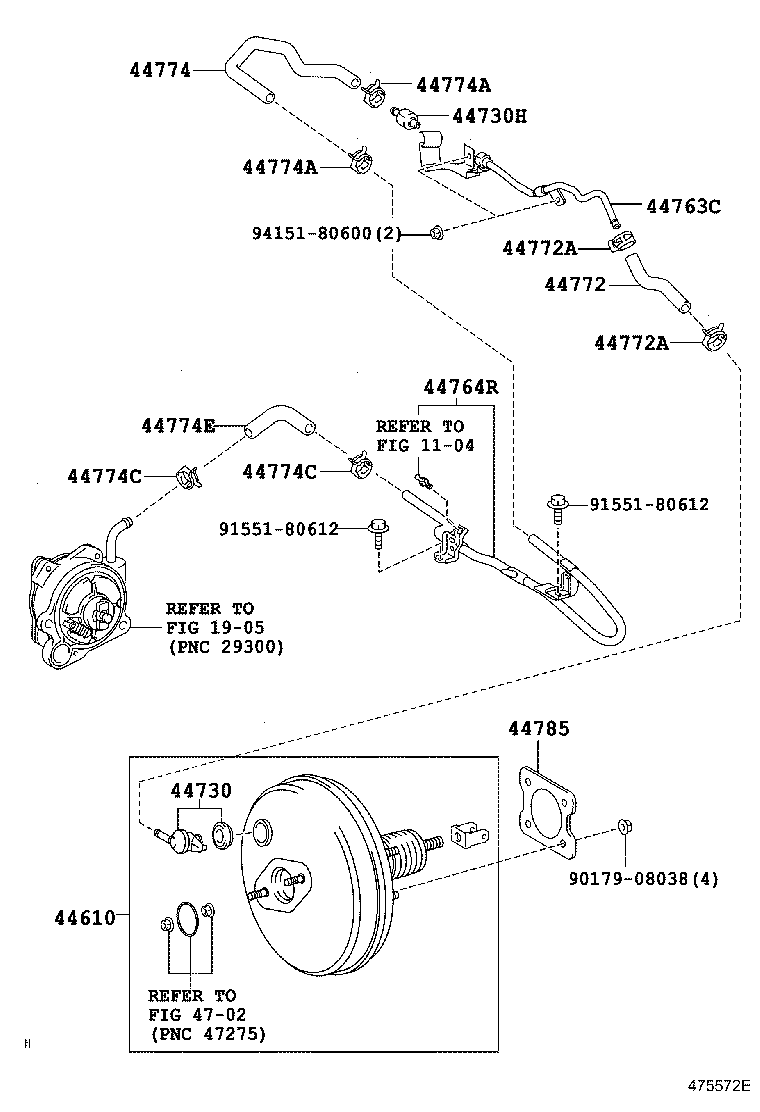

Figure 475570D 475570D 2006-10 → 2009-10 Figure 475571D 475571D 2006-10 → 2009-10 Figure 475572E 475572E 2006-10 → 2008-12 Figure 476759A 476759A 2008-12 → 2009-10 Figure 476624A 476624A 2008-09 → 2009-10 Figure 475573E 475573E 2006-10 → 2008-12 Figure 476760A 476760A 2008-12 → — Figure 476625A 476625A 2008-09 → 2009-10 Figure 475574C 475574C 2006-10 → — Figure 476761A 476761A 2008-12 → 2009-10 Figure 475569C 475569C 2006-10 → 2008-12 Figure 476762A 476762A 2008-12 → 2009-10 Figure 475575C 475575C 2006-10 → 2008-12 Figure 475576B 475576B 2006-10 → 2008-12

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730H Valve Assy, Vacuum Check(FOR VACUUM RESERVOIR)
44763C Tube, Hose TO Hose, NO.2
44764R Tube, Connector TO Vacuum Reservoir
44772 Hose, Check Valve TO Connector Tube
44772A Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
44772B Hose, Check Valve TO Brake Booster
44773F Hose, Union TO Check Valve
44773G Clip(FOR UNION TO CHECK VALVE HOSE)
44774 Hose, Union TO Connector Tube
44774A Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44774C Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44774E Hose, Union TO Connector Tube
44776 Hose, Brake Booster
44785 Gasket, Brake Booster
47264D Clevis, Brake Master Cylinder Push Rod
