Toyota Corolla
1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe
Discontinued model
Data version 1988-02

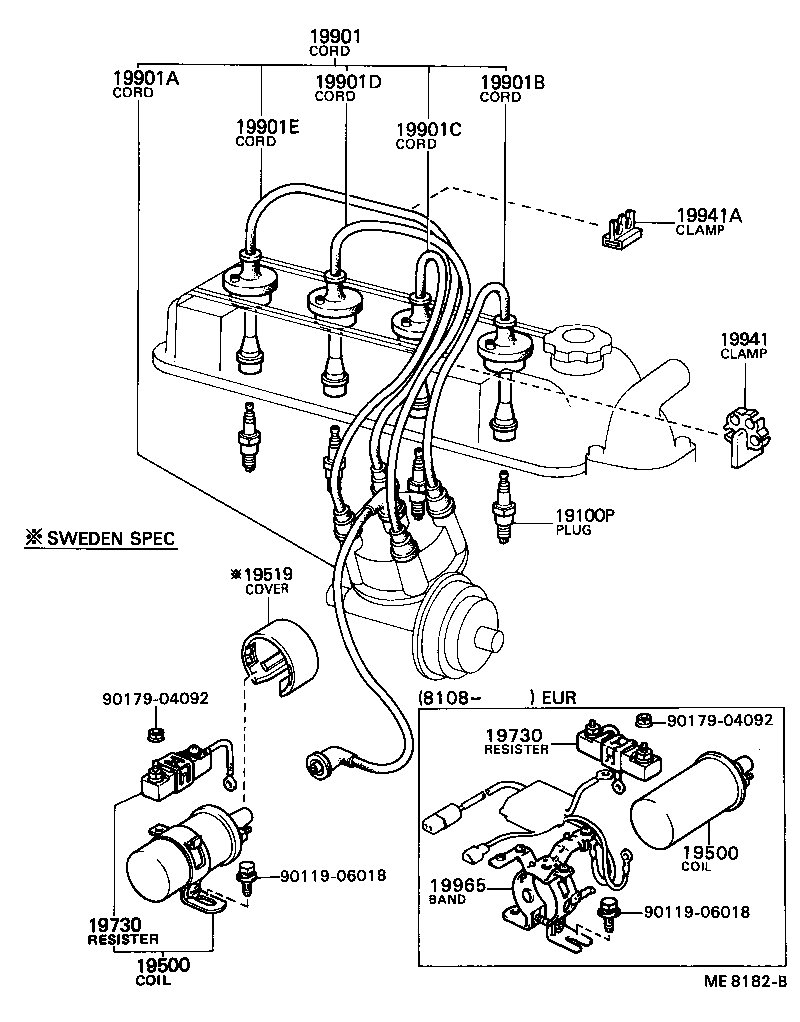

Ignition Coil & Spark Plug / Glow Plug
18 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 19100P | Plug, Spark |
| 19500 | Coil Assy, Ignition |
| 19519 | Cover, Ignition Coil |
| 19730 | Resistor, Ignition Coil |
| 19850 | Plug Assy, Glow |
| 19850B | Grommet, Screw(FOR GLOW PLUG) |
| 19871 | Connector, Glow Plug NO.1 |
| 19901 | Cord Set, Coil & Spark, W/Resistive |
| 19901A | Cord, Coil Resistive |
| 19901B | Cord, Spark Plug Resistive, NO.1 |
| 19901C | Cord, Spark Plug Resistive, NO.2 |
| 19901D | Cord, Spark Plug Resistive, NO.3 |
| 19901E | Cord, Spark Plug Resistive, NO.4 |
| 19901R | Ring, Rubber Spark Plug Resistive Cord |
| 19941 | Clamp, Resistive Cord, NO.1 |
| 19941A | Clamp(FOR RESISTIVE CORD) |
| 19943 | Plate, Resistive Cord Clamp Support NO.1 |
| 19965 | Band, Ignition Coil, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
