Toyota MR2

1989-12 → 1999-08 · chassis SW20 · catalogue 211220 · Europe

Discontinued model Data version 2000-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

21 part groups · 7 illustrations

Illustrations

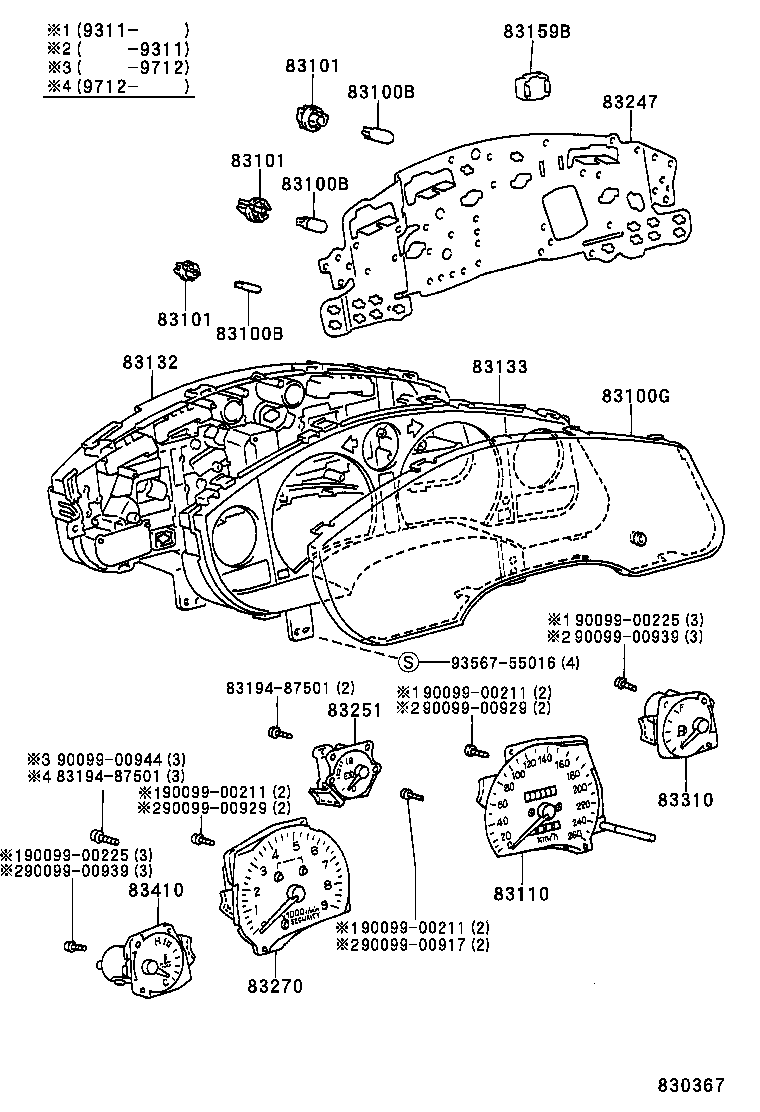

Figure 830366 830366 1989-12 → — Figure 830367 830367 1989-12 → — Figure MEQ409 MEQ409 1989-12 → 1991-12 Figure MEQ410 MEQ410 1989-12 → 1991-12 Figure MES909 MES909 1991-12 → — Figure MEP658 MEP658 1989-12 → — Figure MEP659 MEP659 1989-12 → —

Part groups

PNCDescription
83100B Bulb, Combination Meter, NO.1
83100G Glass, Combination Meter
83101 Socket Sub-assy, Combination Meter Bulb
83110 Speedometer Assy
83132 Case, Combination Meter
83133 Plate, Combination Meter, NO.1
83159B Relay Assy, Meter
83181A Sensor, Speedometer
83247 Plate, Meter Circuit
83247B Plate, Meter Circuit, NO.2
83251 Meter, Voltage
83270 Tachometer Assy, Engine
83310 Gage Assy, Fuel Receiver
83390B Hose, Vacuum(FOR ECONOMETER)
83391D Switch, Vacuum
83399B Bracket, Vacuum Switch
83410 Gage Assy, Water Temperature Receiver
83710 Cable Assy, Speedometer Drive, NO.1
83710A Cable Assy, Speedometer Drive, NO.2
83910 Clock Assy
83911C Ornament, Clock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
