Toyota MR2

1990-01 → 1995-06 · chassis SW20,21 · catalogue 211420 · Europe

Discontinued model Data version 1996-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

22 part groups · 5 illustrations

Illustrations

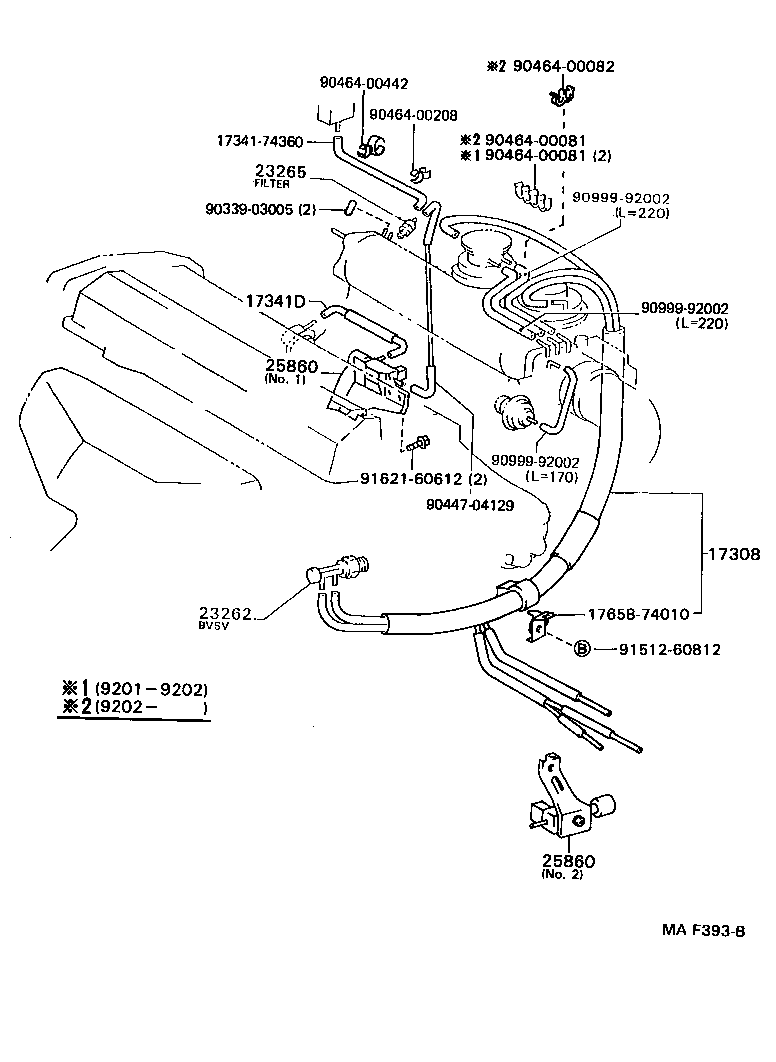

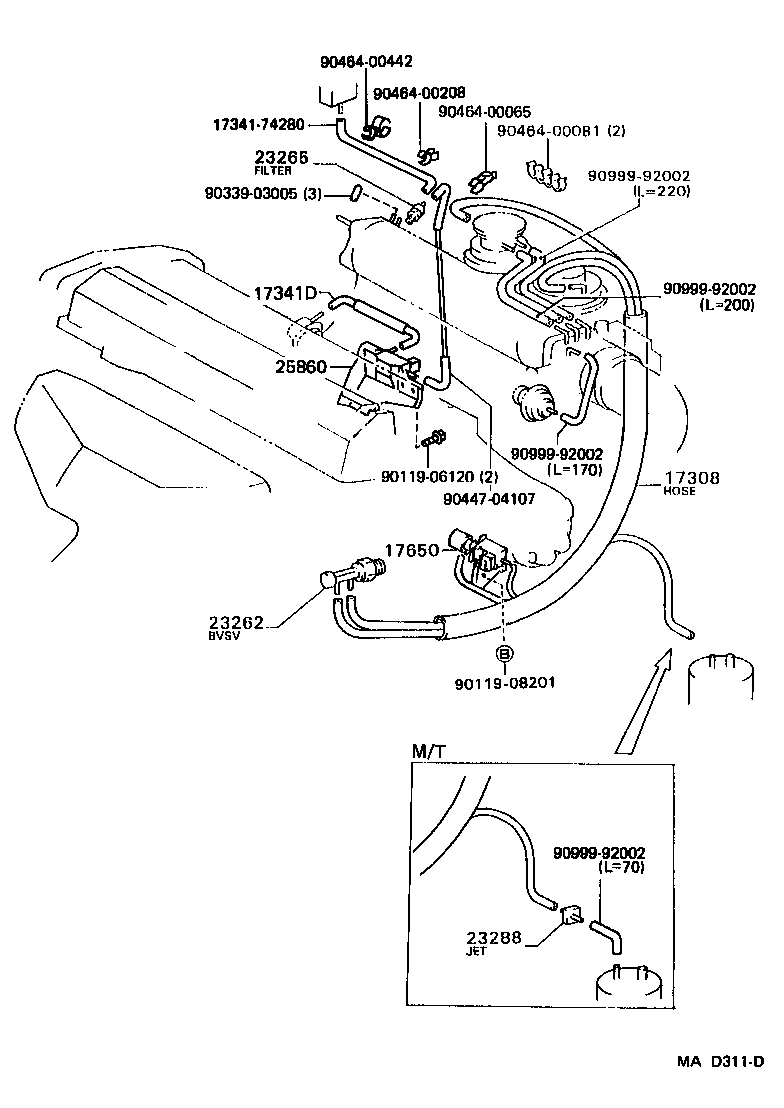

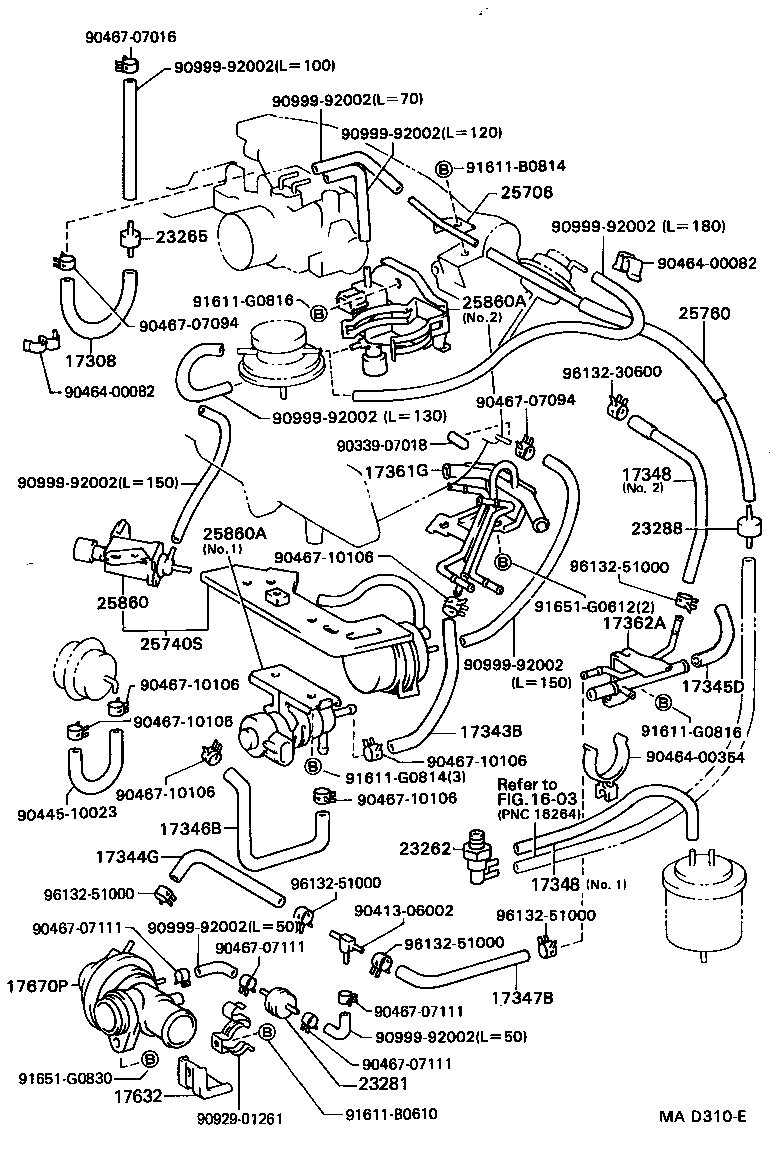

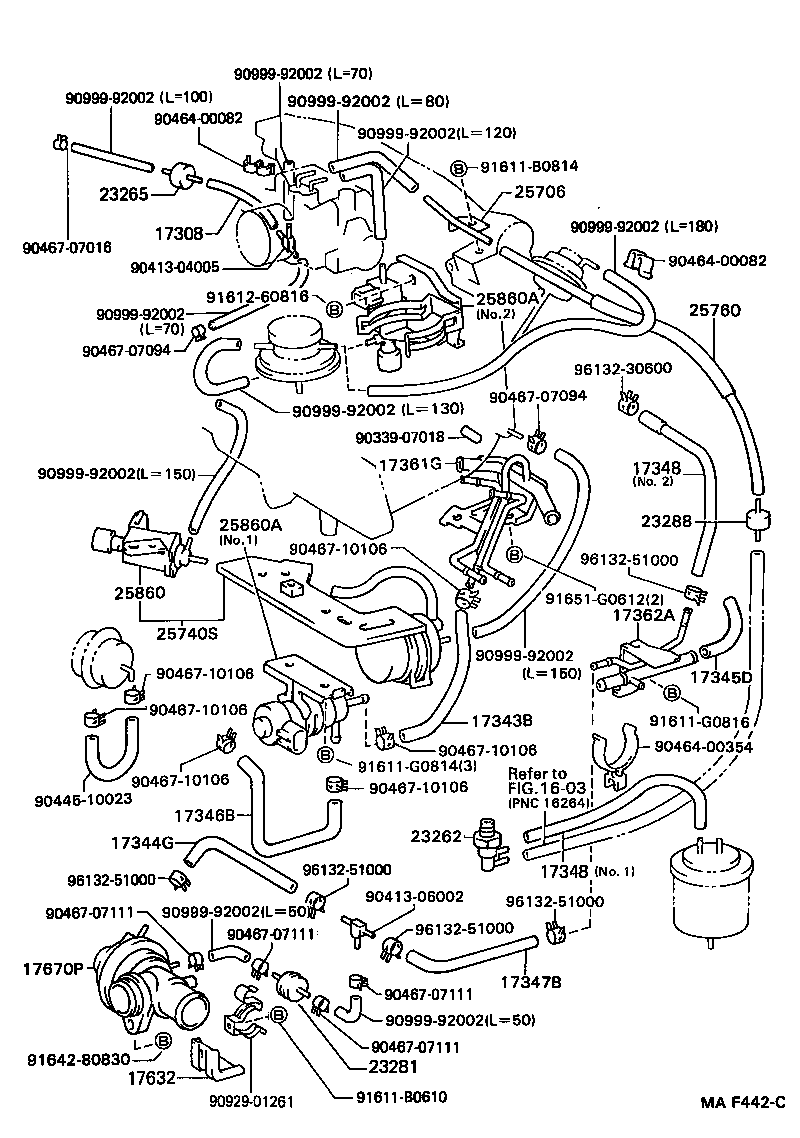

Figure MA9504B MA9504B 1990-01 → — Figure MAD311D MAD311D 1990-01 → 1992-01 Figure MAF393B MAF393B 1992-01 → — Figure MAD310E MAD310E 1990-01 → 1992-01 Figure MAF442C MAF442C 1992-01 → —

Part groups

PNCDescription
17308 Hose Sub-assy, Vacuum(FOR IDLE-UP)
17341D Hose, NO.1(FOR IDLE-UP)
17343B Hose, NO.3(FOR IDLE-UP)
17344G Hose, Air, NO.4
17345D Hose, Air, NO.5
17346B Hose, Air, NO.6
17347B Hose, Air, NO.7
17348 Hose, Air, NO.8
17361G Tube, Air(FOR IDLE-UP)
17362A Tube, Air, NO.2
17632 Cover, Housing
17650 Valve Assy, Vacuum Switching
17670P Valve Assy, Air By-pass
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23288 Jet, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25740S Valve Assy, Air Control(FOR IDLE SPEED CONTROL)
25760 Hose Assy, Vacuum Transmitting
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
