Toyota Lexus IS250/350/2##D

2005-08 → 2013-04 · chassis ALE20,GSE2# · catalogue 242520 · Europe

Supported model Data version 2013-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 18 illustrations

Illustrations

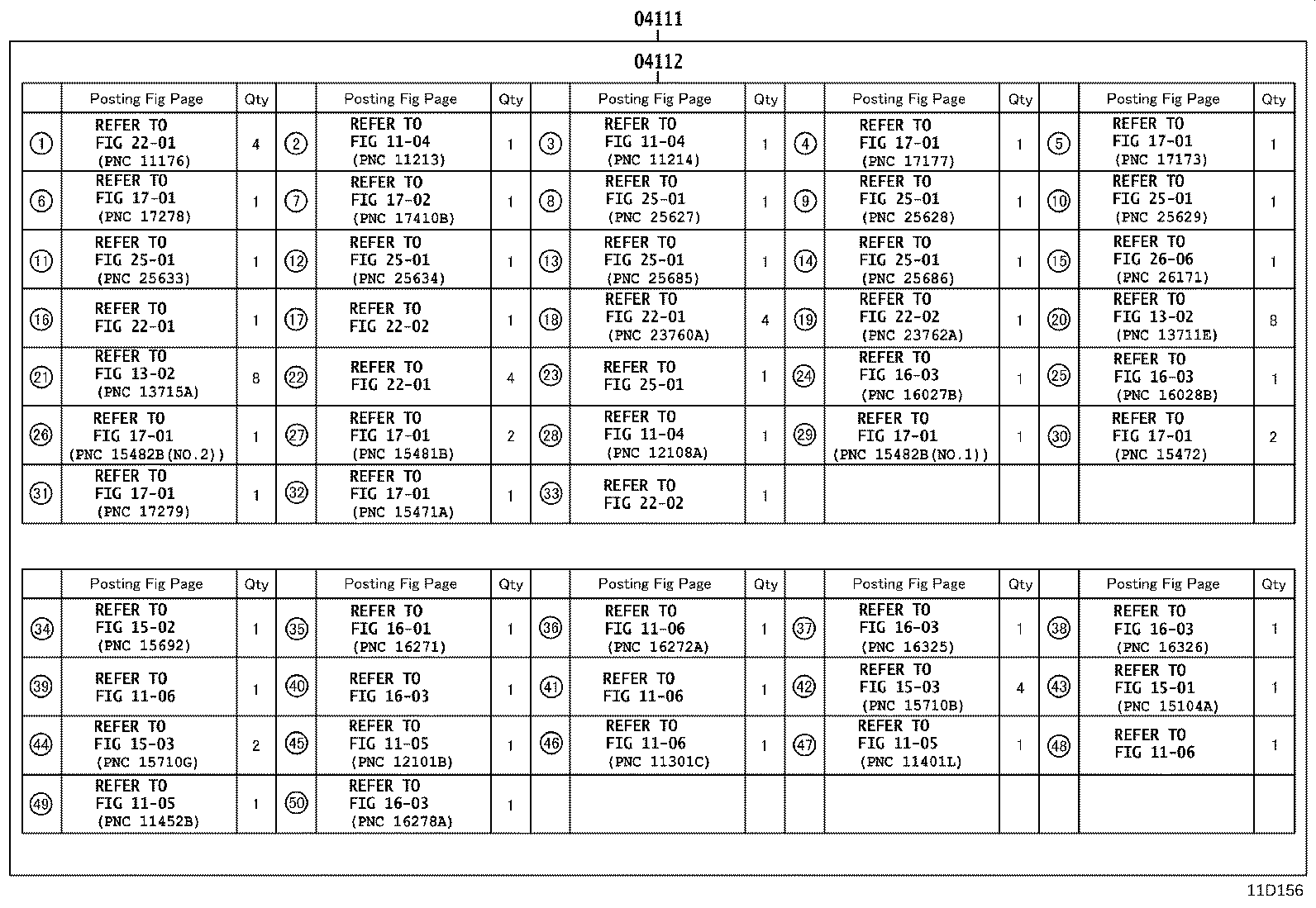

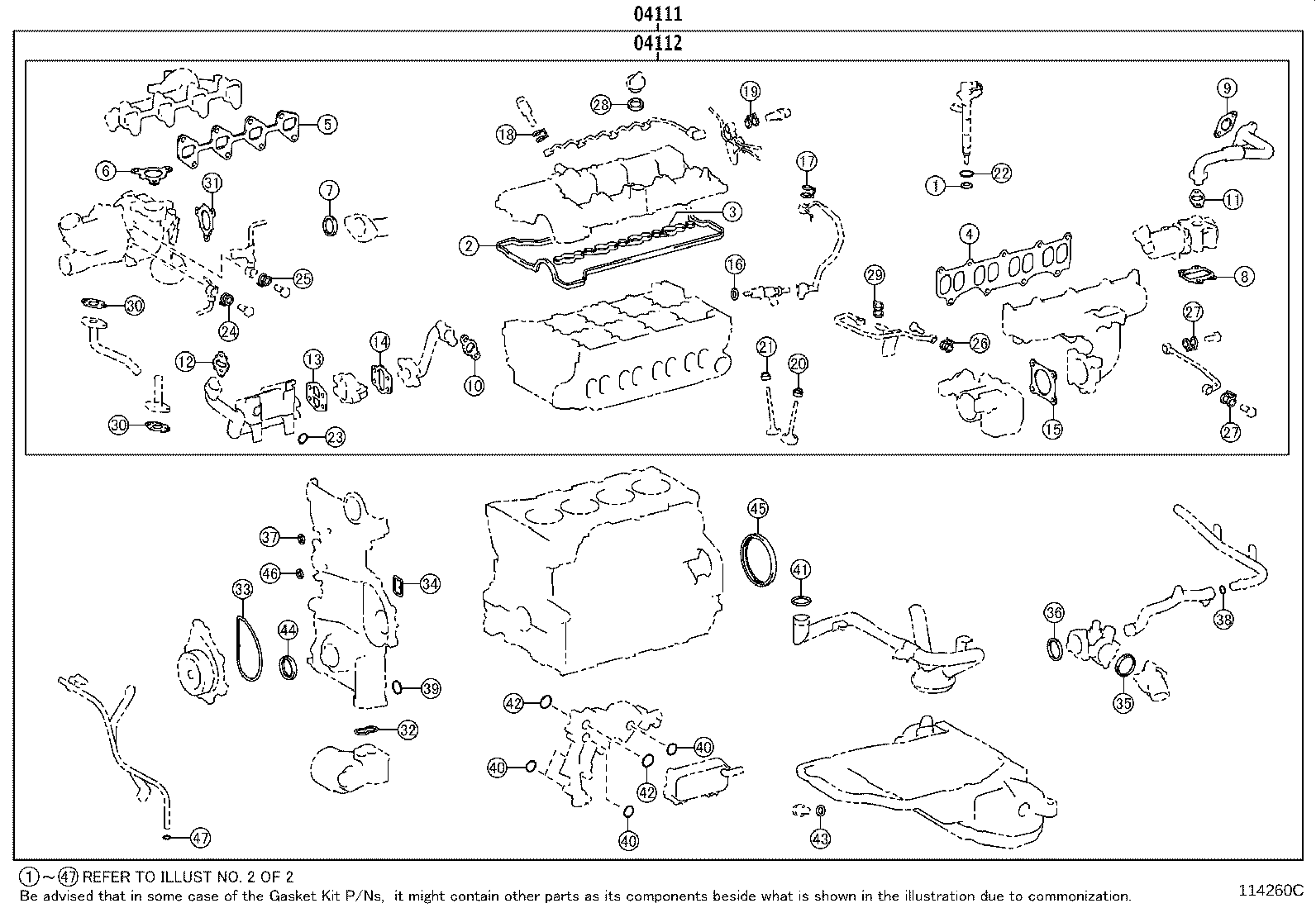

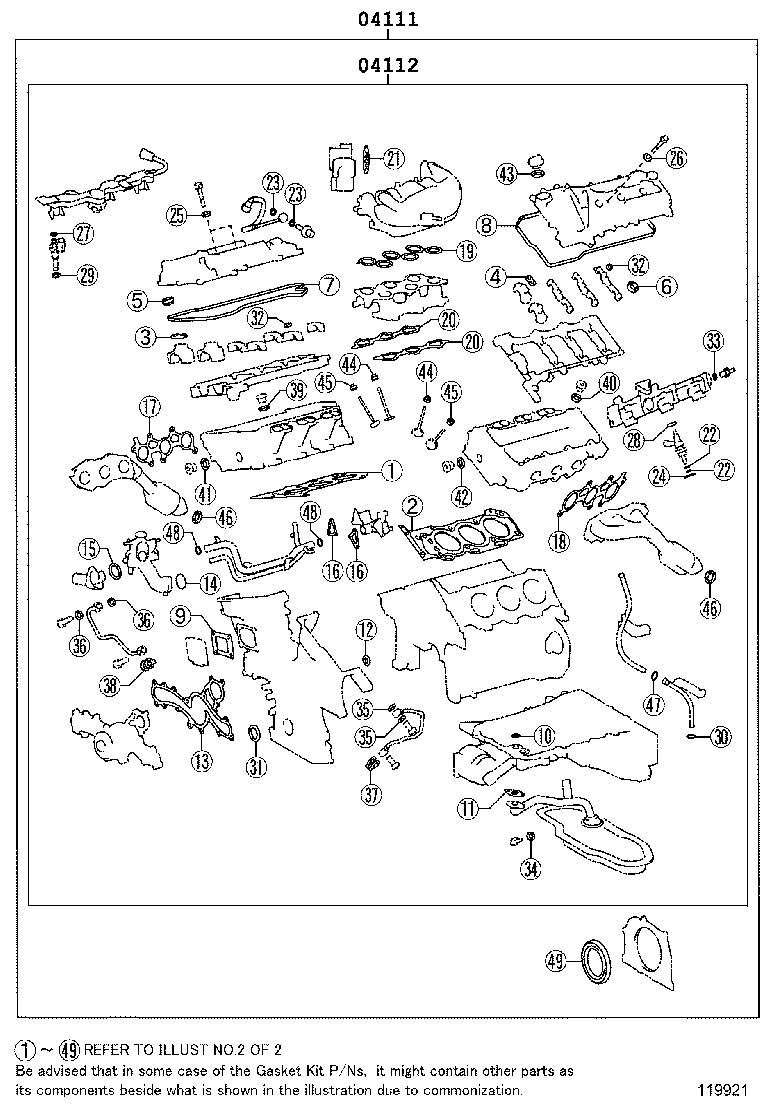

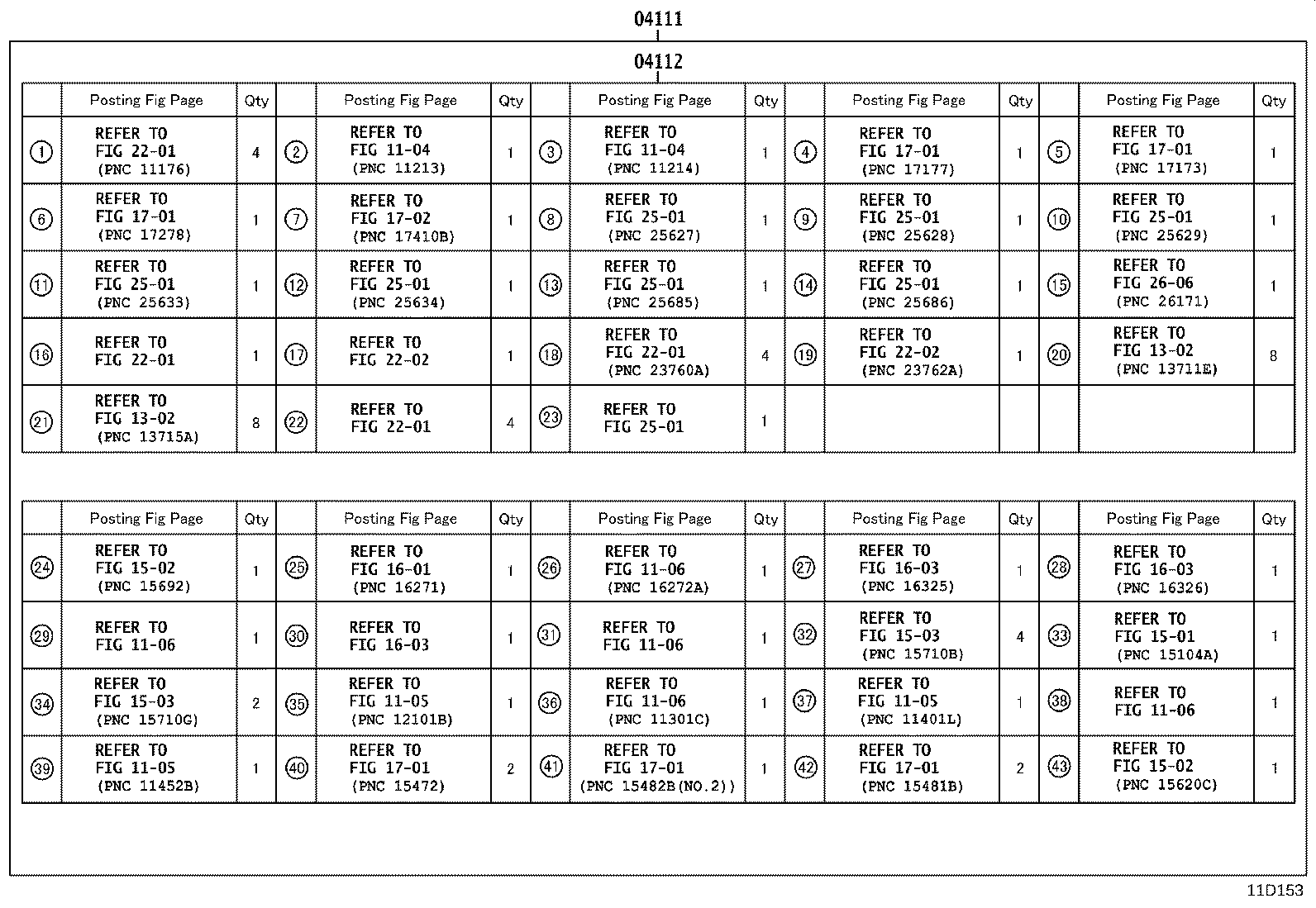

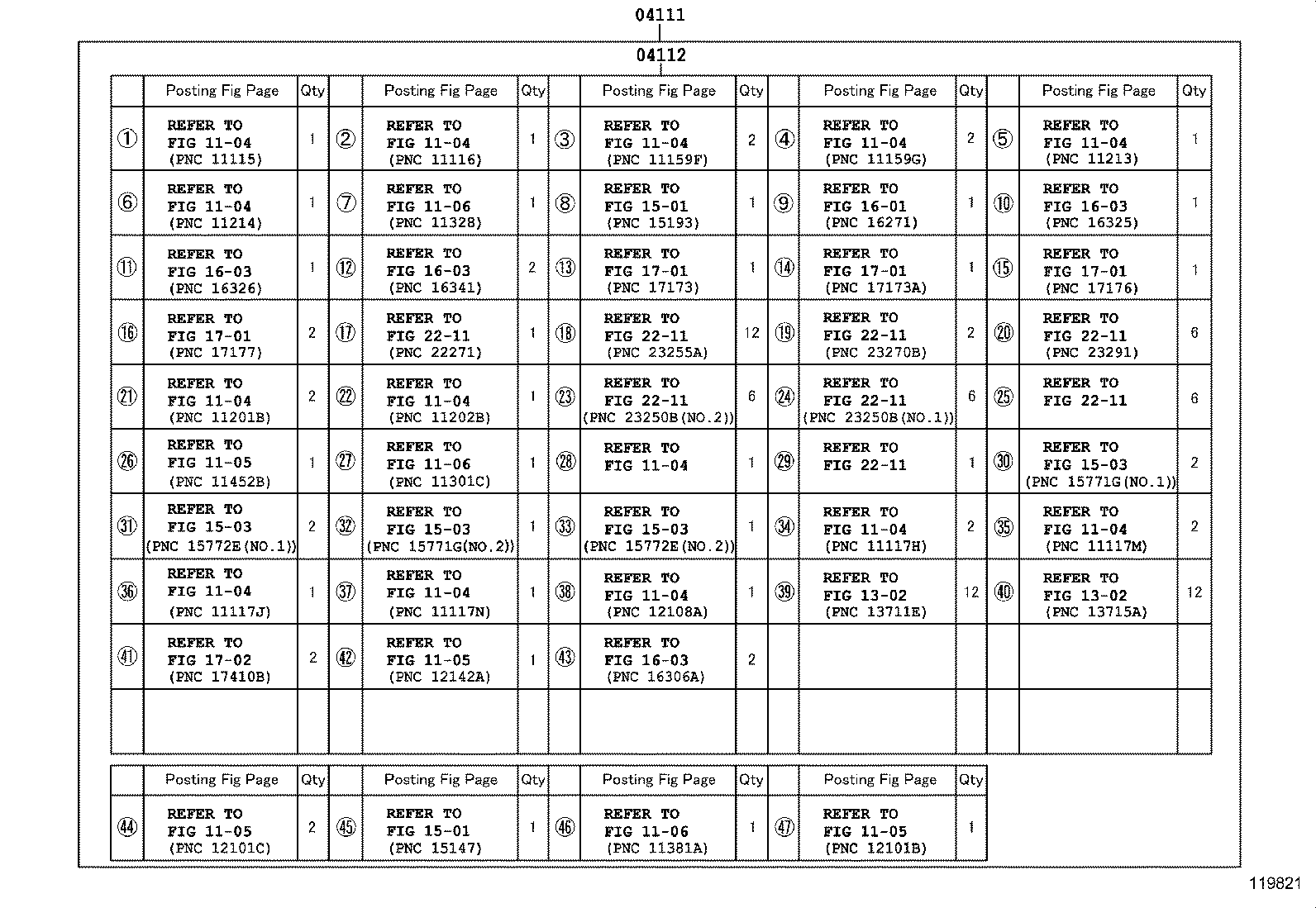

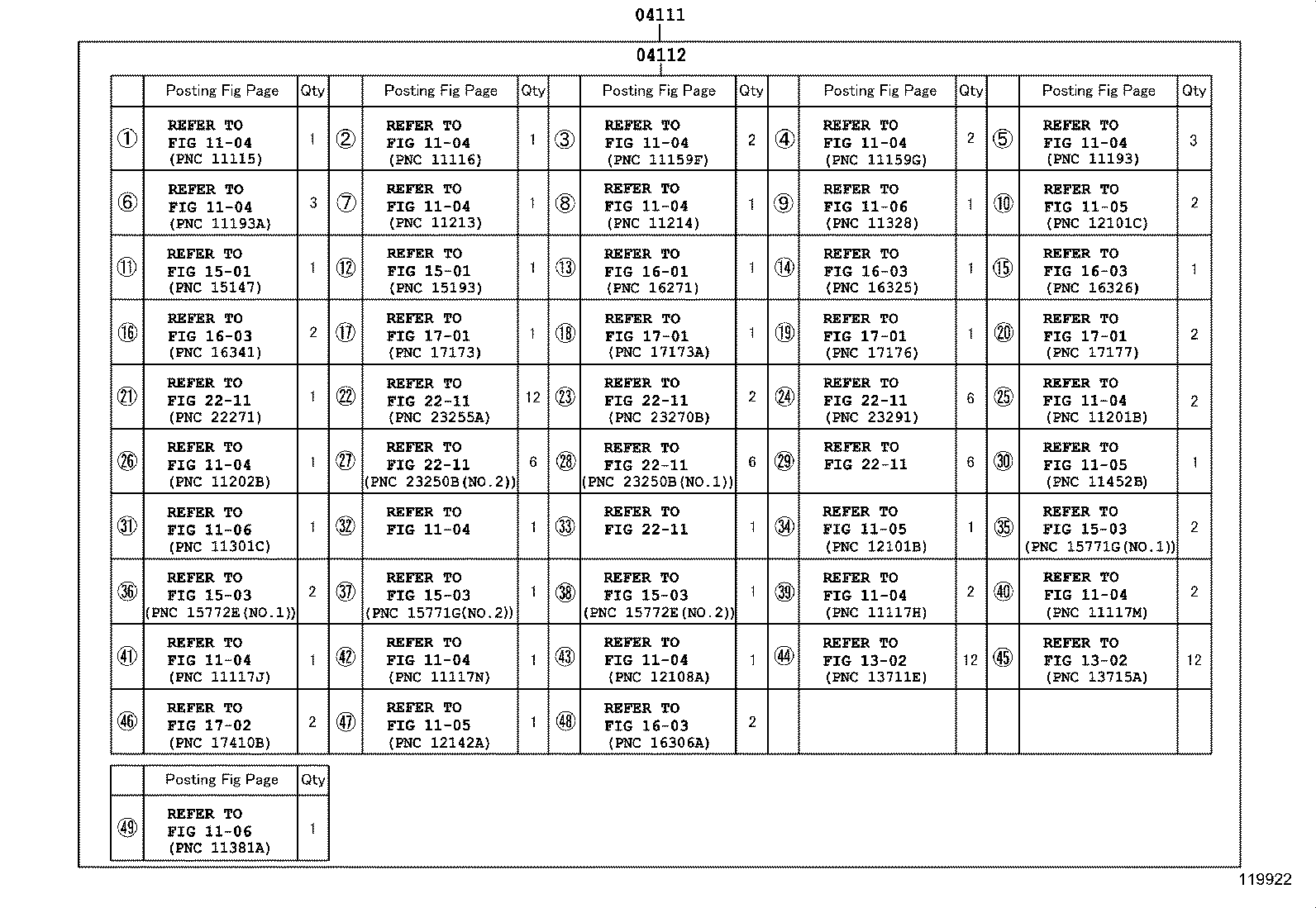

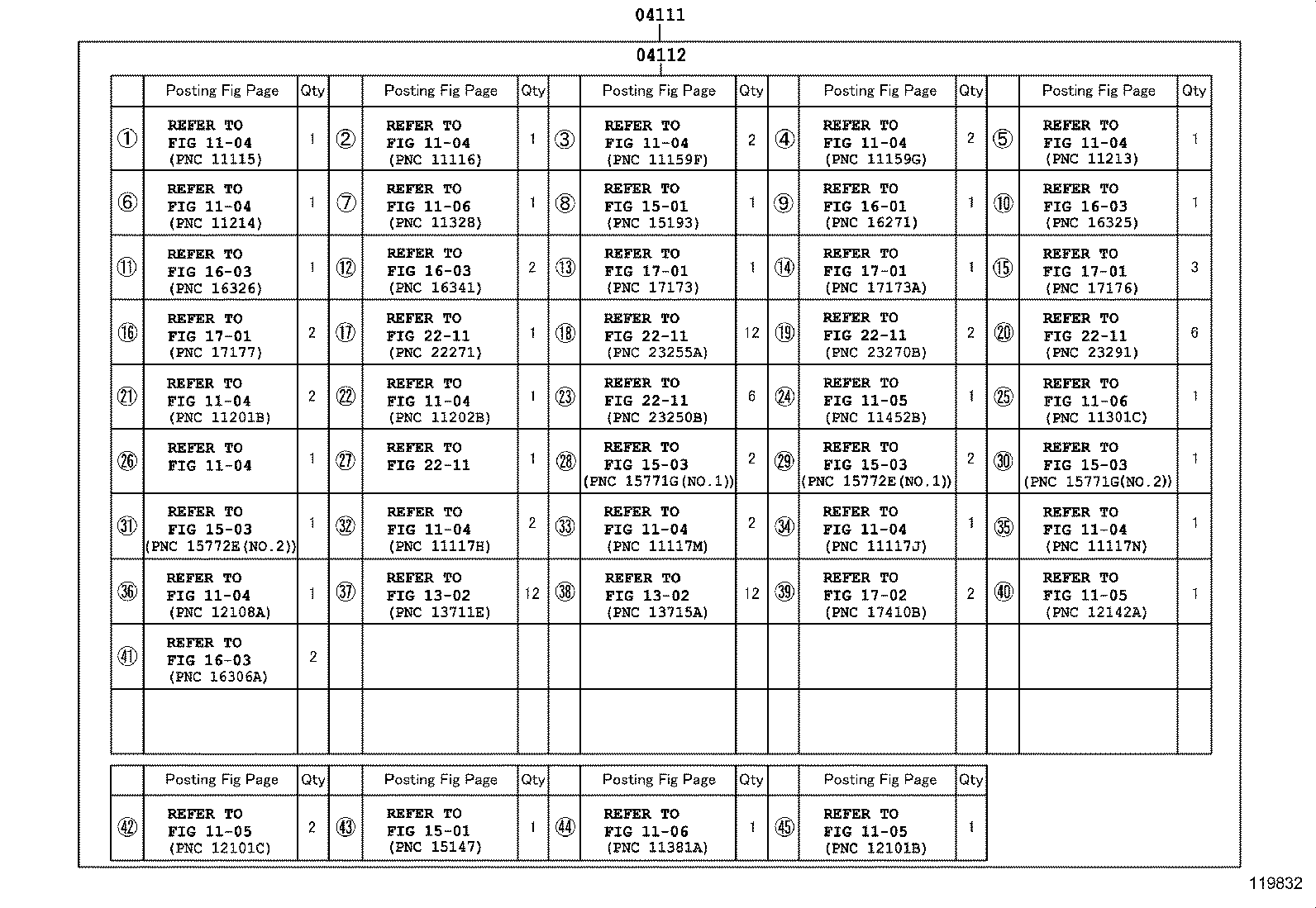

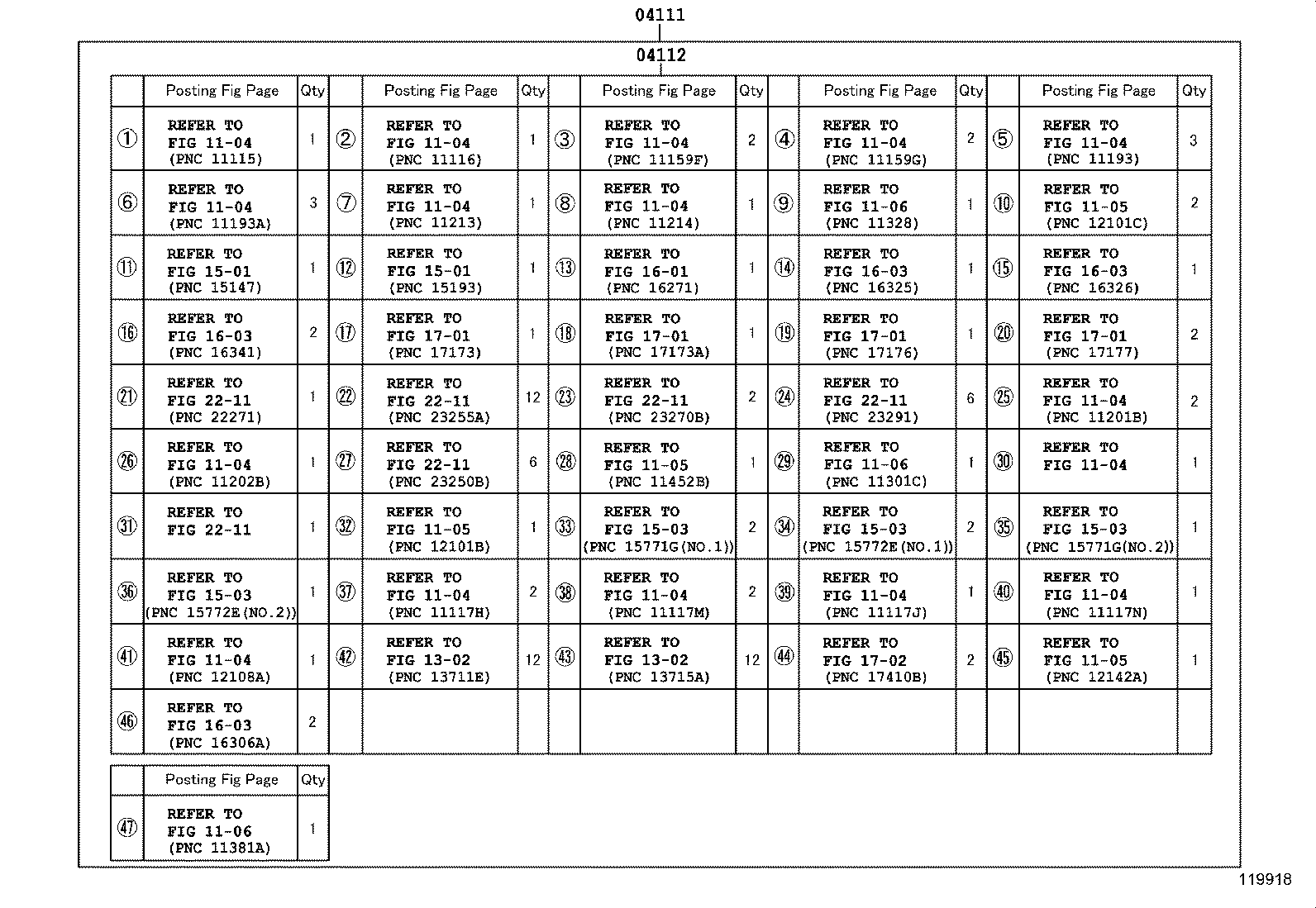

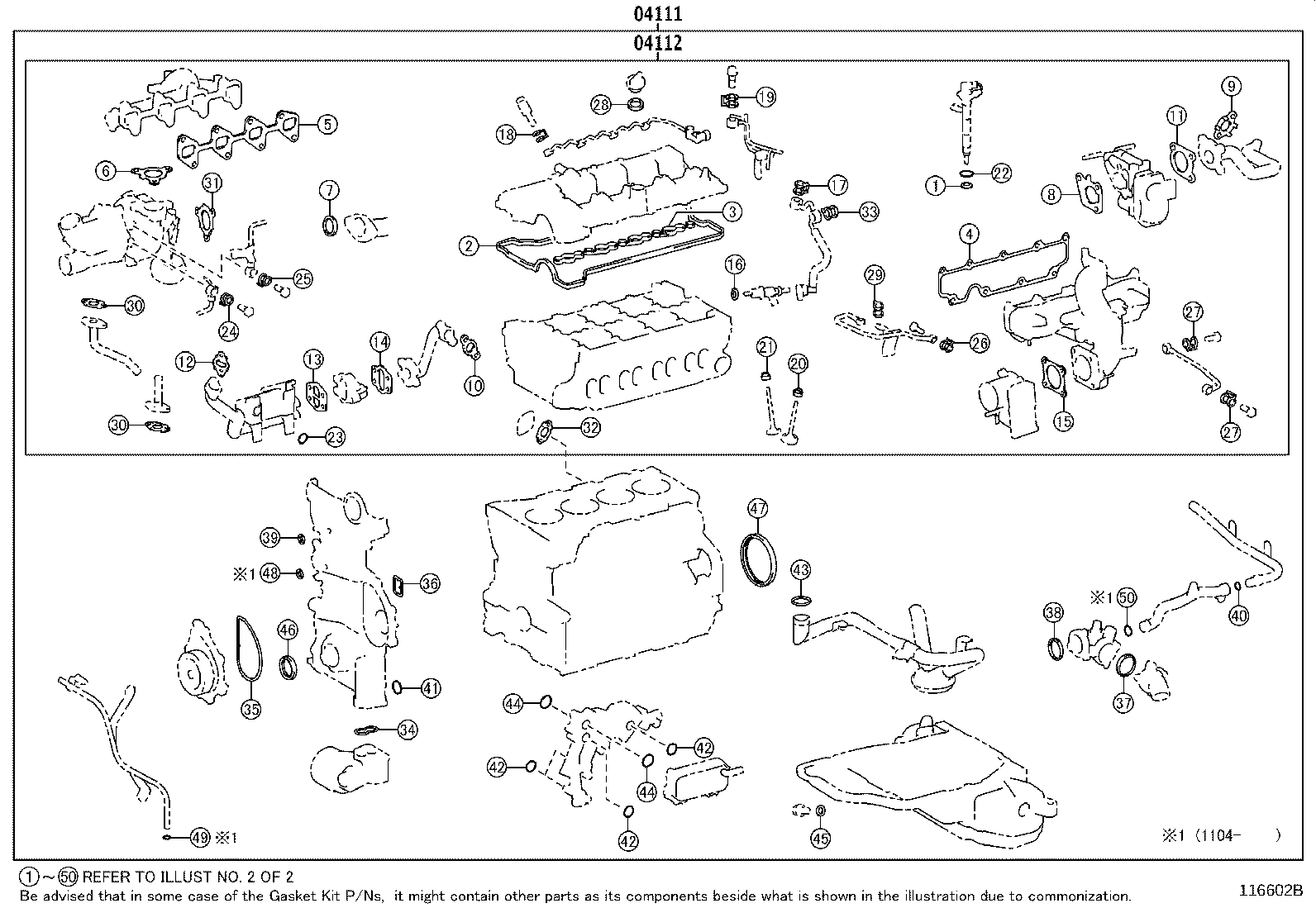

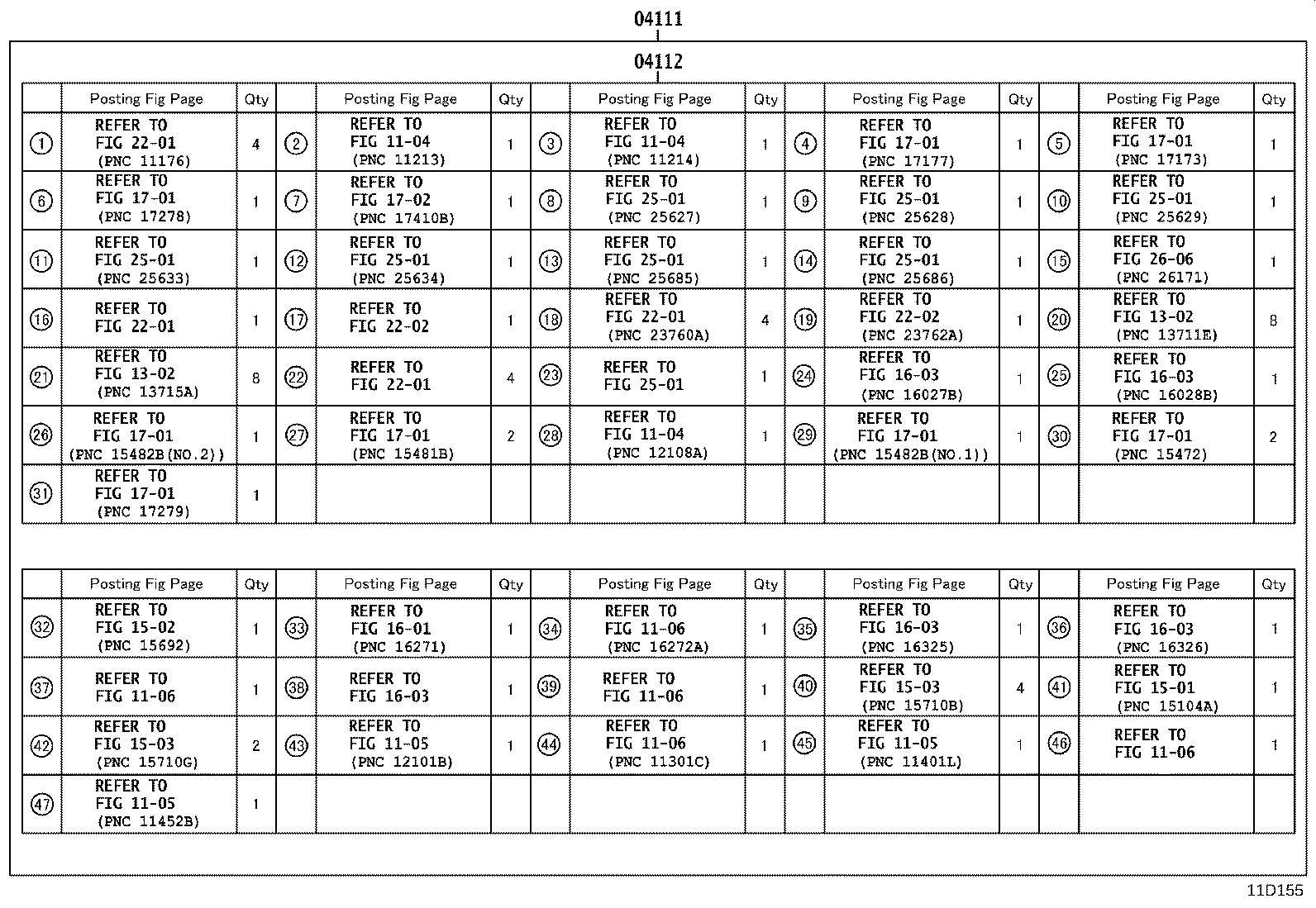

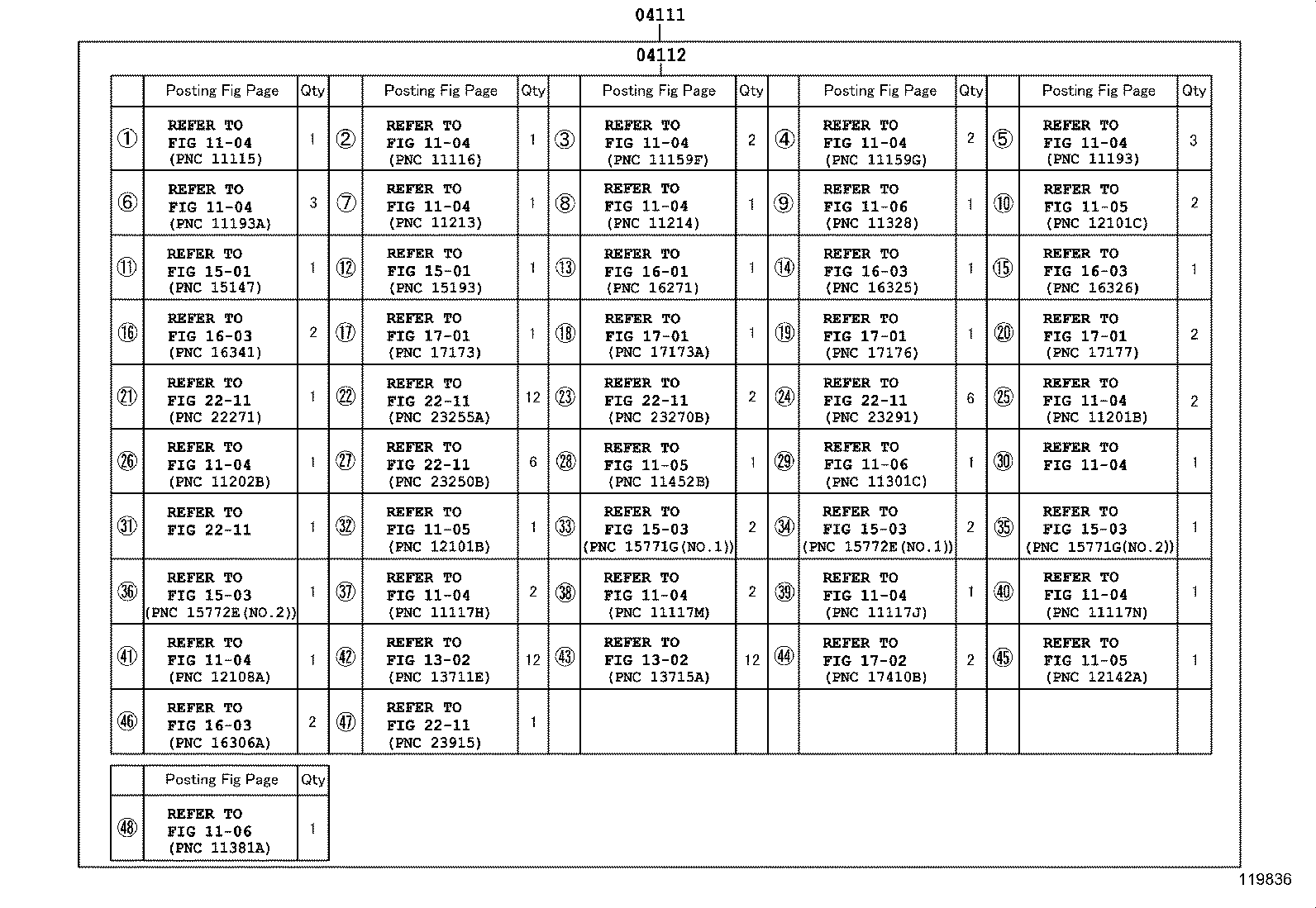

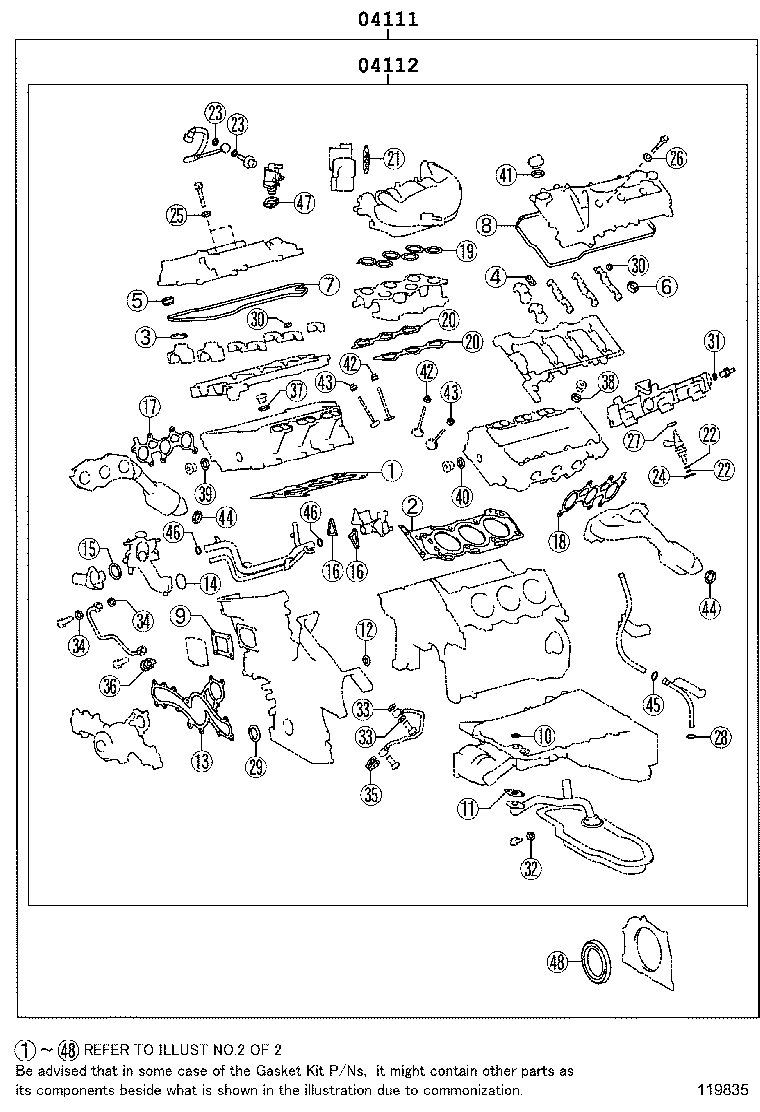

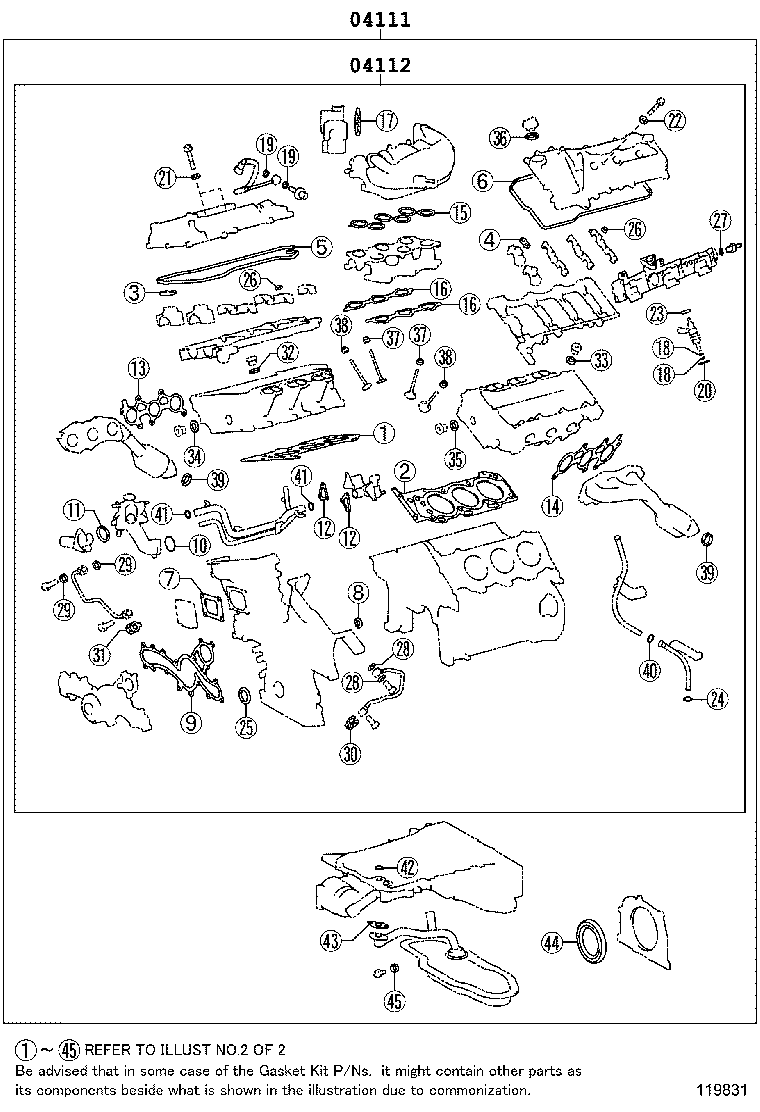

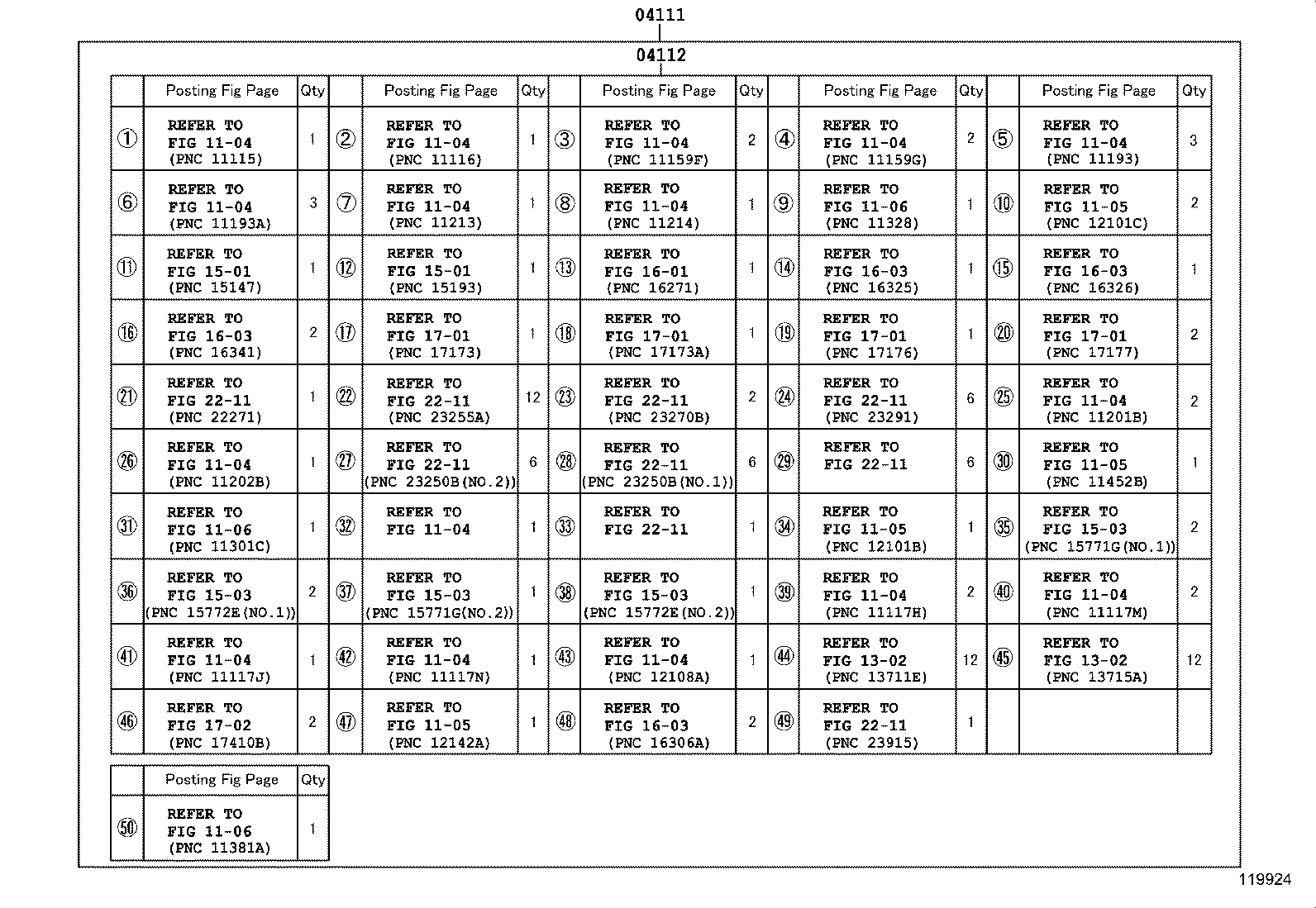

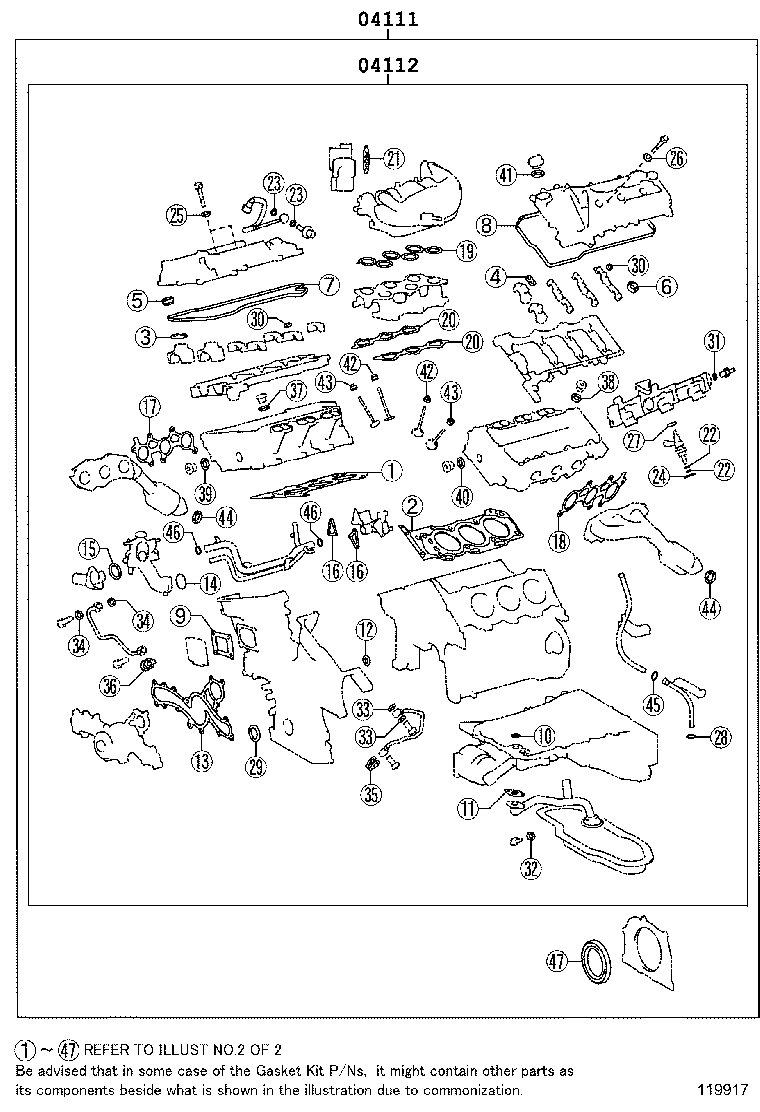

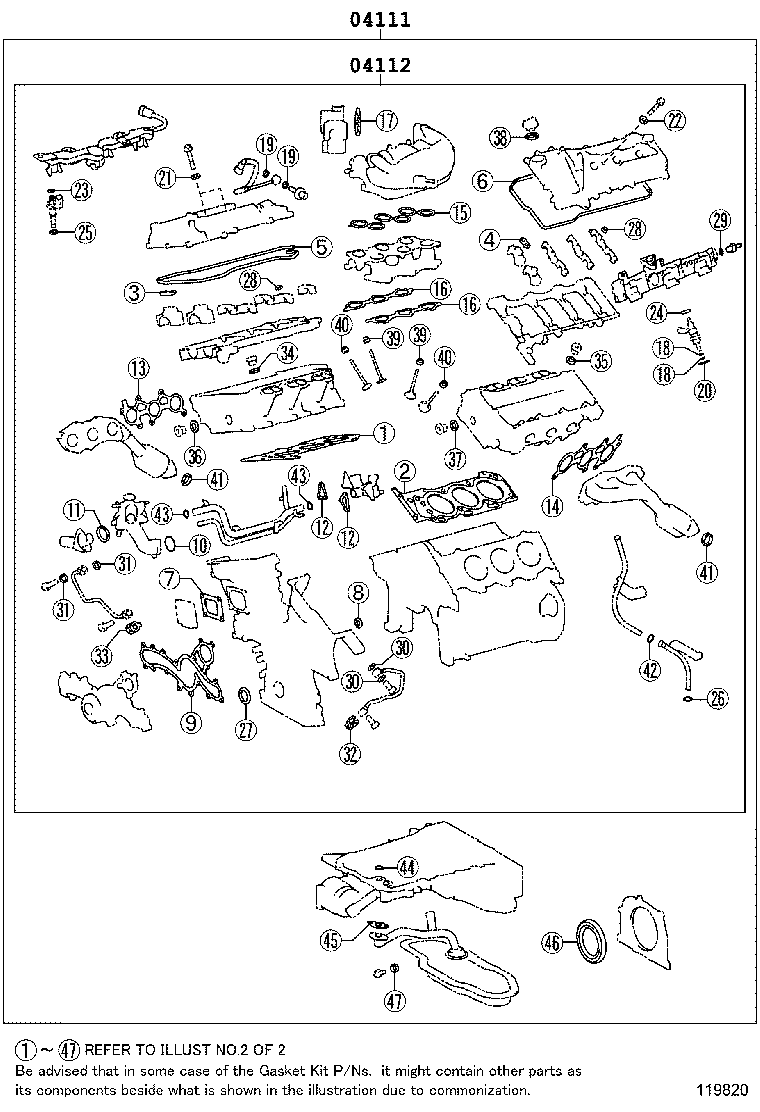

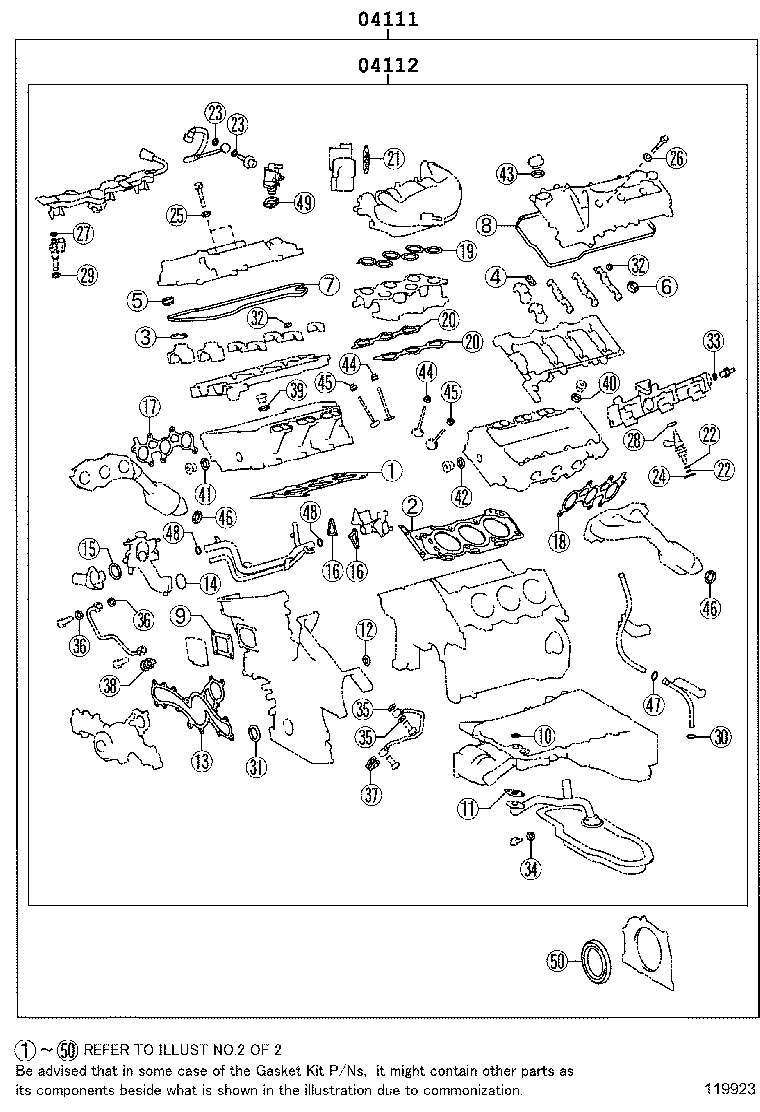

Figure 114020A 114020A 2005-11 → 2006-01 Figure 11D153 11D153 2005-11 → 2006-01 Figure 114260C 114260C 2006-01 → 2010-08 Figure 11D155 11D155 2006-01 → 2010-08 Figure 116602B 116602B 2010-08 → 2012-08 Figure 11D156 11D156 2010-08 → 2012-08 Figure 119820 119820 2010-08 → 2011-08 Figure 119821 119821 2010-08 → 2011-08 Figure 119921 119921 2011-08 → 2011-11 Figure 119922 119922 2011-08 → 2011-11 Figure 119923 119923 2011-12 → — Figure 119924 119924 2011-12 → — Figure 119831 119831 2005-08 → 2011-08 Figure 119832 119832 2005-08 → 2011-08 Figure 119917 119917 2011-08 → 2011-11 Figure 119918 119918 2011-08 → 2011-11 Figure 119835 119835 2011-11 → — Figure 119836 119836 2011-11 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
