Toyota Celica
1989-10 → 1993-11 · chassis AT180,ST18# · catalogue 252560 · Europe
Discontinued model
Data version 1994-04

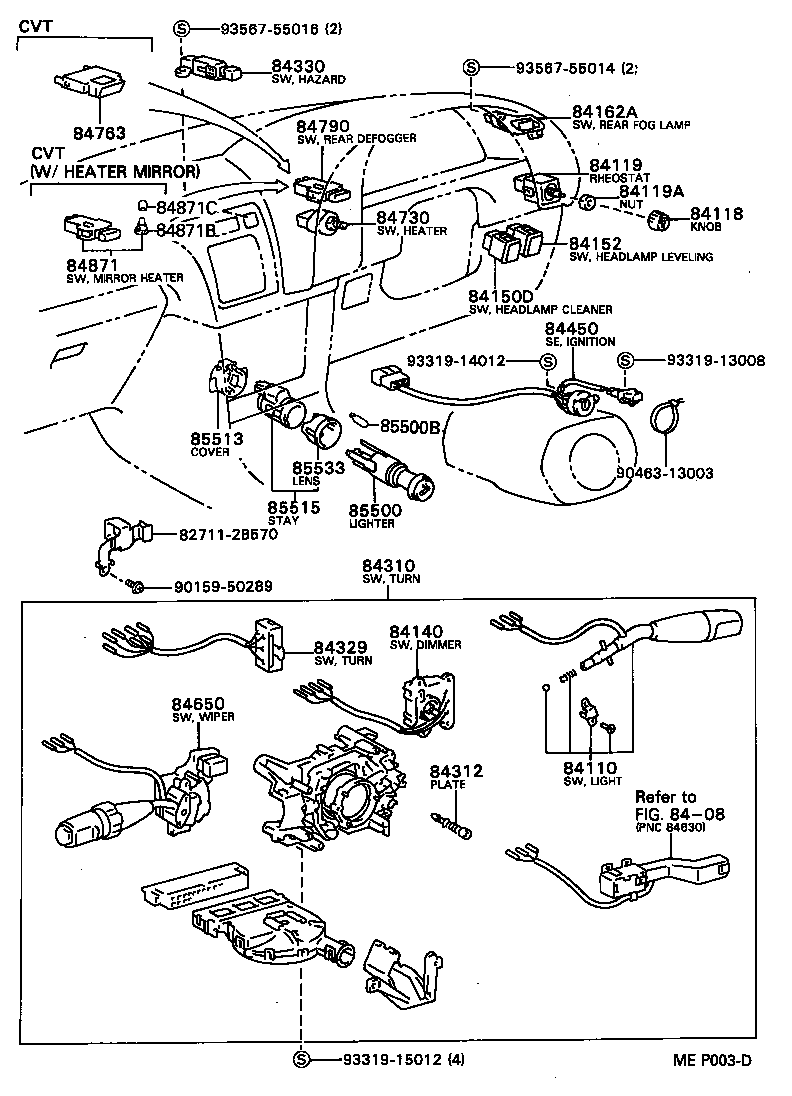

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84110 — Switch Assy, Light Control, NO.1 | ||||
| 84112-80041 |
Switch Assy, Light Control, NO.1
1989-10 → 1993-11
ended
|
ST18# RHD | — | |
| 84112-80043 note |
Switch Assy, Light Control, NO.1
1990-08 → 1993-11
ended
|
ST18# RHD (GTI,TBO4W) | — | |
| 84112-80043 note |
Switch Assy, Light Control, NO.1
1989-10 → 1990-08
ended
|
ST182 RHD | — | |
| 84112-80046 |
Switch Assy, Light Control, NO.1
1989-10 → 1991-08
ended
|
AT180,ST18# LHD | — | |
| 84112-80046 |
Switch Assy, Light Control, NO.1
1991-08 → 1991-09
ended
|
ST182 LHD CVT | — | |
| 84112-80047 note |
Switch Assy, Light Control, NO.1
1989-10 → 1991-08
ended
|
AT180,ST18# LHD | — | |
| 84112-80047 note |
Switch Assy, Light Control, NO.1
1993-01 → 1993-11
ended
|
ST182 CVT | — | |
| 84112-80047 note |
Switch Assy, Light Control, NO.1
1991-08 → 1992-02
ended
|
AT180;ST182 LHD CVT | — | |
| 84112-80047 note |
Switch Assy, Light Control, NO.1
1992-02 → 1993-01
ended
|
AT180,ST18# LHD | — | |
| 84112-80084 note |
Switch Assy, Light Control, NO.1
1992-02 → 1992-08
ended
|
ST18# RHD | — | |
| 84112-80084 note |
Switch Assy, Light Control, NO.1
1992-08 → 1993-01
ended
|
ST182 RHD | — | |
| 84112-80085 note |
Switch Assy, Light Control, NO.1
1992-02 → 1992-08
ended
|
ST18# RHD | — | |
| 84112-80085 note |
Switch Assy, Light Control, NO.1
1992-08 → 1993-01
ended
|
ST182 RHD | — | |
| 84112-80087 note |
Switch Assy, Light Control, NO.1
1992-02 → 1992-08
ended
|
AT180,ST18# LHD (CP,LB) | — | |
| 84112-80087 note |
Switch Assy, Light Control, NO.1
1991-08 → 1992-02
ended
|
AT180 | — | |
| 84112-80087 note |
Switch Assy, Light Control, NO.1
1992-08 → 1993-01
ended
|
AT180,ST182 LHD (CP,LB) | — | |
| 84112-80088 note |
Switch Assy, Light Control, NO.1
1992-02 → 1993-01
ended
|
AT180 LB;AT180 CP G | — | |
| 84112-80088 note |
Switch Assy, Light Control, NO.1
1992-08 → 1993-01
ended
|
ST182 LHD LB | — | |
| 84112-80088 note |
Switch Assy, Light Control, NO.1
1992-02 → 1992-08
ended
|
AT180 CP;ST18# LHD LB | — | |
| 84112-80088 note |
Switch Assy, Light Control, NO.1
1991-08 → 1992-02
ended
|
AT180 | — | |
| 84112-80089 |
Switch Assy, Light Control, NO.1
1991-09 → 1993-11
ended
|
AT180,ST18# LHD | — | |
| 84112-80089 |
Switch Assy, Light Control, NO.1
1991-08 → 1991-09
ended
|
AT180,ST18# LHD (CP,LB) | — | |
| 84112-80165 note |
Switch Assy, Light Control, NO.1
1993-01 → 1993-09
ended
|
AT180,ST18# LHD | — | |
| 84112-80169 note |
Switch Assy, Light Control, NO.1
1993-01 → 1993-11
ended
|
ST182 RHD | — | |
| 84112-80170 note |
Switch Assy, Light Control, NO.1
1993-01 → 1993-11
ended
|
ST182 RHD | — | |
| 84112-80171 note |
Switch Assy, Light Control, NO.1
1993-01 → 1993-09
ended
|
AT180,ST182 LHD (CP,LB) | — | |
| 84112-80172 note |
Switch Assy, Light Control, NO.1
1993-01 → 1993-09
ended
|
AT180 | — | |
| 84112-80172 note |
Switch Assy, Light Control, NO.1
1993-01 → 1993-09
ended
|
ST182 LHD LB | — | |
| 84118 — Knob, Light Control Rheostat | ||||
| 84118-20030 |
Knob, Light Control Rheostat
1989-10 → 1993-11
ended
|
AT180,ST18# | — | |
| 84119 — Rheostat, Light Control | ||||
| 84119-20180 |
Rheostat, Light Control
1989-10 → 1993-11
ended
|
AT180,ST18# | — | |
| 84119A — Bolt OR Nut, Rheostat Control Set | ||||
| 90170-09002 |
Bolt OR Nut, Rheostat Control Set
1989-10 → 1993-11
ended
|
AT180,ST18# | — | |
| 84140 — Switch Assy, Headlamp Dimmer | ||||
| 84140-20350 |
Switch Assy, Headlamp Dimmer
1989-10 → 1991-08
ended
|
AT180,ST18# LHD | — | |
| 84140-20350 |
Switch Assy, Headlamp Dimmer
1991-08 → 1991-09
ended
|
ST182 LHD CVT | — | |
| 84140-20350 note |
Switch Assy, Headlamp Dimmer
1991-08 → 1992-02
ended
|
AT180 | — | |
| 84140-20350 note |
Switch Assy, Headlamp Dimmer
1991-09 → 1992-08
ended
|
ST182 CVT | — | |
| 84140-20350 note |
Switch Assy, Headlamp Dimmer
1992-02 → 1992-08
ended
|
AT180,ST18# LHD (CP,LB) | — | |
| 84140-20350 note |
Switch Assy, Headlamp Dimmer
1992-08 → 1993-11
ended
|
AT180,ST182 LHD (CP,LB) | — | |
| 84140-20350 note |
Switch Assy, Headlamp Dimmer
1992-08 → 1993-11
ended
|
ST182 CVT;ST185 LHD | — | |
| 84140-20370 note |
Switch Assy, Headlamp Dimmer
1992-02 → 1992-08
ended
|
ST18# RHD | — | |
| 84140-20370 note |
Switch Assy, Headlamp Dimmer
1992-08 → 1993-11
ended
|
ST182 RHD | — | |
| 84140-20380 |
Switch Assy, Headlamp Dimmer
1989-10 → 1993-11
ended
|
ST18# RHD | — | |
| 84140-20400 |
Switch Assy, Headlamp Dimmer
1991-08 → 1991-09
ended
|
AT180,ST18# LHD (CP,LB) | — | |
| 84140-20400 |
Switch Assy, Headlamp Dimmer
1991-09 → 1993-11
ended
|
AT180,ST18# LHD | — | |
| 84150D — Switch Assy, Headlamp Cleaner | ||||
| 84150-20030 |
Switch Assy, Headlamp Cleaner
1989-10 → 1993-11
ended
|
AT180,ST18# | — | |
| 84152 — Switch, Headlamp Leveling | ||||
| 84152-20010 note |
Switch, Headlamp Leveling
1989-10 → 1993-11
ended
|
AT180,ST18# LHD (CVT,LB) G | — | |
| 84152-20010 note |
Switch, Headlamp Leveling
1989-10 → 1993-11
ended
|
ST18# RHD | — | |
| 84162A — Switch, Rear Fog Lamp | ||||
| 84160-20120 |
Switch, Rear Fog Lamp
1989-10 → 1993-11
ended
|
ST18# RHD | — | |
| 84160-20130 |
Switch, Rear Fog Lamp
1989-10 → 1993-11
ended
|
AT180,ST18# LHD | — | |
| 84310 — Switch Assy, Turn Signal | ||||
| 84310-2G310 |
Switch Assy, Turn Signal
1990-10 → 1991-09
ended
|
ST182 RHD CVT | — | |
| 84310-2G320 note |
Switch Assy, Turn Signal
1990-10 → 1991-09
ended
|
ST182 RHD CVT | — | |
| 84310-2G330 |
Switch Assy, Turn Signal
1989-10 → 1993-11
ended
|
ST18# RHD LB | — | |
| 84310-2G340 note |
Switch Assy, Turn Signal
1990-08 → 1993-11
ended
|
ST18# RHD LB (GTI,TBO4W) | — | |
| 84310-2G340 note |
Switch Assy, Turn Signal
1989-10 → 1990-08
ended
|
ST182 RHD | — | |
| 84310-2G350 |
Switch Assy, Turn Signal
1989-10 → 1991-08
ended
|
AT180 | — | |
| 84310-2G370 |
Switch Assy, Turn Signal
1990-10 → 1991-09
ended
|
ST182 LHD CVT | — | |
| 84310-2G380 note |
Switch Assy, Turn Signal
1991-08 → 1993-11
ended
|
AT180;ST182 LHD CVT | — | |
| 84310-2G380 note |
Switch Assy, Turn Signal
1990-10 → 1991-08
ended
|
ST182 LHD CVT | — | |
| 84310-2G390 note |
Switch Assy, Turn Signal
1989-10 → 1991-08
ended
|
AT180 LB | — | |
| 84310-2G390 |
Switch Assy, Turn Signal
1989-10 → 1991-08
ended
|
ST18# LHD LB | — | |
| 84310-2G400 note |
Switch Assy, Turn Signal
1992-02 → 1993-11
ended
|
AT180 LB;AT180 CP G | — | |
| 84310-2G400 note |
Switch Assy, Turn Signal
1992-02 → 1993-11
ended
|
ST18# LHD LB | — | |
| 84310-2G400 note |
Switch Assy, Turn Signal
1989-10 → 1991-08
ended
|
AT180 LB | — | |
| 84310-2G400 note |
Switch Assy, Turn Signal
1989-10 → 1991-08
ended
|
ST18# LHD LB | — | |
| 84310-2G410 note |
Switch Assy, Turn Signal
1989-10 → 1991-08
ended
|
AT180 | — | |
| 84310-2H350 note |
Switch Assy, Turn Signal
1991-08 → 1993-11
ended
|
AT180 | — | |
| 84310-2H360 note |
Switch Assy, Turn Signal
1992-02 → 1992-08
ended
|
ST18# LHD LB | — | |
| 84310-2H360 note |
Switch Assy, Turn Signal
1992-02 → 1993-11
ended
|
AT180 LB;AT180 CP G | — | |
| 84310-2H360 note |
Switch Assy, Turn Signal
1992-08 → 1993-11
ended
|
ST182 LHD LB | — | |
| 84310-2H370 note |
Switch Assy, Turn Signal
1992-02 → 1992-08
ended
|
ST18# LHD LB | — | |
| 84310-2H370 note |
Switch Assy, Turn Signal
1992-02 → 1993-11
ended
|
AT180 LB;AT180 CP G | — | |
| 84310-2H370 note |
Switch Assy, Turn Signal
1992-08 → 1993-11
ended
|
ST182 LHD LB | — | |
| 84310-2H400 note |
Switch Assy, Turn Signal
1992-02 → 1992-08
ended
|
ST18# RHD | — | |
| 84310-2H400 note |
Switch Assy, Turn Signal
1992-08 → 1993-11
ended
|
ST182 RHD | — | |
| 84310-2H410 note |
Switch Assy, Turn Signal
1992-08 → 1993-11
ended
|
ST182 RHD | — | |
| 84310-2H410 note |
Switch Assy, Turn Signal
1992-02 → 1992-08
ended
|
ST18# RHD | — | |
| 84310-2H430 note |
Switch Assy, Turn Signal
1991-08 → 1993-11
ended
|
AT180 | — | |
| 84310-2H440 |
Switch Assy, Turn Signal
1991-09 → 1993-11
ended
|
AT180;ST182 CVT | — | |
| 84310-2H440 |
Switch Assy, Turn Signal
1991-08 → 1991-09
ended
|
AT180 | — | |
| 84310-2H450 |
Switch Assy, Turn Signal
1991-08 → 1993-11
ended
|
ST18# LHD LB | — | |
| 84310-2H450 note |
Switch Assy, Turn Signal
1991-08 → 1993-11
ended
|
AT180 LB | — | |
| 84312 — Plate, Horn Contact | ||||
| 84312-12040 |
Plate, Horn Contact
1989-10 → 1991-08
ended
|
AT180,ST18# LHD | — | |
| 84312-12040 |
Plate, Horn Contact
1991-08 → 1991-09
ended
|
ST182 LHD CVT | — | |
| 84312-12040 note |
Plate, Horn Contact
1991-08 → 1992-02
ended
|
AT180 | — | |
| 84312-12040 note |
Plate, Horn Contact
1991-09 → 1992-08
ended
|
ST182 CVT | — | |
| 84312-12040 note |
Plate, Horn Contact
1992-02 → 1992-08
ended
|
ST18# RHD | — | |
| 84312-12040 note |
Plate, Horn Contact
1992-02 → 1992-08
ended
|
AT180,ST18# LHD (CP,LB) | — | |
| 84312-12040 note |
Plate, Horn Contact
1992-08 → 1993-11
ended
|
ST182 RHD | — | |
| 84312-12040 note |
Plate, Horn Contact
1992-08 → 1993-11
ended
|
ST182 CVT;ST185 LHD | — | |
| 84312-12040 note |
Plate, Horn Contact
1992-08 → 1993-11
ended
|
AT180,ST182 LHD (CP,LB) | — | |
| 84312-12050 |
Plate, Horn Contact
1989-10 → 1991-08
ended
|
ST18# RHD | — | |
| 84312-12050 |
Plate, Horn Contact
1991-08 → 1991-09
ended
|
ST182 RHD;AT180,ST185;ST182 LHD LB | — | |
| 84312-12050 |
Plate, Horn Contact
1991-09 → 1993-11
ended
|
AT180,ST18# | — | |
| 84329 — Switch, Turn Signal | ||||
| 84329-20090 |
Switch, Turn Signal
1989-10 → 1993-11
ended
|
ST18# RHD | — | |
| 84329-20110 |
Switch, Turn Signal
1991-08 → 1991-09
ended
|
AT180,ST18# LHD (CP,LB) | — | |
| 84329-20110 |
Switch, Turn Signal
1991-09 → 1993-11
ended
|
AT180,ST18# LHD | — | |
| 84330 — Switch Assy, Hazard Warning Signal | ||||
| 84332-20240 |
Switch Assy, Hazard Warning Signal
1989-10 → 1993-11
ended
|
AT180,ST18# | — | |
| 84450 — Switch Assy, Ignition OR Starter | ||||
| 84450-20200 |
Switch Assy, Ignition OR Starter
1989-10 → 1992-08
ended
|
AT180,ST182 | — | |
| 84450-20200 |
Switch Assy, Ignition OR Starter
1992-08 → 1993-11
ended
|
AT180,ST182 LHD | — | |
| 84450-20210 note |
Switch Assy, Ignition OR Starter
1991-08 → 1991-09
ended
|
ST182 LB | — | |
| 84450-20210 note |
Switch Assy, Ignition OR Starter
1992-08 → 1993-11
ended
|
AT180,ST182 LHD | — | |
| 84450-20210 |
Switch Assy, Ignition OR Starter
1992-08 → 1993-11
ended
|
ST185;ST182 RHD | — | |
| 84450-20210 note |
Switch Assy, Ignition OR Starter
1991-09 → 1992-08
ended
|
ST182 | — | |
| 84450-20210 |
Switch Assy, Ignition OR Starter
1989-10 → 1992-08
ended
|
ST185 | — | |
| 84450-20210 note |
Switch Assy, Ignition OR Starter
1991-08 → 1991-09
ended
|
ST182 CVT | — | |
| 84450-20210 note |
Switch Assy, Ignition OR Starter
1989-10 → 1991-08
ended
|
ST182 | — | |
| 84650 — Switch Assy, Windshield Wiper | ||||
| 84652-2D210 |
Switch Assy, Windshield Wiper
1990-10 → 1991-09
ended
|
ST182 LHD CVT | — | |
| 84652-2D210 note |
Switch Assy, Windshield Wiper
1991-08 → 1991-09
ended
|
AT180 | — | |
| 84652-2D210 note |
Switch Assy, Windshield Wiper
1991-09 → 1993-11
ended
|
AT180;ST182 CVT | — | |
| 84652-2D220 |
Switch Assy, Windshield Wiper
1989-10 → 1991-08
ended
|
ST18# LHD LB | — | |
| 84652-2D220 note |
Switch Assy, Windshield Wiper
1989-10 → 1991-08
ended
|
AT180 LB | — | |
| 84652-2D220 note |
Switch Assy, Windshield Wiper
1992-02 → 1993-11
ended
|
AT180 LB;AT180 CP G | — | |
| 84652-2D220 note |
Switch Assy, Windshield Wiper
1992-02 → 1993-11
ended
|
ST18# LHD LB | — | |
| 84652-2D270 |
Switch Assy, Windshield Wiper
1990-10 → 1991-09
ended
|
ST182 RHD CVT | — | |
| 84652-2D290 |
Switch Assy, Windshield Wiper
1989-10 → 1993-11
ended
|
ST18# RHD LB | — | |
| 84652-2D300 |
Switch Assy, Windshield Wiper
1989-10 → 1991-08
ended
|
AT180 | — | |
| 84652-2D840 note |
Switch Assy, Windshield Wiper
1992-02 → 1992-08
ended
|
ST18# RHD | — | |
| 84652-2D840 note |
Switch Assy, Windshield Wiper
1992-08 → 1993-11
ended
|
ST182 RHD | — | |
| 84652-2D880 note |
Switch Assy, Windshield Wiper
1991-08 → 1993-11
ended
|
AT180 | — | |
| 84652-2D890 note |
Switch Assy, Windshield Wiper
1992-02 → 1993-11
ended
|
AT180 LB;AT180 CP G | — | |
| 84652-2D890 note |
Switch Assy, Windshield Wiper
1992-08 → 1993-11
ended
|
ST182 LHD LB | — | |
| 84652-2D890 note |
Switch Assy, Windshield Wiper
1992-02 → 1992-08
ended
|
ST18# LHD LB | — | |
| 84652-33030 |
Switch Assy, Windshield Wiper
1991-09 → 1993-11
ended
|
AT180;ST182 CVT | — | |
| 84652-33030 |
Switch Assy, Windshield Wiper
1991-08 → 1991-09
ended
|
AT180 | — | |
| 84652-33270 |
Switch Assy, Windshield Wiper
1991-08 → 1993-11
ended
|
ST18# LHD LB | — | |
| 84652-33270 note |
Switch Assy, Windshield Wiper
1991-08 → 1993-11
ended
|
AT180 LB | — | |
| 84730 — Switch Assy, Heater Blower | ||||
| 84732-20260 |
Switch Assy, Heater Blower
1989-10 → 1993-11
ended
|
AT180,ST18# LHD | — | |
| 84732-20300 |
Switch Assy, Heater Blower
1989-10 → 1993-11
ended
|
ST18# RHD | — | |
| 84763 — Plate, Switch | ||||
| 84763-20020 |
Plate, Switch
1990-10 → 1991-09
ended
|
ST182 RHD CVT | — | |
| 84763-20020 |
Plate, Switch
1991-09 → 1993-11
ended
|
ST182 CVT | — | |
| 84790 — Switch Assy, Rear Window Defogger | ||||
| 84790-20290 |
Switch Assy, Rear Window Defogger
1989-10 → 1993-11
ended
|
AT180,ST18# CP,LB | — | |
| 84871 — Switch Assy, Outer Mirror Heater | ||||
| 84871-20030 |
Switch Assy, Outer Mirror Heater
1990-10 → 1993-11
ended
|
ST182 LHD CVT | — | |
| 84871B — Bulb, Outer Mirror Heater Switch | ||||
| 84999-10410 note |
Bulb, Outer Mirror Heater Switch
1990-10 → 1993-11
ended
|
ST182 LHD CVT | — | |
| 84999-10450 note |
Bulb, Outer Mirror Heater Switch
1990-10 → 1993-11
ended
|
ST182 LHD CVT | — | |
| 84871C — Cap | ||||
| 84998-10060 note |
Cap
1990-10 → 1991-09
ended
|
ST182 LHD CVT | — | |
| 84998-10060 note |
Cap
1991-09 → 1993-11
ended
|
ST182 CVT | — | |
| 84998-10560 note |
Cap
1990-10 → 1991-09
ended
|
ST182 LHD CVT | — | |
| 84998-10560 note |
Cap
1991-09 → 1993-11
ended
|
ST182 CVT | — | |
| 85500 — Lighter Assy, Cigarette | ||||
| 85500-30410 |
Lighter Assy, Cigarette
1989-10 → 1993-11
ended
|
AT180,ST18# | — | |
| 85500B — Bulb, Cigarette Lighter | ||||
| 84999-10250 note |
Bulb, Cigarette Lighter
1989-10 → 1993-11
ended
|
AT180,ST18# | — | |
| 85513 — Cover, Cigarette Lighter | ||||
| 85513-12020 |
Cover, Cigarette Lighter
1989-10 → 1993-11
ended
|
AT180,ST18# | — | |
| 85515 — Stay, Cigarette Lighter Bezel | ||||
| 85515-20040 |
Stay, Cigarette Lighter Bezel
1989-10 → 1993-11
ended
|
AT180,ST18# | — | |
| 85533 — Lens, Cigarette Lighter Indicator | ||||
| 85533-30020 |
Lens, Cigarette Lighter Indicator
1989-10 → 1993-11
ended
|
AT180,ST18# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
