Toyota Corona

1973-08 → 1979-05 · chassis RT10#,11# · catalogue 261230 · Europe

Discontinued model Data version 1979-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

46 part groups · 8 illustrations

Illustrations

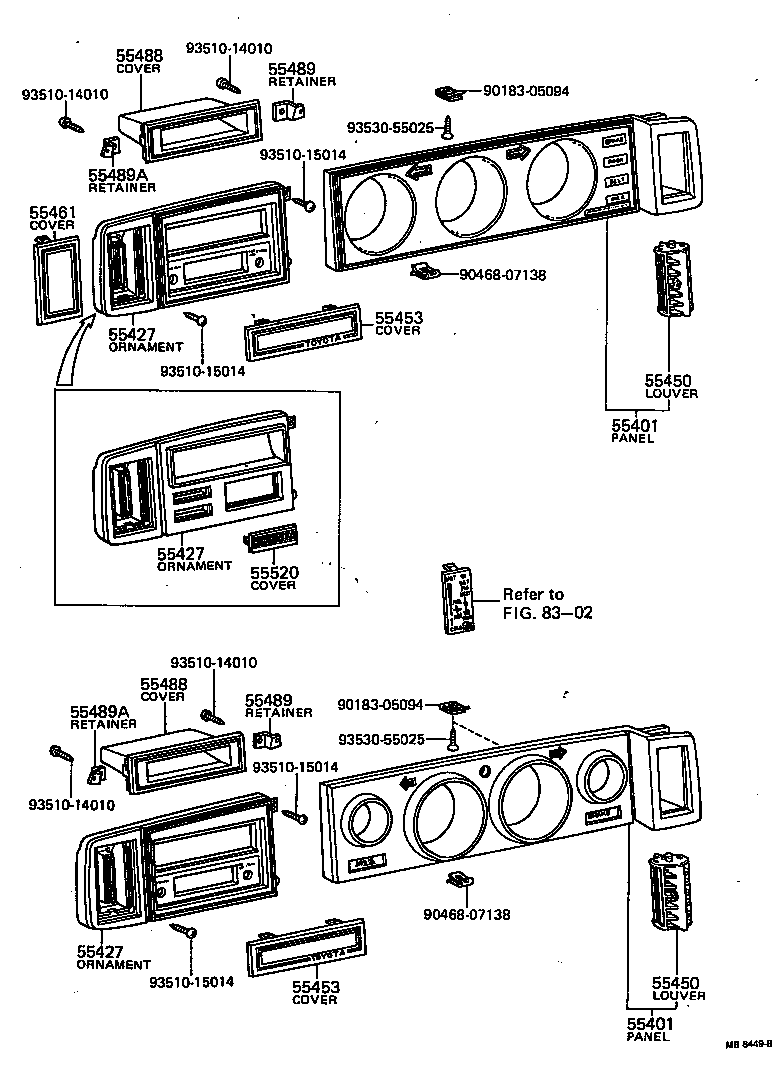

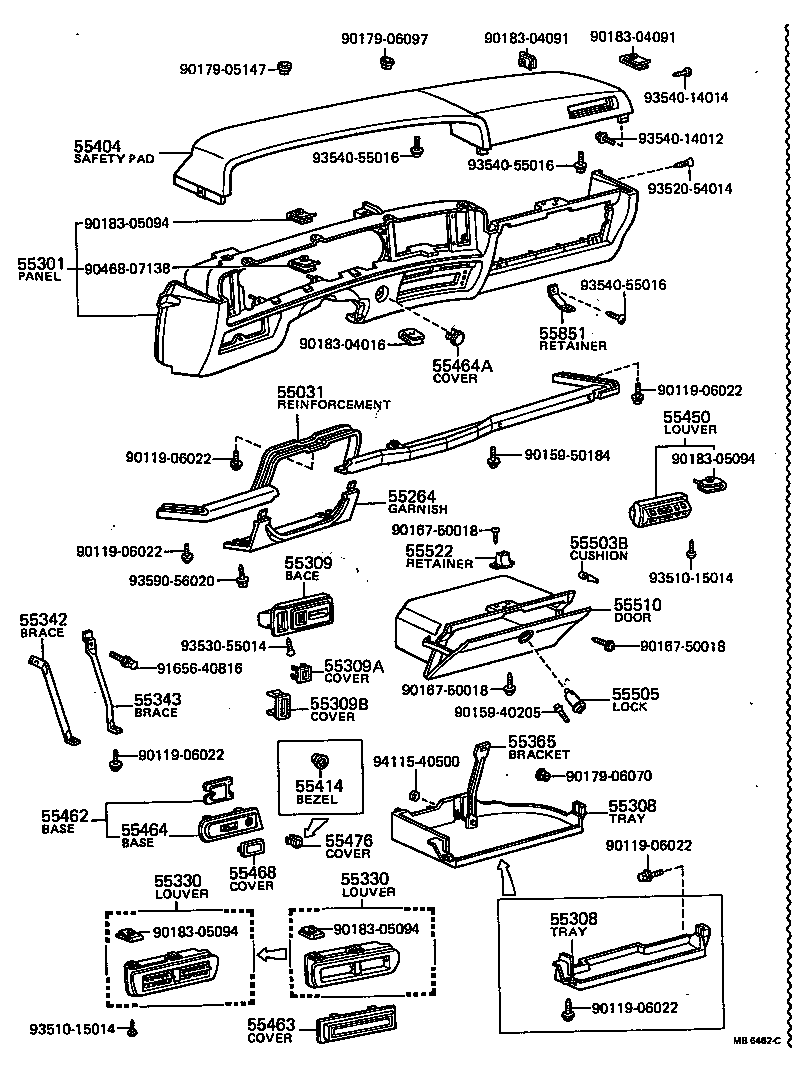

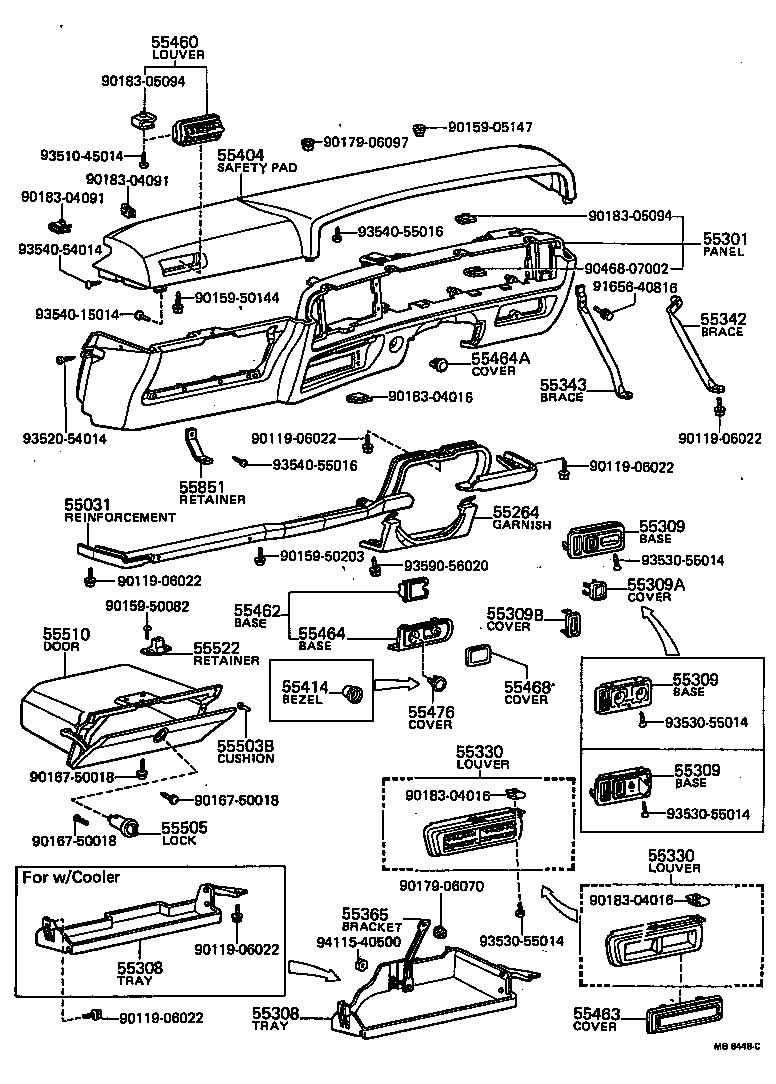

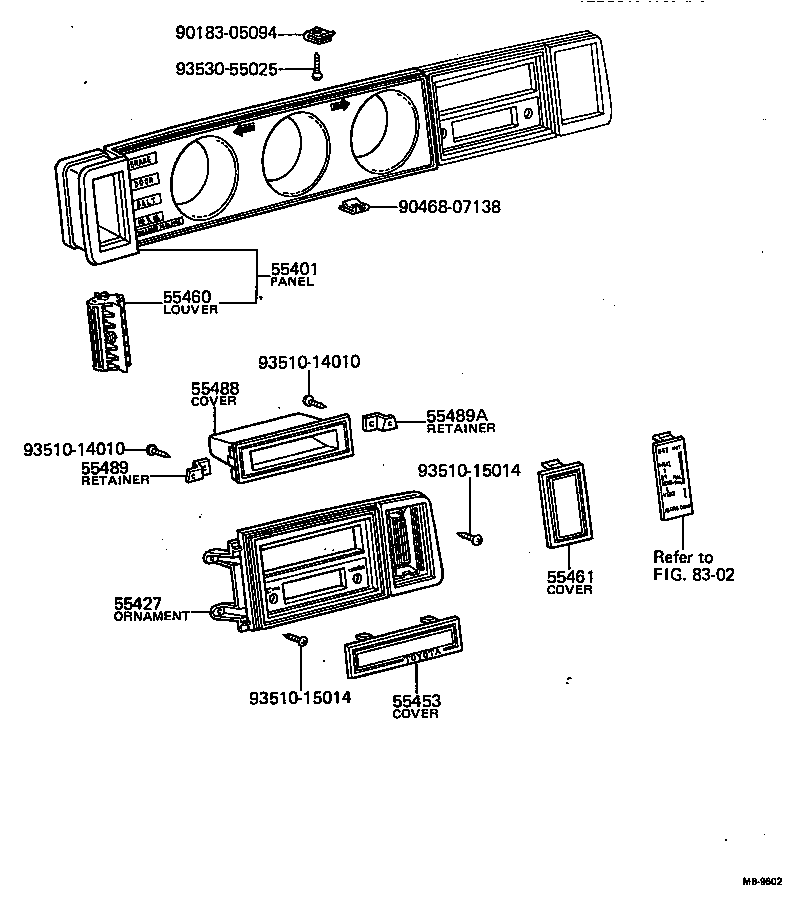

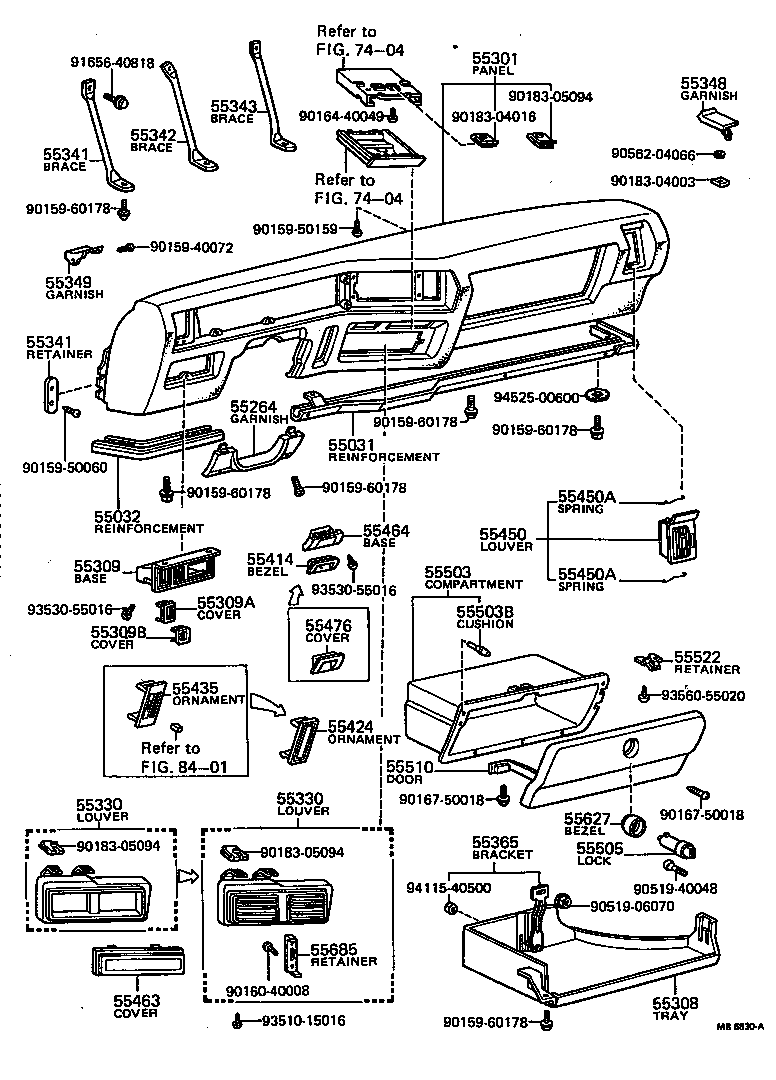

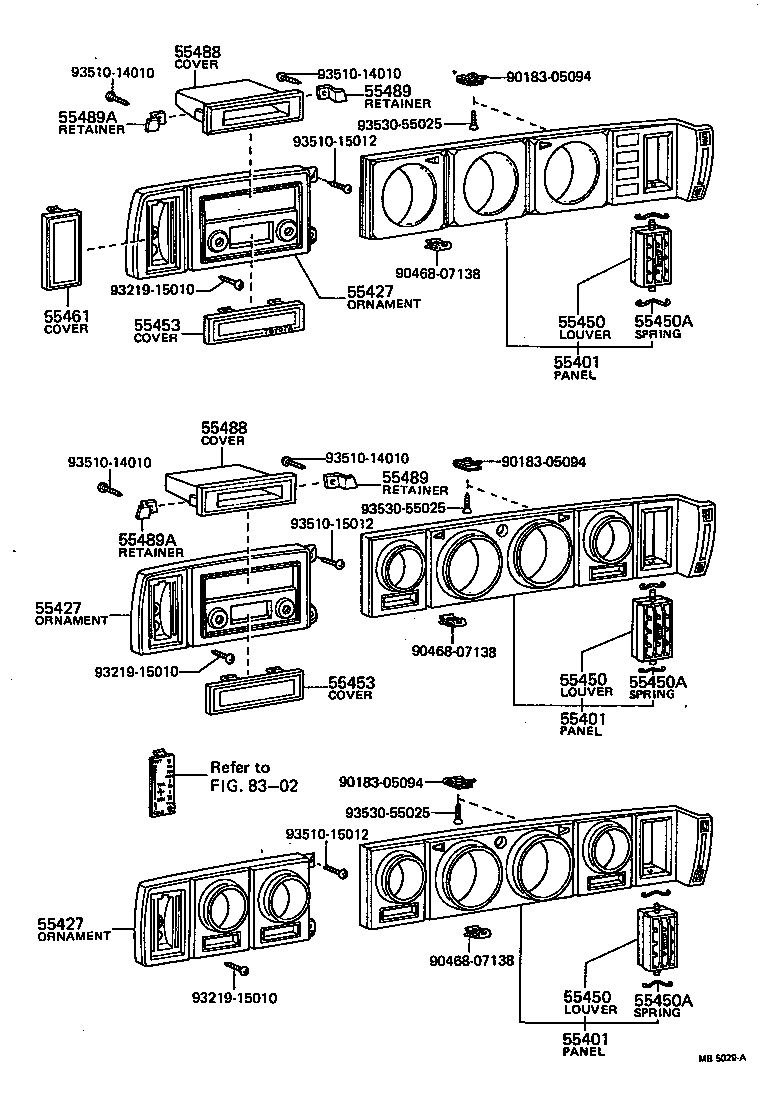

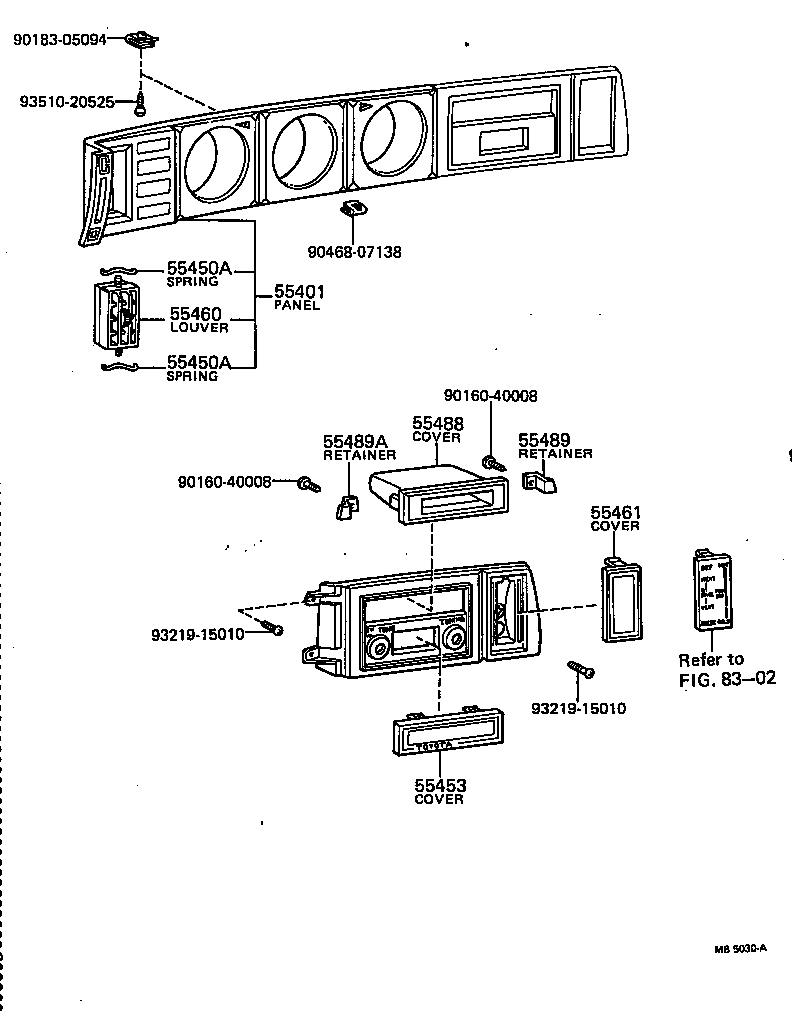

Figure MB5049B MB5049B 1973-08 → 1977-01 Figure MB6448C MB6448C 1977-01 → 1979-05 Figure MB5029A MB5029A 1973-08 → 1977-01 Figure MB6449B MB6449B 1977-01 → 1979-05 Figure MB6830A MB6830A 1973-08 → 1977-01 Figure MB6462C MB6462C 1977-01 → 1979-05 Figure MB5030A MB5030A 1973-08 → 1977-01 Figure MB9602 MB9602 1977-01 → 1979-05

Part groups

PNCDescription
55031 Reinforcement, Instrument Panel, NO.1
55032 Reinforcement, Instrument Panel, NO.2
55264 Garnish, Steering Column
55301 Panel Sub-assy, Instrument
55308 Tray Sub-assy, Instrument Panel Under
55309 Base Sub-assy, Switch
55309A Cover, Base Switch Hole, NO.1
55309B Cover, Base Switch Hole, NO.2
55314 Retainer, Instrument Panel Side
55330 Louver Assy, Center Ventilator
55341 Brace, Instrument Panel, NO.1
55342 Brace, Instrument Panel, NO.2
55343 Brace, Instrument Panel, NO.3
55348 Garnish, Instrument Panel Side, RH
55349 Garnish, Instrument Panel Side, LH
55365 Bracket, Instrument Panel Under Tray
55401 Panel Sub-assy, Instrument Cluster Finish
55404 Safety Pad Sub-assy, Instrument Panel, Upper
55414 Bezel, Cigar Lighter Hole
55424 Ornament, Choke Control
55424A Ornament, Choke Control
55427 Ornament, Instrument Panel, Center
55435 Ornament, Light Control
55450 Louver Assy, Side Ventilator, RH
55450A Spring, Side Ventilator Louver
55453 Cover, Radio Tuner Opening
55460 Louver Assy, Side Ventilator, LH
55461 Cover, Heater Control Hole
55462 Base Sub-assy, Ciger Lighter Hole
55463 Cover, Center Ventilator
55464 Base, Cigarette Lighter
55464A Cover, Choke Knob Hole
55468 Cover, Heater Switch Hole
55476 Cover, Cigarette Lighter Hole
55488 Cover, Stereo Opening
55489 Retainer, Stereo Opening Cover, NO.1
55489A Retainer, Stereo Opening Cover, NO.2
55503 Compartment Sub-assy, Glove
55503B Cushion(FOR GLOVE COMPARTMENT)
55505 Lock Sub-assy, Glove Compartment Door
55510 Door Assy, Glove Compartment
55520 Cover Assy, OK Monitor Opening
55522 Retainer, Glove Compartment Male
55627 Bezel, Glove Compartment Door Lock
55685 Retainer,Air Guide Blade Case, Center NO.1
55851 Retainer, Air Duct NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
