Toyota Corona
1978-09 → 1983-01 · chassis TT13#,RT13#,XT130 · catalogue 261240 · Europe
Discontinued model
Data version 1983-12

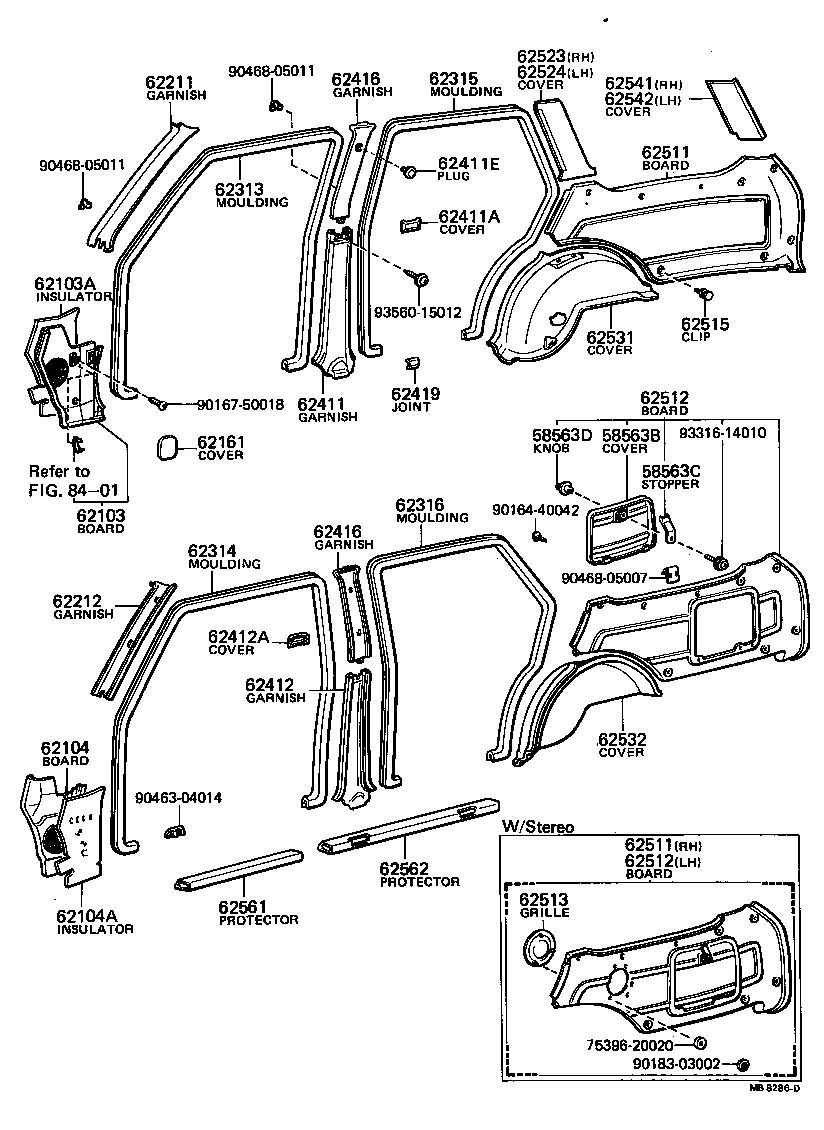

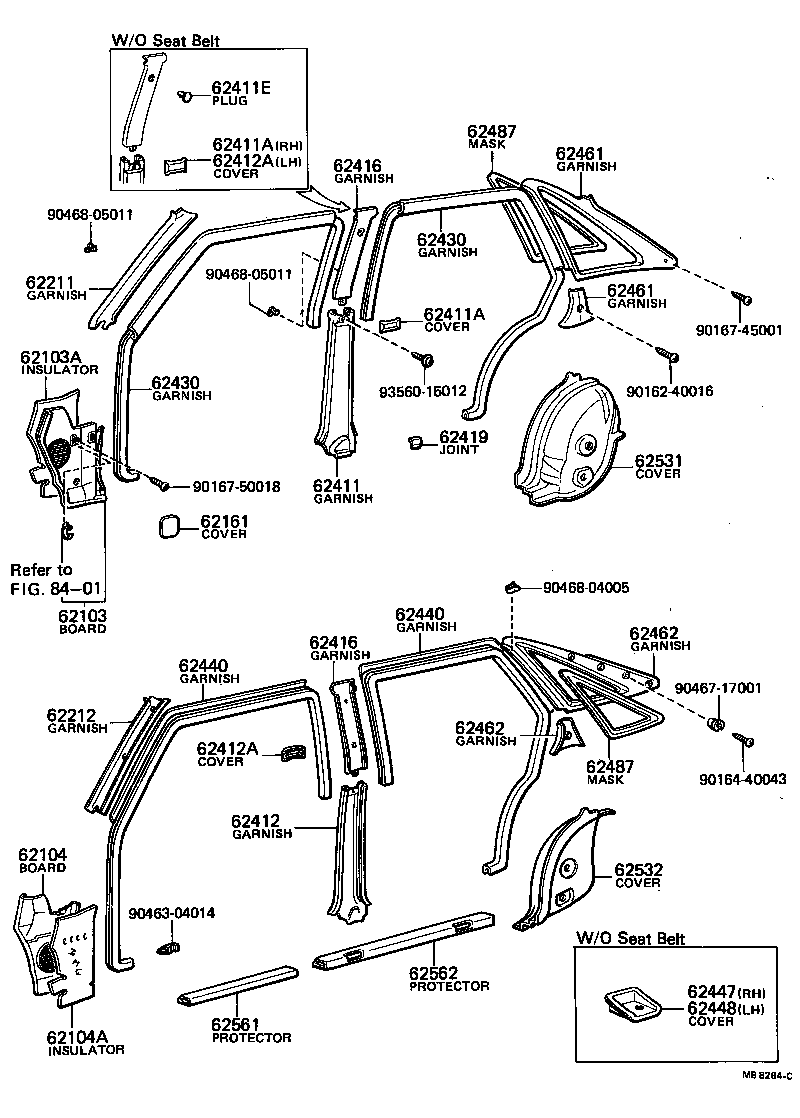

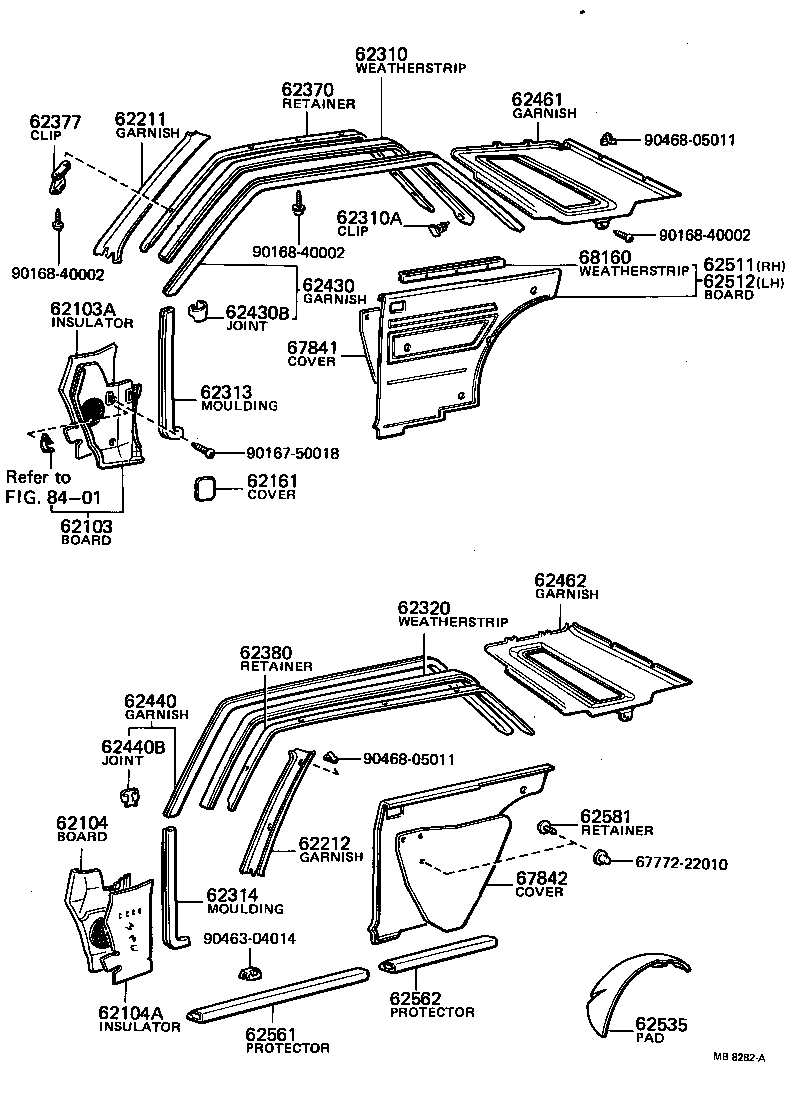

Inside Trim Board & Door Opening Trim Moulding
58 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 58563B | Cover, Jack |
| 58563C | Stopper, Jack Cover |
| 58563D | Knob, Jack Cover |
| 62103 | Board Sub-assy, Cowl Side Trim, RH |
| 62103A | Insulator Sub-assy, Cowl Side, RH |
| 62104 | Board Sub-assy, Cowl Side Trim, LH |
| 62104A | Insulator Sub-assy, Cowl Side, LH |
| 62161 | Cover, Cowl Side Trim Service Hole, Upper |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62310 | Weatherstrip, Roof Side Rail, RH |
| 62310A | Clip, Roof Side Rail Weatherstrip |
| 62313 | Moulding, Front Door Opening Trim, RH |
| 62314 | Moulding, Front Door Opening Trim, LH |
| 62315 | Moulding, Rear Door Opening Trim, RH |
| 62316 | Moulding, Rear Door Opening Trim, LH |
| 62320 | Weatherstrip, Roof Side Rail, LH |
| 62370 | Retainer Assy, Roof Side Rail Weatherstrip, RH |
| 62377 | Clip, Door Window Glass |
| 62380 | Retainer Assy, Roof Side Rail Weatherstrip, LH |
| 62411 | Garnish, Center Pillar, RH |
| 62411A | Cover, Center Pillar Garnish Belt Hole, RH |
| 62411E | Plug, Hole (FOR SEAT BELT) |
| 62412 | Garnish, Center Pillar, LH |
| 62412A | Cover, Center Pillar Garnish Belt Hole, LH |
| 62416 | Garnish, Center Pillar, Upper |
| 62419 | Joint, Center Pillar Garnish |
| 62430 | Garnish Assy, Roof Side Rail, RH |
| 62430B | Joint, Roof Side Rail Garnish, RH |
| 62440 | Garnish Assy, Roof Side Rail, LH |
| 62440B | Joint, Roof Side Rail Garnish, LH |
| 62447 | Cover, Roof Side Inner Belt Anchor, RH |
| 62448 | Cover, Roof Side Inner Belt Anchor, LH |
| 62461 | Garnish, Roof Side Trim, RH |
| 62461A | Garnish, Rear Window Side, RH |
| 62462 | Garnish, Roof Side Trim, LH |
| 62462A | Garnish, Rear Window Side, LH |
| 62487 | Mask, Roof Side Inner Garnish Moulding |
| 62510A | Clip, Back Window Side Garnish Cover |
| 62511 | Board, Quarter Inside Trim, RH |
| 62512 | Board, Quarter Inside Trim, LH |
| 62513 | Grille, Speaker, Side |
| 62515 | Clip, Quarter Inside Trim |
| 62523 | Cover, Rear Pillar Upper Garnish, RH |
| 62524 | Cover, Rear Pillar Upper Garnish, LH |
| 62531 | Cover, Wheel House Trim, RH |
| 62532 | Cover, Wheel House Trim, LH |
| 62535 | Pad, Quarter Wheel House Trim |
| 62541 | Cover, Quarter Pillar Upper Garnish, RH |
| 62542 | Cover, Quarter Pillar Upper Garnish, LH |
| 62561 | Protector, Rocker Panel, Inner Front |
| 62562 | Protector, Rocker Panel, Inner Rear |
| 62565 | Garnish, Rear Seat Side, RH |
| 62566 | Garnish, Rear Seat Side, LH |
| 62581 | Retainer, Quarter Trim |
| 67841 | Cover, Quarter Service Hole, NO.1 RH |
| 67842 | Cover, Quarter Service Hole, NO.1 LH |
| 68160 | Weatherstrip Assy, Rear Quarter, Inner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
