Toyota Corona

1978-09 → 1983-01 · chassis TT13#,RT13#,XT130 · catalogue 261240 · Europe

Discontinued model Data version 1983-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

21 part groups · 4 illustrations

Illustrations

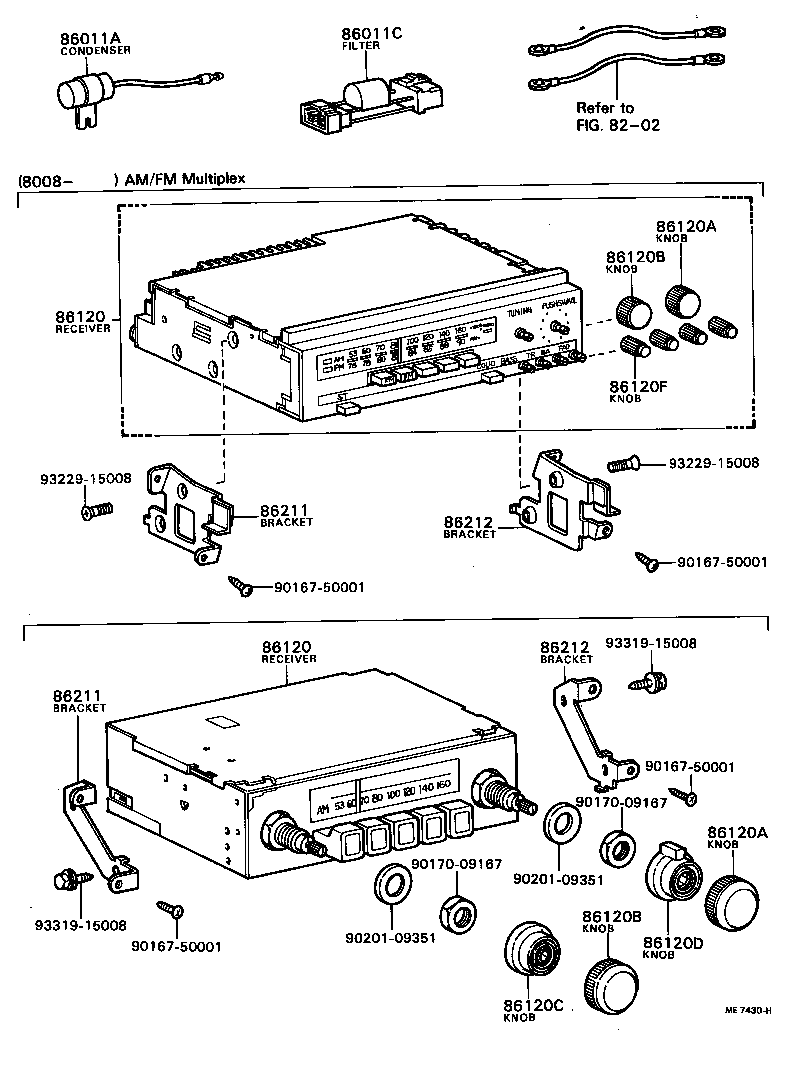

Figure ME7429D ME7429D 1978-09 → 1980-08 Figure ME7430H ME7430H 1978-09 → — Figure MEA907A MEA907A 1980-08 → — Figure ME7431A ME7431A 1978-09 → —

Part groups

PNCDescription
86011 Radio & Setting Parts Set
86011A Condenser, Radio Setting
86011C Filter, Noise
86021 Tape Player And Setting Parts Set
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86120B Knob, Radio Receiver Tuning, NO.1
86120C Knob, Radio Receiver Tuning, NO.2
86120D Knob, Radio Receiver Tone
86120F Knob, Radio Receiver Sub Volume
86203 Wire, Radio
86203C Wire, Tape Player
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86260 Tape Player Assy
86265 Bracket, Tape Player, NO.1
86266 Bracket, Tape Player, NO.2
86267 Bracket, Tape Player, NO.3
86268 Bracket, Tape Player, NO.4
86280 Amplifier Assy, Stereo Component
86280B Knob, Amplifier Graphic Equalizer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
