Toyota Carina E (UKP)

1992-12 → 1997-10 · chassis AT19#,ST191,CT190 · catalogue 273530 · Europe

Discontinued model Data version 1997-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

45 part groups · 12 illustrations

Illustrations

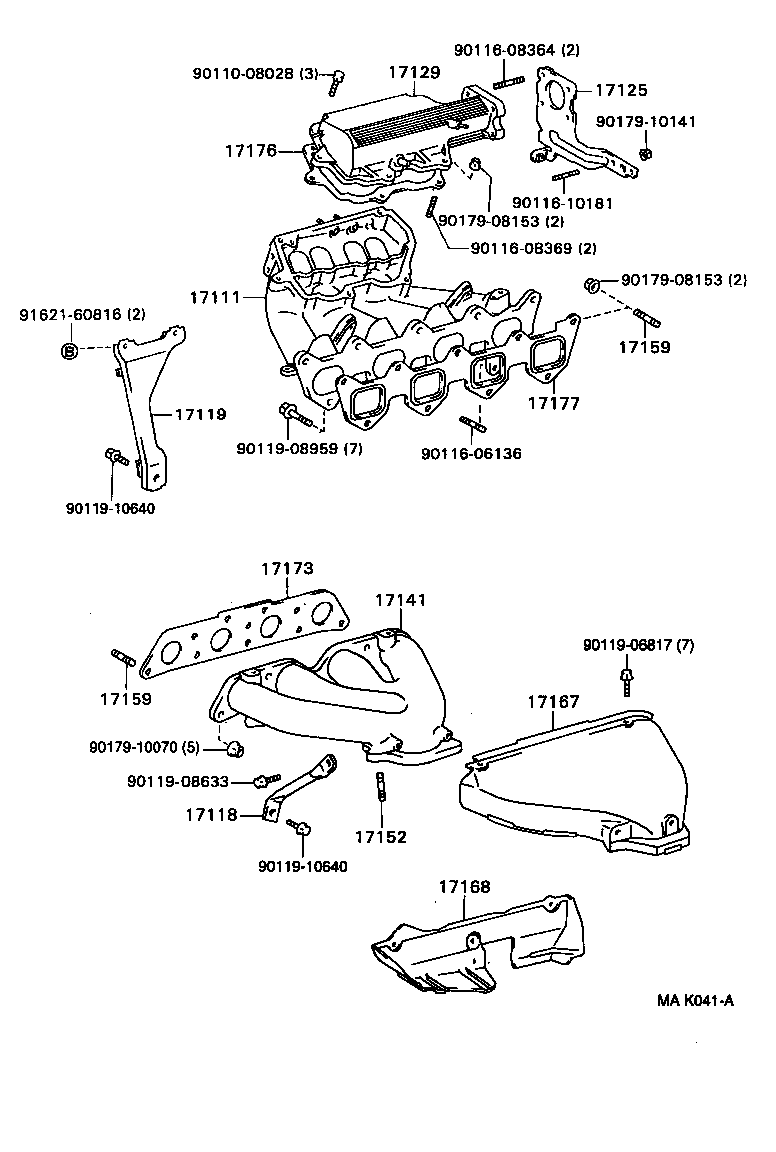

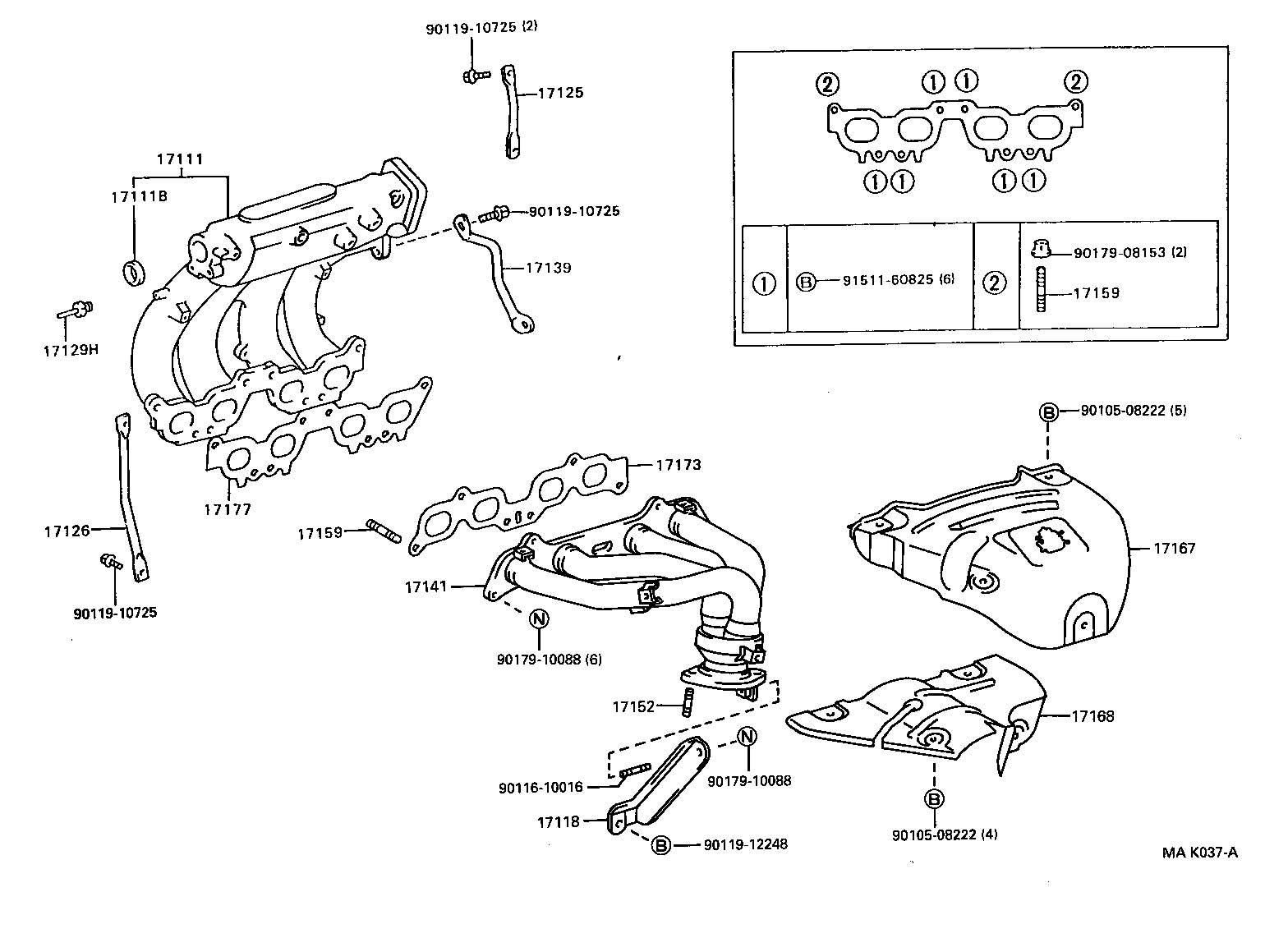

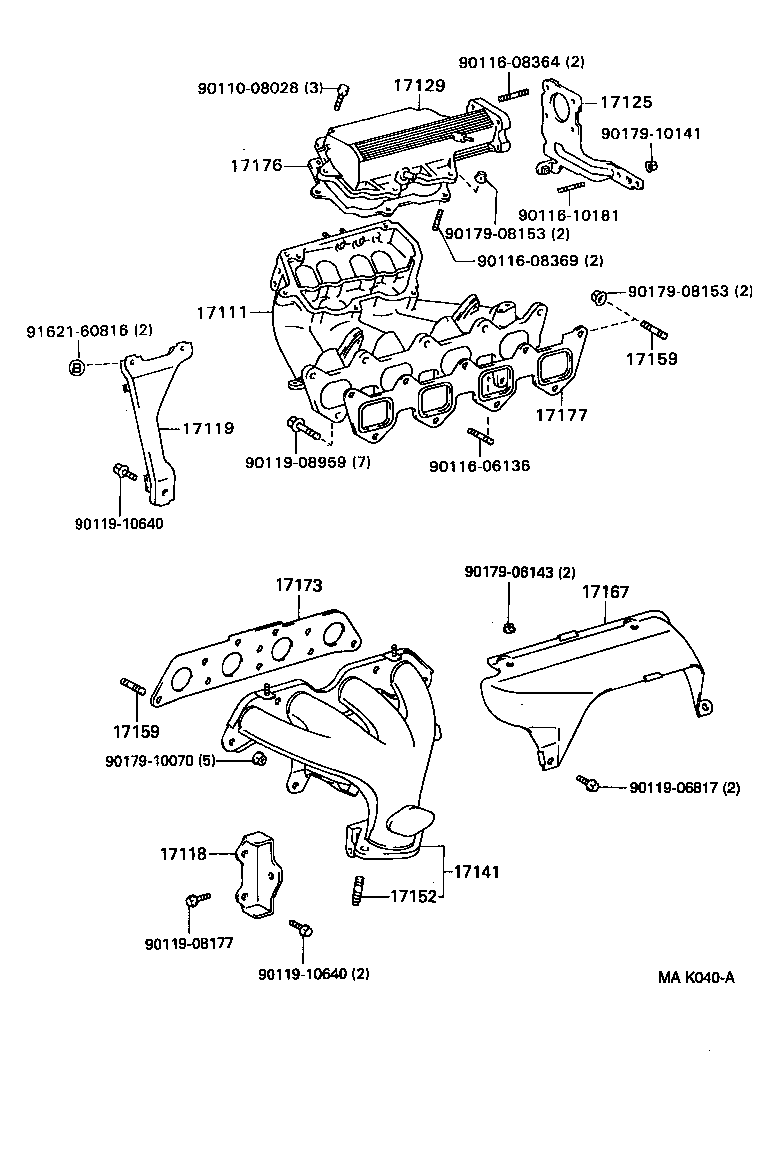

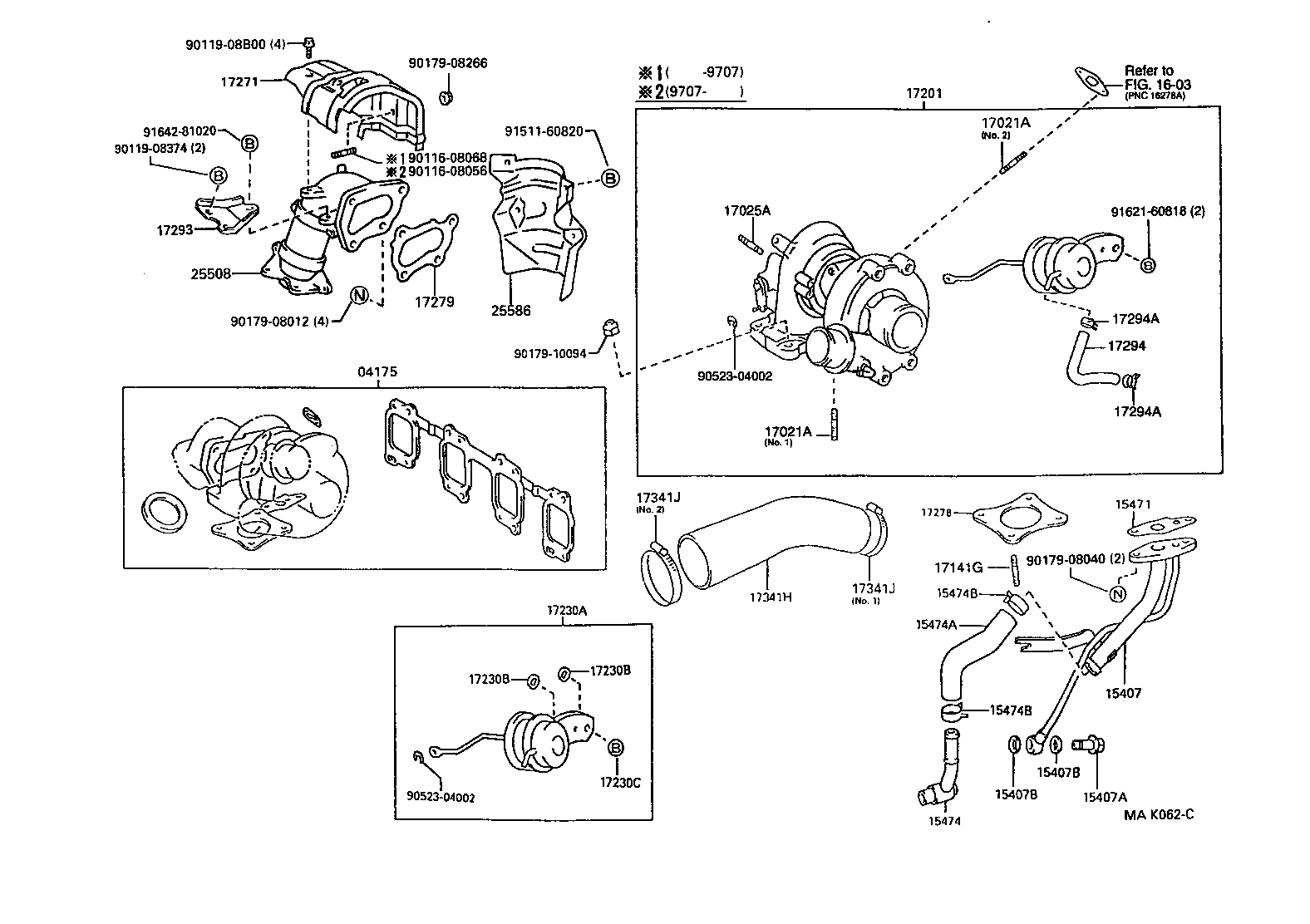

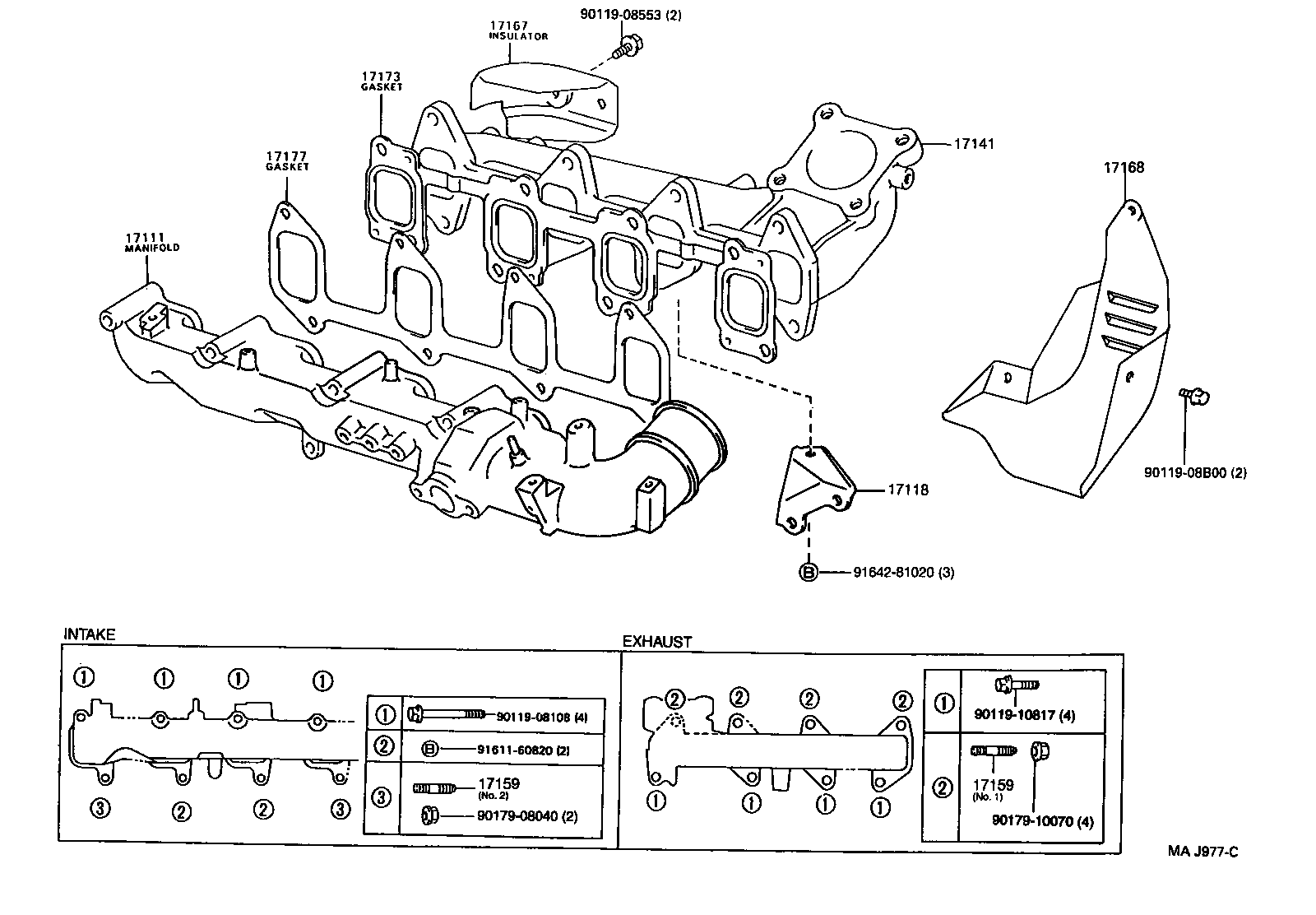

Figure MAF660D MAF660D 1992-02 → 1996-01 Figure MAF670D MAF670D 1992-02 → 1994-12 Figure MAF670D MAF670D 1994-11 → 1996-01 Figure MAH589B MAH589B 1994-11 → — Figure MAH589B MAH589B 1994-12 → — Figure MAK040A MAK040A 1996-01 → — Figure MAK041A MAK041A 1996-01 → — Figure MAF592A MAF592A 1992-02 → 1996-01 Figure MAJ977C MAJ977C 1996-01 → — Figure MAK062C MAK062C 1996-01 → — Figure MAG263D MAG263D 1992-02 → 1996-01 Figure MAK037A MAK037A 1996-01 → —

Part groups

PNCDescription
04175 Gasket Kit, Turbocharger
15407 Pipe Sub-assy, Turbo Oil Inlet
15407A Bolt, Union(FOR TURBO OIL INLET PIPE)
15407B Gasket(FOR TURBO OIL INLET PIPE)
15471 Gasket, Turbo Oil Inlet
15474 Pipe, Turbo Oil Outlet
15474A Hose, Turbo Oil Outlet
15474B Clamp OR Clip(FOR TURBO OIL OUTLET HOSE)
17021A Bolt, Stud(FOR BEARING HOUSING)
17025A Bolt, Stud(FOR TURBINE HOUSING)
17111 Manifold, Intake
17111A Plug, NO.1
17111B Plug, NO.2
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17125 Stay, Surge Tank, NO.1
17126 Stay, Surge Tank, NO.2
17129 Tank, Intake Air Surge
17129H Union, NO.4
17139 Stay, Manifold, NO.2
17141 Manifold, Exhaust
17141G Bolt, Stud(FOR TURBOCHARGER)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
17179A Gasket, Intake Manifold, NO.2
17201 Turbocharger Sub-assy
17230A Repair Actuaor Assy, W/Bracket
17230B Washer, Plate(FOR REPAIR ACTUATOR SET)
17230C Bolt, W/Washer(FOR REPAIR ACTUATOR SET)
17271 Insulator, Turbo, NO.1
17278 Gasket, Turbo TO Exhaust Manifold
17279 Gasket, Turbine Outlet Elbow
17293 Stay, Turbocharger
17294 Hose, Actuator
17294A Clip(FOR ACTUATOR HOSE)
17300 Valve Assy, Intake Air Control
17341H Hose, Air
17341J Clamp, Hose
25508 Converter Sub-assy, Manifold
25586 Insulator, Manifold Converter, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
