Toyota Camry (JPP)

1988-08 → 1991-06 · chassis SV2#,VZV21 · catalogue 281440 · Europe

Discontinued model Data version 1992-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Drive Shaft

37 part groups · 14 illustrations

Illustrations

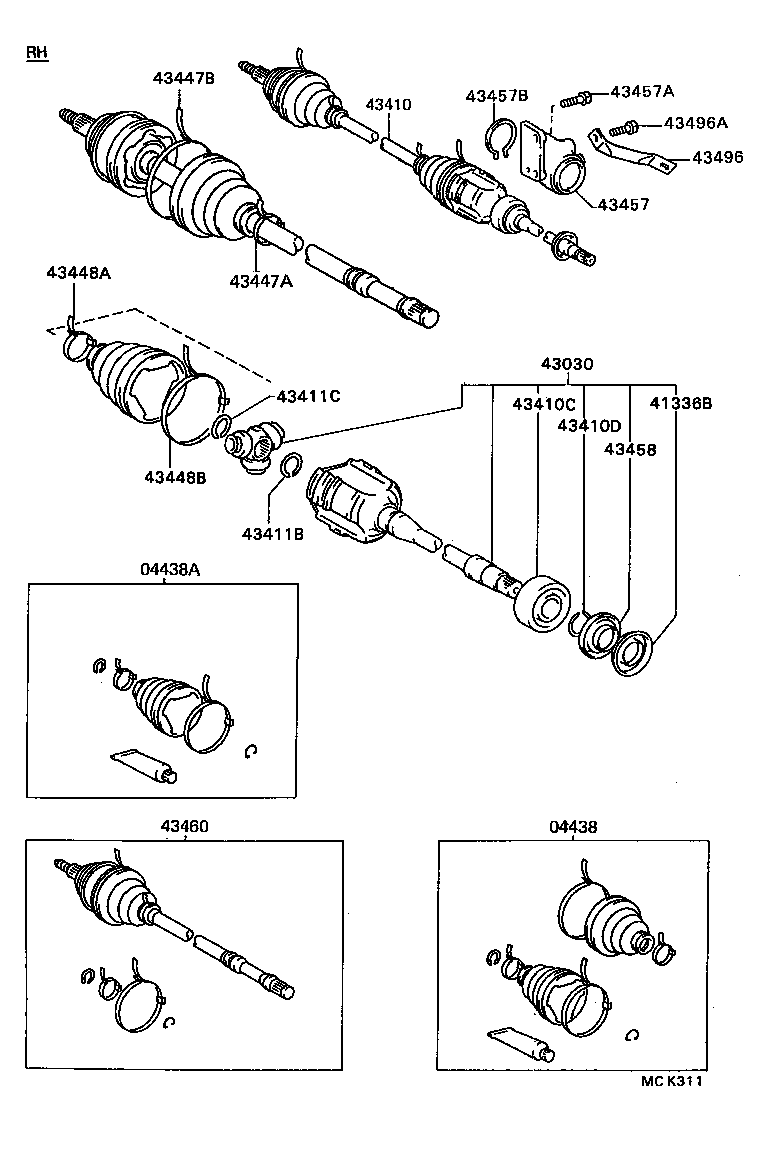

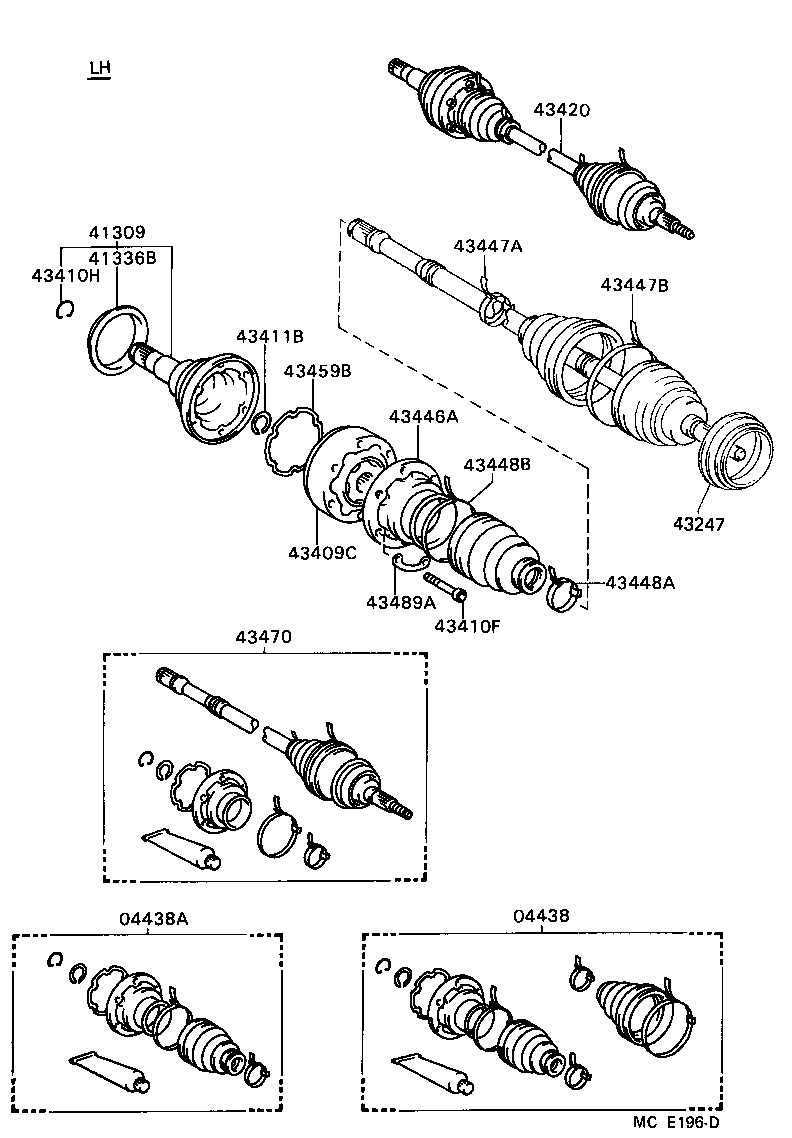

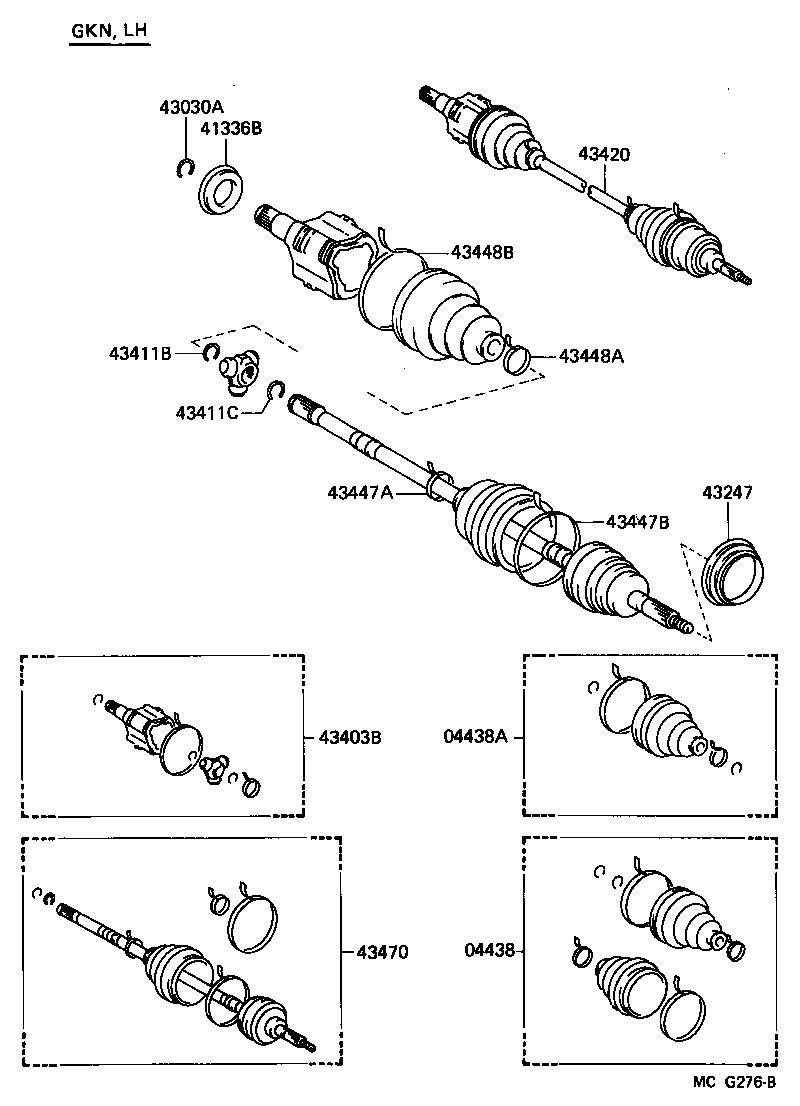

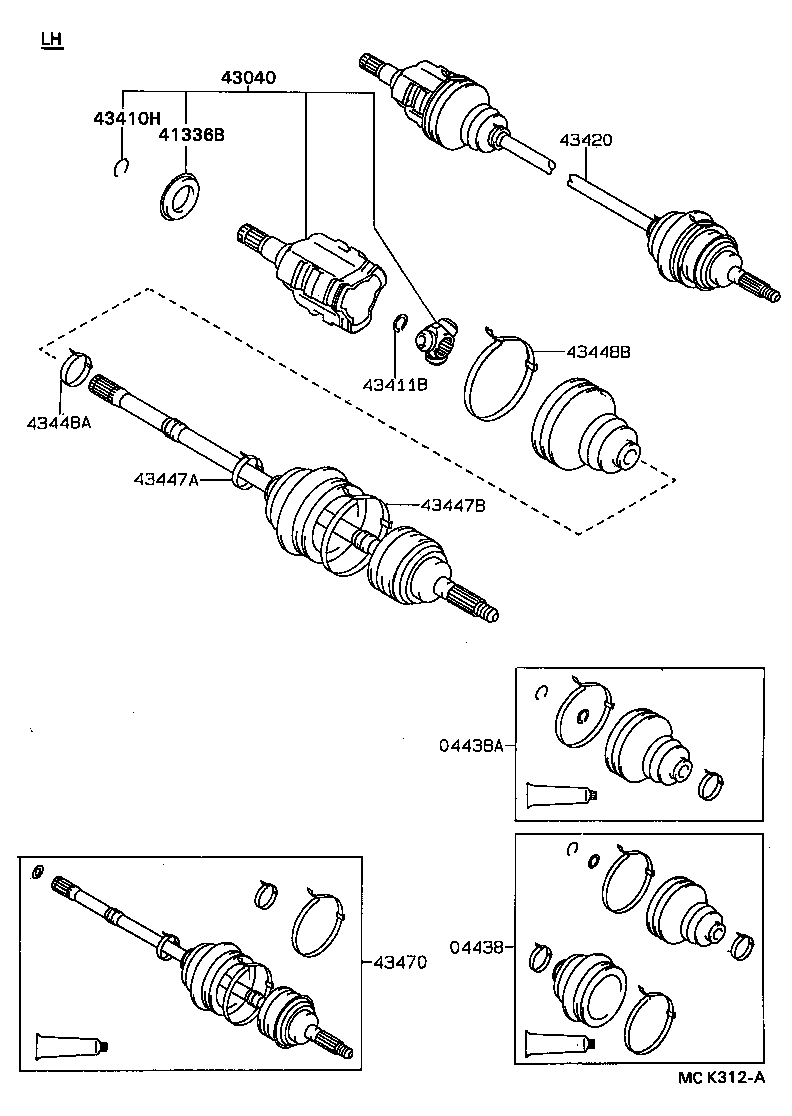

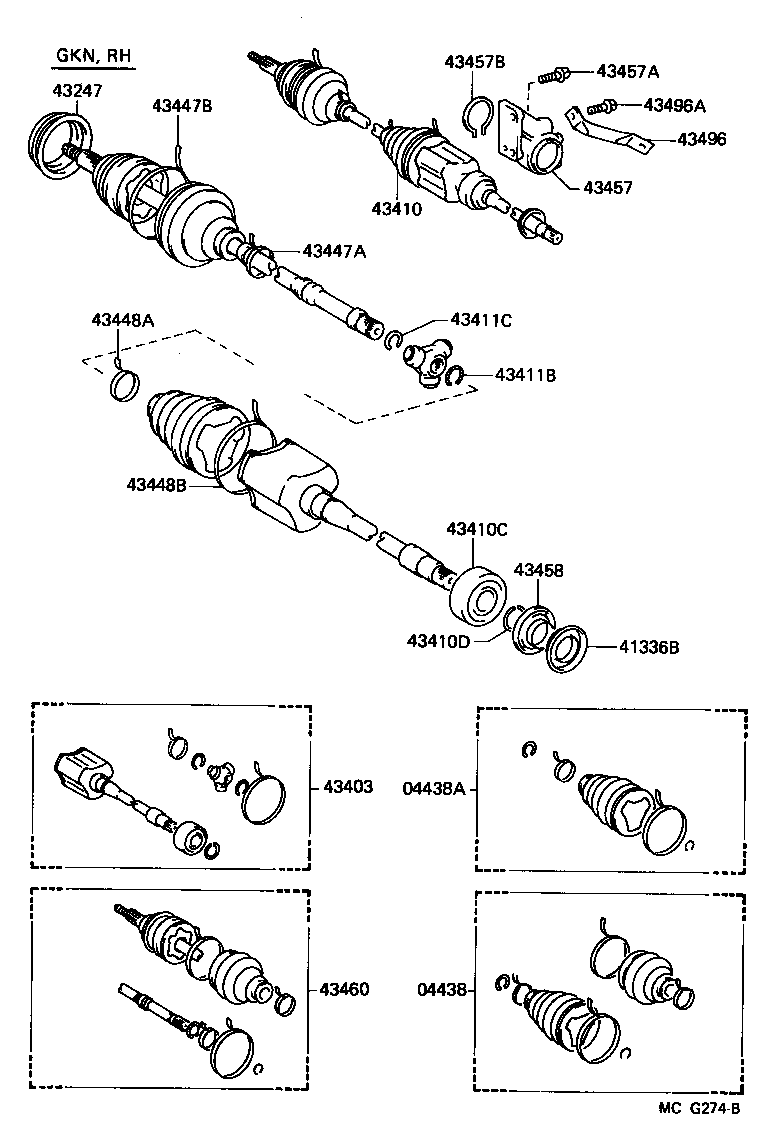

Figure MCD571D MCD571D 1988-08 → 1989-08 Figure MCD571D MCD571D 1989-08 → 1990-07 Figure MCD572B MCD572B 1988-08 → 1989-08 Figure MCD572B MCD572B 1989-08 → 1990-09 Figure MCK311 MCK311 1989-08 → — Figure MCK311 MCK311 1990-09 → — Figure MCK312A MCK312A 1989-08 → — Figure MCK312A MCK312A 1990-09 → — Figure MCG274B MCG274B 1989-06 → — Figure MCG276B MCG276B 1989-06 → — Figure MCF411C MCF411C 1988-08 → — Figure MCF412B MCF412B 1988-08 → — Figure MCE190D MCE190D 1988-08 → — Figure MCE196D MCE196D 1988-08 → —

Part groups

PNCDescription
04438 Boot Kit, Front Drive Shaft
04438A Boot Kit, Front Drive Shaft Inboard Joint
41309 Shaft Sub-assy, Differential Side Gear, LH
41336B Cover, Dust(FOR FRONT DRIVE SHAFT)
43030 Joint Assy, Front Drive Inboard, RH
43030A Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT)
43040 Joint Assy, Front Drive Inboard, LH
43049 Shaft Sub-assy, Front Drive Flange
43247 Deflector, Front Wheel Bearing Dust, NO.2
43403 Joint Set, Front Axle Inboard, RH
43403B Joint Set, Front Axle Inboard, LH
43403C Ring, O (FOR FRONT DRIVE INBOARD JOINT)
43409C Joint Sub-assy, Front Drive Shaft Cross Groove
43410 Shaft Assy, Front Drive, RH
43410C Bearing (FOR FRONT DRIVE SHAFT)
43410D Ring, Shaft Snap (FOR FRONT DRIVE SHAFT)
43410F Bolt, Serration (FOR FRONT DRIVE SHAFT)
43410H Ring, Hole Snap (FOR FRONT DRIVE SHAFT)
43410J Nut (FOR FRONT DRIVE SHAFT)
43411B Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER)
43411C Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT OUTER)
43420 Shaft Assy, Front Drive, LH
43446A Cover, Front Axle Inboard Joint
43447A Clamp, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
43447B Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
43448A Clamp, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
43448B Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
43457 Bracket, Drive Shaft Bearing
43457A Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
43457B Ring, Hole Snap (FOR DRIVE SHAFT BEARING BRACKET)
43458 Cover, Front Drive Shaft Dust
43459B Gasket, Front Drive Shaft Cross Groove Joint
43460 Shaft Assy, Front Drive Outboard Joint, RH
43470 Shaft Assy, Front Drive Outboard Joint, LH
43489A Washer, Cross Groove Joint
43496 Stay, Front Drive Shaft Bearing Bracket, NO.1
43496A Bolt (FOR DRIVE SHAFT BEARING BRACKET STAY)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
