Toyota Camry

1986-10 → 1988-08 · chassis SV2#,CV20,VZV21 · catalogue 281530 · Europe

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

24 part groups · 7 illustrations

Illustrations

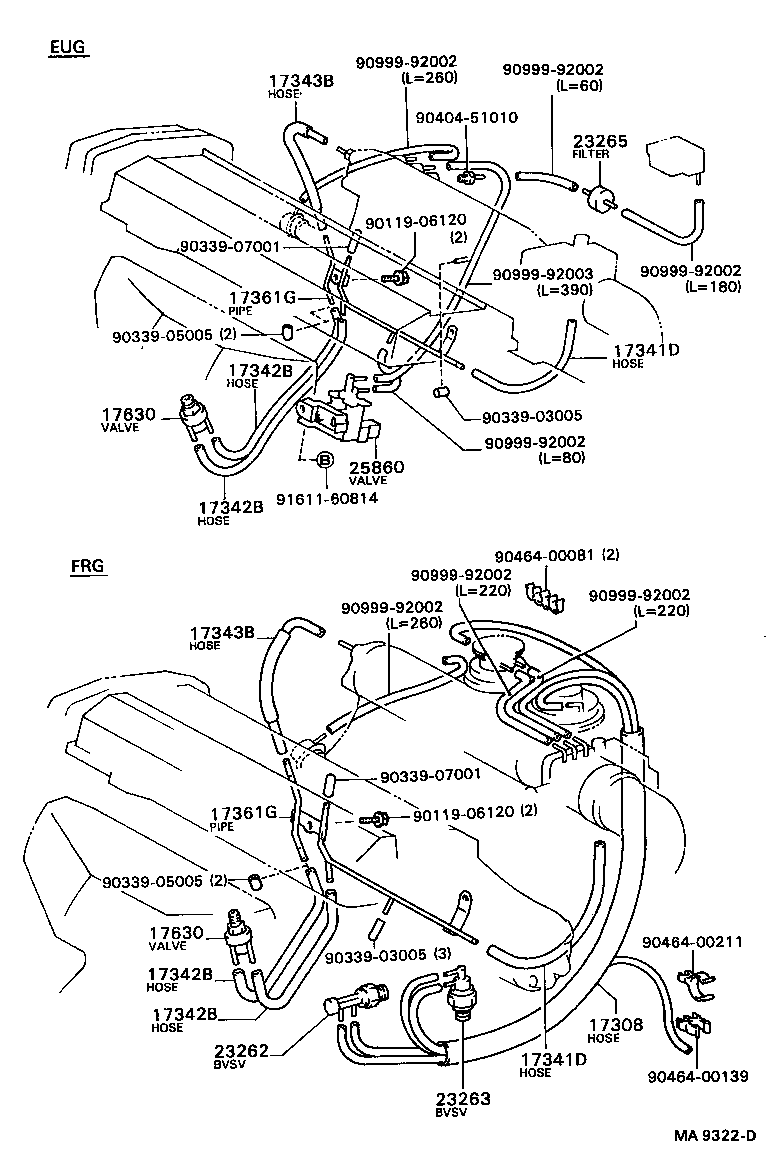

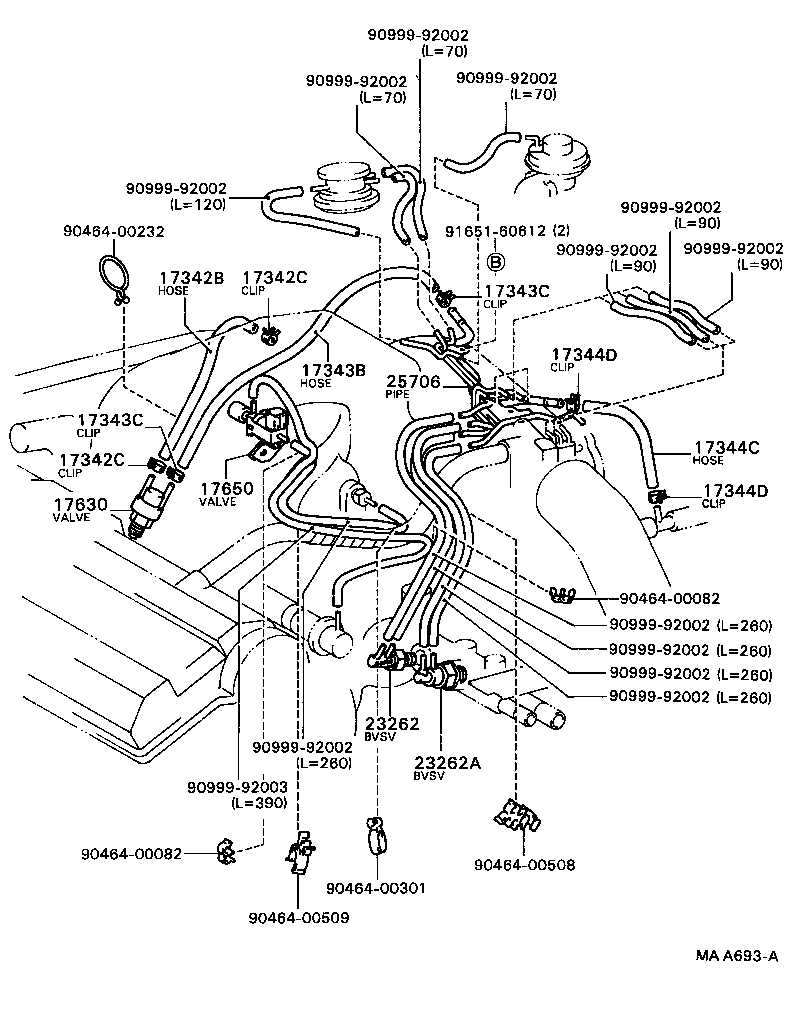

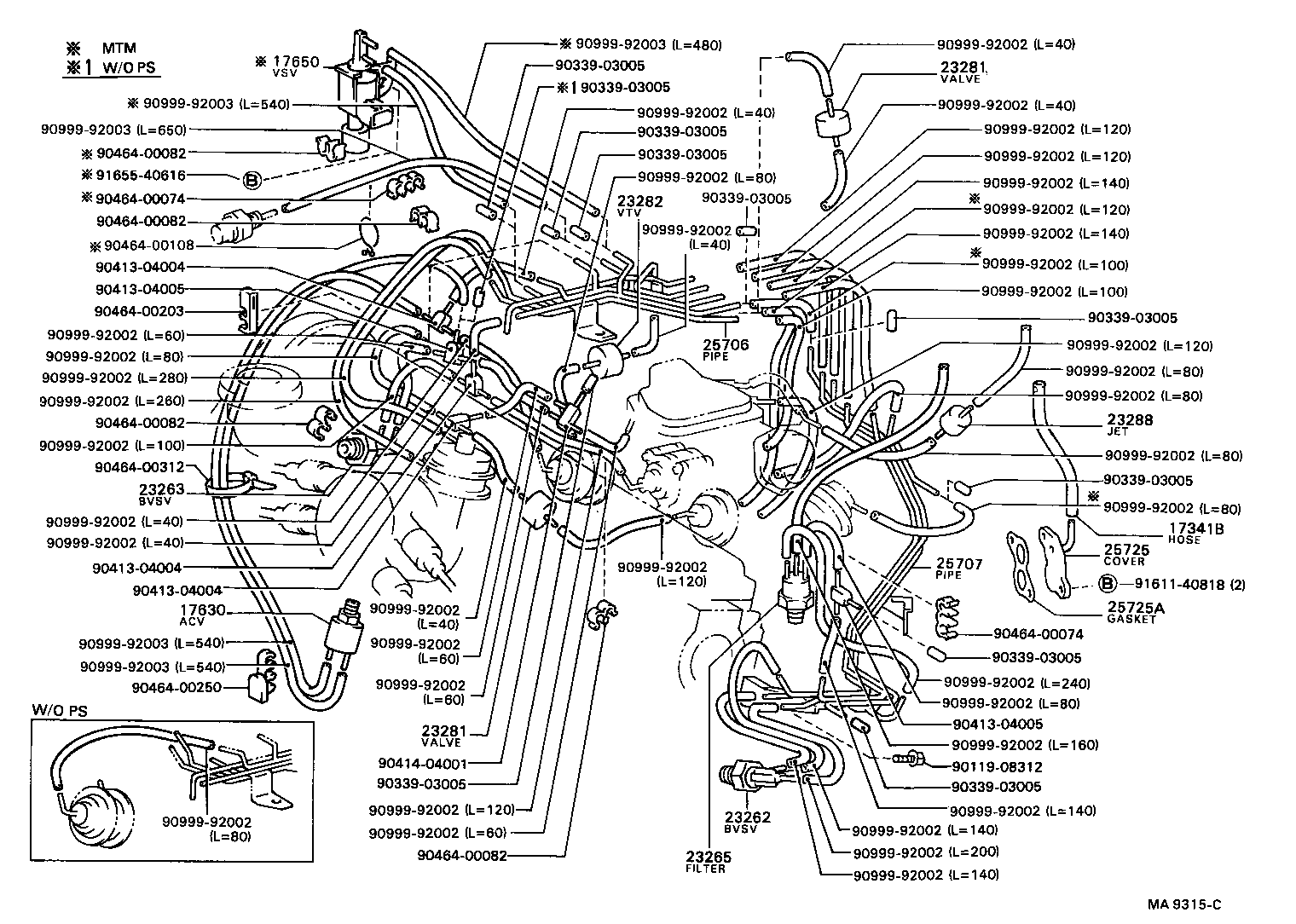

Figure MA9504B MA9504B 1986-10 → — Figure MA9080A MA9080A 1986-10 → — Figure MA9504B MA9504B 1986-10 → — Figure MA9315C MA9315C 1986-10 → — Figure MA9322D MA9322D 1986-10 → — Figure MA9504B MA9504B 1986-10 → — Figure MAA693A MAA693A 1988-02 → —

Part groups

PNCDescription
17308 Hose Sub-assy, Vacuum(FOR IDLE-UP)
17341B Hose, NO.1(FOR AIR INJECTION SYSTEM)
17341D Hose, NO.1(FOR IDLE-UP)
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17344C Hose, NO.4(FOR IDLE-UP)
17344D Clip, NO.4(FOR IDLE-UP HOSE)
17361G Tube, Air(FOR IDLE-UP)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
23262 Valve, Bimetal Vacuum Switching, NO.1
23262A Valve, Bimetal Vacuum Switching, NO.2
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23288 Jet, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25725 Cover, Emission Control Valve
25725A Gasket, Emission Control Valve Cover
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
