Toyota Camry

1988-08 → 1991-06 · chassis SV2#,CV20,VZV21 · catalogue 281540 · Europe

Discontinued model Data version 1992-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

35 part groups · 10 illustrations

Illustrations

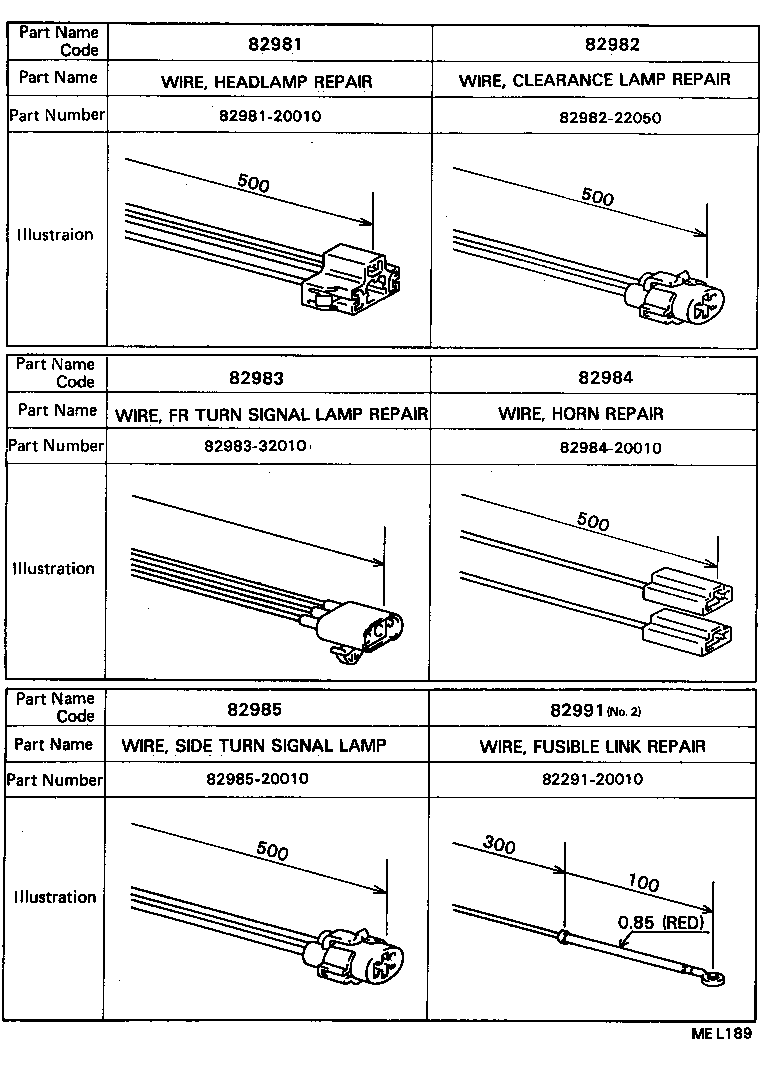

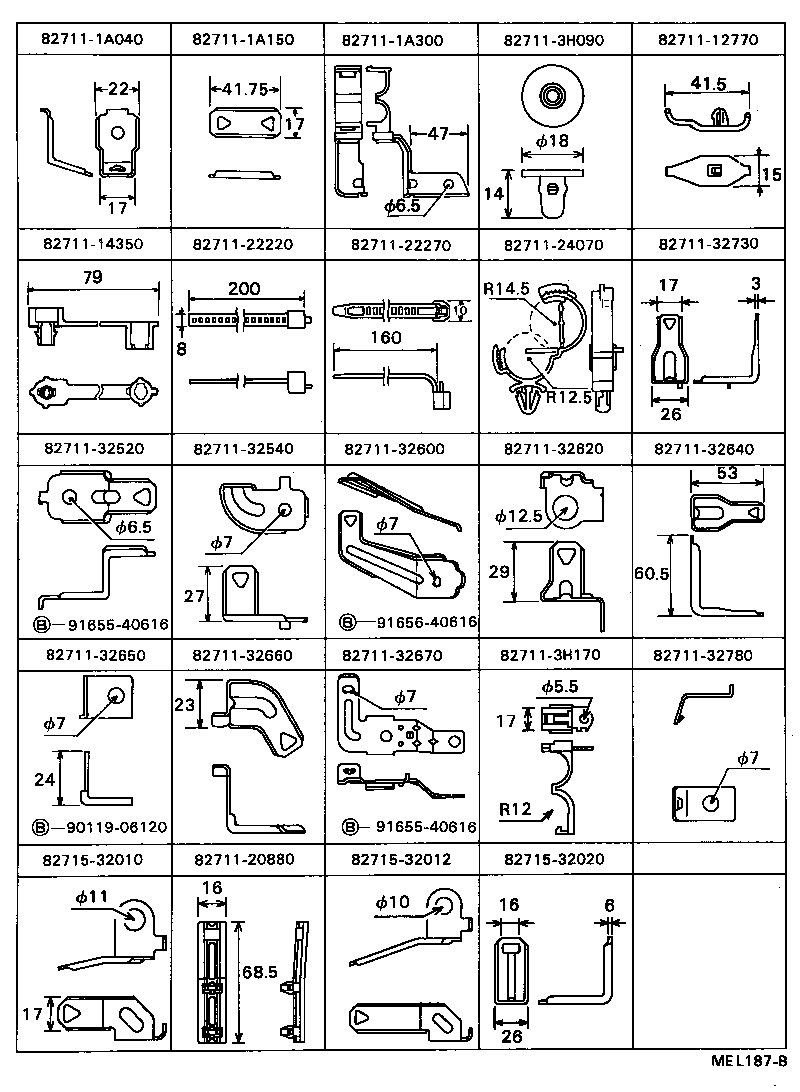

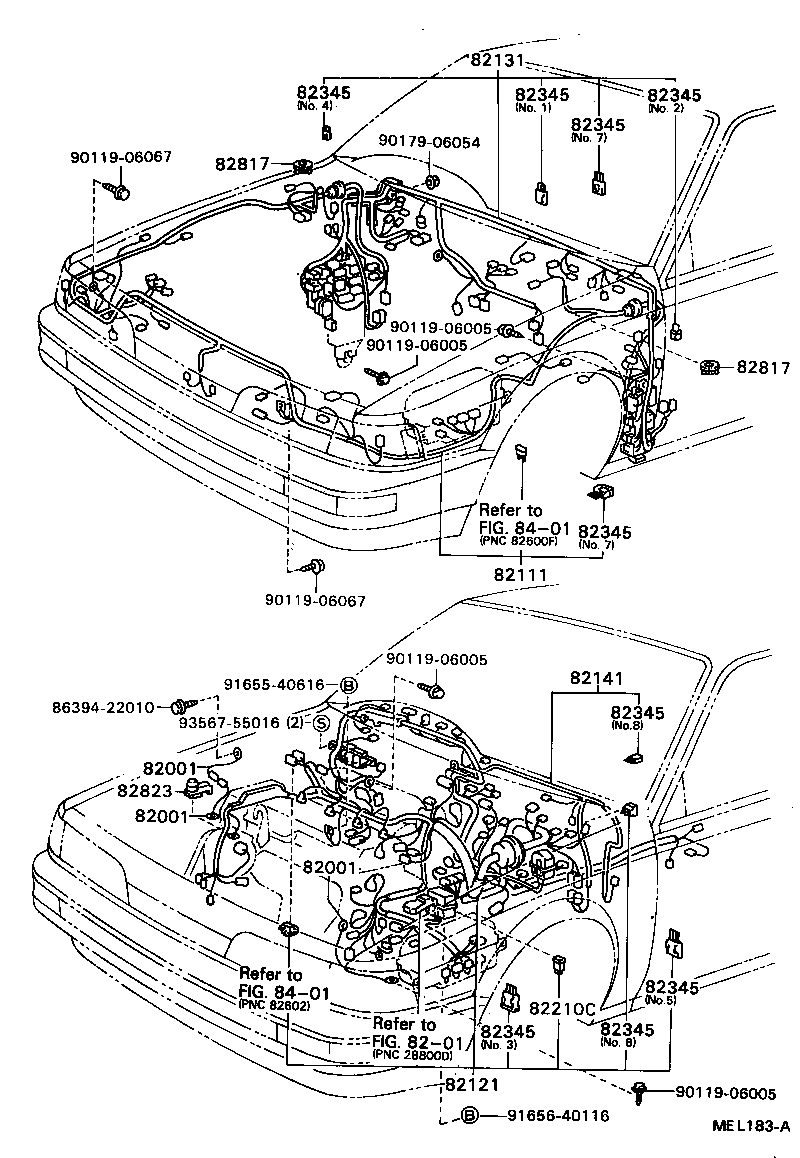

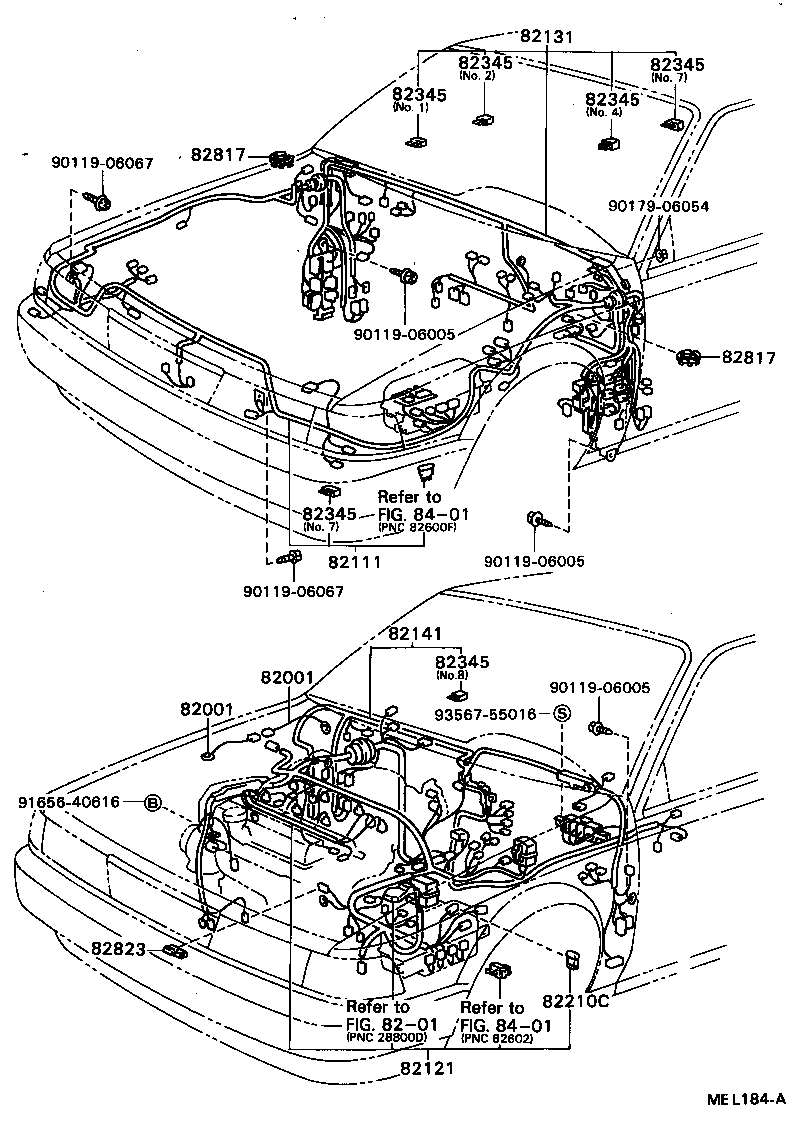

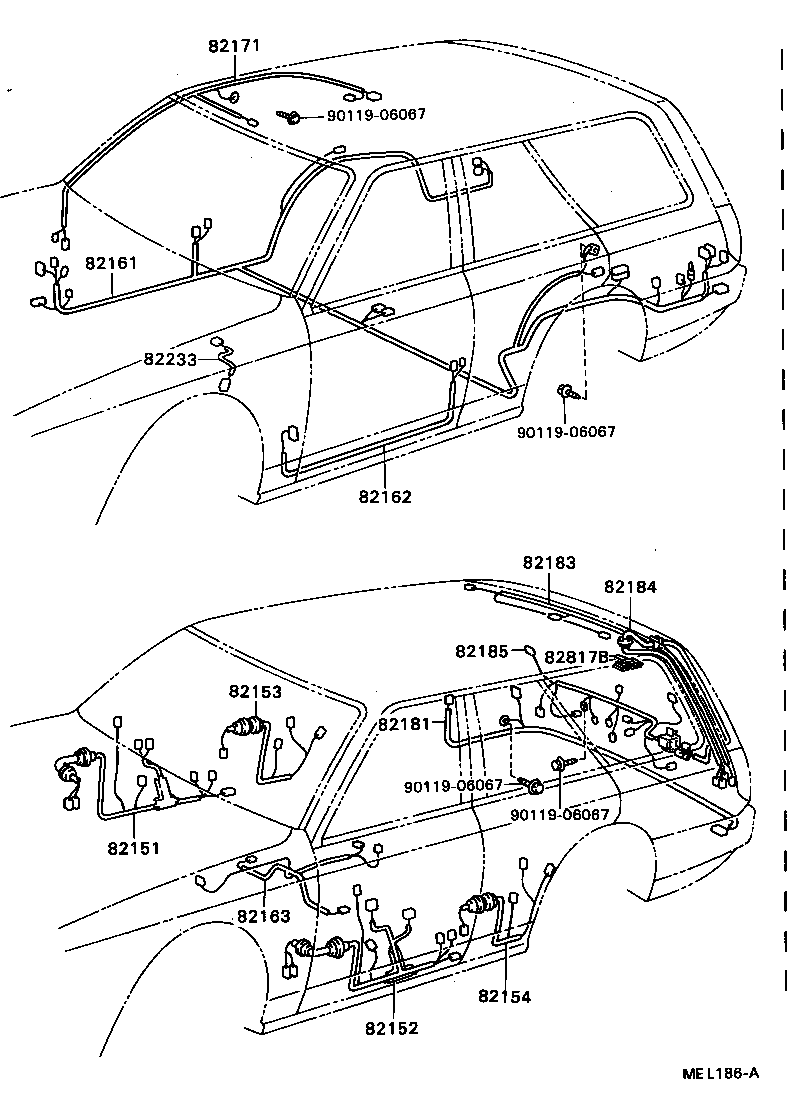

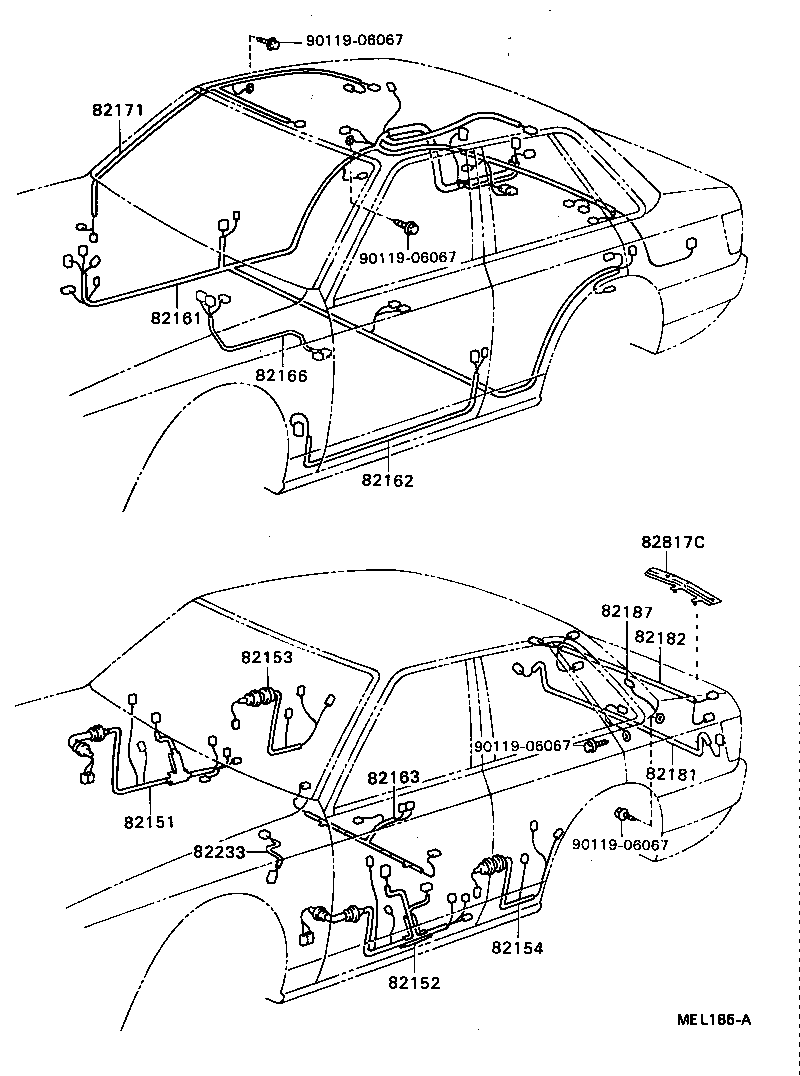

Figure MEL182A MEL182A 1988-08 → — Figure MEL183A MEL183A 1988-08 → — Figure MEL184A MEL184A 1988-08 → — Figure MEL185A MEL185A 1988-08 → — Figure MEL186A MEL186A 1988-08 → — Figure MEL187B MEL187B 1988-08 → — Figure MEL188B MEL188B 1988-08 → — Figure MEL189 MEL189 1988-08 → — Figure MEL190 MEL190 1988-08 → — Figure MEK504B MEK504B 1988-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82011 Wiring Assy, Brake Warning System
82111 Wire, Engine Room Main
82121 Wire, Engine
82124 Wire, Engine, NO.4
82131 Wire, Cowl
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82166 Wire, Console Box
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82182 Wire, Luggage Room, NO.2
82183 Wire, Luggage Room, NO.3
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82233 Wire, Computer
82345 Diode
82817 Protector, Wiring Harness, NO.1
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82823 Cap, Terminal, NO.1
82981 Wire, Headlamp Repair
82982 Wire, Clearance Lamp Repair
82983 Wire, Front Turn Signal Lamp Repair
82984 Wire, Horn Repair
82985 Wire, Side Turn Signal Lamp Repair
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
