Toyota Camry/Hybrid

2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

20 part groups · 3 illustrations

Illustrations

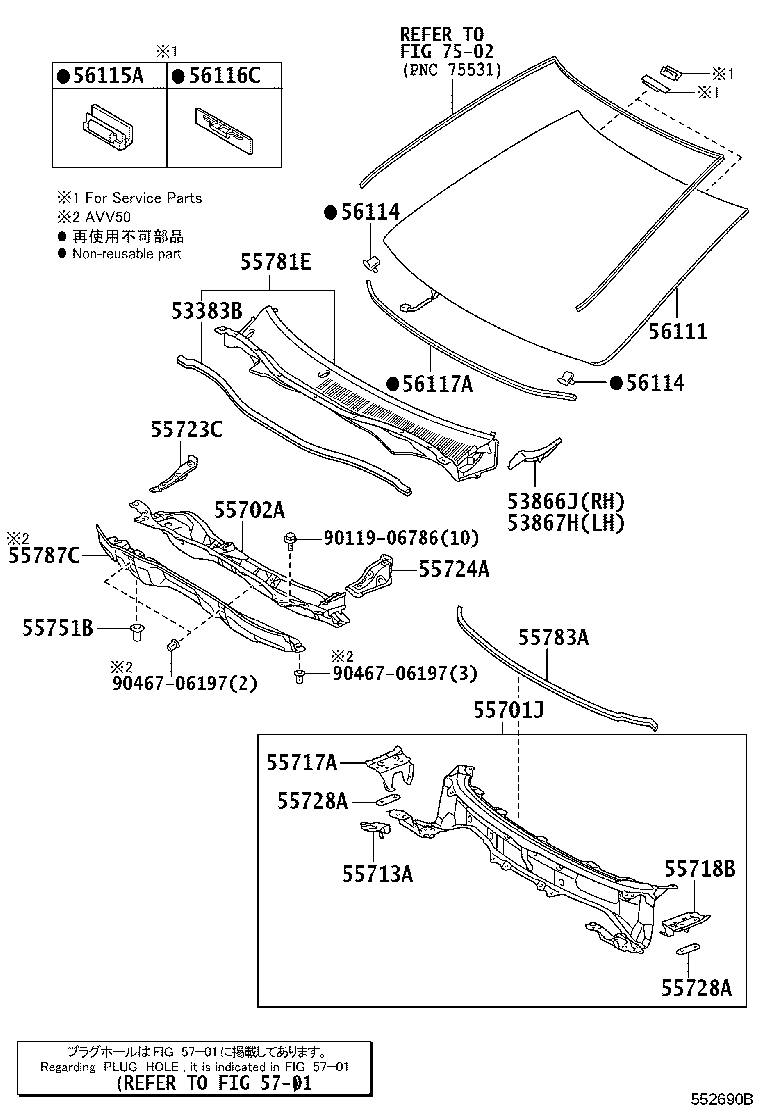

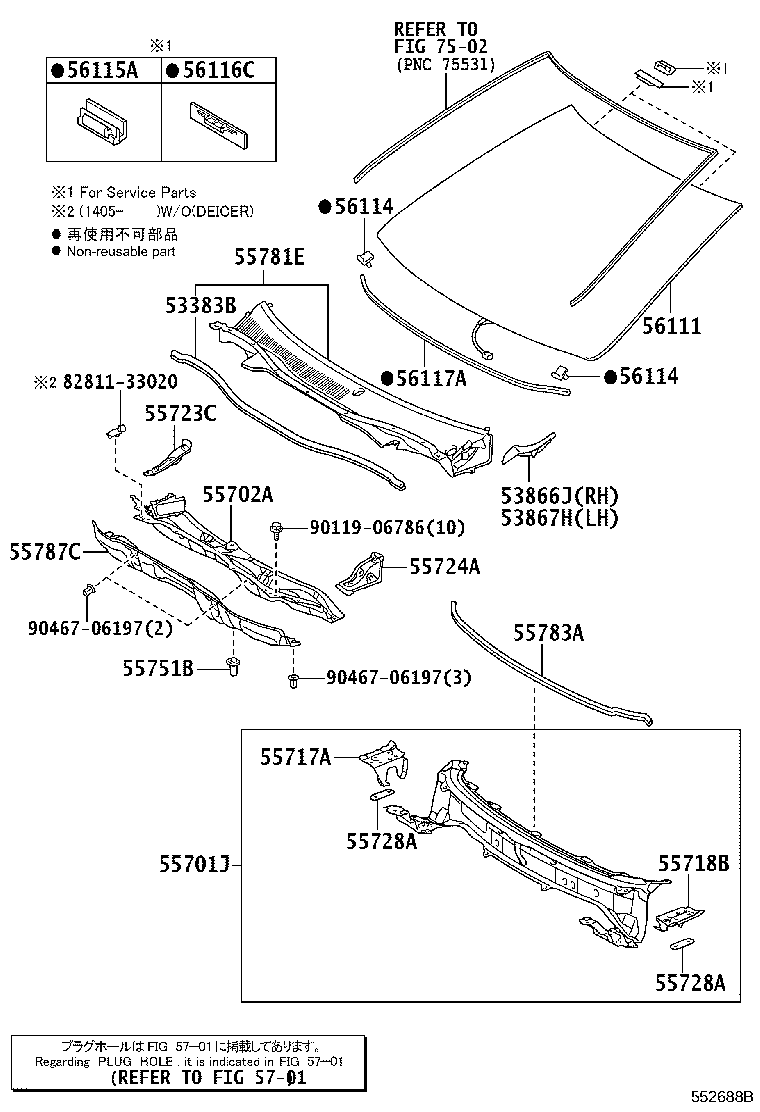

Figure 553670B 553670B 2011-08 → — Figure 552688B 552688B 2011-08 → — Figure 552690B 552690B 2011-08 → —

Part groups

PNCDescription
53383B Seal, Hood TO Cowl Top
53866J Seal, Front Fender TO Cowl Side, RH
53867H Seal, Front Fender TO Cowl Side, LH
55701J Panel Sub-assy, Cowl Top, Outer
55702A Panel Sub-assy, Cowl Top, Outer Front
55713A Panel, Cowl Top Side, RH
55717A Panel, Cowl Top Side, Inner RH
55718B Panel, Cowl Top Side, Inner LH
55723C Reinforcement, Cowl Top Side, RH
55724A Reinforcement, Cowl Top Side, LH
55728A Reinforcement, Hood Stopper
55751B Hose, Cowl Water Extract, NO.1
55781E Louver Sub-assy, Cowl Top Ventilator
55783A Pad, Cowl Top Silencer
55787C Insulator, Cowl Top Panel, NO.1
56111 Glass, Windshield
56114 Retainer, Windshield Glass
56115A Stopper, Windshield Glass, NO.1
56116C Stopper, Windshield Glass, NO.2
56117A Dam, Window Glass Adhesive
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
