Toyota Camry/Hybrid

2017-09 → present · chassis ASV7#,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2845A0 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Head

70 part groups · 12 illustrations

Illustrations

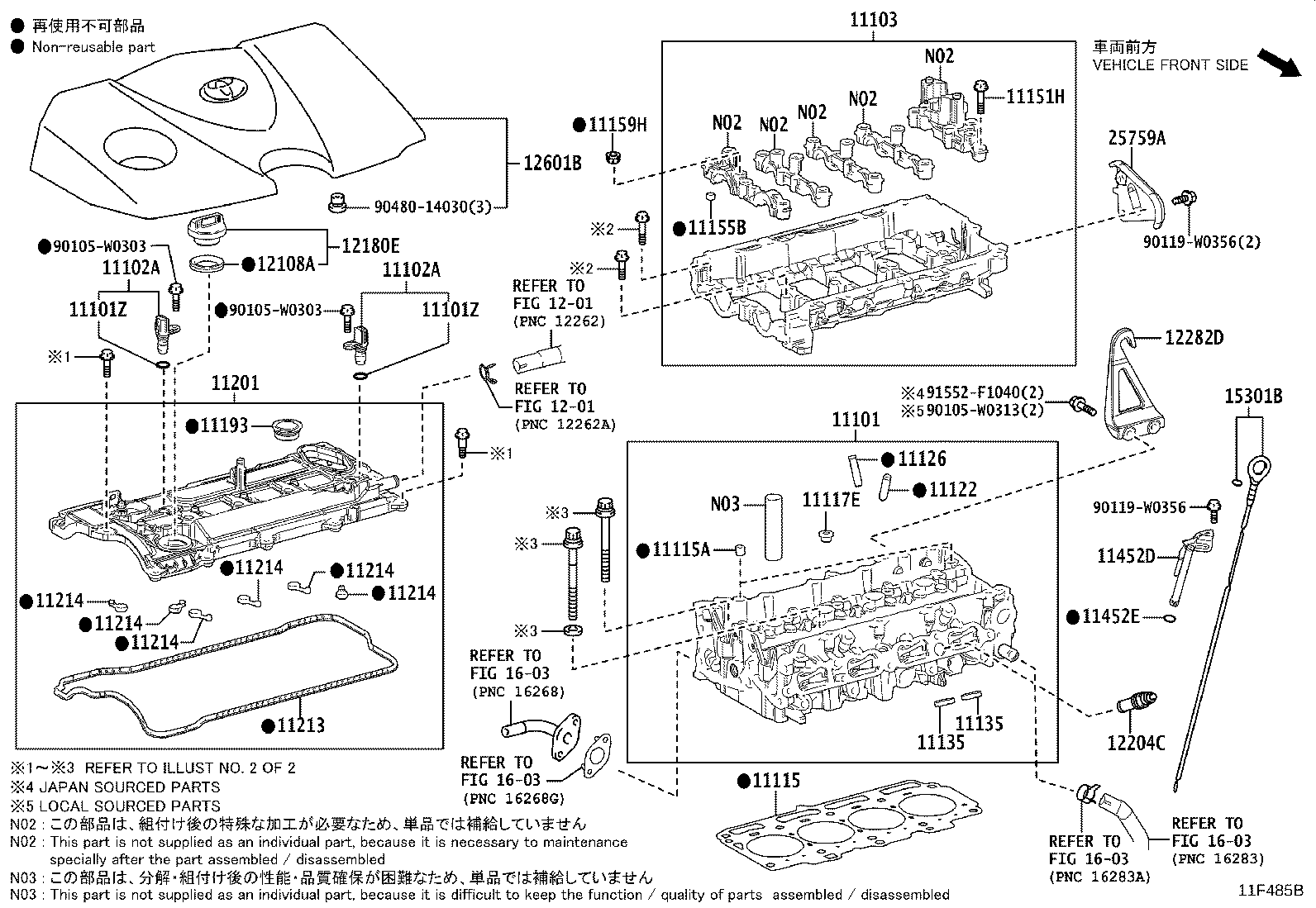

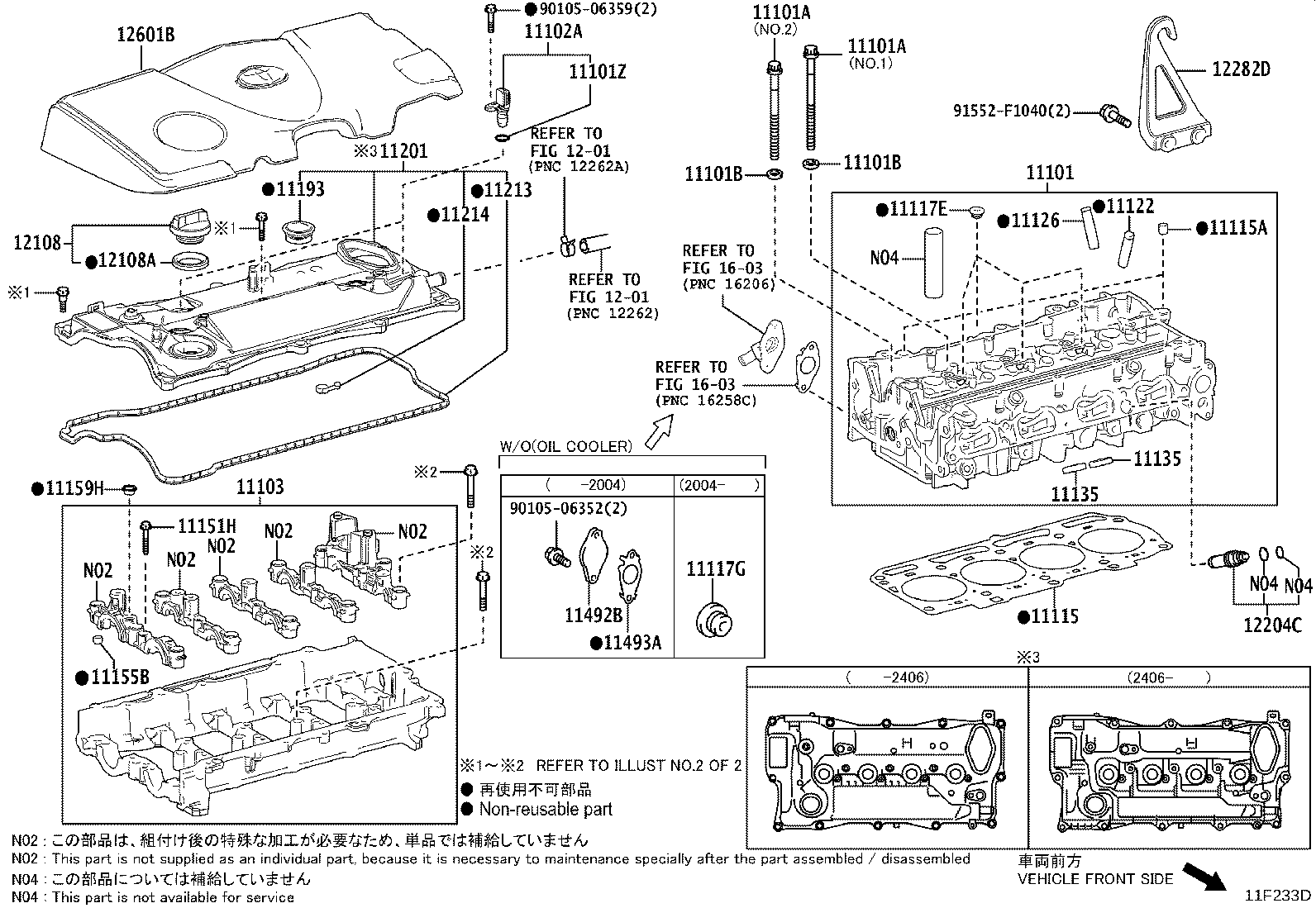

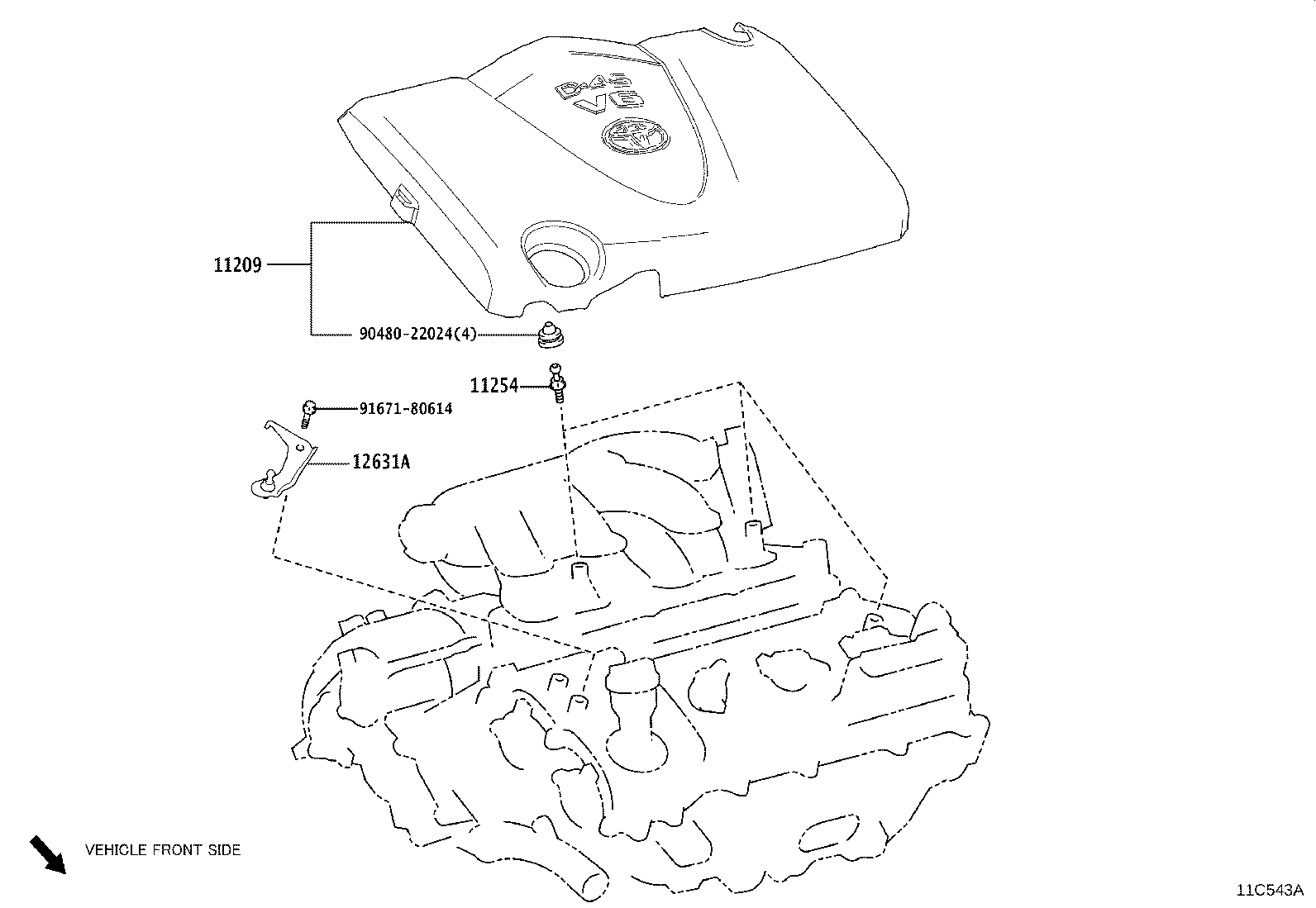

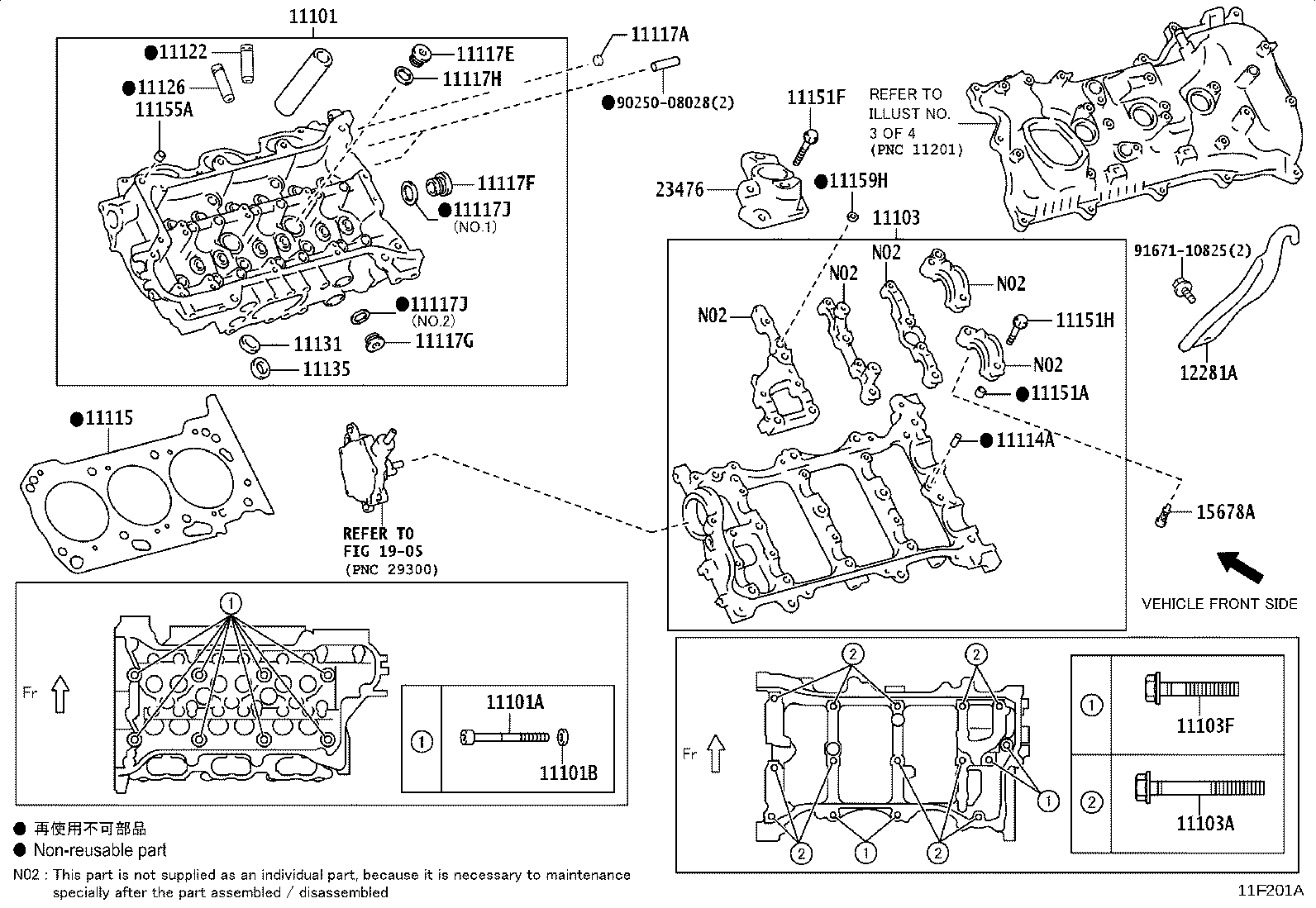

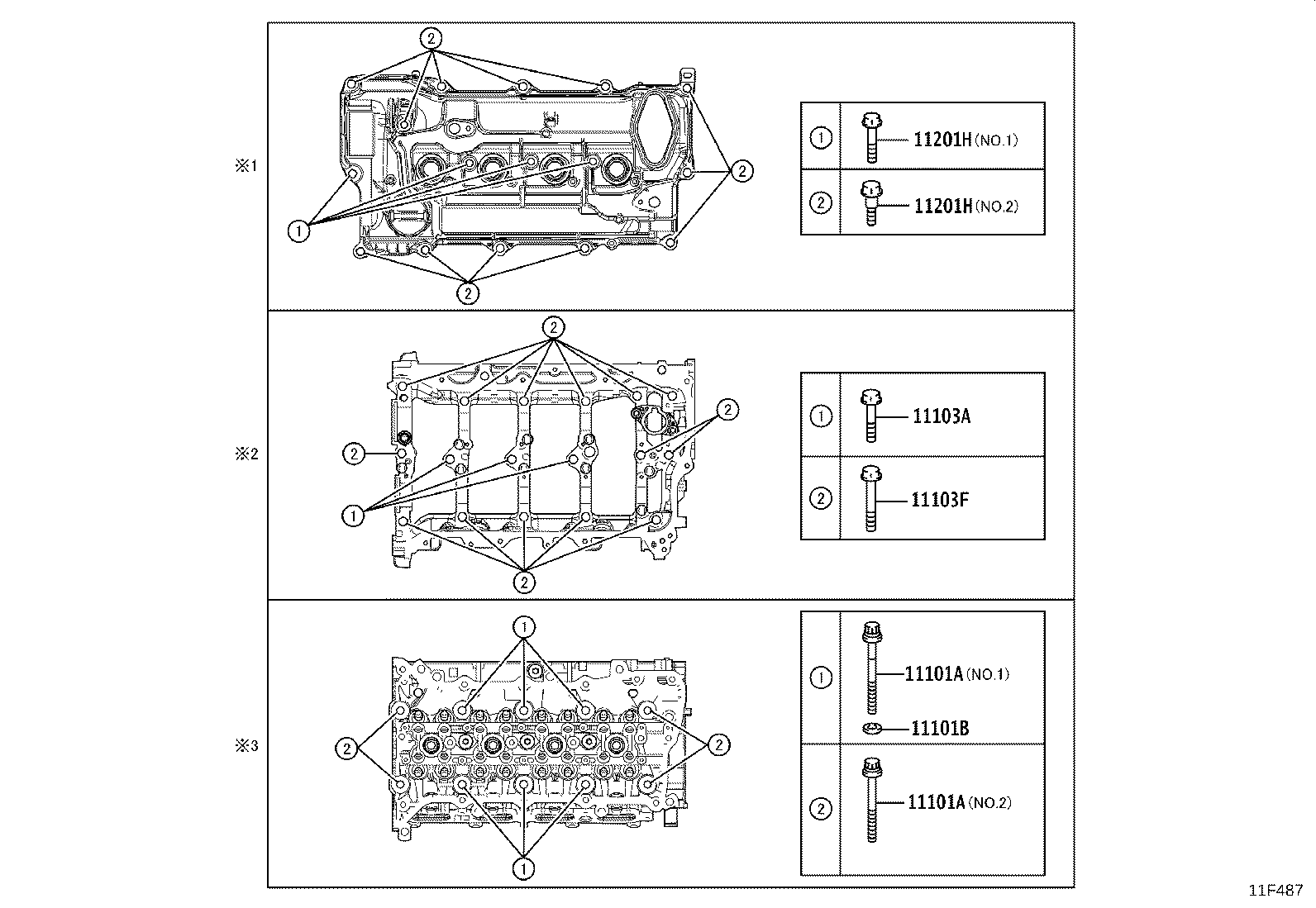

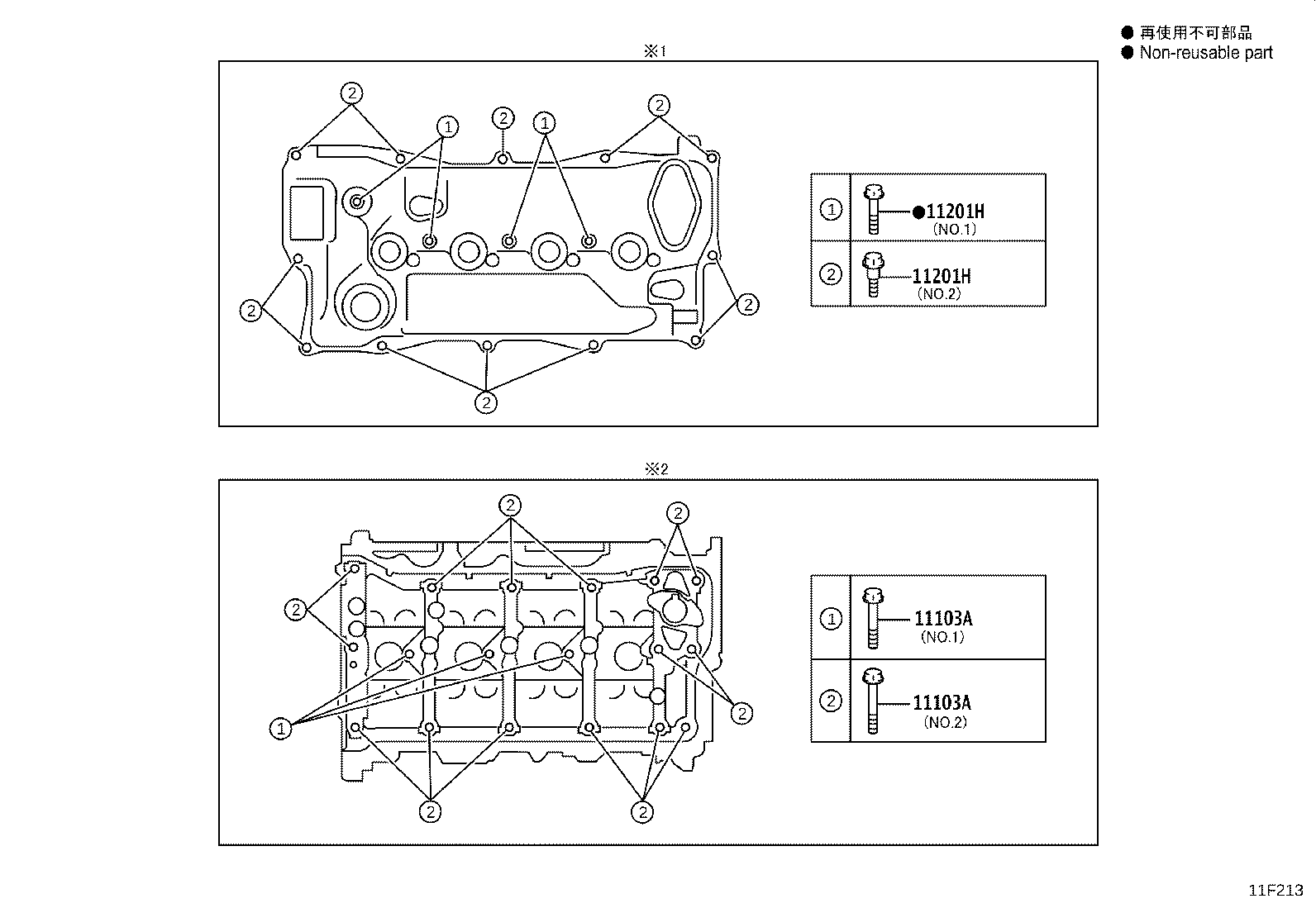

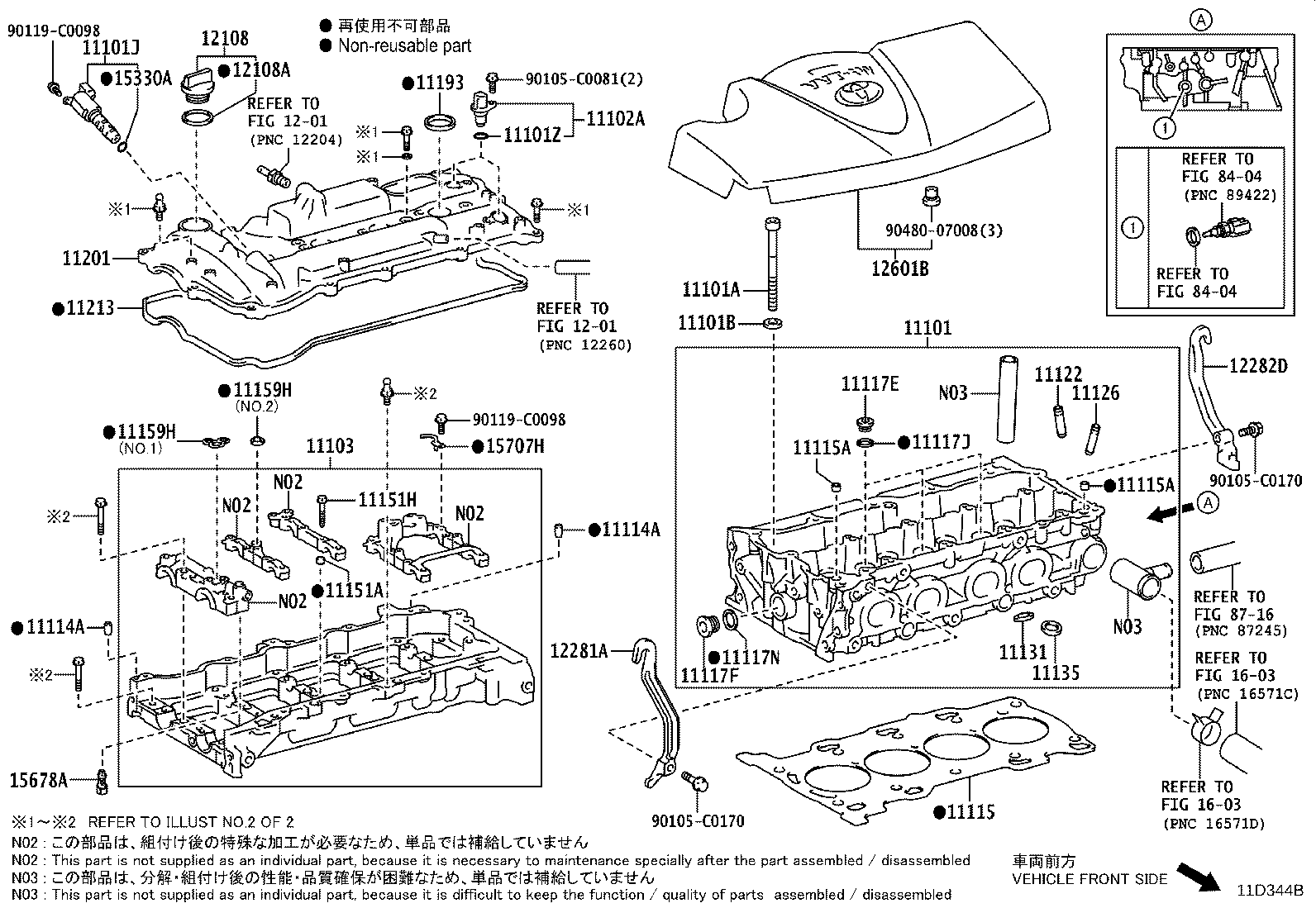

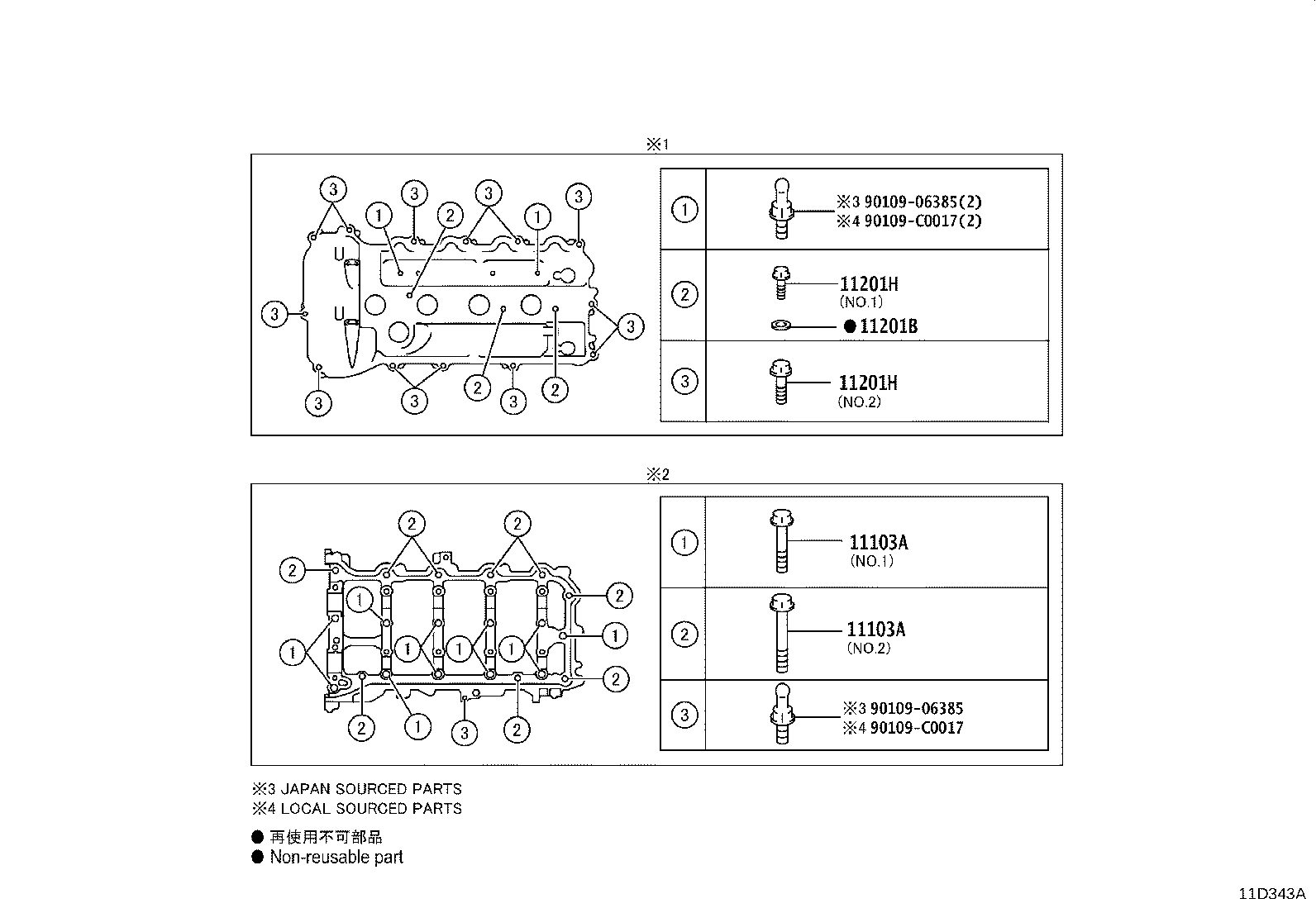

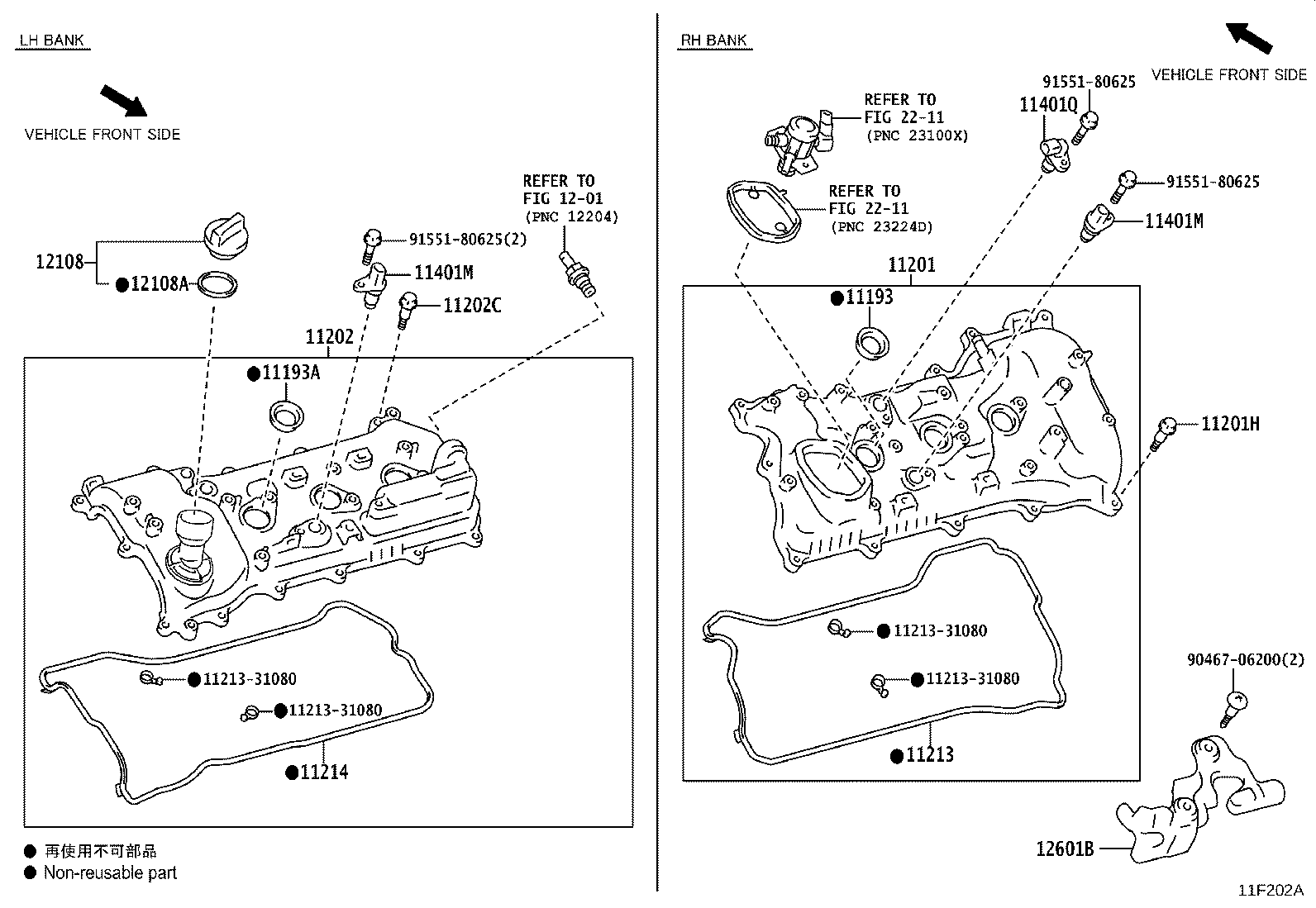

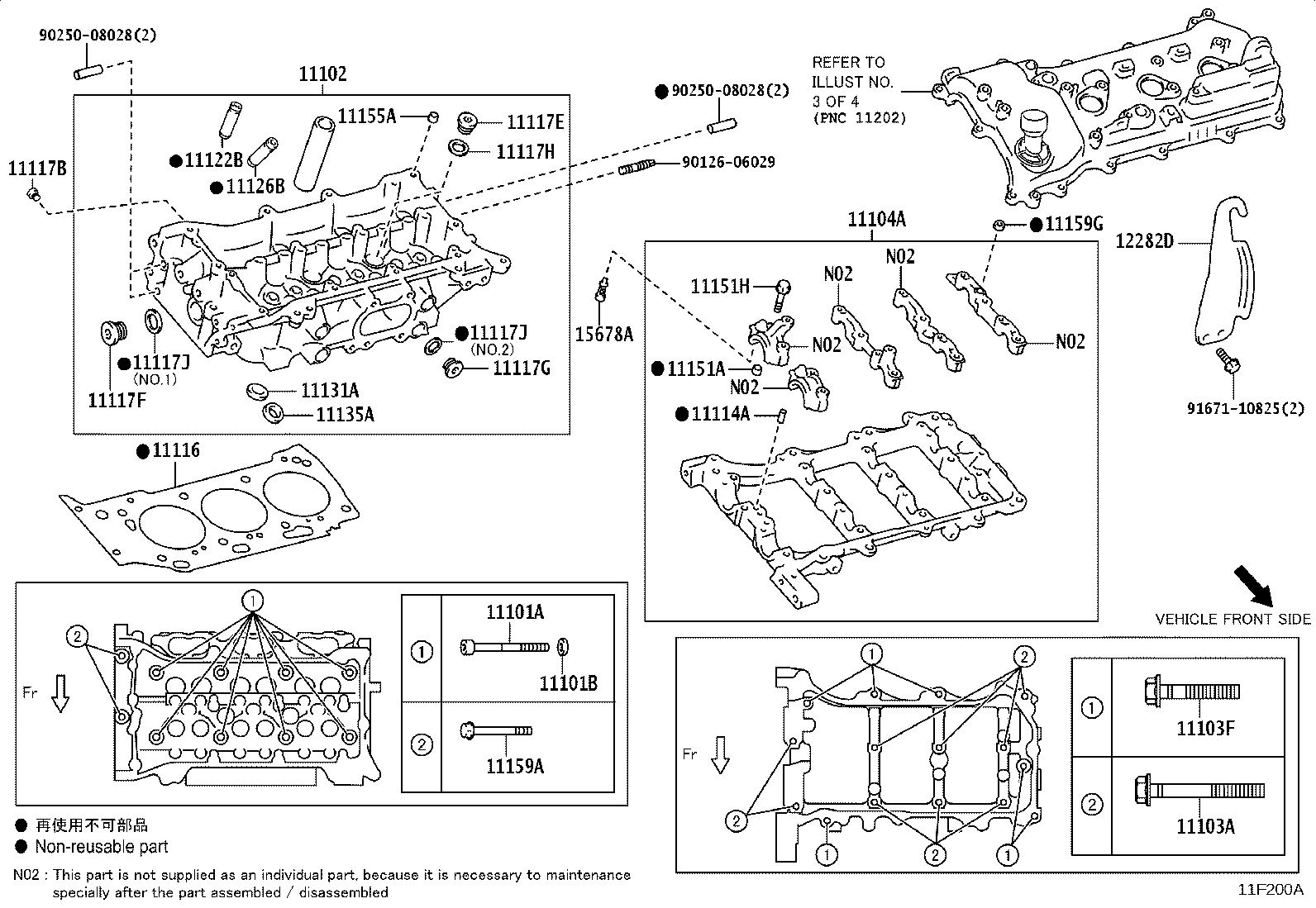

Figure 11D342D 11D342D 2017-09 → — Figure 11F233D 11F233D 2017-09 → — Figure 11D343A 11D343A 2017-09 → — Figure 11F213 11F213 2017-09 → — Figure 11D344B 11D344B 2018-04 → — Figure 11D345A 11D345A 2018-04 → — Figure 11F200A 11F200A 2017-09 → — Figure 11F201A 11F201A 2017-09 → — Figure 11F202A 11F202A 2017-09 → — Figure 11C543A 11C543A 2017-09 → — Figure 11F485B 11F485B 2021-04 → — Figure 11F487 11F487 2021-04 → —

Part groups

PNCDescription
11101 Head Sub-assy, Cylinder
11101A Bolt(FOR CYLINDER HEAD SET)
11101B Washer, Plate(FOR CYLINDER HEAD SET)
11101J Valve Assy, Camshaft Timing Oil Control
11101Z O Ring, Cam Position Sensor
11102 Head, Cylinder, LH
11102A Sensor, Camshaft Position
11103 Housing Sub-assy, Camshaft
11103A Bolt(FOR CAMSHAFT HOUSING SET)
11103F Bolt(FOR CAMSHAFT HOUSING SET)
11104A Housing Sub-assy, Camshaft, LH
11114A Pin, Straight
11115 Gasket, Cylinder Head
11115A Pin, Ring
11116 Gasket, Cylinder Head, NO.2
11117A Plug, W/Head Taper Screw, NO.1
11117B Plug, W/Head Taper Screw, NO.2
11117E Plug, W/Head Straight Screw, NO.1
11117F Plug, W/Head Straight Screw, NO.2
11117G Plug, W/Head Straight Screw, NO.3
11117H Gasket(FOR WATER HOLE)
11117J Gasket(FOR CYLINDER HEAD SCREW PLUG)
11117N Gasket(FOR CYLINDER HEAD SCREW PLUG NO.2)
11122 Bush, Intake Valve Guide
11122B Bush, Intake Valve Guide, NO.2
11126 Bush, Exhaust Valve Guide
11126B Bush, Exhaust Valve Guide, NO.2
11131 Seat, Intake Valve
11131A Seat, Intake Valve, NO.2
11135 Seat, Exhaust Valve
11135A Seat, Exhaust Valve, NO.2
11151A Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
11151F Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2)
11151H Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
11155A Pin, Ring W/Head
11155B Pin, Ring
11159A Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
11159G Gasket, Camshaft Bearing Cap Oil Hole, LH
11159H Gasket, Camshaft Bearing Cap Oil Hole
11193 Gasket, Spark Plug Tube
11193A Gasket, Spark Plug Tube, LH
11201 Cover Sub-assy, Cylinder Head
11201B Washer, Seal(FOR CYLINDER HEAD COVER)
11201H Bolt(FOR CYLINDER HEAD COVER)
11202 Cover Sub-assy, Cylinder Head, LH
11202C Bolt(FOR CYLINDER HEAD COVER LH)
11209 Cover Sub-assy, V-bank
11213 Gasket, Cylinder Head Cover
11214 Gasket, Cylinder Head Cover, NO.2
11254 Bracket, V-bank Cover, NO.1
11401M Sensor, Crank Position, NO.2
11401Q Sensor, Crank Position
11452D Guide, Oil Level Gage
11452E Ring, O(FOR OIL LEVEL GAGE GUIDE)
11492B Plate, Water Seal
11493A Gasket, Water Seal Plate
12108 Cap Sub-assy, Oil Filler
12108A Gasket(FOR OIL FILLER CAP)
12180E Cap Assy, Oil Filler
12204C Valve Sub-assy, Ventilation
12281A Hanger, Engine, NO.1
12282D Hanger, Engine, NO.2
12601B Cover Sub-assy, Engine, NO.1
12631A Bracket, Engine Cover
15301B Gage Sub-assy, Oil Level
15330A Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
15678A Filter, Oil Control Valve
15707H Pipe Sub-assy, Oil
23476 Housing, Fuel Pump Lifter
25759A Bracket, Vacuum Surge Tank
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
