Toyota Camry/Hybrid

2017-09 → present · chassis ASV7#,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2845A0 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Crankshaft & Piston

30 part groups · 7 illustrations

Illustrations

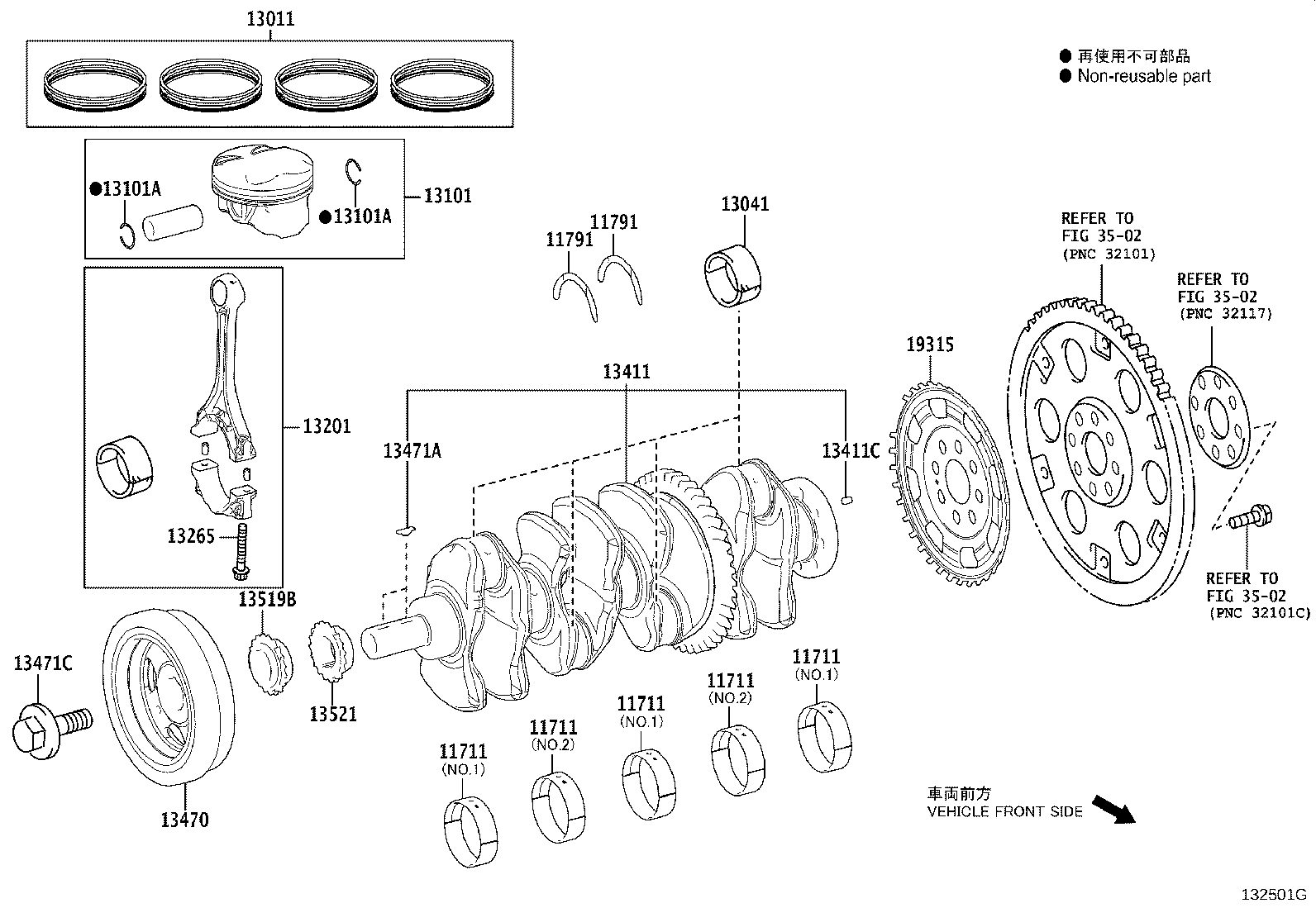

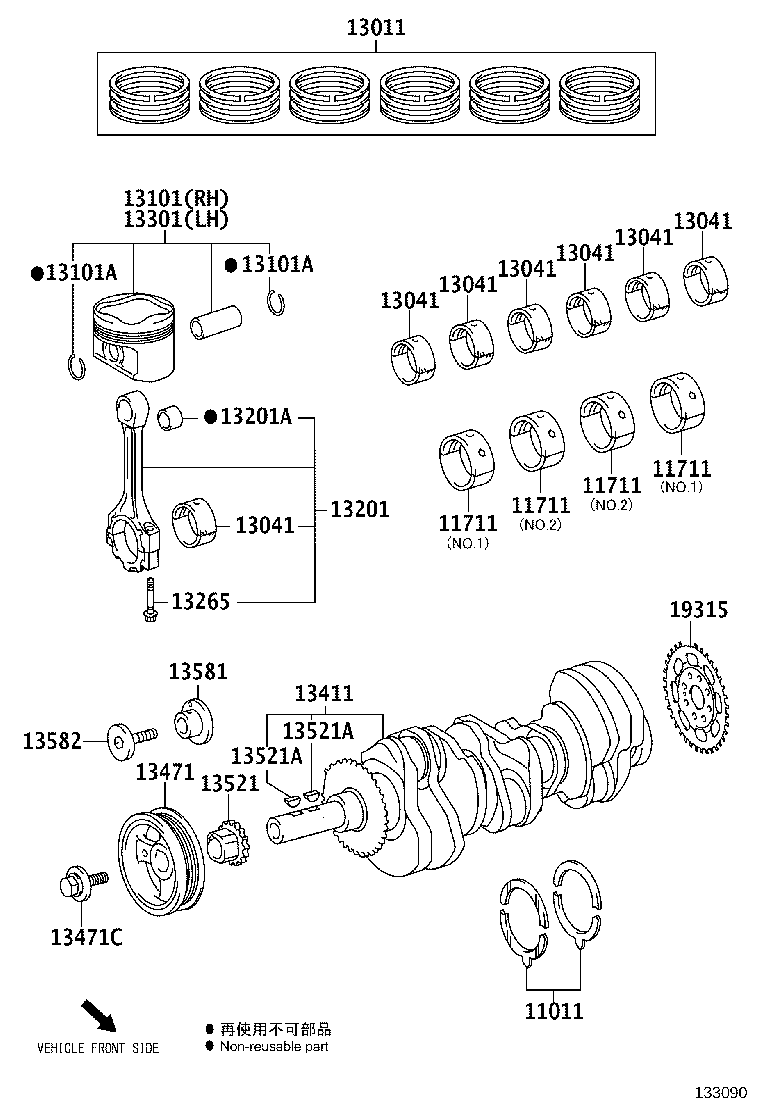

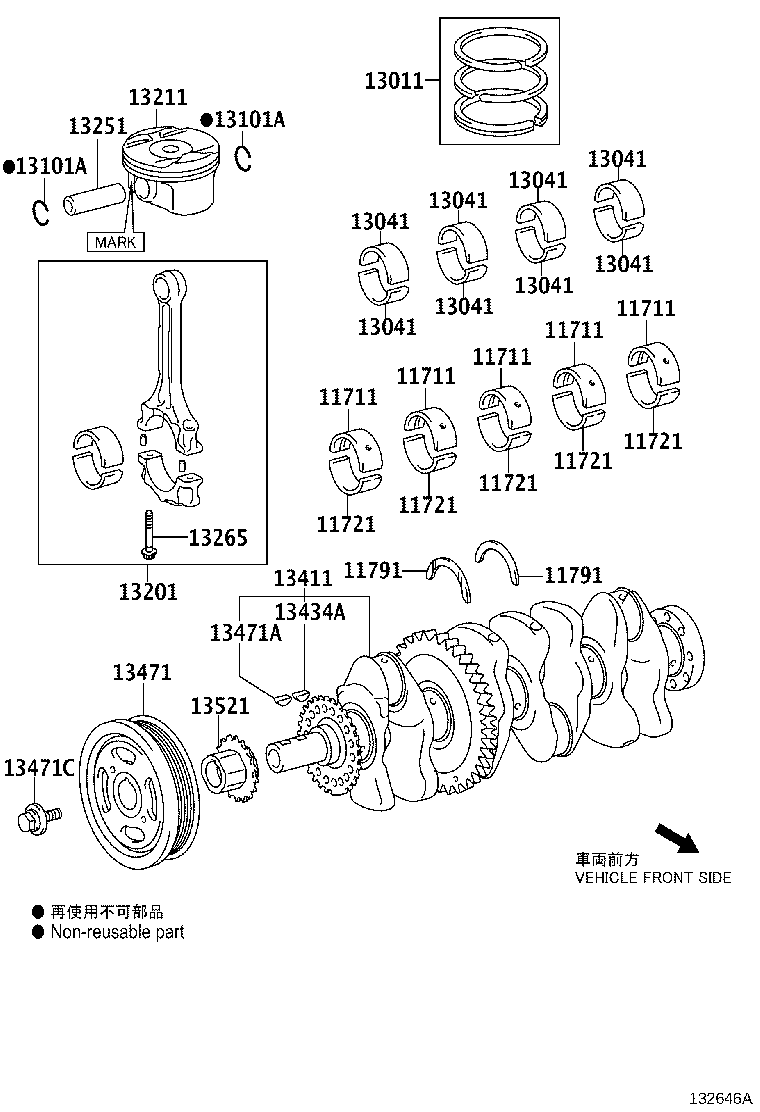

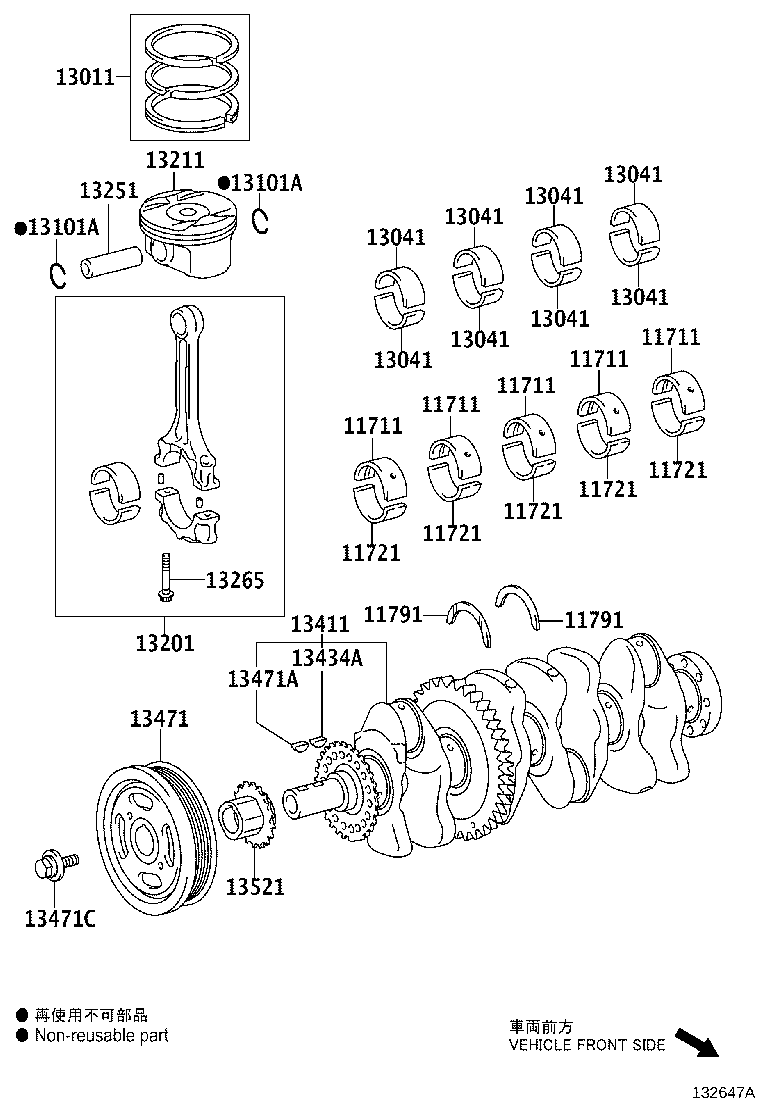

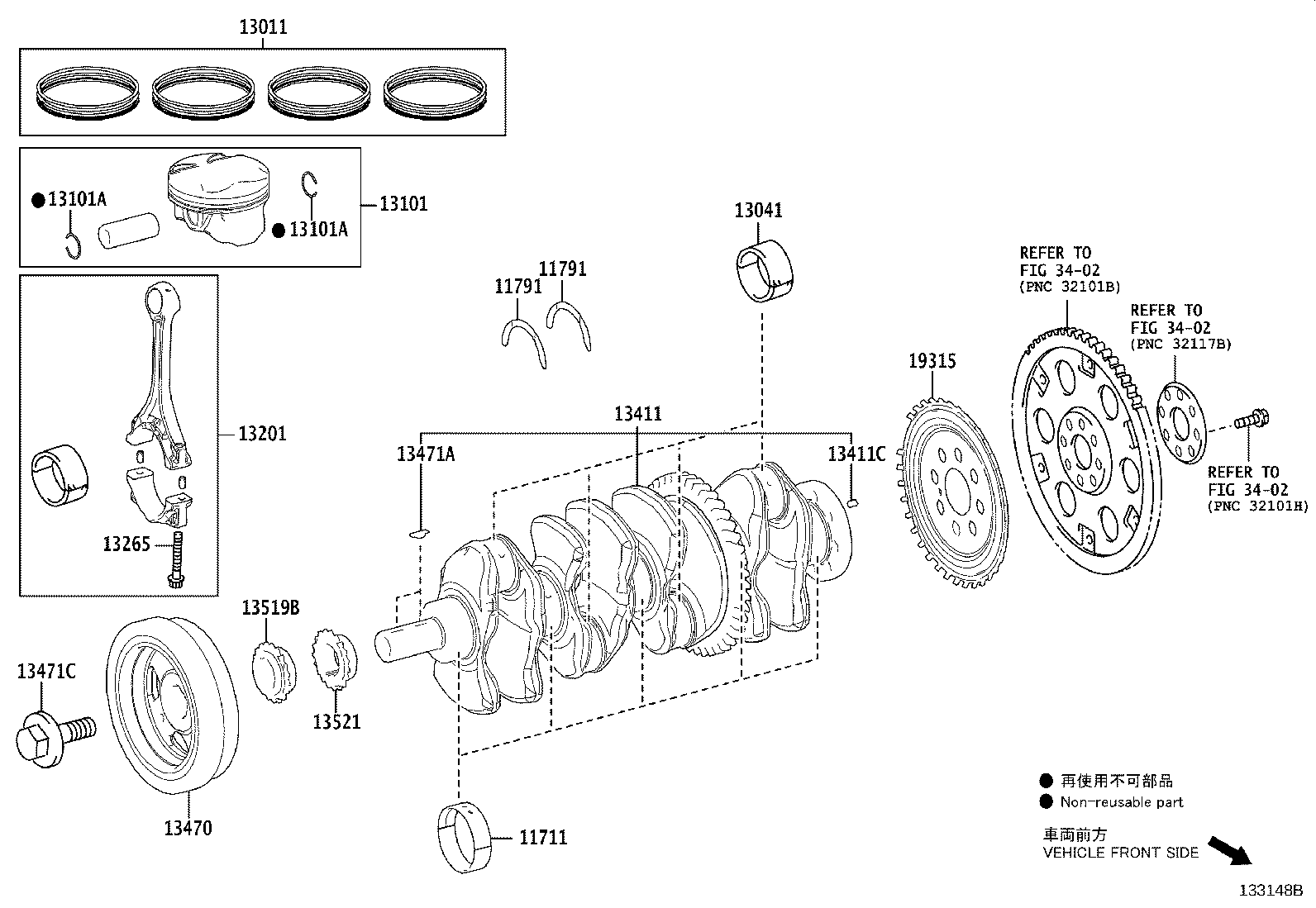

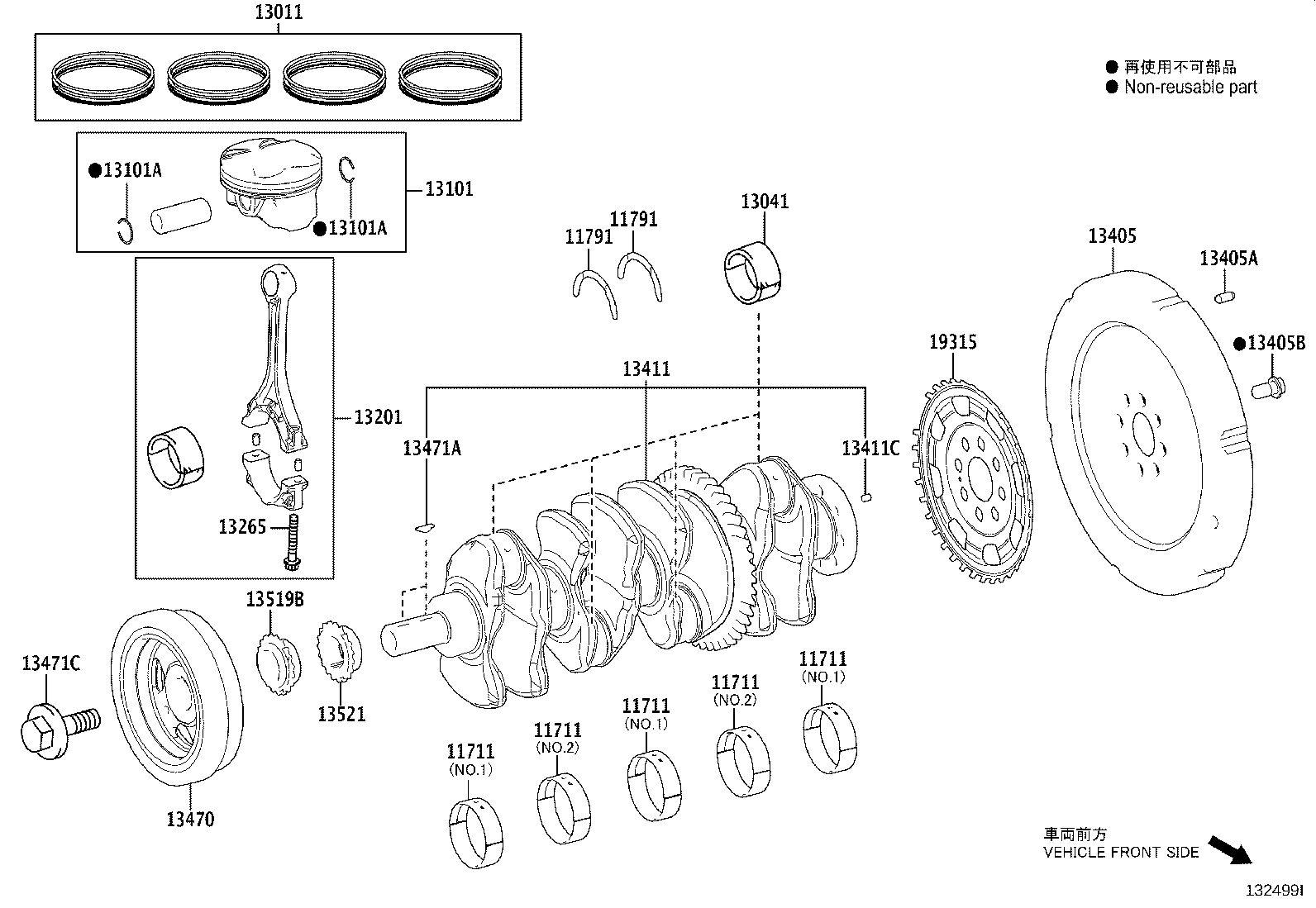

Figure 132536A 132536A 2017-09 → — Figure 132646A 132646A 2018-04 → — Figure 132501G 132501G 2017-09 → — Figure 132499I 132499I 2017-09 → — Figure 132647A 132647A 2018-04 → — Figure 133090 133090 2017-09 → — Figure 133148B 133148B 2021-04 → —

Part groups

PNCDescription
11011 Washer Set, Crankshaft Thrust
11711 Bearing, Crankshaft
11721 Bearing, Crankshaft, NO.2
11791 Washer, Crankshaft Thrust, Upper
13011 Ring Set, Piston
13041 Bearing, Connecting Rod
13101 Piston Sub-assy, W/Pin
13101A Ring, Hole Snap(FOR PISTON PIN)
13201 Rod Sub-assy, Connecting
13201A Bush(FOR CONNECTING ROD SMALL END)
13211 Piston
13251 Pin, Piston
13265 Bolt, Connecting Rod
13301 Piston Sub-assy, W/Pin, LH
13405 Flywheel Sub-assy
13405A Pin, Straight(FOR FLYWHEEL)
13405B Bolt, Flywheel Setting
13411 Crankshaft
13411C Pin, Straight(FOR CRANKSHAFT)
13434A Key(FOR OIL PUMP DRIVE SPLINE)
13470 Pulley Assy, Crankshaft
13471 Pulley, Crankshaft
13471A Key, Crankshaft(FOR CRANKSHAFT PULLEY SET)
13471C Bolt(FOR CRANKSHAFT PULLEY SET)
13519B Sprocket, Oil Pump Drive
13521 Gear OR Sprocket, Crankshaft Timing
13521A Key(FOR CRANKSHAFT TIMING GEAR)
13581 Shaft, Idle Gear, NO.1
13582 Shaft, Idle Gear, NO.2
19315 Plate, Crank Angle Sensor, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
