Toyota Camry/Hybrid

2017-09 → present · chassis ASV7#,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2845A0 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

19 part groups · 9 illustrations

Illustrations

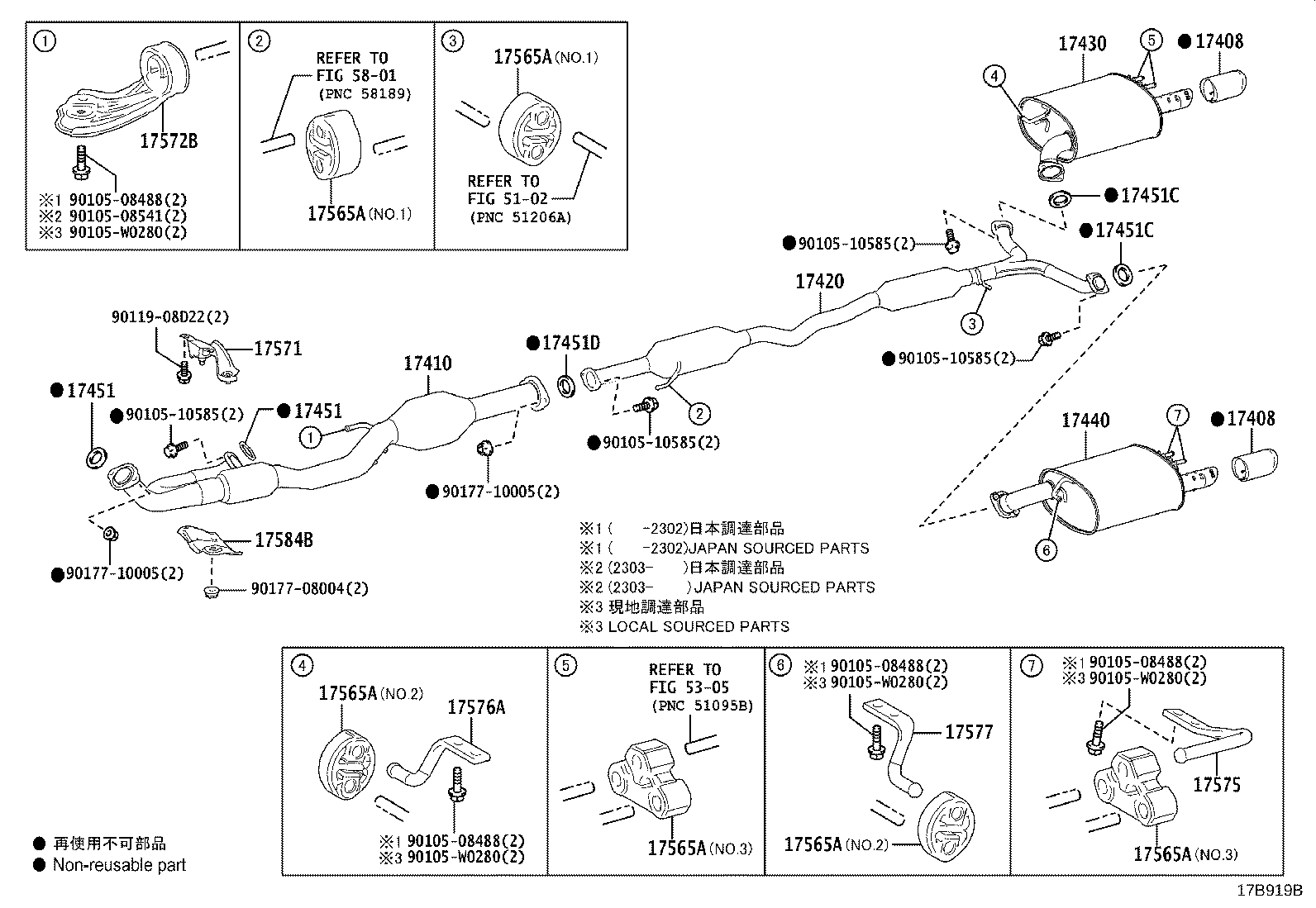

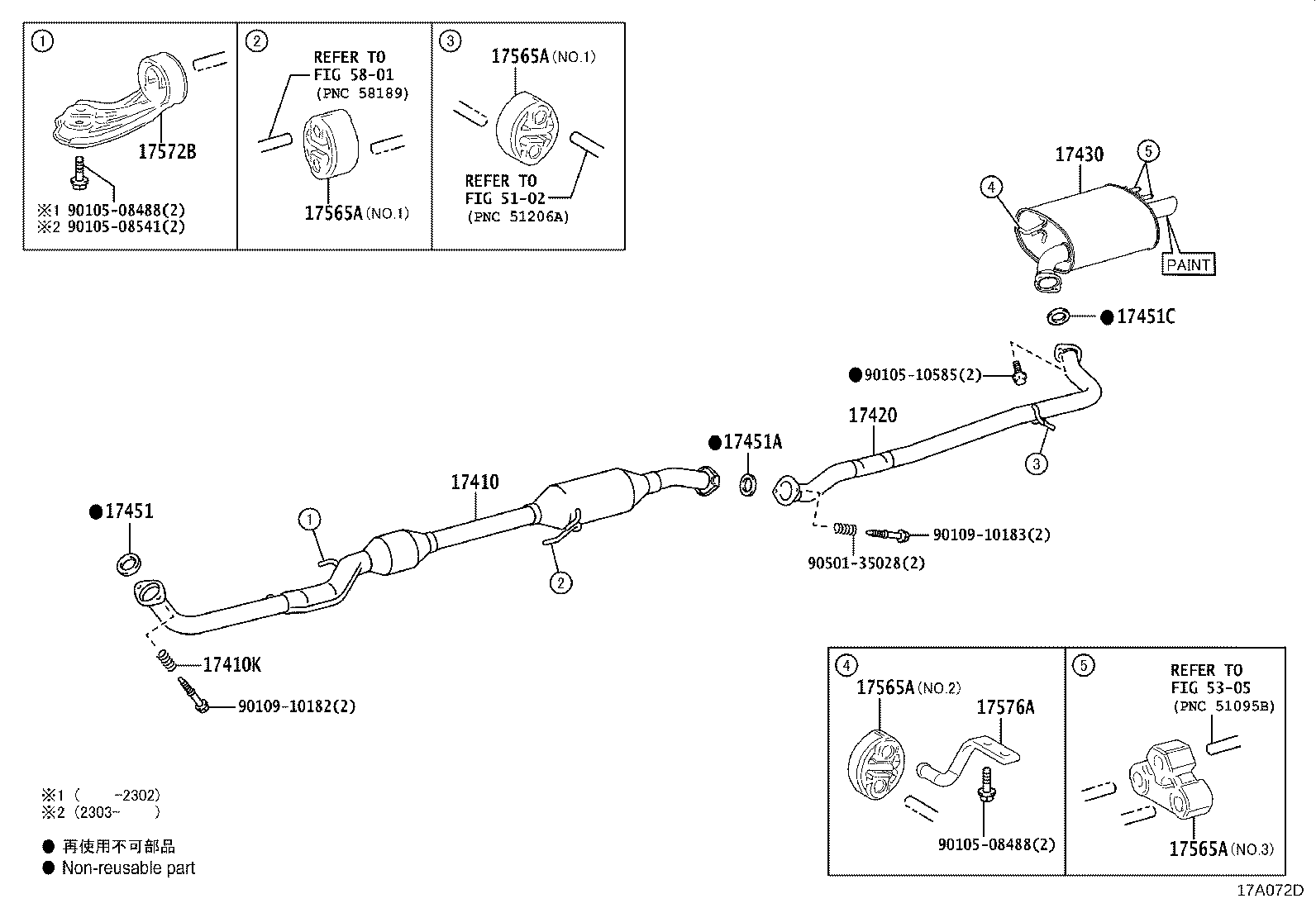

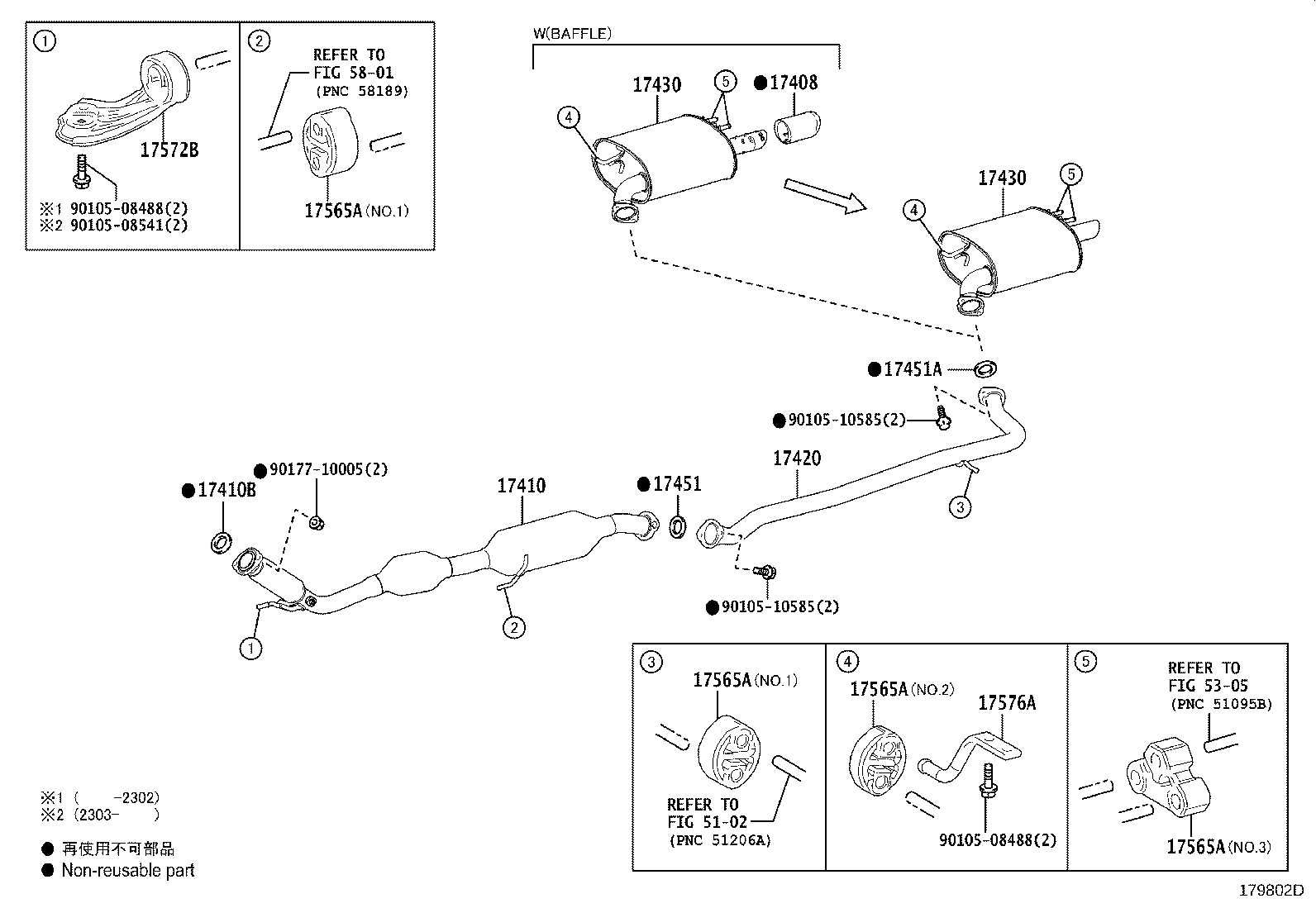

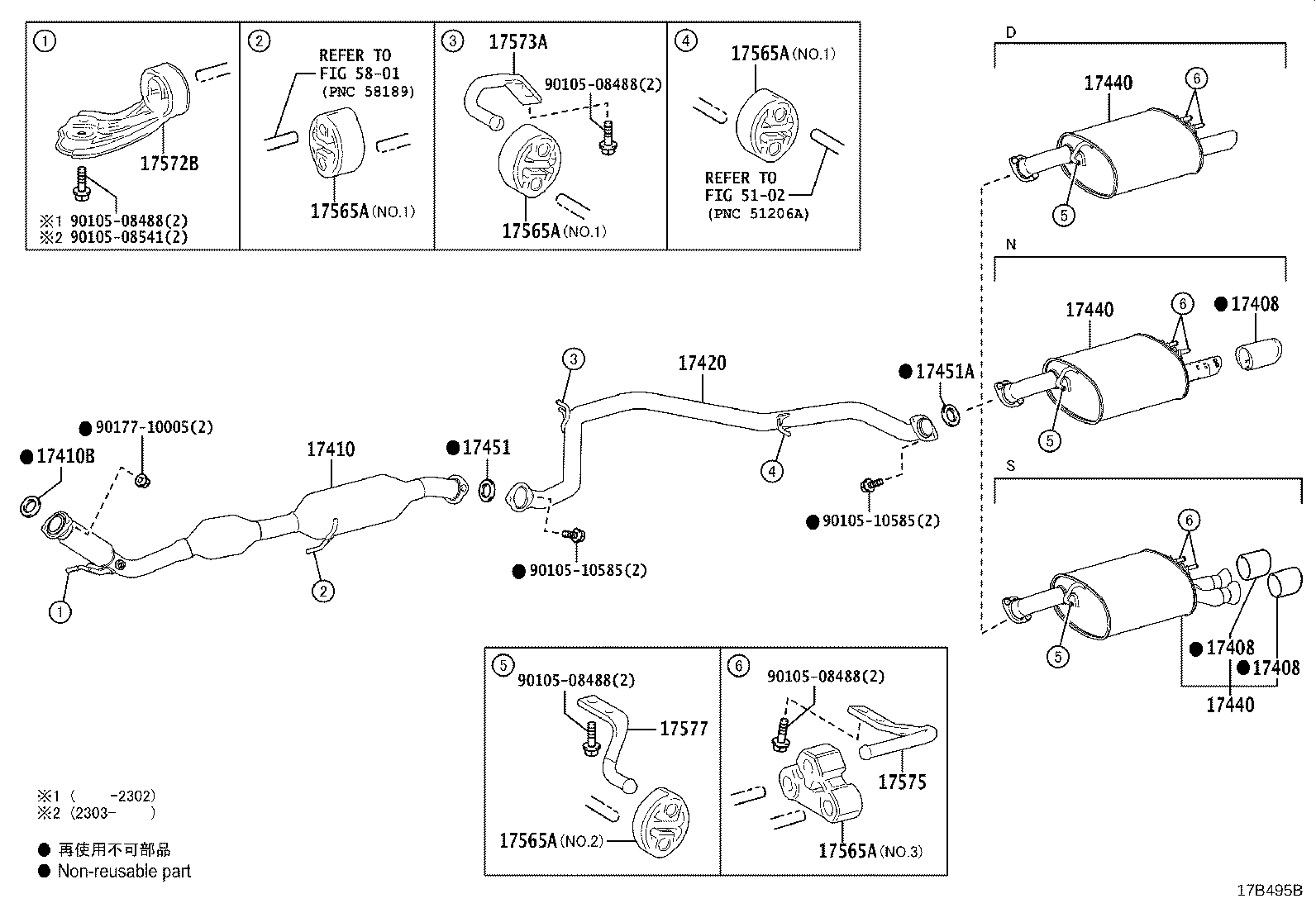

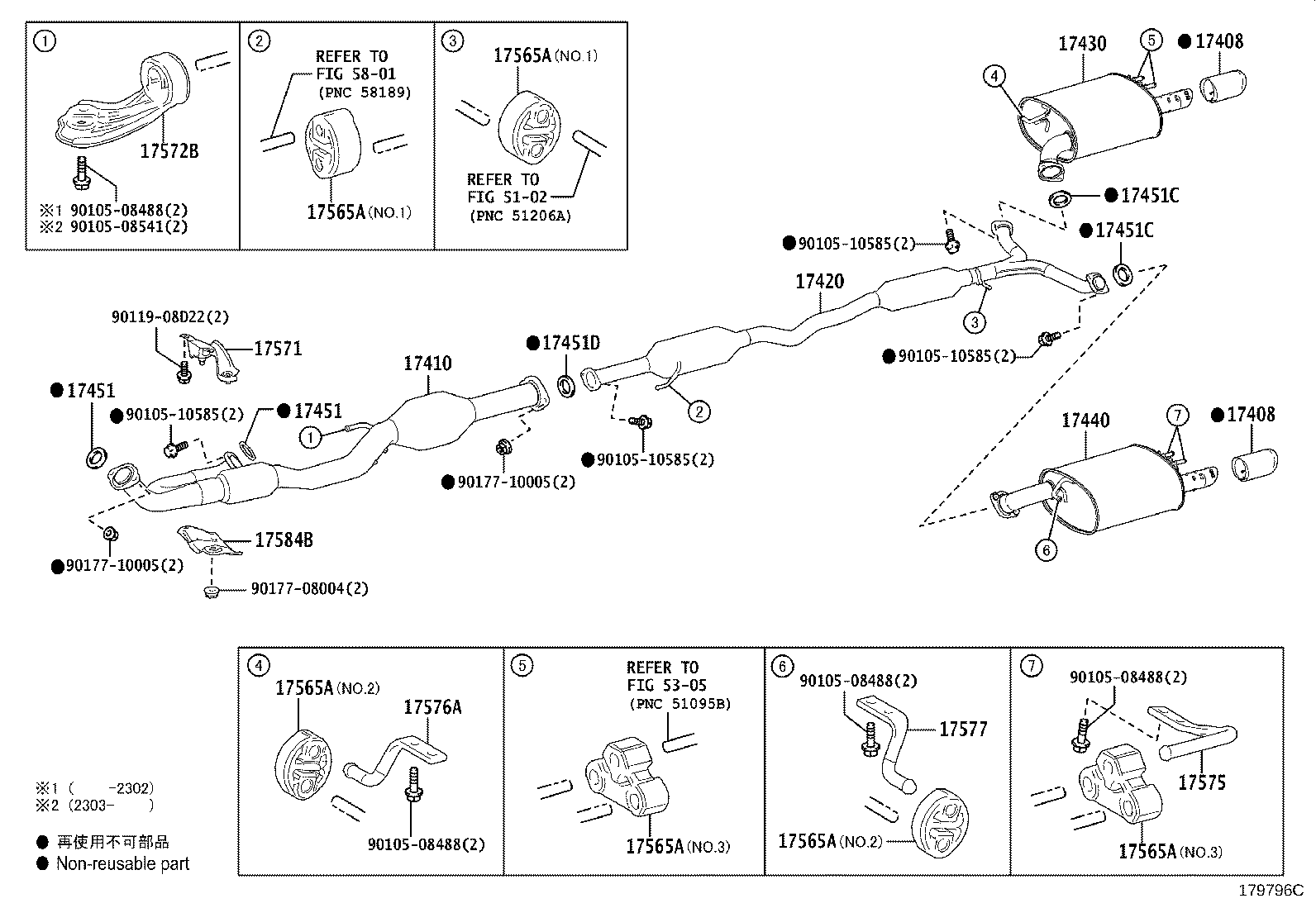

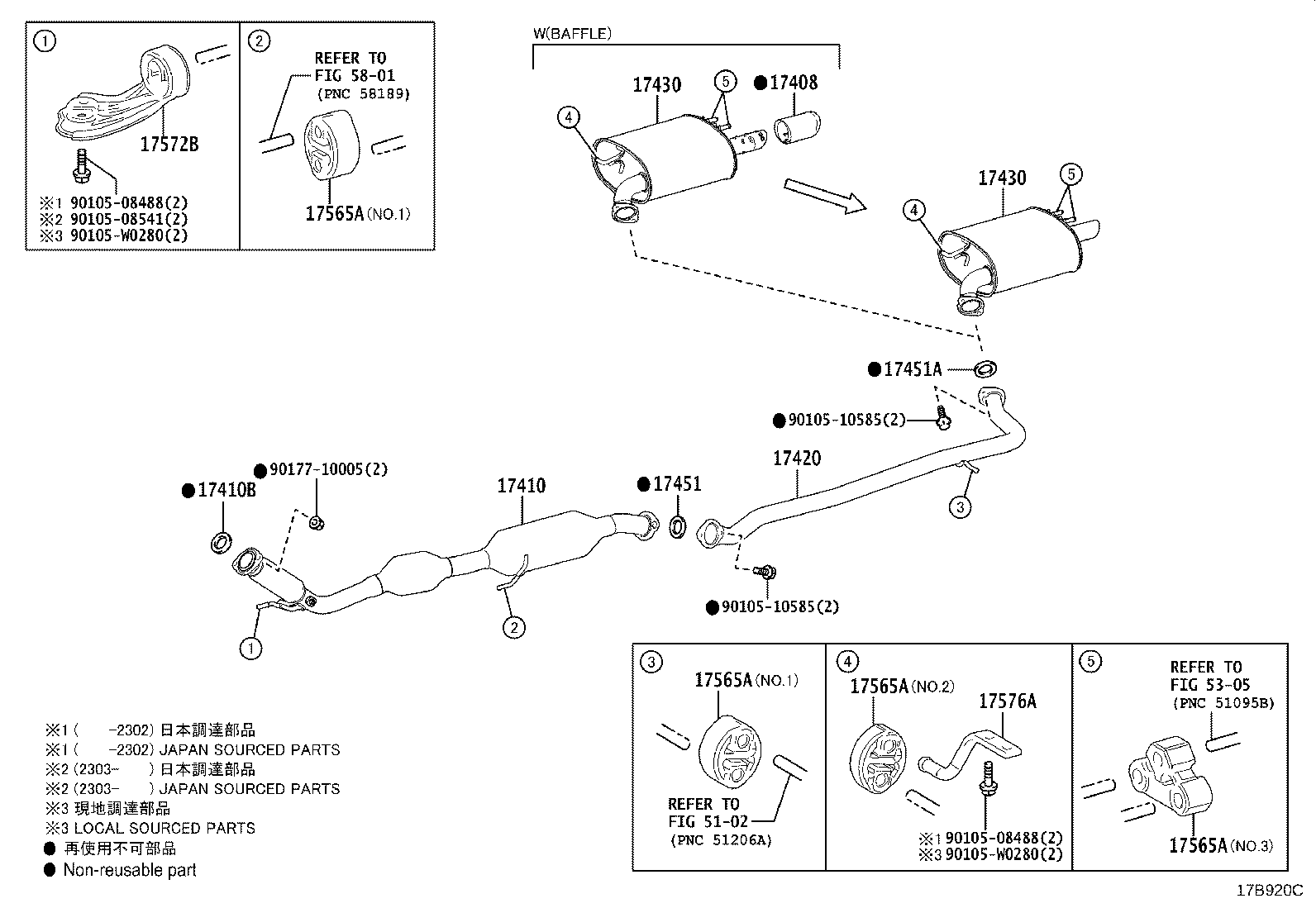

Figure 179803D 179803D 2017-09 → — Figure 17A072D 17A072D 2018-04 → — Figure 179802D 179802D 2017-09 → — Figure 179802D 179802D 2021-04 → 2021-07 Figure 17B920C 17B920C 2021-08 → — Figure 17B495B 17B495B 2017-09 → — Figure 179796C 179796C 2017-09 → — Figure 179796C 179796C 2018-04 → 2021-07 Figure 17B919B 17B919B 2021-08 → —

Part groups

PNCDescription
17408 Baffle Sub Assy, Exhaust Tailpipe
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17410K Spring, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17430 Pipe Assy, Exhaust, Tail
17440 Pipe, Exhaust Tail, LH
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17451C Gasket, Exhaust Pipe, NO.3
17451D Gasket, Exhaust Pipe, NO.4
17565A Support, Exhaust Pipe, NO.4
17571 Bracket, Exhaust Pipe Support, NO.1
17572B Bracket, Exhaust Pipe Support, NO.2
17573A Bracket, Exhaust Pipe Support, NO.3
17575 Bracket, Exhaust Pipe Support, NO.5
17576A Bracket, Exhaust Pipe Support, NO.6
17577 Bracket, Exhaust Pipe Support, NO.7
17584B Bracket, Exhaust Pipe NO.1 Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
