Toyota Camry/Hybrid

2017-09 → present · chassis ASV7#,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2845A0 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

23 part groups · 7 illustrations

Illustrations

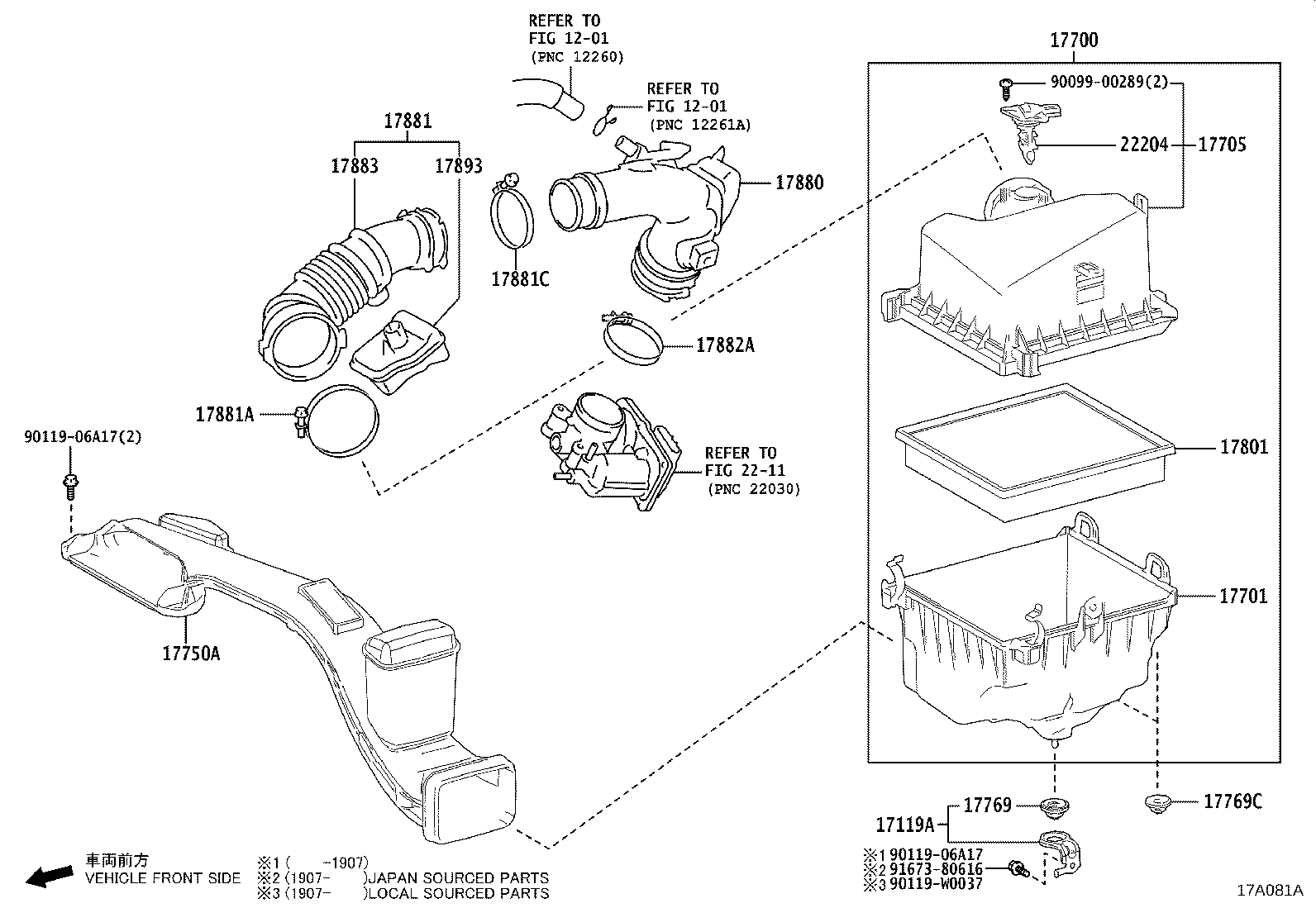

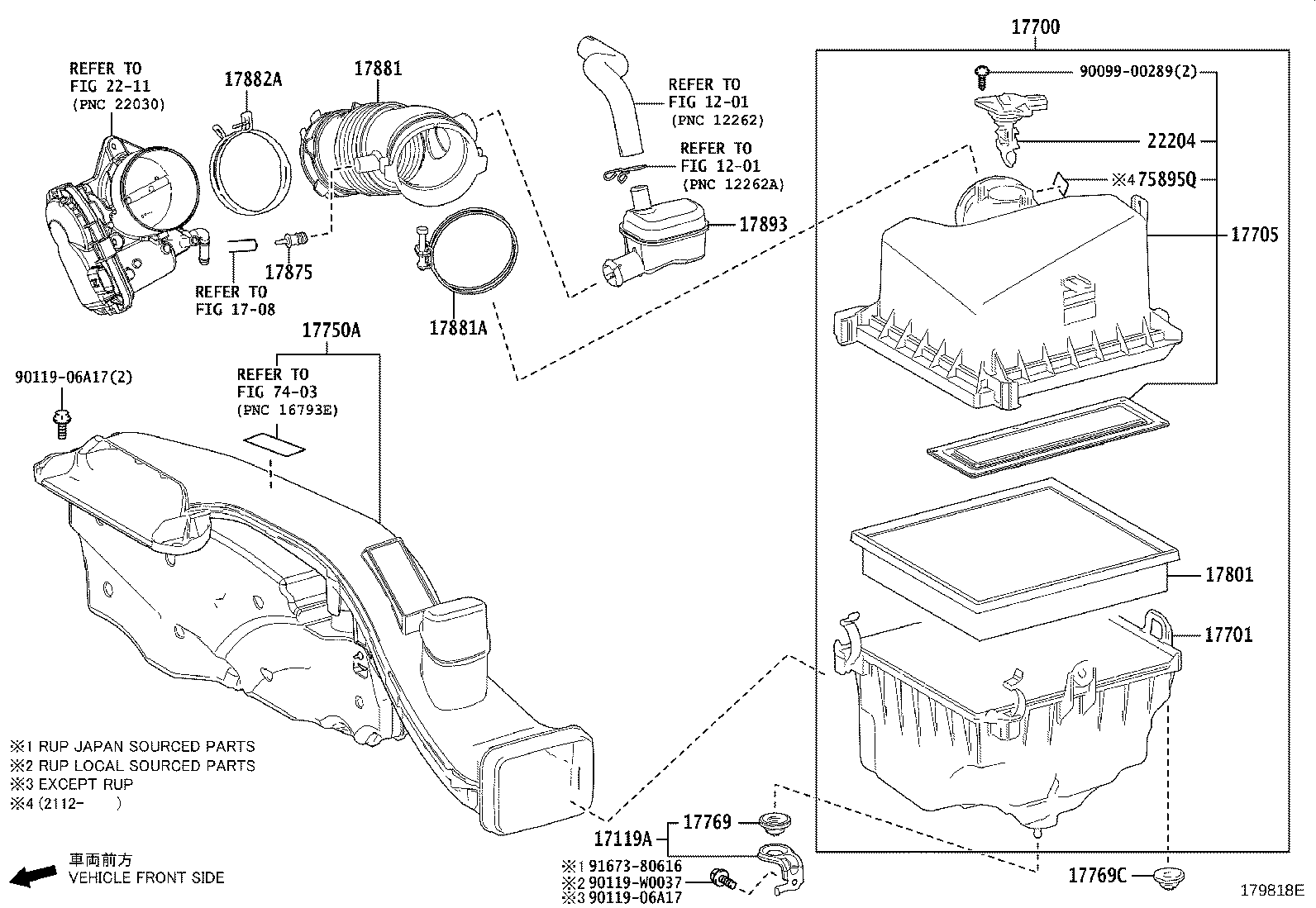

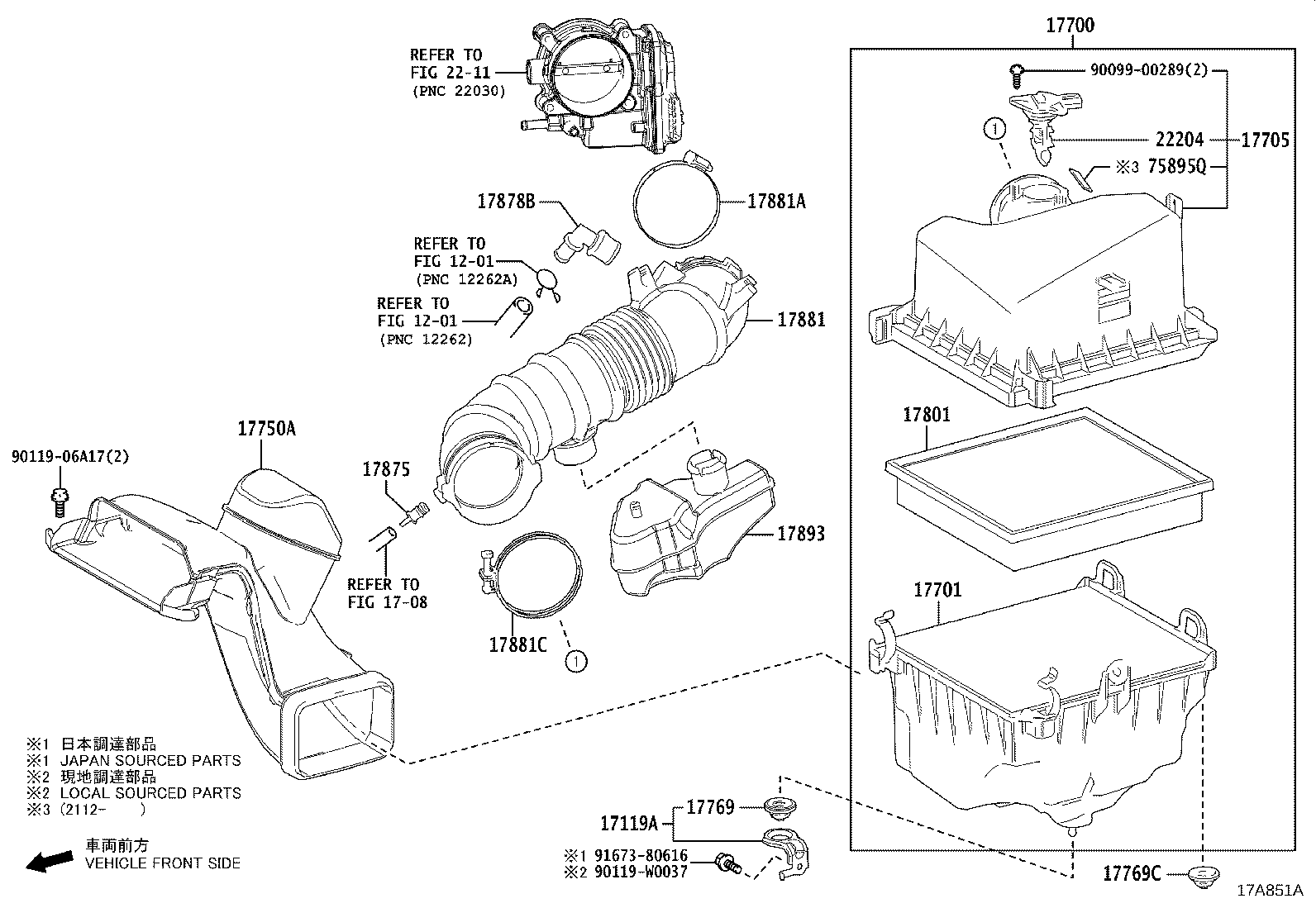

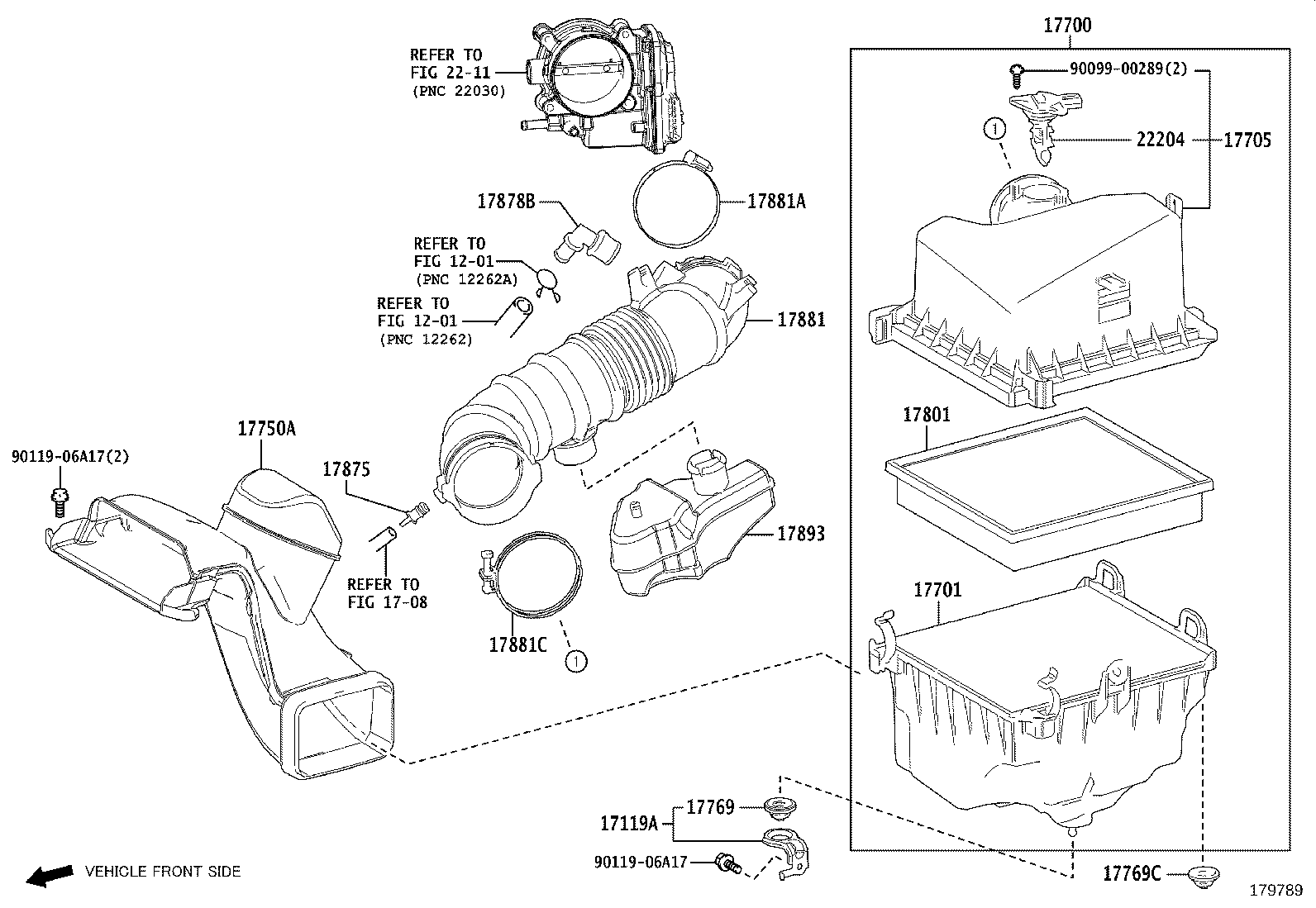

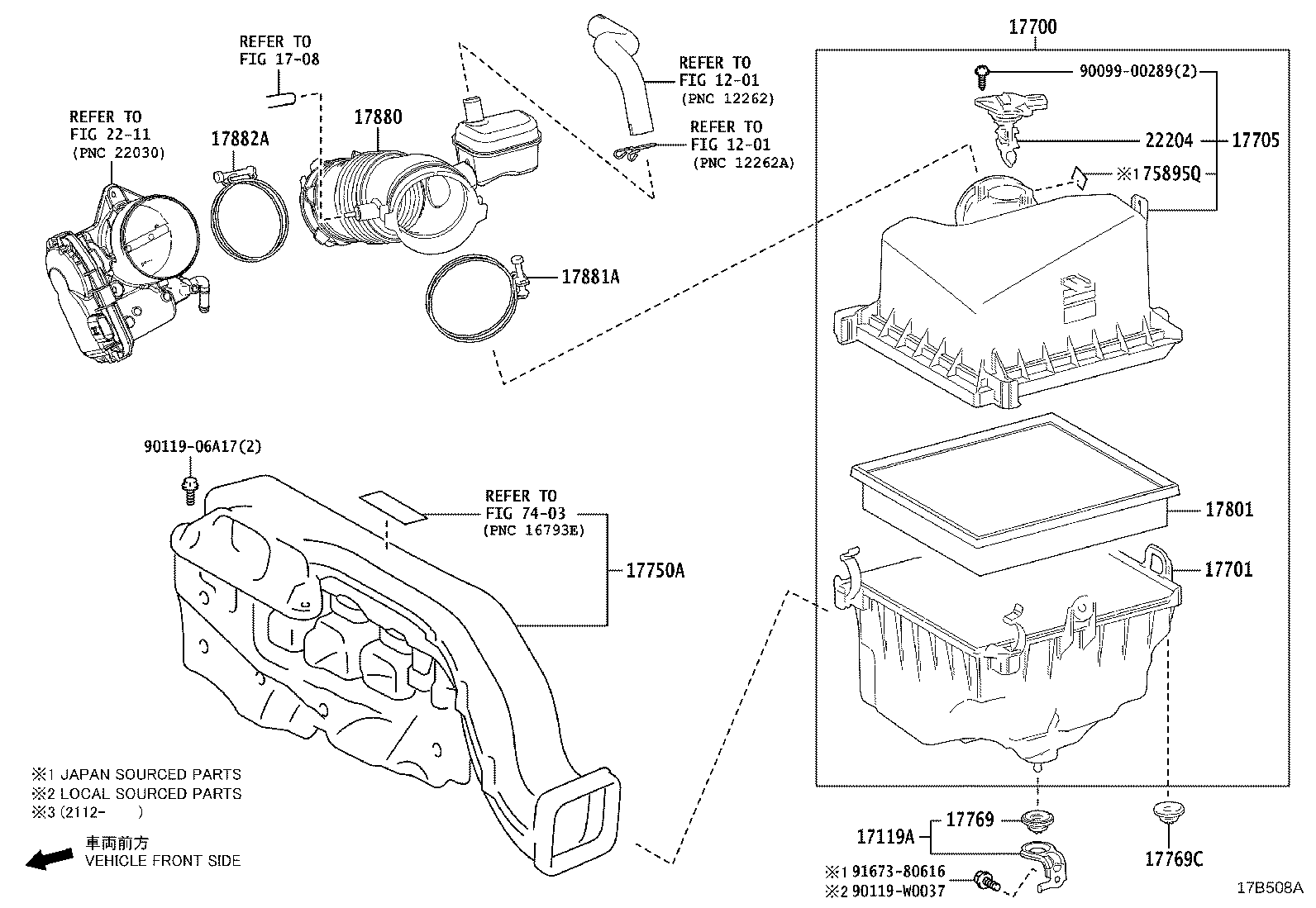

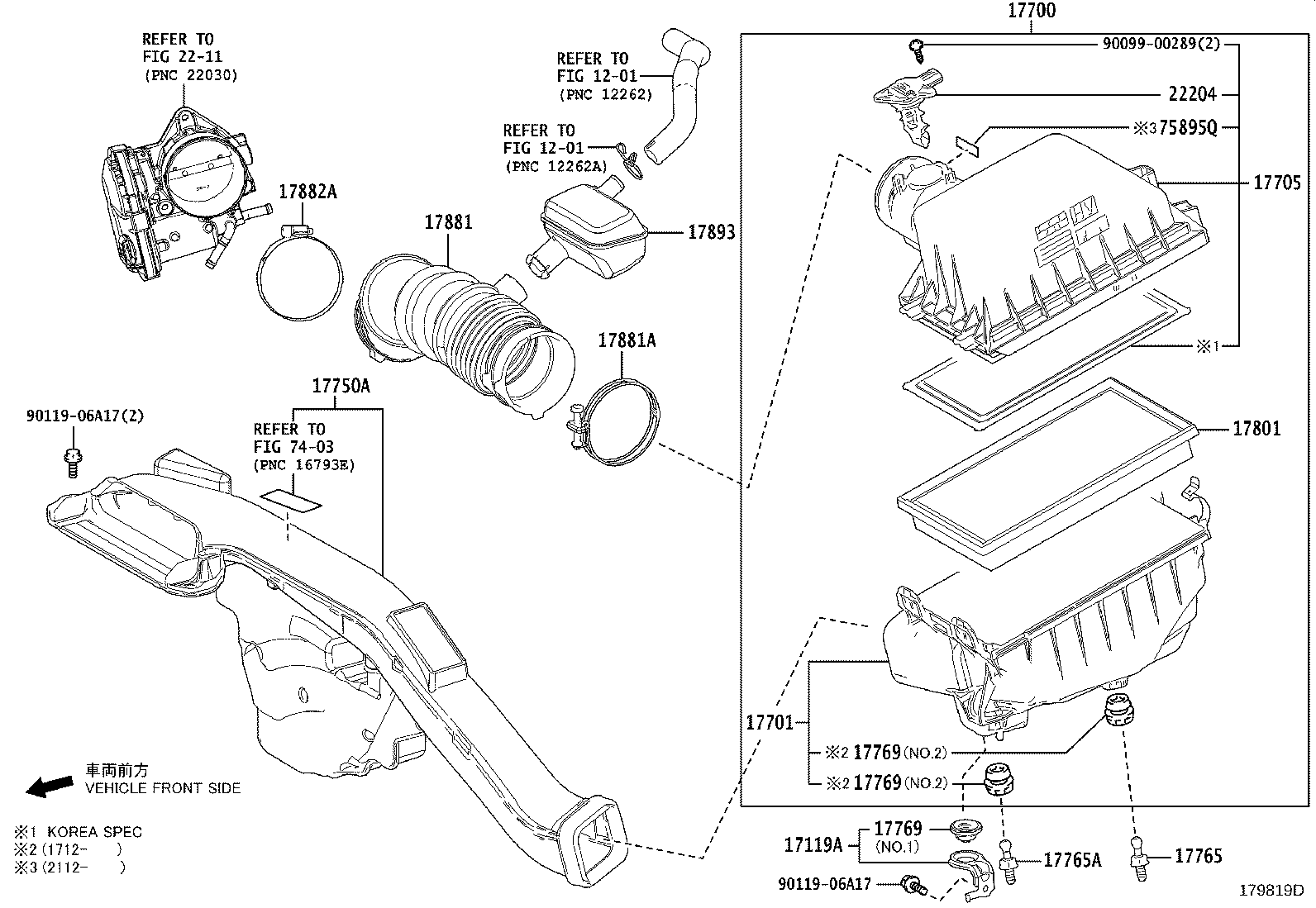

Figure 179823B 179823B 2017-09 → — Figure 179818E 179818E 2017-09 → — Figure 179819D 179819D 2017-09 → — Figure 17A081A 17A081A 2018-04 → — Figure 179789 179789 2017-09 → 2019-07 Figure 17A851A 17A851A 2019-07 → — Figure 17B508A 17B508A 2021-04 → —

Part groups

PNCDescription
12229A Pipe, Ventilation
17119A Bracket, Air Cleaner
17700 Cleaner Assy, Air
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17750A Inlet Assy, Air Cleaner
17765 Stay, Air Cleaner, NO.1
17765A Stay, Air Cleaner, NO.1
17769 Support, Air Cleaner
17769C Support, Air Cleaner, NO.1
17801 Element Sub-assy, Air Cleaner Filter
17875 Pipe, Intake Air Connector
17878B Tube, Ventilation
17880 Hose Assy, Air Cleaner
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17881C Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17893 Resonator, Intake Air
22204 Meter Sub-assy, Intake Air Flow
75895Q Tape, Moulding, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
