Toyota Camry/Hybrid

2017-09 → present · chassis ASV7#,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2845A0 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

31 part groups · 8 illustrations

Illustrations

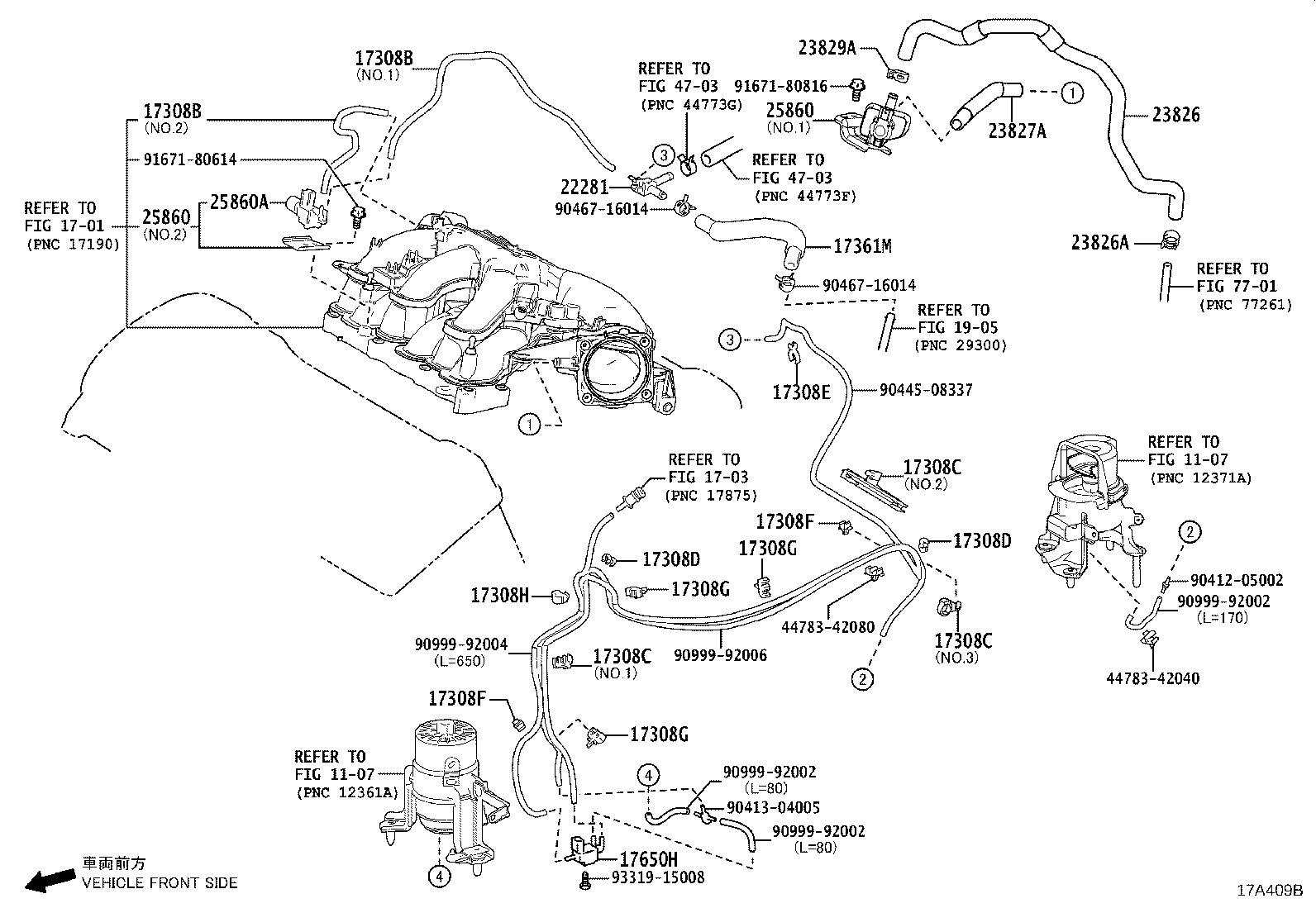

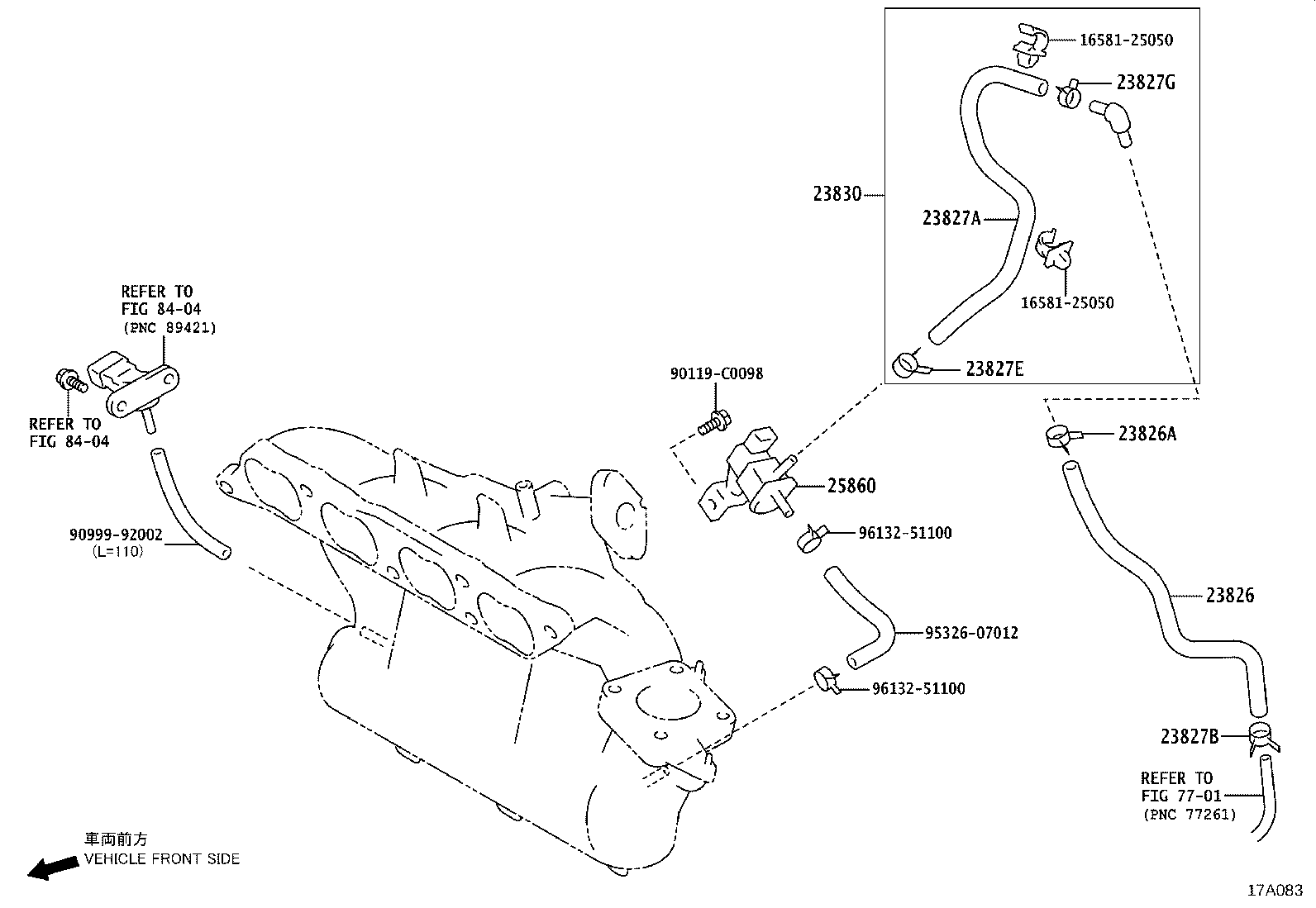

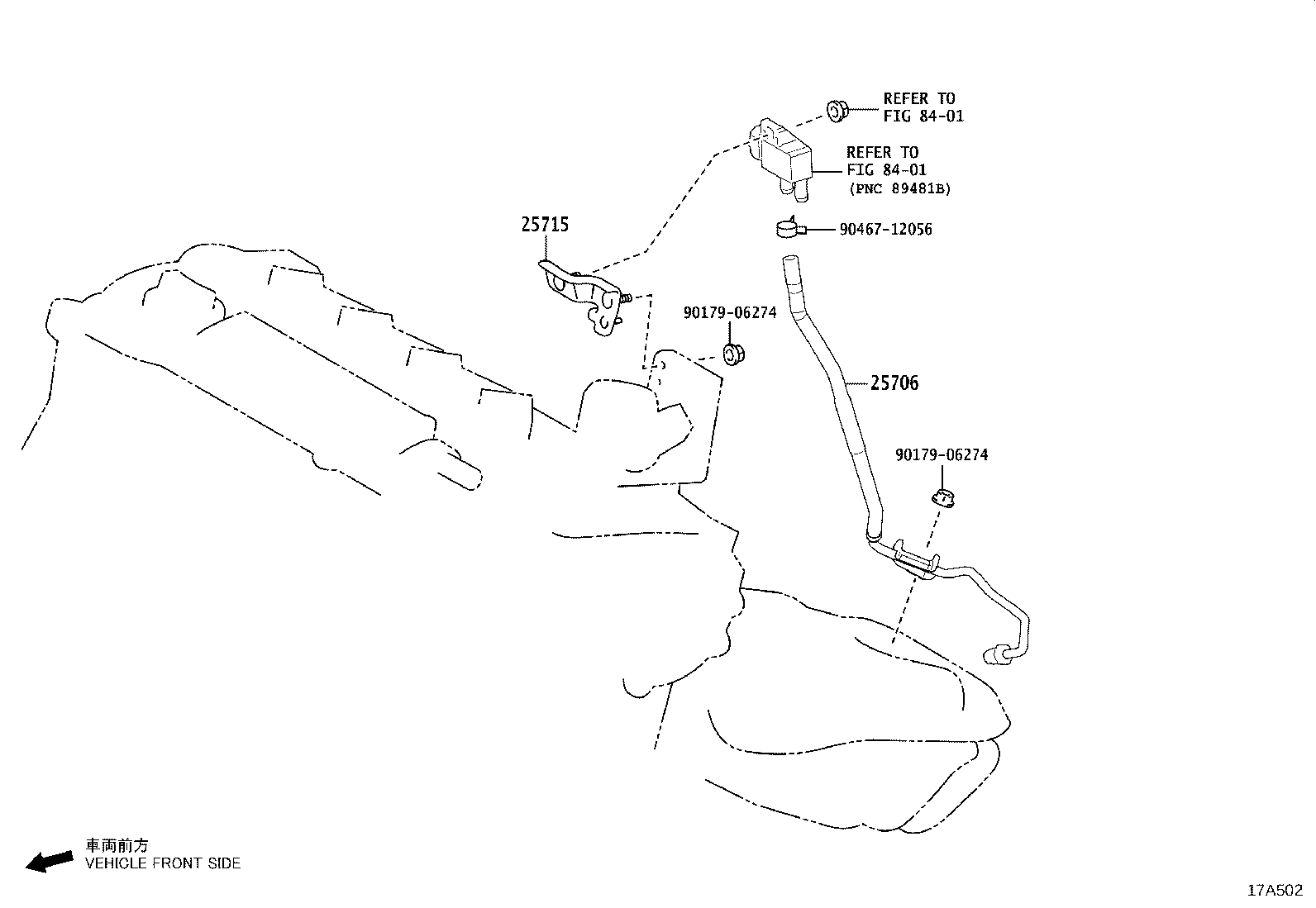

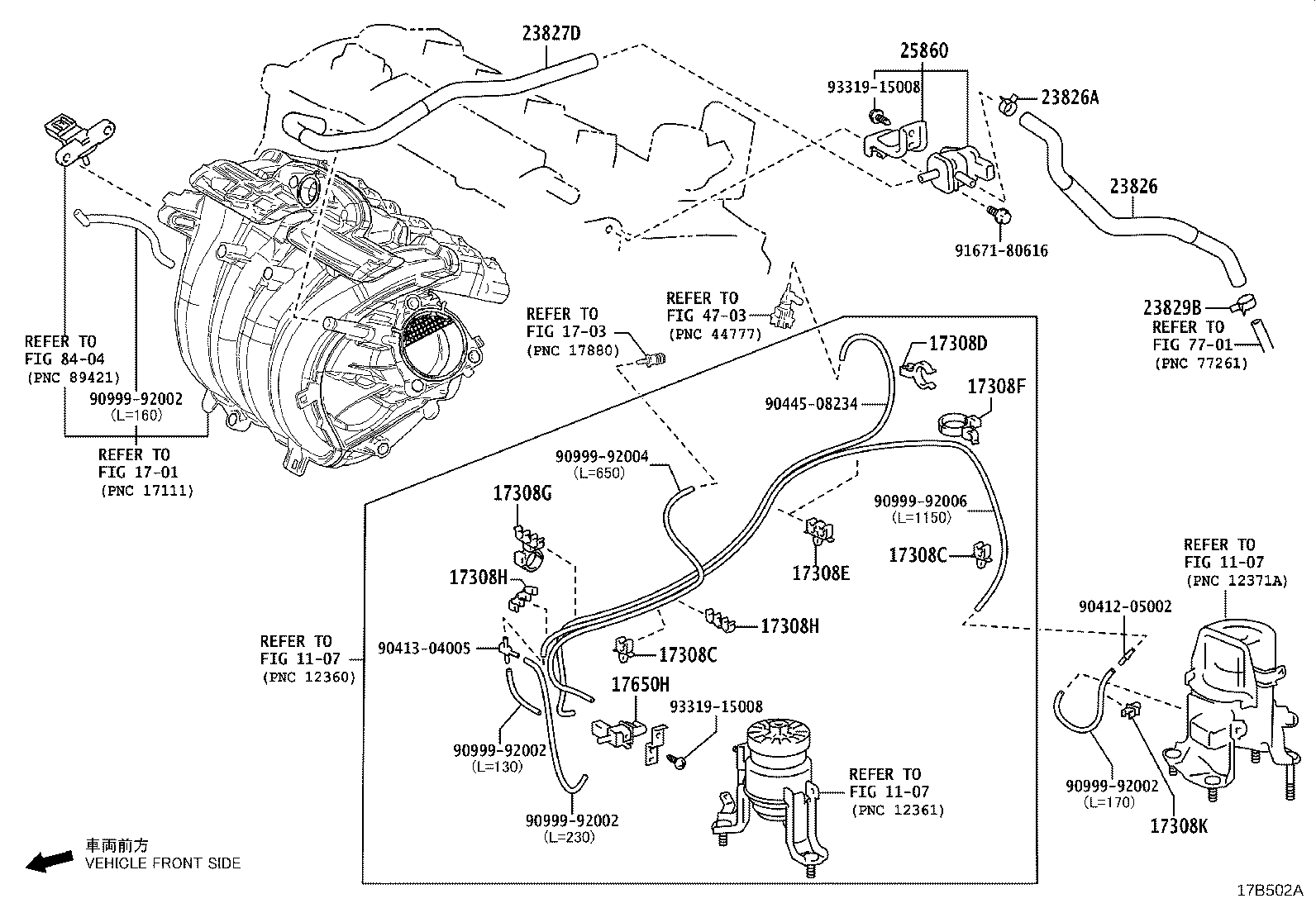

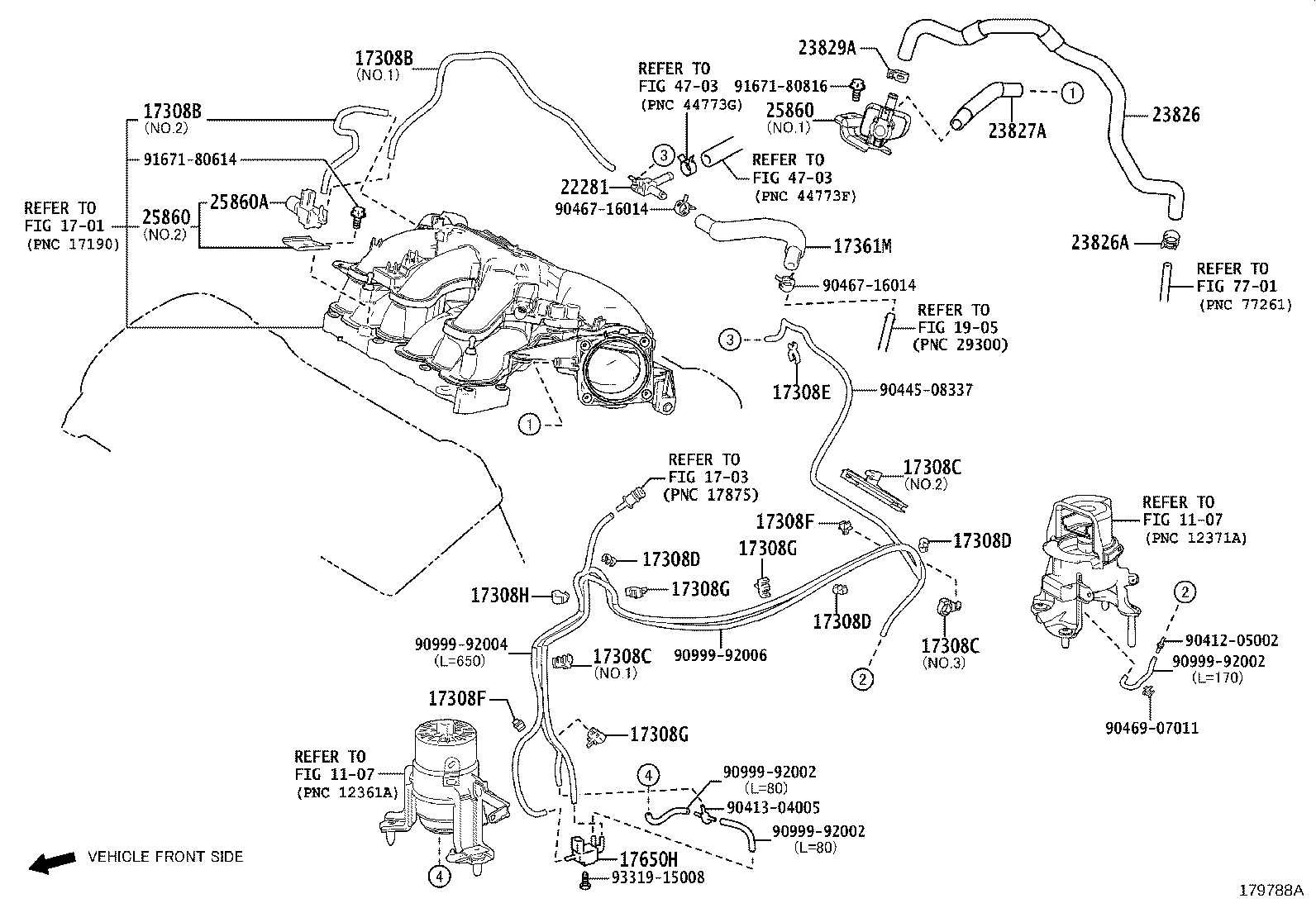

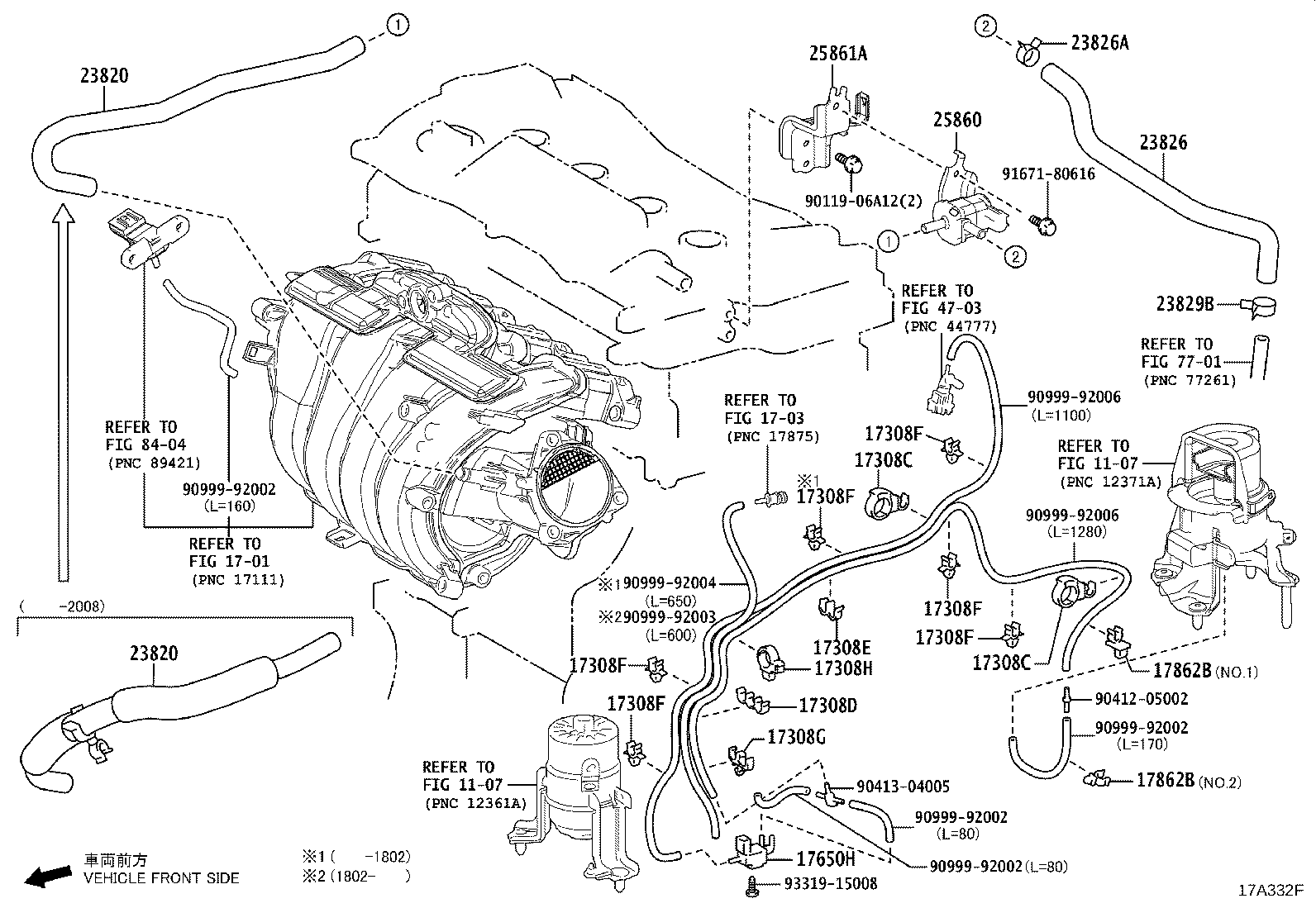

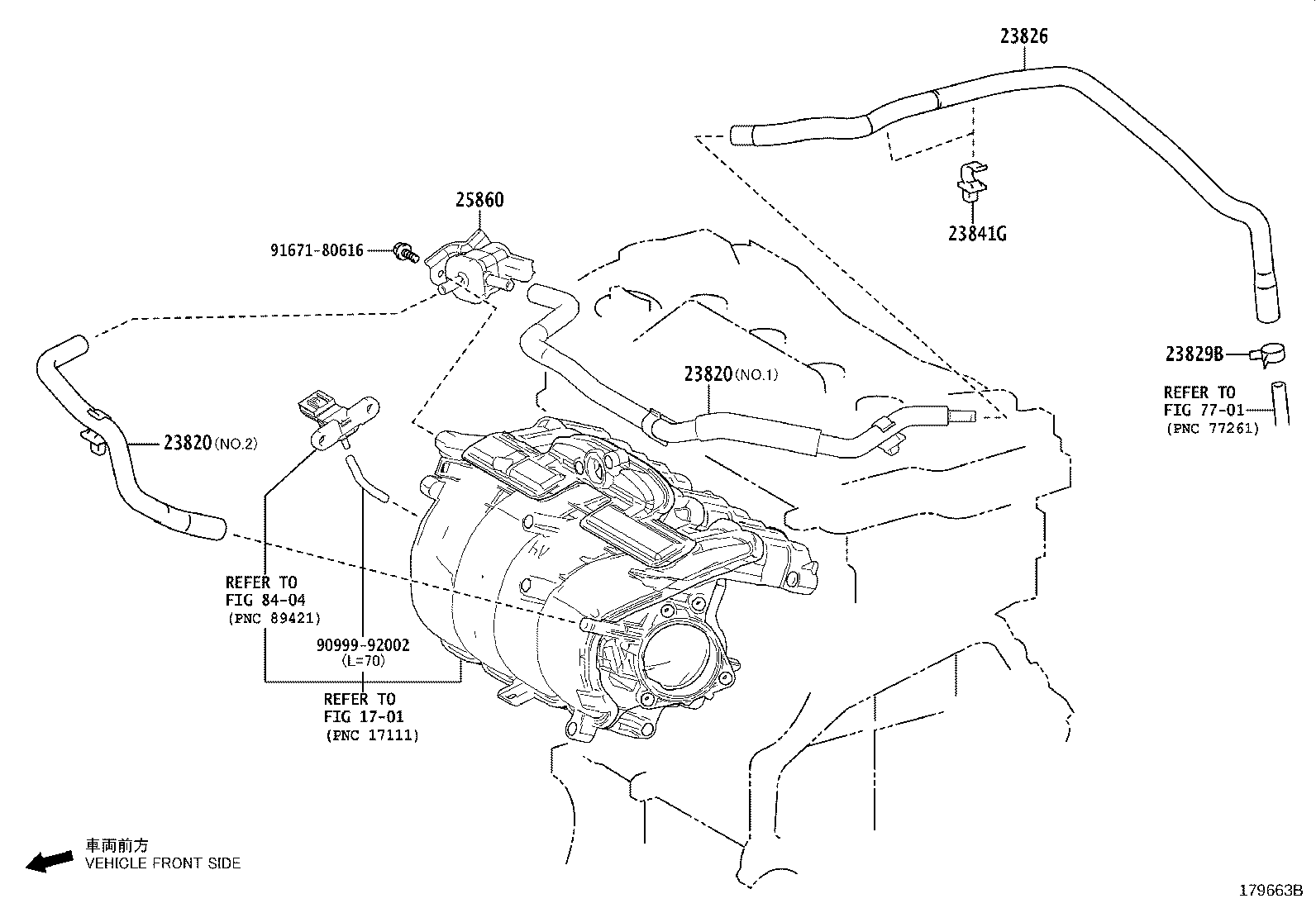

Figure 179825 179825 2017-09 → — Figure 17A332F 17A332F 2017-09 → — Figure 179663B 179663B 2017-09 → — Figure 17A502 17A502 2019-02 → — Figure 17A083 17A083 2018-04 → — Figure 179788A 179788A 2017-09 → 2018-02 Figure 17A409B 17A409B 2018-02 → — Figure 17B502A 17B502A 2021-04 → —

Part groups

PNCDescription
17308B Hose Sub-assy, Vacuum
17308C Clamp(FOR VACUUM HOSE)
17308D Clamp, NO.2(FOR VACUUM HOSE)
17308E Clamp, NO.3(FOR VACUUM HOSE)
17308F Clamp, NO.4(FOR VACUUM HOSE)
17308G Clamp, NO.5(FOR VACUUM HOSE)
17308H Clamp, NO.6(FOR VACUUM HOSE)
17308K Clamp, NO.7(FOR VACUUM HOSE)
17361M Tube, Air
17650 Valve Assy, Vacuum Switching
17650H Valve, Vacuum Switching
17862B Clamp, Hose
22281 Way, Air Delivery
23285A Valve, Check, NO.1
23820 Hose Assy, Fuel Vapor Feed
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
23827D Hose, Fuel Vapor Feed, NO.2
23827E Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
23827G Clip(FOR FUEL VAPOR FEED HOSE, NO.3)
23829A Hose, Fuel Vapor Feed
23829B Clip(FOR FUEL VAPOR FEED HOSE)
23830 Hose Assy, Fuel Vapor Feed, NO.2
23841G Clamp, Fuel Hose
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25715 Bracket, Emission Control Valve
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
25861A Bracket, Vacuum Switching Valve, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
