Toyota Camry/Hybrid

2017-09 → present · chassis ASV7#,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2845A0 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

41 part groups · 13 illustrations

Illustrations

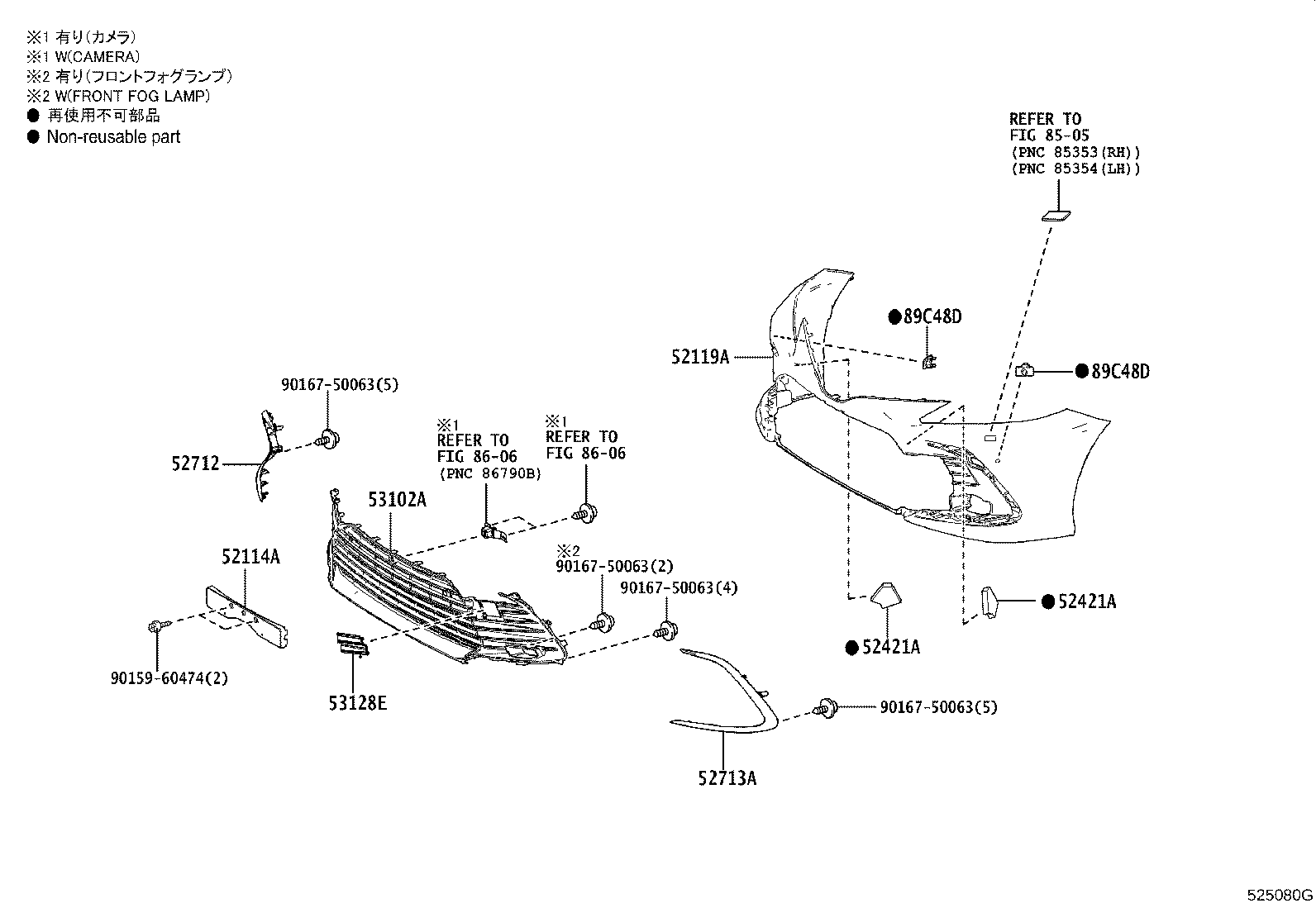

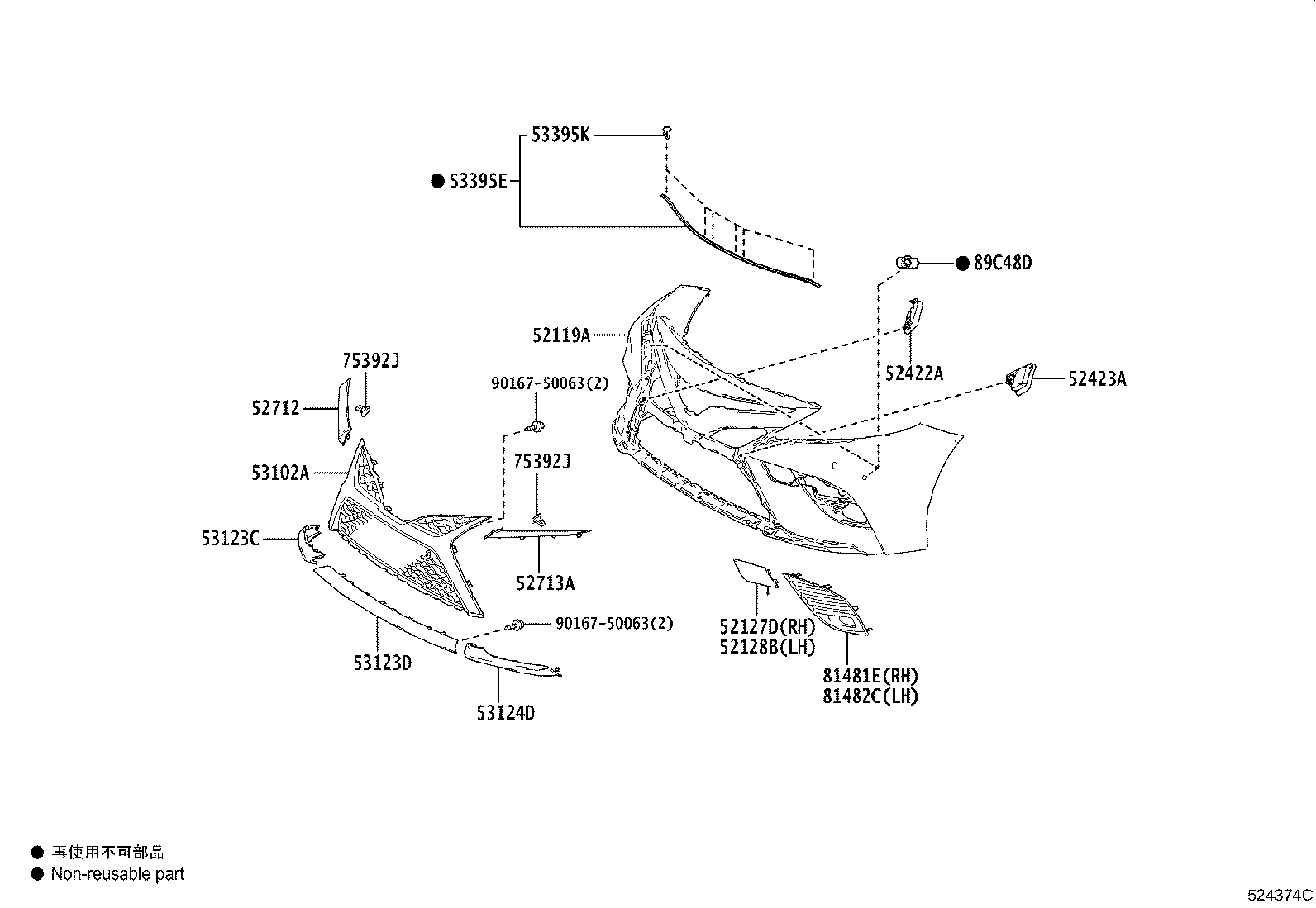

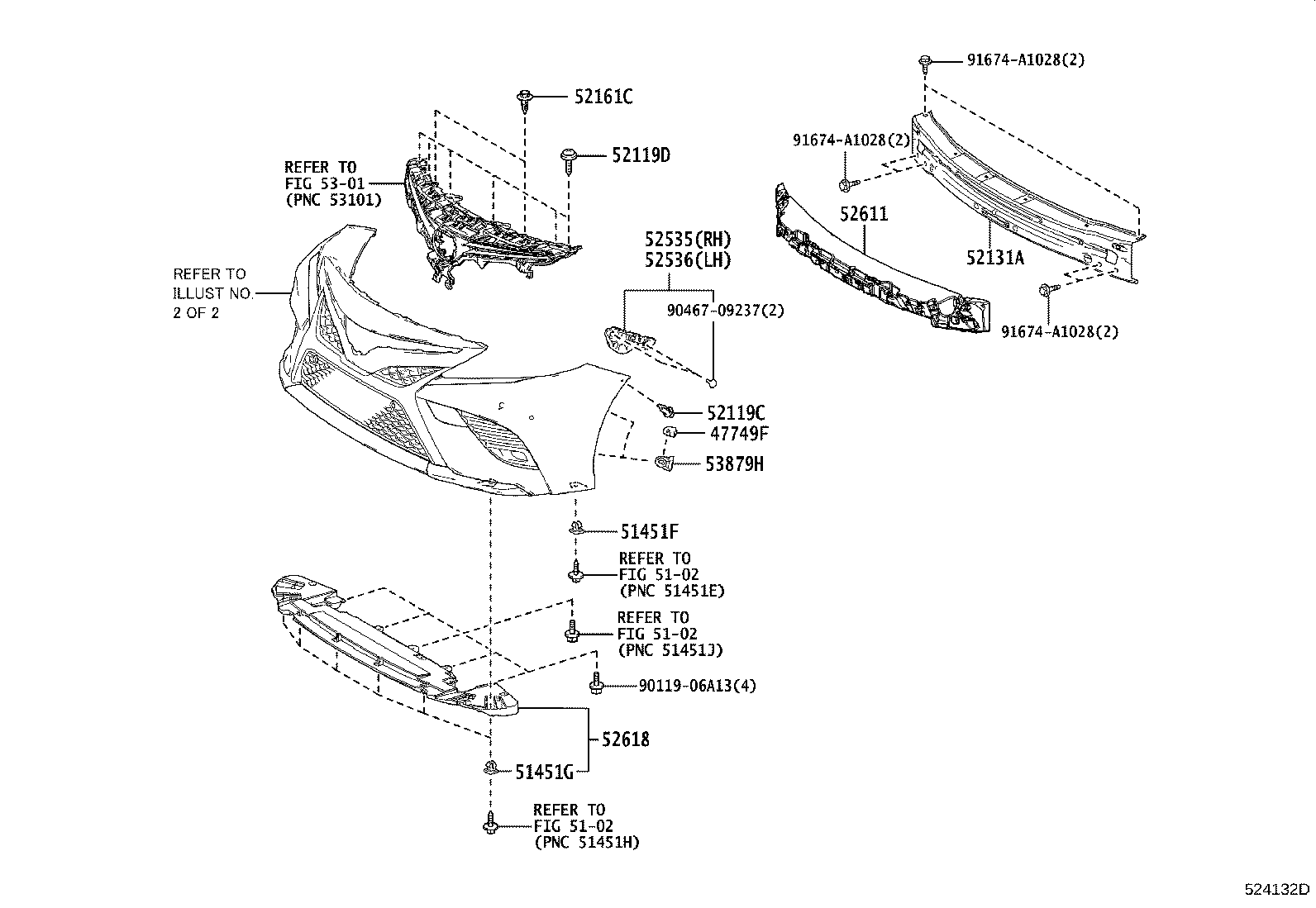

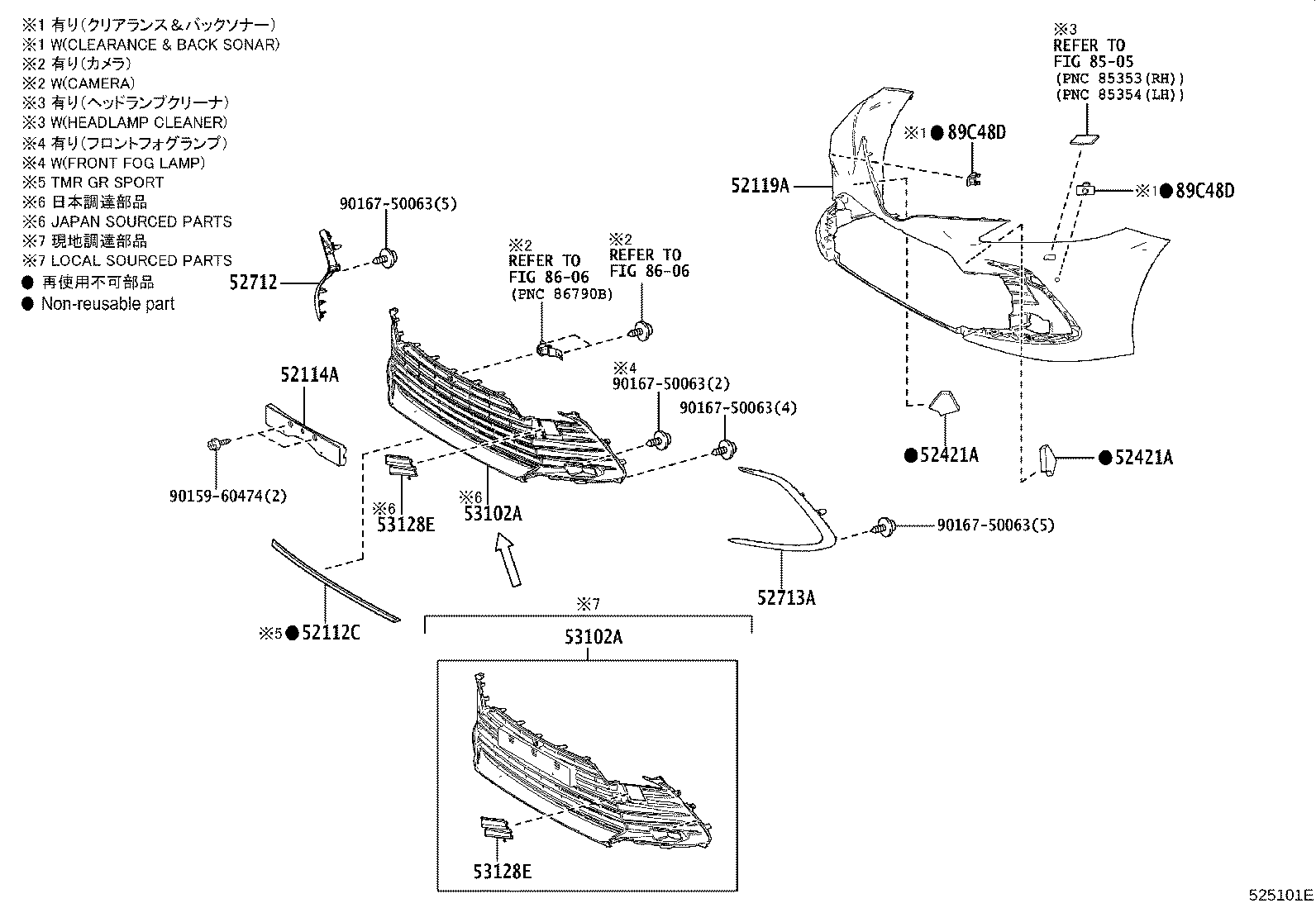

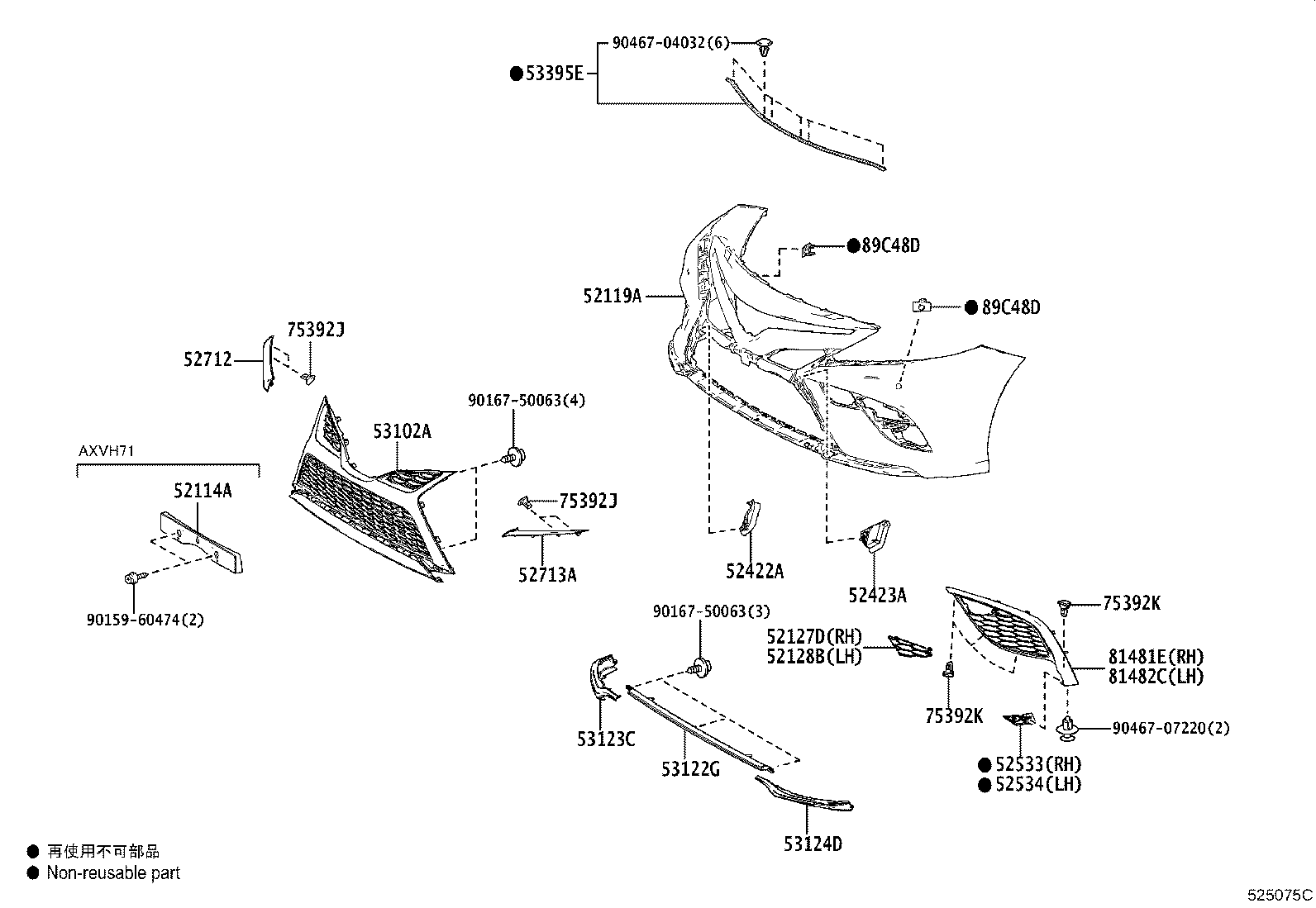

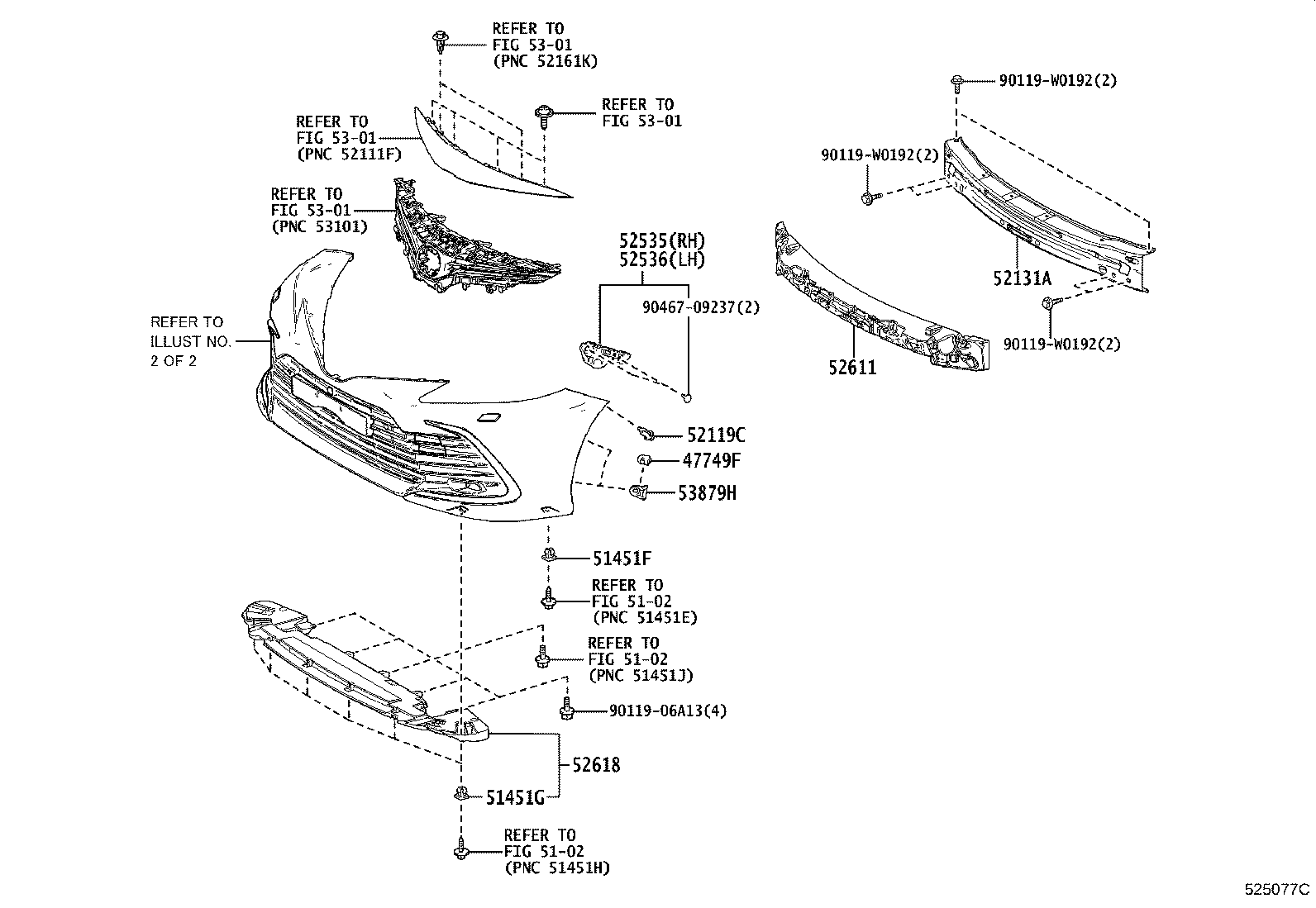

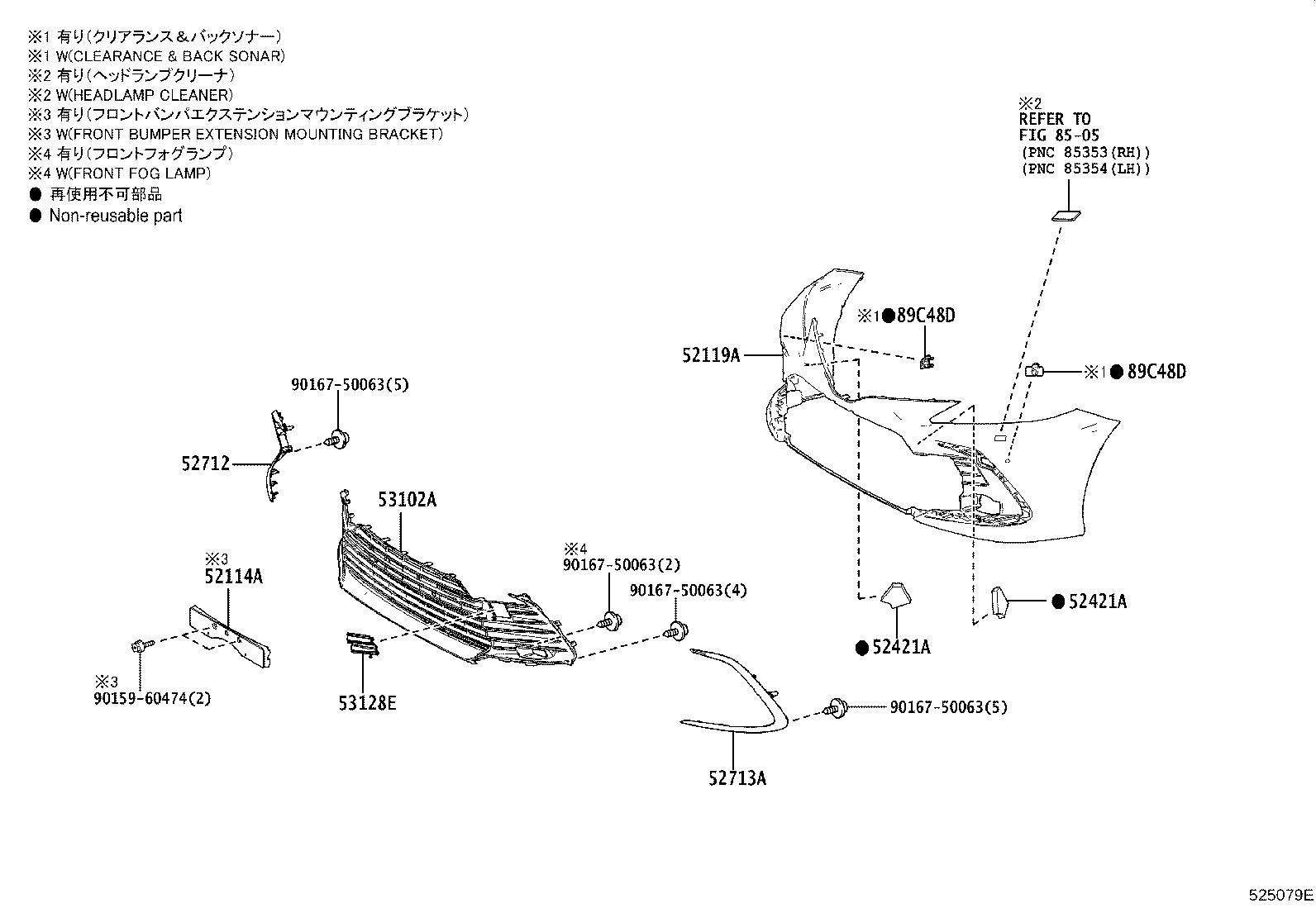

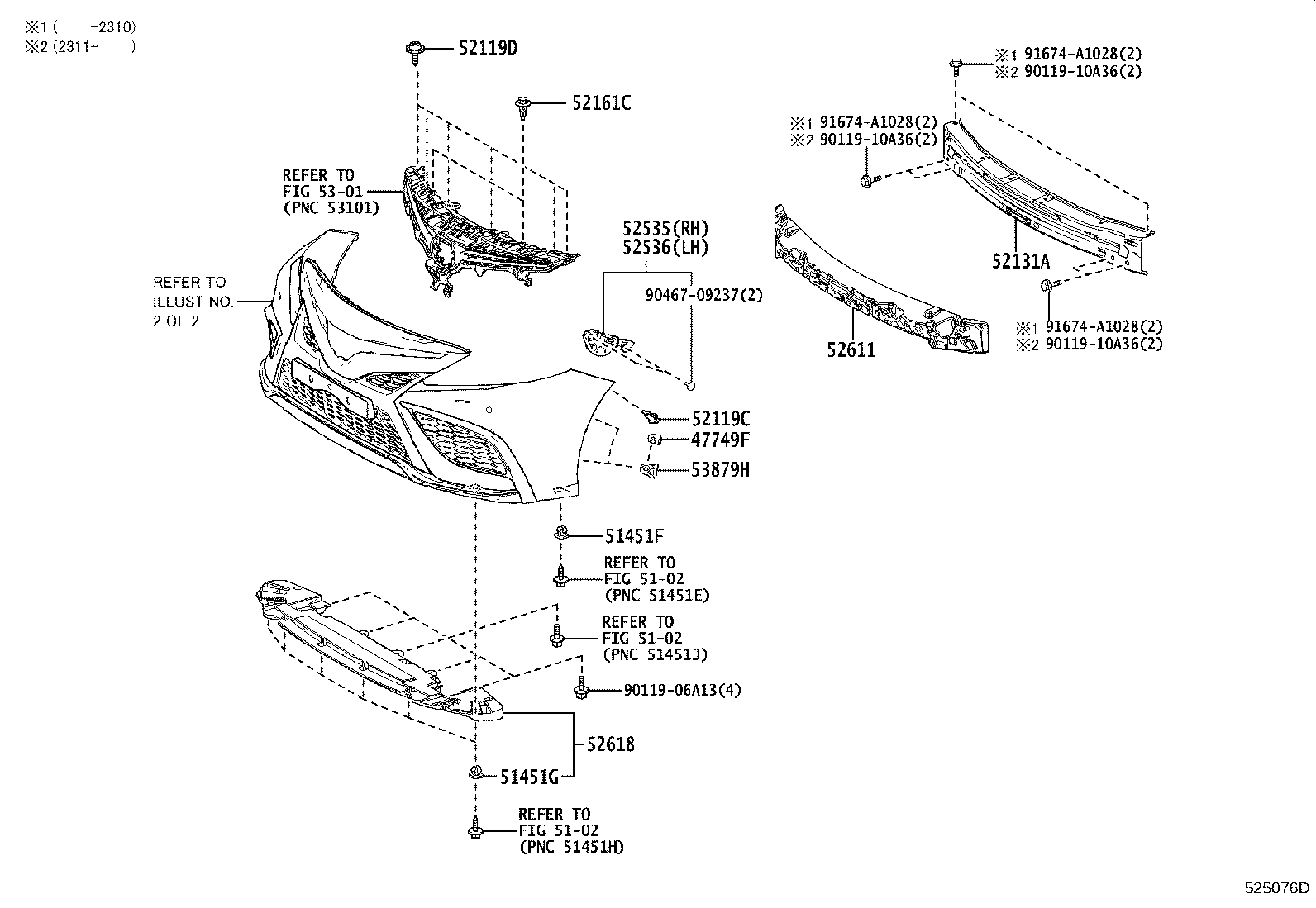

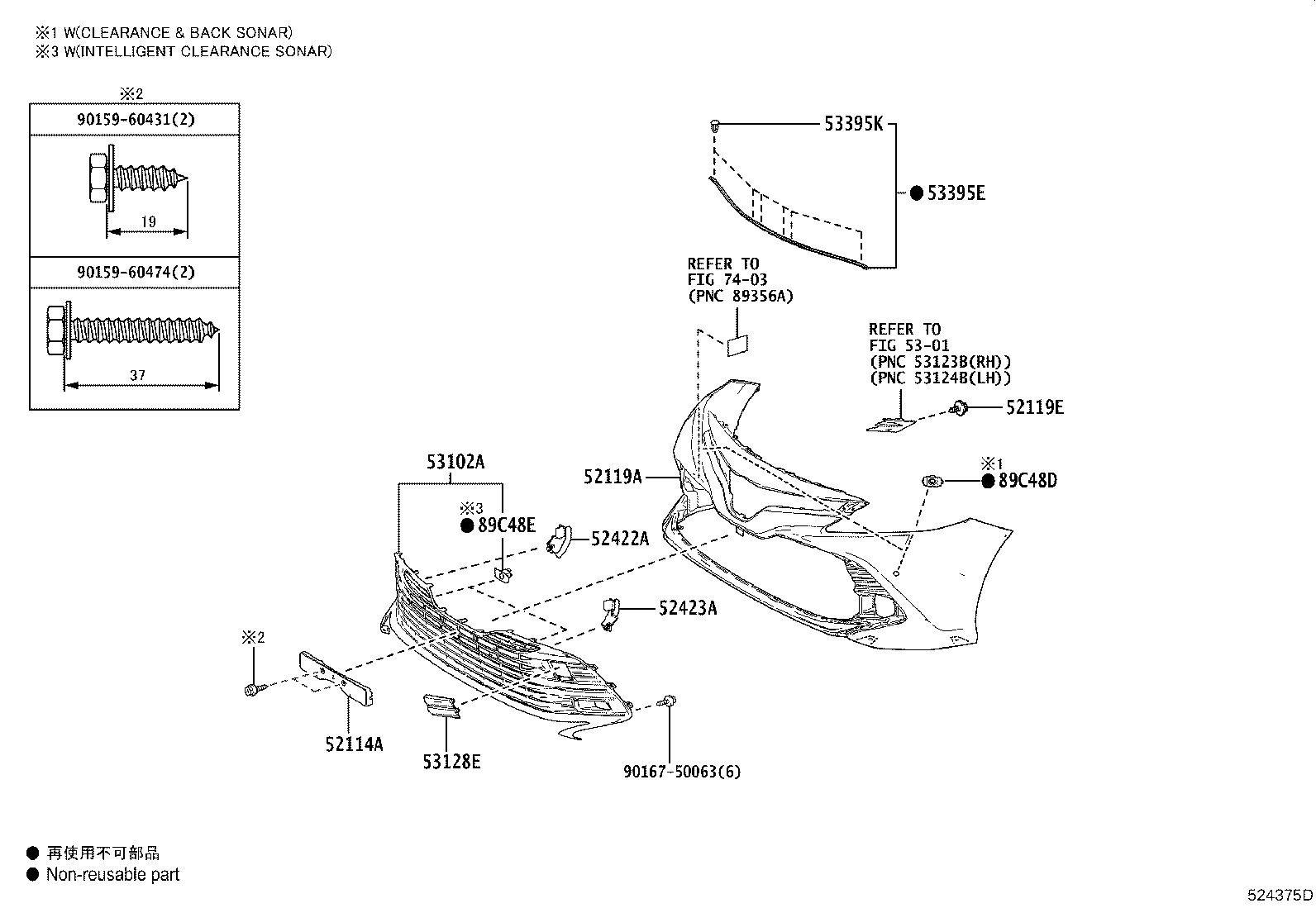

Figure 523771K 523771K 2017-09 → 2021-01 Figure 523771K 523771K 2018-04 → 2021-04 Figure 524375D 524375D 2017-09 → 2021-01 Figure 524375D 524375D 2018-04 → 2021-04 Figure 524132D 524132D 2019-10 → 2021-01 Figure 524374C 524374C 2019-10 → 2021-01 Figure 525077C 525077C 2021-02 → — Figure 525077C 525077C 2021-04 → — Figure 525079E 525079E 2021-02 → — Figure 525080G 525080G 2021-02 → — Figure 525101E 525101E 2021-04 → — Figure 525076D 525076D 2021-02 → — Figure 525075C 525075C 2021-02 → —

Part groups

PNCDescription
47749F Clip, Pin Hold
51451F Grommet, NO.1
51451G Grommet, NO.2
52112C Extension, Front Bumper
52114A Bracket, Front Bumper Extension Mounting
52119A Cover, Front Bumper
52119C Clip, Front Bumper Cover
52119D Screw, NO.1
52119E Screw, NO.2
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52131A Reinforcement, Front Bumper
52161C Piece, Front Bumper
52421A Pad, Front Bumper
52422A Pad, Front Bumper, RH
52423A Pad, Front Bumper, LH
52533 Bracket, Front Bumper Retainer, NO.1
52534 Bracket, Front Bumper Retainer, NO.2
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
52618 Absorber, Front Bumper, Lower
52711A Garnish, Front Bumper
52712 Moulding, Front Bumper Side, RH
52712A Garnish, Front Bumper, LH
52713A Moulding, Front Bumper Side, LH
53102A Grille Sub-assy, Radiator, Lwr
53122G Moulding, Radiator Grille, Lower Center
53123C Moulding, Radiator Grille, Lower RH
53123D Moulding, Radiator Grille, Lower
53124D Moulding, Radiator Grille, Lower LH
53128E Grille, Radiator, Lower Side LH
53395E Seal, Hood TO Front End Panel
53395K Clip(FOR HOOD TO FRONT END PANEL SEAL)
53879H Retainer, Front Fender Liner
75392J Retainer, Outside Moulding
75392K Retainer, Outside Moulding, NO.2
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
89C48D Retainer, Ultrasonic Sensor, Front Corner
89C48E Retainer, Ultrasonic Sensor, Front Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
